KBCIX260-PRO-BTGoBook II computer with WLAN and Bluetooth

Intel(R) PRO/Wireless 2200BG User's Guide Your Intel(R) PRO/Wireless 2200BG Network Connection adapter works with either 802.11b or 802.11g wireless standard. Operating at 2.4 GHz frequency at speeds of up to 54 Mbps you can now connect your computer to high-capacity existing 802.11b networks using multiple access points within large or small environments, and also to high-speed 802.11g networks. Your wireless adapter maintains automatic data rate control according to access point location to achieve the fastest possible connection. All your wireless client connections can be easily managed by the Intel(R) PROSet for Wireless utility. Using the Intel(R) PROSet for Wireless Profile Wizard, you can create profiles automatically to suite your specific connection requirements. Enhanced security measures using 802.1x, WPA encryption and authentication, and 128-bit WEP encryption is standard for both 802.11b and 802.11g. Introduction to Wireless Networking Software Installation Using Intel(R) PROSet for Wireless Connecting to a Network Security Overview Setting up Connection Security Troubleshooting Specifications Glossary Customer Support Safety and Regulatory Notices Warranty Adapter Registration Information in this document is subject to change without notice. (c) 2000–2003 Intel Corporation. All rights reserved. Intel Corporation, 5200 N.E. Elam Young Parkway, Hillsboro, OR 97124-6497 USA The copying or reproducing of any material in this document in any manner whatsoever without the written permission of Intel Corporation is strictly forbidden. Intel(R) is a trademark or registered trademark of Intel Corporation or its subsidiaries in the United States and other countries. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Intel disclaims any proprietary interest in trademarks and trade names other than its own. Microsoft and Windows are registered trademarks of Microsoft Corporation. *Other names and brands may be claimed as the property of others. Intel Corporation assumes no responsibility for errors or omissions in this document. Nor does Intel make any commitment to update the information contained herein. September 2003 Back to Contents Page Wireless LAN Overview: Intel(R) PRO/Wireless 2200BG User's Guide About Wireless LAN Technology l Choosing a WLAN l Configuring a WLAN l Identifying a WLAN l Surveying the Site of Your WLAN l Factors Affecting Range A wireless network connects computers without using network cables. Computers use radio communications to send data between each other. You can communicate directly with other wireless computers, or connect to an existing network through a wireless access point. When you set up your wireless adapter, you select the operating mode for the kind of wireless network you want. You can use your wireless adapter to connect to other similar wireless devices that comply with the 802.11 standard for wireless networking. Choosing a Wireless LAN Wireless LANs can operate with or without access points, depending on the number of users in the network. Infrastructure mode uses access points to allow wireless computers to send and receive information. Wireless computers transmit to the access point, the access point receives the information and rebroadcasts it to other computers. The access point can also connect to a wired network or to the Internet. Multiple access points can work together to provide coverage over a wide area. Peer-to-Peer mode, also called Ad Hoc mode, works without access points and allows wireless computers to send information directly to other wireless computers. Ad Hoc Mode is only supported in 802.11b and 802.11g networks. You can use Peer-to-Peer mode to network computers in a home or small office or to set up a temporary wireless network for a meeting. Configuring a Wireless LAN There are three basic components that must be configured for an 802.11 wireless LAN to operate properly: l Network Name: Each wireless network uses a unique Network Name to identify the network. This name is called the Service Set Identifier (SSID). When you set up your wireless adapter, you specify the SSID. If you want to connect to an existing network, you must use the name for that network. If you are setting up your own network you can make up your own name and use it on each computer. The name can be up to 32 characters long and contain letters and numbers. l Profiles: When you set up your computer to access a wireless network, the wireless client manager creates a profile for the wireless settings that you specify. If you want to connect to another network, you can scan for existing networks and make a temporary connection, or create a new profile for that network. After you create profiles, your computer will automatically connect when you change locations. l Security: The 802.11 wireless networks use encryption to help protect your data. Wired equivalent privacy (WEP) uses a 64-bit or 128-bit shared encryption key to scramble data. Before a computer transmits data, it scrambles the data using the secret encryption key. The receiving computer uses this same key to unscramble the data. If you are connecting to an existing network, use the encryption key provided by the administrator of the wireless network. If you are setting up your own network you can make up your own key and use it on each computer. m Wi-Fi Protected Access (WPA) is a security enhancement that strongly increases the level of data protection and access control to a WLAN. WPA mode enforces 802.1x authentication and key-exchange to strengthen data encryption. WPA utilizes its Temporal Key Integrity Protocol (TKIP). TKIP provides important data encryption enhancements that include a per-packet key mixing function, a message integrity check (MIC) named "Michael", an extended initialization vector (IV) with sequencing rules, and a also re-keying mechanism. Using these improvement enhanceme…

Text truncated - open the document above for the full version.

Getting Started Congratulations on your purchase of the Itronix GoBook II computer! Your new GoBook II features the most innovative advances in portable computing technology. It combines state-of-the-art ergonomics with a rugged, durable architecture to provide you with a notebook computer that is compact, powerful, rugged and easy to use. Designed for a wide range of business and personal productivity applications, the GoBook II is an ideal choice for use in applications that require durability and performance. For maximum expandability without compromising portability, the GoBook II has a USB interface and a PC card slot. The high capacity hard disk drive provides you with plenty of storage space for multimedia files and applications. The GoBook II features a standard 87-key Nitevue® keyboard (89-key international). The high- resolution 12.1-inch touch screen LCD panel provides clear and crisp viewing with the convenience of a touch screen. This online document, GoBook II Help , contains all the information you need to set up and use your new GoBook II. It describes all the features of the GoBook II in an easy-to-read yet thorough manner. For information on printing, navigating or otherwise using GoBook II Help see How to Use This Help System. Checklists After opening the package, carefully inspect the contents. Contact your dealer if any items are missing or a ppear damaged. The shipping carton should contain the following: GoBook II™ Help Page 1 of 68GoBook II Help 8/16/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~... STANDARD z The Itronix GoBook II computer z Battery z ADP-90AB or ADP-75FB AC adapter with power cord z 12.1 inch XGA display z Stylus z Shoulder Strap z GoBook II Quick Start Guide OPTIONS The following items are normally optional, but some vendors may include them in the standard package. Some items may not be available in some countries, or some vendors may choose not to carry all the items. z Floppy disk drive z CD-ROM drive z CD-RW Drive z DVD-ROM drive z SVGA display z Soft Handle z Media Bay Li-Ion battery pack (3000 mAhr) z Hard Disk Drive Heater z LCD Heater CAUTION When purchasing any of the accessories listed above, purchase only those accessories that are approved for use with your computer. The above accessories are proprietary items. Your system vendor can obtain these approved accessories. If you use items that are not approved for use with this computer, you may cause your computer to malfunction, or to emit or receive electromagnetic radiation in excess of local regulations. For non-proprietary accessories such as PC Cards or printers, ensure that the accessory functions properly in your computer before making the purchase. Your system vendor may be able to recommend reliable brands and models. Features High Capacity Hard Disk Drive The computer has a high capacity hard disk drive, enabling you to install your favorite programs and store lar ge multimedia files. Page 2 of 68GoBook II Help 8/16/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~... Full Array of Ports and Connectors Your computer includes standard ports for connecting to peripherals such as USB devices and monitors. USB ports allow you to add many types of peripherals. Large SVGA or XGA LCD Your computer has a large, easy to view SVGA or XGA LCD panel. Built-in Microphone and Stereo Speakers The stereo speakers and internal microphone enable you to run a variety of multimedia applications. Function Keys Function keys allow you to suspend your computer, shut the LCDs off, and give you easy control of audio and your monitor. Where to Look For Information About Your Computer This Help System describes the key elements of your computer. New users can find a simple step-by- step orientation in this chapter. About Windows For more extensive information and help about Windows go to Help and Support , found on the Start Menu. Go to Start, Programs, Accessories to open , an online orientation of Windows XP. 72_0103_003 10 December 2002 © 2002 Itronix Corporation. All rights reserved. Precautions You can use your computer under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your computer: z Follow all warnings and instructions noted in this documentation and in the Windows Help and Support, found on the Start Menu. z The first time you use your computer, we recommend that you carefully read the section on Power Mana gementto familiarize yourself with some basic battery information and to ensure GoBook II™ Help Page 3 of 68GoBook II Help 8/16/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~... optimum performance z There is danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. z Do not open the RAM door by yourself. z Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use aerosols, solvents, or strong detergents z Slots and openings in the computer case are for ventilation purposes. Do not block or cover these openings or the system could overheat z On the bottom of the GoBook II, there is a label with information on the power requirements of this system. These requirements must be followed. If you are unsure of your local power supply, consult your dealer or local Power Company z Do not step on or place anything on the power cord z If you use the computer with an extension cord, ensure that the total ampere ratings of all the devices sharing the extension do not exceed the rating of the extension cord or the rating of the wall outlet z Unless instructed, never push foreign objects into the computer through any of the slots or openings. Dangerous voltages are present, which could cause electric shock, …

Text truncated - open the document above for the full version.

Radio Specific Safety Information License Agreement. Itronix hardware products may be reconditioned, or be manufactured from parts and components that may be new, used, rebuilt, or recycled and in some cases, the hardware product may not be new and may have been previously installed. In any event, Itronix warranty terms apply . Trademark and Patent Notice Itronix is a registered trademark of Itronix Corporation. GoBook II is a registered trademark of Itronix Corporation Microsoft, MS, Windows, and MS-DOS are registered trademarks of Microsoft Corporation. IBM is a trademark of International Business Machines Corporation. Warnings and Safety Information WARNING It is important that only authorized Itronix personnel attempt repairs on Itronix equipment as this might void any maintenance contract with y our company . Unauthorized service personnel might be subject to shock hazard on some Itronix equipment if removal of protective covers is attempted. Changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. Internal radio may have an individual FCC Identifiers which are not applicable to this configuration. Only the FCC ID: ( KBCIX260 -PRO-BT) shown on the label located on the bottom of the IX260 Laptop PC is applicable. The IX260 Laptop PC must not be co-located or operating in conjunction with any other antenna or transmitter than specified in the filing . This FCC identifier does include PAN and WLAN Radio's. Cradle option does not support External Antenna's for this FCC Identifier. Safety Information This device contains a WLAN radio transmitter. When using the WLAN transmitter, a minimum separation distance of 20 cm must be maintained between the upper right edge of the display screen and all users/by standers. The WLAN transmitter should be turned off before carrying the Laptop PC order to comply with FCC RF exposure requirements. This device contains a PAN radio transmitter. When using the PAN transmitter, a minimum separation distance of 20 cm must be maintained between the upper left edge of the display screen and all users/by standers. The PAN transmitter should be turned off before carrying the Laptop PC order to comply with FCC RF exposure requirements . Radio Specific Information July 6th 2004 Page 1

EXHIBIT XIII - Cover Letters New Certification Report for the FCC ID: KBCIX260-PRO-BT Cover Letter 1.) Certification Action Requested Cover Letter 2.) Request for Confidentiality under Part 0.459. Cover Letter 3.) ITRONIX Agent Authorization letter allowing Rod Munro to sign FCC Form 731 on behalf of ITRONIX, Corp. Exhibit 13

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 October 6, 2004 RE: FCC ID: KBCIX260-PRO-BT_ATCB001775 Attention: Rod Munro I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that on pages 1 and 2 of the report “Exhibit 6 Test AC Conducted IX260- PRO750BTTEST.pdf” a number of conducted emissions fail average conducted limits. Please remember that the device must pass both the QP and the average limits for conducted. Please retest or provide other data that shows compliance to conducted emissions. 2. Please note that on page 1 of the safety notes sheet for the PAN (Personal Area Network) the document states, “The WLAN transmitter should be turned off before carrying the Laptop PC order to comply with FCC RF exposure requirements”. This should state the PAN transmitter should be turned off..... Please correct to reflect the proper transmitter. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

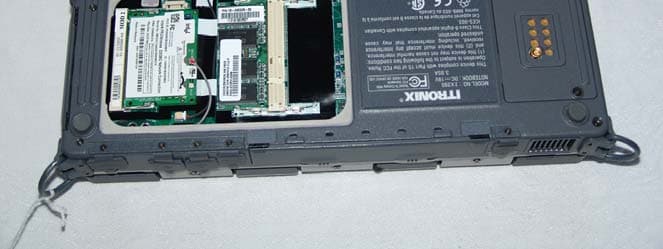

Applicant: ITRONIX, Corp. FCC ID: KBCIX260-PRO750BT Exhibit 3 External Photos I INTEL Pro Model: WM3B2200BG, WLAN location in IX260 EXHIBIT 3 1 Applicant: ITRONIX, Corp. FCC ID: KBCIX260-PRO750BT INTEL Pro Model: WM3B2200BG, with labels front and back INTEL Pro Model: WM3B2200BG, without labels front and back EXHIBIT 3 2

© 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260A750MPIBT (Model: IX260) Rugged Laptop PC with PCS GSM/GPRS Modem co-located with WLAN & Bluetooth Transmitter Test Report S/N: 071603-405/406/407KBC EXTERNAL EUT PHOTOGRAPHS © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260A750MPIBT (Model: IX260) Rugged Laptop PC with PCS GSM/GPRS Modem co-located with WLAN & Bluetooth Transmitter Test Report S/N: 071603-405/406/407KBC EXTERNAL EUT PHOTOGRAPHS © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260A750MPIBT (Model: IX260) Rugged Laptop PC with PCS GSM/GPRS Modem co-located with WLAN & Bluetooth Transmitter Test Report S/N: 071603-405/406/407KBC EXTERNAL EUT PHOTOGRAPHS

Applicant: ITRONIX, Corp. FCC ID: KBCIX260-PRO-BT LIST OF EXHIBITS DESCRIPTION EXHIBITS REFERENCE I. Identification label Information 1 2.1033 (b) 7 & 2.925 & General Information 1A 1. Production Plans 2.1031 2. Application References N/A 3. Data submittal Procedure 4. Similar Certified Transmitter II. Certification Data 2 III. External Photographs 3 2.1033 (b) 7 IV. Block Diagrams (Circuit Diagrams) -confidential 4 2.1033 (b) 5 V. Schematic Diagrams & Antenna Assembly -confidential 5 2.1033 (b) 5 VI. Supplemental Test Report WLAN 6 2.1033 (b) 6 Part 15.247 – DTS, WLAN IX 260 Supplemental EMC Test Report, For a previously Certified WLAN Intentional Radiator Module INTEL, Corp. FCC ID: PD9WM3B2200BG with the Rangestar antenna 1) Reference Conducted RF Power Output Part 15.247(b) and Equivalent Isotropic Radiated Power 2) Field Strength of Three Fundamental Operating Frequencies 3) Radiated Harmonics and Spurious Emissions 802.11(b) mode 4) Radiated Harmonics and Spurious Emissions 802.11(g) mode 5) Band Edge measurements 802.11(b) mode 6) Band Edge measurements 802.11(g) mode 7) AC Power Line Conducted Emissions 150 kHz – 30 MHz, Part 15.107(a) 8) Radiated Spurious Emissions 30 – 1000 MHz, Part 15.209 (a) Note: We reference some of the original test report exhibits for items Required by Part 15.247 (a), (b (1)), (d). Exhibit 1 1 Applicant: ITRONIX, Corp. FCC ID: KBCIX260-PRO-BT DESCRIPTION EXHIBITS REFERENCE VI. Test Report Bluetooth Original ITRONIX Certification 6 2.1033 (b) 6 Part 15.247 – FHSS, Complete EMC Test Report for the previously Certified Bluetooth, Intentional Radiator Module, Mutsumi, Elec. Co., Ltd., FCC ID: POOWML-C11XX, Model: WML-C11NU. Installed in the IX260 and Certified under the FCC ID: KBCIX260MPIA750BT. Eleven Common Bluetooth Items 6 Six tests required 6 15.247 (a, b, c, g, h) 1) The Occupied Bandwidth Section 15.247(a) ii 2) Conducted Output Power Section 15.247(b) 1 3) EIRP limit Section 15.247(b) 3 4) RF safety Section 15.247(b) 4 see Exhibit XII 5) Spurious Emissions Section 15.247 (c) 6) Power Spectral Density in Acquisition Mode VII. Test Set-up Procedures 7 2.1041 VIII. Instruction Manual 8 2.1033 (b) 3 IX. Internal Photographs 9 2.1033 (b) 7 X. Part List and Tune Up Procedures -confidential 10 2.1033 XI. MPE RF Exposure Information 11 2.1093 & 15.247 (b)4 XII. Operational Description -confidential 12 2.1033 (b) 1, 2, 4, 8 Antenna Requirements 12 15.203 XIII. Cover Letter, Action Requested 13 Cover Letter, Request For Confidentiality 13 Cover Letter, Authorization to sign FCC Form 731 13 Please NOTE: Exhibits 4, 5 and 10 & 12 are requested to held confidential EXHIBIT 1. FCC and INDUSTRY CANADA IDENTIFICATION LABEL The FCC Identifier label required under Section: 47 CFR, 2.1033(c) 11 for the FCC ID: KBCIX260-PRO-BT is located on page following. The IC Identifier required by RSP-100 is also displayed. Exhibit 1 2 Applicant: ITRONIX, Corp. FCC ID: KBCIX260-PRO-BT FCC ID label location on the bottom side of IX260 PC FCC ID label is the large label, with a silver background and black lettering, located right of center, between the covers labeled RAM and BATTERY. II II V Note: Part 15.19 labeling requirement and compliance statement, located in upper left side, black label. Sample of the label text is below. Exhibit 1 3

Top View “Shielding removed”

© 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260A750MPIBT (Model: IX260) Rugged Laptop PC with PCS GSM/GPRS Modem, WLAN, & Bluetooth Transmitter Test Report S/N: 071603-407KBC INTERNAL EUT PHOTOGRAPHS Co-located Bluetooth Transmitter Bluetooth Transmitter Bluetooth Transmitter © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260A750MPIBT (Model: IX260) Rugged Laptop PC with PCS GSM/GPRS Modem, WLAN, & Bluetooth Transmitter Test Report S/N: 071603-407KBC Right Side WLAN Antenna Left Side Bluetooth Antenna INTERNAL EUT PHOTOGRAPHS Internal Antennas for Co-located WLAN Card and Bluetooth Transmitter Distance at LCD back-side between dipole antenna feed/swivel-joint and WLAN and Bluetooth antennas © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260A750MPIBT (Model: IX260) Rugged Laptop PC with PCS GSM/GPRS Modem, WLAN, & Bluetooth Transmitter Test Report S/N: 071603-407KBC Distance at LCD back-side between dipole antenna feed/swivel-joint and Bluetooth left-side antenna INTERNAL EUT PHOTOGRAPHS Internal Antenna for Co-located WLAN Card and Bluetooth Transmitter Distance at LCD back-side between dipole antenna feed/swivel-joint and WLAN right-side antenna © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260A750MPIBT (Model: IX260) Rugged Laptop PC with PCS GSM/GPRS Modem, WLAN, & Bluetooth Transmitter Test Report S/N: 071603-407KBC Back of LCD Display - Left-Side Antenna Back of LCD Display - Right-Side Antenna INTERNAL EUT PHOTOGRAPHS Internal Antenna for Co-located WLAN Card and Bluetooth Transmitter © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260A750MPIBT (Model: IX260) Rugged Laptop PC with PCS GSM/GPRS Modem, WLAN, & Bluetooth Transmitter Test Report S/N: 071603-407KBC INTERNAL EUT PHOTOGRAPHS Co-located Bluetooth Transmitter

Applicant: ITRONIX, Corp. FCC ID: KBCIX260-PRO-BT EXHIBIT 11 - MPE CALCULATION DATA FCC ID: KBCIX260-PRO-BT Applicant: ITRONIX, Corp. Model: IX260 with the two co-located transmitters listed below 1.) INTEL PRO WM3B2200BG, WLAN with Rangestar antenna PN: 100929 Tx Freq: 2437 MHz Max Peak Power @ antenna terminal input: 17.41 dBm Antenna Gain: 4.5 dBi -supporting MPE calculations on page 2. 2.) MITSUMI Electric Co., Ltd, WML-C11NU, Bluetooth with Rangestar antenna PN: 100929 Tx Freq: 2402 MHz Max Peak Power @ antenna terminal input: 14.46 dBm Antenna Gain 4.5 dBi -supporting MPE calculations on page 2. The WLAN and Bluetooth Intentional Radiators can transmit at the same time, so multiple frequency exposure information is provided for this combination. The MPE calculations are submitted for multiple frequency exposure criteria. The ratio of the field strength or power density to the applicable exposure limit at the exposure location was determined for each transmitter below and the sum of these ratios does not exceed the 1 mW/cm^2 limit for uncontrolled exposure / general population exposure limits detailed in CFR 47, Part 1.1310. 1.) Multiple Frequency Exposure Requirements WLAN & BT Exhibit 11 1 Ratio 1 Ratio 2 Limit WLAN Bluetooth 0.031/1 0.016/1 <1.0 = 0.031 = 0.016 <1.0 Sum = 0.047 (mW/cm^2) <1.0 Applicant: ITRONIX, Corp. FCC ID: KBCIX260-PRO-BT Prediction of MPE Limit OET Bulletin 65, Edition 97-01 ________ S = PG/4 πR 2 R = √ PG/4πS S= power density P= power input to the antenna G= power gain of the antenna in the direction of interest relative to an isotropic radiator R= distance to the center of radiation of the antenna MPE General Population/Uncontrolled INTEL PRO WLAN Tx. Frequency: 2437.00 MHz Max. Peak Power Antenna Input Terminal: 17.41 dBm Antenna gain: 4.5 dBi S= 1.00 (mW/cm^2) P= 55.0808 (mW) G= 2.82 (numeric) R = 3.51 (cm) Field Density S (mw/cm^2) at 20cm = 0.030850298 (mw/cm^2) MITSUMI BLUETOOTH Tx. Frequency: 2402.00 MHz Max. Peak Power Antenna Input Terminal: 14.16 dBm Antenna gain: 4.50 dBi S= 1.00 (mW/cm^2) P= 27.9254 (mW) G= 2.82 (numeric) R = 2.50 (cm) Field Density S (mw/cm^2) at 20cm = 0.01564815 (mw/cm^2) Exhibit 11 2

Page 1 of 15 Report Number: INTEL-031111F FCC ID: PD9WM3B2200BG Modular Approval Test Report And Application for Grant of Equipment Authorization Pertaining To: EUT FCC ID: 802.11b/g MiniPCI Type 3B Wireless Adapter, MN: WM3B2200BG PD9WM3B2200BG Configuration 802.11b / 802.11g MEASUREMENTS PERFORMED IN ACCORDANCE WITH Regulatory Standard(s) 47 CFR Part 15, Subpart C Section 15.247 Test Method: ANSI C63.4: 1992 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Certificate Number: 1111.01 APPLICANT: PREPARED BY: Intel Corporation Aegis Labs, Inc. EC2-02 13280 Evening Creek Drive 22431 Antonio Parkway B160-417 San Diego, California 92128 Rancho S. Margarita, CA 92688 Contact(s): Mr. James K. Baer Agent(s): Mr. Steve Kuiper Mr. Rick Candelas Test Report #: INTEL-031111F APPENDICES REPORT BODY A TOTAL PAGES PAGES 15 81 96 Test Report Revision: Rev. C, 12-12-2003 The contents of this report shall not be reproduced except in full, without the written approval of Aegis Labs, Inc. Page 2 of 15 Report Number: INTEL-031111F FCC ID: PD9WM3B2200BG TABLE OF CONTENTS SECTION TITLE PAGE COVER SHEET.................................................................................... 01 TABLE OF CONTENTS............................................................................................... 02 1.0 CERTIFICATION OF TEST DATA............................................................................. 03 2.0 SUMMARY OF TEST RESULTS.............................................................. 04 3.0 ADMINISTRATIVE DATA AND TEST DESCRIPTION.......................................... 05 4.0 DESCRIPTION OF EUT..................................................................................... 06 4.1 EUT Description..................................................................................... 06 4.1.1 Channel Number and Frequencies................................................................ 07 4.2 EUT Configuration.................................................................................. 08 4.3 List of EUT Sub-Assemblies and Host Equipment...................................................... 09 4.4 I/O Cabling Diagram and Description............................................................................. 10 5.0 TEST EQUIPMENT AND TEST SETUPS............................................................... 11 5.1 AC Power Line Conducted Emissions............................................................ 11 5.2 Spurious Radiated Emissions...................................................................... 12 5.3 Conducted Emissions At The Antenna Port.................................................................... 12 5.4 Test and Measurement Equipment Used......................................................... 13 6.0 SAMPLE CALCULATIONS.......................................................................................... 14 7.0 MODIFICATIONS AND RECOMMENDATIONS........................................ 15 APPENDICES A Test Data Page 3 of 15 Report Number: INTEL-031111F FCC ID: PD9WM3B2200BG 1.0 CERTIFICATION OF TEST DATA Aegis Labs, Inc. operates as both a Nevada and California Corporation with no organizational or financial relationship with any company, institution, or private individual. Testing and engineering functions provided by Aegis Labs are furnished through the use of part-time, full-time or consulting engineers with the appropriate qualifications to carry out their duties. The intended purpose of this test report is to describe the measurement procedure and to determine whether the equipment under test “EUT” complies with both the conducted and radiated limits. Limits for emissions testing are described under Subpart C of Part 15 of the FCC rules. The data, data evaluation and equipment configuration represented herein are a true and accurate representation of the Equipment Under Test (EUT) under the requirements specified in the emissions standard as described below. The test results contained in this report are only representative of the test sample tested as described in Section 3.0 of this report. Certification of the EUT is required as a prerequisite to marketing as defined in Part 2 of the FCC Rules. Prepared By: ________________________11/19/03 Rick Candelas Date: Staff Engineer Aegis Labs, Inc. Report Approved By: ________________________11/19/03 Steve J. Kuiper Date: Quality Assurance Manager Aegis Labs, Inc. Page 4 of 15 Report Number: INTEL-031111F FCC ID: PD9WM3B2200BG 2.0 SUMMARY OF TEST RESULTS The test results provided within this report, indicate that the EUT has been found to be in COMPLIANCE with the test specifications based upon the following RF compliance standards: Pass/Fail determination is based upon the nominal values of the test data. EMISSIONS STANDARD FCC Part 15 Section Description Results Comments 15.247(a)(2) The minimum 6dB bandwidth shall be at least 500 kHz. PASSED See Data Sheets 15.247(b)(1) The maximum peak output power of the intentional radiator shall not exceed 1 watt. PASSED See Data Sheets 15.247(b)(4) The intentiona…
