KBCIX260AC300Rugged Laptop with Internal CDPD PCMCIA Modem Card

Getting Started Congratulations on your purchase of the Itronix GoBook II computer! Your new GoBook II features the most innovative advances in portable computing technology. It combines state-of-the-art ergonomics with a rugged, durable architecture to provide you with a notebook computer that is compact, powerful, rugged and easy to use. Designed for a wide range ofbusiness and personal productivity applications, the GoBook II is an ideal choice for use in applications that require durability and performance. For maximum expandability without compromising portability, the GoBook II has a USB interface and aPC card slot. The high capacityhard diskdrive provides you with plenty of storage space for multimedia files and applications. The GoBook II features a standard 87-key Nitevue® keyboard (89-key international). The high- resolution 12.1-inch touch screen LCD panel provides clear and crisp viewing with the convenience of a touch screen. This online document,GoBook II Help, contains all the information you need to set up and use your new GoBook II. It describes all the features of the GoBook II in an easy-to-read yet thorough manner. For information on printing, navigating or otherwise usingGoBook II HelpseeHow to Use This Help System. GoBook II™ Help Page 1 of 75GoBook II Help 3/8/2003file://C:\Documents%20and%20Settings\harwoodm\Local%20Settings\Temp\~hh1912.htm Checklists After opening the package, carefully inspect thecontents. Contact your dealer if any items are missing or appear damaged. The shipping carton should contain the following: STANDARD
The Itronix GoBook II computer
Battery
ADP-90AB or ADP-75FB AC adapter with power cord
12.1 inchXGA display
Stylus
Shoulder Strap
GoBook II Quick Start Guide OPTIONS The following items are normally optional, but somevendors may include them in the standard package. Some items may not be available in some countries, or some vendors may choose not to carry all the items.
Floppy disk drive
CD-ROM drive
CD-RW Drive
DVD-ROM drive
SVGA display
Soft Handle
Media Bay Li-Ion battery pack (3000 mAhr)
Hard Disk Drive Heater
LCD Heater CAUTION When purchasing any of the accessories listed above, purchase only those accessories that are approved for use with your computer. The above accessories are proprietary items. Your system vendor can obtain these approved accessories. If youuse items that are not approved for use with this com puter,you maycauseyour computer to malfunction, or to emit or receive electromagnetic radiation Page 2 of 75GoBook II Help 3/8/2003file://C:\Documents%20and%20Settings\harwoodm\Local%20Settings\Temp\~hh1912.htm in excess of local regulations. For non-proprietary accessories such as PC Cards or printers, ensure that the accessory functions properly in your computerbefore making the purchase. Your system vendor may be able to recommend reliable brands and models. Features High Capacity Hard Disk Drive The computer has a high capacity hard disk drive, enabling you to install your favorite programs and store large multimedia files. Full Array of Ports and Connectors Your computer includes standard ports for connecting to peripherals such as USB devices and monitors. USB ports allow you to add many types of peripherals. Large SVGA or XGA LCD Your computer has a large, easyto view SVGA or XGA LCD panel. Built-in Microphone and Stereo Speakers The stereo speakers and internal microphone enable you to run a variety of multimedia applications. Function Keys Function keys allow you to suspend your computer, shut the LCDs off, and give you easy control of audio and your monitor. Where to Look For Information About Your Computer This Help System describes the key elements of your computer. New users can find a simple step-by- step orientation in this chapter. About Windows For more extensive information and help about Windows go toHelp and Support , found on the Start Menu. Go to Start, Programs, Accessories to open, an online orientation of Windows XP. 72_0103_003 10 December 2002 © 2002 Itronix Corporation. All rights reserved. Page 3 of 75GoBook II Help 3/8/2003file://C:\Documents%20and%20Settings\harwoodm\Local%20Settings\Temp\~hh1912.htm Precautions You can use your computer under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your computer:
Follow all warnings and instructions noted in this documentation and in the WindowsHelp and Support, found on the Start Menu.
The first time you use your computer, we recommend that you carefully read the section on Power Management to familiarize yourself with some basic battery information and to ensure optimum performance
There is danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.
Do not open the RAM door by yourself.
Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use aerosols, solvents, or strong detergents
Slots and openings in the computer case are for ventilation purposes. Do not block or cover these openings or the system could overheat
On the bottom of the GoBook II, there is a label with information on the power requirements of this system. These requirements must be followed. If you are unsure of your local power supply, consult your dealer or local Power Company
Do not step on or place anything on the power cord
If you use the computer with an extension cord, ensure that the total ampere ratings of all the devices sharing the extension do not exceed the rating of the extension cord or the rating of the wall outlet
Unless instructed, never push foreign objects into the computer through any of the slots or openings. Dangerous voltages are present, which could cause electric shock, fire, or damage sensitive components
For b…

Text truncated - open the document above for the full version.

801 S. STEVENS STREET SPOKANE, WA 99204 509.624.6600 800.441.1309 FAX 509.626.4203 www.itronix.com February 11, 2003 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Itronix Corporation FCC ID: KBCIX260AC300 FCC Part 22.901(d) Certification Request for Confidentiality In accordance with 0.459 of CFR 47, Itronix Corporation hereby requests confidentiality of the Block Diagram, Circuit Diagram(s), Parts List, Tune-Up Procedure, Operational Description, and Antenna Specifications attachments for the subject application. These documents contain detailed system and equipment description and related information about the product in which Itronix Corporation considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Itronix Corporation considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely,

Celltech Labs Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-448-7047 • Fax. 250-448-7046 • e-mail: [email protected] www.celltechlabs.com March 12, 2003 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue, Suite C110 McLean, VA 22101 SUBJECT: ITRONIX CORPORATION FCC ID: KBCIX260AC300 Part 22.901(d) - Certification Gentlemen: On behalf of Itronix Corporation is an application for Part 22 Certification of Itronix IX260 Rugged Laptop PC with internal CDPD PCMCIA Modem Card Models: AirCard 300, AirCard 350 manufactured by Sierra Wireless, Inc. (FCC ID: N7NACRD2, originally granted January 25, 1999). The tests in this filing were performed with the AirCard 300 radio. The AirCard 300 and 350 models are electrically and mechanically identical except for minor software changes. Model: IX260 Equipment Class: Licensed Non-Broadcast Station Transmitter (TNB) Equipment Type: Rugged Laptop PC with internal CDPD PCMCIA Modem Card Emission Designator: 31K5FXW Tx Freq. Range: 824.04 - 848.97 MHz Conducted Power Tested: 28.0 dBm Max. RF Output Power: 0.491 Watts ERP Max. SAR Measured: 1.17 W/kg (1g average) Antenna Type(s): External Dipole Attached is the confidentiality request, Part 22.901(d) EMC measurement report data and photographs, RF exposure SAR measurement report data & photographs, FCC ID label and location, internal and external photographs, block diagram (confidential), circuit diagram(s) (confidential), parts list (confidential), tune-up procedure (confidential), operational description (confidential), antenna specifications (confidential), and the user's manual with RF exposure warning statement. If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jonathan Hughes General Manager Celltech Labs Inc. cc: Itronix Corporation

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 March 17, 2003 RE: FCC ID: KBCIX260AC300 Attention: Jon Hughes I have a few comments on this Application. 1. Please note that the manual states,“ Since each customer’s radio configuration is unique please refer to the manufacturer documentation to setup and use your radio(s).” However, the Sierra configuration documentation has not been provided for the laptop tested. Please provide this information that would normally be provided to the user. Alternately, please explain why it has not been provided. 2. Please note that the manual states, “For specific information about your CDPD radio please refer to the manufacturer's documentation. Sierra Wireless AC300/350” The Sierra Wireless information provided is confidential. What information is this referring to? Please provide the information that the user is expected to to use for information on the transmitter in this computer. Alternately, please explain in the manual the information needed - or explain why no information is needed or provided. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

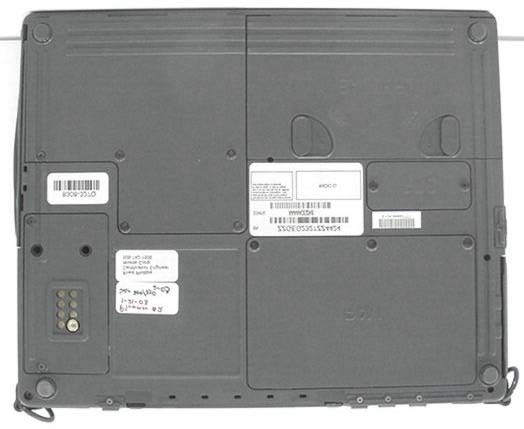

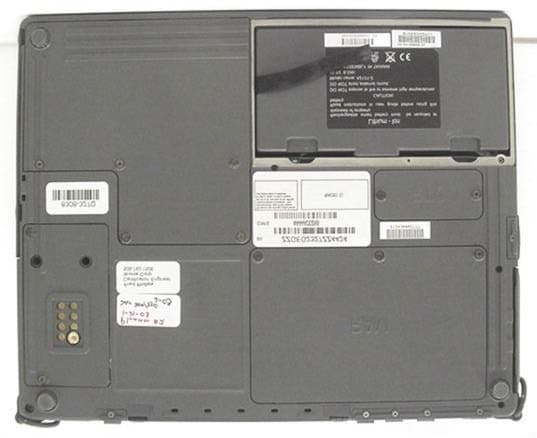

© 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC300 Rugged Laptop PC with CDPD PCMCIA Modem Card EXTERNAL EUT PHOTOGRAPHS © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC300 Rugged Laptop PC with CDPD PCMCIA Modem Card EXTERNAL EUT PHOTOGRAPHS © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC300 Rugged Laptop PC with CDPD PCMCIA Modem Card EXTERNAL EUT PHOTOGRAPHS © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC300 Rugged Laptop PC with CDPD PCMCIA Modem Card EXTERNAL EUT PHOTOGRAPHS

© 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260AC300 Rugged Laptop PC with CDPD PCMCIA Modem Card FCC ID LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The label shall be permanently affixed at a conspicuous location on the device. SEE NEXT PAGE(S) FOR PART 22 LABEL SEE NEXT PAGE(S) FOR PART 15(B) DoC LABEL Corporation Design Color Requirement: P FCC Label For P16 Background : TCG-426P Text : Pantone 441C P16 Wen Fu Chieng PC , Thickness 0.8mm 1 : 1 1 1 08 / 19 / 02 63-040210-00 0 63-040210-00 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made in Taiwan MODEL NO. : IX260 FOR HOME OR OFFICE USE FCC Standards Tested To Comply With C US LR86520 NOTEBOOK : DC 19V 3.95A E4309 ICES-003. NMB-003 du Canada. Cet appareil numerique de la classe B est conforme a la norme This Class B digital apparatus complies with Canadian ` ` X260)(I

© 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC300 Rugged Laptop PC with CDPD PCMCIA Modem Card INTERNAL EUT PHOTOGRAPHS © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC300 Rugged Laptop PC with CDPD PCMCIA Modem Card INTERNAL EUT PHOTOGRAPHS © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC300 Rugged Laptop PC with CDPD PCMCIA Modem Card INTERNAL EUT PHOTOGRAPHS Figure 1: PCBA Top Side Figure 2: PCBA Bottom Side

Test Report S/N: 021103-334KBC Test Date(s): February 11, 2003 FCC/IC SAR Evaluation © 2003 Celltech Labs Inc.1 of 21 Celltech Labs Inc. declares under its sole responsibility that this device was found to be in compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C, Edition 01-01 and Industry Canada RSS-102 Issue 1 - Provisional (General Population / Uncontrolled Exposure). I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell Pipe Senior Compliance Technologist Celltech Labs Inc. DECLARATION OF COMPLIANCE SAR EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone:250-448-7047 Fax:250-448-7046 e-mail:[email protected] web site:www.celltechlabs.com Applicant Information ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99204 Rule Part(s):FCC 47 CFR §2.1093; IC RSS-102 Issue 1 (Provisional) Test Procedure(s):FCC OET Bulletin 65, Supplement C (01-01) FCC Device Classification:Licensed Non-Broadcast Station Transmitter (TNB) IC Device Classification:Data Transmitter in Cellular Mobile Band FCC ID:KBCIX260AC300 Model(s):IX260 Device Type:Rugged Laptop PC with Sierra Wireless AirCard 300/350 CDPD Modem Tx Frequency Range:824.04 - 848.97 MHz RF Output Power Tested:28.0 dBm (Conducted) Antenna Type:External Dipole Battery Type:11.1V Lithium-Ion, 6.0Ah (Model: A2121-2) Max. SAR Measured:1.17 W/kg (1g average) Test Report S/N: 021103-334KBC Test Date(s): February 11, 2003 FCC/IC SAR Evaluation © 2003 Celltech Labs Inc.2 of 21 TABLE OF CONTENTS 1.0INTRODUCTION..................................................................... 3 2.0DESCRIPTION OF EUT............................................................ 3 3.0SAR MEASUREMENT SYSTEM ............................................... 4 4.0MEASUREMENT SUMMARY..................................................... 5 5.0DETAILS OF SAR EVALUATION............................................... 6 6.0EVALUATION PROCEDURES................................................... 6-7 7.0SYSTEM PERFORMANCE CHECK............................................ 8 8.0EQUIVALENT TISSUES........................................................... 9 9.0SAR LIMITS........................................................................... 9 10.0SYSTEM SPECIFICATIONS...................................................... 10 11.0PROBE SPECIFICATION.......................................................... 11 12.0SAM PHANTOM...................................................................... 11 13.0DEVICE HOLDER.................................................................... 11 14.0TEST EQUIPMENT LIST........................................................... 12 15.0MEASUREMENT UNCERTAINTIES............................................ 13 16.0REFERENCES........................................................................ 14 APPENDIX A - SAR MEASUREMENT DATA............................................. 15 APPENDIX B - SYSTEM CHECK DATA.................................................... 16 APPENDIX C - SYSTEM VALIDATION..................................................... 17 APPENDIX D - PROBE CALIBRATION.................................................... 18 APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS................ 19 APPENDIX F - SAM PHANTOM CERTIFICATE OF CONFORMITY.............. 20 APPENDIX G - SAR TEST SETUP PHOTOGRAPHS.................................. 21 Test Report S/N: 021103-334KBC Test Date(s): February 11, 2003 FCC/IC SAR Evaluation © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC3003 of 21 Rugged Laptop PC with CDPD PCMCIA Modem Card 1.0 INTRODUCTION This measurement report demonstrates that the ITRONIX CORPORATION Model: IX260 Rugged Laptop PC with Sierra Wireless AirCard 300/350 CDPD PCMCIA Modem Card FCC ID: KBCIX260AC300 complies with the RF exposure requirements specified in FCC 47 CFR §2.1093 (see reference [1]) and Health Canada Safety Code 6 (see reference [2]) for the General Population environment. The test procedures described in FCC OET Bulletin 65, Supplement C, Edition 01-01 (see reference [3]) and IC RSS-102 Issue 1 (Provisional) (see reference [4]), were employed. A description of the product, operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION of Equipment Under Test (EUT) FCC Rule Part(s)47 CFR §2.1093 IC Rule Part(s)IC RSS-102 Issue 1 (Provisional) Test ProcedureFCC OET Bulletin 65, Supplement C (01-01) FCC Device ClassificationLicensed Non-Broadcast Station Transmitter (TNB) IC Device ClassificationData Transmitter in Cellular Mobile Band Device Type Rugged Laptop PC with Sierra Wireless AirCard 300/350 CDPD PCMCIA Modem Card FCC IDKBCIX260AC300 Model(s)IX260 Serial No.Pre-production ModulationGMSK Tx Frequency Range824.04 - 848.97 MHz RF Output Power Tested28.0 dBm (Conducted) Antenna TypeExternal Dipole (Length: 4.3 inches) Battery Type11.1V Lithium-Ion, 6.0Ah (Model: A2121-2) Test Report S/N: 021103-334KBC Test Date(s): February 11, 2003 FCC/IC SAR Evaluation © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC3004 of 21 Rugged Laptop PC with CDPD PCMCIA Modem Card 3.0 SAR MEASUREMENT SYSTEM Cellt…

Text truncated - open the document above for the full version.

Test Report S/N: 021103-334KBC Test Date(s): February 11, 2003 FCC/IC SAR Evaluation © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC30015 of 21 Rugged Laptop PC with CDPD PCMCIA Modem Card APPENDIX A - SAR MEASUREMENT DATA Itronix Corporation FCC ID: KBCIX260AC300 SAM Phantom; Flat Section; Position: (0°,0°) Probe: ET3DV6 - SN1590; ConvF(6.70,6.70,6.70); Crest factor: 1.0 835 MHz Muscle: σ = 0.97 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 1.02 mW/g, SAR (10g): 0.662 mW/g Body SAR - Back of LCD Display (Closed Position) Antenna Parallel to Planar Phantom (Stowed Position) 1.0 cm Separation Distance from Back of LCD Display to Planar Phantom Itronix IX260 Rugged Laptop PC with Sierra Wireless AirCard 300 CDPD PCMCIA Modem Card Continuous Wave Mode Channel 991 [824.04 MHz] Conducted Power: 28.0 dBm Ambient Temp: 23.2°C; Fluid Temp: 21.2°C Date Tested: February 11, 2003 SAR Tot [mW/g] 6.85E-22.06E-13.42E-14.80E-16.17E-17.54E-18.91E-1 02/11/03Celltech Labs Inc. A ntenna Itronix Corporation FCC ID: KBCIX260AC300 SAM Phantom; Flat Section; Position: (0°,0°) Probe: ET3DV6 - SN1590; ConvF(6.70,6.70,6.70); Crest factor: 1.0 835 MHz Muscle: σ = 0.97 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Body SAR - Back of LCD Display (Closed Position) Antenna Parallel to Planar Phantom (Stowed Position) 1.0 cm Separation Distance from Back of LCD Display to Planar Phantom Itronix IX260 Rugged Laptop PC with Sierra Wireless AirCard 300 CDPD PCMCIA Modem Card Continuous Wave Mode Channel 991 [824.04 MHz] Conducted Power: 28.0 dBm Ambient Temp: 23.2°C; Fluid Temp: 21.2°C Date Tested: February 11, 2003 SAR Tot [mW/g] 2.14E-46.43E-41.07E-31.50E-31.93E-32.36E-32.79E-3 02/11/03Celltech Labs Inc. Coarse scan to show Left Half of LCD Display Itronix Corporation FCC ID: KBCIX260AC300 SAM Phantom; Flat Section; Position: (0°,0°) Probe: ET3DV6 - SN1590; ConvF(6.70,6.70,6.70); Crest factor: 1.0 835 MHz Muscle: σ = 0.97 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 0.778 mW/g, SAR (10g): 0.508 mW/g Body SAR - Back of LCD Display (Closed Position) Antenna Parallel to Planar Phantom (Stowed Position) 1.0 cm Separation Distance from Back of LCD Display to Planar Phantom Itronix IX260 Rugged Laptop PC with Sierra Wireless AirCard 300 CDPD PCMCIA Modem Card Continuous Wave Mode Channel 383 [836.49 MHz] Conducted Power: 28.0 dBm Ambient Temp: 23.2°C; Fluid Temp: 21.2°C Date Tested: February 11, 2003 SAR Tot [mW/g] 5.34E-21.60E-12.67E-13.74E-14.81E-15.88E-16.95E-1 02/11/03Celltech Labs Inc. A ntenna Itronix Corporation FCC ID: KBCIX260AC300 SAM Phantom; Flat Section; Position: (0°,0°) Probe: ET3DV6 - SN1590; ConvF(6.70,6.70,6.70); Crest factor: 1.0 835 MHz Muscle: σ = 0.97 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 0.684 mW/g, SAR (10g): 0.443 mW/g Body SAR - Back of LCD Display (Closed Position) Antenna Parallel to Planar Phantom (Stowed Position) 1.0 cm Separation Distance from Back of LCD Display to Planar Phantom Itronix IX260 Rugged Laptop PC with Sierra Wireless AirCard 300 CDPD PCMCIA Modem Card Continuous Wave Mode Channel 799 [848.97 MHz] Conducted Power: 28.0 dBm Ambient Temp: 23.2°C; Fluid Temp: 21.2°C Date Tested: February 11, 2003 SAR Tot [mW/g] 4.62E-21.39E-12.31E-13.24E-14.16E-15.08E-16.01E-1 02/11/03Celltech Labs Inc. A ntenna Itronix Corporation FCC ID: KBCIX260AC300 SAM Phantom; Flat Section; Position: (0°,0°) Probe: ET3DV6 - SN1590; ConvF(6.70,6.70,6.70); Crest factor: 1.0 835 MHz Muscle: σ = 0.97 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 0.0807 mW/g, SAR (10g): 0.0559 mW/g Body SAR - Back of LCD Display (Closed Position) Antenna Perpendicular to Planar Phantom (180°) 1.0 cm Separation Distance from Back of LCD Display to Planar Phantom Itronix IX260 Rugged Laptop PC with Sierra Wireless AirCard 300 CDPD PCMCIA Modem Card Continuous Wave Mode Channel 383 [836.49 MHz] Conducted Power: 28.0 dBm Ambient Temp: 23.2°C; Fluid Temp: 21.2°C Date Tested: February 11, 2003 SAR Tot [mW/g] 5.93E-31.78E-22.96E-24.15E-25.34E-26.52E-27.71E-2 02/11/03Celltech Labs Inc. A ntenna Itronix Corporation FCC ID: KBCIX260AC300 SAM Phantom; Flat Section; Position: (0°,0°) Probe: ET3DV6 - SN1590; ConvF(6.70,6.70,6.70); Crest factor: 1.0 835 MHz Muscle: σ = 0.97 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 0.0634 mW/g, SAR (10g): 0.0461 mW/g Body SAR - Bottom of Laptop PC (LCD Display Closed Position) Antenna Parallel to Planar Phantom (Stowed Position) 0.0 cm Separation Distance from Bottom of Laptop PC to Planar Phantom Itronix IX260 Rugged Laptop PC with Sierra Wireless AirCard 300 CDPD PCMCIA Modem Card Continuous Wave Mode Channel 383 [836.49 MHz] Conducted Power: 28.0 dBm Ambient Temp: 23.2°C; Fluid Temp: 21.2°C Date Tested: February 11, 2003 SAR Tot [mW/g] 4.64E-31.39E-22.32E-23.25E-24.18E-25.11E-26.04E-2 02/11/03Celltech Labs Inc. A ntenna Itronix Corporation FCC ID: KBCIX260AC300 SAM Phantom; Flat Section; Position: (0°,0°) Probe: ET3DV6 - SN1590; ConvF(6.70,6.70,6.70); Crest factor: 1.0 835 MHz Muscle: σ = 0.97 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 0.138 mW/g, SAR (10g): 0.0900 mW/g Body SAR - Bottom of Laptop PC (LCD Display Closed Position) Antenna Perpendicular to Planar Phantom (Extended Position) 0.0 cm Separation Distance from Bottom of Laptop PC to Planar Phantom Itronix IX260 Rugged Laptop PC with Sierra Wireless AirCard 300 CDPD PCMCIA Modem Card Continuous Wave Mode Channel 383 [836.49 MHz] Conducted Power: 28.0 dBm Ambient Temp: 23.2°C; Fluid Temp: 21.2°C Date Tested: February 11, 2003 SAR Tot [mW/g] 1.07E-23.21E-25.36E-27.50E-29.64E-21.18E-11.39E-1 02/11/03Celltech Labs Inc. A ntenna Itronix Corporation FCC ID: KBCIX260AC300 SAM Phantom; Flat Section; Position: (0°,0°) P…

Text truncated - open the document above for the full version.

Test Report S/N: 021103-334KBC Test Date(s): February 11, 2003 FCC/IC SAR Evaluation © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC30021 of 21 Rugged Laptop PC with CDPD PCMCIA Modem Card APPENDIX G - SAR TEST SETUP PHOTOGRAPHS © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC300 Rugged Laptop PC with CDPD PCMCIA Modem Card BODY SAR TEST SETUP PHOTOGRAPHS Back of LCD Display (Closed) - Antenna Parallel to Planar Phantom (Stowed Position) 1.0cm Separation Distance from Back of LCD to Planar Phantom 1.0 cm 1.0 cm 1.0 cm © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC300 Rugged Laptop PC with CDPD PCMCIA Modem Card BODY SAR TEST SETUP PHOTOGRAPHS Back of LCD Display (Closed) - Antenna Perpendicular to Planar Phantom (180 ° ) 1.0cm Separation Distance from Back of LCD to Planar Phantom 1.0 cm 1.0 cm 1.0 cm © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC300 Rugged Laptop PC with CDPD PCMCIA Modem Card BODY SAR TEST SETUP PHOTOGRAPHS Bottom of Laptop PC (LCD Display Closed) - Antenna Parallel to Planar Phantom (Stowed Position) 0.0cm Separation Distance from Bottom of Laptop PC to Planar Phantom © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC300 Rugged Laptop PC with CDPD PCMCIA Modem Card BODY SAR TEST SETUP PHOTOGRAPHS Bottom of Laptop PC (LCD Display Closed) - Antenna Perpendicular to Planar Phantom (Extended Position) 0.0cm Separation Distance from Bottom of Laptop PC to Planar Phantom © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC300 Rugged Laptop PC with CDPD PCMCIA Modem Card BODY SAR TEST SETUP PHOTOGRAPHS Right Side of LCD Display (Closed) - Antenna Parallel to Planar Phantom (Stowed Position) 2.0cm Separation Distance from Antenna to Planar Phantom 2.0 cm 2.0 cm 2.0 cm © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC300 Rugged Laptop PC with CDPD PCMCIA Modem Card BODY SAR TEST SETUP PHOTOGRAPHS Right Side of LCD Display (Closed) - Antenna Parallel to Planar Phantom (Extended Position) 2.0cm Separation Distance from Antenna to Planar Phantom 2.0 cm 2.0 cm 2.0 cm

Test Date(s): February 12-14, 2003 Test Report S/N: 021103-333KBC FCC Part 22 EMC Measurements © 2003 Celltech Labs Inc. 1 of 15 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 47 CFR §22.901(d), §2, and ANSI TIA/EIA-603-A-2001. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell Pipe Senior Compliance Technologist Celltech Labs Inc. DECLARATION OF COMPLIANCE FCC PART 22.901(d) EMC MEASUREMENTS Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99204 FCC Rule Part(s): 47 CFR §22.901(d), §2 IC Rule Part(s): RSS-118 Issue 2 Test Procedure(s): FCC 47 CFR §22.901(d), §2; ANSI TIA/EIA-603-A-2001 FCC Device Classification: Licensed Non-Broadcast Station Transmitter (TNB) IC Device Classification: Data Transmitter in Cellular Mobile Band Device Type: Rugged Laptop PC with Sierra Wireless AirCard 300/350 CDPD Modem FCC ID: KBCIX260AC300 Model(s): IX260 Tx Frequency Range: 824.04 - 848.97 MHz Rx Frequency Range: 869.04 - 893.97 MHz Max. RF Output Power: 0.491 Watts (ERP) Conducted Power Tested: 28.0 dBm Emission Designator(s): 31K5FXW Frequency Tolerance(s): ± 0.00025 % Antenna Type: External Dipole Battery Type: 11.1V Lithium-Ion, 6.0Ah (Model: A2121-2) Test Date(s): February 12-14, 2003 Test Report S/N: 021103-333KBC FCC Part 22 EMC Measurements © 2003 Celltech Labs Inc. 2 of 15 TABLE OF CONTENTS 1.1 SCOPE 3 1.2 GENERAL INFORMATION - §2.1033(a) 3 2.1 MEASUREMENT PROCEDURES 4 2.2 RF Output Power - §2.1046 4 2.3 Spurious Emissions at Antenna Terminal - §2.1051 4 2.4 Receiver Spurious Emissions - §22.917(f) 4 2.5 Occupied Bandwidth - §2.1049, §22.917 4 2.6 Field Strength of Spurious Radiation - §2.1053 5 2.7 Effective Radiated Power Output - §22.913 5 2.8 Radiated Measurement Test Setup 5 2.9 Frequency Stability / Temperature Variation - §2.1055 6 3.1 TEST DATA 7 3.2 Effective Radiated Power Output - §22.913 7 3.3 Field Strength of Spurious Radiation - §2.1053 8-10 3.4 Frequency Stability / Temperature Variation - §2.1055 11 4.1 LIST OF TEST EQUIPMENT 12 5.1 CONCLUSION 13 APPENDIX A - TEST PLOTS 14 APPENDIX B - RADIATED TEST SETU…
