KBCIX260AC555Laptop with Internal Dual-Band CDMA Modem Card

Getting Started Congratulations on your purchase of the Itronix GoBook II computer! Your new GoBook II features the most innovative advances in portable computing technology. It combines state-of-the-art ergonomics with a rugged, durable architecture to provide you with a notebook computer that is compact, powerful, rugged and easy to use. Designed for a wide range ofbusiness and personal productivity applications, the GoBook II is an ideal choice for use in applications that require durability and performance. For maximum expandability without compromising portability, the GoBook II has a USB interface and aPC card slot. The high capacityhard diskdrive provides you with plenty of storage space for multimedia files and applications. The GoBook II features a standard 87-key Nitevue® keyboard (89-key international). The high- resolution 12.1-inch touch screen LCD panel provides clear and crisp viewing with the convenience of a touch screen. This online document,GoBook II Help, contains all the information you need to set up and use your new GoBook II. It describes all the features of the GoBook II in an easy-to-read yet thorough manner. For information on printing, navigating or otherwise usingGoBook II HelpseeHow to Use This Help System. GoBook II™ Help Page 1 of 76GoBook II Help 1/7/2003file://C:\Documents%20and%20Settings\harwoodm\Local%20Settings\Temp\~hh2C5F.htm Checklists After opening the package, carefully inspect thecontents. Contact your dealer if any items are missing or appear damaged. The shipping carton should contain the following: STANDARD
The Itronix GoBook II computer
Battery
ADP-90AB or ADP-75FB AC adapter with power cord
12.1 inchXGA display
Stylus
Shoulder Strap
GoBook II Quick Start Guide OPTIONS The following items are normally optional, but somevendors may include them in the standard package. Some items may not be available in some countries, or some vendors may choose not to carry all the items.
Floppy disk drive
CD-ROM drive
CD-RW Drive
DVD-ROM drive
SVGA display
Soft Handle
Media Bay Li-Ion battery pack (3000 mAhr)
Hard Disk Drive Heater
LCD Heater CAUTION When purchasing any of the accessories listed above, purchase only those accessories that are approved for use with your computer. The above accessories are proprietary items. Your system vendor can obtain these approved accessories. If youuse items that are not approved for use with this com puter,you maycauseyour computer to malfunction, or to emit or receive electromagnetic radiation Page 2 of 76GoBook II Help 1/7/2003file://C:\Documents%20and%20Settings\harwoodm\Local%20Settings\Temp\~hh2C5F.htm in excess of local regulations. For non-proprietary accessories such as PC Cards or printers, ensure that the accessory functions properly in your computerbefore making the purchase. Your system vendor may be able to recommend reliable brands and models. Features High Capacity Hard Disk Drive The computer has a high capacity hard disk drive, enabling you to install your favorite programs and store large multimedia files. Full Array of Ports and Connectors Your computer includes standard ports for connecting to peripherals such as USB devices and monitors. USB ports allow you to add many types of peripherals. Large SVGA or XGA LCD Your computer has a large, easyto view SVGA or XGA LCD panel. Built-in Microphone and Stereo Speakers The stereo speakers and internal microphone enable you to run a variety of multimedia applications. Function Keys Function keys allow you to suspend your computer, shut the LCDs off, and give you easy control of audio and your monitor. Where to Look For Information About Your Computer This Help System describes the key elements of your computer. New users can find a simple step-by- step orientation in this chapter. About Windows For more extensive information and help about Windows go toHelp and Support , found on the Start Menu. Go to Start, Programs, Accessories to open, an online orientation of Windows XP. 72_0103_003 10 December 2002 © 2002 Itronix Corporation. All rights reserved. Page 3 of 76GoBook II Help 1/7/2003file://C:\Documents%20and%20Settings\harwoodm\Local%20Settings\Temp\~hh2C5F.htm Precautions You can use your computer under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your computer:
Follow all warnings and instructions noted in this documentation and in the WindowsHelp and Support, found on the Start Menu.
The first time you use your computer, we recommend that you carefully read the section on Power Management to familiarize yourself with some basic battery information and to ensure optimum performance
There is danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.
Do not open the RAM door by yourself.
Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use aerosols, solvents, or strong detergents
Slots and openings in the computer case are for ventilation purposes. Do not block or cover these openings or the system could overheat
On the bottom of the GoBook II, there is a label with information on the power requirements of this system. These requirements must be followed. If you are unsure of your local power supply, consult your dealer or local Power Company
Do not step on or place anything on the power cord
If you use the computer with an extension cord, ensure that the total ampere ratings of all the devices sharing the extension do not exceed the rating of the extension cord or the rating of the wall outlet
Unless instructed, never push foreign objects into the computer through any of the slots or openings. Dangerous voltages are present, which could cause electric shock, fire, or damage sensitive components
For b…

Text truncated - open the document above for the full version.

801 S. STEVENS STREET SPOKANE, WA 99204 509.624.6600 800.441.1309 FAX 509.626.4203 www.itronix.com November 12, 2002 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Itronix Corporation FCC ID: KBCIX260AC555 FCC Parts 24(E) & 22.901(d) Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, Itronix Corporation hereby requests confidentiality of the Circuit Diagram(s), Parts List, Tune-Up Procedure, and Antenna Specifications attachments for the subject application. These documents contain detailed system and equipment description and related information about the product in which Itronix Corporation considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Itronix Corporation considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely,

Celltech Labs Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-448-7047 • Fax. 250-448-7046 • e-mail: [email protected] www.celltechlabs.com February 21, 2003 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue, Suite C110 McLean, VA 22101 SUBJECT: ITRONIX CORPORATION FCC ID: KBCIX260AC555 Part 24(E) & 22.901(d) - Certification Gentlemen: On behalf of Itronix Corporation is an application for Part 24 Certification of Itronix IX260 Rugged Laptop PC with internal dual-band PCS/Cellular CDMA PCMCIA Modem Card Models: AirCard 555, AirCard 550 manufactured by Sierra Wireless, Inc. (FCC ID: N7NACRD555, originally granted September 25, 2001). The tests in this filing were performed with the AirCard 555 radio. The AirCard 555 and 550 models are electrically and mechanically identical, except for minor software changes. Model: IX260 Equipment Class: Licensed Base Station for Part 24 (PCB) Equipment Type: Rugged Laptop PC with internal PCS/Cellular CDMA PCMCIA Modem Card Emission Designator: 1M25F9W Tx Freq. Range: 1851.25 - 1908.75 MHz (PCS CDMA) 824.70 - 848.31 MHz (Cellular CDMA) Conducted Power Tested: 23.0 dBm (PCS CDMA) 23.0 dBm (Cellular CDMA) Max. RF Output Power: 0.209 Watts EIRP (PCS CDMA) 0.506 Watts ERP (Cellular CDMA) Max. SAR Measured: 0.628 W/kg (PCS CDMA) / 0.391 W/kg (Cellular CDMA) Antenna Type(s): 1. External Dipole 2. Mobile Vehicle-Mount Attached is the confidentiality request, Parts 24(E) & 22(H) EMC measurement report data and photographs, RF exposure SAR measurement report data & photographs, RF exposure MPE measurement report data & photographs, FCC ID label and location, internal and external photographs, circuit diagram(s) (confidential), parts list (confidential), tune-up procedure (confidential), antenna specifications (confidential), and the user's manual with RF exposure warning statement(s). If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jonathan Hughes General Manager Celltech Labs Inc. Testing & Engineering Lab cc: Itronix Corporation

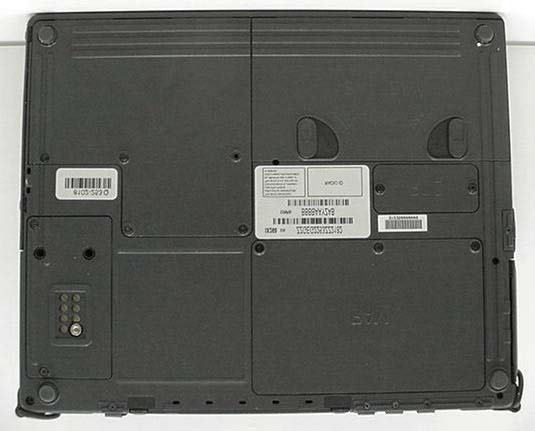

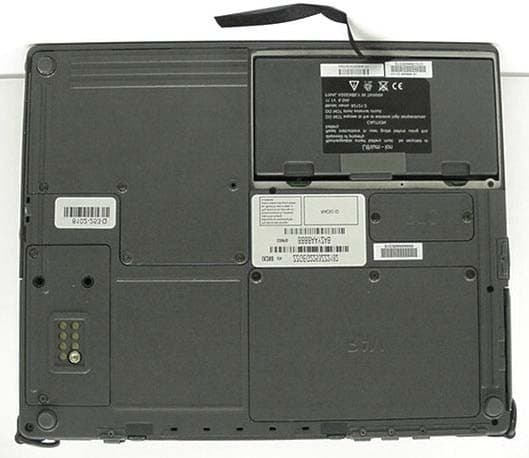

© 2002 Celltech Research Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC555 Rugged Laptop PC with PCS/Cellular CDMA PCMCIA Modem Card EXTERNAL EUT PHOTOGRAPHS © 2002 Celltech Research Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC555 Rugged Laptop PC with PCS/Cellular CDMA PCMCIA Modem Card EXTERNAL EUT PHOTOGRAPHS © 2002 Celltech Research Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC555 Rugged Laptop PC with PCS/Cellular CDMA PCMCIA Modem Card EXTERNAL EUT PHOTOGRAPHS © 2002 Celltech Research Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC555 Rugged Laptop PC with PCS/Cellular CDMA PCMCIA Modem Card EXTERNAL EUT PHOTOGRAPHS © 2002 Celltech Research Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC555 Rugged Laptop PC with PCS/Cellular CDMA PCMCIA Modem Card EXTERNAL EUT PHOTOGRAPHS with Vehicle Cradle & 3 dBi Gain Vehicle Antenna (MaxRad P/N: WMLPVDB800/1900) © 2002 Celltech Research Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC555 Rugged Laptop PC with PCS/Cellular CDMA PCMCIA Modem Card EXTERNAL EUT PHOTOGRAPHS Vehicle Cradle

© 2002 Celltech Research Inc. ITRONIX CORPORATION FCC ID: KBCIX260AC555 Rugged Laptop PC with PCS/Cellular CDMA PCMCIA Modem Card DEVICE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The label shall be permanently affixed at a conspicuous location on the device. SEE NEXT PAGE(S) FOR PART 24(E) LABEL SEE NEXT PAGE(S) FOR PART 15(B) DoC LABEL Corporation Design Color Requirement: P FCC Label For P16 Background : TCG-426P Text : Pantone 441C P16 Wen Fu Chieng PC , Thickness 0.8mm 1 : 1 1 1 08 / 19 / 02 63-040210-00 0 63-040210-00 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made in Taiwan MODEL NO. : IX260 FOR HOME OR OFFICE USE FCC Standards Tested To Comply With C US LR86520 NOTEBOOK : DC 19V 3.95A E4309 ICES-003. NMB-003 du Canada. Cet appareil numerique de la classe B est conforme a la norme This Class B digital apparatus complies with Canadian ` ` X260)(I

© 2002 Celltech Research Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC555 Rugged Laptop PC with PCS/Cellular CDMA PCMCIA Modem Card INTERNAL EUT PHOTOGRAPHS © 2002 Celltech Research Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC555 Rugged Laptop PC with PCS/Cellular CDMA PCMCIA Modem Card INTERNAL EUT PHOTOGRAPHS © 2002 Celltech Research Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC555 Rugged Laptop PC with PCS/Cellular CDMA PCMCIA Modem Card INTERNAL EUT PHOTOGRAPHS © 2002 Celltech Research Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC555 Rugged Laptop PC with PCS/Cellular CDMA PCMCIA Modem Card INTERNAL EUT PHOTOGRAPHS 08/03/2001 file://H:\Rosetta\docs\Re g ulator y %20A pp rovals\FCC\Part%2024\ p hotos\Ima g e001-2.JPG INTERNAL EUT PHOTOGRAPHS 08/03/2001 file://H:\Rosetta\docs\Re g ulator y %20A pp rovals\FCC\Part%2024\ p hotos\Ima g e004-4. jpg INTERNAL EUT PHOTOGRAPHS 08/03/2001 file://H:\Rosetta\docs\Re g ulator y %20A pp rovals\FCC\Part%2024\ p hotos\Ima g e006-6. jpg INTERNAL EUT PHOTOGRAPHS 08/03/2001 file://H:\Rosetta\docs\Re g ulator y %20A pp rovals\FCC\Part%2024\ p hotos\Ima g e010. jpg INTERNAL EUT PHOTOGRAPHS

? 1999-2001 Sierra Wireless Inc. The contents of this page are subject to the confidentiality information on page one. 1XRTT AC555 Detailed Circuit Description Document #: 2110622 Revision: C SIERRA WIRELESS INC. Document #: 2110622 Revision: C Page 2 of 14 ? 1999-2001 Sierra Wireless Inc. The contents of this page are subject to the confidentiality information on page one. Table of Contents 1 General..................................................................................................3 1.1 Purpose...........................................................................................................3 1.2 Scope...............................................................................................................3 1.3 Glossary of terms.............................................................................................3 1.4 References.......................................................................................................3 1.5 Revision history...............................................................................................3 2 Circuit Description.................................................................................4 2.1 LOGIC............................................................................................................4 2.1.1 Block Diagram.........................................................................................4 2.1.2 MSM5105................................................................................................4 2.1.3 FPGA/ASIC.............................................................................................5 2.1.4 DC to DC Converter................................................................................6 2.1.5 Voltage Regulators...................................................................................6 2.1.6 Audio Circuitry........................................................................................6 3 Aircard 555 Radio..................................................................................7 3.1 RF Circuit, Cellular and PCS Transceiver.......................................................7 3.2 Specifications..................................................................................................7 3.3 Architecture.....................................................................................................9 3.4 Frequency Generation Unit...........................................................................11 3.4.1 19.2 MHz Reference Oscillator..............................................................11 3.4.2 LO Buffer Amplifiers.............................................................................11 3.5 Transmitter....................................................................................................11 3.5.1 Power Amplifier....................................................................................12 3.5.2 Automatic level control..........................................................................12 3.5.3 Duplexer and Diplexer...........................................................................12 3.6 Receiver.........................................................................................................12 3.7 Baseband Audio Processing – Transmitter and Receiver...............................13 3.8 Tuning Functions...........................................................................................13 3.8.1 TRK_LO_ADJ.......................................................................................13 3.8.2 PA_ON_PCS, PA_ON_CELL...............................................................13 3.8.3 TX_AGC_ADJ......................................................................................13 3.8.4 I_OFFSET, Q_OFFSET.........................................................................13 3.8.5 SY_SENDB, SY_SDATA, SY_SCLK...................................................13 3.8.6 SBCK, SBST, SBDT.............................................................................14 3.9 Power Supply.................................................................................................14 SIERRA WIRELESS INC. Document #: 2110622 Revision: C Page 3 of 14 ? 1999-2001 Sierra Wireless Inc. The contents of this page are subject to the confidentiality information on page one. 1 General 1.1 Purpose This document details the logic circuitry of the AC555 modems. 1.2 Scope This document covers only the logic portion of the product. 1.3 Glossary of terms 1XRTT – Qualcomm’s CDMA2000 Standard. ASIC – Application-Specific Integrated Circuit FPGA – Field Programmable Gate Array PCMCIA – Personal Computer Memory Card International Association PWM – Pulse Width Modulated TCXO – Temperature Controlled Oscillator USB – Universal Serial Bus 1.4 References Ref. # Doc. # Document title R-1 MSM5105 Device Specification R-2 RFT3100 Device Specification R-3 IFR3000 Device Specification 1.5 Revision history Revision Date Author Summary of changes ECO # A Nov 24, 2000 Phillips Original B Dec 7, 2000 Phillips Modified document based on feedback. C Aug 2, 2001 D. Kwong T. McKeen Added RF section SIERRA WIRELESS INC. Document #: 2110622 Revision: C Page 4 of 14 ? 1999-2001 Sierra Wireless Inc. The contents of this page are subject to the confidentiality information on page one. 2 Circuit Description 2.1 LOGIC 2.1.1 Block Diagram MSM5105 FLASH/RAM 16M/4M - 16 Bit (soft NVRAM) Xilinx FPGA NDIS 16550 CIS P C M C I A TCXO RFT3100 IFR3000 LED CWE DC/DC Radio Audio Connector Regulators Audio Conditioning Bypass Circuit Voltage Detector 3.3V Radio Voltages 2.5V/3.0V 2.5V/ 3.0V I_OFFSET TCXO RX I Data (4) RX Q Data (4) TRK_LO_ADJ TCXO_ENABLE Q_OFFSET SLEEP_N RX_AGC_ADJ LNA_RANGE0 LNA_RANGE1 PA_R1 IDLE_N PA_ON PA_R0 TX_AGC_ADJ SYNTH_LOCK TX Q Signal_N TX Q Signal TX I Signal_N TX I Signal Serial Bus (3) 2.1.2 MSM5105 SIERRA WIRELESS INC. Document #: 2110622 Revision: C Page 5 of 14 ? 1999-2…

Text truncated - open the document above for the full version.

Test Report S/N: 102902-302KBC Test Date(s): Oct. 31 - Nov. 01, 2002 FCC/IC SAR Evaluation © 2003 Celltech Labs Inc.1 of 22 Celltech Labs Inc. declares under its sole responsibility that this device was found to be in compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C, Edition 01-01 and Industry Canada RSS-102 Issue 1 - Provisional (General Population / Uncontrolled Exposure). I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell Pipe Senior Compliance Technologist Celltech Labs Inc. DECLARATION OF COMPLIANCE SAR EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone:250-448-7047 Fax:250-448-7046 e-mail:[email protected] web site:www.celltechlabs.com Applicant Information ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99204 Rule Part(s):FCC 47 CFR §2.1093; IC RSS-102 Issue 1 (Provisional) Test Procedure(s):FCC OET Bulletin 65, Supplement C (01-01) FCC Device Classification:Licensed Base Station for Part 24 (PCB) IC Device Classification:2GHz Personal Communication Services (RSS-133 Issue 2) 800MHz CDMA Cellular Transmitter (RSS-129 Issue 2) FCC ID:KBCIX260AC555 Model(s):IX260 Device Type:RuggedLaptop PC with Sierra Wireless AirCard 555/550 Dual-Band PCS/Cellular CDMA PCMCIA Modem Card Tx Frequency Range:1851.25 - 1908.75 MHz (PCS CDMA) 824.70 - 848.31 MHz (Cellular CDMA) RF Output Power Tested:23.0 dBm Conducted (PCS CDMA) 23.0 dBm Conducted (Cellular CDMA) Antenna Type:External Dipole Battery Type:11.1V Lithium-Ion, 6.0Ah (Model: A2121-2) Max. SAR Measured:0.628 W/kg (PCS CDMA) / 0.391 W/kg (Cellular CDMA) Test Report S/N: 102902-302KBC Test Date(s): Oct. 31 - Nov. 01, 2002 FCC/IC SAR Evaluation © 2003 Celltech Labs Inc.2 of 22 TABLE OF CONTENTS 1.0INTRODUCTION..................................................................... 3 2.0DESCRIPTION OF EUT............................................................ 3 3.0SAR MEASUREMENT SYSTEM ............................................... 4 4.0MEASUREMENT SUMMARY..................................................... 5-6 5.0DETAILS OF SAR EVALUATION............................................... 7 6.0EVALUATION PROCEDURES................................................... 7-8 7.0SYSTEM PERFORMANCE CHECK............................................ 9 8.0EQUIVALENT TISSUES........................................................... 10 9.0SAR LIMITS........................................................................... 10 10.0SYSTEM SPECIFICATIONS...................................................... 11 11.0PROBE SPECIFICATION.......................................................... 12 12.0SAM PHANTOM...................................................................... 12 13.0DEVICE HOLDER.................................................................... 12 14.0TEST EQUIPMENT LIST........................................................... 13 15.0MEASUREMENT UNCERTAINTIES............................................ 14 16.0REFERENCES........................................................................ 15 APPENDIX A - SAR MEASUREMENT DATA............................................. 16 APPENDIX B - SYSTEM CHECK DATA.................................................... 17 APPENDIX C - SYSTEM VALIDATION..................................................... 18 APPENDIX D - PROBE CALIBRATION.................................................... 19 APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS................ 20 APPENDIX F - SAM PHANTOM CERTIFICATE OF CONFORMITY.............. 21 APPENDIX G - SAR TEST SETUP PHOTOGRAPHS.................................. 22 Test Report S/N: 102902-302KBC Test Date(s): Oct. 31 - Nov. 01, 2002 FCC/IC SAR Evaluation © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC5553 of 22 Rugged Laptop PC with PCS/Cellular CDMA PCMCIA Modem Card 1.0 INTRODUCTION This measurement report demonstrates that the ITRONIX CORPORATION Model: IX260 Rugged Laptop PC with Sierra Wireless AirCard 555/550 Dual-Band PCS/Cellular CDMA PCMCIA Modem Card FCC ID: KBCIX260AC555 complies with the RF exposure requirements specified in FCC 47 CFR §2.1093 (see reference [1]) and Health Canada Safety Code 6 (see reference [2]) for the General Population environment. The test procedures described in FCC OET Bulletin 65, Supplement C, Edition 01-01 (see reference [3]) and IC RSS-102 Issue 1 (Provisional) (see reference [4]), were employed. A description of the product, operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION of Equipment Under Test (EUT) FCC Rule Part(s)47 CFR §2.1093 IC Rule Part(s)IC RSS-102 Issue 1 (Provisional) Test ProcedureFCC OET Bulletin 65, Supplement C (01-01) FCC Device ClassificationLicensed Base Station for Part 24 (PCB) IC Device Classification 2GHz Personal Communication Services (RSS-133 Issue 2) 800MHz CDMA Cellular Transmitter (RSS-129 Issue 2) Device Type Rugged Laptop PC with Sierra Wireless AirCard 555/550 Dual-Band PCS/Cellular CDMA PCMCIA Modem Card FCC IDKBCIX260AC555 Model(s)IX260 Serial No.Pre-production Operating Mode(s)PCS CDMA / Cellular CDMA Tx Frequency Range 1851.25 - 1908.75 MHz (PC…

Text truncated - open the document above for the full version.

Itronix Corporation FCC ID: KBCIX260AC555 SAM Phantom; Flat Section; Position: (270°,0°) Probe: ET3DV6 - SN1387; ConvF(6.30,6.30,6.30); Crest factor: 1.0 835 MHz Muscle: σ = 0.96 mho/m ε r = 53.3 ρ = 1.00 g/cm 3 Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Cube 5x5x7; Powerdrift: -0.15 dB SAR (1g): 0.0157 mW/g, SAR (10g): 0.0102 mW/g Body SAR - Bottom of Laptop PC (LCD Display Closed) - Antenna Perpendicular to Planar Phantom (Extended Position) 0.0 cm Separation Distance from Bottom of Laptop PC to Planar Phantom Itronix IX260 Rugged Laptop PC with Sierra Wireless AirCard 555 PCS/Cellular CDMA Modem Card Cellular CDMA Mode Channel 363 [835.89 MHz] Conducted Power: 23.0 dBm Ambient Temp: 22.2°C; Fluid Temp: 22.0°C Date Tested: November 01, 2002 SAR Tot [mW/g] 1.21E-33.64E-36.07E-38.50E-31.09E-21.34E-21.58E-2 11/01/02Celltech Labs Inc. Antenna Itronix Corporation FCC ID: KBCIX260AC555 SAM Phantom; Flat Section; Position: (0°,0°) Probe: ET3DV6 - SN1590; ConvF(6.70,6.70,6.70); Crest factor: 1.0 835 MHz Muscle: σ = 0.97 mho/m ε r = 53.9 ρ = 1.00 g/cm 3 Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Body SAR - Bottom of Laptop PC (LCD Display Closed) - Antenna Perpendicular to Planar Phantom (Extended Position) 0.0 cm Separation Distance from Bottom of Laptop PC to Planar Phantom Itronix IX260 Rugged Laptop PC with Sierra Wireless AirCard 555 PCS/Cellular CDMA Modem Card Cellular CDMA Mode Channel 363 [835.89 MHz] Conducted Power: 23.0 dBm Ambient Temp: 23.2°C; Fluid Temp: 22.4°C Date Tested: February 19, 2003 SAR Tot [mW/g] 7.14E-52.14E-43.57E-45.00E-46.43E-47.86E-49.29E-4 02/19/03Celltech Labs Inc. Coarse scan to show Left Half of Bottom Side Itronix Corporation FCC ID: KBCIX260AC555 SAM Phantom; Flat Section; Position: (0°,0°) Probe: ET3DV6 - SN1387; ConvF(6.30,6.30,6.30); Crest factor: 1.0 835 MHz Muscle: σ = 0.96 mho/m ε r = 53.3 ρ = 1.00 g/cm 3 Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Cube 5x5x7; Powerdrift: -0.04 dB SAR (1g): 0.119 mW/g, SAR (10g): 0.0748 mW/g Body SAR - Right Side of LCD Display (Closed) - Antenna Parallel to Planar Phantom (Stowed Position) 1.5 cm Separation Distance from Antenna to Planar Phantom Itronix IX260 Rugged Laptop PC with Sierra Wireless AirCard 555 PCS/Cellular CDMA Modem Card Cellular CDMA Mode Channel 363 [835.89 MHz] Conducted Power: 23.0 dBm Ambient Temp: 22.2°C; Fluid Temp: 22.0°C Date Tested: November 01, 2002 SAR Tot [mW/g] 8.79E-32.64E-24.39E-26.15E-27.91E-29.66E-21.14E-1 11/01/02Celltech Labs Inc. A ntenna Itronix Corporation FCC ID: KBCIX260AC555 SAM Phantom; Flat Section; Position: (0°,0°) Probe: ET3DV6 - SN1387; ConvF(6.30,6.30,6.30); Crest factor: 1.0 835 MHz Muscle: σ = 0.96 mho/m ε r = 53.3 ρ = 1.00 g/cm 3 Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Cube 5x5x7; Powerdrift: -0.16 dB SAR (1g): 0.275 mW/g, SAR (10g): 0.180 mW/g Body SAR - Right Side of LCD Display (Closed) - Antenna Parallel to Planar Phantom (Extended Position) 1.5 cm Separation Distance from Antenna to Planar Phantom Itronix IX260 Rugged Laptop PC with Sierra Wireless AirCard 555 PCS/Cellular CDMA Modem Card Cellular CDMA Mode Channel 363 [835.89 MHz] Conducted Power: 23.0 dBm Ambient Temp: 22.2°C; Fluid Temp: 22.0°C Date Tested: November 01, 2002 SAR Tot [mW/g] 1.99E-25.96E-29.93E-21.39E-11.79E-12.18E-12.58E-1 11/01/02Celltech Labs Inc. A ntenna Test Report S/N: 102902-302KBC Test Date(s): Oct. 31 - Nov. 01, 2002 FCC/IC SAR Evaluation © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC55517 of 22 Rugged Laptop PC with PCS/Cellular CDMA PCMCIA Modem Card APPENDIX B - SYSTEM CHECK DATA System Performance Check - 1800MHz DipoleSAM Phantom; Flat SectionProbe: ET3DV6 - SN1387; ConvF(5.40,5.40,5.40); Crest factor: 1.0; 1800 MHz Brain: σ = 1.35 mho/m ε r = 40.9 ρ = 1.00 g/cm 3 Cube 5x5x7: Peak: 18.2 mW/g, SAR (1g): 9.61 mW/g, SAR (10g): 5.00 mW/g, (Worst-case extrapolation)Penetration depth: 8.3 (7.7, 9.5) [mm]; Powerdrift: 0.04 dBAmbient Temp: 22.2°C; Fluid Temp: 21.4°CForward Conducted Power: 250 mWDate Tested: October 31, 2002 SAR Tot [mW/g] 1.01E+02.02E+03.03E+04.04E+05.05E+06.06E+07.07E+08.08E+09.09E+01.01E+1 10/31/02Celltech Research Inc. System Performance Check - 900MHz DipoleSAM Phantom; Flat SectionProbe: ET3DV6 - SN1387; ConvF(6.60,6.60,6.60); Crest factor: 1.0; 900 MHz Brain: σ = 0.96 mho/m ε r = 40.1 ρ = 1.00 g/cm 3 Cube 5x5x7: Peak: 4.32 mW/g, SAR (1g): 2.64 mW/g, SAR (10g): 1.65 mW/g, (Worst-case extrapolation)Penetration depth: 11.0 (10.1, 12.6) [mm]; Powerdrift: -0.01 dBAmbient Temp: 22.2°C; Fluid Temp: 22.0°CForward Conducted Power: 250 mWDate Tested: November 01, 2002 SAR Tot [mW/g] 2.77E-15.53E-18.30E-11.11E+01.38E+01.66E+01.94E+02.21E+02.49E+02.77E+0 11/01/02Celltech Research Inc. Test Report S/N: 102902-302KBC Test Date(s): Oct. 31 - Nov. 01, 2002 FCC/IC SAR Evaluation © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC55518 of 22 Rugged Laptop PC with PCS/Cellular CDMA PCMCIA Modem Card APPENDIX C - SYSTEM VALIDATION Validation Dipole D1800V2 SN:247, d = 10 mmFrequency: 1800 MHz; Antenna Input Power: 250 [mW]Generic Twin Phantom; Flat Section; Grid Spacing:Dx = 15.0, Dy = 15.0, Dz = 10.0Probe: ET3DV6 - SN1507; ConvF(5.57,5.57,5.57); Crest factor: 1.0; IEEE1528 1800 MHz : σ = 1.36 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 Cubes (2): Peak: 18.2 mW/g ± 0.04 dB, SAR (1g): 9.66 mW/g ± 0.03 dB, SAR (10g): 5.02 mW/g ± 0.03 dB, (Worst-case extrapol ation) Penetration depth: 8.2 (7.6, 9.4) [mm]Powerdrift: -0.01 dB SAR Tot [mW/g] 1.00E+02.00E+03.00E+04.00E+05.00E+06.00E+07.00E+08.00E+09.00E+01.00E+1 06/20/01Schmid &…
