Getting Started Congratulations on your purchase of the Itronix GoBook II computer! Your new GoBook II features the most innovative advances in portable computing technology. It combines state-of-the-art ergonomics with a rugged, durable architecture to provide you with a notebook computer that is compact, powerful, rugged and easy to use. Designed for a wide range ofbusiness and personal productivity applications, the GoBook II is an ideal choice for use in applications that require durability and performance. For maximum expandability without compromising portability, the GoBook II has a USB interface and aPC card slot. The high capacityhard diskdrive provides you with plenty of storage space for multimedia files and applications. The GoBook II features a standard 87-key Nitevue® keyboard (89-key international). The high- resolution 12.1-inch touch screen LCD panel provides clear and crisp viewing with the convenience of a touch screen. This online document,GoBook II Help, contains all the information you need to set up and use your new GoBook II. It describes all the features of the GoBook II in an easy-to-read yet thorough manner. For information on printing, navigating or otherwise usingGoBook II HelpseeHow to Use This Help System. GoBook II™ Help Page 1 of 76GoBook II Help 1/31/2003file://C:\Documents%20and%20Settings\harwoodm\Local%20Settings\Temp\~hh35F9.htm Checklists After opening the package, carefully inspect thecontents. Contact your dealer if any items are missing or appear damaged. The shipping carton should contain the following: STANDARD
The Itronix GoBook II computer
Battery
ADP-90AB or ADP-75FB AC adapter with power cord
12.1 inchXGA display
Stylus
Shoulder Strap
GoBook II Quick Start Guide OPTIONS The following items are normally optional, but somevendors may include them in the standard package. Some items may not be available in some countries, or some vendors may choose not to carry all the items.
Floppy disk drive
CD-ROM drive
CD-RW Drive
DVD-ROM drive
SVGA display
Soft Handle
Media Bay Li-Ion battery pack (3000 mAhr)
Hard Disk Drive Heater
LCD Heater CAUTION When purchasing any of the accessories listed above, purchase only those accessories that are approved for use with your computer. The above accessories are proprietary items. Your system vendor can obtain these approved accessories. If youuse items that are not approved for use with this com puter,you maycauseyour computer to malfunction, or to emit or receive electromagnetic radiation Page 2 of 76GoBook II Help 1/31/2003file://C:\Documents%20and%20Settings\harwoodm\Local%20Settings\Temp\~hh35F9.htm in excess of local regulations. For non-proprietary accessories such as PC Cards or printers, ensure that the accessory functions properly in your computerbefore making the purchase. Your system vendor may be able to recommend reliable brands and models. Features High Capacity Hard Disk Drive The computer has a high capacity hard disk drive, enabling you to install your favorite programs and store large multimedia files. Full Array of Ports and Connectors Your computer includes standard ports for connecting to peripherals such as USB devices and monitors. USB ports allow you to add many types of peripherals. Large SVGA or XGA LCD Your computer has a large, easyto view SVGA or XGA LCD panel. Built-in Microphone and Stereo Speakers The stereo speakers and internal microphone enable you to run a variety of multimedia applications. Function Keys Function keys allow you to suspend your computer, shut the LCDs off, and give you easy control of audio and your monitor. Where to Look For Information About Your Computer This Help System describes the key elements of your computer. New users can find a simple step-by- step orientation in this chapter. About Windows For more extensive information and help about Windows go toHelp and Support , found on the Start Menu. Go to Start, Programs, Accessories to open, an online orientation of Windows XP. 72_0103_003 10 December 2002 © 2002 Itronix Corporation. All rights reserved. Page 3 of 76GoBook II Help 1/31/2003file://C:\Documents%20and%20Settings\harwoodm\Local%20Settings\Temp\~hh35F9.htm Precautions You can use your computer under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your computer:
Follow all warnings and instructions noted in this documentation and in the WindowsHelp and Support, found on the Start Menu.
The first time you use your computer, we recommend that you carefully read the section on Power Management to familiarize yourself with some basic battery information and to ensure optimum performance
There is danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.
Do not open the RAM door by yourself.
Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use aerosols, solvents, or strong detergents
Slots and openings in the computer case are for ventilation purposes. Do not block or cover these openings or the system could overheat
On the bottom of the GoBook II, there is a label with information on the power requirements of this system. These requirements must be followed. If you are unsure of your local power supply, consult your dealer or local Power Company
Do not step on or place anything on the power cord
If you use the computer with an extension cord, ensure that the total ampere ratings of all the devices sharing the extension do not exceed the rating of the extension cord or the rating of the wall outlet
Unless instructed, never push foreign objects into the computer through any of the slots or openings. Dangerous voltages are present, which could cause electric shock, fire, or damage sensitive components
Fo…

Text truncated - open the document above for the full version.

Getting Started Congratulations on your purchase of the Itronix GoBook II computer! Your new GoBook II features the most innovative advances in portable computing technology. It combines state-of-the-art ergonomics with a rugged, durable architecture to provide you with a notebook computer that is compact, powerful, rugged and easy to use. Designed for a wide range ofbusiness and personal productivity applications, the GoBook II is an ideal choice for use in applications that require durability and performance. For maximum expandability without compromising portability, the GoBook II has a USB interface and aPC card slot. The high capacityhard diskdrive provides you with plenty of storage space for multimedia files and applications. The GoBook II features a standard 87-key Nitevue® keyboard (89-key international). The high- resolution 12.1-inch touch screen LCD panel provides clear and crisp viewing with the convenience of a touch screen. This online document,GoBook II Help, contains all the information you need to set up and use your new GoBook II. It describes all the features of the GoBook II in an easy-to-read yet thorough manner. For information on printing, navigating or otherwise usingGoBook II HelpseeHow to Use This Help System. GoBook II™ Help Page 1 of 76GoBook II Help 4/28/2003file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~... Checklists After opening the package, carefully inspect thecontents. Contact your dealer if any items are missing or appear damaged. The shipping carton should contain the following: STANDARD
The Itronix GoBook II computer
Battery
ADP-90AB or ADP-75FB AC adapter with power cord
12.1 inchXGA display
Stylus
Shoulder Strap
GoBook II Quick Start Guide OPTIONS The following items are normally optional, but somevendors may include them in the standard package. Some items may not be available in some countries, or some vendors may choose not to carry all the items.
Floppy disk drive
CD-ROM drive
CD-RW Drive
DVD-ROM drive
SVGA display
Soft Handle
Media Bay Li-Ion battery pack (3000 mAhr)
Hard Disk Drive Heater
LCD Heater CAUTION When purchasing any of the accessories listed above, purchase only those accessories that are approved for use with your computer. The above accessories are proprietary items. Your system vendor can obtain these approved accessories. If youuse items that are not approved for use with this com puter,you maycauseyour computer to malfunction, or to emit or receive electromagnetic radiation Page 2 of 76GoBook II Help 4/28/2003file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~... in excess of local regulations. For non-proprietary accessories such as PC Cards or printers, ensure that the accessory functions properly in your computerbefore making the purchase. Your system vendor may be able to recommend reliable brands and models. Features High Capacity Hard Disk Drive The computer has a high capacity hard disk drive, enabling you to install your favorite programs and store large multimedia files. Full Array of Ports and Connectors Your computer includes standard ports for connecting to peripherals such as USB devices and monitors. USB ports allow you to add many types of peripherals. Large SVGA or XGA LCD Your computer has a large, easyto view SVGA or XGA LCD panel. Built-in Microphone and Stereo Speakers The stereo speakers and internal microphone enable you to run a variety of multimedia applications. Function Keys Function keys allow you to suspend your computer, shut the LCDs off, and give you easy control of audio and your monitor. Where to Look For Information About Your Computer This Help System describes the key elements of your computer. New users can find a simple step-by- step orientation in this chapter. About Windows For more extensive information and help about Windows go toHelp and Support , found on the Start Menu. Go to Start, Programs, Accessories to open, an online orientation of Windows XP. 72_0103_003 10 December 2002 © 2002 Itronix Corporation. All rights reserved. Page 3 of 76GoBook II Help 4/28/2003file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~... Precautions You can use your computer under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your computer:
Follow all warnings and instructions noted in this documentation and in the WindowsHelp and Support, found on the Start Menu.
The first time you use your computer, we recommend that you carefully read the section on Power Management to familiarize yourself with some basic battery information and to ensure optimum performance
There is danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.
Do not open the RAM door by yourself.
Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use aerosols, solvents, or strong detergents
Slots and openings in the computer case are for ventilation purposes. Do not block or cover these openings or the system could overheat
On the bottom of the GoBook II, there is a label with information on the power requirements of this system. These requirements must be followed. If you are unsure of your local power supply, consult your dealer or local Power Company
Do not step on or place anything on the power cord
If you use the computer with an extension cord, ensure that the total ampere ratings of all the devices sharing the extension do not exceed the rating of the extension cord or the rating of the wall outlet
Unless instructed, never push foreign objects into the computer through any of the slots or openings. Dangerous voltages are present, which could cause electric shock, fire, or damage sensitive components
…

Text truncated - open the document above for the full version.

Celltech Labs Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-448-7047 • Fax. 250-448-7046 • e-mail: [email protected] www.celltechlabs.com February 28, 2003 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: ITRONIX CORPORATION FCC ID: KBCIX260AC555-MPI Part 24(E) & 22.901(d) - Certification On behalf of Itronix Corporation is an application for Part 24 Certification of Itronix IX260 Rugged Laptop PC with internal dual-band PCS/Cellular CDMA PCMCIA Modem Card Models: AirCard 555/550 manufactured by Sierra Wireless, Inc. (FCC ID: N7NACRD555, originally granted September 25, 2001), utilizing an external dipole antenna mounted on the upper right side of the LCD display, and an external mobile vehicle-mount antenna with vehicle cradle. The tests in this filing were performed with the AirCard 555 radio. The AirCard 555 and 550 models are electrically and mechanically identical except for minor software changes. The IX260 also incorporates an internal co-located Mini-PCI DSSS WLAN Card (Cisco Systems, Inc. Model: MPI-350) with internal dual antenna located in the back side of the LCD display. Co- located EMC and SAR measurements are addressed within this application. A Part 15.247 certification application for the Mini-PCI DSSS WLAN Card portion of the IX260 is also submitted simultaneously with this application. Model: IX260 Equipment Class: Licensed Base Station for Part 24 (PCB) Equipment Type: Rugged Laptop PC with Sierra Wireless AirCard 555/550 Dual-Band PCS/Cellular CDMA PCMCIA Modem Card (Co-located with Cisco MPI-350 Mini-PCI DSSS WLAN Card) Emission Designator: 1M25F9W Tx Freq. Range: 1851.25 - 1908.75 MHz (PCS CDMA) 824.70 - 848.31 MHz (Cellular CDMA) Conducted Power Tested: 23.0 dBm (PCS CDMA) 23.0 dBm (Cellular CDMA) Max. RF Output Power: 0.213 Watts EIRP (PCS CDMA) 0.514 Watts ERP (Cellular CDMA) Max. SAR Measured: 1.15 W/kg (PCS CDMA), 0.522 W/kg (Cellular CDMA) Antenna Type(s): 1. External Dipole (Dual-Band CDMA Modem) 2. Dual Internal (Co-located DSSS WLAN Card) 3. Mobile Vehicle-Mount - MaxRad 3dBi Gain (CDMA Modem only) Attached is the confidentiality request letter, Parts 24(E) & 22.901(d) EMC measurement report data and photographs, RF exposure SAR measurement report data & photographs, RF exposure MPE evaluation report data, FCC ID label and location, internal and external photographs, circuit diagram(s) (confidential), parts list (confidential), tune-up procedure (confidential), antenna specifications (confidential), and the user's manual with RF exposure warning statement(s). If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jonathan Hughes General Manager Celltech Labs Inc. cc: Itronix Corporation

801 S. STEVENS STREET SPOKANE, WA 99204 509.624.6600 800.441.1309 FAX 509.626.4203 www.itronix.com November 12, 2002 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Itronix Corporation FCC ID: KBCIX260AC555-MPI FCC Parts 24(E) & 22.901(d) Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, Itronix Corporation hereby requests confidentiality of the Circuit Diagram(s), Parts List, Tune-Up Procedure, and Antenna Specifications attachments for the subject application. These documents contain detailed system and equipment description and related information about the product in which Itronix Corporation considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Itronix Corporation considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely,

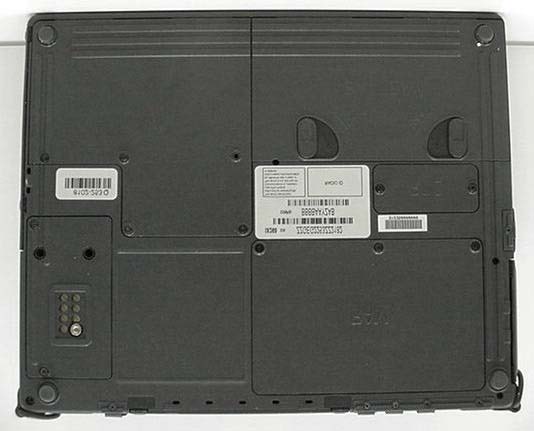

© 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC555-MPI (Model: IX260) Rugged Laptop PC with PCS/Cellular CDMA PCMCIA Modem Card (Co-located) EXTERNAL EUT PHOTOGRAPHS © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC555-MPI (Model: IX260) Rugged Laptop PC with PCS/Cellular CDMA PCMCIA Modem Card (Co-located) EXTERNAL EUT PHOTOGRAPHS © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC555-MPI (Model: IX260) Rugged Laptop PC with PCS/Cellular CDMA PCMCIA Modem Card (Co-located) EXTERNAL EUT PHOTOGRAPHS © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC555-MPI (Model: IX260) Rugged Laptop PC with PCS/Cellular CDMA PCMCIA Modem Card (Co-located) EXTERNAL EUT PHOTOGRAPHS © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC555-MPI (Model: IX260) Rugged Laptop PC with PCS/Cellular CDMA PCMCIA Modem Card (Co-located) EXTERNAL EUT PHOTOGRAPHS with Vehicle Cradle & 3 dBi Gain Vehicle Antenna (MaxRad P/N: WMLPVDB800/1900) © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC555-MPI (Model: IX260) Rugged Laptop PC with PCS/Cellular CDMA PCMCIA Modem Card (Co-located) EXTERNAL EUT PHOTOGRAPHS Vehicle Cradle

© 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260AC555-MPI (Model: IX260) Rugged Laptop PC with PCS/Cellular CDMA PCMCIA Modem Card (Co-located) FCC ID LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The label shall be permanently affixed at a conspicuous location on the device. SEE NEXT PAGE(S) FOR PART 24(E) LABEL SEE NEXT PAGE(S) FOR PART 15(B) DoC LABEL Corporation Design Color Requirement: P FCC Label For P16 Background : TCG-426P Text : Pantone 441C P16 Wen Fu Chieng PC , Thickness 0.8mm 1 : 1 1 1 08 / 19 / 02 63-040210-00 0 63-040210-00 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made in Taiwan MODEL NO. : IX260 FOR HOME OR OFFICE USE FCC Standards Tested To Comply With C US LR86520 NOTEBOOK : DC 19V 3.95A E4309 ICES-003. NMB-003 du Canada. Cet appareil numerique de la classe B est conforme a la norme This Class B digital apparatus complies with Canadian ` ` X260)(I

© 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC555-MPI (Model: IX260) Rugged Laptop PC with PCS/Cellular CDMA PCMCIA Modem Card (Co-located) INTERNAL EUT PHOTOGRAPHS Sierra Wireless AirCard 555 Dual-Band CDMA Modem Card © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC555-MPI (Model: IX260) Rugged Laptop PC with PCS/Cellular CDMA PCMCIA Modem Card (Co-located) INTERNAL EUT PHOTOGRAPHS Sierra Wireless AirCard 555 Dual-Band CDMA Modem Card © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC555-MPI (Model: IX260) Rugged Laptop PC with PCS/Cellular CDMA PCMCIA Modem Card (Co-located) INTERNAL EUT PHOTOGRAPHS Sierra Wireless AirCard 555 Dual-Band CDMA Modem Card 08/03/2001 file://H:\Rosetta\docs\Re g ulator y %20A pp rovals\FCC\Part%2024\ p hotos\Ima g e001-2.JPG INTERNAL EUT PHOTOGRAPHS 08/03/2001 file://H:\Rosetta\docs\Re g ulator y %20A pp rovals\FCC\Part%2024\ p hotos\Ima g e004-4. jpg INTERNAL EUT PHOTOGRAPHS 08/03/2001 file://H:\Rosetta\docs\Re g ulator y %20A pp rovals\FCC\Part%2024\ p hotos\Ima g e006-6. jpg INTERNAL EUT PHOTOGRAPHS 08/03/2001 file://H:\Rosetta\docs\Re g ulator y %20A pp rovals\FCC\Part%2024\ p hotos\Ima g e010. jpg INTERNAL EUT PHOTOGRAPHS © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC555-MPI (Model: IX260) Rugged Laptop PC with PCS/Cellular CDMA PCMCIA Modem Card (Co-located) INTERNAL EUT PHOTOGRAPHS Co-located Mini-PCIDSSS WLAN Card (Cisco MPI-350) © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC555-MPI (Model: IX260) Rugged Laptop PC with PCS/Cellular CDMA PCMCIA Modem Card (Co-located) INTERNAL EUT PHOTOGRAPHS Dual Internal Antenna for Co-located Mini-PCIDSSS WLAN Card (Cisco MPI-350) Back Side of LCD Display Cover for Back of LCD Display Antenna Antenna © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC555-MPI (Model: IX260) Rugged Laptop PC with PCS/Cellular CDMA PCMCIA Modem Card (Co-located) INTERNAL EUT PHOTOGRAPHS Dual Internal Antenna for Co-located Mini-PCIDSSS WLAN Card (Cisco MPI-350) Back Side of LCD Display Back of LCD Display - Left-Side Antenna Back of LCD Display - Right-Side Antenna Antenna Antenna © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC555-MPI (Model: IX260) Rugged Laptop PC with PCS/Cellular CDMA PCMCIA Modem Card (Co-located) INTERNAL EUT PHOTOGRAPHS Co-located Mini-PCIDSSS WLAN Card (Cisco MPI-350) © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC555-MPI (Model: IX260) Rugged Laptop PC with PCS/Cellular CDMA PCMCIA Modem Card (Co-located) INTERNAL EUT PHOTOGRAPHS Cradle Contact Board

Test Report S/N: 102902-303bKBC MPE Evaluation © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260AC555-MPI (Model: IX260) Rugged Laptop PC with Dual-Band CDMA Modem, Cradle, & Vehicle-Mount Antenna This mobile transmitter has been shown to be compliant for localized Maximum Permissible Exposure (MPE) for uncontrolled environment / general population exposure limits specified in FCC 47 CFR §1.1310 & Health Canada’s Safety Code 6, and has been tested in accordance with the measurement procedures specified in FCC OET Bulletin 65, Edition 97-01. This device complies with the rules and regulations for Maximum Permissible Exposure (MPE) specified by the Federal Communications Commission and Industry Canada. I attest to the accuracy of data. All measurements and/or calculations were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This evaluation report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell Pipe Senior Compliance Technologist Celltech Labs Inc. DECLARATION OF COMPLIANCE MPE EVALUATION REPORT Test Lab CELLTECH LABS INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99204 FCC Rule Part(s): 47 CFR §24(E), §22.901(d), §2.1091; §1.1310 IC Rule Part(s): RSS-133 Issue 2, RSS-129 Issue 2, RSS-102 Issue 1 (Provisional) FCC Classification: Licensed Base Station for Part 24 (PCB) IC Classification: 2GHz Personal Communication Services (RSS-133 Issue 2) 800MHz CDMA Cellular Transmitter (RSS-129 Issue 2) Device Type: Rugged Laptop PC with Sierra Wireless AirCard 555/550 PCS/Cellular CDMA PCMCIA Modem (co-located with Cisco MPI-350 Mini-PCI DSSS WLAN Card), Vehicle Cradle, & Mobile Vehicle-Mount Antenna FCC ID: KBCIX260AC555-MPI Model(s): IX260 Tx Frequency Range: 1851.25 - 1908.75 MHz (PCS CDMA) 824.70 - 848.31 MHz (Cellular CDMA) RF Output Power Tested: 23.0 dBm Conducted (PCS CDMA) 23.0 dBm Conducted (Cellular CDMA) Antenna Type(s): Mobile Vehicle Antenna (MaxRad P/N: WMLPVDB800/1900 - 3 dBi Gain) Power Supply: 12V Vehicle Battery Test Report S/N: 102902-303bKBC MPE Evaluation © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260AC555-MPI (Model: IX260) Rugged Laptop PC with Dual-Band CDMA Modem, Cradle, & Vehicle-Mount Antenna Introduction The Maximum Permissible Exposure (MPE) limit specified in 47 CFR §1.1310 of the FCC Rules and Health Canada’s Safety Code 6 is as follows: The limit for the frequency range of the PCS band (1900MHz) is 1mW/cm^ 2 for General Population/Uncontrolled Access. The limit for the frequency range in the cellular band (835MHz) is 0.57mW/cm^ 2 for General Population/Uncontrolled Access. The EUT is designed for telecommunications transmissions in the PCS and Cellular bands and may use an external antenna of 3dBi gain. In this configuration the device is classified as mobile. Summary According to 47CFR 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b). Formula used to determine MPE Test Report S/N: 102902-303bKBC MPE Evaluation © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260AC555-MPI (Model: IX260) Rugged Laptop PC with Dual-Band CDMA Modem, Cradle, & Vehicle-Mount Antenna MPE Calculation Data The following calculation data shows that this device complies with the Maximum Permissible Exposure (MPE) requirements set forth in FCC §2.1091, §1.1310, OET Bulletin 65, Edition 97-01, and Health Canada’s Safety Code 6 for General Population / Uncontrolled Exposure environment based on the specified frequencies listed. 1900MHz MPE Calculation 835MHz MPE Calculation

The vehicle cradle is designed to charge the computer’ s battery with voltage from the vehicle battery while you are traveling between jobs. Follow the procedure below to charge a battery. To charge a battery installed in the computer 1. Place the computer onto the vehicle cradle, making sure it is securely latched. 2. If charging is required it begins automatically. The Battery Power Indicator flashes. 3. When the battery is fully charged, the Battery Power Indicator remains steady. Communicating with Other Devices Connect the external device to either of the USB ports on the back of the cradle, and then place the GoBook II onto the vehicle cradle. You can install or remove the computer from the vehicle cradle without connecting or disconnecting the cables. External Antennas You can also connect an external RF antenna to the cradle using the SMA RF connector on the back of the vehicle cradle. FCC regulations require that users of vehicle-mounted antennas must use only antennas authorized for use with the GoBook II in order to meet FCC RF exposure limits. Please contact your organizations’ s help desk for a list of approved vehicle-mounted antennas. For mounting installation and/or mounting instructions for these types of antennas, see the instructions that accompany each antenna. RF Antenna Placement WARNING Improper installation and/or operating configurations of permanent and magnetic vehicle- mounted antennas may cause FCC RF exposure limits to be exceeded. Vehicle-mounted antennas must be placed at least 20 cm from operators and bystanders. Placement of a vehicle-mounted antenna Important
A temperature of 5°C to 50°C (41°F to 22°F) is required when charging batteries with the vehicle cradle. Batteries will not charge successfully outside this temperature range.
If you charge your battery daily, rely on the gas gauge reading to determine battery capacity. The gas gauge displayed by the Power Meter may show that the battery is full, but charging continues. This happens because the charging process is trying to put a little more capacity into the battery. External power can be removed at this time since the battery is virtually full.
If your battery is new or has not been used for several weeks, rely on the indicator light to determine when the battery is fully charged. The gas gauge is unreliable in these cases; it may read 100%, when the actual capacity is only 10%. Page 52 of 76GoBook II Help 1/31/2003file://C:\Documents%20and%20Settings\harwoodm\Local%20Settings\Temp\~hh35F9.htm 1. Measure and identify an area 20 cm (8 inches) in from the edges of the vehicle roof (see diagram below). 2. Place the antenna within that area. To maximize RF performance, position the antenna in the center of the vehicle roof. Cleaning or Replacing Cradle Contact Pins The contact pins on the vehicle cradle are exposed to contamination and stress when the computer is installed and removed from the cradle during normal daily operation. If the pins become dirty, they can be removed and cleaned as necessary using electrical contact cleaner. Or they can be replaced. The power and ground pins are pins 3 and 8 respectively. When charging problems are encountered and replacement pins are not available, other pins in the contact assembly can be used to field fix the unit until replacement parts are available. To clean or replace the cradle contact pins 1. Hold down the protective plastic cover. 2. Grasp a pin and pull straight up, being careful not to bend it. 3. Clean the pin with electrical contact cleaner and reinstall it into the cradle contact assembly. If a pin is bent or cannot be cleaned, contact your support desk to obtain a replacement pin. NOTE Pin 8 is not user replaceable. Contact your support desk for information about replacing this RF connector. CAUTION Do not place any metal objects on top of the cradle that might make contact with the metal pins of the contact connector. Doing so may cause an electrical short and subsequent damage to the cradle. 72_0103_003 10 December 2002 © 2002 Itronix Corporation. All rights reserved. Page 53 of 76GoBook II Help 1/31/2003file://C:\Documents%20and%20Settings\harwoodm\Local%20Settings\Temp\~hh35F9.htm

1 Security Slot Your computer has a Security Slot that can be used with a standard laptop locking device, such as a Kennsington Lock. You can connect the GoBook II to a large object with the lock to prevent theft of your GoBook. See the documentation that comes with your lock for more information. 72_0103_003 10 December 2002 © 2002 Itronix Corporation. All rights reserved. Wireless Communications The GoBook II includes two antennas for wireless communication. A WLAN antenna is embedded in the upper display housing and requires no user action. An external antenna is located on the upper right corner of the display. Simply raise this antenna when using your radio. Use only the supplied or an approved antenna(s). Unauthorized antennas, modifications, or attachments could impair ca…
