Getting Started Congratulations on your purchase of the Itronix GoBook II computer! Your new GoBook II features the most innovative advances in portable computing technology. It combines state-of-the-art ergonomics with a rugged, durable architecture to provide you with a notebook computer that is compact, powerful, rugged and easy to use. Designed for a wide range ofbusiness and personal productivity applications, the GoBook II is an ideal choice for use in applications that require durability and performance. For maximum expandability without compromising portability, the GoBook II has a USB interface and aPC card slot. The high capacityhard diskdrive provides you with plenty of storage space for multimedia files and applications. The GoBook II features a standard 87-key Nitevue® keyboard (89-key international). The high- resolution 12.1-inch touch screen LCD panel provides clear and crisp viewing with the convenience of a touch screen. This online document,GoBook II Help, contains all the information you need to set up and use your new GoBook II. It describes all the features of the GoBook II in an easy-to-read yet thorough manner. For information on printing, navigating or otherwise usingGoBook II HelpseeHow to Use This Help System. GoBook II™ Help Page 1 of 76GoBook II Help 1/7/2003file://C:\Documents%20and%20Settings\harwoodm\Local%20Settings\Temp\~hhB677.htm Checklists After opening the package, carefully inspect thecontents. Contact your dealer if any items are missing or appear damaged. The shipping carton should contain the following: STANDARD
The Itronix GoBook II computer
Battery
ADP-90AB or ADP-75FB AC adapter with power cord
12.1 inchXGA display
Stylus
Shoulder Strap
GoBook II Quick Start Guide OPTIONS The following items are normally optional, but somevendors may include them in the standard package. Some items may not be available in some countries, or some vendors may choose not to carry all the items.
Floppy disk drive
CD-ROM drive
CD-RW Drive
DVD-ROM drive
SVGA display
Soft Handle
Media Bay Li-Ion battery pack (3000 mAhr)
Hard Disk Drive Heater
LCD Heater CAUTION When purchasing any of the accessories listed above, purchase only those accessories that are approved for use with your computer. The above accessories are proprietary items. Your system vendor can obtain these approved accessories. If youuse items that are not approved for use with this com puter,you maycauseyour computer to malfunction, or to emit or receive electromagnetic radiation Page 2 of 76GoBook II Help 1/7/2003file://C:\Documents%20and%20Settings\harwoodm\Local%20Settings\Temp\~hhB677.htm in excess of local regulations. For non-proprietary accessories such as PC Cards or printers, ensure that the accessory functions properly in your computerbefore making the purchase. Your system vendor may be able to recommend reliable brands and models. Features High Capacity Hard Disk Drive The computer has a high capacity hard disk drive, enabling you to install your favorite programs and store large multimedia files. Full Array of Ports and Connectors Your computer includes standard ports for connecting to peripherals such as USB devices and monitors. USB ports allow you to add many types of peripherals. Large SVGA or XGA LCD Your computer has a large, easyto view SVGA or XGA LCD panel. Built-in Microphone and Stereo Speakers The stereo speakers and internal microphone enable you to run a variety of multimedia applications. Function Keys Function keys allow you to suspend your computer, shut the LCDs off, and give you easy control of audio and your monitor. Where to Look For Information About Your Computer This Help System describes the key elements of your computer. New users can find a simple step-by- step orientation in this chapter. About Windows For more extensive information and help about Windows go toHelp and Support , found on the Start Menu. Go to Start, Programs, Accessories to open, an online orientation of Windows XP. 72_0103_003 10 December 2002 © 2002 Itronix Corporation. All rights reserved. Page 3 of 76GoBook II Help 1/7/2003file://C:\Documents%20and%20Settings\harwoodm\Local%20Settings\Temp\~hhB677.htm Precautions You can use your computer under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your computer:
Follow all warnings and instructions noted in this documentation and in the WindowsHelp and Support, found on the Start Menu.
The first time you use your computer, we recommend that you carefully read the section on Power Management to familiarize yourself with some basic battery information and to ensure optimum performance
There is danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.
Do not open the RAM door by yourself.
Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use aerosols, solvents, or strong detergents
Slots and openings in the computer case are for ventilation purposes. Do not block or cover these openings or the system could overheat
On the bottom of the GoBook II, there is a label with information on the power requirements of this system. These requirements must be followed. If you are unsure of your local power supply, consult your dealer or local Power Company
Do not step on or place anything on the power cord
If you use the computer with an extension cord, ensure that the total ampere ratings of all the devices sharing the extension do not exceed the rating of the extension cord or the rating of the wall outlet
Unless instructed, never push foreign objects into the computer through any of the slots or openings. Dangerous voltages are present, which could cause electric shock, fire, or damage sensitive components
For b…

Text truncated - open the document above for the full version.

801 S. STEVENS STREET SPOKANE, WA 99204 509.624.6600 800.441.1309 FAX 509.626.4203 www.itronix.com November 12, 2002 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Itronix Corporation FCC ID: KBCIX260AC750 FCC Part 24(E) Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, Itronix Corporation hereby requests confidentiality of the Circuit Diagram(s), Parts List, Tune-Up Procedure, and Antenna Specifications attachments for the subject application. These documents contain detailed system and equipment description and related information about the product in which Itronix Corporation considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Itronix Corporation considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely,

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-448-7047 • Fax. 250-448-7046 • e-mail: [email protected] www.celltechlabs.com January 07, 2003 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue, Suite C110 McLean, VA 22101 SUBJECT: ITRONIX CORPORATION FCC ID: KBCIX260AC750 Part 24(E) - Certification Gentlemen: On behalf of Itronix Corporation is an application for Part 24(E) Certification of Itronix IX260 Rugged Laptop PC with internal PCS GSM/GPRS PCMCIA Modem Card Model: AirCard 750 manufactured by Sierra Wireless, Inc. (FCC ID: N7NAC750, originally granted May 03, 2002). Model: IX260 Equipment Class: Part 24 Licensed Portable Transmitter worn on body (PCT) Equipment Type: Rugged Laptop PC with internal PCS GSM/GPRS PCMCIA Modem Card Modulation: GMSK Emission Designator: 271KGXW Tx Freq. Range: 1850.25 - 1909.875 MHz Antenna Type(s): 1. External Dipole 2. Mobile Vehicle-Mount Conducted Power Tested: 27.9 dBm (Max.) Max. RF Output Power: 0.959 Watts (EIRP) Max. SAR Measured: 1.51 W/kg (1g average) Attached is the authorization letter, confidentiality request, Part 24(E) EMC measurement report data and photographs, RF exposure SAR measurement report data & photographs, RF exposure MPE measurement report data & photographs, FCC ID label and location, internal and external photographs, circuit diagram(s) (confidential), parts list (confidential), tune-up procedure (confidential), antenna specifications (confidential), and the user's manual with RF exposure warning statement(s). If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, General Manager Celltech Research Inc. Testing & Engineering Lab cc: Itronix Corporation

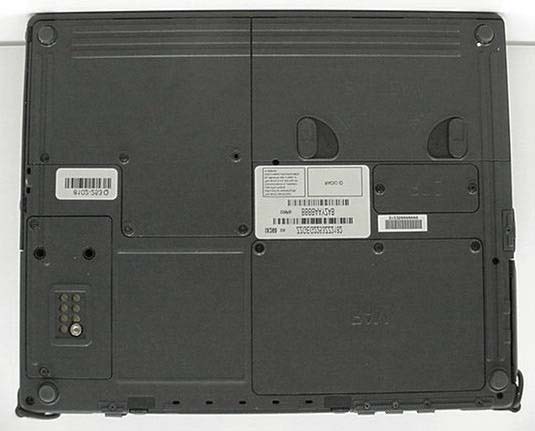

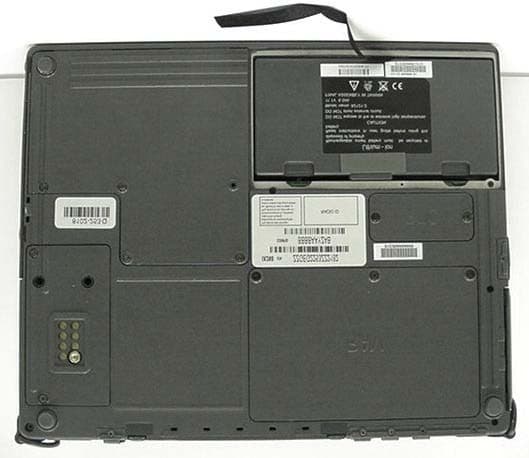

© 2002 Celltech Research Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC750 Rugged Laptop PC with PCS GSM/GPRS PCMCIA Modem Card EXTERNAL EUT PHOTOGRAPHS © 2002 Celltech Research Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC750 Rugged Laptop PC with PCS GSM/GPRS PCMCIA Modem Card EXTERNAL EUT PHOTOGRAPHS © 2002 Celltech Research Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC750 Rugged Laptop PC with PCS GSM/GPRS PCMCIA Modem Card EXTERNAL EUT PHOTOGRAPHS © 2002 Celltech Research Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC750 Rugged Laptop PC with PCS GSM/GPRS PCMCIA Modem Card EXTERNAL EUT PHOTOGRAPHS © 2002 Celltech Research Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC750 Rugged Laptop PC with PCS GSM/GPRS PCMCIA Modem Card EXTERNAL EUT PHOTOGRAPHS with Vehicle Cradle & 3 dBi Gain Vehicle Antenna (MaxRad P/N: WMLPVDB800/1900) © 2002 Celltech Research Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC750 Rugged Laptop PC with PCS GSM/GPRS PCMCIA Modem Card EXTERNAL EUT PHOTOGRAPHS Vehicle Cradle

© 2002 Celltech Research Inc. ITRONIX CORPORATION FCC ID: KBCIX260AC750 Rugged Laptop PC with PCS GSM/GPRS PCMCIA Modem Card DEVICE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The label shall be permanently affixed at a conspicuous location on the device. SEE NEXT PAGE(S) FOR PART 24(E) LABEL SEE NEXT PAGE(S) FOR PART 15(B) DoC LABEL

© 2002 Celltech Research Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC750 Rugged Laptop PC with PCS GSM/GPRS PCMCIA Modem Card INTERNAL EUT PHOTOGRAPHS © 2002 Celltech Research Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC750 Rugged Laptop PC with PCS GSM/GPRS PCMCIA Modem Card INTERNAL EUT PHOTOGRAPHS © 2002 Celltech Research Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC750 Rugged Laptop PC with PCS GSM/GPRS PCMCIA Modem Card INTERNAL EUT PHOTOGRAPHS © 2002 Celltech Research Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC750 Rugged Laptop PC with PCS GSM/GPRS PCMCIA Modem Card INTERNAL EUT PHOTOGRAPHS © 2002 Celltech Research Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC750 Rugged Laptop PC with PCS GSM/GPRS PCMCIA Modem Card INTERNAL EUT PHOTOGRAPHS

Test Report S/N: 102902-306KBC Test Date(s): November 01, 2002 FCC/IC MPE Measurements © 2002 Celltech Research Inc.1 of 11 This mobile device has been shown to be compliant for localized Maximum Permissible Exposure (MPE) for uncontrolled environment / general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3- 1999. This device complies with the rules and regulations specified for Maximum Permissible Exposure (MPE) by the Federal Communications Commission and Industry Canada. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Research Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell Pipe Senior Compliance Technologist Celltech Research Inc. DECLARATION OF COMPLIANCE MPE EVALUATION Test Lab CELLTECH RESEARCH INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99204 FCC Rule Part(s): 47 CFR §24(E), §2.1091; §1.1310 IC Rule Part(s):RSS-133 Issue 2, RSS-102 Issue 1 (Provisional) FCC Classification:Part 24 Licensed Portable Transmitter worn on body (PCT) IC Classification:2GHz Personal Communication Services Device Type:Rugged Laptop PC with Sierra Wireless AirCard 750 PCS GSM/GPRS PCMCIA Modem Card, Vehicle Cradle, & Mobile Vehicle-Mount Antenna FCC ID: KBCIX260AC750 Model(s):IX260 Modulation:GMSK Tx Frequency Range:1850.25 - 1909.875 MHz RF Output Power Tested:27.9 dBm Conducted (1850.25 MHz) 27.9 dBm Conducted (1880.00 MHz) 27.8 dBm Conducted (1909.875 MHz) Antenna Type(s):Mobile Vehicle Antenna (MaxRad P/N: WMLPVDB800/1900 - 3 dBi Gain) Power Supply:12V Vehicle Battery Test Report S/N: 102902-306KBC Test Date(s): November 01, 2002 FCC/IC MPE Measurements © 2002 Celltech Research Inc.2 of 11 TABLE OF CONTENTS 1.0SCOPE / INTRODUCTION.......................................................3 2.0DESCRIPTION OF EUT..........................................................3 3.0MPE MEASUREMENT GUIDELINES.........................................4 4.0MPE DEFINITION...................................................................4 5.0MPE LIMITS..........................................................................5-6 6.0DETAILS OF MPE EVALUATION.............................................7 7.0MPE EVALUATION SUMMARY................................................8 8.0SYSTEM CALIBRATION.........................................................9 9.0SYSTEM SPECIFICATIONS....................................................9 10.0REFERENCES......................................................................10 APPENDIX A - MPE TEST SETUP PHOTOGRAPHS.............................11 Test Report S/N: 102902-306KBC Test Date(s): November 01, 2002 FCC/IC MPE Measurements © 2002 Celltech Research Inc. ITRONIX CORPORATION FCC ID: KBCIX260AC7503 of 11 Rugged Laptop PC with PCS GSM/GPRS PCMCIA Modem Card MPE EVALUATION REPORT 1.0 SCOPE Environmental evaluation measurements of Maximum Permissible Exposure (MPE) to radio frequency (RF) radiation from transmitting devices for compliance with the technical rules and regulations of the U.S. Federal Communications Commission (see reference [3]) and Industry Canada (see reference [4]). 1.1 INTRODUCTION This measurement report describes the Maximum Permissible Exposure (MPE) tests of the Itronix Corporation Model: IX260 Rugged Laptop PC FCC ID: KBCIX260AC750 with internal Sierra Wireless AirCard 750 PCS GSM/GPRS PCMCIA Modem Card, Vehicle Cradle, & Mobile Vehicle-Mount Antenna. The test procedures described in FCC 47 CFR §2.1091, §1.1310, American National Standards Institute C95.1-1992 (see reference [1]), C95.3-1992 (see reference [2]), FCC OET Bulletin 65, Supplement C, Edition 01-01 (see reference [3]), and Industry Canada RSS-102 Issue 1 (Provisional) (see reference [4]) were employed. A description of the product and operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION of Equipment Under Test (EUT) EUT Type Rugged Laptop PC with internal PCS GSM/GPRS PCMCIA Modem Card, Vehicle Cradle, & Mobile Vehicle-Mount Antenna Radio Type Sierra Wireless Inc. Model: AirCard 750 FCC ID: N7NAC750 FCC Device Class Part 24 Licensed Portable Transmitter worn on body (PCT) FCC Rule Part(s)§24(E), §2.1091; §1.1310 IC Device Class 2GHz Personal Communication Services IC Rule Part(s) RSS-133 Issue 2 RSS-102 Issue 1 RF Conducted Output Power 27.9 dBm (2412 MHz) 27.9 dBm (2437 MHz) 27.8 dBm (2462 MHz) FCC IDKBCIX260AC750 Tx Frequency Range 1850.25 - 1909.875 MHzModel(s)IX260 Signal ModulationGMSK Antenna Type(s) Mobile Vehicle Antenna Power Supply12V Vehicle BatteryAntenna P/N(s) MaxRad P/N: WMLPVDB800/1900 (3 dBi Gain) Test Report S/N: 102902-306KBC Test Date(s): November 01, 2002 FCC/IC MPE Measurements © 2002 Celltech Research Inc. ITRONIX CORPORATION FCC ID: KBCIX260AC7504 of 11 Rugged Laptop PC with PCS GSM/GPRS PCMCIA Modem Card 3.0 MPE MEASUREMENT GUIDELINES The safety limits used for the RF exposure environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized MPE in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz - 300 GHz (see referenc…

Text truncated - open the document above for the full version.

Test Report S/N: 102902-305KBC Test Date(s): October 31, 2002 FCC/IC SAR Evaluation © 2002 Celltech Research Inc.1 of 21 Celltech Research Inc. declares under its sole responsibility that this device was found to be in compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C, Edition 01-01 and Industry Canada RSS-102 Issue 1 - Provisional (General Population / Uncontrolled Exposure). I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Research Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell Pipe Senior Compliance Technologist Celltech Research Inc. DECLARATION OF COMPLIANCE SAR EVALUATION Test Lab CELLTECH RESEARCH INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99210-0179 Rule Part(s):FCC 47 CFR §2.1093; IC RSS-102 Issue 1 (Provisional) Test Procedure(s):FCC OET Bulletin 65, Supplement C (01-01) FCC Device Classification:Part 24 Licensed Portable Transmitter worn on body (PCT) IC Device Classification:2GHz Personal Communication Services FCC ID:KBCIX260AC750 Model(s):IX260 Device Type:Rugged Laptop PC with Sierra Wireless AirCard 750 PCS GSM/GPRS Modem Modulation:GMSK Tx Frequency Range:1850.25 - 1909.875 MHz RF Output Power Tested:27.9 dBm Conducted (1850.25 MHz) 27.9 dBm Conducted (1880.00 MHz) 27.8 dBm Conducted (1909.875 MHz) Antenna Type:External Dipole Battery Type:11.1V Lithium-Ion, 6.0Ah (Model: A2121-2) Max. SAR Measured:1.51 W/kg (1g average) Test Report S/N: 102902-305KBC Test Date(s): October 31, 2002 FCC/IC SAR Evaluation © 2002 Celltech Research Inc.2 of 21 TABLE OF CONTENTS 1.0INTRODUCTION..................................................................... 3 2.0DESCRIPTION OF EUT............................................................ 3 3.0SAR MEASUREMENT SYSTEM ............................................... 4 4.0MEASUREMENT SUMMARY..................................................... 5 5.0DETAILS OF SAR EVALUATION............................................... 6 6.0EVALUATION PROCEDURES................................................... 6-7 7.0SYSTEM PERFORMANCE CHECK............................................ 8 8.0EQUIVALENT TISSUES........................................................... 9 9.0SAR LIMITS........................................................................... 9 10.0SYSTEM SPECIFICATIONS...................................................... 10 11.0PROBE SPECIFICATION.......................................................... 11 12.0SAM PHANTOM...................................................................... 11 13.0DEVICE HOLDER.................................................................... 11 14.0TEST EQUIPMENT LIST........................................................... 12 15.0MEASUREMENT UNCERTAINTIES............................................ 13 16.0REFERENCES........................................................................ 14 APPENDIX A - SAR MEASUREMENT DATA............................................. 15 APPENDIX B - SYSTEM CHECK DATA.................................................... 16 APPENDIX C - SYSTEM VALIDATION..................................................... 17 APPENDIX D - PROBE CALIBRATION.................................................... 18 APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS................ 19 APPENDIX F - SAM PHANTOM CERTIFICATE OF CONFORMITY.............. 20 APPENDIX G - SAR TEST SETUP PHOTOGRAPHS.................................. 21 Test Report S/N: 102902-305KBC Test Date(s): October 31, 2002 FCC/IC SAR Evaluation © 2002 Celltech Research Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC7503 of 21 Rugged Laptop PC with PCS GSM/GPRS PCMCIA Modem Card 1.0 INTRODUCTION This measurement report demonstrates that the ITRONIX CORPORATION Model: IX260 Rugged Laptop PC with Sierra Wireless AirCard 750 PCS GSM/GPRS PCMCIA Modem Card FCC ID: KBCIX260AC750 complies with the RF exposure requirements specified in FCC 47 CFR §2.1093 (see reference [1]) and Health Canada Safety Code 6 (see reference [2]) for the General Population environment. The test procedures described in FCC OET Bulletin 65, Supplement C, Edition 01-01 (see reference [3]) and IC RSS-102 Issue 1 (Provisional) (see reference [4]), were employed. A description of the product, operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION of Equipment Under Test (EUT) FCC Rule Part(s)47 CFR §2.1093 IC Rule Part(s)IC RSS-102 Issue 1 (Provisional) Test Procedure(s)FCC OET Bulletin 65, Supplement C (01-01) FCC Device ClassificationPart 24 Licensed Portable Transmitter worn on body (PCT) IC Device Classification2GHz Personal Communication Services Device Type Rugged Laptop PC with Sierra Wireless AirCard 750 PCS GSM/GPRS PCMCIA Modem Card FCC IDKBCIX260AC750 Model(s)IX260 Serial No.Pre-production ModulationGMSK Tx Frequency Range1850.25 - 1909.875 MHz RF Output Power Tested 27.9 dBm Conducted(1850.25 MHz) 27.9 dBm Conducted(1880.00 MHz) 27.8 dBm Conducted(1909.875 MHz) Antenna TypeExternal Dipole (Length: 4.3 inches) Battery Type11.1V Lithium-Ion, 6.0Ah (Model: A2…

Text truncated - open the document above for the full version.

Test Report S/N: 102902-304KBC Test Date(s): 11/04-05,27, 2002 FCC Part 24 EMC Measurements © 2002 Celltech Research Inc.1 of 15 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 47 CFR §24(E), §2, and ANSI TIA/EIA-603-A-2001. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Research Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell Pipe Senior Compliance Technologist Celltech Research Inc. DECLARATION OF COMPLIANCE FCC PART 24(E) EMC MEASUREMENTS Test Lab CELLTECH RESEARCH INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone:250-448-7047 Fax:250-448-7046 e-mail:[email protected] web site:www.celltechlabs.com Applicant Information ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99204 Rule Part(s):FCC 47 CFR §24(E), §2; IC RSS-133 Issue 2 Test Procedure(s):FCC 47 CFR §24(E), §2; ANSI TIA/EIA-603-A-2001 FCC Device Classification: Part 24 Licensed Portable Transmitter Worn on Body (PCT) IC Device Classification:2GHz Personal Communication Services Device Type:Rugged Laptop PC with Sierra Wireless AirCard 750 PCS GSM/GPRS Modem FCC ID: KBCIX260AC750 Model(s):IX260 Tx Frequency Range:1850.25 - 1909.875 MHz Max. RF Output Power:0.959 Watts EIRP (29.82 dBm) Conducted Power Tested:27.9 dBm (1850.25 MHz) 27.9 dBm (1880.00 MHz) 27.8 dBm (1909.875 MHz) Modulation:GMSK Emission Designator:271KGXW Frequency Tolerance:0.1 PPM Antenna Type:External Dipole Battery Type:11.1V Lithium-Ion, 6.0Ah (Model: A2121-2) Test Report S/N: 102902-304KBC Test Date(s): 11/04-05,27, 2002 FCC Part 24 EMC Measurements © 2002 Celltech Research Inc.2 of 15 TABLE OF CONTENTS 1.1SCOPE3 1.2GENERAL INFORMATION - §2.1033(a)3 2.1MEASUREMENT PROCEDURES4 2.2RF Output Power - §2.10464 2.3Spurious Emissions at Antenna Terminal - §2.10514 2.4Occupied Bandwidth - §2.1049, §24.2384 2.5Effective Isotropic Radiated Power Output - §24.232(b)4 2.6Field Strength of Spurious Radiation - §2.10535 2.7Radiated Measurement Test Setup5 2.8Frequency Stability / Temperature Variation - §2.1055, §24.2356 3.1TEST DATA7 3.2Effective Isotropic Radiated Power Output - §24.232(b)7 3.3Field Strength of Spurious Radiation-§2.10538-10 3.4Frequency Stability / Temperature Variation - §2.1055, §24.23511 4.1LIST OF TEST EQUIPMENT12 5.1CONCLUSION13 APPENDIX A - TEST PLOTS14 APPENDIX B - RADIATED TEST SETUP PHOTOGRAPHS15 Test Report S/N: 102902-304KBC Test Date(s): 11/04-05,27, 2002 FCC Part 24 EMC Measurements © 2002 Celltech Research Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC7503 of 15 Rugged Laptop PC with PCS GSM/GPRS PCMCIA Modem Card APPLICANT ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99204 FCC PART 24(E) EMC MEASUREMENT REPORT 1.1 SCOPE Measurement and determination of electromagnetic emissions (EME) from radio frequency devices for compliance with the technical rules and regulations of the Federal Communications Commission and Industry Canada. 1.2 GENERAL INFORMATION - §2.1033(a) FCC ID KBCIX260AC750 Model(s) IX260 Serial No. Pre-production EUT Type Rugged Laptop PC with Sierra Wireless AirCard 750 PCS GSM/GPRS PCMCIA Modem Card Rule Part(s) FCC 47 CFR §24(E), §2; IC RSS-133 Issue 2 FCC Classification Part 24 Licensed Portable Transmitter Worn on Body (PCT) IC Classification 2GHz Personal Communication Services Test Procedure(s) FCC 47 CFR §24(E), §2; ANSI TIA/EIA-603-A-2001 Tx Frequency Range 1850.25 - 1909.875 MHz Modulation GMSK Max. RF Output Power 0.959 Watts EIRP (29.82 dBm) RF Conducted Output Power Tested 27.9 dBm (1850.25 MHz) 27.9 dBm (1880.00 MHz) 27.8 dBm (1909.875 MHz) Emission Designator 271KGXW Frequency Tolerance 0.1 PPM Battery Type(s) 11.1V Lithium-Ion, 6.0Ah (Model: A2121-2) Antenna Type External Dipole (Length: 4.3 inches) Test Report S/N: 102902-304KBC Test Date(s): 11/04-05,27, 2002 FCC Part 24 EMC Measurements © 2002 Celltech Research Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC7504 of 15 Rugged Laptop PC with PCS GSM/GPRS PCMCIA Modem Card 2.1 MEASUREMENT PROCEDURES 2.2 RF OUTPUT POWER MEASUREMENT - §2.1046 The conducted power was measured with a Gigatronics 8650A Universal Power Meter using burst average power mode. An offset was entered into the power meter to correct for the losses of the attenuator and cable installed before the sensor input. The transmitter terminal was coupled to the power meter and the EUT was placed into test mode via internal software. All subsequent tests were performed using the same tune-up procedures. 2.3 SPURIOUS EMISSIONS AT ANTENNA TERMINAL - §2.1051 The conducted power was measured with a Gigatronics 8650A Universal Power Meter in burst average power mode. An offset was entered into the power meter to correct for all losses of the attenuator and cable installed before the sensor input. The EUT was placed into test mode via internal software. The level of the carrier and the various conducted spurious frequencies were measured by means of a calibrated spectrum analyzer. The resolution bandwidth and video bandwidth were set to 1MHz. The spectrum was scanned from 10MHz to 20GHz at the low, medium, and high channels. The radio transmitter was operating at maximum output power. The antenna output terminal of the EUT was connected to the input of a 50Ω spectrum analyzer through a matched 30dB attenuator and coaxial cable. The reported emissions were below the specified limit of -13dBm. 2.4 OCCUPIED BANDWIDTH - §2.1049, §24.238 The EUT was placed into test mode…

Text truncated - open the document above for the full version.

Test Report S/N: 102902-304KBC Test Date(s): 11/04-05,27, 2002 FCC Part 24 EMC Measurements © 2002 Celltech Research Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC75015 of 15 Rugged Laptop PC with PCS GSM/GPRS PCMCIA Modem Card APPENDIX B - RADIATED TEST SETUP PHOTOGRAPHS Test Report S/N: 102902-304KBC Test Date(s): 11/04-05,27, 2002 FCC Part 24 EMC Measurements © 2002 Celltech Research Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC750 Rugged Laptop PC with PCS GSM/GPRS PCMCIA Modem Card RADIATED TEST SETUP PHOTOGRAPHS Vertical Polarization Test Report S/N: 102902-304KBC Test Date(s): 11/04-05,27, 2002 FCC Part 24 EMC Measurements © 2002 Celltech Research Inc.ITRONIX CORPORATION FCC ID: KBCIX260AC750 Rugged Laptop PC with PCS GSM/GPRS PCMCIA Modem Card RADIATED TEST SETUP PHOTOGRAPHS Horizontal Polarization
