KBCIX260MPI350Laptop PC with DSSS WLAN Module

Getting Started Congratulations on your purchase of the Itronix GoBook II computer! Your new GoBook II features the most innovative advances in portable computing technology. It combines state-of-the-art ergonomics with a rugged, durable architecture to provide you with a notebook computer that is compact, powerful, rugged and easy to use. Designed for a wide range ofbusiness and personal productivity applications, the GoBook II is an ideal choice for use in applications that require durability and performance. For maximum expandability without compromising portability, the GoBook II has a USB interface and aPC card slot. The high capacityhard diskdrive provides you with plenty of storage space for multimedia files and applications. The GoBook II features a standard 87-key Nitevue® keyboard (89-key international). The high- resolution 12.1-inch touch screen LCD panel provides clear and crisp viewing with the convenience of a touch screen. This online document,GoBook II Help, contains all the information you need to set up and use your new GoBook II. It describes all the features of the GoBook II in an easy-to-read yet thorough manner. For information on printing, navigating or otherwise usingGoBook II HelpseeHow to Use This Help System. GoBook II™ Help Page 1 of 75GoBook II Help 12/12/2002file://C:\Documents%20and%20Settings\harwoodm\Local%20Settings\Temp\~hhA88F.h... Checklists After opening the package, carefully inspect thecontents. Contact your dealer if any items are missing or appear damaged. The shipping carton should contain the following: STANDARD
The Itronix GoBook II computer
Battery
ADP-90AB or ADP-75FB AC adapter with power cord
12.1 inchXGA display
Stylus
Shoulder Strap
GoBook II Quick Start Guide OPTIONS The following items are normally optional, but somevendors may include them in the standard package. Some items may not be available in some countries, or some vendors may choose not to carry all the items.
Floppy disk drive
CD-ROM drive
CD-RW Drive
DVD-ROM drive
SVGA display
Soft Handle
Media Bay Li-Ion battery pack (3000 mAhr)
Hard Disk Drive Heater
LCD Heater CAUTION When purchasing any of the accessories listed above, purchase only those accessories that are approved for use with your computer. The above accessories are proprietary items. Your system vendor can obtain these approved accessories. If youuse items that are not approved for use with this com puter,you maycauseyour computer to malfunction, or to emit or receive electromagnetic radiation Page 2 of 75GoBook II Help 12/12/2002file://C:\Documents%20and%20Settings\harwoodm\Local%20Settings\Temp\~hhA88F.h... in excess of local regulations. For non-proprietary accessories such as PC Cards or printers, ensure that the accessory functions properly in your computerbefore making the purchase. Your system vendor may be able to recommend reliable brands and models. Features High Capacity Hard Disk Drive The computer has a high capacity hard disk drive, enabling you to install your favorite programs and store large multimedia files. Full Array of Ports and Connectors Your computer includes standard ports for connecting to peripherals such as USB devices and monitors. USB ports allow you to add many types of peripherals. Large SVGA or XGA LCD Your computer has a large, easyto view SVGA or XGA LCD panel. Built-in Microphone and Stereo Speakers The stereo speakers and internal microphone enable you to run a variety of multimedia applications. Function Keys Function keys allow you to suspend your computer, shut the LCDs off, and give you easy control of audio and your monitor. Where to Look For Information About Your Computer This Help System describes the key elements of your computer. New users can find a simple step-by- step orientation in this chapter. About Windows For more extensive information and help about Windows go toHelp and Support , found on the Start Menu. Go to Start, Programs, Accessories to open, an online orientation of Windows XP. 72_0103_003 10 December 2002 © 2002 Itronix Corporation. All rights reserved. Page 3 of 75GoBook II Help 12/12/2002file://C:\Documents%20and%20Settings\harwoodm\Local%20Settings\Temp\~hhA88F.h... Precautions You can use your computer under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your computer:
Follow all warnings and instructions noted in this documentation and in the WindowsHelp and Support, found on the Start Menu.
The first time you use your computer, we recommend that you carefully read the section on Power Management to familiarize yourself with some basic battery information and to ensure optimum performance
There is danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.
Do not open the RAM door by yourself.
Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use aerosols, solvents, or strong detergents
Slots and openings in the computer case are for ventilation purposes. Do not block or cover these openings or the system could overheat
On the bottom of the GoBook II, there is a label with information on the power requirements of this system. These requirements must be followed. If you are unsure of your local power supply, consult your dealer or local Power Company
Do not step on or place anything on the power cord
If you use the computer with an extension cord, ensure that the total ampere ratings of all the devices sharing the extension do not exceed the rating of the extension cord or the rating of the wall outlet
Unless instructed, never push foreign objects into the computer through any of the slots or openings. Dangerous voltages are present, which could cause electric shock, fire, or damage sensitive component…

Text truncated - open the document above for the full version.

Cisco Systems, Inc. 320 Springside Drive Akron, Ohio 44333 Phone: 330 664-7900 Fax: 330-664-7922 http://www.cisco.com Phone: (330) 664-7362 Fax: (330) 664-7301 E-Mail: [email protected] December 2, 2002 AmericanTCB, Inc. 6731 Whittier Ave McLean, VA 22101 Re: FCC ID: KBCIX260MPI350, ATCB File No. ATCB000029 To Whom It May Concern: The following information is to be held confidential pursuant to 47 CFR Part 0 §0.457 and Section 552(b)(4) of the Freedom of Information Act, because the information provided is proprietary and contains trade secrets. If made public, the information might be used to the disadvantage of the Cisco Systems, Inc. in the market place. In addition, this information is to be withheld from the applicant, Ironix, as well. Block Diagram Schematic Diagrams Technical Description Bill of Materials (Parts List) Best Regards, Jim Nicholson EMC Compliance Engineer

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-448-7047 • Fax. 250-448-7046 • e-mail: [email protected] www.celltechlabs.com December 23, 2002 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue, Suite C110 McLean, VA 22101 SUBJECT: ITRONIX CORPORATION FCC ID: KBCIX260MPI350 Part 15 Subpart C - Certification Gentlemen: On behalf of Itronix Corporation is an application for Part 15 Subpart C Certification of Itronix IX260 Rugged Laptop PC with internal Cisco Systems, Inc. MPI-350 Mini-PCI WLAN Module (FCC ID: LDK102042 granted May 30, 2001). Model: IX260 Equipment Class: Part 15 Spread Spectrum Transmitter (DSS) Equipment Type: Rugged Laptop PC with internal Mini-PCI WLAN Module Modulation: Direct Sequence Spread Spectrum (DSSS) Tx Freq. Range: 2412 - 2462 MHz Antenna Type: Internal (Dual) RF Conducted Power Tested: 21.2 dBm (Max.) Max. RF Output Power: 0.372 Watts (EIRP) Max. SAR Measured: 0.369 W/kg (1g average) Attached is the authorization letter, confidentiality request, Part 15 Subpart C EMC measurement report data and photographs (Spectrum Technology and Rhein Tech Laboratories), RF exposure SAR measurement report data & photographs, FCC ID label and location, internal and external photographs, block diagram(s) (confidential), schematic diagram(s) (confidential), operational description (confidential), parts list (confidential), antenna specifications (confidential), and the user's manual with RF exposure warning statement(s). The EIRP and Radiated Spurious measurements were performed by Spectrum Technology Inc. The Conducted Spurious emissions, Occupied Bandwidth, Band Edge, and Peak Power Spectral Density measurements were performed by Rhein Tech Laboratories Inc. in February 2001, for the original certification of the internal Cisco Systems Inc. MPI-350 Mini-PCI WLAN Module (FCC ID: LDK102042 granted May 30, 2001). If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, General Manager Celltech Research Inc. Testing & Engineering Lab cc: Itronix Corporation Spectrum Technology, Inc.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 6, 2002 RE: FCC ID: KBCIX260MPI350 ATCB000029 Attention: Jon Hughes I have a few comments on this Application. 1 The product and the label appear to be more than large enough to contain the 2-condition statement as required by 15.19(a)(3). Please remember that only certain instances allow this statement to be placed in the manual. The product as shown and described does not meet this instance. Please correct the label or alternately provide an additional label with this 2- condition statement on the product. 2 Your report states that the ‘nominal’ conducted power rating is 110mW. The measured conducted power, including cable loss, is 85mW. This is a very significant difference in power. Please note that the rated output power has no meaning and that the conducted power on the grant would be 85mW. Please note that an 110mW device would be non-compliant to the grant and thus illegal. If the nominal power is the target power for the device, please test a unit at this rated power. Otherwise please correct or remove the 110mW nominal power reference in the report from all locations and put the measured conducted power in its place. 3 Please note that on page 4 of the report you list 2420, 2442, & 2460 MHz as the tested frequencies, but then in the table you list channel 1, 6 and 11 (2412, 2437 and 2462) as the frequencies tested. Please correct the report to be consistent. 4 Please note that this is not a PC2 for the Cisco WLAN card, but is an application for its own FCC ID. As such the test report must provide measurements of all appropriate tests under 15.247. This includes not only the power levels as provided and radiated spurious emissions, but band edge compliance, conducted spurious emissions 20dBc from the carrier, Peak Power Spectral Density and minimum emission bandwidth requirements. Again, please note that this is an application for the laptop with a WLAN (i.e. a limited modular approval) and must stand on its own merit. Please provide all necessary test results. 5 Please note, since this is an application for an FCC ID number of the WLAN with the laptop, schematics of the WLAN card must be provided. Please provide the schematics for the WLAN card. 6 Please provide a Block Diagram of the transmitter including all clocks. 7 Please note that the manual is clearly not for this device. Please note that there is an antenna in the upper LCD screen area of the device in the manual that is rotated up. The rear of the device is also not representative of what was tested. See page 11 of the manual and compare to the internal photos, external photos and setup photos. Please provide a manual that is for this device. 8 Please provide a photo or drawing giving the location of the antenna(s) in the display section. The location of the antenna(s) is not clear. 9 Since this device can be within 1.5cm of the user and since it is over 25mW the maximum SAR levels measured in the SAR report need to be specified in the manual. When providing the correct manual for this device, please include the maximum SAR values in the RF warning section. 10 Please clearly mark the location of the antenna(s) on the external photos. 11 Please note that your manual states the use of external SMA connector antenna(s). No such antenna(s) were tested with this device. Please remove any reference to external antenna(s) or alternately provide test data for the specific antenna(s) used with this device. Also, please note that since the device cannot be classified as professionally installed, SMA antenna connectors are not allowed on test device. External antenna(s) must meet the Part 15 antenna requirement and must be tested. Please explain. z Page 2 December 6, 2002 12 Please note I cannot find the non-modification statement in the manual required by 15.21. Please provide the following or similar statement in the manual: “changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 13 FYI, If the lap top can only be used in the typical open position, and if the conducted power of this device is only 85mW, and if the antenna(s) are in the upper LCD area (20cm separation), MPE is sufficient. Please explain why SAR was done. I.e. can the laptop be used in the closed position? 14 Please note the EMC report uses the cable loss as part of the conducted power. The SAR report does not mention any such cable loss. Does the conducted power in the SAR report include this cable loss, or is the conducted power in the SAR report compared to the conducted power less the 1.3dB cable? 15 Please note that the maximum SAR reported is only 0.04W/kg under the limit. The test procedures listed appear to be ‘generic’ in nature. With measured values this close to the limit, it is important to take steps to insure an accurate as possible measurement. Please clearly identify the steps you have taken to make sure that the maximum level you measured (1.56W/kg) is the maximum and that the device is, as far as can be determined, within the limits of SAR. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-448-7047 • Fax. 250-448-7046 • e-mail: [email protected] www.celltechlabs.com December 23, 2002 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue, Suite C110 McLean, VA 22101 Attn: Dennis Ward SUBJECT: ITRONIX CORPORATION FCC ID: KBCIX260MPI350 Part 15 Subpart C - Certification ATCB File No.: ATCB000029 Response to Questions - 12/06/02 Dear Dennis: On behalf of Itronix Corporation is our response to your questions dated 12/06/02 requesting additional information for the subject application. 1. Please see attached revised product label and location including two-part statement per 15.19(a)(s) to show compliance of the device with FCC Part 15(B). 2. Please see attached revised Part 15(C) EMC test report from Spectrum Technology Inc. listing the maximum conducted RF output power. Please note that new EIRP data is also submitted due to increased conducted power level. Attached is revised cover letter and Form 731 listing new maximum EIRP level (0.372 Watts). Please also see attached new SAR evaluation report with measurement data for increased conducted power level (max. 21.2 dBm). 3. Please see attached revised Part 15(C) EMC test report from Spectrum Technology Inc. with corrected operating frequencies listed on page 4. 4. Please see attached EMC test data (conducted spurious, occupied bandwidth, band edge, & peak power spectral density) performed by Rhein Tech Labs in February 2001 during the original certification testing of the internal Cisco MPI- 350 Mini-PCI WLAN card (FCC ID: LDK102042 granted May 30, 2001). Those measurements were performed using a Cisco MPI-350 WLAN card that is electrically and mechanically identical to the sample tested for this filing, therefore a retest of the above-referenced data was not deemed necessary for this filing. 5. The schematic diagrams for the WLAN card have been uploaded to the application. 6. The block diagram for the WLAN card has been uploaded to the application. 7. Please see attached revised user’s manual with reference only to the unit tested in this filing. 8. Please see attached revised antenna photographs showing the location of the antennas in the display section. 9. Please see attached revised SAR evaluation report with measurement data taken at 1.5 cm spacing from the back side of the LCD display. Also attached is the revised users manual RF exposure warning statement with 1.5 cm spacing requirement. 10. Addressed in #8. 11. Please see attached revised user’s manual with removal of references to external SMA connectors. 12. Please see attached revised users manual with non-modification statement as required per 15.21 (page 76). 13. SAR RF exposure evaluation was performed on this device due to the fact that the EUT can continue transmitting when the LCD display is in the closed position. This is not an intended operating configuration, however there are no utilities installed to prevent transmit of the device with the LCD display in the closed position, therefore enabling the user to be within 20cm from the back side of LCD display (dual antenna location). 14. A 1.3 dB cable offset was entered into the power meter prior to measuring the conducted power levels. 15. We confirm that the measurement procedures used for the RF exposure evaluation were performed strictly according to the guidelines specified in FCC OET Bulletin 65, Supplement C (01-01), and IEEE 1528-200X (Draft). If you have any further questions or comments concerning the above, please contact the undersigned. Sincerely, Jonathan Hughes General Manager Celltech Research Inc. cc: Itronix Corporation Spectrum Technology, Inc.

Celltech Labs Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-448-7047 • Fax. 250-448-7046 • e-mail: [email protected] www.celltechlabs.com May 1, 2003 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Attn: Katie Hawkins SUBJECT: ITRONIX CORPORATION FCC ID: KBCIX260MPI350 731 Confirmation No.: TC582126 Correspondence Ref. No.: 8099 Dear Katie: On behalf of Itronix Corporation is our response to your e-mail dated April 30, 2003 requesting additional information for the subject application. 1. The back of the LCD display in the closed position was originally tested with 0 cm gap from the flat phantom surface and the results were close to the 1.6 W/kg limit. The 1.5 cm spacing was determined based on the recommended guidelines for body SAR separation distance specified in Supplement C (Edition 01-01) “Recommended Test Positions for Body Configurations.” The lid-closed position is not a normal or typical operating configuration, and therefore the 1.5 cm spacing based on Supplement C guidelines was considered appropriate. If you have any further questions or comments concerning the above, please contact the undersigned. Sincerely, Jonathan Hughes General Manager Celltech Labs Inc. cc: Itronix Corporation

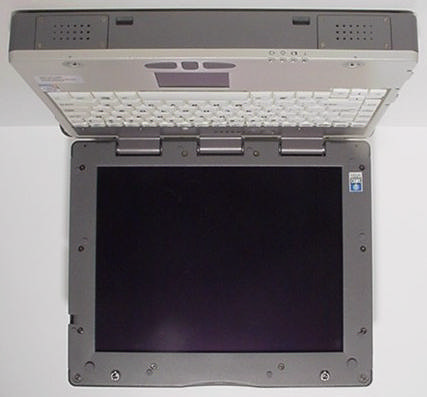

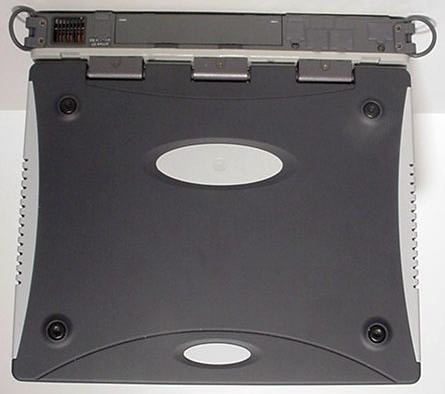

© 2002 Celltech Research Inc. ITRONIX CORPORATION FCC ID: KBCIX260MPI350 Rugged Laptop PC with Cisco MPI-350 Mini-PCI DSSS WLAN Card EXTERNAL EUT PHOTOGRAPHS © 2002 Celltech Research Inc. ITRONIX CORPORATION FCC ID: KBCIX260MPI350 Rugged Laptop PC with Cisco MPI-350 Mini-PCI DSSS WLAN Card EXTERNAL EUT PHOTOGRAPHS © 2002 Celltech Research Inc. ITRONIX CORPORATION FCC ID: KBCIX260MPI350 Rugged Laptop PC with Cisco MPI-350 Mini-PCI DSSS WLAN Card EXTERNAL EUT PHOTOGRAPHS © 2002 Celltech Research Inc. ITRONIX CORPORATION FCC ID: KBCIX260MPI350 Rugged Laptop PC with Cisco MPI-350 Mini-PCI DSSS WLAN Card EXTERNAL EUT PHOTOGRAPHS

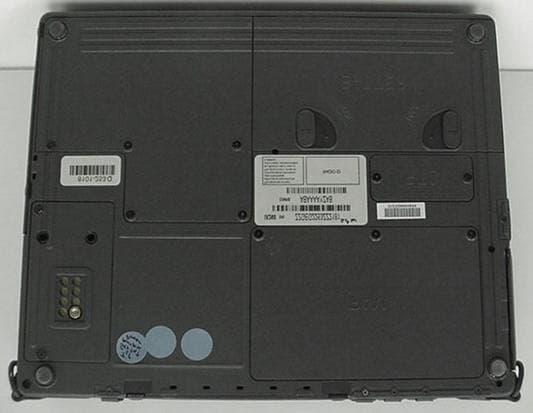

© 2002 Celltech Research Inc. ITRONIX CORPORATION FCC ID: KBCIX260MPI350 Rugged Laptop PC with Cisco MPI-350 Mini-PCI DSSS WLAN Card DEVICE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The label shall be permanently affixed at a conspicuous location on the device. SEE NEXT PAGE(S) FOR PART 15(C) LABEL SEE NEXT PAGE(S) FOR PART 15(B) DoC LABEL

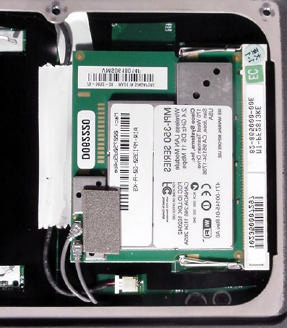

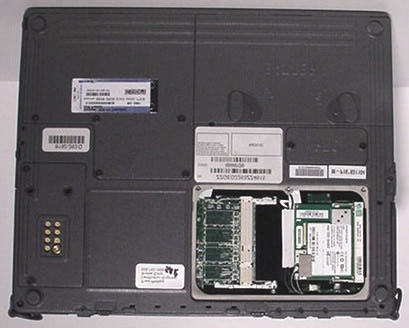

© 2002 Celltech Research Inc. ITRONIX CORPORATION FCC ID: KBCIX260MPI350 Rugged Laptop PC with Cisco MPI-350 Mini-PCI DSSS WLAN Card INTERNAL EUT PHOTOGRAPHS © 2002 Celltech Research Inc. ITRONIX CORPORATION FCC ID: KBCIX260MPI350 Rugged Laptop PC with Cisco MPI-350 Mini-PCI DSSS WLAN Card INTERNAL EUT PHOTOGRAPHS © 2002 Celltech Research Inc. ITRONIX CORPORATION FCC ID: KBCIX260MPI350 Rugged Laptop PC with Cisco MPI-350 Mini-PCI DSSS WLAN Card INTERNAL EUT PHOTOGRAPHS Top view of the board without shielding Bottom view of the board without shielding

© 2002 Celltech Research Inc. ITRONIX CORPORATION FCC ID: KBCIX260MPI350 Rugged Laptop PC with Cisco MPI-350 Mini-PCI DSSS WLAN Card INTERNAL EUT PHOTOGRAPHS Back Side of LCD Display Cover for Back of LCD Display Antenna Antenna © 2002 Celltech Research Inc. ITRONIX CORPORATION FCC ID: KBCIX260MPI350 Rugged Laptop PC with Cisco MPI-350 Mini-PCI DSSS WLAN Card INTERNAL EUT PHOTOGRAPHS Back Side of LCD Display Back of LCD Display - Left-Side Antenna Back of LCD Display - Right-Side Antenna Antenna Antenna

Test Report S/N: 102902-298KBC Test Date(s): December 10, 2002 FCC/IC SAR Evaluation © 2002 Celltech Research Inc.1 of 21 Celltech Research Inc. declares under its sole responsibility that this device was found to be in compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C, Edition 01-01 and Industry Canada RSS-102 Issue 1 (General Population / Uncontrolled Exposure). I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Research Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell Pipe Senior Compliance Technologist Celltech Research Inc. DECLARATION OF COMPLIANCE SAR EVALUATION Test Lab CELLTECH RESEARCH INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99210-0179 Rule Part(s):FCC 47 CFR §2.1093; IC RSS-102 Issue 1 (Provisional) Test Procedure(s):FCC OET Bulletin 65, Supplement C (01-01) FCC Device Classification:Part 15 Spread Spectrum Transmitter (DSS) IC Device Classification:Low Power License-Exempt Radiocommunication Device FCC ID:KBCIX260MPI350 Model(s):IX260 Device Type:Rugged Laptop PC with Cisco MPI-350 Mini-PCI DSSS WLAN Card Tx Frequency Range:2412 - 2462 MHz RF Output Power Tested:21.2 dBm Peak Conducted (2412 MHz) 21.1 dBm Peak Conducted (2437 MHz) 21.1 dBm Peak Conducted (2462 MHz) Antenna Type:Internal (Dual) Battery Type:11.1V Lithium-Ion, 6.0Ah (Model: A2121-2) Max. SAR Measured:0.369 W/kg (1g average) Test Report S/N: 102902-298KBC Test Date(s): December 10, 2002 FCC/IC SAR Evaluation © 2002 Celltech Research Inc.2 of 21 TABLE OF CONTENTS 1.0INTRODUCTION..................................................................... 3 2.0DESCRIPTION OF EUT............................................................ 3 3.0SAR MEASUREMENT SYSTEM ............................................... 4 4.0MEASUREMENT SUMMARY..................................................... 5 5.0DETAILS OF SAR EVALUATION............................................... 6 6.0EVALUATION PROCEDURES................................................... 7 7.0SYSTEM PERFORMANCE CHECK............................................ 8 8.0EQUIVALENT TISSUES........................................................... 9 9.0SAR LIMITS........................................................................... 9 10.0SYSTEM SPECIFICATIONS...................................................... 10 11.0PROBE SPECIFICATION.......................................................... 11 12.0SAM PHANTOM...................................................................... 11 13.0DEVICE HOLDER.................................................................... 11 14.0TEST EQUIPMENT LIST........................................................... 12 15.0MEASUREMENT UNCERTAINTIES............................................ 13 16.0REFERENCES........................................................................ 14 APPENDIX A - SAR MEASUREMENT DATA............................................. 15 APPENDIX B - SYSTEM CHECK DATA.................................................... 16 APPENDIX C - SYSTEM VALIDATION..................................................... 17 APPENDIX D - PROBE CALIBRATION.................................................... 18 APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS................ 19 APPENDIX F - SAM PHANTOM CERTIFICATE OF CONFORMITY.............. 20 APPENDIX G - SAR TEST SETUP PHOTOGRAPHS.................................. 21 Test Report S/N: 102902-298KBC Test Date(s): December 10, 2002 FCC/IC SAR Evaluation © 2002 Celltech Research Inc.ITRONIX CORPORATION FCC ID: KBCIX260MPI3503 of 21 Rugged Laptop PC with Cisco MPI-350 Mini-PCI DSSS WLAN Card 1.0 INTRODUCTION This measurement report demonstrates that the ITRONIX CORPORATION Model: IX260 Rugged Laptop PC with internal Cisco MPI-350 Mini-PCI DSSS WLAN Card FCC ID: KBCIX260MPI350 complies with the RF exposure requirements specified in FCC 47 CFR §2.1093 (see reference [1]) and Health Canada Safety Code 6 (see reference [2]) for the General Population environment. The test procedures described in FCC OET Bulletin 65, Supplement C, Edition 01-01 (see reference [3]) and IC RSS-102 Issue 1 (Provisional) (see reference [4]), were employed. A description of the product, operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION of Equipment Under Test (EUT) FCC Rule Part(s)47 CFR §2.1093 IC Rule Part(s)IC RSS-102 Issue 1 (Provisional) Test ProcedureFCC OET Bulletin 65, Supplement C (01-01) FCC Device ClassificationPart 15 Spread Spectrum Transmitter (DSS) IC Device ClassificationLow Power License-Exempt Radiocommunication Device Device TypeRugged Laptop PC with Cisco MPI-350 Mini-PCI DSSS WLAN Card FCC IDKBCIX260MPI350 Model(s)IX260 Serial No.Pre-production Tx Frequency Range2412 - 2462 MHz RF Output Power Tested 21.2 dBm Peak Conducted (2412 MHz) 21.1 dBm Peak Conducted (2437 MHz) 21.1 dBm Peak Conducted (2462 MHz) Antenna TypeInternal (Dual) Battery Type11.1V Lithium-Ion, 6.0Ah (Model: A2121-2) Test Report S/N: 102902-298KBC Test Date(s): December 10, 2002 FCC/IC SAR Evaluation © 2002 Cel…

Text truncated - open the document above for the full version.

1 Security Slot Your computer has a Security Slot that can be used with a standard laptop locking device, such as a Kennsington Lock. You can connect the GoBook II to a large object with the lock to prevent theft of your GoBook. See the documentation that comes with your lock for more information. 72_0103_003 10 December 2002 © 2002 Itronix Corporation. All rights reserved. Wireless Communications The GoBook II includes two WLAN antennas for wireless communication. The two WLAN antennas are embedded in the upper display housing and requires no user action. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. The GoBook II (IX260) contains the following radio transmitter: Cisco MPI -350 WLAN radio transmitter with two internal antennas (the internal antennas are located in the upper back side of the LCD display). The following statement is relevant when using this radio: In order to comply with FCC RF exposure requirements, a 1.5 cm spacing should be maintained between the back of the LCD display and the user/bystander’s body (except hands, feet, wrist, and ankles). Page 28 of 75GoBook II Help 12/12/2002file://C:\Documents%20and%20Settings\harwoodm\Local%20Settings\Temp\~hh849.htm

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Cisco System Page 19 Document Number: 2001041 Revision 4 7 MODULATED BANDWIDTH The minimum 6 dB bandwidth per FCC 15.247(a)(2) was measured using a 50 ohm spectrum analyzer with the resolution bandwidth set at 100 kHz, and the video bandwidth set at 300 kHz. The Minimum 6 dB modulated bandwidths are the following: TABLE 7: MODULATED BANDWIDTH Channel 6(dB) Bandwidth (MHz) 1 11.0 6 11.5 11 11.4 The 6dB bandwidth is listed in figures Section 26 of this report. 1 22.5 19.4 6 20.4 11 20.4 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Cisco System …
