KBCIX260MPIA755BTLaptop PC W/Dual Band GSM/GPRS, WLAN & Bluetooth

Getting Started Congratulations on your purchase of the Itronix GoBook II computer! Your new GoBook II features the most innovative advances in portable computing technology. It combines state-of-the-art ergonomics with a rugged, durable architecture to provide you with a notebook computer that is compact, powerful, rugged and easy to use. Designed for a wide range of business and personal productivity applications, the GoBook II is an ideal choice for use in applications that require durability and performance. For maximum expandability without compromising portability, the GoBook II has a USB interface and a PC card slot. The high capacity hard disk drive provides you with plenty of storage space for multimedia files and applications. The GoBook II features a standard 87-key Nitevue® keyboard (89-key international). The high-resolution 12.1-inch touch screen LCD panel provides clear and crisp viewing with the convenience of a touch screen. This online document, GoBook II Help, contains all the information you need to set up and use your new GoBook II. It describes all the features of the GoBook II in an easy-to-read yet thorough manner. For information on printing, navigating or otherwise using GoBook II Help see How to Use This Help System. Checklists GoBook II™ Help Page 1 of 74GoBook II Help 9/30/2003file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~hh49BC.htm After opening the package, carefully inspect the contents. Contact your dealer if any items are missing or appear damaged. The shipping carton should contain the following: STANDARD The Itronix GoBook II computer Battery ADP-90AB or ADP-75FB AC adapter with power cord 12.1 inch XGA display Stylus Shoulder Strap GoBook II Quick Start Guide OPTIONS The following items are normally optional, but some vendors may include them in the standard package. Some items may not be available in some countries, or some vendors may choose not to carry all the items. Floppy disk drive CD-ROM drive CD-RW Drive DVD-ROM drive SVGA display Soft Handle Media Bay Li-Ion battery pack (3000 mAhr) Hard Disk Drive Heater LCD Heater CAUTION When purchasing any of the accessories listed above, purchase only those accessories that are approved for use with your computer. The above accessories are proprietary items. Your system vendor can obtain these approved accessories. If you use items that are not approved for use with this computer, you may cause your computer to malfunction, or to emit or receive electromagnetic radiation in excess of local regulations. For non-proprietary accessories such as PC Cards or printers, ensure that the accessory functions properly in your computer before making the purchase. Your system vendor may be able to recommend reliable brands and models. Page 2 of 74GoBook II Help 9/30/2003file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~hh49BC.htm Features High Capacity Hard Disk Drive The computer has a high capacity hard disk drive, enabling you to install your favorite programs and store large multimedia files. Full Array of Ports and Connectors Your computer includes standard ports for connecting to peripherals such as USB devices and monitors. USB ports allow you to add many types of peripherals. Large SVGA or XGA LCD Your computer has a large, easy to view SVGA or XGA LCD panel. Built-in Microphone and Stereo Speakers The stereo speakers and internal microphone enable you to run a variety of multimedia applications. Function Keys Function keys allow you to suspend your computer, shut the LCDs off, and give you easy control of audio and your monitor. Where to Look For Information About Your Computer This Help System describes the key elements of your computer. New users can find a simple step-by- step orientation in this chapter. About Windows For more extensive information and help about Windows go to Help and Support, found on the Start Menu. Go to Start, Programs, Accessories to open , an online orientation of Windows XP. 72_0103_003 10 December 2002 © 2002 Itronix Corporation. All rights reserved. GoBook II™ Help Page 3 of 74GoBook II Help 9/30/2003file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~hh49BC.htm Precautions You can use your computer under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your computer: Follow all warnings and instructions noted in this documentation and in the Windows Help and Support, found on the Start Menu. The first time you use your computer, we recommend that you carefully read the section on Power Management to familiarize yourself with some basic battery information and to ensure optimum performance There is danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. Do not open the RAM door by yourself. Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use aerosols, solvents, or strong detergents Slots and openings in the computer case are for ventilation purposes. Do not block or cover these openings or the system could overheat On the bottom of the GoBook II, there is a label with information on the power requirements of this system. These requirements must be followed. If you are unsure of your local power supply, consult your dealer or local Power Company Do not step on or place anything on the power cord If you use the computer with an extension cord, ensure that the total ampere ratings of all the devices sharing the extension do not exceed the rating of the extension cord or the rating of the wall outlet Unless instructed, never push foreign objects into the computer through any of the slots or openings. Dangerous voltages are present, which could cause …

Text truncated - open the document above for the full version.

801 S. STEVENS STREET SPOKANE, WA 99204 509.624.6600 800.441.1309 FAX 509.626.4203 www.itronix.com October 22, 2003 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: ITRONIX CORPORATION FCC ID:KBCIX260MPIA755BT Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, ITRONIX CORPORATION hereby requests confidentiality of the, (Block Diagrams, Schematics, Theory of operation ,Tune-up procedures) attachments for the subject application. These documents contain detailed system and equipment description and related information about the product which ITRONIX CORPORATION and SIERRA WIRELESS INC. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, ITRONIX CORPORATION considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Mark Harwood Certification Engineering ITRONIX CORPORATION

1 Mike Kuo From: Claire Hoque Sent: November112003Tuesday 5:18 PM To: Mike Kuo Cc: Chuck Cowden; Thu Chan Subject: RE: Itronix Corp. FCC ID:KBCIX260MPIA755BT, AN03T3369 Hi Mike, Here are the answers. Question #1: The EUT contains in this application is the notebook computer with three radios built in ( WLAN, Dual Band GSM Data modem , and Bluetooth ). The internal photos only contain minimum photo to show the internal construction of notebook computer. Please provide additional internal photos to show : a. Internal photos of WLAN card ( component side and solder side with and without the metal plate ) <Claire>The FCC ID for WLAN card is LDK102042, internal photos attached. LDK102042 Internal Photos.pdf b. Internal photos of Bluetooth card ( component side and solder side with and without the metal plate ) <Claire>The FCC ID for Bluetooth card is POOWML-C11XX, photos attached. POOWML-C11XX photos.pdf c. Internal photos of Dual band GSM data modem card ( component side and solder side with and without the metal plate ) <Claire>pls see the attachment. AC755 Internal Photos.pdf d. Internal photos of CPU board and all PCB boards ( component side and solder side ) inside the notebook computer. e. AC/DC power adapter external photos and internal photos. <Claire>pls see revised internal photos for d and e. Internal Photos(revised).pdf Question #2: Proposed FCC ID label only contains the FCC ID number with FCC DoC logo for demonstrate product compliance to FCC Part 15 subpart B . In addition, there is no FCC Part 15 Subpart B Class B test data included in this filing. If this notebook computer is complied with FCC Part 15 Subpart B as Personal computer, please provide FCC DoC statement to justify such compliance and provide revised FCC label format with FCC DoC logo with necessary compliance statement. <Claire>pls see FCC DoC statement and revised FCC ID label location as attached. FCC Label Location(revised).PD... IX260 FCC Part15 DoC statement... Question #3: What is the approval status of WLAN radio and Bluetooth Radio ? Have both radios been approved as transmitter modular approval ? If this notebook computer is utilizing WLAN and Bluetooth modular approval, please provide FCC ID number of WLAN and Bluetooth. If both devices have not yet been approved, please provide schematic diagram, functional block diagram, theory of operation for each radio. <Claire>Both WLAN radio and Bluetooth Radio have been granted as modular approval, pls see attached grants. 2 BT POOWML-C11XX Grant.PDF Cisco LDK102042 Grant.PDF Question #4: Please confirm that AC700 data modem contains in this filing does not equip with GSM function but only with GPRS Class 12 as data modem. <Sierrawireless>Pls note the model number should be AirCard 755. AirCard 755 wireless modem supports both GSM and GPRS. <Claire> Our test report has been revised to show the correct model number AirCard 755. 03U2244 FCC Report(revised).PD... Question #5: During ERP / EIRP measurement, what is the mode of operation for AC700 Data Modem ? Which class of GPRS was used during the tests ? Which GPRS class is the worse case ? <Sierrawireless>The question is irrelevant as the ERP/EIRP measurement result is not affected by how many time slots are used for TX. There is no worst case here as they are all the same. Question #6: Output power measurement should be used with RBW great or equal to EBW, since the GSM occupied bandwidths shown on the plots ~300KHz. Please redo the RF conducted output power with RBW > EBW. <Sierrawireless>the conducted power was measured with RBW=300KHz, which is greater than EBW. Question#7 : What is the antenna gain for WLAN and Bluetooth used in this notebook computer ? <Itronix>pls see the attachment antenna info. sheets. IX260 WlanAntennaGainPlot.pdf IX260Blue tooth AntennaGainPlo... Question #8: User manual does not contain information to address RF exposure compliance. Please include such statement in the user manual. <Claire>pls see page 27 and 51 of user's manual. Question #9: Per 2.1091 of FCC rules, for mobile device with fundamental frequency less than 1.5GHz and the ERP is above 1.5W or more, routine evaluation is required to address RF exposure compliance. Please submit MPE measurement report. <Sierrawireless> RF Exposure_AC755_Rev.pdf In this document it is demonstrated and concluded that the AirCard 755 will comply with the FCC rules on RF exposure for mobile devices if the antenna gain does not exceed 4.5 dBi in both cellular and PCS band. Your ERP/EIRP measurement has confirmed the Itronix antenna has a gain less than 4.5dBi, therefore the evaluation shows the Itronix EUT complies with the FCC rules on RF exposure for mobile devices. Routine evaluation does not necessarily mean MPE measurement. The MPE calculation is also an accepted form of routine evaluation by FCC. Question #10: The RF conducted output power measured is 31.5dBm with 0 dBi antenna gain, please justify the measured ERP power is 33.7dBm in 850MHz band. Same for 1900 MHz band. <Sierrawireless>The 0dBi gain quoted here is the antenna gain in horizontal plane, and this is the gain people are normally interested in. But the ERP/EIRP measurement is a 3D measurement as it requires the height of the receiving antenna to be adjusted while searching for the peak. Therefore the gain in horizontal plane has nothing to do with the ERP/EIRP value. It's not uncommon that the peak gain of an antenna is a few dB higher than the max gain in 3 horizontal plane. Thanks, Claire

1 Mike Kuo From: Chuck Cowden Sent: November172003Monday 8:26 AM To: Mike Kuo Cc: Thu Chan; Claire Hoque Subject: FW: TCB Issues KBCIX260MPIA755BT Importance: High Hi Mike, Here is their response. Best regards, Chuck -----Original Message----- From: Harwood, Mark [mailto:[email protected]] Sent: Friday, November 14, 2003 5:01 PM To: 'Chuck Cowden' Cc: Sargent, Dick Subject: RE: TCB Issues KBCIX260MPIA755BT Hi Chuck We have obtained approval for Grant FCCID KBCIX260MPIA750BT. This approval is exactly the same as the approval we are applying for now with C.C.S for the Grant (FCCID KBCIX260MPIA755) with the only difference being the Sierra Wireless AC750 Card Verses the AC755 Card. The Wlan and antenna , the Bluetooth and antenna, the Aircard Antenna, and IX260 computer are exactly the same. Would it be acceptable to submit the WLAN and Bluetooth data that you are now requesting, from the Grant FCCID KBCIX260MPIA750BT for review with this new submittal? Thanks Mark From: Chuck Cowden [mailto:[email protected]] Sent: Friday, November 14, 2003 9:49 AM To: '[email protected]' Cc: Thu Chan; Claire Hoque Subject: TCB Issues KBCIX260MPIA755BT Importance: High Hi Mark, (Please see our TCB question/issues that need to be resolved.) Second reply to Question #7: The attached antenna file contains MPE estimate for Bluetooth and WLAN antenna. Such reply does not address the question. Since this device is utilized Bluetooth Module and WLAN module approval. Only the authorized antennas contains in Bluetooth and WLAN modular approval filing can be used. When the transmitter modular is sold to the final system integrator, transmitter module manufacturers have to provide the list of approved antenna with installation instructions. If this device is using unauthorized Bluetooth and WLAN antennas, WLAN and Bluetooth module can not be used unless Class II permissive change filings are filed by WLAN module manufacturer and Bluetooth manufacturer. 2 If this device is not going to utilize transmitter module approval, this application has to be filed as composite device (one for PCS base station for GSM/GPRS data modem, one for Digital Transmission System -DTS for WLAN transmitter module, and one for Spread spectrum transmitter -DSS for Bluetooth device ). All tests required for GSM/GPRS data modem are done, additional radiated spurious emissions with WLAN enable only and additional radiated spurious emission tests with Bluetooth enable only are required. Chuck Cowden Sales Manager 408-463-0885 ext 106 408-463-0888 Fax [email protected]

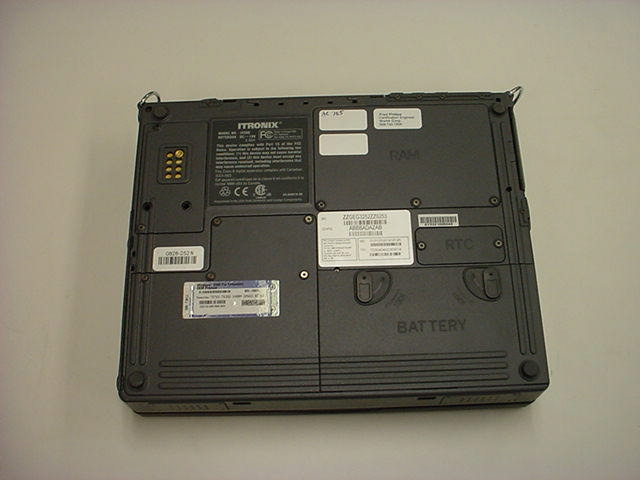

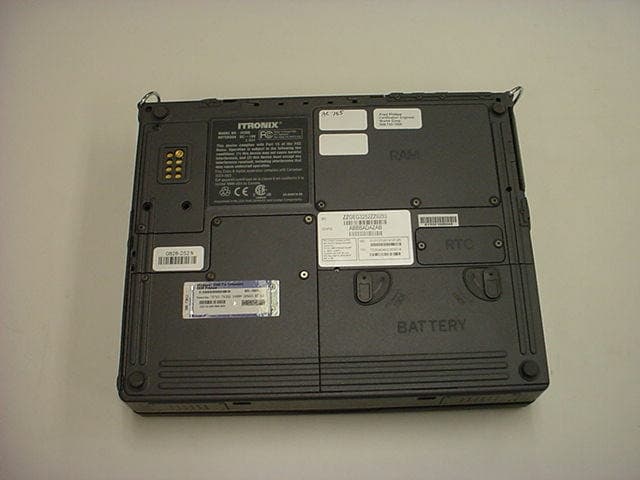

PROPOSED FCC ID LABEL AND LOCATION FCC ID LABEL LOCATION ITRONIX CORPORATION This device complies with Part 15/22/24 of the FCC Rules. FCC ID: KBCIX260MPIA755BT

Page 1 of 1 11/9/03https://svartifoss2.fcc.gov/prod/oet/forms/blobs/retrieve.cgi?attachment_id=260082&native_or_pdf=native Page 1 of 1 11/9/03https://svartifoss2.fcc.gov/prod/oet/forms/blobs/retrieve.cgi?attachment_id=260083&native_or_pdf=native Page 1 of 1 11/9/03https://svartifoss2.fcc.gov/prod/oet/forms/blobs/retrieve.cgi?attachment_id=260084&native_or_pdf=native

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Cisco System Page 46 Document Number: 2001041 Revision 3 26 EXTERNAL PHOTOGRAPHS 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Cisco System Page 43 Document Number: 2001041 Revision 3 25 INTERNAL PHOTOGRAPHS Top View Bottom View 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Cisco System Page 44 Document Number: 2001041 Revision 3 Top view of the board without cover Bottom view of the board without cover 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Cisco System Page 45 Document Number: 2001041 Revision 3 Antenna port on the board 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Cisco System Page 47 Document Number: 2001041 Revision 3 27 ANTENNA PHOTOGRAPHS Antenna Antenna port

FCC CFR47 CERTIFICATION PART 22H and 24E TEST REPORT FOR LAPTOP WITH BULIT-IN 850MHZ/1900MHZ DUAL BAND GSM CARD MODEL: IX260 FCC ID: KBCIX260MPIA755BT REPORT NUMBER: 03U2244-1 ISSUE DATE: SEPTEMBER. 30, 2003 Prepared for ITRONIX CORPORATION SOUTH 801 STEVENS STREET, PO BOX 179 SPOKANE, WA 99210-0179 Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, ROUTE 2 MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 03U2244-1 DATE: SEPTEMBER 30,2003 EUT: LAPTOP SYSTEM W/ BUILT-IN 850/1900MHz DUAL BAND GSM CARD FCC ID: KBCIX260MPIA755BT Page 2 of 39 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. TEST RESULT CERTIFICATION............................................................3 2. EUT DESCRIPTION....................................................................................4 3. TEST METHODOLOGY.............................................................................4 4. TEST FACILITY...........................................................................................4 5. ACCREDITATION AND LISTING...........................................................4 6. MEASURING INSTRUMENT CALIBRATION......................................4 7. TEST SETUP, PROCEDURE AND RESULT...........................................5 7.1. SECTION 2.1046: RF POWER OUTPUT...................................................................................5 7.2. SECTION 2.1053: FIELD STRENGTH OF SPURIOUS RADIATION...................................17 7.3. CO-LOCATED RADIATED EMISSIONS...............................................................................22 7.4. RADIATED EMISSION............................................................................................................27 7.5. POWERLINE CONDUCTED EMISSION................................................................................33 8. APENDIX.....................................................................................................39 8.1. EXTERNAL & INTERNAL PHOTOS.....................................................................................39 8.2. SCHEMATICS...........................................................................................................................39 8.3. BLOCK DIAGRAM..................................................................................................................39 8.4. USER MANUAL.......................................................................................................................39 REPORT NO: 03U2244-1 DATE: SEPTEMBER 30,2003 EUT: LAPTOP SYSTEM W/ BUILT-IN 850/1900MHz DUAL BAND GSM CARD FCC ID: KBCIX260MPIA755BT Page 3 of 39 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: ITRONIX CORPORATION SOUTH 801 STEVEN STREET PO BOX 179 SPOKAN, WA. 999210-0179 EUT DESCRIPTION: LAPTOP WITH BULIT-IN 850MHZ/1900MHZ DUAL BAND GSM CARD MODEL NAME: IX260 DATE TESTED: SEPTEMBER 22, 03 TO SEPTEMBER 24, 2003 TYPE OF EQUIPMENT INTENTIONAL RADIATOR EQUIPMENT TYPE LICENSED TX MODULE IN MOBILE APPLICATION MEASUREMENT PROCEDURE ANSI 63.4 / 2001, TIA/EIA 603 PROCEDURE CERTIFICATION FCC RULE CFR 47 PART 22 SUBPART H AND PART 24 SUBPART E Compliance Certification Services, Inc. tested the above equipment for compliance with the requirement set forth in CFR 47, PART 22 Subpart H and PART 24 subpart E Cellular Radiotelephone Service. The equipment in the configuration described in this report, shows the measured emission levels emanating from the equipment do not exceed the specified limit. Note : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Tested By: Released For CCS By: VIEN TRAN THU CHAN EMC TECHNICIAN EMC SUPERVISOR COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 03U2244-1 DATE: SEPTEMBER 30,2003 EUT: LAPTOP SYSTEM W/ BUILT-IN 850/1900MHz DUAL BAND GSM CARD FCC ID: KBCIX260MPIA755BT Page 4 of 39 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. EUT DESCRIPTION The laptop system approval with built-in 850MHz/1900Mz Dual band GSM Card can operate (transmit) at two different frequency bands. The 800MHz band has: - an output power 33.7dBm (2.344W_ERP) - a permanent attached antenna , 0dBi gain - and the transmitting of frequency range 824 ~ 849MHz And the 1900MHz band has: - an output power 31.6dBm (1.445W_EIRP) - a permanent attached antenna , 0dBi gain - and the transmitting of frequency range 1850 ~ 1910MHz 3. TEST METHODOLOGY Both conducted and radiated testing were performed according to the procedures documented on chapter 13 of ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.105…

Text truncated - open the document above for the full version.

801 S. STEVENS STREET SPOKANE, WA 99204 509.624.6600 800.441.1309 FAX 509.626.4203 www.itronix.com November 19, 2003 Compliance Certification Services 561F Monterey Road, Morgan Hill, Ca 95037-9001 RE:ITRONIX CORPORATION FCC ID:KBCIX260MPIA755BT Gentlemen: ITRONIX CORPORATION is submitting data for the above referenced rugged laptop PC that contains three co-located transmitters. This data is from the previously filed KBCIX260MPIA750BT test report with the same Bluetooth and WLAN RF devices installed. The results of the Test Reports referenced below demonstrate the equipment complies with the Part 15 limits. Reports include EMC measurements of the previously Certified Intentional Radiator, FCC ID:LDK102042, Model MPI350 show continued compliance with the limits established in Part 15.247 for DTS. Reports include EMC measurements of the previously Certified Intentional Radiator, FCC ID:POOWML-CIIXX, Model: WML-C11NU, confirm compliance with Part 15.247 DSS rules for FHSS. Test Report 1 Test Report 2 Test Report 3 Test Report 4 Test Report 5 Test Report 6 Test Report 7 Test Setup Sincerely, Mark Harwood ITRONIX CORPORATION 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Cisco System Page 37 Document Number: 2001041 Revision 4 12 COMPLIANCE WITH THE RESTRICTED BAND EDGE TEST DATA Compliance with the band edges was performed using the FCC’s “Radiated Measurement at a Band Edge” guidance document. The final data derived below were from radiated measurements only. The data taken in this report represents the worst case at 11 MBPS. Data rates of 5.5MBPS, 2 MBPS and 1 MBPS were investigated and found to be in compliance. Both absolute and delta method were performed with the same results. TABLE 28: RESTRICTED BAND EDGE Band edge Measurement Antenna Channel Set to Frequency tested MHz Field Strength Level (dBμ μμ μV/m) FCC Limit (dBμ μμ μV/m) FCC Margin (dB) 1 2390.0 53.1 54.0 -0.9 Cisco Dipole 11 2483.5 53.9 54.0 -0.1 1 2390.0 41.4 54.0 -12.6 Dell Dipole 11 2483.5 52.4 54.0 -1.6 1 2390.0 40.4 54.0 -13.6 Dell Inverted F 11 2483.5 46.9 54.0 -7.1 1 2390.0 37.9 54.0 -16.1 Toshiba Chip 11 2483.5 47.2 54.0 -6.8 1 2390.0 39.8 54.0 -14.2 Toshiba Inverted F 11 2483.5 50.2 54.0 -3.8 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Cisco System Page 45 Document Number: 2001041 Revision 4 15 BANDEDGE PLOTS PLOT 1: CHANNEL 1 CISCO DIPOLE ANTENNA 1MHZ/10HZ 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Cisco System Page 46 Document Number: 2001041 Revision 4 PLOT 2: CHANNEL 1 CISCO DIPOLE ANTENNA Note site factor entered into analyzer register for corrected final result. 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Cisco System Page 47 Document Number: 2001041 Revision 4 PLOT 3: CHANNEL 11 CISCO DIPOLEANTENNA 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Cisco System Page 48 Document Number: 2001041 Revision 4 PLOT 4: CHANNEL 11 CISCO DIPOLE ANTENNA Note site factor entered into analyzer register for corrected final result. 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Cisco System Page 49 Document Number: 2001041 Revision 4 PLOT 5: CHANNEL 1 DELL DIPOLE ANTENNA 1MHZ/10HZ 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Cisco System Page 50 Document Number: 2001041 Revision 4 PLOT 6 CHANNEL 1 DELL DIPOLE ANTENNA 1MHZ/1MHZ 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Cisco System Page 51 Document Number: 2001041 Revision 4 PLOT 7 CHANNEL 11 DELL DIPOLE ANTENNA 1MHZ/10HZ 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Cisco System Page 52 Document Number: 2001041 Revision 4 PLOT 8 CHANNEL 11 DELL DIPOLE ANTENNA 1MHZ/1MHZ 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Cisco System Page 53 Document Number: 2001041 Revision 4 PLOT 9 CHANNEL 1 DELL INVERTED F ANTENNA 1MHZ/10HZ 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Cisco System Page 54 Document Number: 2001041 Revision 4 PLOT 10 CHANNEL 1 DELL INVERTED F ANTENNA 1MHZ/1MHZ 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Cisco System Page 55 Document Number: 2001041 Revision 4 PLOT 11 CHANNEL 11 DELL INVERTED F ANTENNA 1MHZ/10HZ 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Cisco System Page 56 Document Number: 2001041 Revision 4 PLOT 12 CHANNEL 11 DELL INVERTED F ANTENNA 1MHZ/1MHZ 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Cisco System Page 57 Document Number: 2001041 Revision 4 PLOT 13 CHANNEL 1 TOSHIBA CHIP ANTENNA 1MHZ/10HZ 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Cisco System Page 58 Document Number: 2001041 Revision 4 PLOT 14 CHANNEL 1 TOSHIBA CHIP ANTENNA 1MHZ/1MHZ 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Cisco System Page 59 Document Number: 2001041 Revision 4 PLOT 15 CHANNEL 11 TOSHIBA CHIP ANTENNA 1MHZ/10HZ 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Cisco System Page 60 Document Number: 2001041 Revision 4 PLOT 16 CHANNEL 11 TOSHIBA CHIP ANTENNA 1MHZ/1MHZ 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Cisco System Page 61 Document Number: 2001041 Revision 4 PLOT 17 CHANNEL 1 INVERTED F TOSHIBA ANTENNA 1MHZ/10HZ 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certificati…

Text truncated - open the document above for the full version.

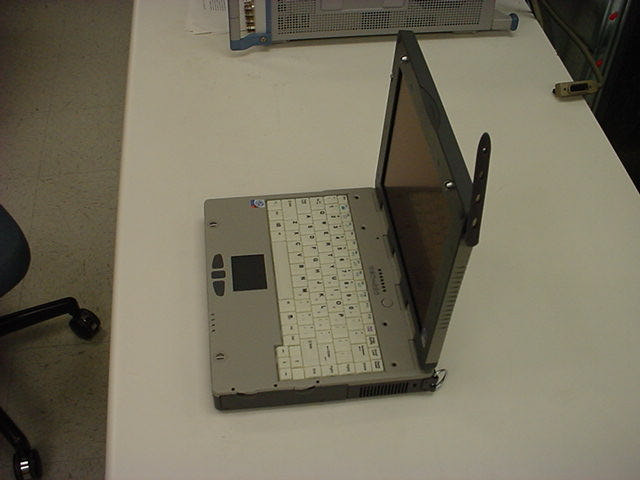

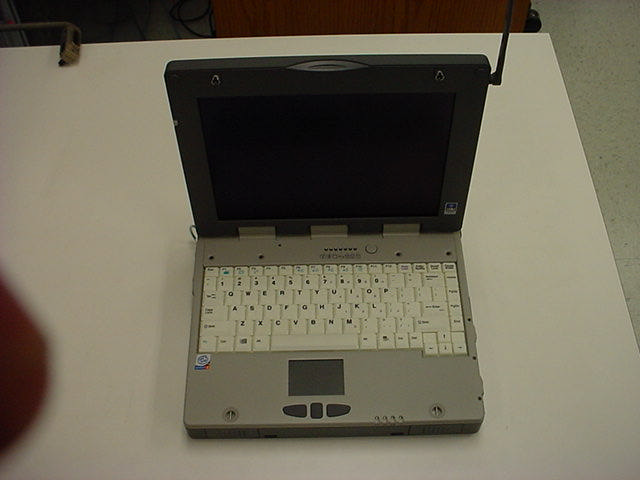

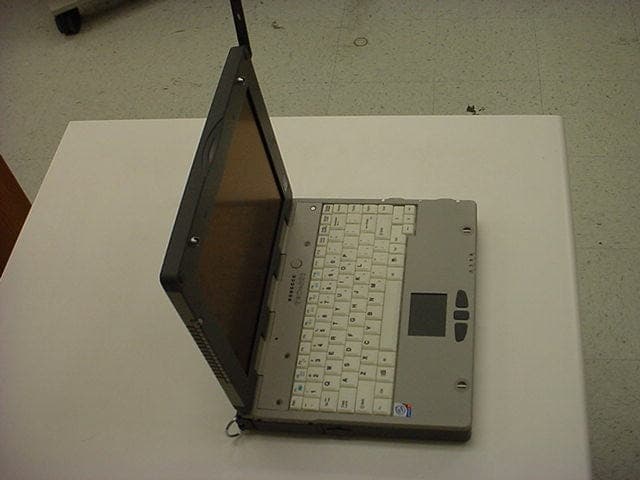

REPORT NO: 03U2244-1 DATE: SEPTEMBER 30,2003 EUT: LAPTOP SYSTEM W/ BUILT-IN 850/1900MHz DUAL BAND GSM CARD FCC ID: KBCIX260MPIA755BT Page 11 of 39 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Radiated Emissions 800MHZ FREQUENCY BAND: The antenna of EUT at Y worst-case position Front view REPORT NO: 03U2244-1 DATE: SEPTEMBER 30,2003 EUT: LAPTOP SYSTEM W/ BUILT-IN 850/1900MHz DUAL BAND GSM CARD FCC ID: KBCIX260MPIA755BT Page 12 of 39 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Back view REPORT NO: 03U2244-1 DATE: SEPTEMBER 30,2003 EUT: LAPTOP SYSTEM W…
