Getting Started Congratulations on your purchase of the Itronix GoBookII computer! Your new GoBook II features the most innovative advances in portable computing technology. It combines state-of-the-art ergonomics with a rugged, durable architecture to provide you with a notebook computer that is compact, powerful, rugged and easy to use. Designed for a wide range of business and personal productivity applications, the GoBook II is an ideal choice for use in applications that require durability and performance. For maximum expandability without compromising portability, the GoBook II has a USB interface and aPC card slot. The high capacityhard disk drive provides you with plenty of storage space for multimedia files and applications. The GoBook II features a standard 87-key Nitevue® keyboard(89-key international). The high-resolution 12.1-inch touch screen LCD panel provides clear and crisp viewing with the convenience of a touch screen. This online document,GoBook II Help, contains all the information you need to set up and use your new GoBook II. It describes all the features of the GoBook II in an easy-to-read yet thorough manner. For information on printing, navigating or otherwise usingGoBook II HelpseeHow to Use This Help System . Checklists GoBook II™ Help Page 1 of 73GoBook II Help 7/21/2003file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~hh20C9.htm After opening the package, carefully inspect the contents. Contact your dealer if any items are missing or appear damaged. The shipping carton should contain the following: STANDARD
The Itronix GoBook II computer
Battery
ADP-90AB or ADP-75FB AC adapter with power cord
12.1 inchXGA display
Stylus
Shoulder Strap
GoBook II Quick Start Guide OPTIONS The following items are normally optional, but some vendors may include them in the standard package. Some items may not be available in some countries, or some vendors may choose not to carry all the items.
Floppy disk drive
CD-ROM drive
CD-RW Drive
DVD-ROM drive
SVGA display
Soft Handle
Media Bay Li-Ion battery pack (3000 mAhr)
Hard Disk Drive Heater
LCD Heater CAUTION When purchasing any of the accessories listed above,purchase only those accessories that are approved for use with your computer. The above accessories are proprietary items. Your system vendor can obtain these approved accessories. If you use items that are not approved for use with this computer, you may cause your computer to malfunction, or to emit or receive electromagnetic radiation in excess of local regulations. For non-proprietary accessories such as PC Cards or printers, ensure that the accessory functions properly in your computer before making the purchase. Your system vendor maybe able to recommend reliable brands and models. Page 2 of 73GoBook II Help 7/21/2003file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~hh20C9.htm Features High Capacity Hard Disk Drive The computer has a high capacity hard disk drive, enabling you to install your favorite programs and store large multimedia files. Full Array of Ports and Connectors Your computer includes standard ports for connecting to peripherals such as USB devices and monitors. USB ports allow you to add many types of peripherals. Large SVGA or XGA LCD Your computer has a large, easyto view SVGA or XGA LCD panel. Built-in Microphone and Stereo Speakers The stereo speakers and internal microphone enable you to run a variety of multimedia applications. Function Keys Function keys allow you to suspend your computer, shut the LCDs off, and give you easy control of audio and your monitor. Where to Look For Information About Your Computer This Help System describes the key elements of your computer. New users can find a simple step-by-step orientation in this chapter. About Windows For more extensive information and help about Windows go toHelp and Support , found on the Start Menu. Go to Start, Programs, Accessories to open, an online orientation of Windows XP. 72_0103_003 10 December 2002 © 2002 Itronix Corporation. All rights reserved. GoBook II™ Help Page 3 of 73GoBook II Help 7/21/2003file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~hh20C9.htm Precautions You can use your computer under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your computer:
Follow all warnings and instructions noted in this documentation and in the WindowsHelp and Support, found on the Start Menu.
The first time you use your computer, we recommend that you carefully read the section onPower Management to familiarize yourself with some basic battery information and to ensure optimum performance
There is danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.
Do not open the RAM door by yourself.
Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use aerosols, solvents, or strong detergents
Slots and openings in the computer case are for ventilation purposes. Do not block or cover these openings or the system could overheat
On the bottom of the GoBook II, there is a label with information on the power requirements of this system. These requirements must be followed. If you are unsure of your local power supply, consult your dealer or local Power Company
Do not step on or place anything on the power cord
If you use the computer with an extension cord, ensure that the total ampere ratings of all the devices sharing the extension do not exceed the rating of the extension cord or the rating of the wall outlet
Unless instructed, never push foreign objects into the computer through any of the slots or openings. Dangerous voltages are present, which could cause electricshock, …

Text truncated - open the document above for the full version.

801 S. STEVENS STREET SPOKANE, WA 99204 509.624.6600 800.441.1309 FAX 509.626.4203 www.itronix.com June 20, 2003 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Itronix Corporation FCC ID: KBCIX260MPIRIM902 FCC Part 90 Certification Request for Confidentiality In accordance with 0.459 of CFR 47, Itronix Corporation hereby requests confidentiality of the Block Diagram, Schematic Diagrams, Parts List, Tune-Up Procedure, Operational Description, and Antenna Specifications attachments for the subject application. These documents contain detailed system and equipment description and related information about the product in which Itronix Corporation considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Itronix Corporation considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely,

Jim Nicholson EMC Compliance Engineer Cisco Systems, Inc. 4125 Highlander Parkway Richfield, OH 44286 Phone: (330) 523-2094 Fax: (330) 523-2002 E-Mail: [email protected] July 28, 2003 AmericanTCB, Inc. 6731 Whittier Ave McLean, VA 22101 Re: FCC ID: KBCIX260MPIRIM902, ATCB File No. ATCB000608 To Whom It May Concern: The following information is to be held confidential pursuant to 47 CFR Part 0 §0.457 and Section 552(b)(4) of the Freedom of Information Act, because the information provided is proprietary and contains trade secrets. If made public, the information might be used to the disadvantage of the Cisco Systems, Inc. in the market place. In addition, this information is to be withheld from the applicant, Ironix, as well. Block Diagram Schematic Diagrams Technical Description Best Regards, Jim Nicholson EMC Compliance Engineer

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 23, 2003 RE: FCC ID: KBCIX260MPIRIM902 Attention: Jon Hughes I have a few comments on this Application. 1. Please note that while this device has a licensed transmitter, it also has a part 15 intentional radiator. This means that it is a composite device. As such all of the necessary statements of Part 15 must be in the manual and on the device label. The manual does not appear to contain any of these required statements. Since there is ample room on the exterior of the device, please place the 2-condition statement as required by 15.19. Please place the non-modification statement of 15.21 in the manual. Please note that your statement, “Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations” does not make the required statement. The statement must clearly state and/or imply that unauthorized modification not approved by the party responsible may void the users authority to operate the equipment. Also, please place the 15.105 statement in the manual. 2. Please note that the table for item 6G on page 6 of the Part 15 report contains errors. The last column is labeled “Margin” . However, the number in this column are not the margins but the linear uV/m representation of the EUT measured values of dBuV/m. Please correct the number In the last column to reflect the actual margins or rename the column as appropriate. 3. Please explain why the frequencies the WLAN is operating on for the radiated spurious emissions are not the frequencies listed in the table of low middle and high fundamental frequencies? This seems odd. 4. Please note that the established FCC procedures for measuring the 6dB bandwidth call for a video bandwidth greater than the resolution bandwidth. The 15.247 6dB bandwidth is not taken in an averaging mode (i.e. video bandwidth significantly less than the resolution bandwidth). Please note that the 6dB bandwidth plots provided are not measured in accordance with the FCC procedures. Please note that while the bandwidth appears to meet the requirement, the plots provided show the video bandwidth is 30kHz (less than the 100kHz res bandwidth). Please correct the plots to be in line with the FCC test procedure for DTS devices. 5. Please note that while the device appears compliant for the antenna terminal conducted spurs, the margins listed do not appear to match any measured value for the fundamental. For example, where did you get the 5dBm number for the fundamental with which the spurs appear to be compared? This number does not appear to be in the report. If this is the result of the insertion loss of the filter please explain and show a sample calculation of how this margin was derived. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Celltech Labs Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-448-7047 • Fax. 250-448-7046 • e-mail: [email protected] www.celltechlabs.com July 25, 2003 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue, Suite C110 McLean, VA 22101 Attn: Dennis Ward SUBJECT: ITRONIX CORPORATION FCC ID: KBCIX260MPIRIM902 Part 90 Certification (Composite) ATCB File No.: ATCB000608 Response to Questions - 07/23/03 Dear Dennis: On behalf of Itronix Corporation is our response to your questions dated 07/23/03 requesting additional information for the subject application. 1. Attached is the revised users manual with required Part 15 conditions and statements located at the back of the manual, which were inadvertently omitted from the original submission. Please note that the two-part condition statement was included in the FCC DoC labeling originally submitted. Attached is the resubmitted label for your reference in case you did not receive it. 2. Please see attached response from Spectrum Technology, Inc. 3. Please see attached response from Spectrum Technology, Inc. 4. Please see attached response from Spectrum Technology, Inc. 5. Please see attached response from Spectrum Technology, Inc. If you have any further questions or comments concerning the above, please contact the undersigned. Sincerely, Jonathan Hughes General Manager Celltech Labs Inc. cc: Itronix Corporation Spectrum Technology, Inc.

-----Original Message----- From: Tim Harrington [mailto:[email protected]] Sent: June 2, 2003 5:17 AM To: [email protected] Cc: Martin Perrine; Rich Fabina; Tim Harrington; [email protected] Subject: Wireless Laptop PC Various RF exposure policy issues are presently under consideration, as stated in recent TCB sessions. Lid closed guidelines in TCB sessions were mostly intended for Part 15 which has TCB thresholds defined, especially if lid-closed is a secondary use condition. Guidelines for other rule parts may be considered if needed. At least two recent filings for devices similar to what you describe had mostly nominal exposure issues for lid closed lap-held position, in which case user instructions should be appropriate at this time. SAR evaluation may be appropriate if there are shoulder strap or other configurations with intentional or expected transmission next to body. If SAR evaluation is appropriate, Bluetooth co-transmission could be evaluated as a non-dominant transmitter switched on and off for high SAR configuration of nearby LAN or Part 22/24. From: Jonathan Hughes To: Tim Harrington Date: 5/29/03 7:04PM Subject: RE: Wireless Laptop PC Tim, Further to my below e-mail and our phone conversation today, I want to confirm if we are required to test co- located transmit also with the Bluetooth. Description of Bluetooth RF output power is as follows: The direct-connect measured output power of the radio module is 12.5dBm. The antenna gain is 2 dB. So the total output power is approx. 14.5dBm. Thank you. Jon From: Jonathan Hughes To: Tim Harrington CC: Martin Perrine, [email protected] Date: 5/22/03 4:05PM Subject: RE: Wireless Laptop PC Dear Tim, We are preparing to test a Laptop PC with various co-located CDMA/GPRS modem, WLAN, and Bluetooth configurations. The CDMA or GPRS external dipole antenna is mounted on the upper right edge of the LCD display, and the WLAN and Bluetooth modules share dual patch antennas mounted internally to the upper left and right sides of the LCD display. The issue is that the Laptop PC can transmit with the lid closed. We would like to confirm if SAR evaluation is required for lid-closed lap-worn configuration (portable), or if the manufacturer performs an MPE evaluation at 20cm and instructs the user not to transmit with the lid closed in the lap-worn position, ensuring that the transmitters are turned off before closing the lid (mobile). Based on the slides you provided at the TCB Training Session 6 last week, it appears that the manufacturer determines if the Laptop is mobile or portable (page 56 FCC ID B & D), with appropriate instructions to the user. The below correspondence from 10/02 was our last discussion regarding Laptop PC lid-closed transmit issues. Thank you for your time. Best regards, Jon Hughes General Manager Celltech Labs Inc. 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Tel. 250-448-7047 Fax. 250-448-7046 www.celltechlabs.com -----Original Message----- From: Tim Harrington [mailto:[email protected]] Sent: Friday, October 04, 2002 3:21 PM To: [email protected] Cc: Joe Dichoso; Martin Perrine; Rich Fabina Subject: RE: Wireless Laptop PC Display-top antenna at 20cm is mobile exposure condition. I briefly glanced over the previous correspondence, and it seemed to indicate both Parts 15 & 24 Tx use the same antenna? There may be some EMC test issues for that - please check with Joe if needed. If Part 15 is separate internal antenna and is not at less than 20cm in lower display or in base, SAR not needed. For Part 24 2.1091 categ. excl. may apply. Check Apr 02 TCB training notes for other possible co-location MPE issues. All this assumes Tx won't be used with lid closed on lap or near body. >>> Jonathan Hughes <[email protected]> 10/03/02 06:53PM >>> Thank you for your response. Does this mean that for the same Laptop PC with display antenna and internal co-located antenna (such as our test config.) that MPE measurements can be performed, or SAR tests are required? The display antenna will be for the GPRS and CDMA modem configurations (separate units), and the co-located internal antenna is for the low power integrated 2.4GHz DSSS WLAN card. -----Original Message----- From: Tim Harrington [mailto:[email protected]] Sent: Thursday, October 03, 2002 3:19 PM To: [email protected] Cc: Joe Dichoso; Martin Perrine; Rich Fabina Subject: RE: Wireless Laptop PC You asked if notebook with display section antenna is mobile device for RFx purposes. A quick glance at this filing indicates yes this operates in mobile RFx conditions. I have not checked other Parts 15/24 composite filing issues, and whether the no-collocation grant note is sufficient requires further consideration. >>> Jonathan Hughes <[email protected]> 10/02/02 02:11PM >>> On 9/30/02 a TCB grant was issued for an Itronix Laptop PC FCC ID: KBCIX250AC750. The Laptop PC incorporates a GSM/GPRS PCMCIA modem card with Itronix external dipole antenna located on the top right corner of the LCD panel. This device was granted as a Licensed Base Station for Part 24, and only MPE calculation was provided, no SAR, and therefore considered a mobile device I would assume. My question: 1. Based on the photograph of the EUT under the "RF Exposure - Antenna" exhibit which shows the antenna location and distance from the user, can this device be considered mobile, & MPE calculation only required, without SAR? My reason for asking is not to cause any issues on this application, but rather the fact that my most recent questions to you regarding co-located transmitters and the SAR requirements, are based on the exact same Laptop with the same GSM/GPRS modem card installed, as well as a CDMA modem card option, & integrated WLAN PCMCIA card.

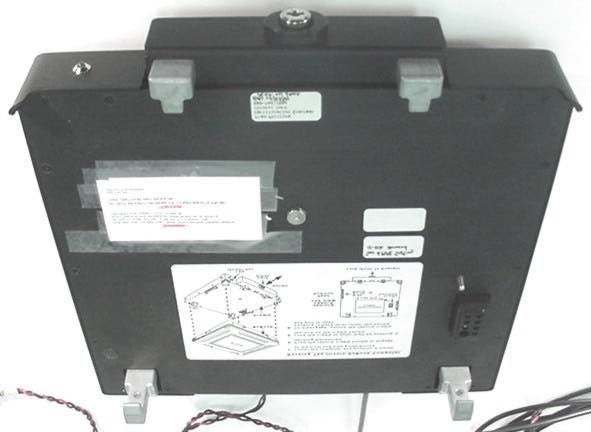

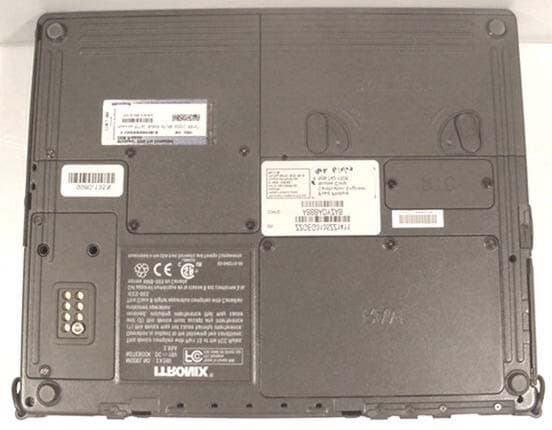

© 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260MPIRIM902 (Model: IX260) Rugged Laptop PC with RIM 902 Mobitex Radio Modem & Co-located WLAN Test Report S/N: 061003-388/389KBC EXTERNAL EUT PHOTOGRAPHS © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260MPIRIM902 (Model: IX260) Rugged Laptop PC with RIM 902 Mobitex Radio Modem & Co-located WLAN Test Report S/N: 061003-388/389KBC EXTERNAL EUT PHOTOGRAPHS © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260MPIRIM902 (Model: IX260) Rugged Laptop PC with RIM 902 Mobitex Radio Modem & Co-located WLAN Test Report S/N: 061003-388/389KBC EXTERNAL EUT PHOTOGRAPHS © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260MPIRIM902 (Model: IX260) Rugged Laptop PC with RIM 902 Mobitex Radio Modem & Co-located WLAN Test Report S/N: 061003-388/389KBC Vehicle Cradle Cradle Contact Board Cradle Contact Board EXTERNAL EUT PHOTOGRAPHS © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260MPIRIM902 (Model: IX260) Rugged Laptop PC with RIM 902 Mobitex Radio Modem & Co-located WLAN Test Report S/N: 061003-388/389KBC EXTERNAL EUT PHOTOGRAPHS with Vehicle Cradle & MaxRad Z563 Mobile Vehicle-Mount Antenna (Unity Gain) © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260MPIRIM902 (Model: IX260) Rugged Laptop PC with RIM 902 Mobitex Radio Modem & Co-located WLAN Test Report S/N: 061003-388/389KBC EXTERNAL EUT PHOTOGRAPHS with Vehicle Cradle & MaxRad Z567 Mobile Vehicle-Mount Antenna (5dB Gain) © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260MPIRIM902 (Model: IX260) Rugged Laptop PC with RIM 902 Mobitex Radio Modem & Co-located WLAN Test Report S/N: 061003-388/389KBC EXTERNAL EUT PHOTOGRAPHS with Vehicle Cradle & MaxRad Z573 Mobile Vehicle-Mount Antenna (5dB Gain)

© 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260MPIRIM902 (Model: IX260) Rugged Laptop PC with RIM 902 Mobitex Radio Modem & Co-located WLAN Test Report S/N: 061003-388/389KBC LABELING REQUIREMENTS PER §2.925 The label(s) shall be permanently affixed at a conspicuous location on the device. SEE NEXT PAGE(S) FOR PART 90 FCC ID LABEL SEE NEXT PAGE(S) FOR PART 15(B) DoC LABEL FCC ID LABEL & LOCATION Corporation Design Color R equirem ent: P FCC Label For P16 Background : TCG-426P Text : Pantone 441C P16 Wen Fu Chieng PC , Thickness 0.8mm 1 : 1 1 1 08 / 19 / 02 63-040210-00 0 63-040210-00 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made in Taiwan MODEL NO. : IX260 FOR HOME OR OFFICE USE FCC Standards Tested To Comply With C US LR86520 NOTEBOOK : DC 19V 3.95A E4309 ICES-003. NMB-003 du Canada. Cet appareil numerique de la classe B est conforme a la norme This Class B digital apparatus complies with Canadian ` ` X260)(I

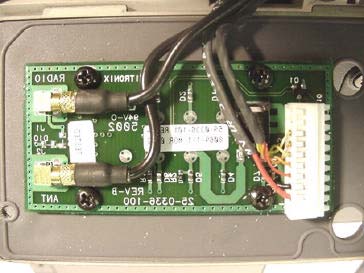

© 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260MPIRIM902 (Model: IX260) Rugged Laptop PC with RIM 902 Mobitex Radio Modem & Co-located WLAN Test Report S/N: 061003-388/389KBC INTERNAL EUT PHOTOGRAPHS with RIM 902 Mobitex Radio Modem © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260MPIRIM902 (Model: IX260) Rugged Laptop PC with RIM 902 Mobitex Radio Modem & Co-located WLAN Test Report S/N: 061003-388/389KBC INTERNAL EUT PHOTOGRAPHS with RIM 902 Mobitex Radio Modem © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260MPIRIM902 (Model: IX260) Rugged Laptop PC with RIM 902 Mobitex Radio Modem & Co-located WLAN Test Report S/N: 061003-388/389KBC INTERNAL EUT PHOTOGRAPHS RIM 902 Mobitex Radio Modem © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260MPIRIM902 (Model: IX260) Rugged Laptop PC with RIM 902 Mobitex Radio Modem & Co-located WLAN Test Report S/N: 061003-388/389KBC INTERNAL EUT PHOTOGRAPHS RIM 902 Mobitex Radio Modem © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260MPIRIM902 (Model: IX260) Rugged Laptop PC with RIM 902 Mobitex Radio Modem & Co-located WLAN Test Report S/N: 061003-388/389KBC INTERNAL EUT PHOTOGRAPHS Co-located Cisco MPI-350 Mini-PCI DSSS WLAN Card © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260MPIRIM902 (Model: IX260) Rugged Laptop PC with RIM 902 Mobitex Radio Modem & Co -located WLAN Test Report S/N: 061003-388/389KBC Back Side of LCD Display RightSide Antenna Left Side Antenna INTERNAL EUT PHOTOGRAPHS Dual Internal Antenna for Co-located Cisco MPI-350 Mini-PCI DSSS WLAN Card Distance at LCD back -side between dipole antenna feed/swivel-joint and WLAN dual antennas © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260MPIRIM902 (Model: IX260) Rugged Laptop PC with RIM 902 Mobitex Radio Modem & Co -located WLAN Test Report S/N: 061003-388/389KBC INTERNAL EUT PHOTOGRAPHS Dual Internal Antenna for Co-located Cisco MPI-350 Mini-PCI DSSS WLAN Card Distance at LCD back -side between dipole antenna feed/swivel-joint and WLAN right-side antenna Distance at LCD back -side between dipole antenna feed/swivel-joint and WLAN left-side antenna © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260MPIRIM902 (Model: IX260) Rugged Laptop PC with RIM 902 Mobitex Radio Modem & Co-located WLAN Test Report S/N: 061003-388/389KBC Back Side of LCD Display Back of LCD Display - Left-Side Antenna Back of LCD Display - Right-Side Antenna Right-Side Antenna Left-Side Antenna INTERNAL EUT PHOTOGRAPHS Dual Internal Antenna for Co-located Cisco MPI-350 Mini-PCI DSSS WLAN Card © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260MPIRIM902 (Model: IX260) Rugged Laptop PC with RIM 902 Mobitex Radio Modem & Co-located WLAN Test Report S/N: 061003-388/389KBC INTERNAL EUT PHOTOGRAPHS Co-located Cisco MPI-350 Mini-PCI DSSS WLAN Card Top view of the board without shielding Bottom view of the board without shielding
