KBCIX260P-AC775BTLaptop PC w/ GSM GPRS/EDGE Modem and Bluetooth

Getting Started Congratulations on your purchase of the Itronix GoBook III computer! Your new GoBook III features the most innovative advances in portable computing technology. It combines state-of-the-art ergonomics with a rugged, durable architecture to provide you with a notebook computer that is compact, powerful, rugged and easy to use. Designed for a wide range of business and personal productivity applications, the GoBook III is an ideal choice for use in applications that require durability and performance. For maximum expandability without compromising portability, the GoBook III has a USB interface and aPC card slot. The high capacity hard disk drive provides you with plenty of storage space for multimedia files and applications. The GoBook III features a standard 87-key Nitevue® keyboard (89-key international). The high- resolution 12.1-inch touch screen LCD panel provides clear and crisp viewing with the convenience of a touch screen. This online document, GoBook III Help , contains all the information you need to set up and use your new GoBook III. It describes all the features of the GoBook III in an easy-to-read yet thorough manner. For information on printing, navigating or otherwise using GoBook III Help see How to Use This Help System. GoBook III ® Help Page 1 of 80GoBook III Help 7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h... Checklists After opening the package, carefully inspect the contents. Contact your dealer if any items are missing or appear damaged. The shipping carton should contain the following: STANDARD z The Itronix GoBook III computer z Battery z ADP-90AB or ADP-75FB AC adapter with power cord z 12.1 inch XGA display z Stylus z Shoulder Strap z GoBook III Quick Start Guide OPTIONS The following items are normally optional, but some vendors may include them in the standard package. Some items may not be available in some countries, or some vendors may choose not to carry all the items. z Floppy disk drive z CD-ROM drive z CD-RW Drive z DVD-ROM drive z Soft Handle z Media Bay Li-Ion battery pack z Hard Disk Drive Heater z LCD Heater CAUTION When purchasing any of the accessories listed above, purchase only those accessories that are approved for use with your computer. The above accessories are proprietary items. Your system vendor can obtain these approved accessories. If you use items that are not approved for use with this computer, you may cause your computer to malfunction, or to emit or receive electromagnetic radiation in excess of local regulations. For non-proprietary accessories such as PC Cards or printers, ensure that the accessor y functions properly in your computer before making the purchase. Your system vendor Page 2 of 80GoBook III Help 7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h... may be able to recommend reliable brands and models. Features High Capacity Hard Disk Drive The computer has a high capacity hard disk drive, enabling you to install your favorite programs and store large multimedia files. Full Array of Ports and Connectors Your computer includes standard ports for connecting to peripherals such as USB devices and monitors. USB ports allow you to add many types of peripherals. Large XGA LCD Your computer has a large, easy to view XGA LCD panel. Built-in Microphone and Stereo Speakers The stereo speakers and internal microphone enable you to run a variety of multimedia applications. Function Keys Function keys allow you to suspend your computer, shut the LCDs off, and give you easy control of audio and your monitor. Where to Look For Information About Your Computer This Help System describes the key elements of your computer. New users can find a simple step-by- step orientation in this chapter. About Windows For more extensive information and help about Windows go to Help and Support, found on the Start Menu. 72_0119_001 28 June 2004 © 2004 Itronix Corporation. All rights reserved. Page 3 of 80GoBook III Help 7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h... Precautions You can use your computer under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your computer: z Follow all warnings and instructions noted in this documentation and in Windows Help and Support, found on the Start Menu. z The first time you use your computer, we recommend that you carefully read the section on Power Management to familiarize yourself with some basic battery information and to ensure optimum performance z There is danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. z Do not open the RAM door by yourself. z Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use aerosols, solvents, or strong detergents z Slots and openings in the computer case are for ventilation purposes. Do not block or cover these openings or the system could overheat z On the bottom of the GoBook III, there is a label with information on the power requirements of this system. These requirements must be followed. If you are unsure of your local power supply, consult your dealer or local Power Company z Do not step on or place anything on the power cord z If you use the computer with an extension cord, ensure that the total ampere ratings of all the devices sharing the extension do not exceed the rating of the extension cord or the rating of the wall outlet z Unless instructed, never push foreign objects into the computer through any of the slots or openings. Dangerous voltages are present, which could cause electric shock, fire, or damage sensitive components z For best results, use a power strip with a built-in surge protector. Do not use inferior extensi…

Text truncated - open the document above for the full version.

801 S. STEVENS STREET SPOKANE, WA 99204 509.624.6600 800.441.1309 FAX 509.626.4203 www.itronix.com September 23, 2004 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Itronix Corporation FCC ID: KBCIX260P-AC775BT FCC Part 24(E) - Certification Request for Confidentiality In accordance with 0.459 of CFR 47, Itronix Corporation and Sierra Wireless Inc. hereby requests confidentiality of the Block Diagram(s), Schematic Diagram(s), Operational Description, Tune-Up Procedure, and Antenna Specifications attachments for the subject application. These documents contain detailed system and equipment description and related information about the product in which Itronix Corporation and Sierra Wireless Inc. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Itronix Corporation and Sierra Wireless Inc. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely,

© 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260P-AC775BT (Model: IX260P-AC775BT) Rugged Laptop PC with Dual-Band GSM GPRS/EDGE Modem and Bluetooth Transmitter Celltech Project No.: 541 LABELING REQUIREMENTS PER §2.925 The label(s) shall be permanently affixed at a conspicuous location on the device. SEE NEXT PAGE(S) FOR FCC ID LABEL SEE NEXT PAGE(S) FOR FCC Part 15(B) DoC LABEL FCC ID LABEL & LOCATION

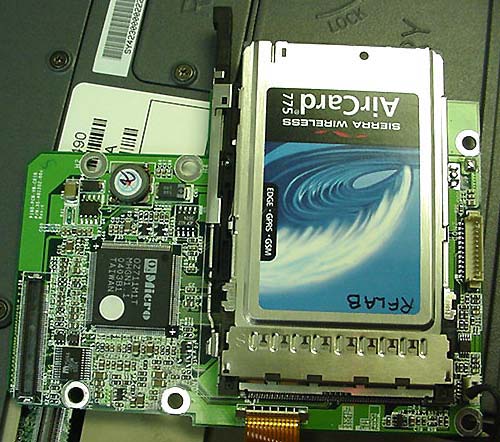

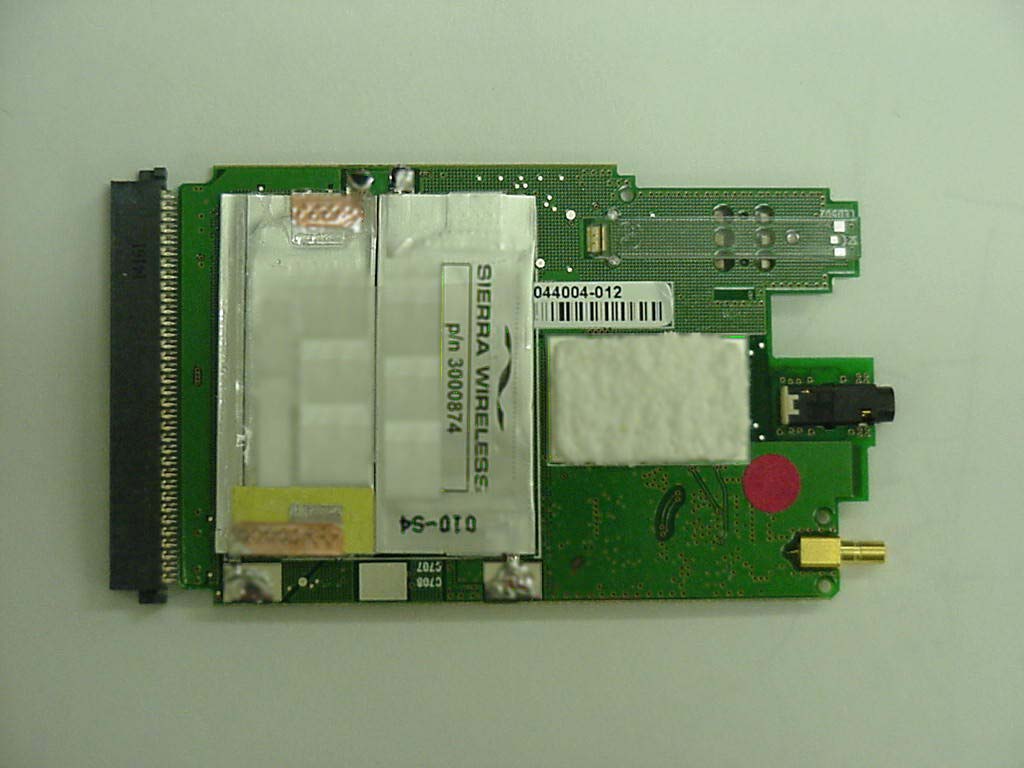

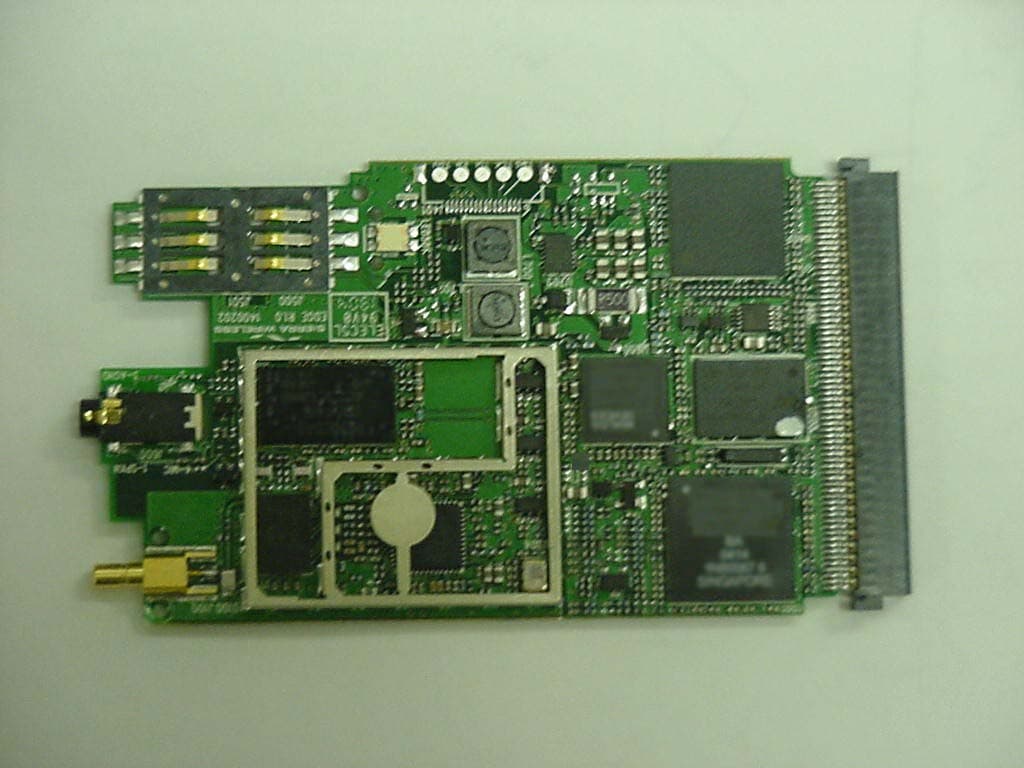

© 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260P-AC775BT (Model: IX260P-AC775BT) Rugged Laptop PC with Dual-Band GSM GPRS/EDGE Modem and Bluetooth Transmitter Celltech Project No.: 541 INTERNAL DUT PHOTOGRAPHS Cradle Contact Board © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260P-AC775BT (Model: IX260P-AC775BT) Rugged Laptop PC with Dual-Band GSM GPRS/EDGE Modem and Bluetooth Transmitter Celltech Project No.: 541 INTERNAL DUT PHOTOGRAPHS Sierra Wireless AirCard 775 GSM GPRS/EDGE PCMCIA Modem © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260P-AC775BT (Model: IX260P-AC775BT) Rugged Laptop PC with Dual-Band GSM GPRS/EDGE Modem and Bluetooth Transmitter Celltech Project No.: 541 INTERNAL DUT PHOTOGRAPHS Sierra Wireless AirCard 775 GSM GPRS/EDGE PCMCIA Modem © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260P-AC775BT (Model: IX260P-AC775BT) Rugged Laptop PC with Dual-Band GSM GPRS/EDGE Modem and Bluetooth Transmitter Celltech Project No.: 541 INTERNAL DUT PHOTOGRAPHS Sierra Wireless AirCard 775 GSM GPRS/EDGE PCMCIA Modem © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260P-AC775BT (Model: IX260P-AC775BT) Rugged Laptop PC with Dual-Band GSM GPRS/EDGE Modem and Bluetooth Transmitter Celltech Project No.: 541 INTERNAL DUT PHOTOGRAPHS Sierra Wireless AirCard 775 GSM GPRS/EDGE PCMCIA Modem © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260P-AC775BT (Model: IX260P-AC775BT) Rugged Laptop PC with Dual-Band GSM GPRS/EDGE Modem and Bluetooth Transmitter Celltech Project No.: 541 INTERNAL DUT PHOTOGRAPHS Sierra Wireless AirCard 775 GSM GPRS/EDGE PCMCIA Modem © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260P-AC775BT (Model: IX260P-AC775BT) Rugged Laptop PC with Dual-Band GSM GPRS/EDGE Modem and Bluetooth Transmitter Celltech Project No.: 541 INTERNAL DUT PHOTOGRAPHS Sierra Wireless AirCard 775 GSM GPRS/EDGE PCMCIA Modem © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260P-AC775BT (Model: IX260P-AC775BT) Rugged Laptop PC with Dual-Band GSM GPRS/EDGE Modem and Bluetooth Transmitter Celltech Project No.: 541 INTERNAL DUT PHOTOGRAPHS Cirronet BT2022 Bluetooth Bluetooth Antenna (Left Side) Non-Functional Antenna (Right Side) Bluetooth Antenna (Left Side) Non-Functional Antenna (Right Side) © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260P-AC775BT (Model: IX260P-AC775BT) Rugged Laptop PC with Dual-Band GSM GPRS/EDGE Modem and Bluetooth Transmitter Celltech Project No.: 541 INTERNAL DUT PHOTOGRAPHS Cirronet BT2022 Bluetooth Bluetooth Transmitter Bluetooth Transmitter © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260P-AC775BT (Model: IX260P-AC775BT) Rugged Laptop PC with Dual-Band GSM GPRS/EDGE Modem and Bluetooth Transmitter Celltech Project No.: 541 INTERNAL DUT PHOTOGRAPHS Cirronet BT2022 Bluetooth © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260P-AC775BT (Model: IX260P-AC775BT) Rugged Laptop PC with Dual-Band GSM GPRS/EDGE Modem and Bluetooth Transmitter Celltech Project No.: 541 Internal RangeStar Surface-Mount Antenna INTERNAL DUT PHOTOGRAPHS Internal RangeStar Surface-Mount Antenna Internal RangeStar Surface-Mount Antenna

AC775_SPR_75.sch-1 - Tue Jun 08 15:12:58 2004 AC775_SPR_75.sch-2 - Tue Jun 08 15:13:00 2004

AC775_SPR_75.sch-3 - Tue Jun 08 15:13:03 2004 AC775_SPR_75.sch-4 - Tue Jun 08 15:13:04 2004

AC775_SPR_75.sch-5 - Tue Jun 08 15:13:09 2004 AC775_SPR_75.sch-6 - Tue Jun 08 15:13:17 2004

AC775_SPR_75.sch-7 - Tue Jun 08 15:13:23 2004

© 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260P-AC775BT (Model: IX260P-AC775BT) 1 of 4 Rugged Laptop PC with Sierra Wireless GSM GPRS/EDGE Modem and Bluetooth Antenna Type(s) Evaluated: External Swivel Dipole and MaxRad Vehicle-Mount Test Report S/N: 072804KBC-T541-M24G Test Type: MPE Evaluation This mobile transmitting device was determined to be compliant with localized Maximum Permissible Exposure (MPE) for Uncontrolled Exposure / General Population limits specified in FCC 47 CFR §1.1310 and Industry Canada RSS-102 Issue 1 (Provisional), in accordance with the requirements of FCC OET Bulletin 65, Edition 97-01, Health Canada’s Safety Code 6, ANSI / IEEE C95.1-1999, and ANSI / IEEE C95.3-2002. I attest to the accuracy of data. All measurements and/or calculations were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This evaluation report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. __________________________ Russell Pipe Senior Compliance Technologist Celltech Labs Inc. ____________________________ Duane M. Friesen EMC Manager Celltech Labs Inc. DECLARATION OF COMPLIANCE MPE EVALUATION REPORT Test Lab CELLTECH LABS INC. 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99204 United States FCC IDENTIFIER: KBCIX260P-AC775BT IC IDENTIFIER: 1943A-IX260Pe Model(s): IX260P-AC775BT FCC Rule Part(s): 47 CFR §24(E), §22(H); §15.247; §2.1091; §1.1310 IC Rule Part(s): RSS-133 Issue 2, RSS-132 Issue 1 (Provisional), RSS-210 Issue 5, RSS-102 Issue 1 (Provisional) FCC Classification: PCS Licensed Transmitter (PCB) IC Classification: 2 GHz Personal Communication Services (RSS-133) 800 MHz Cellular Telephones Employing New Technologies (RSS-132) Device Description: Rugged Laptop PC with Sierra Wireless AC775 GSM GPRS/EDGE Modem, External Swivel Dipole Antenna, Vehicle-Mount Antenna, & Vehicle Cradle (co-located with Cirronet BT2022 Bluetooth Transmitter & Internal Antenna) Tx Frequency Range(s): 1850.2 - 1909.8 MHz (PCS Band) 824.2 - 848.8 MHz (Cellular Band) Max. RF Conducted Power Measured: 28.9 dBm Peak (PCS GSM) 32.0 dBm Peak (Cellular GSM) Modulation Type(s) Evaluated: GMSK Max. No. of Time Slots Evaluated: 4 (Class 12) Max. Source-Based Time-Av. Duty Cycle: 50 % Max. Source-Based Time-Av. Cond. Pwr: 25.9 dBm Peak (PCS GSM) 29.0 dBm Peak (Cellular GSM) Antenna Type(s) Evaluated: Itronix IX260+ External Swivel Dipole (GSM) MaxRad 3 dBi Gain Vehicle-Mount P/N: WMLPVDB800/1900 (GSM) © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260P-AC775BT (Model: IX260P-AC775BT) 2 of 4 Rugged Laptop PC with Sierra Wireless GSM GPRS/EDGE Modem and Bluetooth Antenna Type(s) Evaluated: External Swivel Dipole and MaxRad Vehicle-Mount Test Report S/N: 072804KBC-T541-M24G Test Type: MPE Evaluation 1.1 MPE Calculation Data 1. Itronix IX260+ Swivel Dipole Antenna PCS GSM Band Cellular GSM Band Itronix IX260+ Swivel Dipole Antenna Tx Frequency: 1880.0 (MHz) Source-Based Time-Averaged Power at Antenna Input Terminal: 25.9 (dBm) Antenna gain: 2.6 (dBi) S=1.00 (mW/cm^2) P=389.0451 (mW) G=1.82 (numeric) R =7.51(cm) 0.140688749 S (mw/cm^2) at 20cm Tx Frequency: 848.8 (MHz) Source-Based Time-Averaged Power at Antenna Input Terminal: 29.0 (dBm) Antenna gain: 2.6 (dBi) S=0.57 (mW/cm^2) P=794.3282 (mW) G=1.82 (numeric) R =14.26(cm) 0.287249557 S (mw/cm^2) at 20cm © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260P-AC775BT (Model: IX260P-AC775BT) 3 of 4 Rugged Laptop PC with Sierra Wireless GSM GPRS/EDGE Modem and Bluetooth Antenna Type(s) Evaluated: External Swivel Dipole and MaxRad Vehicle-Mount Test Report S/N: 072804KBC-T541-M24G Test Type: MPE Evaluation MPE Calculation Data (Cont.) 2. MaxRad 3 dBi Gain Vehicle-Mount Antenna (P/N: WMLPVDB800/1900) PCS GSM Band Cellular GSM Band MaxRad 3 dBi Gain Vehicle-Mount Antenna P/N: WMLPVDB800/1900 Tx Frequency: 1880.0 (MHz) Source-Based Time-Averaged Power at Antenna Input Terminal: 25.9 (dBm) 3 dBi Antenna Gain minus 2.80 dB cable loss for 17 ft cable: 0.20 (dBi) S=1.00 (mW/cm^2) P=389.0451 (mW) G=1.05 (numeric) R =5.69(cm) 0.080957925 S (mw/cm^2) at 20cm Tx Frequency: 848.8 (MHz) Source-Based Time-Averaged Power at Antenna Input Terminal: 29.0 (dBm) 3 dBi Antenna Gain minus 1.89 dB cable loss for 17 ft cable: 1.11 (dBi) S=0.57 (mW/cm^2) P=794.3282 (mW) G=1.29 (numeric) R =12.01(cm) 0.203825899 S (mw/cm^2) at 20cm © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260P-AC775BT (Model: IX260P-AC775BT) 4 of 4 Rugged Laptop PC with Sierra Wireless GSM GPRS/EDGE Modem and Bluetooth Antenna Type(s) Evaluated: External Swivel Dipole and MaxRad Vehicle-Mount Test Report S/N: 072804KBC-T541-M24G Test Type: MPE Evaluation 2.1 Calculation to determine MPE 3.1 MPE Limits According to FCC 47 CFR 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b). 4.1 Summary The Maximum Permissible Exposure (MPE) limit (General Population / Uncontrolled Exposure environment) for the frequency range in the PCS GSM band (1850-1910 MHz) is 1.0 mW/cm^ 2 ; the limit for the frequency range in the cellular GSM band (824-849 MHz) is 0.6 mW/cm^ 2 (F/1500). The data in this report demonstrates that the Itronix Corporation Model: IX260P-AC775BT Rugged Laptop PC FCC ID: KBCIX260P-AC775BT with internal Sierra Wireless AirCard 775 Dual-Band GSM GPRS/EDGE PCMCIA Modem, utilizing an external swivel dipole antenna and vehicle-mount antenna (co-locate…

Text truncated - open the document above for the full version.

© 2004 Celltech Labs Inc. 1 of 19 Test Report S/N: 072804KBC-T541-E24G Test Date(s): August 30 - September 09, 2004 Test Type(s): FCC §24E, §22H IC RSS-133, RSS-132 Lab Registration(s): FCC #714830 IC Lab File #3874 This mobile device has demonstrated compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 47 CFR §24(E), §22(H), §2; Industry Canada RSS-133 Issue 2, RSS-132 Issue 1 (Provisional); and ANSI TIA/EIA-603-B-2002. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. ________________________ Russell Pipe Senior Compliance Technologist Celltech Labs Inc. _________________________________ Duane M. Friesen EMC Manager Celltech Labs Inc. DECLARATION OF COMPLIANCE FCC PART 24(E) & 22(H) EMC MEASUREMENTS Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Tel.: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99204 United States FCC IDENTIFIER: KBCIX260P-AC775BT IC IDENTIFER: 1943A-IX260Pe Model(s): IX260P-AC775BT FCC Rule Part(s): FCC 47 CFR §24(E), §22(H), §2 IC Rule Part(s): RSS-133 Issue 2, RSS-132 Issue 1 (Provisional) Test Procedure(s): FCC 47 CFR §24(E), §22(H), §2 IC RSS-133 Issue 2, IC RSS-132 Issue 1 (Provisional) ANSI TIA/EIA-603-B-2002 FCC Device Classification: PCS Licensed Transmitter (PCB) IC Device Classification: 2 GHz Personal Communication Services (RSS-133) 800 MHz Cellular Telephones Employing New Technologies (RSS-132) Device Description: Rugged Laptop PC with Sierra Wireless AirCard 775 Dual-Band GSM GPRS/EDGE PCMCIA Modem with External Swivel Dipole Antenna, Vehicle-Mount Antenna, and Vehicle Cradle Co-located Transmitter(s): Cirronet BT2022 Bluetooth (with internal surface-mount antenna) Tx Frequency Range(s): 1850.2 - 1909.8 MHz (PCS GSM) 824.2 - 848.8 MHz (Cellular GSM) Rx Frequency Range(s): 1930.2 - 1990.8 MHz (PCS GSM) 869.2 - 894.8 MHz (Cellular GSM) Max. ERP/EIRP Measured: 0.936 Watts (29.71 dBm) EIRP - PCS GSM (Itronix Swivel Dipole Antenna) 2.54 Watts (34.05 dBm) ERP - Cellular GSM (Itronix Swivel Dipole Antenna) 0.261 Watts (24.17 dBm) EIRP - PCS GSM (MaxRad Vehicle-Mount Antenna) 0.512 Watts (27.09 dBm) ERP - Cellular GSM (MaxRad Vehicle-Mount Antenna) Max. Conducted Power Measured: 28.9 dBm Peak (PCS GSM) / 32.0 dBm Peak (Cellular GSM) Max. No. of Time Slots Tested: 4 (Class 12) Source-Based Time-Av. Duty Cycle: 50 % Source-Based Time-Av. Cond. Pwr: 25.9 dBm Peak (PCS GSM) / 29.0 dBm Peak (Cellular GSM) Modulation(s) Tested: GMSK Emission Designator(s): 238KGXW, 242KGXW, 240KG7W, 242KG7W Frequency Tolerance(s): 2.5 PPM (PCS GSM) 2.5 PPM (Cellular GSM) Antenna Type(s) Tested: Itronix IX260+ External Swivel Dipole (Dual-Band GSM) MaxRad 3 dBi Gain Vehicle-Mount P/N: WMLPVDB800/1900 (Dual-Band GSM) Power Source(s) Tested: 11.1 V Lithium-ion Battery, 6.0 Ah (Model: A2121-2) 12 V Vehicle Battery (for Vehicle Cradle) © 2004 Celltech Labs Inc. 2 of 19 Test Report S/N: 072804KBC-T541-E24G Test Date(s): August 30 - September 09, 2004 Test Type(s): FCC §24E, §22H IC RSS-133, RSS-132 Lab Registration(s): FCC #714830 IC Lab File #3874 TABLE OF CONTENTS Section DESCRIPTION Page # 1.1 SCOPE 3 2.1 GENERAL INFORMATION & DEVICE DESCRIPTION 3 3.1 TEST EQUIPMENT LIST 4 Appendix MEASUREMENT PROCEDURES & DATA FCC Rule Part(s) IC Rule Part(s) Page # A RF Output Power §2.1046 RSS-133 §6.2 RSS-132 §4.4 5 B Effective Isotropic Radiated Power Output §24.232(b) RSS-133 §6.2 6-7 C Effective Radiated Power Output §22.913 RSS-132 §4.4 8-9 D Field Strength of Spurious Radiation §24.238 §22.917 RSS-133 §6.3 RSS-132 §4.5 10-14 E Radiated Test Setup Photographs 15-19 Applicant: Itronix Corporation Model: IX260P-AC775BT FCC ID: KBCIX260P-AC775BT IC ID: 1943A-IX260Pe Rugged Laptop PC with Sierra Wireless AirCard 775 GSM GPRS/EDGE Modem & Cirronet BT2022 Bluetooth 2004 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 3 of 19 Test Report S/N: 072804KBC-T541-E24G Test Date(s): August 30 - September 09, 2004 Test Type(s): FCC §24E, §22H IC RSS-133, RSS-132 Lab Registration(s): FCC #714830 IC Lab File #3874 1.1 SCOPE This report describes the measurements made and results collected during the Electromagnetic emissions testing of the Itronix Corporation Model: IX260P-AC775BT Rugged Laptop PC incorporating the internal Sierra Wireless AirCard 775 Dual-Band PCS/Cellular GSM GPRS/EDGE PCMCIA Modem with external swivel dipole antenna, vehicle-mount antenna, and vehicle cradle. Co-located within the DUT is a Cirronet BT2022 Bluetooth Transmitter utilizing an internal surface-mount antenna located in the upper left side rear edge of the LCD display. The Sierra Wireless AirCard 775 GSM GPRS/EDGE Modem and co-located Cirronet Bluetooth can transmit simultaneously. Please refer to the Co-Transmit Supplementary EMC test report for simultaneous transmit test results. The measurement results were applied against the EMC requirements and limits outlined in the technical rules and regulations set forth in the Federal Communication Commission Code of Federal Regulations Title 47 Parts 24(E), 22(H), and 2; and Industry Canada Radio Standards Specifications RSS-133 Issue 2, RSS- 132 Issue 1 (Provisional). 2.1 GENERAL INFORMATION & DEVICE DESCRIPTION APPLICANT ITRONIX CORPORATION 80…

Text truncated - open the document above for the full version.

Test Report S/N: 072804KBC-T541-E24G/E15B Test Date(s): 07Dec04 - 16Dect04 Test Type: FCC §2, §15.247, §22H, §24E IC RSS-210/132/133 Lab Registration(s): FCC #714830 IC Lab File #3874 SUPPLEMENTARY EMC TEST REPORT FOR THE ITRONIX RUGGED LAPTOP PC MODEL: IX260P-AC775BT WITH THE INTERNAL CIRRONET BT2022 BLUETOOTH TRANSMITTER UTILIZING THE INTERNAL RANGESTAR SURFACE-MOUNT ANTENNA (INSTALLED IN THE UPPER LEFT SIDE EDGE OF LCD DISPLAY) CO-TRANSMITTING WITH THE SIERRA WIRELESS AIRCARD 775 DUAL-BAND GSM GPRS/EDGE PCMCIA MODEM UTILIZING THE EXTERNAL SWIVEL DIPOLE ANTENNA TRSN 072804KBC-T541-E24G/E15B Issue 1.0 Celltech Compliance Testing & Engineering Lab (Celltech Labs Inc.) 1955 Moss Court Kelowna, BC Canada V1Y 9L3 December 17, 2004 Test Report S/N: 072804KBC-T541-E24G/E15B Test Date(s): 07Dec04 - 16Dect04 Test Type: FCC §2, §15.247, §22H, §24E IC RSS-210/132/133 Lab Registration(s): FCC #714830 IC Lab File #3874 Applicant: Itronix Corporation Model: IX260P-AC775BT FCC ID: KBCIX260P-AC775BT IC ID: 1943A-IX260Pe Rugged Laptop PC with Sierra Wireless AC775 Dual-Band GSM Modem & Cirronet BT2022 Bluetooth 2004 Celltech Labs Inc This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 2 of 39 DECLARATION OF COMPLIANCE Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Applicant Information ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99204 United States Phone: 250-448-7047 Fax: 250-448-7048 e-mail: [email protected] web site: www.celltechlabs.com Laboratory Registration No.(s): FCC: 714830 IC: IC 3874 Dual Band GSM §2 ; §22H; §24E Rule Part(s): FCC: Bluetooth - FHSS §15.247; §2.1091; §1.1310 Dual Band GSM GPRS/EDGE - PCS Licensed Transmitter (PCB) Device Classification: FCC: Bluetooth - FHSS - Part 15 Spread Spectrum Transmitter (DSS) Device Identification: FCC ID: KBCIX260P-AC775BT IC ID: 1943A-IX260Pe DUT Description: Model: IX260P-AC775BT Device Description: Rugged Laptop PC with internal co-located transmitters (simultaneous transmit) Sierra Wireless AirCard 775 Dual-Band GSM GPRS/EDGE PCMCIA Modem Internal Transmitter(s): Cirronet BT2022 Bluetooth Cellular 824.2 - 848.8 MHz Dual Band GSM PCS 1850.2 - 1909.8 MHz Tx Frequency Range(s): Bluetooth 2402 - 2480 MHz Bluetooth +16.29 dBm Peak Conducted Cellular +31.22 dBm Peak Conducted Max. RF Output Power: Dual Band GSM PCS +28.08 dBm Peak Conducted Bluetooth GFSK 1 Mbps 0.5 BT Gaussian Modulation Type(s): Dual Band GSM GMSK Bluetooth RangeStar P/N: 100929 Internal Surface-Mount Antenna Type(s): Dual Band GSM Itronix IX260+ External Swivel Dipole Power Supply: 90 Watt AC Power Adapter, 11.1 V Lithium-ion Battery, 6.0 Ah (Model: A2121-2), 12 V Vehicle Battery (for Vehicle Cradle) This wireless mobile device has demonstrated compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 47 CFR Parts 2, 15.247, 22H, 24E, Industry Canada RSS 133 Issue 2, RSS-132 Issue 1 (Provisional), RSS-210 Issue 5; and ANSI TIA/EIA-603-B-2002. I attest to the accuracy of the data. All measurements reported herein were performed by me or were under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. __________________________________ Russell Pipe Senior Compliance Technologist Celltech Labs Inc . ___________________________________ Duane M. Friesen EMC Manager Celltech Labs Inc. Test Report S/N: 072804KBC-T541-E24G/E15B Test Date(s): 07Dec04 - 16Dect04 Test Type: FCC §2, §15.247, §22H, §24E IC RSS-210/132/133 Lab Registration(s): FCC #714830 IC Lab File #3874 Applicant: Itronix Corporation Model: IX260P-AC775BT FCC ID: KBCIX260P-AC775BT IC ID: 1943A-IX260Pe Rugged Laptop PC with Sierra Wireless AC775 Dual-Band GSM Modem & Cirronet BT2022 Bluetooth 2004 Celltech Labs Inc This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 3 of 39 TABLE OF CONTENTS 1.0 SCOPE ................................................................................................................................................................ 5 2.0 REFERENCES .................................................................................................................................................... 6 2.1 Normative References ......................................................................................................................................... 6 3.0 TERMS AND DEFINITIONS................................................................................................................................ 7 4.0 FACILITIES AND ACCREDITATIONS ................................................................................................................ 8 5.0 GENERAL INFORMATION ................................................................................................................................. 8 5.1 Applicant Information ........................................................................................................................................... 8 5.2 DUT Description .................................................................................................................................................. 8 5.3 Co-Located Equipment ........................................................................................................................................ 9 5.4 Cable Descriptions.........................................................................................................................…

Text truncated - open the document above for the full version.

Identification GoBook III (IX260+) Radio Specific Safety and Radio Identification Information. June 2004 · Revision Mod July 04 Copyright Notice © Copyright 2004 Itronix Corporation. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any other language or computer language in whole or in part, in any form or by any means, whether it be electronic, mechanical, magnetic, optical, manual, or otherwise, without the prior written consent of Itronix Corporation, South 801 Stevens Street, Spokane, Washington 99204. Disclaimer This document is printed in the U.S.A. Itronix Corporation reserves the right to revise the manual and make periodic changes to the content without a direct or inferred obligation to Itronix to notify any person of such revision…
