KBCIX260PLUSBM390RUGGED LAPTOP PC WITH MOBITEX RADIO MODEM

Getting Started Congratulations on your purchase of the Itronix GoBook III computer! Your new GoBook III features the most innovative advances in portable computing technology. It combines state-of-the-art ergonomics with a rugged, durable architecture to provide you with a notebook computer that is compact, powerful, rugged and easy to use. Designed for a wide range of business and personal productivity applications, the GoBook III is an ideal choice for use in applications that require durability and performance. For maximum expandability without compromising portability, the GoBook III has a USB interface and aPC card slot. The high capacity hard disk drive provides you with plenty of storage space for multimedia files and applications. The GoBook III features a standard 87-key Nitevue® keyboard (89-key international). The high- resolution 12.1-inch touch screen LCD panel provides clear and crisp viewing with the convenience of a touch screen. This online document, GoBook III Help , contains all the information you need to set up and use your new GoBook III. It describes all the features of the GoBook III in an easy-to-read yet thorough manner. For information on printing, navigating or otherwise using GoBook III Help see How to Use This Help System. GoBook III ® Help Page 1 of 80GoBook III Help 7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h... Checklists After opening the package, carefully inspect the contents. Contact your dealer if any items are missing or appear damaged. The shipping carton should contain the following: STANDARD z The Itronix GoBook III computer z Battery z ADP-90AB or ADP-75FB AC adapter with power cord z 12.1 inch XGA display z Stylus z Shoulder Strap z GoBook III Quick Start Guide OPTIONS The following items are normally optional, but some vendors may include them in the standard package. Some items may not be available in some countries, or some vendors may choose not to carry all the items. z Floppy disk drive z CD-ROM drive z CD-RW Drive z DVD-ROM drive z Soft Handle z Media Bay Li-Ion battery pack z Hard Disk Drive Heater z LCD Heater CAUTION When purchasing any of the accessories listed above, purchase only those accessories that are approved for use with your computer. The above accessories are proprietary items. Your system vendor can obtain these approved accessories. If you use items that are not approved for use with this computer, you may cause your computer to malfunction, or to emit or receive electromagnetic radiation in excess of local regulations. For non-proprietary accessories such as PC Cards or printers, ensure that the accessor y functions properly in your computer before making the purchase. Your system vendor Page 2 of 80GoBook III Help 7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h... may be able to recommend reliable brands and models. Features High Capacity Hard Disk Drive The computer has a high capacity hard disk drive, enabling you to install your favorite programs and store large multimedia files. Full Array of Ports and Connectors Your computer includes standard ports for connecting to peripherals such as USB devices and monitors. USB ports allow you to add many types of peripherals. Large XGA LCD Your computer has a large, easy to view XGA LCD panel. Built-in Microphone and Stereo Speakers The stereo speakers and internal microphone enable you to run a variety of multimedia applications. Function Keys Function keys allow you to suspend your computer, shut the LCDs off, and give you easy control of audio and your monitor. Where to Look For Information About Your Computer This Help System describes the key elements of your computer. New users can find a simple step-by- step orientation in this chapter. About Windows For more extensive information and help about Windows go to Help and Support, found on the Start Menu. 72_0119_001 28 June 2004 © 2004 Itronix Corporation. All rights reserved. Page 3 of 80GoBook III Help 7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h... Precautions You can use your computer under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your computer: z Follow all warnings and instructions noted in this documentation and in Windows Help and Support, found on the Start Menu. z The first time you use your computer, we recommend that you carefully read the section on Power Management to familiarize yourself with some basic battery information and to ensure optimum performance z There is danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. z Do not open the RAM door by yourself. z Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use aerosols, solvents, or strong detergents z Slots and openings in the computer case are for ventilation purposes. Do not block or cover these openings or the system could overheat z On the bottom of the GoBook III, there is a label with information on the power requirements of this system. These requirements must be followed. If you are unsure of your local power supply, consult your dealer or local Power Company z Do not step on or place anything on the power cord z If you use the computer with an extension cord, ensure that the total ampere ratings of all the devices sharing the extension do not exceed the rating of the extension cord or the rating of the wall outlet z Unless instructed, never push foreign objects into the computer through any of the slots or openings. Dangerous voltages are present, which could cause electric shock, fire, or damage sensitive components z For best results, use a power strip with a built-in surge protector. Do not use inferior extensi…

Text truncated - open the document above for the full version.

801 S. STEVENS STREET SPOKANE, WA 99204 509.624.6600 800.441.1309 FAX 509.626.4203 www.itronix.com September 24, 2004 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Itronix Corporation FCC ID: KBCIX260PLUSBM390 FCC Part 90 Certification Request for Confidentiality In accordance with 0.459 of CFR 47, Itronix Corporation and Wavenet Technology Pty Ltd. hereby requests confidentiality of the Block Diagram, Schematic Diagrams, Parts List, and Operational Description exhibits for the subject application. These documents contain detailed system and equipment description and related information about the product in which Itronix Corporation and Wavenet Technology Pty. Ltd. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Itronix Corporation considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely,

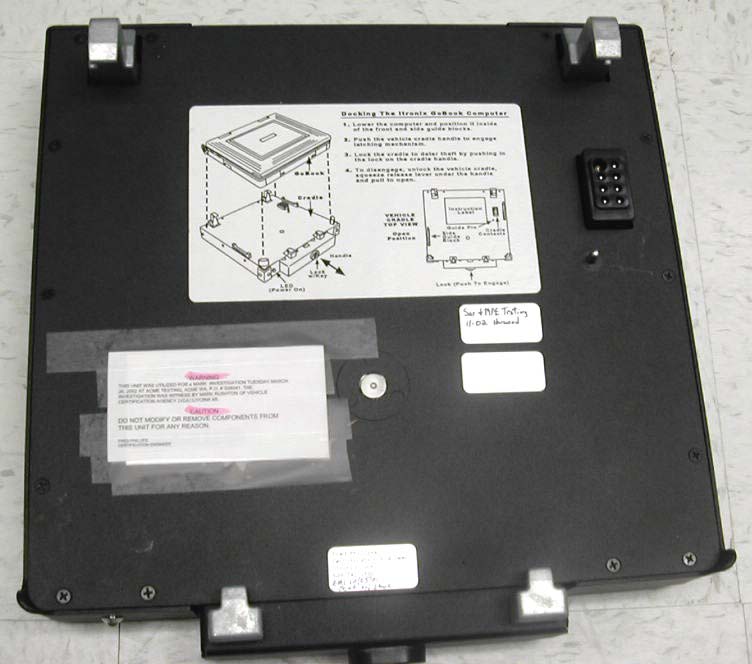

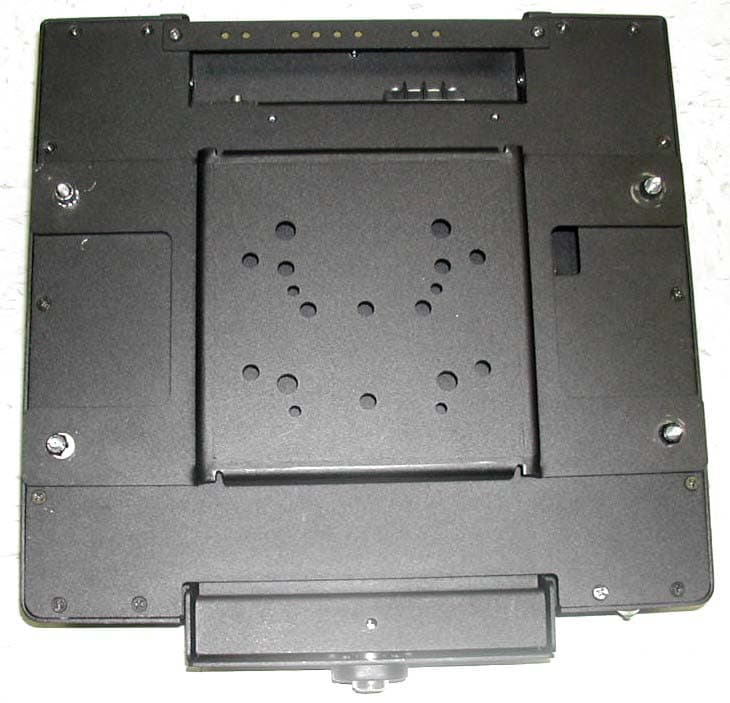

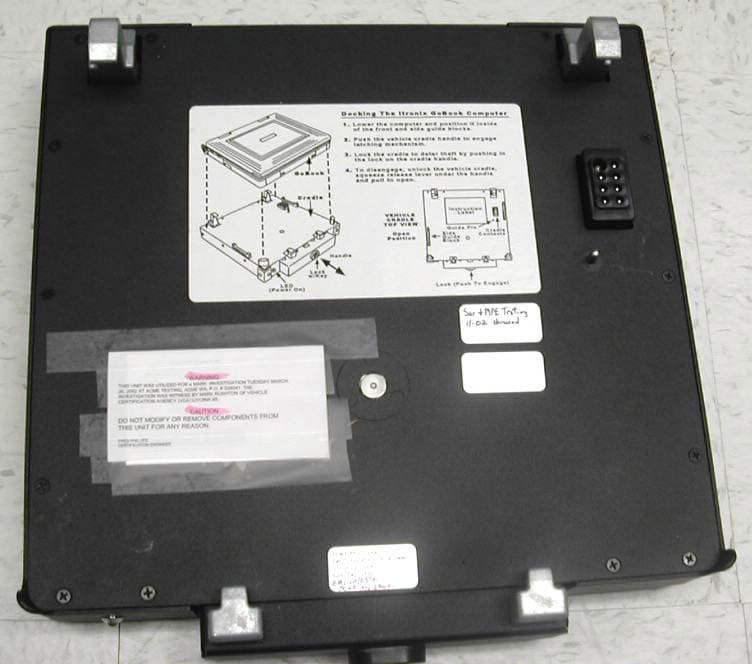

© 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSM390 (Model: IX260PLUSBM3900) IX260+ Rugged Laptop PC with Internal Wavenet BM3-900M Mobitex Radio Modem Celltech Project No.: 554 EXTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSM390 (Model: IX260PLUSBM3900) IX260+ Rugged Laptop PC with Internal Wavenet BM3-900M Mobitex Radio Modem Celltech Project No.: 554 EXTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSM390 (Model: IX260PLUSBM3900) IX260+ Rugged Laptop PC with Internal Wavenet BM3-900M Mobitex Radio Modem Celltech Project No.: 554 EXTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSM390 (Model: IX260PLUSBM3900) IX260+ Rugged Laptop PC with Internal Wavenet BM3-900M Mobitex Radio Modem Celltech Project No.: 554 EXTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSM390 (Model: IX260PLUSBM3900) IX260+ Rugged Laptop PC with Internal Wavenet BM3-900M Mobitex Radio Modem Celltech Project No.: 554 EXTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSM390 (Model: IX260PLUSBM3900) IX260+ Rugged Laptop PC with Internal Wavenet BM3-900M Mobitex Radio Modem Celltech Project No.: 554 EXTERNAL DUT PHOTOGRAPHS with Vehicle Cradle & MaxRad Z563 Vehicle-Mount Antenna (Unity Gain) © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSM390 (Model: IX260PLUSBM3900) IX260+ Rugged Laptop PC with Internal Wavenet BM3-900M Mobitex Radio Modem Celltech Project No.: 554 EXTERNAL DUT PHOTOGRAPHS with Vehicle Cradle & MaxRad Z567 Vehicle-Mount Antenna (5dB Gain) © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSM390 (Model: IX260PLUSBM3900) IX260+ Rugged Laptop PC with Internal Wavenet BM3-900M Mobitex Radio Modem Celltech Project No.: 554 EXTERNAL DUT PHOTOGRAPHS with Vehicle Cradle & MaxRad Z573 Vehicle-Mount Antenna (5dB Gain) © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSM390 (Model: IX260PLUSBM3900) IX260+ Rugged Laptop PC with Internal Wavenet BM3-900M Mobitex Radio Modem Celltech Project No.: 554 EXTERNAL DUT PHOTOGRAPHS Vehicle Cradle

© 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSBM390 (Model: IX260PLUSBM3900) IX260+ Rugged Laptop PC with Internal Wavenet BM3-900M Mobitex Radio Modem Celltech Project No.: 554 LABELING REQUIREMENTS PER §2.925 The label(s) shall be permanently affixed at a conspicuous location on the device. SEE NEXT PAGE(S) FOR FCC ID LABEL SEE NEXT PAGE(S) FOR PART 15(B) DoC LABEL FCC ID LABEL & LOCATION

© 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSM390 (Model: IX260PLUSBM3900) IX260+ Rugged Laptop PC with Internal Wavenet BM3-900M Mobitex Radio Modem Celltech Project No.: 554 INTERNAL DUT PHOTOGRAPHS Cradle Contact Board © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSM390 (Model: IX260PLUSBM3900) IX260+ Rugged Laptop PC with Internal Wavenet BM3-900M Mobitex Radio Modem Celltech Project No.: 554 INTERNAL DUT PHOTOGRAPHS with Wavenet BM3-900M Mobitex Radio Modem © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSM390 (Model: IX260PLUSBM3900) IX260+ Rugged Laptop PC with Internal Wavenet BM3-900M Mobitex Radio Modem Celltech Project No.: 554 INTERNAL DUT PHOTOGRAPHS with Wavenet BM3-900M Mobitex Radio Modem © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSM390 (Model: IX260PLUSBM3900) IX260+ Rugged Laptop PC with Internal Wavenet BM3-900M Mobitex Radio Modem Celltech Project No.: 554 INTERNAL DUT PHOTOGRAPHS with Wavenet BM3-900M Mobitex Radio Modem © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSM390 (Model: IX260PLUSBM3900) IX260+ Rugged Laptop PC with Internal Wavenet BM3-900M Mobitex Radio Modem Celltech Project No.: 554 INTERNAL DUT PHOTOGRAPHS with Wavenet BM3-900M Mobitex Radio Modem © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSM390 (Model: IX260PLUSBM3900) IX260+ Rugged Laptop PC with Internal Wavenet BM3-900M Mobitex Radio Modem Celltech Project No.: 554 INTERNAL DUT PHOTOGRAPHS Wavenet BM3-900M Mobitex Radio Modem © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSM390 (Model: IX260PLUSBM3900) IX260+ Rugged Laptop PC with Internal Wavenet BM3-900M Mobitex Radio Modem Celltech Project No.: 554 INTERNAL DUT PHOTOGRAPHS Wavenet BM3-900M Mobitex Radio Modem © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSM390 (Model: IX260PLUSBM3900) IX260+ Rugged Laptop PC with Internal Wavenet BM3-900M Mobitex Radio Modem Celltech Project No.: 554 INTERNAL DUT PHOTOGRAPHS Wavenet BM3-900M Mobitex Radio Modem © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSM390 (Model: IX260PLUSBM3900) IX260+ Rugged Laptop PC with Internal Wavenet BM3-900M Mobitex Radio Modem Celltech Project No.: 554 INTERNAL DUT PHOTOGRAPHS Wavenet BM3-900M Mobitex Radio Modem

FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Page 32 Boomer-III Mobitex Wireless OEM Modem Module, Model BM3-900M FCC ID: PQS-BM3900M ULTRATECH GROUP OF LABS File #: WTP015QFCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 October 01, 2003 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com ƒ All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 6.9. TRANSMITTER ANTENNA POWER SPURIOUS/HARMONIC CONDUCTED EMISSIONS @ FCC 90.210 6.9.1. Limits @ 90.210 Emissions shall be attenuated below the mean output power of the transmitter as follows: Frequency Band Frequency Range Attenuation Limit (dBc) 896-901MHz 10 MHz to Lowest frequency of the radio to 10 th harmonic of the highest frequency of the radio 50+10*log(P) or -20 dBm or 70 dBc whichever is less 6.9.2. Method of Measurements Refer to Exhibit 8 § 8.5 of this report for measurement details 6.9.3. Test Equipment List Test Instruments Manufacturer Model No. Serial No. Frequency Range EMI Receiver/ EMI Receiver Hewlett Packard HP 8593EM 3412A00103 9 kHz – 26.5 GHz Attenuator(s) Bird .. ... DC – 22 GHz Audio Oscillator Hewlett Packard HP 204C 0989A08798 DC to 1.2 MHz Highpass Filter, Microphase Microphase CR220HID IITI11000AC Cut-off Frequency at 600 MHz, 1.3 GHz or 4 GHz 6.9.4. Test Arrangement TRANSMITTER 20 dB ATTENUATOR EMI RECEIVER HIGHPASS FILTER FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Page 33 Boomer-III Mobitex Wireless OEM Modem Module, Model BM3-900M FCC ID: PQS-BM3900M ULTRATECH GROUP OF LABS File #: WTP015QFCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 October 01, 2003 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com ƒ All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 6.9.5. Test Data 6.9.5.1. High Power Setting (2 Watts) at Lowest Frequency (896 MHz) Fundamental Frequency: 896 MHz RF Output Power: 33.3 dBm (Conducted) Modulation: 2 level 8kbps GMSK FREQUENCY TRANSMITTER ANTENNA CONDUCTED EMISSIONS LIMIT MARGIN PASS/ (MHz) (dBm) (dBc) (dBc) (dB) FAIL 4480.9 -37.4 -70.7 -53.3 -17.4 PASS 5382.7 -27.8 -61.1 -53.3 -7.8 PASS 6266.5 -31.6 -64.9 -53.3 -11.6 PASS • ** The emissions were scanned from 10 MHz to 10 GHz and all emissions within 20 dB below the limits were recorded. • Please refer to plots # 11 & 12 for details of measurement. 6.9.5.2. High Power Setting (2 Watts) at Middle Frequency (898.5 MHz) Fundamental Frequency: 898.5 MHz RF Output Power: 33.3 dBm (Conducted) Modulation: 2 level 8kbps GMSK FREQUENCY TRANSMITTER ANTENNA CONDUCTED EMISSIONS LIMIT MARGIN PASS/ (MHz) (dBm) (dBc) (dBc) (dB) FAIL 4499.0 -37.4 -70.7 -53.3 -17.4 PASS 5382.7 -28.0 -61.3 -53.3 -8.0 PASS 6284.5 -31.5 -64.8 -53.3 -11.5 PASS • ** The emissions were scanned from 10 MHz to 10 GHz and all emissions within 20 dB below the limits were recorded. • Please refer to plots # 13 & 14 for details of measurement. 6.9.5.3. High Power Setting (2 Watts) at Highest Frequency (901 MHz) Fundamental Frequency: 901 MHz RF Output Power: 33.3 dBm (Conducted) Modulation: 2 level 8kbps GMSK FREQUENCY TRANSMITTER ANTENNA CONDUCTED EMISSIONS LIMIT MARGIN PASS/ (MHz) (dBm) (dBc) (dBc) (dB) FAIL 4499.0 -37.7 -71.0 -53.3 -17.7 PASS 5400.8 -27.6 -60.9 -53.3 -7.6 PASS 6302.6 -31.6 -64.9 -53.3 -11.6 PASS • ** The emissions were scanned from 10 MHz to 10 GHz and all emissions within 20 dB below the limits were recorded. • Please refer to plots # 15 & 16 for details of measurement. FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Page 34 Boomer-III Mobitex Wireless OEM Modem Module, Model BM3-900M FCC ID: PQS-BM3900M ULTRATECH GROUP OF LABS File #: WTP015QFCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 October 01, 2003 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com ƒ All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 6.9.5.4. Low Power Setting (0.033 Watts) at Lowest Frequency (896 MHz) Fundamental Frequency: 896 MHz RF Output Power: 15.2 dBm (Conducted) Modulation: 2 level 8kbps GMSK FREQUENCY TRANSMITTER ANTENNA CONDUCTED EMISSIONS LIMIT MARGIN PASS/ (MHz) (dBm) (dBc) (dBc) (dB) FAIL 1793.6 -42.6 -57.8 -35.2 -22.6 PASS 6266.5 -38.1 -53.3 -35.2 -18.1 PASS • ** The emissions were scanned from 10 MHz to 10 GHz and all emissions within 20 dB below the limits were recorded. • Please refer to plots # 17 & 18 for details of measurement. 6.9.5.5. Low Power Setting (0.033 Watts) at Middle Frequency (898.5 MHz) Fundamental Frequency: 898.5 MHz RF Output Power: 15.2 dBm (Conducted) Modulation: 2 level 8kbps GMSK FREQUENCY TRANSMITTER ANTENNA CONDUCTED EMISSIONS LIMIT MARGIN PASS/ (MHz) (dBm) (dBc) (dBc) (dB) FAIL 1793.6 -41.7 -56.9 -35.2 -21.7 PASS 6284.5 -38.3 -53.5 -35.2 -18.3 PASS • ** The emissions were scanned from 10 MHz to 10 GHz and all emissions within 20 dB below the limits were recorded. • Please refer to plots # 19 & 20 for details of measurement. 6.9.5.6. Low Power Setting (0.033 Watts) at Highest Frequency (901 MHz) Fundamental Frequency: 901 MHz RF Output Power: 15.2 dBm (Conducted) Modulation: 2 level 8kbps GMSK FREQUENCY TRANSMITTER ANTENNA CONDUCTED EMISSIONS LIMIT MARGIN PASS/ (MHz) (dBm) (dBc) (dBc) (dB) FAIL 1793.6 -40.5 -55.7 -35.2 -20.5 PASS 6302.6 -39.1 -54.3 -35.2 -19.1 PASS • ** The emissions were scanned from 10 MHz to 10 GHz and all emissions within 20 dB below the limits were recorded. • Please refer to plots # 21 & 22 for details of measurement. FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Page 35 Boomer-III Mobitex Wireless OEM Modem Module, Model BM3-900M FCC ID: PQS-BM3900M ULTRATECH GROUP OF LABS File #: WTP015QFCC90 3000 Bristol Cir…

Text truncated - open the document above for the full version.

FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Page 17 Boomer-III Mobitex Wireless OEM Modem Module, Model BM3-900M FCC ID: PQS-BM3900M ULTRATECH GROUP OF LABS File #: WTP015QFCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 October 01, 2003 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com ƒ All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 6.6. FREQUENCY STABILITY @ FCC 2.1055 & 90.213 6.6.1. Limits @ FCC 90.213 Please refer to FCC CFR 47, Part 90, Subpart I, Para. 90.213 for specification details. FREQUENCY RANGE (MHz) FIXED & BASE STATIONS (ppm) MOBILE STATIONS (ppm) < 2 W 896-901 0.1 1.5 6.6.2. Method of Measurements Refer to Exhibit 8, § 8.3 of this report for measurement details 6.6.3. Test Equipment List Test Instruments Manufacturer Model No. Serial No. Frequency Range EMI Receiver/ EMI Receiver Hewlett Packard HP 8593EM 3412A00103 9 kHz – 26.5 GHz Attenuator(s) Bird .. ... DC – 22 GHz Temperature & Humidity Chamber Tenney T5 9723B -40 o to +60 o C range 6.6.4. Test Arrangement TRANSMITTER 20 dB ATTENUATOR SPECTRUM ANLYZER Environmental Chamber FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Page 18 Boomer-III Mobitex Wireless OEM Modem Module, Model BM3-900M FCC ID: PQS-BM3900M ULTRATECH GROUP OF LABS File #: WTP015QFCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 October 01, 2003 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com ƒ All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 6.6.5. Test Data Product Name: Model No.: Boomer-III Mobitex Wireless OEM Modem Module BM3-900M Center Frequency: 896 MHz Full Power Level: 33 dBm Frequency Tolerance Limit: + 1.5 ppm or +1344 Hz at 896 MHz Max. Frequency Tolerance Measured: -0.73 ppm or -662 Hz Input Voltage Rating: 3.8 VDC CENTER FREQUENCY & RF POWER OUTPUT VARIATION Ambient Temperature Supply Voltage (Nominal) 3.8 Volts Supply Voltage (85% of Nominal) 3.2 Volts Supply Voltage (115% of Nominal) 4.4 Volts ( o C) Hz Hz Hz -30 515 N/A N/A -25 233 N/A N/A -20 -304 N/A N/A -15 -614 N/A N/A -10 -662 N/A N/A -5 -586 N/A N/A 0 -456 N/A N/A +5 -273 N/A N/A +10 -166 N/A N/A +15 -79 N/A N/A +20 -6 +14 +22 +25 -7 N/A N/A +30 -56 N/A N/A +35 -75 N/A N/A +45 -64 N/A N/A +50 -3 N/A N/A +55 55 N/A N/A +60 185 N/A N/A

© 2004 Celltech Labs Inc. 1 of 17 Test Report S/N: 090104KBC-T554-E90M Test Date(s): September 03-20, 2004 Test Type: FCC Part 90 EMC Measurements This mobile device has demonstrated compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 47 CFR §90, §2, and ANSI TIA/EIA-603-A-2001. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. _____________________ Duane M. Friesen EMC Manager Celltech Labs Inc. DECLARATION OF COMPLIANCE FCC PART 90 EMC MEASUREMENTS Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Tel.: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99210 United States FCC IDENTIFIER: KBCIX260PLUSBM390 Model(s): IX260PLUSBM3900 FCC Rule Part(s): 47 CFR §90, §2 Test Procedure(s): FCC 47 CFR §90, §2; ANSI TIA/EIA-603-A-2001 Device Classification: Licensed Non-Broadcast Station Transmitter (TNB) Device Description: Rugged Laptop PC with Wavenet BM3-900M Mobitex Radio Modem & Dipole Antenna with (3) Vehicle-Mount Antennas, & Vehicle Cradle Tx Frequency Range: 896.0 - 901.0 MHz Rx Frequency Range: 935.0 - 940.0 MHz Max. ERP Measured: 2.87 Watts (34.58 dBm) - Itronix Swivel Dipole Antenna Model: IX260+ 0.668 Watts (28.25 dBm) - MaxRad Vehicle-Mount Antenna Model: Z563 1.33 Watts (31.25 dBm) - MaxRad Vehicle-Mount Antenna Model: Z567 1.88 Watts (32.74 dBm) - MaxRad Vehicle-Mount Antenna Model: Z573 Max. Conducted Power Tested: 33.2 dBm Max. Duty Cycle Tested: 30 % (Source-Based Time-Averaged) Source-Based Time-Aver. Power: 28.0 dBm (Conducted) Modulation Type: GMSK Emission Designator(s): 12K0F1D Frequency Tolerance(s): ± 0.00015 % Antenna Type(s) Tested: Itronix IX260+ External Swivel Dipole MaxRad Z563 Vehicle-Mount - Unity Gain MaxRad Z567 Vehicle-Mount - 5 dBd Gain MaxRad Z573 Vehicle-Mount - 5 dBd Gain Power Source(s) Tested: 11.1 V Lithium-ion Battery, 6.0 Ah (Model: A2121-2) 12 V Vehicle Battery (for Vehicle Cradle) © 2004 Celltech Labs Inc. 2 of 17 Test Report S/N: 090104KBC-T554-E90M Test Date(s): September 03-20, 2004 Test Type: FCC Part 90 EMC Measurements TABLE OF CONTENTS Section DESCRIPTION Page # 1.1 SCOPE 3 2.1 GENERAL INFORMATION & DEVICE DESCRIPTION 3 3.1 TEST EQUIPMENT LIST 4 Appendix MEASUREMENT PROCEDURES & DATA FCC Rule Part(s) Page # A RF Output Power §2.1046 5 B Effective Radiated Power Output §90.635 §2.1046 6-8 C Field Strength of Spurious Radiation §2.1053 §90.210j 9-13 D Radiated Test Setup Photographs 14-17 © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSBM390 (Model: IX260PLUSBM3900) 3 of 17 IX260+ Rugged Laptop PC with Internal Wavenet BM3-900M Mobitex Radio Modem Test Report S/N: 090104KBC-T554-E90M Test Date(s): September 03-20, 2004 Test Type: FCC Part 90 EMC Measurements 1.1 SCOPE This report describes the measurements made and results collected during the Electromagnetic emissions testing of the Itronix Corporation IX260+ Rugged Laptop PC incorporating the internal Wavenet BM3-900M Mobitex Radio Modem with external swivel dipole antenna, (3) vehicle-mount antennas, and vehicle cradle. The measurement results were applied against the EMC requirements and limits outlined in the technical rules and regulations set forth in the Federal Communication Commission Code of Federal Regulations Title 47 Parts 90, and 2. 2.1 GENERAL INFORMATION / DEVICE DESCRIPTION APPLICANT ITRONIX CORPORATION 801 South Stevens Street, Spokane, WA 99210 FCC IDENTIFIER KBCIX260PLUSBM390 Model(s) IX260PLUSBM3900 ZZGEG4196ZZ6470 Production Unit IX260+ Laptop PC Serial No.(s) BM315099WT440 Production Unit Mobitex Radio Modem Device Type Rugged Laptop PC with Wavenet BM3-900M Mobitex Radio Modem, External Swivel Dipole Antenna, (3) Vehicle-Mount Antennas, & Vehicle Cradle FCC Rule Part(s) 47 CFR §90, §2 FCC Classification Licensed Non-Broadcast Station Transmitter (TNB) Tx Frequency Range 896.0 - 901.0 MHz Rx Frequency Range 935.0 - 940.0 MHz Model Number Type / Description Max. ERP Measured Itronix IX260+ External Swivel Dipole 2.87 W 34.58 dBm MaxRad Z563 Unity Gain Mobile Vehicle-Mount 0.668 W 28.25 dBm MaxRad Z567 5 dBd Gain Mobile Vehicle-Mount 1.33 W 31.25 dBm Antenna Type(s) Tested MaxRad Z573 5 dBd Gain Mobile Vehicle-Mount 1.88 W 32.74 dBm Max. RF Conducted Output Power Measured 33.2 dBm Peak Mobitex Max. Source-Based Time-Averaged Conducted Power 28.0 dBm Peak Max. Duty Cycle Tested 30 % Source-Based Time-Averaged Emission Designator(s) 12K0F1D Frequency Tolerance ± 0.00015 % Modulation GMSK Lithium-ion Battery 11.1 V, 6.0 Ah Model: A2121-2 Power Source(s) Tested Vehicle Battery 12 V (For Vehicle Cradle) FCC PART 90 EMC MEASUREMENT REPORT © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSBM390 (Model: IX260PLUSBM3900) 4 of 17 IX260+ Rugged Laptop PC with Internal Wavenet BM3-900M Mobitex Radio Modem Test Report S/N: 090104KBC-T554-E90M Test Date(s): September 03-20, 2004 Test Type: FCC Part 90 EMC Measurements 3.1 TEST EQUIPMENT LIST Equipment Type Model Serial No. Calibration Due Date HP Signal Generator 8648D (9kHz-4.0GHz) 3847A00611 April 2005 Rohde & Schwarz Signal Generator SMR 20 (10MHz-40GHz) 100104 April 2005 Gigatronics Power Meter 8651A 8650137 April 2005 Gigatronics Power Meter 8652A 1835267 April 2005 Gigatronics Power Sensor 80701A (0.05-18GHz) 1833535 April 2005 Gigatronics Po…

Text truncated - open the document above for the full version.

© 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSBM390 (Model: IX260PLUSBM3900) 1 of 3 Rugged Laptop PC with internal Wavenet BM3-900M Mobitex Radio Modem Antenna Types Evaluated: Swivel Dipole & (3) Vehicle-Mount (with Cradle) Test Report S/N: 090104KBC-T554-M90M Test Type: MPE Evaluation This mobile device is compliant with localized Maximum Permissible Exposure (MPE) for the Uncontrolled Exposure / General Population limits specified in FCC 47 CFR §1.1310, in accordance with the requirements of FCC OET Bulletin 65, Edition 97-01, ANSI / IEEE C95.1-1992, and ANSI / IEEE C95.3-1992. I attest to the accuracy of data. All measurements and/or calculations were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This evaluation report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. _____________________ Duane M. Friesen EMC Manager Celltech Labs Inc. DECLARATION OF COMPLIANCE MPE EVALUATION REPORT Test Lab CELLTECH LABS INC. 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99210 United States FCC Rule Part(s): 47 CFR §90; 15.247; §2.1091; §1.1310 FCC Classification: Licensed Non-Broadcast Station Transmitter (TNB) Device Description: Rugged Laptop PC with Wavenet BM3-900M Mobitex Radio Modem with Swivel Dipole Antenna, (3) Vehicle-Mount Antennas, & Vehicle Cradle FCC IDENTIFER: KBCIX260PLUSBM390 Model(s): IX260PLUSBM3900 Tx Frequency Range(s): 896.0 - 901.0 MHz Max. RF Conducted Power: 33.2 dBm (Peak) Source-Based Time-Av. Power: 28.0 dBm (Peak Conducted) Max. Duty Cycle Evaluated: 30 % (Source-Based Time-Averaged) Antenna Type(s): Itronix IX260+ External Swivel Dipole MaxRad Z563 Vehicle-Mount - Unity Gain MaxRad Z567 Vehicle-Mount - 5 dB Gain MaxRad Z573 Vehicle-Mount - 5 dB Gain © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSBM390 (Model: IX260PLUSBM3900) 2 of 3 Rugged Laptop PC with internal Wavenet BM3-900M Mobitex Radio Modem Antenna Types Evaluated: Swivel Dipole & (3) Vehicle-Mount (with Cradle) Test Report S/N: 090104KBC-T554-M90M Test Type: MPE Evaluation 1. Itronix IX260+ Swivel Dipole Antenna 2. MaxRad Z563 Unity Gain Vehicle Antenna 3. MaxRad Z567 & Z573 5 dBd Gain Vehicle Antennas Z567 Z573 1.1 MPE Calculation Data Z563 Itronix IX260+ Swivel Dipole Antenna Tx Frequency: 900.0 (MHz) Source-Based Time-Averaged Power at Antenna Input Terminal: 28.0 (dBm) Antenna gain: 2.6 (dBi) S=0.60 (mW/cm^2) P=630.9573 (mW) G=1.82 (numeric) R =12.34(cm) 0.228170434 S (mw/cm^2) at 20cm Tx Frequency: 900.0 (MHz) Source-Based Time-Averaged Power at Antenna Input Terminal: 28.0 (dBm) Antenna Gain (including 1.89 dB cable loss for 17ft cable): 0.25 (dBi) S=0.60 (mW/cm^2) P=630.9573 (mW) G=1.06 (numeric) R =9.41(cm) 0.132818744 S (mw/cm^2) at 20cm Tx Frequency: 900.0 (MHz) Source-Based Time-Averaged Power at Antenna Input Terminal: 28.0 (dBm) Antenna Ga…

Text truncated - open the document above for the full version.
