KBCIX260PLUSBTRUGGED LAPTOP PC WITH CIRRONET BT2022 BLUETOOTH

Getting Started Congratulations on your purchase of the Itronix GoBook III computer! Your new GoBook III features the most innovative advances in portable computing technology. It combines state-of-the-art ergonomics with a rugged, durable architecture to provide you with a notebook computer that is compact, powerful, rugged and easy to use. Designed for a wide range of business and personal productivity applications, the GoBook III is an ideal choice for use in applications that require durability and performance. For maximum expandability without compromising portability, the GoBook III has a USB interface and aPC card slot. The high capacity hard disk drive provides you with plenty of storage space for multimedia files and applications. The GoBook III features a standard 87-key Nitevue® keyboard (89-key international). The high- resolution 12.1-inch touch screen LCD panel provides clear and crisp viewing with the convenience of a touch screen. This online document, GoBook III Help , contains all the information you need to set up and use your new GoBook III. It describes all the features of the GoBook III in an easy-to-read yet thorough manner. For information on printing, navigating or otherwise using GoBook III Help see How to Use This Help System. GoBook III ® Help Page 1 of 80GoBook III Help 7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h... Checklists After opening the package, carefully inspect the contents. Contact your dealer if any items are missing or appear damaged. The shipping carton should contain the following: STANDARD z The Itronix GoBook III computer z Battery z ADP-90AB or ADP-75FB AC adapter with power cord z 12.1 inch XGA display z Stylus z Shoulder Strap z GoBook III Quick Start Guide OPTIONS The following items are normally optional, but some vendors may include them in the standard package. Some items may not be available in some countries, or some vendors may choose not to carry all the items. z Floppy disk drive z CD-ROM drive z CD-RW Drive z DVD-ROM drive z Soft Handle z Media Bay Li-Ion battery pack z Hard Disk Drive Heater z LCD Heater CAUTION When purchasing any of the accessories listed above, purchase only those accessories that are approved for use with your computer. The above accessories are proprietary items. Your system vendor can obtain these approved accessories. If you use items that are not approved for use with this computer, you may cause your computer to malfunction, or to emit or receive electromagnetic radiation in excess of local regulations. For non-proprietary accessories such as PC Cards or printers, ensure that the accessor y functions properly in your computer before making the purchase. Your system vendor Page 2 of 80GoBook III Help 7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h... may be able to recommend reliable brands and models. Features High Capacity Hard Disk Drive The computer has a high capacity hard disk drive, enabling you to install your favorite programs and store large multimedia files. Full Array of Ports and Connectors Your computer includes standard ports for connecting to peripherals such as USB devices and monitors. USB ports allow you to add many types of peripherals. Large XGA LCD Your computer has a large, easy to view XGA LCD panel. Built-in Microphone and Stereo Speakers The stereo speakers and internal microphone enable you to run a variety of multimedia applications. Function Keys Function keys allow you to suspend your computer, shut the LCDs off, and give you easy control of audio and your monitor. Where to Look For Information About Your Computer This Help System describes the key elements of your computer. New users can find a simple step-by- step orientation in this chapter. About Windows For more extensive information and help about Windows go to Help and Support, found on the Start Menu. 72_0119_001 28 June 2004 © 2004 Itronix Corporation. All rights reserved. Page 3 of 80GoBook III Help 7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h... Precautions You can use your computer under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your computer: z Follow all warnings and instructions noted in this documentation and in Windows Help and Support, found on the Start Menu. z The first time you use your computer, we recommend that you carefully read the section on Power Management to familiarize yourself with some basic battery information and to ensure optimum performance z There is danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. z Do not open the RAM door by yourself. z Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use aerosols, solvents, or strong detergents z Slots and openings in the computer case are for ventilation purposes. Do not block or cover these openings or the system could overheat z On the bottom of the GoBook III, there is a label with information on the power requirements of this system. These requirements must be followed. If you are unsure of your local power supply, consult your dealer or local Power Company z Do not step on or place anything on the power cord z If you use the computer with an extension cord, ensure that the total ampere ratings of all the devices sharing the extension do not exceed the rating of the extension cord or the rating of the wall outlet z Unless instructed, never push foreign objects into the computer through any of the slots or openings. Dangerous voltages are present, which could cause electric shock, fire, or damage sensitive components z For best results, use a power strip with a built-in surge protector. Do not use inferior extensi…

Text truncated - open the document above for the full version.

801 S. STEVENS STREET SPOKANE, WA 99204 509.624.6600 800.441.1309 FAX 509.626.4203 www.itronix.com September 23, 2004 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Itronix Corporation FCC ID: KBCIX260PLUSBT FCC Part 15C - Certification Request for Confidentiality In accordance with 0.457 and 0.459 of CFR 47, Itronix Corporation and Cirronet, Inc. hereby requests confidentiality of the Cirronet Block Diagram(s), Cirronet Schematic Diagram(s), Cirronet Parts List, and RangeStar Antenna Specification attachments for the subject application. These documents contain detailed system and equipment description and related information about the product in which Itronix Corporation and Cirronet, Inc. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Itronix Corporation and Cirronet, Inc. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely,

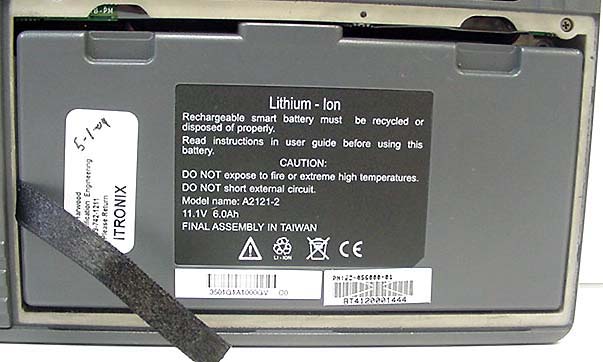

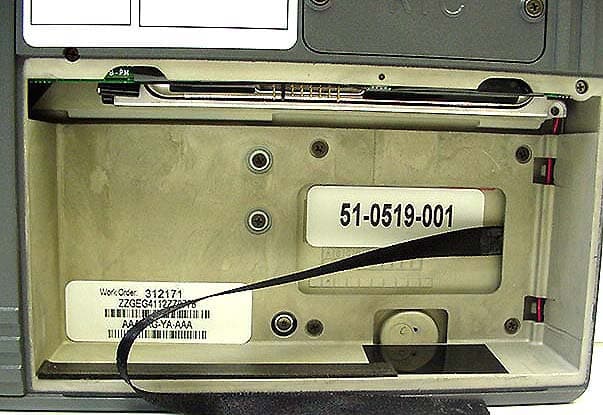

© 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSBT Rugged Laptop PC with internal Cirronet BT2022 Bluetooth Celltech Project No.: 544 EXTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSBT Rugged Laptop PC with internal Cirronet BT2022 Bluetooth Celltech Project No.: 544 EXTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSBT Rugged Laptop PC with internal Cirronet BT2022 Bluetooth Celltech Project No.: 544 EXTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSBT Rugged Laptop PC with internal Cirronet BT2022 Bluetooth Celltech Project No.: 544 EXTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSBT Rugged Laptop PC with internal Cirronet BT2022 Bluetooth Celltech Project No.: 544 EXTERNAL DUT PHOTOGRAPHS

© 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSBT Rugged Laptop PC with internal Cirronet BT2022 Bluetooth Celltech Project No.: 544 LABELING REQUIREMENTS PER §2.925 The label(s) shall be permanently affixed at a conspicuous location on the device. SEE NEXT PAGE(S) FOR FCC ID LABEL SEE NEXT PAGE(S) FOR FCC Part 15(B) DoC LABEL FCC ID LABEL & LOCATION

Model: BT2022 FCC ID: HSW-BT2022M ACS Report: 03-0193-15BC Advanced Compliance Solutions Page 10 6.5 Channel Usage Requirements - FCC Section 15.247(a) 15.247(a) (1): Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. The system shall hop to channel frequencies that are selected at the system hopping rate from a pseudo randomly ordered list of hopping frequencies. Each frequency must be used equally on the average by each transmitter. The system receivers shall have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters and shall shift frequencies in synchronization with the wanted signal. 15.247(a) (1) (ii): Frequency hopping systems operating in the 2400–2483.5 MHz and 5725–5850 MHz bands shall use at least 75 hopping frequencies. The maximum 20dB bandwidth of the hopping channel is 1 MHz. The average time of occupancy on any frequency shall not be greater than 0.4 seconds within a 30 second period. 6.5.1 Adjacent Channel Separation Results: The adjacent channel separation was measured to be 1.00 MHz for all channels. A plot of the High channel is shown below in figure 6.5.1-1 Figure 6.5.1-1: Adjacent Channel Separation

Model: BT2022 FCC ID: HSW-BT2022M ACS Report: 03-0193-15BC Advanced Compliance Solutions Page 12 6.5.3 Channel Dwell Time Result: For average measurements, the measured level was reduced by a factor 27dB to account for the duty cycle of the EUT. The EUT transmits three 625uS every 100mS. The period of a single burst is 46.9mS. Therefore the duty cycle is calculated by (3x.625ms)/46.9ms = 3.99%. The duty cycle correction factor is determined using the formula: 20•log(.0399) = -27dB. See figure 6.5.3-1 and appendix I for further details. Figure 6.5.3-1: Channel Dwell Time 6.5.4 20dB Bandwidth Result: The 20dB bandwidth was found to be less than 1 MHz across all channels as required. Results are shown below in Table 6.5.4-1 and a plot of the channel with the greatest bandwidth is shown in Figure 6.5.4-1. Table 6.5.4-1: 20dB Bandwidth Channel Frequency (MHz) 20dB Bandwidth (kHz) Low 2402 187.50 Center 2441 192.36 High 2480 188.19 Model: BT2022 FCC ID: HSW-BT2022M ACS Report: 03-0193-15BC Advanced Compliance Solutions Page 13 Figure 6.5.4-1: 20dB Bandwidth

Model: BT2022 FCC ID: HSW-BT2022M ACS Report: 03-0193-15BC Advanced Compliance Solutions Page 9 6.4 Peak Output Power Requirement - FCC Section 15.247(b) The peak output power of the EUT was made at the antenna connector using a Rhode & Schwarz ESMI Spectrum Analyzer. For the measurement, the EUT was caused to generate a constant carrier. Results are shown below in Table 6.4-1 and a plot of the worst case is shown in Figure 6.4-1. Table 6.4-1: Peak Output Power Channel Frequency (MHz) Output Power (dBm) Low 2402 15.43 Center 2441 15.59 High 2480 15.31 Figure 6.4-1: Output power

Identification GoBook III (IX260+) Radio Specific Safety and Radio Identification Information. June 2004 · Revision Mod July 04 Copyright Notice © Copyright 2004 Itronix Corporation. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any other language or computer language in whole or in part, in any form or by any means, whether it be electronic, mechanical, magnetic, optical, manual, or otherwise, without the prior written consent of Itronix Corporation, South 801 Stevens Street, Spokane, Washington 99204. Disclaimer This document is printed in the U.S.A. Itronix Corporation reserves the right to revise the manual and make periodic changes to the content without a direct or inferred obligation to Itronix to notify any person of such revision or changes. Itronix Corporation does not assume responsibility for the use of this help manual, nor for any patent infringements or other rights or third parties who may use the manual. This document contains valuable trade secrets and proprietary information of Itronix Corporation. This product is available for purchase under the terms of the Itronix Hardware Purchase and Software License Agreement. Itronix hardware products may be reconditioned, or be manufactured from parts and components that may be new, used, rebuilt, or recycled and in some cases, the hardware product may not be new and may have been previously installed. In any event, Itronix warranty terms apply. Trademark and Patent Notice Itronix is a registered trademark of Itronix Corporation. GoBook III is a registered trademark of Itronix Corporation Microsoft, MS, Windows, and MS-DOS are registered trademarks of Microsoft Corporation. IBM is a trademark of International Business Machines Corporation. Warnings and Safety Information WARNING It is important that only authorized Itronix personnel attempt repairs on Itronix equipment as this might void any maintenance contract with your company. Unauthorized service personnel might be subject to shock hazard on some Itronix equipment if removal of protective covers is attempted. Changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. Internal radio may have an individual FCC Identifier which are not applicable to this configuration. Only the FCC Identifier (KBCIX260PLUSBT) shown on the label located on the bottom of the IX260+ Laptop PC is applicable. The IX260+ Laptop PC must not be co-located or operating in conjunction with any other antenna or transmitter than specified in the filing . This FCC Identifier does not include WLAN and WAN Radios. Cradle option does not support this FCC Identifier. Safety Information This device contains a PAN radio transmitter. When using the PAN transmitter, a minimum separation distance of 20 cm must be maintained between the upper right and left edges of the display screen and all users/bystanders. The PAN transmitter should be tu rned off before carrying th e Laptop PC order to comply with FCC RF exposure requirements. Radio Specific Safety Information July 6th 2004 GoBook III ® Radio Specific Safety Information Radio Specific Safety Information Page 1 of 1Radio Specific Safety Information 7/6/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Desktop\Marks%20shared%...

Test Report S/N: 072804KBC-T544-E15B Test Date(s): 21Sept04 - 14Oct04, 22Oct04 Test Type(s): FCC §15.247 IC RSS-210 Issue 5 Lab Registration(s): FCC #714830 IC Lab File #3874 FCC PART 15.247 EMC TEST REPORT FOR THE ITRONIX RUGGED LAPTOP PC MODEL: IX260PLUSBT WITH CIRRONET BT2022 BLUETOOTH TRANSMITTER AND INTERNAL RANGESTAR SURFACE-MOUNT ANTENNA TRSN 072804KBC-T544-E15B Issue 1.0 Celltech Compliance Testing & Engineering Lab (Celltech Labs Inc.) 1955 Moss Court Kelowna, BC Canada V1Y 9L3 October 22, 2004 Test Report S/N: 072804KBC-T544-E15B Test Date(s): 21Sept04 - 14Oct04, 22Oct04 Test Type(s): FCC §15.247 IC RSS-210 Issue 5 Lab Registration(s): FCC #714830 IC Lab File #3874 Applicant: Itronix Corporation Model: IX260PLUSBT FCC ID: KBCIX260PLUSBT IC: 1943A-IX260Pa IX260+ Rugged Laptop PC with internal Cirronet BT2022 Bluetooth Transmitter and internal RangeStar Antenna 2004 Celltech Labs Inc This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 2 of 45 DECLARATION OF COMPLIANCE Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Applicant Information ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99204 United States Phone: 250-448-7047 Fax: 250-448-7048 e-mail: [email protected] web site: www.celltechlabs.com Lab Registration No.(s): FCC: 714830 IC: 3874 Rule Part(s): FCC: §15.247; §2.1091; §1.1310 IC: RSS-210 Issue 5 - A1. 11/30/02 Device Classification: FCC: Spread Spectrum Transmitter (DSS) IC: Low Power Licence-Exempt Transmitter Device Identification: FCC ID: KBCIX260PLUSBT IC: 1943A-IX260Pa DUT Description: Model(s): IX260260PLUSBT Device Type: Rugged Laptop PC with Cirronet BT2022 Bluetooth and internal surface-mount antenna Tx Frequency Range: 2402 - 2480 MHz Max. RF Output Power: 15.61 dBm (Peak Conducted) Mode(s) of Operation: Frequency Hopping Spread Spectrum (FHSS) Modulation(s): GFSK 1 Mbps 0.5 BT Gaussian Antenna Type(s): RangeStar P/N: 100929 Internal Surface-Mount (upper left side edge of LCD Display) Power Supply: 90 Watt AC Power Adapter This wireless mobile device has demonstrated compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 47 CFR Part 15.247 and Industry Canada RSS-210 Issue 5. I attest to the accuracy of the data. All measurements reported herein were performed by me or were under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. ____________________________ Russell Pipe Senior Compliance Technologist Celltech Labs Inc. ______________________________ Duane M. Friesen EMC Manager Celltech Labs Inc. Test Report S/N: 072804KBC-T544-E15B Test Date(s): 21Sept04 - 14Oct04, 22Oct04 Test Type(s): FCC §15.247 IC RSS-210 Issue 5 Lab Registration(s): FCC #714830 IC Lab File #3874 Applicant: Itronix Corporation Model: IX260PLUSBT FCC ID: KBCIX260PLUSBT IC: 1943A-IX260Pa IX260+ Rugged Laptop PC with internal Cirronet BT2022 Bluetooth Transmitter and internal RangeStar Antenna 2004 Celltech Labs Inc This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 3 of 45 TABLE OF CONTENTS 1.0 SCOPE ................................................................................................................................................................ 6 2.0 REFERENCES .................................................................................................................................................... 6 2.1 Normative References ......................................................................................................................................... 6 3.0 TERMS AND DEFINITIONS ................................................................................................................................ 7 4.0 FACILITIES AND ACCREDITATIONS ................................................................................................................ 8 5.0 GENERAL INFORMATION ................................................................................................................................. 8 5.1 Applicant Information ........................................................................................................................................... 8 5.2 DUT Description................................................................................................................................................... 8 5.3 Co-Located Equipment ........................................................................................................................................ 9 5.4 Cable Descriptions............................................................................................................................................... 9 5.5 Support Equipment .............................................................................................................................................. 9 5.6 Clock Frequencies ............................................................................................................................................. 10 5.7 Mode(s) of Operation Tested............................................................................................................................. 10 5.8 Configuration Description .................................................................................................................................. 11 6.0 PASS/FAIL CRITERIA ........................................................................…

Text truncated - open the document above for the full version.

Test Report S/N: 072804KBC-T544-E15B Test Date(s): 21Sept04 - 14Oct04, 22Oct04 Test Type(s): FCC §15.247 IC RSS-210 Issue 5 Lab Registration(s): FCC #714830 IC Lab File #3874 Applicant: Itronix Corporation Model: IX260PLUSBT FCC ID: KBCIX260PLUSBT IC: 1943A-IX260Pa IX260+ Rugged Laptop PC with internal Cirronet BT2022 Bluetooth Transmitter and internal RangeStar Antenna 2004 Celltech Labs Inc This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 16 of 45 B.6. SETUP PHOTOS Photograph B-1 – AC Powerline Conducted Emission Configuration Photograph B-2 – AC Powerline Conducted Emission Cable Placement Test Report S/N: 072804KBC-T544-E15B Test Date(s): 21Sept04 - 14Oct04, 22Oct04 Test Type(s): FCC §15.247 IC RSS-210 Issue 5 Lab Registration(s): FCC #714830 IC Lab File #3874 Applicant: Itronix Corporation Model: IX260PLUSBT FCC ID: KBCIX260PLUSBT IC: 1943A-IX260Pa IX260+ Rugged Laptop PC with internal Cirronet BT2022 Bluetooth Transmitter and internal RangeStar Antenna 2004 Celltech Labs Inc This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 30 of 45 H.7. SETUP PHOTOGRAPHS Photograph H-1 – 3115 Horn Antenna (1–18GHz) Photograph H-2 - 3160-09 Horn Antenna (18-26GHz) H.8. DUT OPERATING DESCRIPTION Measurements were made at three channels throughout the band, Low Channel (2402 MHz), Mid Channel (2441 MHz), High Channel (2480 MHz). The configuration used was with a gain setting of 250/40 for the low channel, 250/44 for mid channel and 220/45 for the high channel. The modulation was set to 1000. As a worse case, the band-edge measurements were made of the low and high channels with data stream modulation. Test Report S/N: 072804KBC-T544-E15B Test Date(s): 21Sept04 - 14Oct04, 22Oct04 Test Type(s): FCC §15.247 IC RSS-210 Issue 5 Lab Registration(s): FCC #714830 IC Lab File #3874 Applicant: Itronix Corporation Model: IX260PLUSBT FCC ID: KBCIX260PLUSBT IC: 1943A-IX260Pa IX260+ Rugged Laptop PC with internal Cirronet BT2022 Bluetooth Transmitter and internal RangeStar Antenna 2004 Celltech Labs Inc This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 37 of 45 I.7. SETUP PHOTOGRAPHS Photograph I-1 – Loop Antenna (10kHz- 30MHz) Photograph I-2 - Bilog Antenna (30MHz – 1 GHz) Photograph I-3 – Horizontal Polarization (30MHz – 1 GHz) Photograph I-4 - Vertical Polarization (30MHz – 1 GHz) Test Report S/N: 072804KBC-T544-E15B Test Date(s): 21Sept04 - 14Oct04, 22Oct04 Test Type(s): FCC §15.247 IC RSS-210 Issue 5 Lab Registration(s): FCC #714830 IC Lab File #3874 Applicant: Itronix Corporation Model: IX260PLUSBT FCC ID: KBCIX260PLUSBT IC: 1943A-IX260Pa IX260+ Rugged Laptop PC with internal Cirronet BT2022 Bluetooth Transmitter and internal RangeStar Antenna 2004 Celltech Labs Inc This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 38 of 45 Photograph I-5 - Front of Radiated Emission Configuration Photograph I-6 - Back of Radiated Emission Configuration I.8. DUT OPERATING DESCRIPTION Measurements were made at three channels throughout the band, Low Channel (2402 MHz), Mid Channel (2441 MHz), High Channel (2480 MHz). The configuration used was with a gain setting of 250/40 for the low channel, 250/44 for mid channel and 220/45 for the high channel. The modulation was set to 1000. As a worse case, the band-edge measurements were made of the low and high channels with data stream modulation.
