KBCIX260PLUSGC82RUGGED LAPTOP PC WITH GSM GPRS/EDGE

Getting Started Congratulations on your purchase of the Itronix GoBook III computer! Your new GoBook III features the most innovative advances in portable computing technology. It combines state-of-the-art ergonomics with a rugged, durable architecture to provide you with a notebook computer that is compact, powerful, rugged and easy to use. Designed for a wide range of business and personal productivity applications, the GoBook III is an ideal choice for use in applications that require durability and performance. For maximum expandability without compromising portability, the GoBook III has a USB interface and aPC card slot. The high capacity hard disk drive provides you with plenty of storage space for multimedia files and applications. The GoBook III features a standard 87-key Nitevue® keyboard (89-key international). The high- resolution 12.1-inch touch screen LCD panel provides clear and crisp viewing with the convenience of a touch screen. This online document, GoBook III Help , contains all the information you need to set up and use your new GoBook III. It describes all the features of the GoBook III in an easy-to-read yet thorough manner. For information on printing, navigating or otherwise using GoBook III Help see How to Use This Help System. GoBook III ® Help Page 1 of 80GoBook III Help 7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h... Checklists After opening the package, carefully inspect the contents. Contact your dealer if any items are missing or appear damaged. The shipping carton should contain the following: STANDARD z The Itronix GoBook III computer z Battery z ADP-90AB or ADP-75FB AC adapter with power cord z 12.1 inch XGA display z Stylus z Shoulder Strap z GoBook III Quick Start Guide OPTIONS The following items are normally optional, but some vendors may include them in the standard package. Some items may not be available in some countries, or some vendors may choose not to carry all the items. z Floppy disk drive z CD-ROM drive z CD-RW Drive z DVD-ROM drive z Soft Handle z Media Bay Li-Ion battery pack z Hard Disk Drive Heater z LCD Heater CAUTION When purchasing any of the accessories listed above, purchase only those accessories that are approved for use with your computer. The above accessories are proprietary items. Your system vendor can obtain these approved accessories. If you use items that are not approved for use with this computer, you may cause your computer to malfunction, or to emit or receive electromagnetic radiation in excess of local regulations. For non-proprietary accessories such as PC Cards or printers, ensure that the accessor y functions properly in your computer before making the purchase. Your system vendor Page 2 of 80GoBook III Help 7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h... may be able to recommend reliable brands and models. Features High Capacity Hard Disk Drive The computer has a high capacity hard disk drive, enabling you to install your favorite programs and store large multimedia files. Full Array of Ports and Connectors Your computer includes standard ports for connecting to peripherals such as USB devices and monitors. USB ports allow you to add many types of peripherals. Large XGA LCD Your computer has a large, easy to view XGA LCD panel. Built-in Microphone and Stereo Speakers The stereo speakers and internal microphone enable you to run a variety of multimedia applications. Function Keys Function keys allow you to suspend your computer, shut the LCDs off, and give you easy control of audio and your monitor. Where to Look For Information About Your Computer This Help System describes the key elements of your computer. New users can find a simple step-by- step orientation in this chapter. About Windows For more extensive information and help about Windows go to Help and Support, found on the Start Menu. 72_0119_001 28 June 2004 © 2004 Itronix Corporation. All rights reserved. Page 3 of 80GoBook III Help 7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h... Precautions You can use your computer under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your computer: z Follow all warnings and instructions noted in this documentation and in Windows Help and Support, found on the Start Menu. z The first time you use your computer, we recommend that you carefully read the section on Power Management to familiarize yourself with some basic battery information and to ensure optimum performance z There is danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. z Do not open the RAM door by yourself. z Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use aerosols, solvents, or strong detergents z Slots and openings in the computer case are for ventilation purposes. Do not block or cover these openings or the system could overheat z On the bottom of the GoBook III, there is a label with information on the power requirements of this system. These requirements must be followed. If you are unsure of your local power supply, consult your dealer or local Power Company z Do not step on or place anything on the power cord z If you use the computer with an extension cord, ensure that the total ampere ratings of all the devices sharing the extension do not exceed the rating of the extension cord or the rating of the wall outlet z Unless instructed, never push foreign objects into the computer through any of the slots or openings. Dangerous voltages are present, which could cause electric shock, fire, or damage sensitive components z For best results, use a power strip with a built-in surge protector. Do not use inferior extensi…

Text truncated - open the document above for the full version.

Identification GoBook III (IX260+) Radio Specific Safety and Radio Identification Information. June 2004 · Revision Mod July 04 Copyright Notice © Copyright 2004 Itronix Corporation. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any other language or computer language in whole or in part, in any form or by any means, whether it be electronic, mechanical, magnetic, optical, manual, or otherwise, without the prior written consent of Itronix Corporation, South 801 Stevens Street, Spokane, Washington 99204. Disclaimer This document is printed in the U.S.A. Itronix Corporation reserves the right to revise the manual and make periodic changes to the content without a direct or inferred obligation to Itronix to notify any person of such revision or changes. Itronix Corporation does not assume responsibility for the use of this help manual, nor for any patent infringements or other rights or third parties who may use the manual. This document contains valuable trade secrets and proprietary information of Itronix Corporation. This product is available for purchase under the terms of the Itronix Hardware Purchase and Software License Agreement. Itronix hardware products may be reconditioned, or be manufactured from parts and components that may be new, used, rebuilt, or recycled and in some cases, the hardware product may not be new and may have been previously installed. In any event, Itronix warranty terms apply. Trademark and Patent Notice Itronix is a registered trademark of Itronix Corporation. GoBook III is a registered trademark of Itronix Corporation Microsoft, MS, Windows, and MS-DOS are registered trademarks of Microsoft Corporation. IBM is a trademark of International Business Machines Corporation. Warnings and Safety Information WARNING It is important that only authorized Itronix personnel attempt repairs on Itronix equipment as this might void any maintenance contract with your company. Unauthorized service personnel might be subject to shock hazard on some Itronix equipment if removal of protective covers is attempted. Changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. Internal radios contain individual FCC Identifiers which are not applicable to this configuration. Only the FCC Identifier KBCIX260PLUSGC82 as shown on the label located at the bottom of the IX260+ Laptop PC is applicable. The IX260+ Laptop PC must not be co-located or operating in conjunction with any other antenna or transmitter than specified in the FCC ID: KBCIX260PLUSGC82 filing. This FCC identifier does not include PAN Radios. Cradle option does support external vehicle-mount antenna for this FCC Identifier (vehicle-mount antenna intended for use with WAN Radio only). Safety Information This device contains a WAN radio transmitter. When using the WAN transmitter, a minimum separation distance of 20 cm must be maintained between the external dipole antenna and all users/bystanders. The WAN transmitter should be turned off before carrying the Laptop PC order to comply with FCC RF exposure requirements . Radio Specific Information Jul y 6th 2004 GoBook III ® Radio Specific Safety Information Radio Specific Safety Information Page 1 of 1Radio Specific Safety Information 7/15/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Desktop\Marks%20shared...

801 S. STEVENS STREET SPOKANE, WA 99204 509.624.6600 800.441.1309 FAX 509.626.4203 www.itronix.com September 21, 2004 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Itronix Corporation FCC ID: KBCIX260PLUSGC82 FCC Part 24(E) - Certification Request for Confidentiality In accordance with 0.457 and 0.459 of CFR 47, Itronix Corporation and Sony Ericsson hereby request confidentiality of the GC82 Block Diagram(s), GC82 Schematic Diagram(s), GC82 Operational Description, GC82 Parts List, GC82 Tune-Up Procedure, and Antenna Specifications exhibits for the subject application. These documents contain detailed system and equipment description and related information about the product in which Sony Ericsson considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Sony Ericsson considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely,

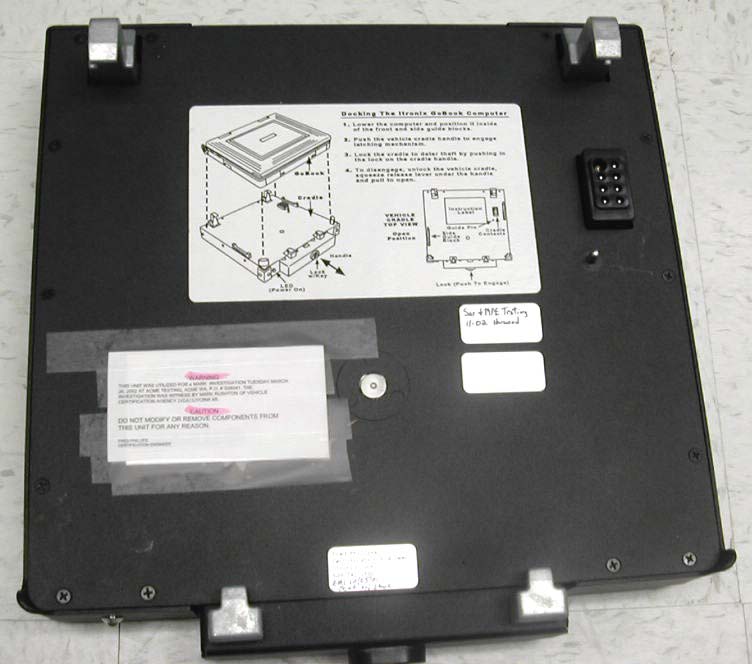

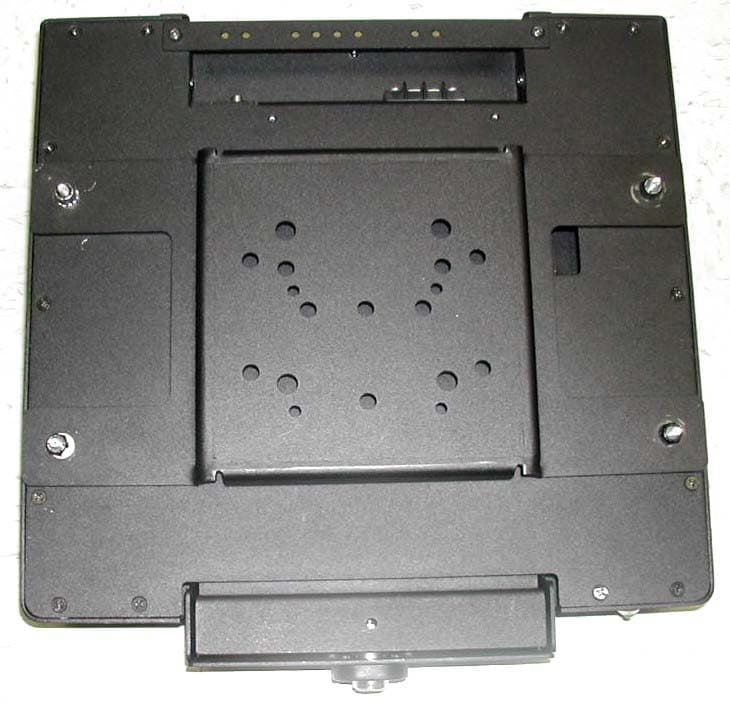

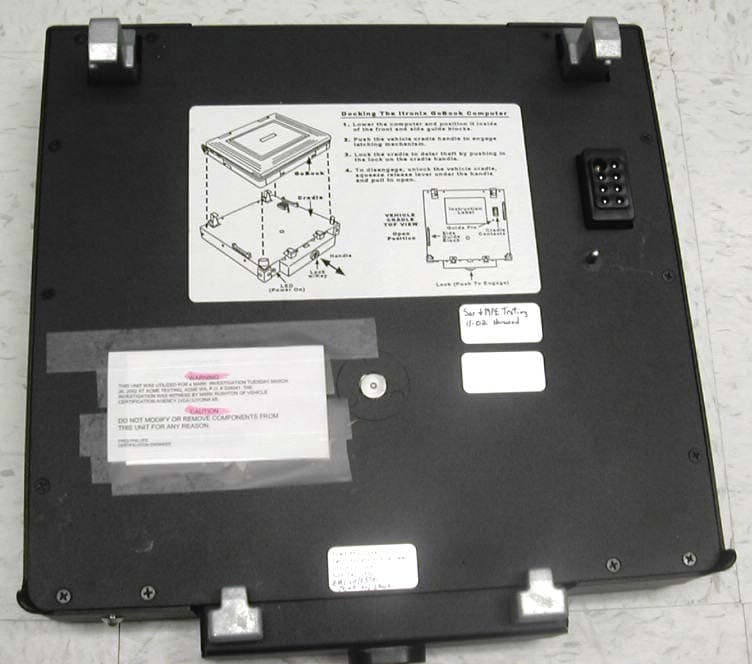

© 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSGC82 (Model: IX260+) Rugged Laptop PC with Dual-Band PCS/Cellular GSM GPRS/EDGE Modem Project #: 517 EXTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSGC82 (Model: IX260+) Rugged Laptop PC with Dual-Band PCS/Cellular GSM GPRS/EDGE Modem Project #: 517 EXTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSGC82 (Model: IX260+) Rugged Laptop PC with Dual-Band PCS/Cellular GSM GPRS/EDGE Modem Project #: 517 EXTERNAL DUT PHOTOGRAPHS Dual-Band GSM External Swivel Dipole Antenna © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSGC82 (Model: IX260+) Rugged Laptop PC with Dual-Band PCS/Cellular GSM GPRS/EDGE Modem Project #: 517 EXTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSGC82 (Model: IX260+) Rugged Laptop PC with Dual-Band PCS/Cellular GSM GPRS/EDGE Modem Project #: 517 EXTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSGC82 (Model: IX260+) Rugged Laptop PC with Dual-Band PCS/Cellular GSM GPRS/EDGE Modem Project #: 517 EXTERNAL DUT PHOTOGRAPHS with Vehicle Cradle & 3 dBi Gain Vehicle Antenna (MaxRad P/N: WMLPVDB800/1900) © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSGC82 (Model: IX260+) Rugged Laptop PC with Dual-Band PCS/Cellular GSM GPRS/EDGE Modem Project #: 517 EXTERNAL DUT PHOTOGRAPHS Vehicle Cradle

© 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSGC82 (Model: IX260+) Rugged Laptop PC with Dual-Band PCS/Cellular GSM GPRS/EDGE Modem Project #: 517 LABELING REQUIREMENTS PER §2.925 The label(s) shall be permanently affixed at a conspicuous location on the device. SEE NEXT PAGE(S) FOR FCC ID LABEL SEE NEXT PAGE(S) FOR FCC Part 15(B) DoC LABEL FCC ID LABEL & LOCATION

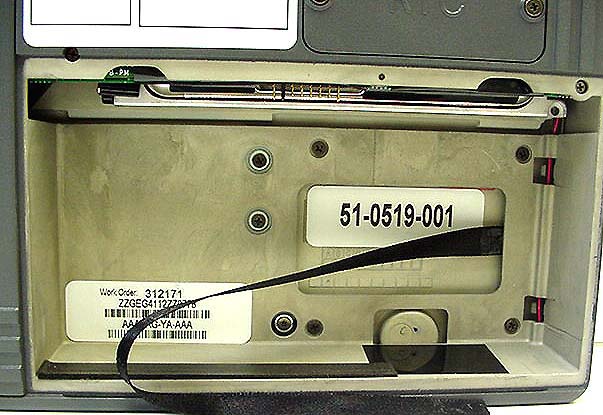

© 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSGC82 (Model: IX260+) Rugged Laptop PC with Dual-Band PCS/Cellular GSM GPRS/EDGE Modem Project #: 517 INTERNAL DUT PHOTOGRAPHS Cradle Contact Board © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSGC82 (Model: IX260+) Rugged Laptop PC with Dual-Band PCS/Cellular GSM GPRS/EDGE Modem Project #: 517 INTERNAL DUT PHOTOGRAPHS Sony Ericsson GC82 GSM GPRS/EDGE PCMCIA Modem © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSGC82 (Model: IX260+) Rugged Laptop PC with Dual-Band PCS/Cellular GSM GPRS/EDGE Modem Project #: 517 INTERNAL DUT PHOTOGRAPHS Sony Ericsson GC82 GSM GPRS/EDGE PCMCIA Modem © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSGC82 (Model: IX260+) Rugged Laptop PC with Dual-Band PCS/Cellular GSM GPRS/EDGE Modem Project #: 517 INTERNAL DUT PHOTOGRAPHS Sony Ericsson GC82 GSM GPRS/EDGE PCMCIA Modem © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSGC82 (Model: IX260+) Rugged Laptop PC with Dual-Band PCS/Cellular GSM GPRS/EDGE Modem Project #: 517 INTERNAL DUT PHOTOGRAPHS Sony Ericsson GC82 GSM GPRS/EDGE PCMCIA Modem

© 2004 Celltech Labs Inc. 1 of 16 Test Report S/N: 052604KBC-T517-E24G Test Date(s): July 16-19, 2004 Test Type: FCC Parts 22 & 24 EMC Measurements This device has demonstrated compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 47 CFR §24(E), §22(H), §2; Industry Canada RSS-133 Issue 2, RSS-132 Issue 1 (Provisional); and ANSI TIA/EIA-603-A-2001. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell Pipe Senior Compliance Technologist Celltech Labs Inc. DECLARATION OF COMPLIANCE FCC PART 24(E) & 22(H) EMC MEASUREMENTS Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Tel.: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99210 United States FCC Rule Part(s): FCC 47 CFR §24(E), §22(H), §2 IC Rule Part(s): RSS-133 Issue 2, RSS-132 Issue 1 (Provisional) Test Procedure(s): FCC 47 CFR §24(E), §22(H), §2 IC RSS-133 Issue 2, IC RSS-132 Issue 1 (Provisional) ANSI TIA/EIA-603-A-2001 FCC Device Classification: PCS Licensed Transmitter (PCB) IC Device Classification: 2 GHz Personal Communication Services (RSS-133) 800 MHz Cellular Telephones Employing New Technologies (RSS-132) Device Type: Rugged Laptop PC with Sony Ericsson GC82 Dual-Band GSM GPRS/EDGE PCMCIA Modem with External Swivel Dipole Antenna, Mobile Vehicle-Mount Antenna, & Vehicle Cradle FCC IDENTIFIER: KBCIX260PLUSGC82 Model(s): IX260PLUSGC82 Tx Frequency Range(s): 1850.2 - 1909.8 MHz (PCS GSM) 824.2 - 848.8 MHz (Cellular GSM) Rx Frequency Range(s): 1930.2 - 1990.8 MHz (PCS GSM) 869.2 - 894.8 MHz (Cellular GSM) Max. ERP/EIRP Measured: 1.58 Watts EIRP - PCS GSM (Itronix Swivel Dipole Antenna Model: IX260PLUSGC82) 1.67 Watts ERP - Cellular GSM (Itronix Swivel Dipole Antenna Model: IX260PLUSGC82) 0.311 Watts EIRP - PCS GSM (MaxRad Vehicle-Mount Antenna P/N: WMLPVDB800/1900) 0.955 Watts ERP - Cellular GSM (MaxRad Vehicle-Mount Antenna P/N: WMLPVDB800/1900) Max. Conducted Power Measured: 30.13 dBm Peak (PCS GSM) / 32.27 dBm Peak (Cellular GSM) Mode(s) / Time Slot(s) Tested: GSM EDGE / 2-out-of-8 Time Slots (EDGE Max. Data Rate: 61.85 kbps per time slot) Source-Based Time-Av. Duty Cycle: 25 % Source-Based Time-Av. Cond. Pwr: 24.11 dBm Peak (Max. PCS GSM) / 26.25 dBm Peak (Max. Cellular GSM) Modulation Type(s): GMSK / 8-PSK Emission Designator(s): 300KGXW Frequency Tolerance(s): 0.0029 PPM (PCS GSM) 0.0055 PPM (Cellular GSM) Antenna Type(s) Tested: Itronix IX260+ External Swivel Dipole MaxRad 3 dBi Gain Vehicle-Mount P/N: WMLPVDB800/1900 Power Source(s) Tested: 11.1V Lithium-ion Battery, 6.0Ah (Model: A2121-2) 12V Vehicle Battery (for Vehicle Cradle) © 2004 Celltech Labs Inc. 2 of 16 Test Report S/N: 052604KBC-T517-E24G Test Date(s): July 16-19, 2004 Test Type: FCC Parts 22 & 24 EMC Measurements TABLE OF CONTENTS Section DESCRIPTION Page # 1.1 SCOPE 3 2.1 GENERAL INFORMATION 3 MEASUREMENT PROCEDURES FCC Rule Part(s) IC Rule Part(s) Page # RSS-133 §6.2 3.1 RF Output Power §2.1046 RSS-132 §4.4 4 4.1 Effective Isotropic Radiated Power Output §24.232(b) RSS-133 §6.2 4 5.1 Effective Radiated Power Output §22.913 RSS-132 §4.4 4 §24.238 RSS-133 §6.3 6.1 Field Strength of Spurious Radiation §22.917 RSS-132 §4.5 5 §24.238 RSS-133 §6.2, §6.3 7.1 Radiated Measurement Test Setup §22.917 RSS-132 §4.4, §4.5 5 MEASUREMENT DATA FCC Rule Part(s) IC Rule Part(s) Page # 8.1 Effective Isotropic Radiated Power Output §24.232(b) RSS-133 §6.2 6 9.1 Effective Radiated Power Output §22.913 RSS-132 §4.4 7 §24.238 RSS-133 §6.3 8-10 10.1 Field Strength of Spurious Radiation §22.917 RSS-132 §4.5 11-13 11.1 TEST EQUIPMENT 14 12.1 SUMMARY 15 APPENDIX A - RADIATED TEST SETUP PHOTOGRAPHS 16 © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSGC82 (Model: IX260PLUSGC82) 3 of 16 Rugged Laptop PC with Dual-Band PCS/Cellular GSM GPRS/EDGE Modem Test Report S/N: 052604KBC-T517-E24G Test Date(s): July 16-19, 2004 Test Type: FCC Parts 22 & 24 EMC Measurements 1.1 SCOPE Measurement and determination of electromagnetic emissions (EME) from radio frequency devices for compliance with the technical rules and regulations of the Federal Communications Commission and Industry Canada. 2.1 GENERAL INFORMATION - §2.1033(a) APPLICANT ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99210 FCC IDENTIFIER KBCIX260PLUSGC82 Model(s) IX260PLUSGC82 Serial No. ZZGEG4112ZZ9777 Production Unit Device Type Rugged Laptop PC with Sony Ericsson GC82 Dual-Band GSM GPRS/EDGE PCMCIA Modem with External Swivel Dipole Antenna, Vehicle-Mount Antenna, & Vehicle Cradle FCC Rule Part(s) §24(E) §22(H) §2 IC Rule Part(s) RSS-133 Issue 2 RSS-132 Issue 1 (Provisional) FCC Classification PCS Licensed Transmitter (PCB) 2 GHz Personal Communication Services (RSS-133) IC Classification 800 MHz Cellular Telephones Employing New Technologies (RSS-132) 1850.2 - 1909.8 MHz PCS GSM Tx Frequency Range(s) 824.2 - 848.8 MHz Cellular GSM 1930.2 - 1990.8 MHz PCS GSM Rx Frequency Range(s) 869.2 - 894.8 MHz Cellular GSM Type Description Max. RF Output Power (EIRP/ERP) Length 1.58 W EIRP PCS GSM External Swivel Dipole 1.67 W ERP Cellular 4.7 “ 0.311 W EIRP PCS Antenna Type(s) Tested GSM 3 dBi Gain Mobile Vehicle-Mount 0.955 W ERP Cellular 2.7 “ 30.13 dBm Peak PCS GSM Max. RF Conducted Output Power Tested 32.27 dBm Peak Cellular GSM Modes / Data Rates Teste…

Text truncated - open the document above for the full version.

© 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSGC82 (Model:IX260PLUSGC82) 1 of 4 Rugged Laptop PC with Dual-Band PCS/Cellular GSM GPRS/EDGE Modem Antenna Types Evaluated: IX260+ External Swivel Dipole & MaxRad Mobile Vehicle-Mount Test Report S/N: 052604KBC-T517-M24G Test Type: MPE Evaluation This mobile transmitting device was determined to be compliant with localized Maximum Permissible Exposure (MPE) for Uncontrolled Exposure / General Population limits specified in FCC 47 CFR §1.1310 and Industry Canada RSS-102 Issue 1 (Provisional), in accordance with the requirements of FCC OET Bulletin 65, Edition 97-01, Health Canada’s Safety Code 6, ANSI / IEEE C95.1-1992, and ANSI / IEEE C95.3-1992. I attest to the accuracy of data. All measurements and/or calculations were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This evaluation report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell Pipe Senior Compliance Technologist Celltech Labs Inc. DECLARATION OF COMPLIANCE MPE EVALUATION REPORT Test Lab CELLTECH LABS INC. 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99210 United States FCC Rule Part(s): 47 CFR §24(E), §22(H); §15.247; §2.1091; §1.1310 IC Rule Part(s): RSS-133 Issue 2, RSS-132 Issue 1 (Provisional), RSS-210 Issue 5, RSS-102 Issue 1 (Provisional) FCC Classification: PCS Licensed Transmitter (PCB) IC Classification: 2 GHz Personal Communication Services (RSS-133) 800 MHz Cellular Telephones Employing New Technologies (RSS-132) Device Type: Rugged Laptop PC with Sony Ericsson GC82 GSM GPRS/EDGE Modem External Swivel Dipole Antenna (Dual-Band GSM), Vehicle-Mount Antenna (Dual-Band GSM), and Cradle FCC IDENTIFIER: KBCIX260PLUSGC82 Model(s): IX260PLUSGC82 Tx Frequency Range(s): 1850.2 - 1909.8 MHz (PCS GSM) 824.2 - 848.8 MHz (Cellular GSM) Max. RF Conducted Power Measured: 30.13 dBm Peak (PCS GSM) 32.27 dBm Peak (Cellular GSM) Mode(s) / Time Slot(s) Tested: GSM EDGE / 2-out-of-8 Time Slots (Max. Data Rate: 61.85 kbps per slot) Source-Based Time-Av. Duty Cycle: 25 % Max. Source-Based Time-Av. Cond. Pwr: 24.11 dBm Peak (PCS GSM) 26.25 dBm Peak (Cellular GSM) Antenna Type(s) Evaluated: Itronix IX260+ External Swivel Dipole MaxRad 3 dBi Vehicle-Mount P/N: WMLPVDB800/1900 © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSGC82 (Model:IX260PLUSGC82) 2 of 4 Rugged Laptop PC with Dual-Band PCS/Cellular GSM GPRS/EDGE Modem Antenna Types Evaluated: IX260+ External Swivel Dipole & MaxRad Mobile Vehicle-Mount Test Report S/N: 052604KBC-T517-M24G Test Type: MPE Evaluation 1.1 MPE Calculation Data 1. Itronix IX260+ Swivel Dipole Antenna a. PCS GSM Band Field Density @ 20 cm = 0.093 (mW/cm^2) b. Cellular GSM Band Field Density @ 20 cm = 0.152 (mW/cm^2) Itronix IX260+ Swivel Dipole Antenna Tx Frequency: 1880.0 (MHz) Source-Based Time-Averaged Power at Antenna Input Terminal: 24.11 (dBm) Antenna gain: 2.60 (dBi) S=1.00 (mW/cm^2) P=257.6321 (mW) G=1.82 (numeric) R =6.11(cm) Tx Frequency: 848.8 (MHz) Source-Based Time-Averaged Power at Antenna Input Terminal: 26.25 (dBm) Antenna gain: 2.60 (dBi) S=0.57 (mW/cm^2) P=421.6965 (mW) G=1.82 (numeric) R =10.39(cm) © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSGC82 (Model:IX260PLUSGC82) 3 of 4 Rugged Laptop PC with Dual-Band PCS/Cellular GSM GPRS/EDGE Modem Antenna Types Evaluated: IX260+ External Swivel Dipole & MaxRad Mobile Vehicle-Mount Test Report S/N: 052604KBC-T517-M24G Test Type: MPE Evaluation MPE Calculation Data (Cont.) 2. MaxRad 3 dBi Gain Vehicle-Mount Antenna (P/N: WMLPVDB800/1900) PCS GSM Band Field Density @ 20 cm = 0.054 (mW/cm^2) Cellular GSM Band Field Density @ 20 cm = 0.108 (mW/cm^2) MaxRad 3 dBi Gain Vehicle-Mount Antenna P/N: WMLPVDB800/1900 Tx Frequency: 1880.0 (MHz) Source-Based Time-Averaged Power at Antenna Input Terminal: 24.11 (dBm) 3 dBi Antenna Gain minus 2.80 dB cable loss for 17 ft cable: 0.20 (dBi) S=1.00 (mW/cm^2) P=257.6321 (mW) G=1.05 (numeric) R =4.63(cm) Tx Frequency: 848.8 (MHz) Source Based Time Averaged Power at Antenna Input Terminal: 26.25 (dBm) 3 dBi Antenna Gain minus 1.89 dB cable loss for 17 ft cable: 1.11 (dBi) S=0.57 (mW/cm^2) P=421.6965 (mW) G=1.29 (numeric) R =8.75(cm) © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSGC82 (Model:IX260PLUSGC82) 4 of 4 Rugged Laptop PC with Dual-Band PCS/Cellular GSM GPRS/EDGE Modem Antenna Types Evaluated: IX260+ External Swivel Dipole & MaxRad Mobile Vehicle-Mount Test Report S/N: 052604KBC-T517-M24G Test Type: MPE Evaluation 2.1 Calculation to determine MPE 3.1 MPE Limits According to FCC 47 CFR 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b). 4.1 Summary The Maximum Permissible Exposure (MPE) limit (General Population / Uncontrolled Exposure environment) for the frequency range in the PCS GSM band (1850-1910 MHz) is 1.0 mW/cm^ 2 ; and the limit for the frequency range in the cellular GSM band (824-849 MHz) is 0.6 mW/cm^ 2 (F/1500). The data in this report demonstrates that the Itronix Corporation Model: IX260PLUSGC82 Rugged Laptop PC FCC ID: KBCIX260PLUSGC82 with Sony Ericsson GC82 Dual- Band GSM GPRS/EDGE Radio Modem, utilizing an external swivel dipole antenna and mobile vehicle-mount antenna, complies with the Maximum Permissible Exposure (MPE) requirements specified in FCC §2.1091, §1.1310, OET Bulletin 65 (Edition 97-01), and Health Canada’s Safety Code 6 fo…

Text truncated - open the document above for the full version.

© 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSGC82 (Model: IX260PLUSGC82) 16 of 16 Rugged Laptop PC with Dual-Band PCS/Cellular GSM GPRS/EDGE Modem Test Report S/N: 052604KBC-T517-E24G Test Date(s): July 16-19, 2004 Test Type: FCC Parts 22 & 24 EMC Measurements APPENDIX A - RADIATED TEST SETUP PHOTOGRAPHS © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSGC82 (Model: IX260PLUSGC82) Rugged Laptop PC with Dual-Band PCS/Cellular GSM GPRS/EDGE Modem Test Report S/N: 052604KBC-T517-E24G Test Date(s): July 16-19, 2004 Test Type: FCC Parts 22 & 24 EMC Measurements RADIATED TEST SETUP PHOTOGRAPHS Itronix IX260+ Swivel Dipole Antenna Horizontal Polarization DUT PCS Band with Horn antenna Substitution Horn antenna © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSGC82 (Model: IX260PLUSGC82) Rugged Laptop PC with Dual-Band PCS/Cellular GSM GPRS/EDGE Modem Test Report S/N: 052604KBC-T517-E24G Test Date(s): July 16-19, 2004 Test Type: FCC Parts 22 & 24 EMC Measurements RADIATED TEST SETUP PHOTOGRAPHS Itronix IX260+ Swivel Dipole Antenna Horizontal Polarization DUT Cellular Band with Bilog antenna Substitution Dipole antenna © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSGC82 (Model: IX260PLUSGC82) Rugged Laptop PC with Dual-Band PCS/Cellular GSM GPRS/EDGE Modem Test Report S/N: 052604KBC-T517-E24G Test Date(s): July 16-19, 2004 Test Type: FCC Parts 22 & 24 EMC Measurements RADIATED TEST SETUP PHOTOGRAPHS Itronix IX260+ Swivel Dipole Antenna Horizontal Polarization © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSGC82 (Model: IX260PLUSGC82) Rugged Laptop PC with Dual-Band PCS/Cellular GSM GPRS/EDGE Modem Test Report S/N: 052604KBC-T517-E24G Test Date(s): July 16-19, 2004 Test Type: FCC Parts 22 & 24 EMC Measurements RADIATED TEST SETUP PHOTOGRAPHS MaxRad P/N: WMLPVDB800/1900 3 dBi Gain Mobile Vehicle-Mount Antenna Vertical Polarization DUT PCS Band with Horn antenna DUT Cellular Band with Bilog antenna © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSGC82 (Model: IX260PLUSGC82) Rugged Laptop PC with Dual-Band PCS/Cellular GSM GPRS/EDGE Modem Test Report S/N: 052604KBC-T517-E24G Test Date(s): July 16-19, 2004 Test Type: FCC Parts 22 & 24 EMC Measurements RADIATED TEST SETUP PHOTOGRAPHS MaxRad P/N: WMLPVDB800/1900 3 dBi Gain Mobile Vehicle-Mount Antenna Vertical Polarization
