Getting Started Congratulations on your purchase of the Itronix GoBook III computer! Your new GoBook III features the most innovative advances in portable computing technology. It combines state-of-the-art ergonomics with a rugged, durable architecture to provide you with a notebook computer that is compact, powerful, rugged and easy to use. Designed for a wide range of business and personal productivity applications, the GoBook III is an ideal choice for use in applications that require durability and performance. For maximum expandability without compromising portability, the GoBook III has a USB interface and aPC card slot. The high capacity hard disk drive provides you with plenty of storage space for multimedia files and applications. The GoBook III features a standard 87-key Nitevue® keyboard (89-key international). The high- resolution 12.1-inch touch screen LCD panel provides clear and crisp viewing with the convenience of a touch screen. This online document, GoBook III Help , contains all the information you need to set up and use your new GoBook III. It describes all the features of the GoBook III in an easy-to-read yet thorough manner. For information on printing, navigating or otherwise using GoBook III Help see How to Use This Help System. GoBook III ® Help Page 1 of 80GoBook III Help 7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h... Checklists After opening the package, carefully inspect the contents. Contact your dealer if any items are missing or appear damaged. The shipping carton should contain the following: STANDARD z The Itronix GoBook III computer z Battery z ADP-90AB or ADP-75FB AC adapter with power cord z 12.1 inch XGA display z Stylus z Shoulder Strap z GoBook III Quick Start Guide OPTIONS The following items are normally optional, but some vendors may include them in the standard package. Some items may not be available in some countries, or some vendors may choose not to carry all the items. z Floppy disk drive z CD-ROM drive z CD-RW Drive z DVD-ROM drive z Soft Handle z Media Bay Li-Ion battery pack z Hard Disk Drive Heater z LCD Heater CAUTION When purchasing any of the accessories listed above, purchase only those accessories that are approved for use with your computer. The above accessories are proprietary items. Your system vendor can obtain these approved accessories. If you use items that are not approved for use with this computer, you may cause your computer to malfunction, or to emit or receive electromagnetic radiation in excess of local regulations. For non-proprietary accessories such as PC Cards or printers, ensure that the accessor y functions properly in your computer before making the purchase. Your system vendor Page 2 of 80GoBook III Help 7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h... may be able to recommend reliable brands and models. Features High Capacity Hard Disk Drive The computer has a high capacity hard disk drive, enabling you to install your favorite programs and store large multimedia files. Full Array of Ports and Connectors Your computer includes standard ports for connecting to peripherals such as USB devices and monitors. USB ports allow you to add many types of peripherals. Large XGA LCD Your computer has a large, easy to view XGA LCD panel. Built-in Microphone and Stereo Speakers The stereo speakers and internal microphone enable you to run a variety of multimedia applications. Function Keys Function keys allow you to suspend your computer, shut the LCDs off, and give you easy control of audio and your monitor. Where to Look For Information About Your Computer This Help System describes the key elements of your computer. New users can find a simple step-by- step orientation in this chapter. About Windows For more extensive information and help about Windows go to Help and Support, found on the Start Menu. 72_0119_001 28 June 2004 © 2004 Itronix Corporation. All rights reserved. Page 3 of 80GoBook III Help 7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h... Precautions You can use your computer under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your computer: z Follow all warnings and instructions noted in this documentation and in Windows Help and Support, found on the Start Menu. z The first time you use your computer, we recommend that you carefully read the section on Power Management to familiarize yourself with some basic battery information and to ensure optimum performance z There is danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. z Do not open the RAM door by yourself. z Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use aerosols, solvents, or strong detergents z Slots and openings in the computer case are for ventilation purposes. Do not block or cover these openings or the system could overheat z On the bottom of the GoBook III, there is a label with information on the power requirements of this system. These requirements must be followed. If you are unsure of your local power supply, consult your dealer or local Power Company z Do not step on or place anything on the power cord z If you use the computer with an extension cord, ensure that the total ampere ratings of all the devices sharing the extension do not exceed the rating of the extension cord or the rating of the wall outlet z Unless instructed, never push foreign objects into the computer through any of the slots or openings. Dangerous voltages are present, which could cause electric shock, fire, or damage sensitive components z For best results, use a power strip with a built-in surge protector. Do not use inferior extensi…

Text truncated - open the document above for the full version.

Identification GoBook III (IX260+) Radio Specific Safety and Radio Identification Information. June 2004 · Revision Mod July 04 Copyright Notice © Copyright 2004 Itronix Corporation. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any other language or computer language in whole or in part, in any form or by any means, whether it be electronic, mechanical, magnetic, optical, manual, or otherwise, without the prior written consent of Itronix Corporation, South 801 Stevens Street, Spokane, Washington 99204. Disclaimer This document is printed in the U.S.A. Itronix Corporation reserves the right to revise the manual and make periodic changes to the content without a direct or inferred obligation to Itronix to notify any person of such revision or changes. Itronix Corporation does not assume responsibility for the use of this help manual, nor for any patent infringements or other rights or third parties who may use the manual. This document contains valuable trade secrets and proprietary information of Itronix Corporation. This product is available for purchase under the terms of the Itronix Hardware Purchase and Software License Agreement. Itronix hardware products may be reconditioned, or be manufactured from parts and components that may be new, used, rebuilt, or recycled and in some cases, the hardware product may not be new and may have been previously installed. In any event, Itronix warranty terms apply. Trademark and Patent Notice Itronix is a registered trademark of Itronix Corporation. GoBook III is a registered trademark of Itronix Corporation Microsoft, MS, Windows, and MS-DOS are registered trademarks of Microsoft Corporation. IBM is a trademark of International Business Machines Corporation. Warnings and Safety Information WARNING It is important that only authorized Itronix personnel attempt repairs on Itronix equipment as this might void any maintenance contract with your company. Unauthorized service personnel might be subject to shock hazard on some Itronix equipment if removal of protective covers is attempted. Changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. Internal radio may have an individual FCC Identifier which is not applicable to this configuration. Only the FCC Identifier KBCIX260PLUSNL305 as shown on the label located at the bottom of the IX260+ Laptop PC is applicable. The IX260+ Laptop PC must not be co-located or operating in conjunction with any other antenna or transmitter than specified in the FCC ID: KBCIX260PLUSNL305 filing . This FCC identifier does not include PAN and WAN Radio's. Cradle option does not support external vehicle-mount antenna for this FCC Identifier (vehicle-mount antenna intended for use with WAN Radio only). Safety Information This device contains a WLAN radio transmitter. When using the WLAN transmitter, a minimum separation distance of 20 cm must be maintained between the back side of the LCD display screen and all users/bystanders. The WLAN transmitter should be turned off before carrying the Laptop PC in order to comply with FCC RF exposure requirements. Radio Specific Information July 6th 2004 GoBook III ® Radio Specific Safety Information Radio Specific Safety Information Page 1 of 1Radio Specific Safety Information 7/6/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Desktop\Marks%20shared%...

801 S. STEVENS STREET SPOKANE, WA 99204 509.624.6600 800.441.1309 FAX 509.626.4203 www.itronix.com November 5, 2004 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Itronix Corporation FCC ID: KBCIX260PLUSNL305 FCC Part 15.247 Certification Request for Confidentiality In accordance with 0.457 and 0.459 of CFR 47, Itronix Corporation and Senao International Co., Ltd. hereby request confidentiality of the Senao Block Diagram(s), Senao Schematic Diagram(s), and RangeStar Antenna Specification attachments for the subject application. These documents contain detailed system and equipment description and related information about the product in which Itronix Corporation and Senao International Co., Ltd. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Itronix Corporation and Senao International Co., Ltd. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely,

Celltech Labs Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-448-7047 • Fax. 250-448-7046 • e-mail: [email protected] www.celltechlabs.com November 5, 2004 Timco Engineering, Inc. Telecommunication Certification Body 849 NW State Road 45 Newberry, FL 32669 SUBJECT: ITRONIX CORPORATION FCC ID: KBCIX260PLUSNL305 Part 15 Subpart C - Certification On behalf of Itronix Corporation is an application for Part 15 Subpart C Certification of the IX260+ Rugged Laptop PC with internal Senao NL-3054MP 802.11b/g Mini-PCI WLAN (Senao International Co., Ltd. FCC ID: NI3-AT30V216, originally granted February 5, 2004) with dual internal surface-mount antennas installed in the upper right and left side edges of the LCD display. Model: IX260PLUSNL305 Device Classification: Digital Transmission System (DTS) Device Description: Rugged Laptop PC with internal 802.11b/g WLAN Mini-PCI Card Mode(s) of Operation: Direct Sequence Spread Spectrum (DSSS) Tx Frequency Range(s): 2412 - 2462 MHz Max. RF Output Power Tested: 0.100 Watts - Peak Conducted (802.11g) Antenna Type(s) Tested: Internal RangeStar Dual Surface-Mount (P/N: 100929) Attached is the TCB Form 731, confidentiality request, Part 15 Subpart C EMC measurement report data and photographs (Celltech Labs Inc. and ADT Corp.), FCC ID label and location, internal and external device photographs, block diagram (confidential), schematic diagrams (confidential), antenna specifications (confidential), operational description, user manual (provided to the user in the built-in software on the Laptop PC), and Radio-Specific Safety Information (provided to the user in hard copy format). If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jonathan Hughes General Manager Celltech Labs Inc. cc: Itronix Corporation

© 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSNL305 Rugged Laptop PC with Senao NL-3054MP 802.11b/g WLAN Celltech Project No.: 562 EXTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSNL305 Rugged Laptop PC with Senao NL-3054MP 802.11b/g WLAN Celltech Project No.: 562 EXTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSNL305 Rugged Laptop PC with Senao NL-3054MP 802.11b/g WLAN Celltech Project No.: 562 EXTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSNL305 Rugged Laptop PC with Senao NL-3054MP 802.11b/g WLAN Celltech Project No.: 562 EXTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSNL305 Rugged Laptop PC with Senao NL-3054MP 802.11b/g WLAN Celltech Project No.: 562 EXTERNAL DUT PHOTOGRAPHS

© 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSNL305 Rugged Laptop PC with Senao NL-3054MP 802.11b/g WLAN Celltech Project No.: 562 LABELING REQUIREMENTS PER §2.925 The label(s) shall be permanently affixed at a conspicuous location on the device. SEE NEXT PAGE(S) FOR PART 15(C) FCC ID LABEL SEE NEXT PAGE(S) FOR PART 15(B) DoC LABEL FCC ID LABEL & LOCATION

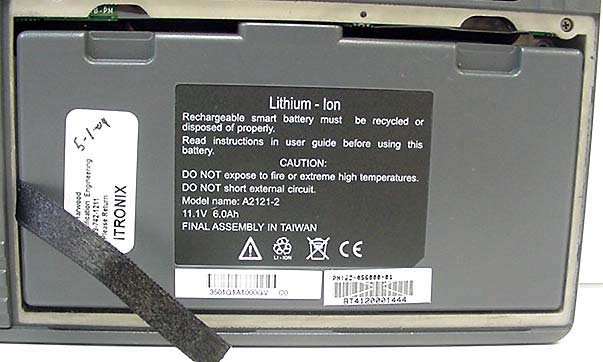

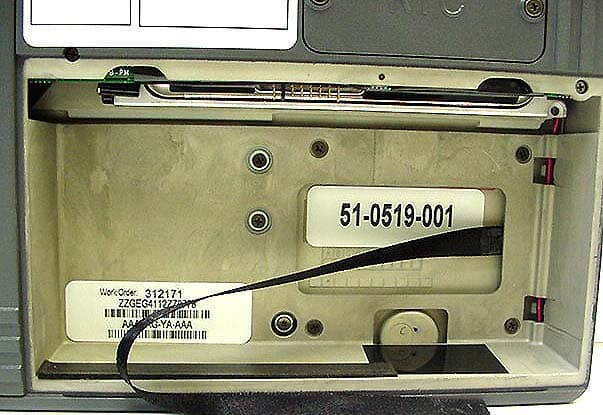

© 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSNL305 Rugged Laptop PC with Senao NL-3054MP 802.11b/g WLAN Celltech Project No.: 562 Senao NL-3054MP 802.11b/ g WLAN INTERNAL DUT PHOTOGRAPHS Rugged Laptop PC with Senao NL-3054MP WLAN © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSNL305 Rugged Laptop PC with Senao NL-3054MP 802.11b/g WLAN Celltech Project No.: 562 INTERNAL DUT PHOTOGRAPHS Rugged Laptop PC with Senao NL-3054MP WLAN © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSNL305 Rugged Laptop PC with Senao NL-3054MP 802.11b/g WLAN Celltech Project No.: 562 INTERNAL DUT PHOTOGRAPHS Rugged Laptop PC with Senao NL-3054MP WLAN © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSNL305 Rugged Laptop PC with Senao NL-3054MP 802.11b/g WLAN Celltech Project No.: 562 INTERNAL DUT PHOTOGRAPHS Senao NL-3054MP WLAN © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSNL305 Rugged Laptop PC with Senao NL-3054MP 802.11b/g WLAN Celltech Project No.: 562 INTERNAL DUT PHOTOGRAPHS Senao NL-3054MP WLAN © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSNL305 Rugged Laptop PC with Senao NL-3054MP 802.11b/g WLAN Celltech Project No.: 562 INTERNAL DUT PHOTOGRAPHS Dual Internal Antennas for Senao NL-3054MP WLAN Primary Antenna (Transmit and Receive) Auxiliary Antenna (Receive only) © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSNL305 Rugged Laptop PC with Senao NL-3054MP 802.11b/g WLAN Celltech Project No.: 562 Primary Antenna (Transmit and Receive) Auxiliary Antenna (Receive only) INTERNAL DUT PHOTOGRAPHS Dual Internal Antennas for Senao NL-3054MP WLAN © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PLUSNL305 Rugged Laptop PC with Senao NL-3054MP 802.11b/g WLAN Celltech Project No.: 562 INTERNAL DUT PHOTOGRAPHS Dual Internal Antennas for Senao NL-3054MP WLAN Primary Antenna (Transmit & Receive) Auxiliary Antenna (Receive only)

Test Report S/N: 100504KBC-T562-E15W Test Date(s): 25Oct04 - 05Nov04 Test Type(s): FCC §15.247 IC RSS-210 Issue 5 Lab Registration(s): FCC #714830 IC Lab File #3874 FCC PART 15.247 EMC TEST REPORT FOR THE ITRONIX RUGGED LAPTOP PC MODEL: IX260PLUSNL305 INCLUDING THE SENAO NL-3054MP 802.11B/G 2.4 GHz DSSS WLAN MINI-PCI CARD WITH THE RANGESTAR INTERNAL SURFACE-MOUNT ANTENNA TRSN 100504KBC-T562-E15W Issue 2.0 Celltech Compliance Testing & Engineering Lab (Celltech Labs Inc.) 1955 Moss Court Kelowna, BC Canada V1Y 9L3 November 11, 2004 Test Report S/N: 100504KBC-T562-E15W Test Date(s): 25Oct04 - 05Nov04 Test Type(s): FCC §15.247 IC RSS-210 Issue 5 Lab Registration(s): FCC #714830 IC Lab File #3874 Applicant: Itronix Corporation Model: IX260PLUSNL305 FCC ID: KBCIX260PLUSNL305 Rugged Laptop PC with internal Senao NL-3054MP WLAN (802.11b/g) and internal surface-mount antenna 2004 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 2 of 49 DECLARATION OF COMPLIANCE Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Applicant ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99204 United States Phone: 250-448-7047 Fax: 250-448-7048 e-mail: [email protected] web site: www.celltechlabs.com Lab Registration No.(s): FCC: 714830 IC: IC 3874 Rule Part(s): FCC: §15.247; §2.1091; §1.1310 Device Classification: FCC: Digital Transmission System (DTS) Device Identification: FCC ID: KBCIX260PLUSNL305 DUT Description: Model: IX260PLUSNL305 Device Description: Rugged Laptop PC with Senao NL3054MP 802.11b/g 2.4 GHz DSSS WLAN Mini-PCI Card TX Frequency Range: 2412 - 2462 MHz Max. RF Output Power: 0.056 Watts - 17.46 dBm - Peak Conducted - 802.11b 0.100 Watts - 20.00 dBm - Peak Conducted - 802.11g Modulation(s): DBPSK, DQPSK, CCK Antenna Type(s): RangeStar P/N: 100929 Dual Internal Surface-Mount (Primary Transmit & Receive - upper right side edge of LCD Display) (Auxiliary Receive only - upper left side edge of LCD Display) Power Supply: Stationary: 90 Watt AC Power Adapter / 11.1V Lithium-ion Battery, 6.0Ah (Model: A2121-2) This wireless mobile device has demonstrated compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 47 CFR §15.247. I attest to the accuracy of the data. All measurements reported herein were performed by me or were under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. ____________________________ Russell Pipe Senior Compliance Technologist Celltech Labs Inc. ______________________________ Duane M. Friesen EMC Manager Celltech Labs Inc. Test Report S/N: 100504KBC-T562-E15W Test Date(s): 25Oct04 - 05Nov04 Test Type(s): FCC §15.247 IC RSS-210 Issue 5 Lab Registration(s): FCC #714830 IC Lab File #3874 Applicant: Itronix Corporation Model: IX260PLUSNL305 FCC ID: KBCIX260PLUSNL305 Rugged Laptop PC with internal Senao NL-3054MP WLAN (802.11b/g) and internal surface-mount antenna 2004 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 3 of 49 TABLE OF CONTENTS 1.0 SCOPE ................................................................................................................................................................ 6 2.0 REFERENCES .................................................................................................................................................... 6 2.1 Normative References ......................................................................................................................................... 6 3.0 TERMS AND DEFINITIONS ................................................................................................................................ 7 4.0 FACILITIES AND ACCREDITATIONS ................................................................................................................ 8 5.0 GENERAL INFORMATION ................................................................................................................................. 8 5.1 Applicant Information ........................................................................................................................................... 8 5.2 DUT Description................................................................................................................................................... 8 5.3 Co-Located Equipment ........................................................................................................................................ 9 5.4 Cable Descriptions............................................................................................................................................... 9 5.5 Support Equipment .............................................................................................................................................. 9 5.6 Clock Frequencies ............................................................................................................................................. 10 5.7 Mode(s) of Operation Tested............................................................................................................................. 10 5.8 Configuration Description .................................................................................................................................. 11 6.0 PASS/FAIL CRITERIA ..............................................................................…

Text truncated - open the document above for the full version.

Test Report S/N: 100504KBC-T562-E15W Test Date(s): 25Oct04 - 05Nov04 Test Type(s): FCC §15.247 IC RSS-210 Issue 5 Lab Registration(s): FCC #714830 IC Lab File #3874 Applicant: Itronix Corporation Model: IX260PLUSNL305 FCC ID: KBCIX260PLUSNL305 Rugged Laptop PC with internal Senao NL-3054MP WLAN (802.11b/g) and dual surface-mount antenna 2004 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 44 of 49 H.6. SETUP PHOTOS Photograph H-1 – AC Powerline Conducted Emission Configuration Photograph H-2 – AC Powerline Conducted Emission Cable Placement Test Report S/N: 100504KBC-T562-E15W Test Date(s): 25Oct04 - 05Nov04 Test Type(s): FCC §15.247 IC RSS-210 Issue 5 Lab Registration(s): FCC #714830 IC Lab File #3874 Applicant: Itronix Corporation Model: IX260PLUSNL305 FCC ID: KBCIX260PLUSNL305 Rugged Laptop PC with internal Senao NL-3054MP WLAN (802.11b/g) and dual surface-mount antenna 2004 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 23 of 49 E.7. SETUP PHOTOGRAPHS Photograph E-1 - Vertical Polarization (1-18 GHz) Photograph E-2 - Vertical Polarization (18-26 GHz) Photograph E-3 - Front of Radiated Emission Configuration Photograph E-4 - Back of Radiated Emission Configuration E.8. DUT OPERATING DESCRIPTION The worst-case data rate was determined from prescan investigations. Measurements were made at three channels throughout the band, Low Channel (2412 MHz), Mid Channel (2437 MHz), High Channel (2462 MHz) and for both Modes b and g for the band-edge measurements and for Mode b for the remaining measurements. The configuration used for all other measurements was Mode b, 1 mbps with a gain setting of 0,1. Test Report S/N: 100504KBC-T562-E15W Test Date(s): 25Oct04 - 05Nov04 Test Type(s): FCC §15.247 IC RSS-210 Issue 5 Lab Registration(s): FCC #714830 IC Lab File #3874 Applicant: Itronix Corporation Model: IX260PLUSNL305 FCC ID: KBCIX260PLUSNL305 Rugged Laptop PC with internal Senao NL-3054MP WLAN (802.11b/g) and dual surface-mount antenna 2004 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 33 of 49 F.7. SETUP PHOTOGRAPHS Photograph F-1 - Horizontal Polarization (30MHz - 1 GHz) Photograph F-2 - Vertical Polarization (1-18 GHz) Photograph F-3 - Front of Radiated Emission Configuration Photograph F-4 - Back of Radiated Emission Configuration F.8. DUT OPERATING DESCRIPTION The worst-case data rate was determined from prescan investigations. Measurements were made at three channels throughout the band, Low Channel (2412 MHz), Mid Channel (2437 MHz), High Channel (2462 MHz) and for both Modes b and g for the band-edge measurements and for Mode b for the remaining measurements.
