KBCIX260PROA555BTLaptop PC with Dual-Band CDMA, WLAN and Bluetooth

General Dynamics Itronix Corporation

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: Jan 11, 2005
Application Purpose: Original Equipment
Date of Application: Jan 11, 2005
Equipment Note: Laptop PC with Dual-Band CDMA, WLAN and Bluetooth
Frequency Range: 824.70000000 - 848.31000000
Company: General Dynamics Itronix Corporation
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Getting Started Congratulations on your purchase of the Itronix GoBook III computer! Your new GoBook III features the most innovative advances in portable computing technology. It combines state-of-the-art ergonomics with a rugged, durable architecture to provide you with a notebook computer that is compact, powerful, rugged and easy to use. Designed for a wide range of business and personal productivity applications, the GoBook III is an ideal choice for use in applications that require durability and performance. For maximum expandability without compromising portability, the GoBook III has a USB interface and aPC card slot. The high capacity hard disk drive provides you with plenty of storage space for multimedia files and applications. The GoBook III features a standard 87-key Nitevue® keyboard (89-key international). The high- resolution 12.1-inch touch screen LCD panel provides clear and crisp viewing with the convenience of a touch screen. This online document, GoBook III Help , contains all the information you need to set up and use your new GoBook III. It describes all the features of the GoBook III in an easy-to-read yet thorough manner. For information on printing, navigating or otherwise using GoBook III Help see How to Use This Help System. GoBook III ® Help Page 1 of 80GoBook III Help 7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h... Checklists After opening the package, carefully inspect the contents. Contact your dealer if any items are missing or appear damaged. The shipping carton should contain the following: STANDARD z The Itronix GoBook III computer z Battery z ADP-90AB or ADP-75FB AC adapter with power cord z 12.1 inch XGA display z Stylus z Shoulder Strap z GoBook III Quick Start Guide OPTIONS The following items are normally optional, but some vendors may include them in the standard package. Some items may not be available in some countries, or some vendors may choose not to carry all the items. z Floppy disk drive z CD-ROM drive z CD-RW Drive z DVD-ROM drive z Soft Handle z Media Bay Li-Ion battery pack z Hard Disk Drive Heater z LCD Heater CAUTION When purchasing any of the accessories listed above, purchase only those accessories that are approved for use with your computer. The above accessories are proprietary items. Your system vendor can obtain these approved accessories. If you use items that are not approved for use with this computer, you may cause your computer to malfunction, or to emit or receive electromagnetic radiation in excess of local regulations. For non-proprietary accessories such as PC Cards or printers, ensure that the accessor y functions properly in your computer before making the purchase. Your system vendor Page 2 of 80GoBook III Help 7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h... may be able to recommend reliable brands and models. Features High Capacity Hard Disk Drive The computer has a high capacity hard disk drive, enabling you to install your favorite programs and store large multimedia files. Full Array of Ports and Connectors Your computer includes standard ports for connecting to peripherals such as USB devices and monitors. USB ports allow you to add many types of peripherals. Large XGA LCD Your computer has a large, easy to view XGA LCD panel. Built-in Microphone and Stereo Speakers The stereo speakers and internal microphone enable you to run a variety of multimedia applications. Function Keys Function keys allow you to suspend your computer, shut the LCDs off, and give you easy control of audio and your monitor. Where to Look For Information About Your Computer This Help System describes the key elements of your computer. New users can find a simple step-by- step orientation in this chapter. About Windows For more extensive information and help about Windows go to Help and Support, found on the Start Menu. 72_0119_001 28 June 2004 © 2004 Itronix Corporation. All rights reserved. Page 3 of 80GoBook III Help 7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h... Precautions You can use your computer under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your computer: z Follow all warnings and instructions noted in this documentation and in Windows Help and Support, found on the Start Menu. z The first time you use your computer, we recommend that you carefully read the section on Power Management to familiarize yourself with some basic battery information and to ensure optimum performance z There is danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. z Do not open the RAM door by yourself. z Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use aerosols, solvents, or strong detergents z Slots and openings in the computer case are for ventilation purposes. Do not block or cover these openings or the system could overheat z On the bottom of the GoBook III, there is a label with information on the power requirements of this system. These requirements must be followed. If you are unsure of your local power supply, consult your dealer or local Power Company z Do not step on or place anything on the power cord z If you use the computer with an extension cord, ensure that the total ampere ratings of all the devices sharing the extension do not exceed the rating of the extension cord or the rating of the wall outlet z Unless instructed, never push foreign objects into the computer through any of the slots or openings. Dangerous voltages are present, which could cause electric shock, fire, or damage sensitive components z For best results, use a power strip with a built-in surge protector. Do not use inferior extensi…

Text truncated - open the document above for the full version.

Cover Letter(s)

801 S. STEVENS STREET SPOKANE, WA 99204 509.624.6600 800.441.1309 FAX 509.626.4203 www.itronix.com September 22, 2004 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Itronix Corporation FCC ID: KBCIX260PROA555BT FCC Part 24(E) - Certification Request for Confidentiality In accordance with 0.459 of CFR 47, Itronix Corporation and Sierra Wireless Inc. hereby requests confidentiality of the Schematic Diagram(s), Parts List, Tune-Up Procedure, Operational Description, and Antenna Specifications attachments for the subject application. These documents contain detailed system and equipment description and related information about the product in which Itronix Corporation and Sierra Wireless Inc. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Itronix Corporation and Sierra Wireless Inc. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely,

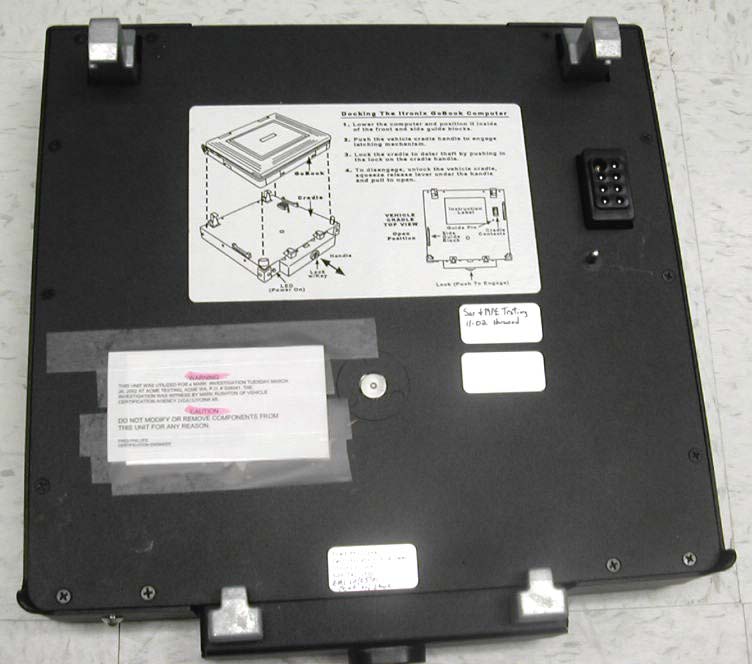

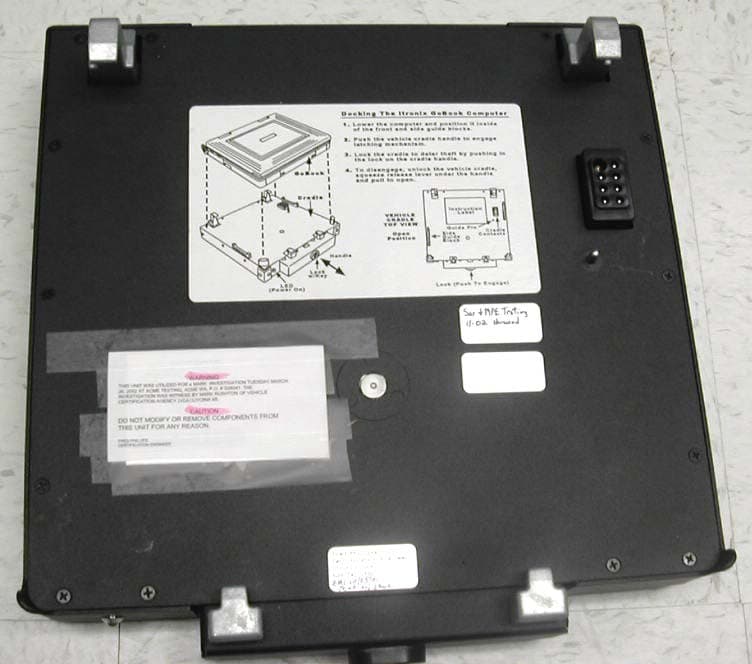

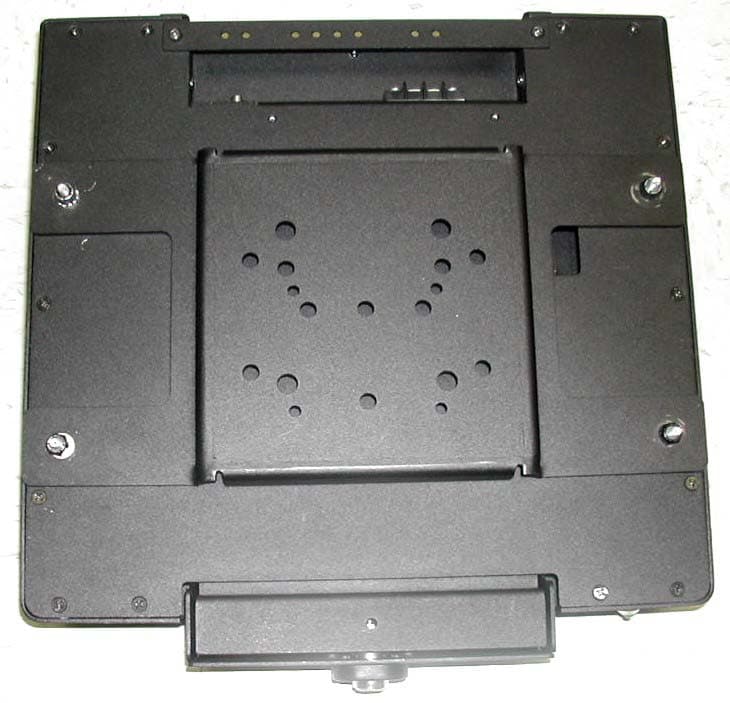

External Photos

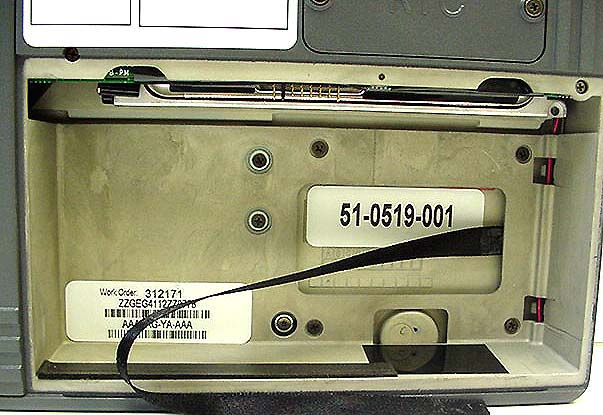

ID Label/Location Info

© 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROA555BT Rugged Laptop PC with Dual-Band CDMA Modem, WLAN, and Bluetooth Celltech Project No.: 555 LABELING REQUIREMENTS PER §2.925 The label(s) shall be permanently affixed at a conspicuous location on the device. SEE NEXT PAGE(S) FOR FCC ID LABEL SEE NEXT PAGE(S) FOR FCC Part 15(B) DoC LABEL FCC ID LABEL & LOCATION

Internal Photos

© 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROA555BT (Model: IX260PROA555BT) IX260+ Rugged Laptop PC with Dual-Band CDMA Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 555 INTERNAL DUT PHOTOGRAPHS Cradle Contact Board © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROA555BT (Model: IX260PROA555BT) IX260+ Rugged Laptop PC with Dual-Band CDMA Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 555 INTERNAL DUT PHOTOGRAPHS Sierra Wireless AirCard 555 Dual-Band CDMA PCMCIA Modem Card © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROA555BT (Model: IX260PROA555BT) IX260+ Rugged Laptop PC with Dual-Band CDMA Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 555 INTERNAL DUT PHOTOGRAPHS Sierra Wireless AirCard 555 Dual-Band CDMA PCMCIA Modem Card © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROA555BT (Model: IX260PROA555BT) IX260+ Rugged Laptop PC with Dual-Band CDMA Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 555 INTERNAL DUT PHOTOGRAPHS Sierra Wireless AirCard 555 Dual-Band CDMA PCMCIA Modem Card © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROA555BT (Model: IX260PROA555BT) IX260+ Rugged Laptop PC with Dual-Band CDMA Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 555 INTERNAL DUT PHOTOGRAPHS Sierra Wireless AirCard 555 Dual-Band CDMA PCMCIA Modem Card © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROA555BT (Model: IX260PROA555BT) IX260+ Rugged Laptop PC with Dual-Band CDMA Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 555 INTERNAL DUT PHOTOGRAPHS Sierra Wireless AirCard 555 Dual-Band CDMA PCMCIA Modem Card © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROA555BT (Model: IX260PROA555BT) IX260+ Rugged Laptop PC with Dual-Band CDMA Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 555 INTERNAL DUT PHOTOGRAPHS Sierra Wireless AirCard 555 Dual-Band CDMA PCMCIA Modem Card © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROA555BT (Model: IX260PROA555BT) IX260+ Rugged Laptop PC with Dual-Band CDMA Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 555 INTERNAL DUT PHOTOGRAPHS Intel Pro 2200BG 802.11b/g WLAN Mini-PCI Card © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROA555BT (Model: IX260PROA555BT) IX260+ Rugged Laptop PC with Dual-Band CDMA Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 555 INTERNAL DUT PHOTOGRAPHS Intel Pro 2200BG 802.11b/g WLAN Mini-PCI Card © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROA555BT (Model: IX260PROA555BT) IX260+ Rugged Laptop PC with Dual-Band CDMA Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 555 INTERNAL DUT PHOTOGRAPHS Intel Pro 2200BG 802.11b/g WLAN Mini-PCI Card © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROA555BT (Model: IX260PROA555BT) IX260+ Rugged Laptop PC with Dual-Band CDMA Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 555 Front Back INTERNAL DUT PHOTOGRAPHS Intel Pro 2200BG 802.11b/g WLAN Mini-PCI Card © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROA555BT (Model: IX260PROA555BT) IX260+ Rugged Laptop PC with Dual-Band CDMA Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 555 Front with Shielding Back INTERNAL DUT PHOTOGRAPHS Intel Pro 2200BG 802.11b/g WLAN Mini-PCI Card © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROA555BT (Model: IX260PROA555BT) IX260+ Rugged Laptop PC with Dual-Band CDMA Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 555 Front with Shielding Removed INTERNAL DUT PHOTOGRAPHS Intel Pro 2200BG 802.11b/g WLAN Mini-PCI Card © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROA555BT (Model: IX260PROA555BT) IX260+ Rugged Laptop PC with Dual-Band CDMA Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 555 INTERNAL DUT PHOTOGRAPHS Cirronet BT2022 Bluetooth Bluetooth Antenna Bluetooth Transmitter © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROA555BT (Model: IX260PROA555BT) IX260+ Rugged Laptop PC with Dual-Band CDMA Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 555 INTERNAL DUT PHOTOGRAPHS Cirronet BT2022 Bluetooth Bluetooth Transmitter Bluetooth Transmitter © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROA555BT (Model: IX260PROA555BT) IX260+ Rugged Laptop PC with Dual-Band CDMA Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 555 INTERNAL DUT PHOTOGRAPHS Cirronet BT2022 Bluetooth © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROA555BT (Model: IX260PROA555BT) IX260+ Rugged Laptop PC with Dual-Band CDMA Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 555 INTERNAL DUT PHOTOGRAPHS Cirronet BT2022 Bluetooth © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROA555BT (Model: IX260PROA555BT) IX260+ Rugged Laptop PC with Dual-Band CDMA Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 555 INTERNAL DUT PHOTOGRAPHS Internal Surface-Mount Antennas for WLAN and Bluetooth Bluetooth Surface-Mount Antenna (Upper Rear Left Side Edge of LCD Display) WLAN Surface-Mount Antenna (Upper Rear Right Side Edge of LCD Display) © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROA555BT (Model: IX260PROA555BT) IX260+ Rugged Laptop PC with Dual-Band CDMA Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 555 INTERNAL DUT PHOTOGRAPHS Internal Surface-Mount Antennas for WLAN and Bluetooth Bluetooth Surface-Mount Antenna (Upper Rear Left Side Edge of LCD Display) WLAN Surface-Mount Antenna (Upper Rear Right Side Edge of LCD Display) © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROA555BT (Model: IX260PROA555BT) IX260+ Rugged Laptop PC with Dual-Band CDMA Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 555 INTERNAL DUT PHOTOGRAPHS Internal Surface-Mount Antennas for WLAN and Bluetooth RangeStar Surface-Mount Antenna - WLAN RangeStar Surface-Mount Antenna - Bluetooth © 2004 Celltech Labs In…

Text truncated - open the document above for the full version.

Test Report

© 2004 Celltech Labs Inc. 1 of 50 Test Report S/N: 090104KBC-T555-E24C Test Date(s): July 26 - August 23, 2004 Test Type(s): FCC §24E, §22H IC RSS-133, RSS-132 Lab Registration(s): FCC #714830 IC Lab File #3874 This mobile device has demonstrated compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 47 CFR §24(E), §22(H), §2; Industry Canada RSS- 133 Issue 2, RSS-132 Issue 1 (Provisional); and ANSI TIA/EIA-603-B-2002. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. ______________________ Russell Pipe Senior Compliance Technologist Celltech Labs Inc. ____________________________ Duane M. Friesen EMC Manager Celltech Labs Inc. DECLARATION OF COMPLIANCE FCC PART 24(E) & 22(H) EMC MEASUREMENTS Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Tel.: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99204 United States FCC IDENTIFIER: KBCIX260PROA555BT Model(s): IX260PROA555BT FCC Rule Part(s): FCC 47 CFR §24(E), §22(H), §2 IC Rule Part(s): RSS-133 Issue 2, RSS-132 Issue 1 (Provisional) Test Procedure(s): FCC 47 CFR §24(E), §22(H), §2 IC RSS-133 Issue 2, IC RSS-132 Issue 1 (Provisional) ANSI TIA/EIA-603-B-2002 FCC Device Classification: PCS Licensed Transmitter (PCB) IC Device Classification: 2 GHz Personal Communication Services (RSS-133) 800 MHz Cellular Telephones Employing New Technologies (RSS-132) Device Description: Rugged Laptop PC with Sierra Wireless AirCard 555/550 Dual-Band CDMA PCMCIA Modem (with External Swivel Dipole Antenna, Vehicle-Mount Antenna, and Vehicle Cradle) Co-located Transmitter(s): 1. Intel Pro 2200BG 802.11b/g WLAN (with internal surface-mount antenna) 2. Cirronet BT2022 Bluetooth (with internal surface-mount antenna) Tx Frequency Range(s): 1851.25 - 1908.75 MHz (PCS CDMA) 824.70 - 848.31 MHz (Cellular CDMA) Rx Frequency Range(s): 1931.25 - 1988.75 MHz (PCS CDMA) 869.70 - 893.31 MHz (Cellular CDMA) Max. ERP/EIRP Measured: 0.302 Watts (24.80 dBm) EIRP - PCS CDMA (Itronix Swivel Dipole Antenna) 0.306 Watts (24.86 dBm) ERP - Cellular CDMA (Itronix Swivel Dipole Antenna) 0.040 Watts (16.03 dBm) EIRP - PCS CDMA (MaxRad Vehicle-Mount Antenna) 0.146 Watts (21.65 dBm) ERP - Cellular CDMA (MaxRad Vehicle-Mount Antenna) Max. Conducted Power Measured: 23.0 dBm (PCS CDMA); 23.0 dBm (Cellular CDMA) Modulation Type: QPSK Emission Designator(s): 1M25F9W Frequency Tolerance(s): 150 Hz (PCS CDMA) 300 Hz (Cellular CDMA) Antenna Type(s) Tested: Itronix IX260+ External Swivel Dipole (Dual-Band CDMA) MaxRad 3 dBi Gain Vehicle-Mount P/N: WMLPVDB800/1900 (Dual-Band CDMA) Power Source(s) Tested: 11.1 V Lithium-ion Battery, 6.0 Ah (Model: A2121-2) 12 V Vehicle Battery (for Vehicle Cradle) © 2004 Celltech Labs Inc. 2 of 50 Test Report S/N: 090104KBC-T555-E24C Test Date(s): July 26 - August 23, 2004 Test Type(s): FCC §24E, §22H IC RSS-133, RSS-132 Lab Registration(s): FCC #714830 IC Lab File #3874 TABLE OF CONTENTS Section DESCRIPTION Page # 1.1 SCOPE 3 2.1 GENERAL INFORMATION / DEVICE DESCRIPTION 3 3.1 TEST EQUIPMENT LIST 4 Appendix MEASUREMENT PROCEDURES & DATA FCC Rule Part(s) IC Rule Part(s) Page # A RF Output Power §2.1046 RSS-133 §6.2 RSS-132 §4.4 5 B Spurious Emissions at Antenna Terminal §2.1051 RSS-133 §6.3 RSS-132 §4.5 6-16 C Occupied Bandwidth & Emission Bandwidth §2.1049 §22.917 §24.238 RSS-133 §6.3 RSS-132 §4.2 RSS-132 §4.5 17-25 D Effective Isotropic Radiated Power Output §24.232(b) RSS-133 §6.2 26-27 E Effective Radiated Power Output §22.913 RSS-132 §4.4 28-29 F Field Strength of Spurious Radiation §24.238 §22.917 RSS-133 §6.3 RSS-132 §4.5 30-42 G Frequency Stability / Temperature Variation §2.1055 §24.235 RSS-133 §6.3 RSS-132 §4.5 43-45 H Radiated Test Setup Photographs 46-50 Applicant: Itronix Corporation Model: IX260PROA555BT FCC ID: KBCIX260PROA555BT IC ID: 1943A-IX260Pb Rugged Laptop PC with Dual-Band PCS/Cellular CDMA Modem, 802.11b/g WLAN, & Bluetooth 2004 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 3 of 50 Test Report S/N: 090104KBC-T555-E24C Test Date(s): July 26 - August 23, 2004 Test Type(s): FCC §24E, §22H IC RSS-133, RSS-132 Lab Registration(s): FCC #714830 IC Lab File #3874 1.1 SCOPE This report describes the measurements made and results collected during the Electromagnetic emissions testing of the Itronix Corporation Model: IX260PROA555BT Rugged Laptop PC incorporating the internal Sierra Wireless AirCard 555/550 Dual- Band PCS/Cellular CDMA PCMCIA Modem with external swivel dipole antenna, vehicle-mount antenna, and vehicle cradle. Co-located within the DUT is an Intel Pro 2200BG 802.11b/g Mini-PCI Card utilizing an internal surface-mount antenna located in the upper right side edge of the LCD display. The Sierra Wireless AirCard 555/550 CDMA Modem and Intel Pro 2200BG 802.11b/g WLAN do not transmit simultaneously. Also co-located within the DUT is a Cirronet BT2022 Bluetooth Transmitter utilizing an internal surface-mount antenna located in the upper left side edge of the LCD display. The Sierra Wireless AirCard 555/550 CDMA Modem and Cirronet BT2022 Bluetooth Transmitter can transmit simultaneously. Please refer to the Co-Transmit Supplementary EMC test report exhibit for simultaneous transmit test results. The measureme…

Text truncated - open the document above for the full version.

Test Report

© 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROA555BT (IC: 1943A-IX260Pb) 1 of 4 Rugged Laptop PC with Dual-Band CDMA Modem, 802.11b/g WLAN, & Bluetooth Antenna(s) Evaluated: Itronix External Swivel Dipole and MaxRad Vehicle-Mount Test Report S/N: 090104KBC-T555-M24C Type: MPE Evaluation This mobile transmitting device was compliant with localized Maximum Permissible Exposure (MPE) for the Uncontrolled Exposure / General Population limits specified in FCC 47 CFR §1.1310 and Industry Canada RSS-102 Issue 1 (Provisional), in accordance with the requirements of FCC OET Bulletin 65, Edition 97-01, Health Canada’s Safety Code 6, ANSI / IEEE C95.1-1999, and ANSI / IEEE C95.3-2002. I attest to the accuracy of data. All measurements and/or calculations were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This evaluation report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. __________________________ Russell Pipe Senior Compliance Technologist Celltech Labs Inc. ____________________________ Duane M. Friesen EMC Manager Celltech Labs Inc. DECLARATION OF COMPLIANCE MPE EVALUATION REPORT Test Lab CELLTECH LABS INC. 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99204 United States FCC IDENTIFIER: KBCIX260PROA555BT IC IDENTIFIER: 1943A-IX260Pb Model(s): IX260PROA555BT FCC Rule Part(s): 47 CFR §24(E), §22(H); §2.1091; §1.1310 IC Rule Part(s): RSS-133 Issue 2, RSS-132 Issue 1 (Provisional) FCC Classification: PCS Licensed Transmitter (PCB) IC Classification: 2 GHz Personal Communication Services (RSS-133) 800 MHz Cellular Telephones Employing New Technologies (RSS-132) Device Description: Rugged Laptop PC with Sierra Wireless AirCard 555/550 CDMA Modem, External Swivel Dipole Antenna, Vehicle-Mount Antenna, & Vehicle Cradle (co-located with Intel Pro 2200BG WLAN and Cirronet BT2022 Bluetooth) Tx Frequency Range(s): 1851.25 - 1908.75 MHz (PCS CDMA) 824.70 - 848.31 MHz (Cellular CDMA) Max. RF Output Power Measured: 23.0 dBm Conducted (PCS CDMA) 23.0 dBm Conducted (Cellular CDMA) Antenna Type(s) Evaluated: Itronix IX260+ External Swivel Dipole (Dual-Band CDMA) MaxRad 3 dBi Vehicle-Mount P/N: WMLPVDB800/1900 (Dual-Band CDMA) © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROA555BT (IC: 1943A-IX260Pb) 2 of 4 Rugged Laptop PC with Dual-Band CDMA Modem, 802.11b/g WLAN, & Bluetooth Antenna(s) Evaluated: Itronix External Swivel Dipole and MaxRad Vehicle-Mount Test Report S/N: 090104KBC-T555-M24C Type: MPE Evaluation 1.1 MPE Calculation Data 1. Itronix IX260+ Swivel Dipole Antenna a. PCS CDMA Band b. Cellular CDMA Band Itronix IX260+ Swivel Dipole Antenna Tx Frequency: 1880.00 (MHz) RF Output Power at Antenna Input Terminal: 23.0 (dBm) Antenna gain: 2.60 (dBi) S=1.00 (mW/cm^2) P=199.5262 (mW) G=1.82 (numeric) R =5.38(cm) 0.072153826 S (mw/cm^2) at 20cm Tx Frequency: 835.89 (MHz) RF Output Power at Antenna Input Terminal: 23.0 (dBm) Antenna gain: 2.60 (dBi) S=0.56 (mW/cm^2) P=199.5262 (mW) G=1.82 (numeric) R =7.20(cm) 0.072153826 S (mw/cm^2) at 20cm © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROA555BT (IC: 1943A-IX260Pb) 3 of 4 Rugged Laptop PC with Dual-Band CDMA Modem, 802.11b/g WLAN, & Bluetooth Antenna(s) Evaluated: Itronix External Swivel Dipole and MaxRad Vehicle-Mount Test Report S/N: 090104KBC-T555-M24C Type: MPE Evaluation MPE Calculation Data (Cont.) 2. MaxRad 3 dBi Gain Vehicle-Mount Antenna (P/N: WMLPVDB800/1900) PCS CDMA Band Cellular CDMA Band MaxRad 3 dBi Gain Vehicle-Mount Antenna P/N: WMLPVDB800/1900 Tx Frequency: 1880.00 (MHz) RF Output Power at Antenna Input Terminal: 23.0 (dBm) 3 dBi Antenna Gain minus 2.80 dB cable loss for 17 ft cable: 0.20 (dBi) S=1.00 (mW/cm^2) P=199.5262 (mW) G=1.05 (numeric) R =4.08(cm) 0.041520193 S (mw/cm^2) at 20cm Tx Frequency: 835.89 (MHz) RF Output Power at Antenna Input Terminal: 23.0 (dBm) 3 dBi Antenna Gain minus 1.88 dB cable loss for 17 ft cable: 1.10 (dBi) S=0.56 (mW/cm^2) P=199.5262 (mW) G=1.29 (numeric) R =6.06(cm) 0.051080997 S (mw/cm^2) at 20cm © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROA555BT (IC: 1943A-IX260Pb) 4 of 4 Rugged Laptop PC with Dual-Band CDMA Modem, 802.11b/g WLAN, & Bluetooth Antenna(s) Evaluated: Itronix External Swivel Dipole and MaxRad Vehicle-Mount Test Report S/N: 090104KBC-T555-M24C Type: MPE Evaluation 2.1 Calculation to determine MPE 3.1 MPE Limits According to FCC 47 CFR 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b). 4.1 Summary The Maximum Permissible Exposure (MPE) limit (General Population / Uncontrolled Exposure environment) for the frequency range in the PCS CDMA band (1850-1910 MHz) is 1.0 mW/cm^ 2 ; and the limit for the frequency range in the cellular CDMA band (824-849 MHz) is 0.6 mW/cm^ 2 (F/1500). The data in this report demonstrates that the Itronix Corporation Rugged Laptop PC Model: IX260PROA555BT with internal Sierra Wireless AirCard 555/550 Dual-Band CDMA Modem, utilizing an external swivel dipole antenna and vehicle-mount antenna complies with the Maximum Permissible Exposure (MPE) requirements specified in FCC §2.1091, §1.1310, OET Bulletin 65 (Edition 97-01), and Health Canada’s Safety Code 6 for the General Population / Uncontrolled Exposure environment. Notes: 1. The 17 ft antenna cable is supplied with and connected to the vehicle antenna at time of purchase. 2. Please refer to the Co-Transmit Suppl…

Text truncated - open the document above for the full version.

Test Report

Test Report S/N: 090104KBC-T555-E24C/E15B Test Date(s): 01Nov04 - 23Novt04 Test Type: FCC §2, §15.247, §22H, §24E IC RSS-210/132/133 Lab Registration(s): FCC #714830 IC Lab File #3874 SUPPLEMENTARY EMC TEST REPORT FOR THE ITRONIX RUGGED LAPTOP PC MODEL: IX260PROA555BT WITH THE INTERNAL CIRRONET BT2022 BLUETOOTH TRANSMITTER UTILIZING THE INTERNAL RANGESTAR SURFACE-MOUNT ANTENNA (INSTALLED IN THE UPPER LEFT SIDE EDGE OF LCD DISPLAY) CO-TRANSMITTING WITH THE SIERRA WIRELESS AIRCARD 555/550 DUAL-BAND CDMA PCMCIA MODEM UTILIZING THE EXTERNAL SWIVEL DIPOLE ANTENNA TRSN 090104KBC-T555-E24C/E15B Issue 1.0 Celltech Compliance Testing & Engineering Lab (Celltech Labs Inc.) 1955 Moss Court Kelowna, BC Canada V1Y 9L3 November 24, 2004 Test Report S/N: 090104KBC-T555-E24C/E15B Test Date(s): 01Nov04 - 23Novt04 Test Type: FCC §2, §15.247, §22H, §24E IC RSS-210/132/133 Lab Registration(s): FCC #714830 IC Lab File #3874 Applicant: Itronix Corporation Model: IX260PROA555BT FCC ID: KBCIX260PROA555BT IC ID: 1943A-IX260Pb Rugged Laptop PC with internal Sierra Wireless AirCard 555/550 Dual-Band CDMA Modem & Cirronet BT2022 Bluetooth 2004 Celltech Labs Inc This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 2 of 53 DECLARATION OF COMPLIANCE Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Applicant Information ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99204 United States Phone: 250-448-7047 Fax: 250-448-7048 e-mail: [email protected] web site: www.celltechlabs.com Laboratory Registration No.(s): FCC: 714830 IC: IC 3874 Dual Band CDMA §2 ; §22H; §24E Rule Part(s): FCC: Bluetooth - FHSS §15.247; §2.1091; §1.1310 Dual Band CDMA - PCS Licensed Transmitter (PCB) Device Classification: FCC: Bluetooth - FHSS - Part 15 Spread Spectrum Transmitter (DSS) Device Identification: FCC ID: KBCIX260PROA555BT IC ID: 1943A-IX260Pb DUT Description: Model: IX260PROA555BT Device Description: Rugged Laptop PC with internal Cirronet BT2022 Bluetooth Transmitter and internal RangeStar surface-mount antenna, co-transmitting with Sierra Wireless AirCard 555/550 Dual-Band CDMA PCMCIA Modem and External Swivel Dipole Antenna, Vehicle-Mount Antenna, & Vehicle Cradle Cellular 824.7 - 848.31 MHz Dual Band CDMA PCS 1851.25 - 1908.75 MHz Tx Frequency Range(s): Bluetooth 2402 - 2480 MHz Bluetooth +15.46 dBm Peak Conducted Cellular +22.99 dBm Peak Conducted Max. RF Output Power: Dual Band CDMA PCS +23.06 dBm Peak Conducted Bluetooth GFSK 1 Mbps 0.5 BT Gaussian Modulation Type(s): Dual Band CDMA QPSK Bluetooth RangeStar P/N: 100929 Internal Surface-Mount Antenna Type(s): Dual B…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Ray Garcia(Agency Manager)

[email protected]954.846.3350Fax: 954.846.3392

Test Firm

Celltech Labs Inc.Ben Hewson

[email protected]250-765-7650Fax: 250-765-7645

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
2	22H	824.7 MHz - 848.31 MHz	200.00 mW	1M25F9W	300 Hz

Confidentiality

Long Term

Grant Notes

Power listed is conducted. The antenna installation and operating configurations of this transmitter, including any applicable source-based time-averaging duty factor, antenna gain and cable loss must satisfy MPE categorical Exclusion Requirements of �2.1091. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, excepted as documented in this filing. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
