Getting Started Congratulations on your purchase of the Itronix GoBook III computer! Your new GoBook III features the most innovative advances in portable computing technology. It combines state-of-the-art ergonomics with a rugged, durable architecture to provide you with a notebook computer that is compact, powerful, rugged and easy to use. Designed for a wide range of business and personal productivity applications, the GoBook III is an ideal choice for use in applications that require durability and performance. For maximum expandability without compromising portability, the GoBook III has a USB interface and aPC card slot. The high capacity hard disk drive provides you with plenty of storage space for multimedia files and applications. The GoBook III features a standard 87-key Nitevue® keyboard (89-key international). The high- resolution 12.1-inch touch screen LCD panel provides clear and crisp viewing with the convenience of a touch screen. This online document, GoBook III Help , contains all the information you need to set up and use your new GoBook III. It describes all the features of the GoBook III in an easy-to-read yet thorough manner. For information on printing, navigating or otherwise using GoBook III Help see How to Use This Help System. GoBook III ® Help Page 1 of 80GoBook III Help 7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h... Checklists After opening the package, carefully inspect the contents. Contact your dealer if any items are missing or appear damaged. The shipping carton should contain the following: STANDARD z The Itronix GoBook III computer z Battery z ADP-90AB or ADP-75FB AC adapter with power cord z 12.1 inch XGA display z Stylus z Shoulder Strap z GoBook III Quick Start Guide OPTIONS The following items are normally optional, but some vendors may include them in the standard package. Some items may not be available in some countries, or some vendors may choose not to carry all the items. z Floppy disk drive z CD-ROM drive z CD-RW Drive z DVD-ROM drive z Soft Handle z Media Bay Li-Ion battery pack z Hard Disk Drive Heater z LCD Heater CAUTION When purchasing any of the accessories listed above, purchase only those accessories that are approved for use with your computer. The above accessories are proprietary items. Your system vendor can obtain these approved accessories. If you use items that are not approved for use with this computer, you may cause your computer to malfunction, or to emit or receive electromagnetic radiation in excess of local regulations. For non-proprietary accessories such as PC Cards or printers, ensure that the accessor y functions properly in your computer before making the purchase. Your system vendor Page 2 of 80GoBook III Help 7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h... may be able to recommend reliable brands and models. Features High Capacity Hard Disk Drive The computer has a high capacity hard disk drive, enabling you to install your favorite programs and store large multimedia files. Full Array of Ports and Connectors Your computer includes standard ports for connecting to peripherals such as USB devices and monitors. USB ports allow you to add many types of peripherals. Large XGA LCD Your computer has a large, easy to view XGA LCD panel. Built-in Microphone and Stereo Speakers The stereo speakers and internal microphone enable you to run a variety of multimedia applications. Function Keys Function keys allow you to suspend your computer, shut the LCDs off, and give you easy control of audio and your monitor. Where to Look For Information About Your Computer This Help System describes the key elements of your computer. New users can find a simple step-by- step orientation in this chapter. About Windows For more extensive information and help about Windows go to Help and Support, found on the Start Menu. 72_0119_001 28 June 2004 © 2004 Itronix Corporation. All rights reserved. Page 3 of 80GoBook III Help 7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h... Precautions You can use your computer under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your computer: z Follow all warnings and instructions noted in this documentation and in Windows Help and Support, found on the Start Menu. z The first time you use your computer, we recommend that you carefully read the section on Power Management to familiarize yourself with some basic battery information and to ensure optimum performance z There is danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. z Do not open the RAM door by yourself. z Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use aerosols, solvents, or strong detergents z Slots and openings in the computer case are for ventilation purposes. Do not block or cover these openings or the system could overheat z On the bottom of the GoBook III, there is a label with information on the power requirements of this system. These requirements must be followed. If you are unsure of your local power supply, consult your dealer or local Power Company z Do not step on or place anything on the power cord z If you use the computer with an extension cord, ensure that the total ampere ratings of all the devices sharing the extension do not exceed the rating of the extension cord or the rating of the wall outlet z Unless instructed, never push foreign objects into the computer through any of the slots or openings. Dangerous voltages are present, which could cause electric shock, fire, or damage sensitive components z For best results, use a power strip with a built-in surge protector. Do not use inferior extensi…

Text truncated - open the document above for the full version.

801 S. STEVENS STREET SPOKANE, WA 99204 509.624.6600 800.441.1309 FAX 509.626.4203 www.itronix.com September 23, 2004 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Itronix Corporation FCC ID: KBCIX260PROBT FCC Part 15.247 - Certification Request for Confidentiality In accordance with 0.457 and 0.459 of CFR 47, Itronix Corporation hereby requests confidentiality of the Intel Block Diagram(s), Intel Schematic Diagram(s), Intel Operational Description, and RangeStar Antenna Specification exhibits for the subject application. These documents contain detailed system and equipment description and related information about the product in which Intel Corporation and Itronix Corporation considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Intel Corporation and Itronix Corporation considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely,

© 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROBT (Model: IX260PROBT) Rugged Laptop PC with Intel Pro 2200BG WLAN and Cirronet BT2022 Bluetooth Celltech Project No.: 543 EXTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROBT (Model: IX260PROBT) Rugged Laptop PC with Intel Pro 2200BG WLAN and Cirronet BT2022 Bluetooth Celltech Project No.: 543 EXTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROBT (Model: IX260PROBT) Rugged Laptop PC with Intel Pro 2200BG WLAN and Cirronet BT2022 Bluetooth Celltech Project No.: 543 EXTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROBT (Model: IX260PROBT) Rugged Laptop PC with Intel Pro 2200BG WLAN and Cirronet BT2022 Bluetooth Celltech Project No.: 543 EXTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROBT (Model: IX260PROBT) Rugged Laptop PC with Intel Pro 2200BG WLAN and Cirronet BT2022 Bluetooth Celltech Project No.: 543 EXTERNAL DUT PHOTOGRAPHS

© 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROBT (Model: IX260PROBT) Rugged Laptop PC with Intel Pro 2200BG WLAN and Cirronet BT2022 Bluetooth Celltech Project No.: 543 LABELING REQUIREMENTS PER §2.925 The label(s) shall be permanently affixed at a conspicuous location on the device. SEE NEXT PAGE(S) FOR FCC ID LABEL SEE NEXT PAGE(S) FOR FCC Part 15(B) DoC LABEL FCC ID LABEL & LOCATION

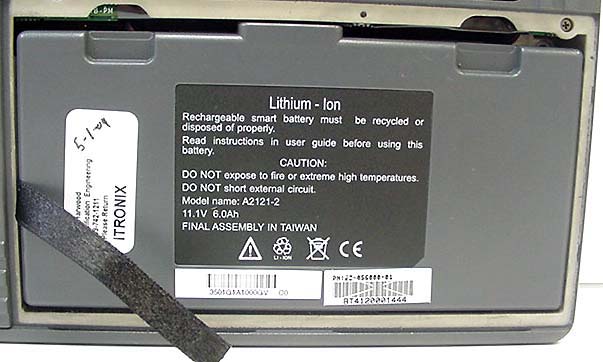

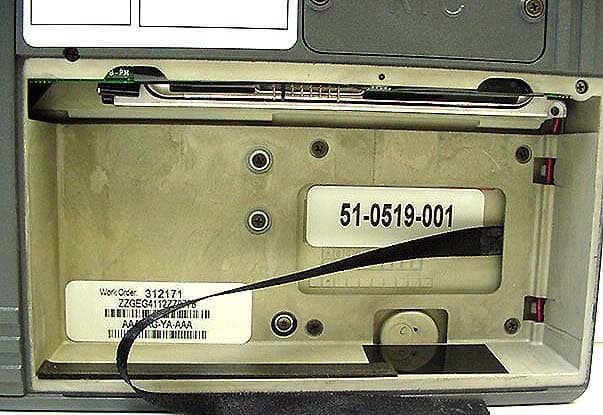

© 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROBT (Model: IX260PROBT) Rugged Laptop PC with Intel Pro 2200BG WLAN and Cirronet BT2022 Bluetooth Celltech Project No.: 543 INTERNAL DUT PHOTOGRAPHS Cirronet BT2022 Bluetooth Bluetooth Antenna Bluetooth Transmitter © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROBT (Model: IX260PROBT) Rugged Laptop PC with Intel Pro 2200BG WLAN and Cirronet BT2022 Bluetooth Celltech Project No.: 543 INTERNAL DUT PHOTOGRAPHS Cirronet BT2022 Bluetooth Bluetooth Transmitter Bluetooth Transmitter © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROBT (Model: IX260PROBT) Rugged Laptop PC with Intel Pro 2200BG WLAN and Cirronet BT2022 Bluetooth Celltech Project No.: 543 INTERNAL DUT PHOTOGRAPHS Cirronet BT2022 Bluetooth © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROBT (Model: IX260PROBT) Rugged Laptop PC with Intel Pro 2200BG WLAN and Cirronet BT2022 Bluetooth Celltech Project No.: 543 INTERNAL DUT PHOTOGRAPHS Cirronet BT2022 Bluetooth © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROBT (Model: IX260PROBT) Rugged Laptop PC with Intel Pro 2200BG WLAN and Cirronet BT2022 Bluetooth Celltech Project No.: 543 INTERNAL DUT PHOTOGRAPHS Intel Pro 2200BG WLAN 802.11b/g WLAN © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROBT (Model: IX260PROBT) Rugged Laptop PC with Intel Pro 2200BG WLAN and Cirronet BT2022 Bluetooth Celltech Project No.: 543 INTERNAL DUT PHOTOGRAPHS Intel Pro 2200BG WLAN © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROBT (Model: IX260PROBT) Rugged Laptop PC with Intel Pro 2200BG WLAN and Cirronet BT2022 Bluetooth Celltech Project No.: 543 INTERNAL DUT PHOTOGRAPHS Intel Pro 2200BG WLAN © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROBT (Model: IX260PROBT) Rugged Laptop PC with Intel Pro 2200BG WLAN and Cirronet BT2022 Bluetooth Celltech Project No.: 543 Front Back INTERNAL DUT PHOTOGRAPHS Intel Pro 2200BG WLAN © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROBT (Model: IX260PROBT) Rugged Laptop PC with Intel Pro 2200BG WLAN and Cirronet BT2022 Bluetooth Celltech Project No.: 543 Front with Shielding Back INTERNAL DUT PHOTOGRAPHS Intel Pro 2200BG WLAN © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROBT (Model: IX260PROBT) Rugged Laptop PC with Intel Pro 2200BG WLAN and Cirronet BT2022 Bluetooth Celltech Project No.: 543 Front with Shielding Removed INTERNAL DUT PHOTOGRAPHS Intel Pro 2200BG WLAN © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROBT (Model: IX260PROBT) Rugged Laptop PC with Intel Pro 2200BG WLAN and Cirronet BT2022 Bluetooth Celltech Project No.: 543 INTERNAL DUT PHOTOGRAPHS Internal Surface-Mount Antennas for WLAN & Bluetooth WLAN Surface-Mount Antenna (Upper Rear Right Side Edge of LCD Display) Bluetooth Surface-Mount Antenna (Upper Rear Left Side Edge of LCD Display) © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROBT (Model: IX260PROBT) Rugged Laptop PC with Intel Pro 2200BG WLAN and Cirronet BT2022 Bluetooth Celltech Project No.: 543 INTERNAL DUT PHOTOGRAPHS Internal Surface-Mount Antennas for WLAN & Bluetooth Spacing between Antennas (WLAN) Spacing between Antennas (Bluetooth) © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROBT (Model: IX260PROBT) Rugged Laptop PC with Intel Pro 2200BG WLAN and Cirronet BT2022 Bluetooth Celltech Project No.: 543 RangeStar Surface-Mount Antenna (Bluetooth) RangeStar Surface-Mount Antenna (WLAN) INTERNAL DUT PHOTOGRAPHS Internal Surface-Mount Antennas for WLAN & Bluetooth © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260PROBT (Model: IX260PROBT) Rugged Laptop PC with Intel Pro 2200BG WLAN and Cirronet BT2022 Bluetooth Celltech Project No.: 543 INTERNAL DUT PHOTOGRAPHS Internal Surface-Mount Antennas for WLAN & Bluetooth

Test Report S/N: 072804KBC-T543-E15W/B Test Date(s): 01Oct04 – 14Oct04 Test Type: FCC Part 15.247 PART 15.247 SUPPLEMENTARY EMC TEST REPORT FOR THE ITRONIX IX260+ RUGGED LAPTOP PC WITH THE INTERNAL CIRRONET BT2022 BLUETOOTH TRANSMITTER UTILIZING THE INTERNAL RANGESTAR SURFACE-MOUNT ANTENNA (INSTALLED IN THE UPPER LEFT SIDE EDGE OF LCD DISPLAY) CO-TRANSMITTING WITH THE INTERNAL INTEL PRO 2200BG 2.4 DSSS WLAN MINI-PCI CARD UTILIZING THE INTERNAL RANGESTAR SURFACE-MOUNT ANTENNA (INSTALLED IN THE UPPER RIGHT SIDE EDGE OF LCD DISPLAY) TRSN 072804KBC-T543-E15W/B Issue 1.0 Celltech Compliance Testing & Engineering Lab (Celltech Labs Inc.) 1955 Moss Court Kelowna, BC Canada V1Y 9L3 October 20, 2004 Test Report S/N: 072804KBC-T543-E15W/B Test Date(s): 01Oct04 – 14Oct04 Test Type: FCC Part 15.247 Applicant: Itronix Corporation Model: IX260PROBT FCC ID: KBCIX260PROBT IX260+ Rugged Laptop PC with internal Intel Pro 2200BG WLAN (802.11b/g) & Cirronet BT2022 Bluetooth 2004 Celltech Labs Inc This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 2 of 39 DECLARATION OF COMPLIANCE Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Applicant Information ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99204 United States Phone: 250-448-7047 Fax: 250-448-7048 e-mail: [email protected] web site: www.celltechlabs.com Laboratory Registration No.(s): FCC: 714830 IC: IC 3874 Rule Part(s): FCC: §15.247; §2.1091; §1.1310 WLAN - DSSS - Digital Transmission System (DTS) Device Classification: FCC: Bluetooth - FHSS - Part 15 Spread Spectrum Transmitter (DSS) Device Identification: FCC ID: KBCIX260PROBT DUT Description: Model: IX260PROBT Device Type: Rugged Laptop PC including the Cirronet BT2022 Bluetooth Transmitter & internal RangeStar surface-mount antenna (upper left side edge of LCD display), co-transmitting with the Intel Pro 2200BG 2.4 GHz DSSS WLAN Mini-PCI Card & RangeStar internal surface-mount antenna (upper right side edge of LCD display) Bluetooth 2402 - 2480 MHz Tx Frequency Range(s): WLAN 2412 – 2462 MHz Bluetooth 15.61 dBm Peak Conducted 17.48 dBm Peak Conducted – 802.11 b Max. RF Output Power: WLAN 16.15 dBm Peak Conducted – 802.11 g Bluetooth GFSK 1 Mbps 0.5 BT Gaussian Modulation(s): WLAN DBPSK, DQPSK, CCK Antenna Type(s): RangeStar P/N: 100929 Dual Internal Surface-Mount Power Supply: 90 Watt AC Power Adapter This wireless mobile device has demonstrated compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 47 CFR Part 15.247. I attest to the accuracy of the data. All measurements reported herein were performed by me or were under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. ______________________________________ Russell Pipe Senior Compliance Technologist Celltech Labs Inc. ______________________________________ Duane M. Friesen EMC Manager Celltech Labs Inc. Test Report S/N: 072804KBC-T543-E15W/B Test Date(s): 01Oct04 – 14Oct04 Test Type: FCC Part 15.247 Applicant: Itronix Corporation Model: IX260PROBT FCC ID: KBCIX260PROBT IX260+ Rugged Laptop PC with internal Intel Pro 2200BG WLAN (802.11b/g) & Cirronet BT2022 Bluetooth 2004 Celltech Labs Inc This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 3 of 39 TABLE OF CONTENTS 1.0 SCOPE ................................................................................................................................................................ 5 2.0 REFERENCES .................................................................................................................................................... 5 2.1 Normative References ......................................................................................................................................... 5 3.0 TERMS AND DEFINITIONS................................................................................................................................ 6 4.0 FACILITIES AND ACCREDITATIONS ................................................................................................................ 7 5.0 GENERAL INFORMATION ................................................................................................................................. 7 5.1 Applicant Information ........................................................................................................................................... 7 5.2 DUT Description .................................................................................................................................................. 7 5.3 Co-Located Equipment ........................................................................................................................................ 8 5.4 Cable Descriptions............................................................................................................................................... 8 5.5 Support Equipment .............................................................................................................................................. 9 5.6 Clock Frequencies ............................................................................................................................................... 9 5.7 Mode(s) of Operation Tested............................................................................................................................. 10 5.8 Configuration Description .…

Text truncated - open the document above for the full version.

Test Report S/N: 072804KBC-T543-E15W Test Date(s): 28Jun04 - 29Jul04, 22Oct04 Test Type: FCC Part 15.247 FCC PART 15.247 EMC TEST REPORT FOR THE ITRONIX RUGGED LAPTOP PC MODEL: IX260PROBT INCLUDING THE INTEL PRO 2200BG 802.11B/G 2.4 GHz DSSS WLAN MINI-PCI CARD WITH THE RANGESTAR INTERNAL SURFACE-MOUNT ANTENNA CO-LOCATED WITH CIRRONET BT2022 BLUETOOTH TRANSMITTER & RANGESTAR INTERNAL SURFACE-MOUNT ANTENNA TRSN 072804KBC-T543-E15W Issue 2.0 Celltech Compliance Testing & Engineering Lab (Celltech Labs Inc.) 1955 Moss Court Kelowna, BC Canada V1Y 9L3 OCTOBER 22, 2004 Test Report S/N: 072804KBC-T543-E15W Test Date(s): 28Jun04 - 29Jul04, 22Oct04 Test Type: FCC Part 15.247 Applicant: Itronix Corporation Model: IX260PROBT FCC ID: KBCIX260PROBT IX260+ Rugged Laptop PC with internal Intel Pro 2200BG WLAN (802.11b/g) & Cirronet BT2022 Bluetooth 2004 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 2 of 79 DECLARATION OF COMPLIANCE Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Applicant ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99204 United States Phone: 250-448-7047 Fax: 250-448-7048 e-mail: [email protected] web site: www.celltechlabs.com Laboratory Registration No.(s): FCC: 714830 IC: IC 3874 Rule Part(s): FCC: §15.247; §2.1091; §1.1310 Device Classification: FCC: Digital Transmission System (DTS) Device Identification: FCC ID: KBCIX260PROBT DUT Description: Model: IX260PROBT Device Description: IX260+ Rugged Laptop PC including the Intel Pro 2200BG 802.11b/g 2.4 GHz DSSS WLAN Mini-PCI Card with the RangeStar internal surface-mount antenna, co-located with the Cirronet BT2022 Bluetooth Transmitter and the RangeStar internal surface-mount antenna TX Frequency Range: WLAN: 2412 - 2462 MHz Max. RF Output Power: 17.48 dBm Peak Conducted - 802.11b 16.15 dBm Peak Conducted - 802.11g Modulation(s): WLAN: DBPSK, DQPSK, CCK Antenna Type(s): WLAN: RangeStar P/N: 100929 Internal Surface-Mount (upper right edge of LCD Display) Bluetooth: RangeStar P/N: 100929 Internal Surface-Mount (upper left edge of LCD Display) Power Supply: Stationary: 90 Watt AC Power Adapter/11.1V Lithium-ion Battery, 6.0Ah (Model: A2121-2) This wireless mobile device has demonstrated compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 47 CFR Part 15.247 and Industry Canada RSS-210 Issue 5. I attest to the accuracy of the data. All measurements reported herein were performed by me or were under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. ____________________________ Russell Pipe Senior Compliance Technologist Celltech Labs Inc. ______________________________ Duane M. Friesen EMC Manager Celltech Labs Inc. Test Report S/N: 072804KBC-T543-E15W Test Date(s): 28Jun04 - 29Jul04, 22Oct04 Test Type: FCC Part 15.247 Applicant: Itronix Corporation Model: IX260PROBT FCC ID: KBCIX260PROBT IX260+ Rugged Laptop PC with internal Intel Pro 2200BG WLAN (802.11b/g) & Cirronet BT2022 Bluetooth 2004 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 3 of 79 TABLE OF CONTENTS 1.0 SCOPE ................................................................................................................................................................ 7 2.0 REFERENCES .................................................................................................................................................... 7 2.1 Normative References ......................................................................................................................................... 7 3.0 FACILITIES AND ACCREDITATIONS ................................................................................................................ 9 4.0 GENERAL INFORMATION ................................................................................................................................. 9 4.1 Applicant Information ........................................................................................................................................... 9 4.2 DUT Description................................................................................................................................................... 9 4.3 Co-Located Equipment ...................................................................................................................................... 10 4.4 Cable Descriptions............................................................................................................................................. 10 4.5 Support Equipment ............................................................................................................................................ 10 4.6 Clock Frequencies ............................................................................................................................................. 11 4.7 Mode(s) of Operation Tested............................................................................................................................. 11 4.8 Configuration Description .................................................................................................................................. 12 5.0 PASS/FAIL CRITERIA ....................................................................................................................................... 12 APPENDIX .....…

Text truncated - open the document above for the full version.

Test Report S/N: 072804KBC-T543-E15W Test Date(s): 28Jun04 - 29Jul04 Test Type: FCC Part 15.247 Applicant: Itronix Corporation Model: IX260PROBT FCC ID: KBCIX260PROBT Rugged Laptop PC with internal Intel Pro 2200BG WLAN (802.11b/g) & Cirronet BT2022 Bluetooth 2004 Celltech Labs Inc This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 74 of 79 H.6. SETUP PHOTOS Photograph H-1 – AC Powerline Conducted Emission Configuration Photograph H-2 – AC Powerline Conducted Emission Cable Placement Test Report S/N: 072804KBC-T543-E15W Test Date(s): 28Jun04 - 29Jul04 Test Type: FCC Part 15.247 Applicant: Itronix Corporation Model: IX260PROBT FCC ID: KBCIX260PROBT Rugged Laptop PC with internal Intel Pro 2200BG WLAN (802.11b/g) & Cirronet BT2022 Bluetooth 2004 Celltech Labs Inc This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 32 of 79 E.7. SETUP PHOTOGRAPHS Photograph E-1 - Vertical Polarization (1-18 GHz) Photograph E-2 - Vertical Polarization (18-26 GHz) Photograph E-3 - Front of Radiated Emission Configuration Photograph E-4 - Back of Radiated Emission Configuration Test Report S/N: 072804KBC-T543-E15W Test Date(s): 28Jun04 - 29Jul04 Test Type: FCC Part 15.247 Applicant: Itronix Corporation Model: IX260PROBT FCC ID: KBCIX260PROBT Rugged Laptop PC with internal Intel Pro 2200BG WLAN (802.11b/g) & Cirronet BT2022 Bluetooth 2004 Celltech Labs Inc This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 52 of 79 F.7. SETUP PHOTOGRAPHS Photograph F-1 - Horizontal Polarization (30MHz - 1 GHz) Photograph F-2 - Vertical Polarization (1-18 GHz) Photograph F-3 - Front of Radiated Emission Configuration Photograph F-4 - Back of Radiated Emission Configuration
