KBCIX260RIM902Rugged Laptop with RIM 902 Mobitex Data Modem

Getting Started Congratulations on your purchase of the Itronix GoBook II computer! Your new GoBook II features the most innovative advances in portable computing technology. It combines state-of-the-art ergonomics with a rugged, durable architecture to provide you with a notebook computer that is compact, powerful, rugged and easy to use. Designed for a wide range ofbusiness and personal productivity applications, the GoBook II is an ideal choice for use in applications that require durability and performance. For maximum expandability without compromising portability, the GoBook II has a USB interface and aPC card slot. The high capacityhard diskdrive provides you with plenty of storage space for multimedia files and applications. The GoBook II features a standard 87-key Nitevue® keyboard (89-key international). The high- resolution 12.1-inch touch screen LCD panel provides clear and crisp viewing with the convenience of a touch screen. This online document,GoBook II Help, contains all the information you need to set up and use your new GoBook II. It describes all the features of the GoBook II in an easy-to-read yet thorough manner. For information on printing, navigating or otherwise usingGoBook II HelpseeHow to Use This Help System. Checklists After opening the package, carefully inspect thecontents. Contact your dealer if any items are missing or a ppear damaged. The shippingcarton should contain the following: GoBook II™ Help Page 1 of 68GoBook II Help 6/22/2003file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~... STANDARD
The Itronix GoBook II computer
Battery
ADP-90AB or ADP-75FB AC adapter with power cord
12.1 inchXGA display
Stylus
Shoulder Strap
GoBook II Quick Start Guide OPTIONS The following items are normally optional, but somevendors may include them in the standard package. Some items may not be available in some countries, or some vendors may choose not to carry all the items.
Floppy disk drive
CD-ROM drive
CD-RW Drive
DVD-ROM drive
SVGA display
Soft Handle
Media Bay Li-Ion battery pack (3000 mAhr)
Hard Disk Drive Heater
LCD Heater CAUTION When purchasing any of the accessories listed above, purchase only those accessories that are approved for use with your computer. The above accessories are proprietary items. Your system vendor can obtain these approved accessories. If youuse items that are not approved for use with this computer, you may cause your computer to malfunction,or to emit or receive electromagnetic radiation in excess of local regulations. For non-proprietary accessories such as PC Cards or printers, ensure that the accessory functions properly in your computerbefore making the purchase. Your system vendor may be able to recommend reliable brands and models. Features High Capacity Hard Disk Drive The computer has a high capacity hard disk drive, enabling you to install your favorite programs and store lar ge multimedia files. Page 2 of 68GoBook II Help 6/22/2003file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~... Full Array of Ports and Connectors Your computer includes standard ports for connecting to peripherals such as USB devices and monitors. USB ports allow you to add many types of peripherals. Large SVGA or XGA LCD Your computer has a large, easyto view SVGA or XGA LCD panel. Built-in Microphone and Stereo Speakers The stereo speakers and internal microphone enable you to run a variety of multimedia applications. Function Keys Function keys allow you to suspend your computer, shut the LCDs off, and give you easy control of audio and your monitor. Where to Look For Information About Your Computer This Help System describes the key elements of your computer. New users can find a simple step-by- step orientation in this chapter. About Windows For more extensive information and help about Windows go toHelp and Support , found on the Start Menu. Go to Start, Programs, Accessories to open, an online orientation of Windows XP. 72_0103_003 10 December 2002 © 2002 Itronix Corporation. All rights reserved. Precautions You can use your computer under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your computer:
Follow all warnings and instructions noted in this documentation and in the WindowsHelp and Support, found on the Start Menu.
The first time you use your computer, we recommend that you carefully read the section on Power Mana gementto familiarizeyourself with some basic batteryinformation and to ensure GoBook II™ Help Page 3 of 68GoBook II Help 6/22/2003file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~... optimum performance
There is danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.
Do not open the RAM door by yourself.
Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use aerosols, solvents, or strong detergents
Slots and openings in the computer case are for ventilation purposes. Do not block or cover these openings or the system could overheat
On the bottom of the GoBook II, there is a label with information on the power requirements of this system. These requirements must be followed. If you are unsure of your local power supply, consult your dealer or local Power Company
Do not step on or place anything on the power cord
If you use the computer with an extension cord, ensure that the total ampere ratings of all the devices sharing the extension do not exceed the rating of the extension cord or the rating of the wall outlet
Unless instructed, never push foreign objects into the computer through any of the slots or openings. Dangerous voltages are present, which could cause electric shock, fire, or damage sensit…

Text truncated - open the document above for the full version.

Celltech Labs Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-448-7047 • Fax. 250-448-7046 • e-mail: [email protected] www.celltechlabs.com July 2, 2003 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue, Suite C110 McLean, VA 22101 Attn: Tim Johnson SUBJECT: ITRONIX CORPORATION FCC ID: KBCIX260RIM902 Part 90 Certification ATCB File No.: ATCB000537 Response to Questions - 07/01/03 Dear Tim: On behalf of Itronix Corporation is our response to your questions dated 07/01/03 requesting additional information for the subject application. 1. Attached are internal photographs showing underneath the RF module shields. 2. Attached is our resubmitted EMC test report showing revised radiated spurious emission limit of 50 + 10 log (P) in Section 11.1, based on emission mask J per 90.210(j). Also attached are retested conducted spurious emission plots showing the -20 dBm limit. 3. Different receive dipole antennas were used between the various ERP tests; therefore different dipole gains are listed in Section 10.1. 4. Attached are the radiated test setup photographs submitted as a separate exhibit. 5. Per Research In Motion, the Mobitex module RIM 902M has the capability to operate up to 902 MHz in countries where the higher channels above 901 MHz are licensed, however in North America it is only operational up to 901 MHz. The firmware limits the highest transmit frequency to 901 MHz and the highest receive frequency to 940 MHz. 6. Please see attached revised SAR test plots with Z-axis scan showing x component value. Please note that the previous Z-axis scan was submitted inadvertently with print software error. 7. Please see attached revised SAR test plots and device photographs labeled to clearly indicate the left and right sides of the device. 8. Repositioning of the LCD display back side (antenna perpendicular), and Laptop PC bottom side (antenna perpendicular) test configurations was required to view the entire laptop and complete additional cube scans. Please see attached test setup photos showing Laptop PC positioning for the cube scans in those configurations. If you have any further questions or comments concerning the above, please contact the undersigned. Sincerely, Jonathan Hughes General Manager Celltech Labs Inc. cc: Itronix Corporation

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 1, 2003 RE: Itronix Corporation FCC ID: KBCIX260RIM902 I have a few comments on the above referenced Application. 1) Please provide photographs underneath the shields of the RF Module. 2) Section 11.1 appears to use 43 + 10 log (P). However, given that mask J was used, this should be 50 + 10 log P/ (-20 dBm). Note that this also affects the Test plots in Appendix A. It would be best to add a note to the plots that show -13 dBm as the limt. Please correct. 3) Please explain why the dipole gain varied in section 10.1, even though the same frequencies were measured for each configuration. 4) Please provide the test photographs as a separate exhibit. 5) The operational description provided by RIM mentions that the device may transmit up to 902 MHz (pages 1, 5). This is not consistent with this application which has specified a frequency range of 896.0 - 901 MHz. Please explain and if necessary have RIM provide a revised operational description. 6) Z-axis scans do not show value of the x component. It is therefore not possible to verify the requirement that the first 2 measurements points in a zoom scan, closest to the phantom surface, should be within 1 cm of the surface. 7) It took a while to ascertain which side was defined as the right side and which was the left side. It is recommended that the plots that show the left side have additional notes added that explains that these plots are for the side of the laptop opposite the antenna or that this is clearly shown somewhere within the report (i.e. photographs that shows left side/right side). 8) Reviewing the photographs yields concerns regarding how close the antenna was located to the edge of the phantom during certain tests. However careful review of the data appears to support the fact that the test photos show the EUT as tested in the course scans. It appears that the device may have been repositioned after certain course scans in an effort to center the hot spot (i.e. review of the perpendicular antenna for back of the LCD tests). Please comment. Additionally, if this was done, are photographs available for these configurations as well? Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

801 S. STEVENS STREET SPOKANE, WA 99204 509.624.6600 800.441.1309 FAX 509.626.4203 www.itronix.com June 20, 2003 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Itronix Corporation FCC ID: KBCIX260RIM902 FCC Part 90 Certification Request for Confidentiality In accordance with 0.459 of CFR 47, Itronix Corporation hereby requests confidentiality of the Block Diagram, Schematic Diagrams, Parts List, Tune-Up Procedure, Operational Description, and Antenna Specifications attachments for the subject application. These documents contain detailed system and equipment description and related information about the product in which Itronix Corporation considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Itronix Corporation considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely,

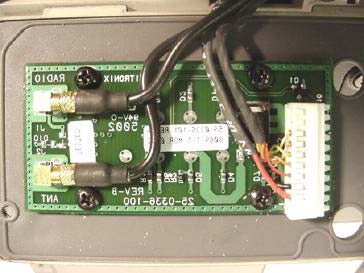

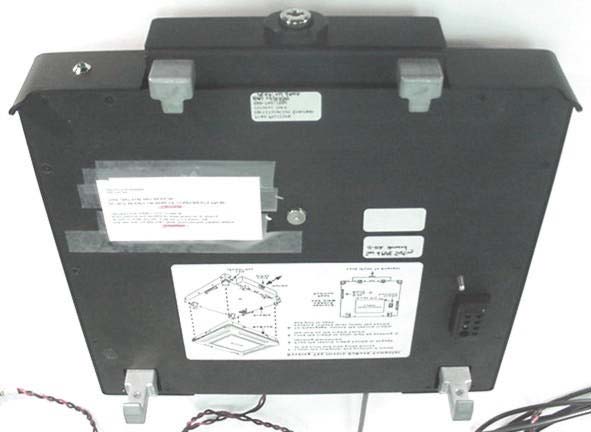

Test Report S/N: 061003-383/384/385KBC © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260RIM902 Rugged Laptop PC with RIM 902 Mobitex Radio Modem EXTERNAL EUT PHOTOGRAPHS Test Report S/N: 061003-383/384/385KBC © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260RIM902 Rugged Laptop PC with RIM 902 Mobitex Radio Modem EXTERNAL EUT PHOTOGRAPHS Test Report S/N: 061003-383/384/385KBC © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260RIM902 Rugged Laptop PC with RIM 902 Mobitex Radio Modem EXTERNAL EUT PHOTOGRAPHS Test Report S/N: 061003-383/384/385KBC © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260RIM902 Rugged Laptop PC with RIM 902 Mobitex Radio Modem EXTERNAL EUT PHOTOGRAPHS Vehicle Cradle Cradle Contact Board Cradle Contact Board Test Report S/N: 061003-383/384/385KBC © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260RIM902 Rugged Laptop PC with RIM 902 Mobitex Radio Modem EXTERNAL EUT PHOTOGRAPHS with Vehicle Cradle & MaxRad Z563 Mobile Vehicle-Mount Antenna (Unity Gain) Test Report S/N: 061003-383/384/385KBC © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260RIM902 Rugged Laptop PC with RIM 902 Mobitex Radio Modem EXTERNAL EUT PHOTOGRAPHS with Vehicle Cradle & MaxRad Z567 Mobile Vehicle-Mount Antenna (5dB Gain) Test Report S/N: 061003-383/384/385KBC © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260RIM902 Rugged Laptop PC with RIM 902 Mobitex Radio Modem EXTERNAL EUT PHOTOGRAPHS with Vehicle Cradle & MaxRad Z573 Mobile Vehicle-Mount Antenna (5dB Gain)

Test Report S/N: 061003-383KBC © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260RIM902 Rugged Laptop PC with RIM 902 Mobitex Radio Modem FCC ID LABEL & LOCATION LABELING REQUIREMENTS PER §2.925 The label shall be permanently affixed at a conspicuous location on the device. SEE NEXT PAGE(S) FOR PART 90 FCC ID LABEL SEE NEXT PAGE(S) FOR PART 15(B) DoC LABEL Corporation Design Col or R equi rem ent: P FCC Label For P16 Background : TCG-426P Text : Pantone 441C P16 Wen Fu Chieng PC , Thickness 0.8mm 1 : 1 1 1 08 / 19 / 02 63-040210-00 0 63-040210-00 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made in Taiwan MODEL NO. : IX260 FOR HOME OR OFFICE USEFCC StandardsTested To Comply With C US LR86520 NOTEBOOK : DC 19V 3.95A E4309 ICES-003. NMB-003 du Canada. Cet appareil numerique de la classe B est conforme a la norme This Class B digital apparatus complies with Canadian ` ` X260) (I

Test Report S/N: 061003-383/384/385KBC © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260RIM902 Rugged Laptop PC with RIM 902 Mobitex Radio Modem INTERNAL EUT PHOTOGRAPHS Test Report S/N: 061003-383/384/385KBC © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260RIM902 Rugged Laptop PC with RIM 902 Mobitex Radio Modem INTERNAL EUT PHOTOGRAPHS Test Report S/N: 061003-383/384/385KBC © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260RIM902 Rugged Laptop PC with RIM 902 Mobitex Radio Modem INTERNAL EUT PHOTOGRAPHS RIM 902 Mobitex Radio Modem

Test Report S/N: 061003-384KBC Test Date(s): June 11, 2003 FCC/IC SAR Evaluation © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260RIM902 Rugged Laptop PC with RIM 902 Mobitex Radio Modem INTERNAL EUT PHOTOGRAPHS RIM 902 Mobitex Radio Modem

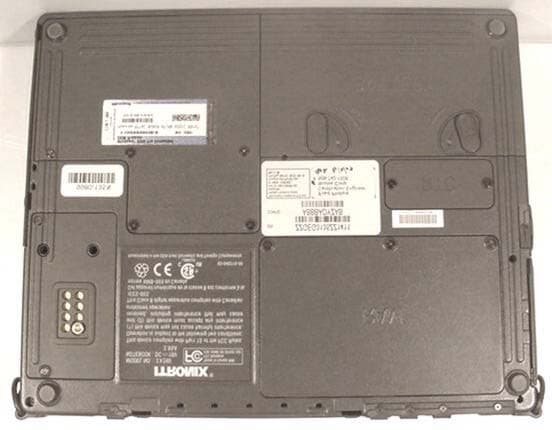

Test Report S/N: 061003-383/384/385KBC © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260RIM902 Rugged Laptop PC with RIM 902 Mobitex Radio Modem EXTERNAL EUT PHOTOGRAPHS

Test Report S/N: 061003-385KBC MPE Evaluation © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260RIM902 (Model: IX260) 1 of 3 Rugged Laptop PC with RIM 902 Mobitex Radio Modem, Cradle, & (3) Mobile Antennas This transmitter has been shown to be compliant for localized Maximum Permissible Exposure (MPE) for Uncontrolled Exposure / General Population limits specified in FCC 47 CFR §1.1310 & RSS-102 Issue 1 (Provisional) of Industry Canada, and has been evaluated in accordance with the procedures specified in FCC OET Bulletin 65, Edition 97-01, Health Canada’s Safety Code 6, ANSI / IEEE C95.1-1992, and ANSI / IEEE C95.3-1992. I attest to the accuracy of data. All measurements and/or calculations were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This evaluation report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell Pipe Senior Compliance Technologist Celltech Labs Inc. DECLARATION OF COMPLIANCE MPE EVALUATION REPORT Test Lab CELLTECH LABS INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99210 FCC Rule Part(s): 47 CFR §90; §2.1091; §1.1310 IC Rule Part(s): RSS-119 Issue 6; RSS-102 Issue 1 (Provisional) FCC Classification: Licensed Non-Broadcast Station Transmitter (TNB) IC Classification: Land Mobile Radio Transmitter Device Type: Rugged Laptop PC with RIM 902 Mobitex Radio Modem, Vehicle Cradle, & (3) Mobile Vehicle-Mount Antennas FCC ID: KBCIX260RIM902 Model(s): IX260 Tx Frequency Range: 896.0 - 901.0 MHz Max. RF Conducted Power: 33.1 dBm (Peak) Source Based Time Aver. Pwr.: 27.1 dBm (Conducted) Max. Duty Cycle: 25% Antenna Type(s): Mobile Vehicle-Mount - Unity Gain (MaxRad Model: Z563) Mobile Vehicle-Mount - 5 dB Gain (MaxRad Model: Z567) Mobile Vehicle-Mount - 5 dB Gain (MaxRad Model: Z573) Test Report S/N: 061003-385KBC MPE Evaluation © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260RIM902 (Model: IX260) 2 of 3 Rugged Laptop PC with RIM 902 Mobitex Radio Modem, Cradle, & (3) Mobile Antennas 1. MaxRad Z563 Unity Gain Antenna 2. MaxRad Z567 & Z573 5 dBd Gain Antennas Z563 Z567 Z573 1.1 MPE Calculation Data 2.1 Calculation to determine MPE Tx Frequency: 900.00 (MHz) Source Based Time Averaged Power at Antenna Input Terminal: 27.10 (dBm) Antenna gain (typical)+9dB for 8-element array: 2.14 (dBi) S=0.60 (mW/cm^2) P=512.8614 (mW) G=1.64 (numeric) R =10.55(cm) Tx Frequency: 900.00 (MHz) Source Based Time Averaged Power at Antenna Input Terminal: 27.10 (dBm) Antenna gain (typical)+9dB for 8-element array: 7.14 (dBi) S=0.60 (mW/cm^2) P=512.8614 (mW) G=5.18 (numeric) R =18.76(cm) Test Report S/N: 061003-385KBC MPE Evaluation © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX260RIM902 (Model: IX260) 3 of 3 Rugged Laptop PC with RIM 902 Mobitex Radio Modem, Cradle, & (3) Mobile Antennas According to FCC 47 CFR 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b). The Maximum Permissible Exposure (MPE) limit for the frequency range in the Mobitex band (900MHz) is F/300 (3mW/cm^ 2 ) for the General Population / Uncontrolled Exposure environment. The data in this report demonstrates that this device complies with the Maximum Permissible Exposure (MPE) requirements set forth in FCC §2.1091, §1.1310, OET Bulletin 65 (Edition 97-01), and Health Canada’s Safety Code 6 for the General Population / Uncontrolled Exposure environment using the specific antenna(s) at the minimum distance(s) described in this report. 3.1 MPE Limits 4.1 Summary

Test Report S/N: 061003-384KBC Test Date(s): June 11, 2003 FCC/IC SAR Evaluation © 2003 Celltech Labs Inc.1 of 22 Celltech Labs Inc. declares under its sole responsibility that this device was found to be in compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01), and Industry Canada RSS-102 Issue 1 (Provisional) for the General Population / Uncontrolled Exposure environment. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell Pipe Senior Compliance Technologist Celltech Labs Inc. DECLARATION OF COMPLIANCE SAR EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone:250-448-7047 Fax:250-448-7046 e-mail:[email protected] web site:www.celltechlabs.com Applicant Information ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99210 Rule Part(s):FCC 47 CFR §2.1093; IC RSS-102 Issue 1 (Provisional) Test Procedure(s):FCC OET Bulletin 65, Supplement C (Edition 01-01) FCC Device Classification:Licensed Non-Broadcast Station Transmitter (TNB) IC Device Classification:Land Mobile Radio Transmitter FCC ID:KBCIX260RIM902 Model(s):IX260 Device Type:Rugged Laptop PC with RIM 902 Mobitex Radio Modem Modulation: GMSK Tx Frequency Range:896.0 - 901.0 MHz RF Output Power Tested:33.1 dBm (Conducted) Antenna Type:External Swivel Dipole Battery Type:11.1V Lithium-Ion, 6.0Ah (Model: A2121-2) Max. SAR Measured:1.35 W/kg (1g average) Test Report S/N: 061003-384KBC Test Date(s): June 11, 2003 FCC/IC SAR Evaluation © 2003 Celltech Labs Inc.2 of 22 TABLE OF CONTENTS 1.0INTRODUCTION.....................................................................3 2.0DESCRIPTION OF EUT............................................................3 3.0SAR MEASUREMENT SYSTEM ...............................................4 4.0MEASUREMENT SUMMARY.....................................................5 5.0DETAILS OF SAR EVALUATION...............................................6 6.0EVALUATION PROCEDURES...................................................6-7 7.0SYSTEM PERFORMANCE CHECK............................................8 8.0EQUIVALENT TISSUES...........................................................9 9.0SAR LIMITS...........................................................................9 10.0SYSTEM SPECIFICATIONS......................................................10 11.0PROBE SPECIFICATION..........................................................11 12.0SAM PHANTOM......................................................................11 13.0DEVICE HOLDER....................................................................11 14.0TEST EQUIPMENT LIST...........................................................12 15.0MEASUREMENT UNCERTAINTIES............................................13-14 16.0REFERENCES.......................................................................15 APPENDIX A - SAR MEASUREMENT DATA..............................................16 APPENDIX B - SYSTEM PERFORMANCE CHECK DATA.............................17 APPENDIX C - SYSTEM VALIDATION......................................................18 APPENDIX D - PROBE CALIBRATION.....................................................19 APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS.................20 APPENDIX F - SAM PHANTOM CERTIFICATE OF CONFORMITY................21 APPENDIX G - SAR TEST SETUP PHOTOGRAPHS...................................22 Test Report S/N: 061003-384KBC Test Date(s): June 11, 2003 FCC/IC SAR Evaluation © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260RIM9023 of 22 Rugged Laptop PC with RIM 902 Mobitex Radio Modem 1.0 INTRODUCTION This measurement report demonstrates that the ITRONIX CORPORATION Model: IX260 Rugged Laptop PC with RIM 902 Mobitex Radio Modem FCC ID: KBCIX260RIM902 complies with the RF exposure requirements specified in FCC 47 CFR §2.1093 (see reference [1]) and Health Canada’s Safety Code 6 (see reference [2]) for the General Population environment. The test procedures described in FCC OET Bulletin 65, Supplement C (Edition 01-01) (see reference [3]) and IC RSS-102 Issue 1 (Provisional) (see reference [4]) were employed. A description of the product, operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION of Equipment Under Test (EUT) FCC Rule Part(s) 47 CFR §2.1093 IC Rule Part(s) IC RSS-102 Issue 1 (Provisional) Test Procedure(s) FCC OET Bulletin 65, Supplement C (Edition 01-01) FCC Device Classification Licensed Non-Broadcast Station Transmitter (TNB) IC Device Classification Land Mobile Radio Transmitter Device Type Rugged Laptop PC with RIM 902 Mobitex Radio Modem FCC ID KBCIX260RIM902 Model(s) IX260 Serial No. Pre-production unit Modulation GMSK Duty Cycle 25% Tx Frequency Range 896.0 - 901.0 MHz RF Output Power Tested 33.1 dBm (Conducted) Antenna Type External Dipole (Length: 4.7 inches) Battery Type 11.1V Lithium-Ion, 6.0Ah (Model: A2121-2) Test Report S/N: 061003-384KBC Test Date(s): June 11, 2003 FCC/IC SAR Evaluation © 2003 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX260RIM9024 of 22 Rugged Laptop PC with RIM 902 Mobitex Radio Modem 3.0 SAR MEASUREMENT SYSTEM Celltech Labs SAR measuremen…

Text truncated - open the document above for the full version.

Itronix Corporation FCC ID: KBCIX260RIM902 SAM Phantom; Flat Section; Position: (90°,0°) Probe: ET3DV6 - SN1387; ConvF(6.40,6.40,6.40); Crest factor: 4.0 900 MHz Muscle: σ = 1.07 mho/m ε r = 55.6 ρ = 1.00 g/cm 3 Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 1.35 mW/g, SAR (10g): 0.808 mW/g Body SAR - Back of LCD Display (Closed) Antenna Parallel to Planar Phantom (Stowed Position) 0.0 cm Separation Distance from Back of LCD Display to Planar Phantom Itronix IX260 Rugged Laptop PC with RIM 902 Mobitex Radio Modem Modulated Carrier Channel 721 [899.0 MHz] Conducted Power: 33.1 dBm Ambient Temp: 24.4°C; Fluid Temp: 23.6°C Date Tested: June 11, 2003 SAR Tot [mW/g] 1.01E-1 3.03E-1 5.05E-1 7.07E-1 9.08E-1 1.11E+0 1.31E+0 06/11/03 Celltech Labs Inc. Itronix Corporation FCC ID: KBCIX260RIM902 SAM Phantom; Flat Section Probe: ET3DV6 - SN1387; ConvF(6.40,6.40,6.40); Crest factor: 4.0 900 MHz Muscle: σ = 1.07 mho/m ε r = 55.6 ρ = 1.00 g/cm 3 Z-Axis Extrapolation at Peak SAR Location Body SAR - Back of LCD Display (Closed) Antenna Parallel to Planar Phantom (Stowed Position) 0.0 cm Separation Distance from Back of LCD Display to Planar Phantom Itronix IX260 Rugged Laptop PC with RIM 902 Mobitex Radio Modem Modulated Carrier Channel 721 [899.0 MHz] Conducted Power: 33.1 dBm Ambient Temp: 24.4°C; Fluid Temp: 23.6°C Date Tested: June 11, 2003 06/11/03 Celltech Labs Inc. -1 0 1 2 3 4 102030405060708090100110120130140150 SAR tot [mW/g] [mm] Itronix Corporation FCC ID: KBCIX260RIM902 SAM Phantom; Flat Section; Position: (90°,180°) Probe: ET3DV6 - SN1387; ConvF(6.40,6.40,6.40); Crest factor: 4.0 900 MHz Muscle: σ = 1.07 mho/m ε r = 55.6 ρ = 1.00 g/cm 3 Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Body SAR - Back of LCD Display (Closed) Antenna Parallel to Planar Phantom (Stowed Position) 0.0 cm Separation Distance from Back of LCD Display to Planar Phantom Itronix IX260 Rugged Laptop PC with RIM 902 Mobitex Radio Modem Modulated Carrier Channel 721 [899.0 MHz] Conducted Power: 33.1 dBm Ambient Temp: 24.4°C; Fluid Temp: 23.6°C Date Tested: June 11, 2003 SAR Tot [mW/g] 1.43E-4 4.29E-4 7.14E-4 1.00E-3 1.29E-3 1.57E-3 1.86E-3 06/11/03 Celltech Labs Inc. Itronix Corporation FCC ID: KBCIX260RIM902 SAM Phantom; Flat Section; Position: (90°,0°) Probe: ET3DV6 - SN1387; ConvF(6.40,6.40,6.40); Crest factor: 4.0 900 MHz Muscle: σ = 1.07 mho/m ε r = 55.6 ρ = 1.00 g/cm 3 Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 0.0417 mW/g, SAR (10g): 0.0211 mW/g Body SAR - Back of LCD Display (Closed) Antenna Perpendicular to Planar Phantom (180°) 0.0 cm Separation Distance from Back of LCD Display to Planar Phantom Itronix IX260 Rugged Laptop PC with RIM 902 Mobitex Radio Modem Modulated Carrier Channel 721 [899.0 MHz] Conducted Power: 33.1 dBm Ambient Temp: 24.4°C; Fluid Temp: 23.6°C Date Tested: June 11, 2003 SAR Tot [mW/g] 3.71E-3 1.11E-2 1.86E-2 2.60E-2 3.34E-2 4.09E-2 4.83E-2 06/11/03 Celltech Labs Inc. Itronix Corporation FCC ID: KBCIX260RIM902 SAM Phantom; Flat Section; Position: (90°,0°) Probe: ET3DV6 - SN1387; ConvF(6.40,6.40,6.40); Crest factor: 4.0 900 MHz Muscle: σ = 1.07 mho/m ε r = 55.6 ρ = 1.00 g/cm 3 Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 0.0402 mW/g, SAR (10g): 0.0276 mW/g Body SAR - Back of LCD Display (Closed) Antenna Perpendicular to Planar Phantom (180°) 0.0 cm Separation Distance from Back of LCD Display to Planar Phantom Itronix IX260 Rugged Laptop PC with RIM 902 Mobitex Radio Modem Modulated Carrier Channel 721 [899.0 MHz] Conducted Power: 33.1 dBm Ambient Temp: 24.4°C; Fluid Temp: 23.6°C Date Tested: June 11, 2003 SAR Tot [mW/g] 3.71E-3 1.11E-2 1.86E-2 2.60E-2 3.34E-2 4.09E-2 4.83E-2 06/11/03 Celltech Labs Inc. Itronix Corporation F…
