American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 March 8, 2004 RE: FCC ID: KBCIX300AC750WLBT_ATCB001141 Attention: Rod Munro I have a few comments on this Application. 1. Please note that the MPE report you provided uses 40mW as the conducted power (15.45dBm +a cable loss of 0.58dB). However, the conducted testing done by CCS (the report you are using for conducted measurements) only show 15.52dBm and does not show the cable loss, while a supplemental conducted test you performed shows 15.45 with the 0.58dB cable. If the the conducted power data from the CCS report is to be used, please make the reports consistent as to the final power measurements. Please explain – which report is accurate. Please clearly identify the conducted antenna terminal data for this application. 2. Please note that the Bluetooth reports show the same discrepancy types as in item 1. Please explain and clearly identify the conducted antenna terminal data for this application. 3. Please note that there was not request for confidentiality letter provided in the application. Please provide a letter requesting confidentiality for the appropriate documents (i.e. block diagrams, schematics, theory of operations, tune up procedure, parts list). 4. Please note that the Bluetooth operational description is in Chinese. Please provide an English version of the BT operational description (MUBTC2 QSGñññs¿-Ñ+ñGÑU.pdf). 5. Please note that the parts list (Confidential_0AB0290101N_BOM.xls) is primarily in Chinese. Please provide an English version. 6. Please note that I could not find the Block diagram for te WLAN transmitter. Please provide the Block diagram for this part of the system. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

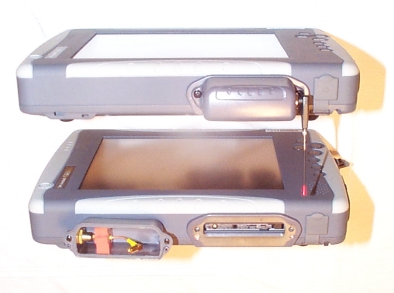

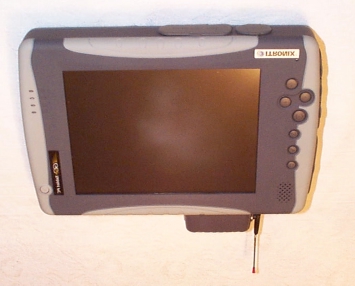

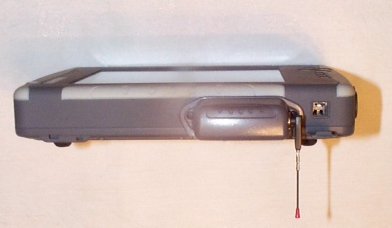

Applicant: ITRONIX, CorporationFCC ID: KBCIX300AC750WLBT Exhibit 3 External Photos Front View IX300 Back View IX300 Applicant: ITRONIX, CorporationFCC ID: KBCIX300AC750WLBT Exhibit 3 External Photos Top View IX300 AC750 PC slot exposed Applicant: ITRONIX, CorporationFCC ID: KBCIX300AC750WLBT Exhibit 3 External Photos Right Side View IX300 Right Side View IX300 Bottom View IX300 Applicant: ITRONIX, CorporationFCC ID: KBCIX300AC750WLBT Exhibit 3 External Photos Power adapter with ferrite core

Applicant: ITRONIX, Corp. FCC ID: KBCIX300AC750WLBT Exhibit 1 EXHIBIT 1.EXHIBIT 1. LIST OF EXHIBITS and FCC IDENTIFICATION LIST OF EXHIBITS and FCC IDENTIFICATION LABELLABEL LIST OF EXHIBITS DESCRIPTIONEXHIBITS REFERENCE I.Identification label Information1 2.1033 (b) 7 & 2.925 & General Information1A 1. Production Plans2.1031 2. Application ReferencesN/A 3. Data submittal Procedure 4. Similar Certified Transmitter II.Certification Data2 III.External Photographs32.1033 (b) 7 IV.Block Diagrams (Circuit Diagrams) confidential42.1033 (b) 5 V. Schematic Diagrams confidential52.1033 (b) 5 VI. Test Report 1Test Report 162.1033 (b) 6 Part 24E – Supplemental IX300 EMC Test Report with previously Certified Transmitter, a Sierra Wireless, Inc., FCC ID: N7NAC750, Model: AirCard 750. 1) RF Power Output (2.1046) 2) Transmitter Radiated Spurious Emissions (2.1053) 3) Equivalent Isotropic Radiated Power Note: Files from the OEM’s Certification uploaded for the other test report data and exhibits for items required by Part 24. VI.VI.Test Report Test Report 2 2 62.1033 (b) 6 Part 15.247 – DTS, Supplemental IX300 EMC Test Report with previously Certified, WLAN, Intentional Radiator, a AirVast Technology, Inc., FCC ID: QDWWM168B, Model: WM168b-Molex. 1) Conducted Output Power Section 15.247(b)1 2) EIRP limit Section 15.247(b) 3 3) Spurious Emissions Section 15.247 (c) Note: Files from the OEM’s Certification uploaded for the other test report data and exhibits for items required by Part 15.247. Applicant: ITRONIX, Corp. FCC ID: KBCIX300AC750WLBT Exhibit 1 VI.VI. Test Report 3Test Report 362.1033 (b) 6 Part 15.247 – FHSS, Complete IX300 EMC Test Report with previously Certified Bluetooth Intentional Radiator, Billionton Systems, Inc., FCC ID: NLF-MUBTC2-CLEVO, Model: MUBTUC2. Eleven Common Bluetooth Items6 Six tests required6 15.247 (a, b, c, g, h) 1) The Occupied Bandwidth Section 15.247(a)!ii 2) Conducted Output Power Section 15.247(b)1 3) EIRP limit Section 15.247(b)3 4) RF safety Section 15.247(b)4 see Exhibit XII 5) Spurious Emissions Section 15.247 (c) 6) Power Spectral Density in Acquisition ModeN/A to FHSS VII.Test Set-up Procedures72.1041 VIII.Instruction Manual82.1033 (b) 3 IX.Internal Photographs92.1033 (b) 7 X.Part List and Tune Up Proceduresconfidential102.1033 XI.MPE RF Exposure Information11 2.1093,15.247(b)4 XII.Operational Descriptionconfidential12 2.1033(b)1,2,4,8 Antenna Requirements1215.203 XIII. Cover Letter, Certification Action Requested13 Cover Letter, Request For Confidentiality13 Cover Letter, Authorization to sign FCC Form 73113 Applicant: ITRONIX, Corp. FCC ID: KBCIX300AC750WLBT Exhibit 1 EXHIBIT 1. FCC IDENTIFICATION LABELEXHIBIT 1. FCC IDENTIFICATION LABEL The FCC Identification label required under section: 47 CFR 2.1033(c) 11 for the FCC ID: KBCIX300AC750WLBT, is located on following page. The Part 15.19 Users statement follows that page. FCC ID label locationFCC ID label location is on the bottom right side of the Tablet PC. The name ITRONIX ITRONIX is on the label heading. ⇓⇓

Applicant: ITRONIX, Corp. FCC ID: KBCIX300AC750WLBT EXHIBIT 3 Internal Photos IX300 Part 1 Part 1 INTERNAL PHOTOGRAPHS OF THE IX300INTERNAL PHOTOGRAPHS OF THE IX300 The submitted photos of the IX300 under Part Part 22 INTERNAL PHOTOGRAPHSINTERNAL PHOTOGRAPHS are from a previous filing under FCC ID: FKGTABLETPC, the WLAN and Bluetooth Intentional Radiators and are physically and electrically identical to the current IX300 configuration except, for the addition of the AirCard 750 which utilizes the PCMCIA slot. The ONLY other change is on page 6 and a corrected copy of page 6 is on the following page. The Bluetooth and WLAN antennas were simply switched one for the other indicated on the following page.

Compliance Certification Services Inc. Report No: B30813209 Page 4 INTERNAL PHOTOGRPHS OF EUT Internal of EUT --- 1 Internal of EUT --- 2 Compliance Certification Services Inc. Report No: B30813209 Page 5 Internal of EUT --- 3 Internal of EUT --- 4 Compliance Certification Services Inc. Report No: B30813209 Page 6 Internal of EUT --- 5 Internal of EUT --- 6 WLAN Antenna Position Bluetooth Antenna Position Compliance Certification Services Inc. Report No: B30813209 Page 7 Internal of EUT --- 7 Internal of EUT --- 8 Compliance Certification Services Inc. Report No: B30813209 Page 8 Internal of EUT --- 9 Internal of EUT --- 10 Compliance Certification Services Inc. Report No: B30813209 Page 9 Internal of EUT --- 11 Internal of EUT --- 12 Compliance Certification Services Inc. Report No: B30813209 Page 10 Internal of EUT --- 13 Internal of EUT --- 14 Compliance Certification Services Inc. Report No: B30813209 Page 11 Internal of EUT --- 15 Internal of EUT --- 16 Compliance Certification Services Inc. Report No: B30813209 Page 12 Internal of EUT --- 17 Internal of EUT --- 18 Compliance Certification Services Inc. Report No: B30813209 Page 13 Internal of EUT --- 19 Internal of EUT --- 20 Compliance Certification Services Inc. Report No: B30813209 Page 14 Internal of EUT --- 21

Applicant: ITRONIX, Corp.FCC ID: KBCIX300AC750WLBT Exhibit 11 1 EXHIBIT 11 - MPE CALCULATION DATA Model: IX300 with the three co-located transmitters listed below. 1.) AirCard750, (WAN) S (mw/cm^2) at 20cm =0.3164 Tx Freq: 1850.20 MHzAntenna Gain: 2.0 dBi Max Peak Power @ antenna terminal input: 30.02 dBm Channel #Frequency (MHz)Peak Power (Watts) Peak Power (dBm) (Ch.512)1850.21.00430.02 (Ch.661)1880.00.97029.87 (Ch.810)1909.80.93929.73 2.) WM168b-Molex, (W LAN), S (mw/cm^2) at 20cm = 0.0039 Tx Freq: 2412 MHzAntenna Gain: -3.04 dBi Max Peak Power @ antenna terminal input: 16.03 dBm Frequency GHz Power dBm Cable lossCorrected Level dBm Ant. Gain dBi EIRP 2.41215.45.5816.03-3.0412.99 2.43715.30.5815.88-3.0412.84 2.46214.97.5815.55-3.0412.51 3.) MUB T C2-TH, ( Bluetooth) S (mw/cm^2) at 20cm = 0.0002 Tx Freq: 2441MHzAntenna Gain: 0.11 dBi Max Peak Power @ antenna terminal input: 0.557dBm ChannelFrequency (GHz) Measured Peak Output Power (dBm) Internal EUT Cable loss dB Corrected Peak Output Power (dBm)) Corrected Peak Output Power (mW)) Low2.402-0.9321.3.3681.088 Middle2.441 -0.7431.3.5571.137 High2.480-1.2731.3.0271.006 The MPE calculations are submitted for multiple frequency exposure criteria. The ratio of the field strength or power density to the applicable exposure limit at the exposure location was determined for each transmitter below and the sum of these ratios does not exceed the 1 mW/cm^2 limit for uncontrolled exposure / general population exposure limits detailed in CFR 47, Part 1.1310. Multiple Frequency Exposure Requirements Ratio 1Ratio 2Ratio 3Limit AIRCARD750MPI350Bluetooth 0.3164 / 10.0039 / 10.0002 / 1<1.0 = .3164= .0039= .0002<1.0 Sum = 0.3205 (mW/cm^2)<1.0 Applicant: ITRONIX, Corp.FCC ID: KBCIX300AC750WLBT Exhibit 11 2 Prediction of MPE Limit OET Bulletin 65, Edition 97-01 ________ S = PG/4 π R 2 R = √ PG/4 π S S= power density P= power input to the antenna G= power gain of the antenna in the direction of interest relative to an isotropic radiator R= distance to the center of radiation of the antenna General Population/Uncontrolled Tx Frequency: 1850.20 MHz Max. Peak Power Antenna Input Terminal:30.02 dBm Antenna gain: 2.00 dBi S=1.00 (mW/cm^2) P=1004.6158(mW) G=1.58 (numeric) R =11.26 (cm) S (mw/cm^2) at 20cm = 0.316416679 Tx Frequency: 2412.00 MHz Max. Peak Power Antenna Input Terminal: 16.03 dBm Antenna gain: -3.04 dBi S=1.00 mW/cm^2) P=40.0867(mW) G=0.50 (numeric) R =1.26(cm) S (mw/cm^2) at 20cm = 0.003956028 Tx Frequency: 2441.00 MHz Max. Peak Power Antenna Input Terminal: 0.56 dBm Antenna gain: 0.11 dBi S=1.00 (mW/cm^2) P=1.1368 (mW) G=1.03 (numeric) R =0.30(cm) S (mw/cm^2) at 20cm = 0.000231718

Exhibit VI EXHIBIT VI. Test Report 2 Supplemental Test Report New Certification Of Previously Certified WLAN, Intentional Radiator Under FCC ID: KBCIX300AC750WLBT IX300 GoBook Tablet PC With AirCard 750, WLAN and Bluetooth Part 15.247- DTS, Certification Requested Prepared On Behalf Of ITRONIX, Corporation 801 South Stevens Street Spokane, WA 99204 By Spectrum Technology, Inc., 209 Dayton Street, Suite 205 Edmonds, WA 98020 425 771-4482 February 23, 2004 Applicant: ITRONIX, Corporation FCC ID: KBCIX300AC750WLBT Exhibit VI2 Supplemental Test Report TABLE OF CONTENTS Cover Page1 Table Of Contents2 Exhibit 6A – Conducted RF Power Output Part 15.247(b) 3 & Equivalent Isotropic Radiated Power Exhibit 6A - Field Strength of Three Fundamental Operating Frequencies4 Exhibit 6G – Radiated Harmonics and Spurious Emissions5 - 6 . Equipment list and test set up photos are located in Exhibit 7 Note: Please refer to the OEM Certification exhibits under FCC ID: QDWWM168B, Model: WM168b-Molex for original test report data and confidential exhibits where appropriate. Applicant: ITRONIX, Corporation FCC ID: KBCIX300AC750WLBT Exhibit VI3 EXHIBIT 6A - TEST: CONDUCTED RF POWER OUTPUT Applicant:ITRONIX, Corporation Model: IX300 with AirCard 750, (WAN), WM168b-Molex, (WLAN), MUBTC2-TH, (Bluetooth) Minimum Standard Specified:Part 15.247(b)(1) is 1 Watt for DTS Test Results:The measured output power level shows compliance with the above limit and the power granted for the OEM module. Authorization Procedure: Part 2.1046 Maximum Conducted Power Output:16.03 dBm Please be advised the conducted power output reported herein includes all associated factors and is representative of the actual maximum power output for this Intentional Radiator when operating installed in the IX300. The reported level supersedes any conducted power output reported in the previous OEM filing, a copy of which is uploaded with this filing for some of the supporting exhibits. Method of Measurement: 1. The output power levels was adjusted to a maximum level for this model. (Setting 90) 2. The measured channels cover the low, middle and top of the operational frequency range previously approved for this Intentional Radiator of 2412 – 2462 MHz. Tabular Results of Conducted RF Output Power and EIRP WLAN Frequency GHz Power dBm Cable lossCorrected Level dBm Ant. Gain dBi EIRP 2.41215.45.5816.03-3.0412.99 2.43715.30.5815.88-3.0412.84 2.46214.97.5815.55-3.0412.51 The maximum WLAN EIRP is 12.99 dBm with the peak antenna gain of -3.04 dBi. Applicant: ITRONIX, Corporation FCC ID: KBCIX300AC750WLBT Exhibit VI4 EXHIBIT 6G - TEST: FIELD STRENGTH OF THREE FUNDAMENTAL OPERATING FREQUENCIES Applicant:ITRONIX, Corporation FCC ID: KBCIX300AC750WLBT Model: IX300 with AirCard 750, (WAN), WM168b-Molex, (WLAN), MUBTC2-TH, (Bluetooth) Minimum Standard Specified:Part 15.247(c), 15.205 & 15.209(a) Spectrum OATS at Fluke Park II Test Date: 02/11/04 Test Results:Equipment complies with standard Authorization Procedure: Part 2.1053 Test Equipment Set Up:See Block Diagram in Exhibit 7 Test Frequencies WLAN:2412, 2437, & 2462 MHz (2412 – 2462 MHz band) Field Strength for Low, Mid and High Channel WLAN Channel & Frequency in GHz Ant. Vert/ Horz Spectrum Analyzer Reading dBuV + Ant Factor - Amp Gain + Cable Loss = dBuV/m @ 3 meters or uV/m @ 3 meters Ch. 1 Low 2.412 V 69.47 28.37 0 3.28 101.12113762.72 Ch. 6 Mid 2.437 V 67.06 28.37 0 3.28 98.71 86198.56 Ch.11 High 2.462 V 67.31 28.37 0 3.28 98.96 88715.60 Applicant: ITRONIX, Corporation FCC ID: KBCIX300AC750WLBT Exhibit VI5 EXHIBIT 6 TEST: FIELD STRENGTH OF SPURIOUS RADIATED EMISSIONS FCC ID: KBCIX300AC750WLBT Applicant: ITRONIX Corp. Model: IX300 with AirCard 750, (WAN), WM168b- Molex, (WLAN), & MUBTC2-TH, (Bluetooth) Minimum Standard Specified:Part 15.247(c) Authorization Procedure: Part 2.1053 Frequency Range Observed: 0 to 25 GHz Date: 2/12/04 Test Equipment Setup: See block diagram and photos in Exhibit 7 NOTE: Transmit on the low, mid & hi frequency with the WM168b-Molex, (WLAN) Intentional Radiator. RADIATED HARMONIC AND SPURIOUS EMISSIONS & RESTRICTED BANDS Frequency GHz Max. SA Rdg. dBu/V Ant. Vert. or Horz. Peak or Average Detector Antenna Factor dB Cable & filter loss dB Amp Gain Corrected Reading dBuV/m Limit 74 Peak 54 Avg. dBu/V Margin in dB below LIMIT Fo - 2.412 4.82438.72 VPeak32.453.9723.251.94 7422.06 4.82429.75 VAverage32.453.9723.242.97 5411.03 7.23639.27 VPeak36.773.4225.953.56 7420.44 7.236 29.16 VAverage36.773.4225.943.45 5410.55 9.64839.64 VPeak37.554.8624.557.55 7416.45 9.66830.30 VAverage37.554.8624.548.21 545.79 Fo – 2.437 4.87441.66 VPeak32.453.9723.254.88 7419.12 4.87430.49 VAverage32.453.9723.243.71 5410.29 7.31139.26 VPeak36.773.4225.953.55 7420.45 7.31130.28 VAverage36.773.4225.944.57 549.45 9.74840.13 VPeak37.554.8624.757.84 7416.16 9.74830.42 VAverage37.554.8624.748.13 545.87 Fo – 2.462 4.92438.07 VPeak32.453.9723.251.29 7422.71 4.92430.22 VAverage32.453.9723.243.42 5410.58 7.38639.48 VPeak36.773.4225.953.77 7420.23 7.38629.34 VAverage36.773.4225.943.63 5410.37 9.84838.12 VPeak37.554.8624.755.83 7418.17 9.84828.90` VAverage37.554.8624.746.61 547.39 Harmonic emissions on all three channels (low, mid & high) 5Fo – 10Fo at or below noise floor ChannelFrequency in GHzHarmonics ObservedLimit 74 dBuV/m Peak & 54 dBuV/m Average Low Ch.2.412 5Fo – 10Fo12.060 – 24.120None -at or < noise floor @3m All emissions < 54 dBuV/m Mid Ch.2.437 5Fo – 10Fo12.185 – 24.370None -at or < noise floor @3m All emissions < 54 dBuV/m High Ch.2.4620 5F o- 10Fo12.400 – 24.620None -at or < noise floor @3m All emissions < 54 dBuV/m Applicant: ITRONIX, Corporation FCC ID: KBCIX300AC750WLBT Exhibit VI6 EXHIBIT 6 TEST: FIELD STRENGTH OF SPURIOUS RADIATION EMISSIONS FCC ID: KBCIX300AC750WLBT Applicant: ITRONIX Corp. Model: IX300 with AirCard 750, (WAN), WM168b- Molex, (WLAN), & MUBTC2-TH, (Bluetooth) Minimum Standard Specified:Part 15.247(c) Authorization Procedure: Part 2.1053 Frequency Range Observed: 0 to 25 GHz Date: 2/…

Text truncated - open the document above for the full version.

Exhibit VI EXHIBIT VI. Test Report 3 New Certification Of Previously Certified Bluetooth Intentional Radiator Under FCC ID: KBCIX300AC750WLBT IX300 GoBook Tablet PC With AirCard 750, WLAN and Bluetooth Part 15.247- FHSS, Certification Requested Prepared On Behalf Of ITRONIX, Corporation 801 South Stevens Street Spokane, WA 99204 By Spectrum Technology, Inc. 209 Dayton Street, Suite 205 Edmonds, WA 98020 425 771-4482 February 23, 2004 Applicant: ITRONIX, Corp. FCC ID KBCIX300AC750WLBT Exhibit VI2 Bluetooth Test Report Table of Contents Section 2.1033(b) 6 Cover Page1 Table Of Contents2 Twelve Common Items to Bluetooth Device’s 3 - 5 (Incorporated by reference, copied verbatim from FCC list) Test Report - Six Bluetooth Tests Required 1) The 20 dB Bandwidth Section 15.247(a)26 2) Conducted Peak Output Power Section 15.247(b)17 3) De facto EIRP Limit Section 15.247(b)1 7 4) RF Safety Section 15.247(b)5 Please Refer to Exhibit XII 5) Spurious RF Conducted Emissions Section 15.247 (c) Band-edge Compliance of RF Conducted Emissions8 Spurious Radiated Emissions in Restricted Bands9 Spurious Radiated Emissions At Upper Restricted Band-edge10 6) Power Spectral Density in Acquisition Mode Section 15.247 (d) * Appendix 1 Table of Contents Plots 1 to 3 20 dB Bandwidth Plot 479 Hopping Frequenci…
