KBCIX300AC775WLBTGoBook Tablet PC with WLAN and Bluetooth

Getting Started Congratulations on your purchase of the Itronix GoBook Tablet PC! Your new GoBook Tablet PC features the most innovative advances in portable computing technology. It combines state-of-the-art ergonomics, patented RF technology, and a rugged, durable architecture to provide you with a Tablet PC that is compact, powerful, and easy to use virtually anywhere. Designed for a wide range of business productivity applications, the GoBook Tablet PC is an ideal choice for mobile workers who are on the go throughout the day. It offers flexibility, durability and dependability along with ruggedness and portability to make it quick and easy to transport to any work location, indoors, outdoors, or in your vehicle. This online document, GoBook Tablet PC Help, contains all the information you need to set up and use your new GoBook Tablet PC. It describes all the features of the GoBook Tablet PC in an easy-to-read yet thorough manner. For information on printing, navigating or using GoBook Tablet PC Help see How to Use This Help System. To optimize readability we recommend you view this document in landscape orientation. Unpacking Your System After opening the package, carefully inspect the contents. Contact your dealer if any items are missing or appear damaged. The shipping carton should contain the following: STANDARD GoBook® Tablet PC Help Page 1 of 64GoBook Tablet PC Help 2/23/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~... l 8.4” SVGA TFT Active Matrix Color Display l Seven (7) Hot keys l 56K V.92 Fax/Modem l 10/100 Mbit Ethernet LAN l Li-Ion Battery l Two (2) USB 2.0 Ports l RJ11 Jack l RJ45 Jack l Two PC Card Slots: a Type II PC Card Slot, and a Compact Flash Slot l External Speaker and Microphone Jacks l Internal Speaker and Microphone l Stand Holder Connector l Second Battery Connector l Microsoft Windows XP Tablet PC edition l 3-year limited warranty OPTIONS The following items are normally optional, but some vendors may include them in the standard package. Some items may not be available in some countries, or some vendors may choose not to carry all the items. l Vehicle Adapter l Carry Case l Vehicle Dock l Desk Mount l External USB Floppy Disk Drive l External USB DVD/CD-RW Drive l Shoulder Strap l Soft Handle Page 2 of 64GoBook Tablet PC Help 2/23/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~... l DRAM memory modules l WLAN radio l Bluetooth radio l Wireless WAN radios and antennas l Extra Battery l Tip and Ring Cable l RJ-11 Cable l USB to Serial Cable l USB 2.0 Port Replicator CAUTION When purchasing any of the accessories listed above, purchase only those accessories that are approved for use with your computer. The above accessories are proprietary items. Your system vendor can obtain these approved accessories. If you use items that are not approved for use with this computer, you may cause your computer to malfunction, or to emit or receive electromagnetic radiation in excess of local regulations. For non-proprietary accessories such as PC Cards or printers, ensure that the accessory functions properly in your computer before making the purchase. Your system vendor may be able to recommend reliable brands and models. Where to Look For Information About Your GoBook Tablet PC This Help System describes the key elements of your computer. Be sure to read it thoroughly before you begin using your GoBook Tablet PC and refer to whenever needed. It includes a table of contents, search function, index and glossary to make finding the information you need quick and easy. See How to Use this Help System for information about navigating, printing or otherwise using this document. About Windows For more extensive information and help about Windows go to Help and Support, found on the Start Menu. We also recommend that you go to Start, All Programs, Accessories to open Tour Windows XP, an online orientation of Windows XP. 72_0111_007 13 February 2004 © 2003-2004 Itronix Corporation. All rights reserved. Page 3 of 64GoBook Tablet PC Help 2/23/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~... Features High Capacity Hard Disk Drive Your Tablet PC has a high capacity hard disk drive, enabling you to install your favorite programs and store large multimedia files. Full Array of Ports and Connectors Your computer includes standard ports for connecting to peripherals such as USB devices and monitors. USB ports allow you to add many types of peripherals. SVGA Display Your Tablet PC has an SVGA TFT active matrix display with integrated graphics capabilities. Built-in Microphone and Speaker The internal speaker and microphone enable you to run a variety of multimedia applications. Hot Keys Hot keys or function keys allow you to suspend your computer, navigate, and give you easy control of your display. 72_0111_007 13 February 2004 © 2003-2004 Itronix Corporation. All rights reserved. Precautions You can use your computer under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your computer: l Follow all warnings and instructions noted in this documentation and in the Windows Help and Support, found on the Start Menu. l The first time you use your computer, we recommend that you carefully read the section on GoBook® Tablet PC Help GoBook® Tablet PC Help Page 4 of 64GoBook Tablet PC Help 2/23/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~... Power Management to familiarize yourself with some basic battery information and to ensure optimum performance l There is danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. l Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleani…

Text truncated - open the document above for the full version.

Identification GoBook Tablet PC (IX300) Help Copyright Notice © Copyright 2003 Itronix Corporation. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any other language or computer language in whole or in part, in any form or by any means, whether it be electronic, mechanical, magnetic, optical, manual, or otherwise, without the prior written consent of Itronix Corporation, South 801 Stevens Street, Spokane, Washington 99204. Disclaimer This document is printed in the U.S.A. Itronix Corporation reserves the right to revise the manual and make periodic changes to the content without a direct or inferred obligation to Itronix to notify any person of such revision or changes. Itronix Corporation does not assume responsibility for the use of this help manual, nor for any patent infringements or other rights or third parties who may use the manual. This document contains valuable trade secrets and proprietary information of Itronix Corporation. This product is available for purchase under the terms of the Itronix Hardware Purchase and Software License Agreement. Itronix hardware products may be reconditioned, or be manufactured from parts and components that may be new, used, rebuilt, or recycled and in some cases, the hardware product may not be new and may have been previously installed. In any event, Itronix warranty terms apply. Trademark Notice Itronix is a registered trademark of Itronix Corporation. GoBook is a registered trademark of Itronix Corporation Microsoft, MS, Windows, and MS-DOS are registered trademarks of Microsoft Corporation. IBM is a trademark of International Business Machines Corporation. Compliance Statements The GoBook Tablet PC (IX300) computer has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. GoBook™ Tablet PC Hel p Legal Information Page 1 of 4termsRev1 11/18/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Desktop\Marks%20share... The GoBook Tablet PC (IX300) computer complies with Part 68 of the FCC Rules. On the bottom of this equipment is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company. The REN is used to determine the quantity of devices which may be connected to the telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of the RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to the line, as determined by the total RENs, contact the telephone company to determine the maximum REN for the calling area. The GoBook Tablet PC (IX300) computer may be connected to the telephone network using the RJ-11 jack provided. If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. If advance notice isn’t practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary. The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the operation of the equipment. If this happens, the telephone company will provide advance notice in order for you to make the necessary modifications in order to maintain uninterrupted service. If trouble is experienced with this equipment, please contact the equipment manufacturer for repair and/or warranty information. Do not attempt repairs of this equipment yourself without obtaining manufacturer authorized parts and documentation. If the trouble is causing harm to the telephone network, the telephone company may request you remove the equipment from the network until the problem is resolved. Compliance Statement for Canada NOTICE The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). The Department does not guarantee the equipment will operate to the user’s satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations. Repairs to certified equipment should be made by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the…

Text truncated - open the document above for the full version.

EXHIBIT XIII - Cover Letters New Certification Report for the FCC ID: KBCIX300AC775WLBT Cover Letter 1.) Certification Action Requested Cover Letter 2.) Request for Confidentiality under Part 0.459. Cover Letter 3.) ITRONIX Agent Authorization letter allowing Rod Munro to Sign FCC Form 731 on behalf of ITRONIX, Corp. Exhibit 13

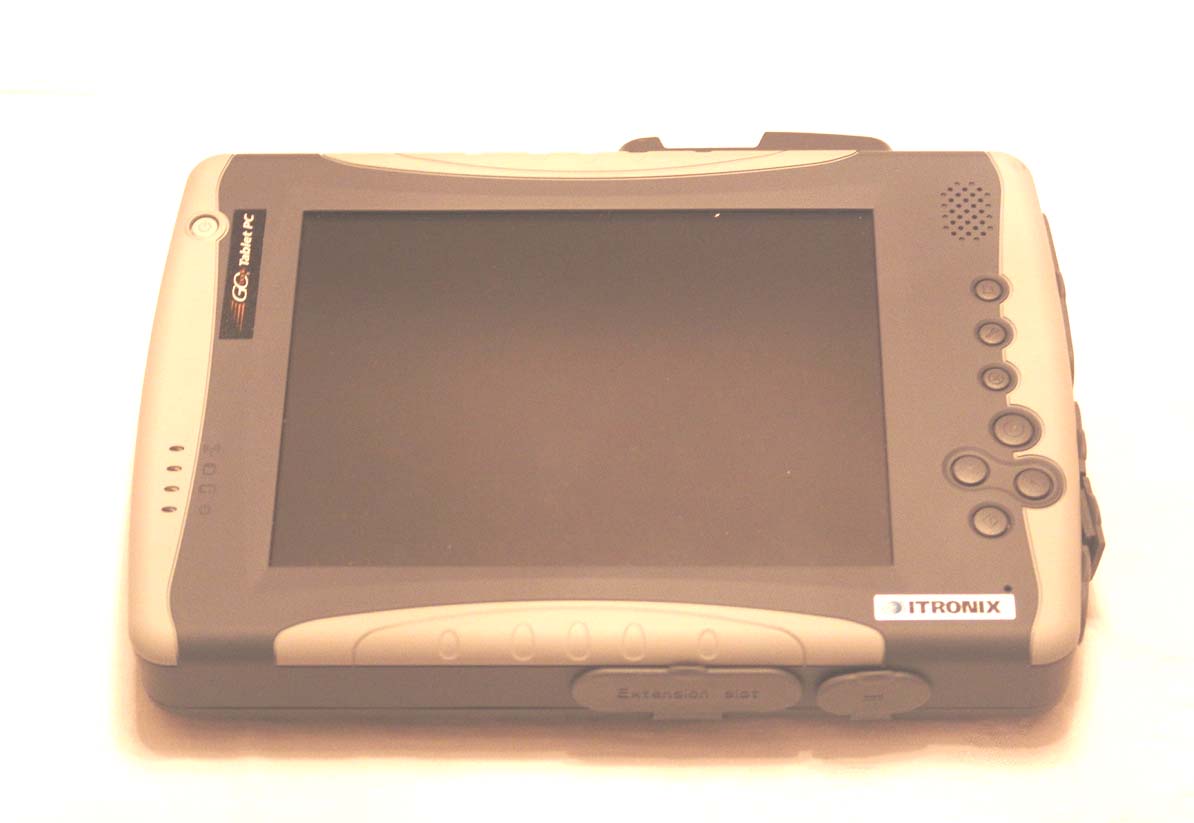

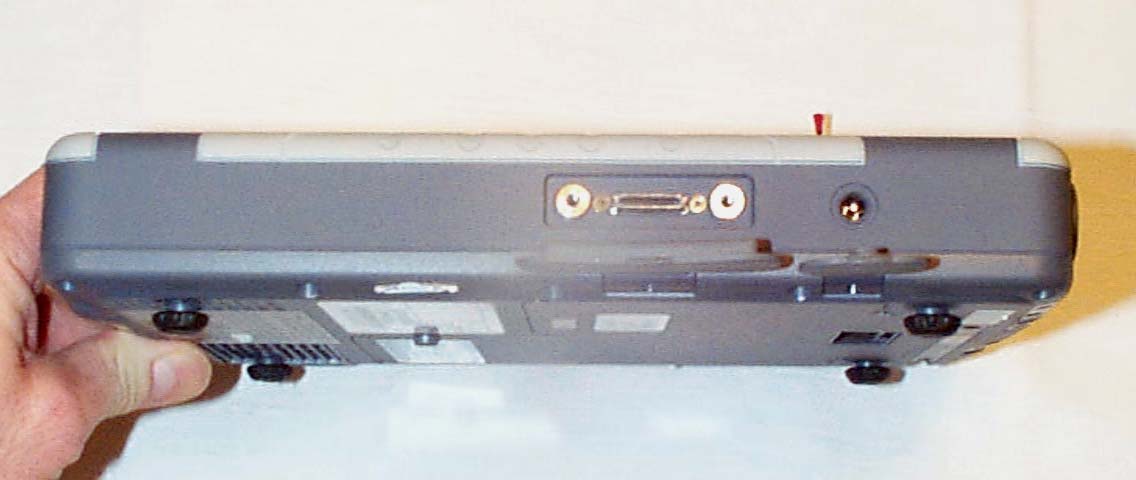

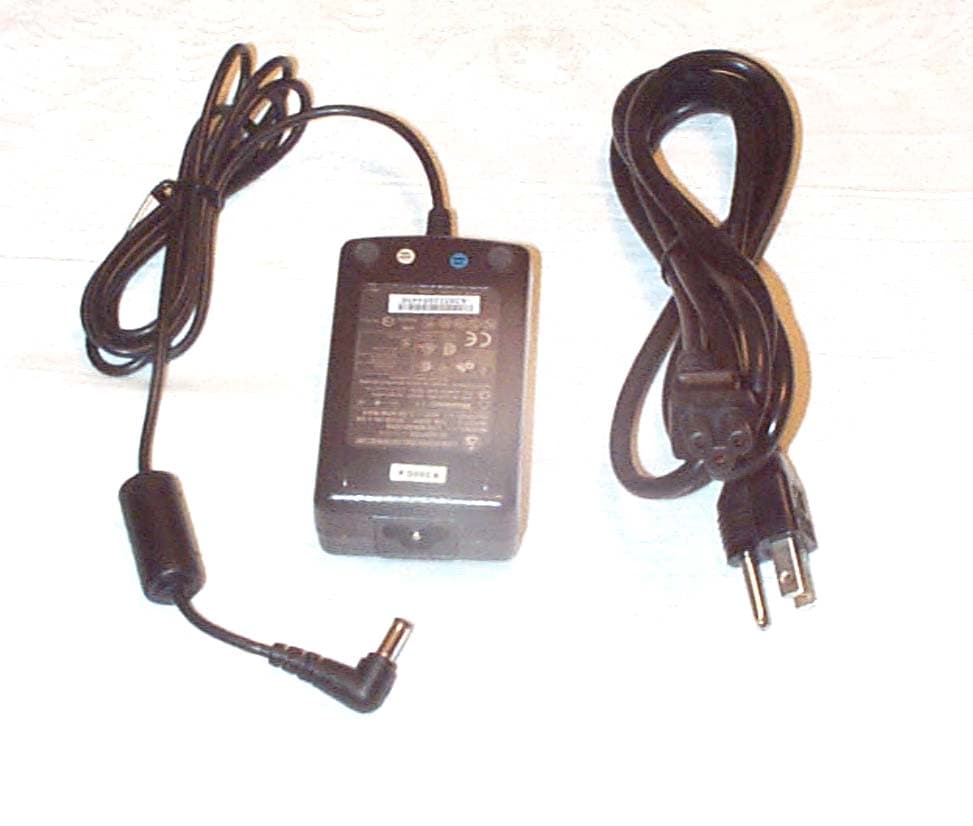

Applicant: ITRONIX, Corporation FCC ID: KBCIX300AC775WLBT Front View IX300 Back View IX300 Exhibit 3 External Photos Applicant: ITRONIX, Corporation FCC ID: KBCIX300AC775WLBT ‘Top View IX300 AC775 Antenna visible Right Side View IX300 Exhibit 3 External Photos Applicant: ITRONIX, Corporation FCC ID: KBCIX300AC775WLBT Left Side View IX300 Bottom View IX300 Exhibit 3 External Photos Applicant: ITRONIX, Corporation FCC ID: KBCIX300AC775WLBT AC Power adapter with ferrite core Model: LSE9802A2060 Exhibit 3 External Photos

Applicant: ITRONIX, Corp. FCC ID: KBCIX300AC775WLBT EXHIBIT 1. LIST OF EXHIBITS and FCC IDENTIFICATION LABEL LIST OF EXHIBITS DESCRIPTION EXHIBITS REFERENCE I. Identification label Information 1 2.1033 (b) 7 & 2.925 & General Information 1A 1. Production Plans 2.1031 2. Application References N/A 3. Data submittal Procedure 4. Similar Certified Transmitter II. Certification Data 2 III. External Photographs 3 2.1033 (b) 7 IV. Block Diagrams (Circuit Diagrams) confidential 4 2.1033 (b) 5 V. Schematic Diagrams confidential 5 2.1033 (b) 5 VI Test Report 1 6 2.1033 (b) 6 Part 22H & 24E – Supplemental IX300 EMC Test Report with previously Certified Transmitter, a Sierra Wireless, Inc., FCC ID: N7NAC775, Model: AirCard 775. 1) RF Power Output (2.1046) 2) Transmitter Radiated Spurious Emissions (2.1053) 3) Equivalent Isotropic Radiated Power Note: Files from the OEM’s Certification uploaded for the other test report data and exhibits for items required by Parts 22 & 24. VI Test Report 2 6 2.1033 (b) 6 Part 15.247 – DTS, Supplemental IX300 EMC Test Report with previously Certified, WLAN, Intentional Radiator, a AirVast Technology, Inc., FCC ID: QDWWM168B, Model: WM168b-Molex. 1) Conducted Output Power Section 15.247(b)1 2) EIRP limit Section 15.247(b) 3 3) Spurious Emissions Section 15.247 (c) Note: Files from the OEM’s Certification uploaded for the other test report data and exhibits for items required by Part 15.247. Exhibit 1 Applicant: ITRONIX, Corp. FCC ID: KBCIX300AC775WLBT VI Test Report 3 6 2.1033 (b) 6 Part 15.247 – FHSS, Complete IX300 EMC Test Report with previously Certified Bluetooth Intentional Radiator, Billionton Systems, Inc., FCC ID: NLF-MUBTC2-CLEVO, Model: MUBTUC2. Eleven Common Bluetooth Items 6 Six tests required 6 15.247 (a, b, c, g, h) 1) The Occupied Bandwidth Section 15.247(a)!ii 2) Conducted Output Power Section 15.247(b)1 3) EIRP limit Section 15.247(b)3 4) RF safety Section 15.247(b)4 see Exhibit XII 5) Spurious Emissions Section 15.247 (c) 6) Power Spectral Density in Acquisition Mode N/A to FHSS VII. Test Set-up Procedures 7 2.1041 VIII. Instruction Manual 8 2.1033 (b) 3 IX. Internal Photographs 9 2.1033 (b) 7 X. Part List and Tune Up Procedures confidential 10 2.1033 XI. MPE RF Exposure Information 11 2.1093,15.247(b)4 XII. Operational Description confidential 12 2.1033(b)1,2,4,8 Antenna Requirements 12 15.203 XIII. Cover Letter, Certification Action Requested 13 Cover Letter, Request For Confidentiality 13 Cover Letter, Authorization to sign FCC Form 731 13 Exhibit 1 Applicant: ITRONIX, Corp. FCC ID: KBCIX300AC775WLBT EXHIBIT 1. FCC IDENTIFICATION LABEL The FCC Identification label required under section: 47 CFR 2.1033(c) 11 for the FCC ID: KBCIX300AC775WLBT, is located on following page. The Part 15.19 Users statement follows that page. FCC ID label location is on the bottom right side of the Tablet PC. The name ITRONIX is on the label heading. ⇓ Exhibit 1

Applicant: ITRONIX, Corp. FCC ID: KBCIX300AC750WLBT EXHIBIT 3 Internal Photos IX300 Part 1 Part 1 INTERNAL PHOTOGRAPHS OF THE IX300INTERNAL PHOTOGRAPHS OF THE IX300 The submitted photos of the IX300 under Part Part 22 INTERNAL PHOTOGRAPHSINTERNAL PHOTOGRAPHS are from a previous filing under FCC ID: FKGTABLETPC, the WLAN and Bluetooth Intentional Radiators and are physically and electrically identical to the current IX300 configuration except, for the addition of the AirCard 750 which utilizes the PCMCIA slot. The ONLY other change is on page 6 and a corrected copy of page 6 is on the following page. The Bluetooth and WLAN antennas were simply switched one for the other indicated on the following page.

Compliance Certification Services Inc. Report No: B30813209 Page 4 INTERNAL PHOTOGRPHS OF EUT Internal of EUT --- 1 Internal of EUT --- 2 Compliance Certification Services Inc. Report No: B30813209 Page 5 Internal of EUT --- 3 Internal of EUT --- 4 Compliance Certification Services Inc. Report No: B30813209 Page 6 Internal of EUT --- 5 Internal of EUT --- 6 WLAN Antenna Position Bluetooth Antenna Position Compliance Certification Services Inc. Report No: B30813209 Page 7 Internal of EUT --- 7 Internal of EUT --- 8 Compliance Certification Services Inc. Report No: B30813209 Page 8 Internal of EUT --- 9 Internal of EUT --- 10 Compliance Certification Services Inc. Report No: B30813209 Page 9 Internal of EUT --- 11 Internal of EUT --- 12 Compliance Certification Services Inc. Report No: B30813209 Page 10 Internal of EUT --- 13 Internal of EUT --- 14 Compliance Certification Services Inc. Report No: B30813209 Page 11 Internal of EUT --- 15 Internal of EUT --- 16 Compliance Certification Services Inc. Report No: B30813209 Page 12 Internal of EUT --- 17 Internal of EUT --- 18 Compliance Certification Services Inc. Report No: B30813209 Page 13 Internal of EUT --- 19 Internal of EUT --- 20 Compliance Certification Services Inc. Report No: B30813209 Page 14 Internal of EUT --- 21

Applicant: ITRONIX, Corp. FCC ID: KBCIX300AC775WLBT EXHIBIT 11 - MPE CALCULATION DATA Model: IX300 with the three co-located transmitters listed below. 1.) AirCard775, (WAN) GSM850 S (mw/cm^2) at 20cm = 0.14529791 Tx Freq: 836.6 MHz Antenna Gain: -2.8 dBi Max Peak Conducted Power @ antenna terminal input: 31.44 dBm Channel # Frequency (MHz) Peak Power (Watts) GSMK Mode Peak Power (dBm) GSMK Mode (Ch.128) 824.2 1.39 31.43 (Ch.190) 836.6 1.39 31.44 (Ch.251) 848.8 1.37 31.38 2.) AirCard775, (WAN) PCS1900 S (mw/cm^2) at 20cm = 0.218403386 Tx Freq: 1850.20 MHz Antenna Gain: 2.0 dBi Max Peak Conducted Power @ antenna terminal input: 28.41 dBm Channel # Frequency (MHz) Peak Power (Watts) GSMK Mode Peak Power (dBm) GSMK Mode (Ch.512) 1850.2 0.684 28.35 (Ch.661) 1880.0 0.693 28.41 (Ch.810) 1909.8 0.687 28.37 3.) WM168b-Molex, (WLAN) S (mw/cm^2) at 20cm = 0.0039 Tx Freq: 2412 MHz Antenna Gain: -3.04 dBi Max Peak Conducted Power @ antenna terminal input: 16.03 dBm Frequency GHz Power dBm Cable loss Corrected Level dBm Ant. Gain dBi EIRP 2.412 15.45 .58 16.03 -3.04 12.99 2.437 15.30 .58 15.88 -3.04 12.84 2.462 14.97 .58 15.55 -3.04 12.51 Exhibit 11 1 Applicant: ITRONIX, Corp. FCC ID: KBCIX300AC775WLBT 4.) MUBTC2-TH, (Bluetooth) S (mw/cm^2) at 20cm = 0.0002 Tx Freq: 2441MHz Antenna Gain: 0.11 dBi Max Peak Conducted Power @ antenna terminal input: 0.557dBm Channel Frequency (GHz) Measured Peak Output Power (dBm) Internal EUT Cable loss dB Corrected Peak Output Power (dBm)) Corrected Peak Output Power (mW)) Low 2.402 -0.932 1.3 .368 1.088 Middle 2.441 -0.743 1.3 .557 1.137 High 2.480 -1.273 1.3 .027 1.006 Multiple Frequency Exposure Requirements The AC775 WAN and Bluetooth can transmit at the same time. The WLAN and Bluetooth can transmit at the same time. The AC775 WAN and WLAN cannot transmit at the same time. In normal operation all three cannot transmit at the same time. However for worst case multi-frequency exposure we shall include all three transmitters The MPE calculations are submitted for multiple frequency exposure criteria. The ratio of the field strength or power density to the applicable exposure limit at the exposure location was determined for each transmitter below and the sum of these ratios does not exceed the 1 mW/cm^2 limit for uncontrolled exposure / general population exposure limits detailed in CFR 47, Part 1.1310. Multiple Frequency Exposure Requirements with GSM850 Ratio 1 Ratio 2 Ratio 3 Limit AIRCARD775 WLAN Bluetooth 0.1453 /0.56 0.0039 / 1 0.0002 / 1 <1.0 = .2595 = .0039 = .0002 <1.0 Sum = 0.2636 (mW/cm^2) <1.0 Multiple Frequency Exposure Requirements with PCS1900 Ratio 1 Ratio 2 Ratio 3 Limit AIRCARD775 WLAN Bluetooth 0.2184 / 1 0.0039 / 1 0.0002 / 1 <1.0 = .2184 = .0039 = .0002 <1.0 Sum = 0.2225 (mW/cm^2) <1.0 Prediction of MPE Limit OET Bulletin 65, Edition 97-01 ________ S = PG/4 πR 2 R = √ PG/4πS S= power density P= power input to the antenna G= power gain of the antenna in the direction of interest relative to an isotropic radiator R= distance to the center of radiation of the antenna Exhibit 11 2 Applicant: ITRONIX, Corp. FCC ID: KBCIX300AC775WLBT General Population/Uncontrolled 1.) AirCard775, (WAN) GSM850 Tx Frequency: 836.60 MHz Max. Peak Power Antenna Input Terminal: 31.44 dBm Antenna gain: -2.80 dBi S= 0.56 (mW/cm^2) P= 1393.1568 (mW) G= 0.52 (numeric) R = 10.21 (cm) S (mw/cm^2) at 20cm = 0.14529791 2.) AirCard775, (WAN) PCS1900 Tx Frequency: 188000 MHz Max. Peak Power Antenna Input Terminal: 28.41 dBm Antenna gain: 2.00 dBi S= 1.00 (mW/cm^2) P= 693.4258 (mW) G= 1.58 (numeric) R = 9.35 (cm) S (mw/cm^2) at 20cm = 0.218403386 3.) WM168b-Molex, (WLAN) Tx Frequency: 2412.00 MHz Max. Peak Power Antenna Input Terminal: 16.03 dBm Antenna gain: -3.04 dBi S= 1.00 mW/cm^2) P= 40.0867 (mW) G= 0.50 (numeric) R = 1.26 (cm) S (mw/cm^2) at 20cm = 0.003956028 4.) MUBTC2-TH, (Bluetooth) Tx Frequency: 2441.00 MHz Max. Peak Power Antenna Input Terminal: 0.56 dBm Antenna gain: 0.11 dBi S= 1.00 (mW/cm^2) P= 1.1368 (mW) G= 1.03 (numeric) R = 0.30 (cm) S (mw/cm^2) at 20cm = 0.000231718 Exhibit 11 3

Compliance Certification Services Inc. Report No: B30813209-RP FCC ID: FKGTABLETPC Date of Issue: September 16, 2003 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 79 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Twinhead International Corp Ta b l e t P C Model: T8(Twinhead) / CT30(Intermec) / IX300(Itronix) Trade Name: Twinhead / Intermec / Itronix Prepared for Twinhead International Corp 10F, 550 Rueiguang Rd, Neihu, Taipei, Taiwan 114, R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: B30813209-RP FCC ID: FKGTABLETPC Date of Issue: September 16, 2003 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION..................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ............................................. 6 3.5 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION ................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES...............................................................................................................................8 5.2 EQUIPMENT............................................................................................................................. 8 5.3 LABORATORY ACCREDITATIONS AND LISTING....................................................................... 8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS............................................................................ 9 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 10 6.1 SUPPORT EQUIPMENT............................................................................................................ 10 7. FCC PART 15.247 REQUIREMENTS...................................................................................... 11 CONDITION A: WLAN OPERATION ........................................................................................... 11 7.1 6DB BANDWIDTH................................................................................................................... 11 7.2 PEAK POWER......................................................................................................................... 14 7.3 BAND EDGES MEASUREMENT...................................................................................... 17 7.4 PEAK POWER SPECTRAL DENSITY......................................................................................... 22 7.5 RADIO FREQUENCY EXPOSURE.............................................................................................. 25 CONDITION B: BLUETOOTH OPERATION .............................................................................. 26 7.6 PEAK POWER......................................................................................................................... 26 7.7 BAND EDGES MEASUREMENT...................................................................................... 29 7.8 PEAK POWER SPECTRAL DENSITY......................................................................................... 34 7.9 FREQUENCY SEPARATION ............................................................................................ 37 7.10 NUMBER OF HOPPING FREQUENCY............................................................................ 39 7.11 TIME OF OCCUPANCY (DWELL TIME) ........................................................................ 41 7.12 RADIO FREQUENCY EXPOSURE.............................................................................................. 45 CONDITION C: CO-LACATED OPERATION (WLAN & BLUETOOTH OPERATED SIMULTANEOUSLY) ............................................................................................ 46 7.13 RADIATED EMISSIONS........................................................................................................... 46 7.14 POWERLINE CONDUCTED EMISSIONS.................................................................................... 76 Compliance Certification Services Inc. Report No: B30813209-RP FCC ID: FKGTABLETPC Date of Issue: September 16, 2003 Page 3 1. TEST RESULT CERTIFICATION Applicant: Twinhead International Corp 10F, 550 Rueiguang Rd, Neihu, Taipei, Taiwan 114, R.O.C. Equipment Under Test: Tablet PC Trade Name: Twinhead / Intermec / Itronix Model: T8(Twinhead) / CT30(Intermec) / IX300(Itronix) Model Difference All the above models are identical except the model designation Report Number: B30813209-RP Date of Test: August 19 ~ September 5, 2003 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tes…

Text truncated - open the document above for the full version.

Exhibit VI EXHIBIT VI. Test Report 2 Supplemental Test Report New Certification Of Previously Certified WLAN, Intentional Radiator Under FCC ID: KBCIX300AC555WLBT IX300 GoBook Tablet PC With AirCard 555, WLAN and Bluetooth Part 15.247- DTS, Certification Requested Prepared On Behalf Of ITRONIX, Corporation 801 South Stevens Street Spokane, WA 99204 By Spectrum Technology, Inc., 209 Dayton Street, Suite 205 Edmonds, WA 98020 425 771-4482 March 8, 2004 Applicant: ITRONIX, Corporation FCC ID: KBCIX300AC555WLBT Exhibit VI 2 Supplemental Test Report TABLE OF CONTENTS Cover Page 1 Table Of Contents 2 Exhibit 6A – Conducted RF Power Output Part 15.247(b) 3 & Equivalent Isotropic Radiated Power Exhibit 6A - Field Strength of Three Fundamental Operating Frequencies 4 Exhibit 6G – Radiated Harmonics and Spurious Emissions 5 - 6 . Equipment list and test set up photos are located in Exhibit 7 Note: Please refer to the OEM Certification exhibits under FCC ID: QDWWM168B, Model: WM168b-Molex for original test report data and confidential exhibits where appropriate. Applicant: ITRONIX, Corporation FCC ID: KBCIX300AC555WLBT Exhibit VI 3 EXHIBIT 6A - TEST: CONDUCTED RF POWER OUTPUT Applicant: ITRONIX, Corporation Model: IX300 with AirCard 555, (WAN), WM168b-Molex, (WLAN), MUBTC2-TH, (Bluetooth) Minimum Standard Specified: Part 15.247(b)(1) is 1 Watt for DTS Test Results: The measured output power level shows compliance with the limit and the power granted for the OEM module. Authorization Procedure: Part 2.1046 Maximum Conducted Power Output: 16.03 dBm Please be advised the conducted power output reported herein includes all associated factors and is representative of the actual maximum power output for this Intentional Radiator when operating installed in the IX300. The reported level supersedes any conducted power output reported in the previous OEM filing, a copy of which is uploaded with this filing for some of the supporting exhibits. Method of Measurement: 1. 2. The output power levels was adjusted to a maximum level for this model. (Setting 90) The measured channels cover the low, middle and top of the operat…

Text truncated - open the document above for the full version.
