Getting Started Congratulations on your purchase of the Itronix GoBook Tablet PC! Your new GoBook Tablet PC features the most innovative advances in portable computing technology. It combines state-of-the-art ergonomics, patented RF technology, and a rugged, durable architecture to provide you with a Tablet PC that is compact, powerful, and easy to use virtually anywhere. Designed for a wide range of business productivity applications, the GoBook Tablet PC is an ideal choice for mobile workers who are on the go throughout the day. It offers flexibility, durability and dependability along with ruggedness and portability to make it quick and easy to transport to any work location, indoors, outdoors, or in your vehicle. This online document, GoBook Tablet PC Help, contains all the information you need to set up and use your new GoBook Tablet PC. It describes all the features of the GoBook Tablet PC in an easy-to-read yet thorough manner. For information on printing, navigating or using GoBook Tablet PC Help see How to Use This Help System. To optimize readability we recommend you view this document in landscape orientation. Unpacking Your System After opening the package, carefully inspect the contents. Contact your dealer if any items are missing or appear damaged. The shipping carton should contain the following: STANDARD GoBook® Tablet PC Help Page 1 of 64GoBook Tablet PC Help 2/23/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~... l 8.4” SVGA TFT Active Matrix Color Display l Seven (7) Hot keys l 56K V.92 Fax/Modem l 10/100 Mbit Ethernet LAN l Li-Ion Battery l Two (2) USB 2.0 Ports l RJ11 Jack l RJ45 Jack l Two PC Card Slots: a Type II PC Card Slot, and a Compact Flash Slot l External Speaker and Microphone Jacks l Internal Speaker and Microphone l Stand Holder Connector l Second Battery Connector l Microsoft Windows XP Tablet PC edition l 3-year limited warranty OPTIONS The following items are normally optional, but some vendors may include them in the standard package. Some items may not be available in some countries, or some vendors may choose not to carry all the items. l Vehicle Adapter l Carry Case l Vehicle Dock l Desk Mount l External USB Floppy Disk Drive l External USB DVD/CD-RW Drive l Shoulder Strap l Soft Handle Page 2 of 64GoBook Tablet PC Help 2/23/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~... l DRAM memory modules l WLAN radio l Bluetooth radio l Wireless WAN radios and antennas l Extra Battery l Tip and Ring Cable l RJ-11 Cable l USB to Serial Cable l USB 2.0 Port Replicator CAUTION When purchasing any of the accessories listed above, purchase only those accessories that are approved for use with your computer. The above accessories are proprietary items. Your system vendor can obtain these approved accessories. If you use items that are not approved for use with this computer, you may cause your computer to malfunction, or to emit or receive electromagnetic radiation in excess of local regulations. For non-proprietary accessories such as PC Cards or printers, ensure that the accessory functions properly in your computer before making the purchase. Your system vendor may be able to recommend reliable brands and models. Where to Look For Information About Your GoBook Tablet PC This Help System describes the key elements of your computer. Be sure to read it thoroughly before you begin using your GoBook Tablet PC and refer to whenever needed. It includes a table of contents, search function, index and glossary to make finding the information you need quick and easy. See How to Use this Help System for information about navigating, printing or otherwise using this document. About Windows For more extensive information and help about Windows go to Help and Support, found on the Start Menu. We also recommend that you go to Start, All Programs, Accessories to open Tour Windows XP, an online orientation of Windows XP. 72_0111_007 13 February 2004 © 2003-2004 Itronix Corporation. All rights reserved. Page 3 of 64GoBook Tablet PC Help 2/23/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~... Features High Capacity Hard Disk Drive Your Tablet PC has a high capacity hard disk drive, enabling you to install your favorite programs and store large multimedia files. Full Array of Ports and Connectors Your computer includes standard ports for connecting to peripherals such as USB devices and monitors. USB ports allow you to add many types of peripherals. SVGA Display Your Tablet PC has an SVGA TFT active matrix display with integrated graphics capabilities. Built-in Microphone and Speaker The internal speaker and microphone enable you to run a variety of multimedia applications. Hot Keys Hot keys or function keys allow you to suspend your computer, navigate, and give you easy control of your display. 72_0111_007 13 February 2004 © 2003-2004 Itronix Corporation. All rights reserved. Precautions You can use your computer under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your computer: l Follow all warnings and instructions noted in this documentation and in the Windows Help and Support, found on the Start Menu. l The first time you use your computer, we recommend that you carefully read the section on GoBook® Tablet PC Help GoBook® Tablet PC Help Page 4 of 64GoBook Tablet PC Help 2/23/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~... Power Management to familiarize yourself with some basic battery information and to ensure optimum performance l There is danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. l Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleani…

Text truncated - open the document above for the full version.

GoBoo k™ Tablet PC Help Legal Infor matio n Identification GoBook Tablet PC (IX300) Help September 2003 · Revision 004 Copyright Notice © Copyright 2003 Itronix Corporation. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any other language or computer language in whole or in part, in any form or by any means, whether it be electronic, mechanical, magnetic, optical, manual, or otherwise, without the prior written consent of Itronix Corporation, South 801 Stevens Street, Spokane, Washington 99204. Disclaimer This document is printed in the U.S.A. Itronix Corporation reserves the right to revise the manual and make periodic changes to the content without a direct or inferred obligation to Itronix to notify any person of such revision or changes. Itronix Corporation does not assume responsibility for the use of this help manual, nor for any patent infringements or other rights or third parties who may use the manual. This document contains valuable trade secrets and proprietary information of Itronix Corporation. This product is available for purchase under the terms of the Itronix Hardware Purchase and Software License Agreement. Itronix hardware products may be reconditioned, or be manufactured from parts and components that may be new, used, rebuilt, or recycled and in some cases, the hardware product may not be new and may have been previously installed. In any event, Itronix warranty terms apply. Trademark Notice Itronix is a registered trademark of Itronix Corporation. GoBook is a registered trademark of Itronix Corporation Microsoft, MS, Windows, and MS-DOS are registered trademarks of Microsoft Corporation. IBM is a trademark of International Business Machines Corporation. Compliance Statements The GoBook Tablet PC (IX300) computer has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The GoBook Tablet PC (IX300) computer complies with Part 68 of the FCC Rules. On the bottom of this equipment is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company. The REN is used to determine the quantity of devices which may be connected to the telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of the RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to the line, as determined by the total RENs, contact the telephone company to determine the maximum REN for the calling area. The GoBook Tablet PC (IX300) computer may be connected to the telephone network using the RJ-11 jack provided. If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. If advance notice isn’t practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary. The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the operation of the equipment. If this happens, the telephone company will provide advance notice in order for you to make the necessary modifications in order to maintain uninterrupted service. If trouble is experienced with this equipment, please contact the equipment manufacturer for repair and/or warranty information. Do not attempt repairs of this equipment yourself without obtaining manufacturer authorized parts and documentation. If the trouble is causing harm to the telephone network, the telephone company may request you remove the equipment from the network until the problem is resolved. Compliance Statement for Canada NOTICE The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). The Department does not guarantee the equipment will operate to the user’s satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations. Repairs to certified equipment should be made by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment. Users should ensure for their own protectio…

Text truncated - open the document above for the full version.

Exhibit 13 EXHIBIT XIII - Cover Letters New Certification Report for the FCC ID: KBCIX300GC82WLBT Cover Letter 1.) Certification Action Requested Cover Letter 2.) Request for Confidentiality under Part 0.459. Cover Letter 3.) ITRONIX Agent Authorization letter allowing Rod Munro to sign FCC Form 731 on behalf of ITRONIX, Corp.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 May 20, 2004 RE: FCC ID: KBCIX300GC82WLBT_ATCB001330 Attention: Rod Munro I have a few comments on this Application. 1. Please note that the 15.105 statement of compliance was not found in the manual. As this contains part 15 devices, this statement is needed. Please provide a manual with this statement. 2. Please note that the CCS test report does not clearly identify the Bluetooth module as that which is used in this device. Please provide evidence that the Bluetooth module used in the above ID is that which was used in the test report from CCS. Please note that if the purpose of this report is to show conducted antenna terminal data, then the report for the module FCC ID NFL-MUBTC-2- CLEVO may be more appropriate unless the report is more than 1 year old. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

May 21, 2004 Dennis Ward ATCB, Inc. 6731 Whitter Ave. McLean Va 22101 [email protected] Dennis, In reply to your May 20, 2004 comments we submit the following. 1. The section 15.105 statement can be found on the first page of the 5 page supplement file name “Exhibit 8 IX300 User Manual RF Safety Stmts termsGC82Rev1a.pdf”. Two manual exhibits were provided for this application one of which is the user manual. On the Tablet PC the manual resides in an electronic pdf format. The 5 page “Exhibit 8 IX300 User Manual RF Safety Stmts termsGC82Rev1a.pdf is accessed from the electronic manual by clicking on a “RF Safety” button or reference which opens the link in Adobe to these 5 pages of RF Safety Statements. When the pdf user manual is saved off or printed out those links are not printed. So that is why the statement although embedded in the main body of the user manual ends up being presented in two parts, however would be considered part of the user manual. 2. I have supplied the attached photo I just shot of the WLAN and BT modules that were the ones tested as they are installed in the IX300. Please refer to Exhibit 9 Internal photos page 1 and you can compare and see that the two devices appear physically identical. The report referenced is OEM approval for the IX300 Tablet PC with the identical WLAN and BT modules installed. The other FCC ID you referenced was the BT module OEM approval installed in a different brand of host and with a lower reported output power than we measured. So we feel that the referenced report is representative of the IX300. We trust that we were able to satisfactorily address you two comments. Please let me know if we can provide any further information to assit with your review. Best Regards, Rod Munro

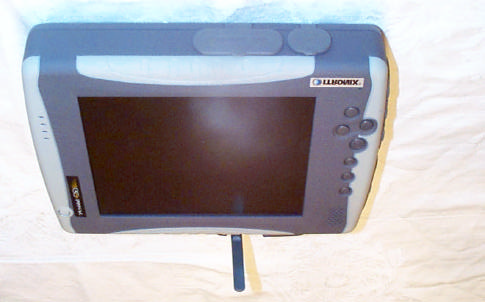

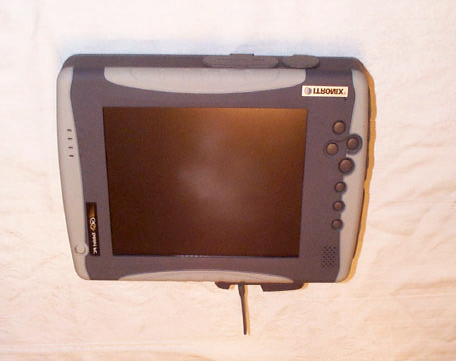

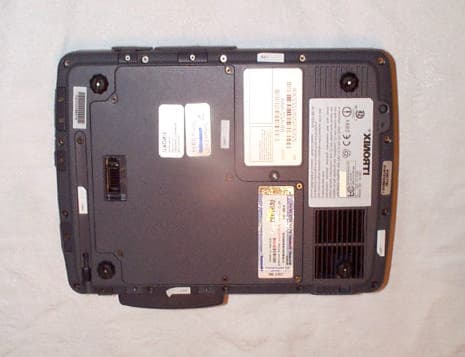

Applicant: ITRONIX, CorporationFCC ID: KBCIX300GC82WLBT Exhibit 3 External Photos1 Front View IX300 Tablet PC Back View IX300 (FCC ID label is large silver label on right side) Applicant: ITRONIX, CorporationFCC ID: KBCIX300GC82WLBT Exhibit 3 External Photos2 IX300 Tablet PC on back GC 82 antenna vertical Top View IX300 Tablet PC with GC82 antenna Top View IX300 Tablet PC with GC82 slot exposed Applicant: ITRONIX, CorporationFCC ID: KBCIX300GC82WLBT Exhibit 3 External Photos3 Right Side View IX300 Tablet PC Left Side View IX300 Tablet PC Bottom View IX300 Tablet PC Applicant: ITRONIX, CorporationFCC ID: KBCIX300GC82WLBT Exhibit 3 External Photos4 Power adapter with ferrite core

Applicant: ITRONIX, Corp. FCC ID: KBCIX300GC82WLBT Exhibit 1 EXHIBIT 1. LIST OF EXHIBITS and FCC IDENTIFICATION LABEL LIST OF EXHIBITS DESCRIPTIONEXHIBITS REFERENCE I.Identification label Information1 2.1033 (b) 7 & 2.925 & General Information1A 1. Production Plans2.1031 2. Application ReferencesN/A 3. Data submittal Procedure 4. Similar Certified Transmitter II.Certification Data2 III.External Photographs32.1033 (b) 7 IV.Block Diagrams (Circuit Diagrams) confidential42.1033 (b) 5 V. Schematic Diagrams confidential52.1033 (b) 5 VI Test Report 162.1033 (b) 6 Part 22H & 24E – Supplemental IX300 EMC Test Report with previously Certified Transmitter, a Sony Ericsson, FCC ID: PY7F1041011, Model: GC82. 1) RF Power Output (2.1046) 2) Transmitter Radiated Spurious Emissions (2.1053) 3) Equivalent Isotropic Radiated Power Note: Files from the OEM’s Certification uploaded for the other test report data and exhibits for items required by Parts 22 & 24. VITest Report 2 62.1033 (b) 6 Part 15.247 – DTS, Supplemental IX300 EMC Test Report with previously Certified, WLAN, Intentional Radiator, a AirVast Technology, Inc., FCC ID: QDWWM168B, Model: WM168b-Molex. 1) Conducted Output Power Section 15.247(b)1 2) EIRP limit Section 15.247(b) 3 3) Spurious Emissions Section 15.247 (c) Note: Files from the OEM’s Certification uploaded for other test report data and exhibits required by Part 15.247. Applicant: ITRONIX, Corp. FCC ID: KBCIX300GC82WLBT Exhibit 1 VI Test Report 362.1033 (b) 6 Part 15.247 – FHSS, Complete IX300 EMC Test Report with previously Certified Bluetooth Intentional Radiator, Billionton Systems, Inc., FCC ID: NLF-MUBTC2-CLEVO, Model: MUBTUC2. Eleven Common Bluetooth Items6 Six tests required6 15.247 (a, b, c, g, h) 1) The Occupied Bandwidth Section 15.247(a)!ii 2) Conducted Output Power Section 15.247(b)1 3) EIRP limit Section 15.247(b)3 4) RF safety Section 15.247(b)4 see Exhibit XII 5) Spurious Emissions Section 15.247 (c) 6) Power Spectral Density in Acquisition ModeN/A to FHSS VII.Test Set-up Procedures72.1041 VIII.Instruction Manual82.1033 (b) 3 IX.Internal Photographs92.1033 (b) 7 X.Part List and Tune Up Proceduresconfidential102.1033 XI.MPE RF Exposure Information11 2.1093,15.247(b)4 XII.Operational Descriptionconfidential12 2.1033(b)1,2,4,8 Antenna Requirements1215.203 XIII. Cover Letter, Certification Action Requested13 Cover Letter, Request For Confidentiality13 Cover Letter, Authorization to sign FCC Form 73113 Applicant: ITRONIX, Corp. FCC ID: KBCIX300GC82WLBT Exhibit 1 EXHIBIT 1. FCC IDENTIFICATION LABEL The FCC Identification label required under section: 47 CFR 2.1033(c) 11 for the FCC ID: KBCIX300GC82WLBT, is located on following page. The Part 15.19 Users statement follows that page. FCC ID label location is on the bottom right side of the Tablet PC. The name ITRONIX is on the label heading. ⇓⇓

Compliance Certification Services Inc. Report No: B30813209 Page 4 INTERNAL PHOTOGRPHS OF EUT Internal of EUT --- 1 Internal of EUT --- 2 Compliance Certification Services Inc. Report No: B30813209 Page 5 Internal of EUT --- 3 Internal of EUT --- 4 Compliance Certification Services Inc. Report No: B30813209 Page 6 Internal of EUT --- 5 Internal of EUT --- 6 WLAN Antenna Position Bluetooth Antenna Position Compliance Certification Services Inc. Report No: B30813209 Page 7 Internal of EUT --- 7 Internal of EUT --- 8 Compliance Certification Services Inc. Report No: B30813209 Page 8 Internal of EUT --- 9 Internal of EUT --- 10 Compliance Certification Services Inc. Report No: B30813209 Page 9 Internal of EUT --- 11 Internal of EUT --- 12 Compliance Certification Services Inc. Report No: B30813209 Page 10 Internal of EUT --- 13 Internal of EUT --- 14 Compliance Certification Services Inc. Report No: B30813209 Page 11 Internal of EUT --- 15 Internal of EUT --- 16 Compliance Certification Services Inc. Report No: B30813209 Page 12 Internal of EUT --- 17 Internal of EUT --- 18 Compliance Certification Services Inc. Report No: B30813209 Page 13 Internal of EUT --- 19 Internal of EUT --- 20 Compliance Certification Services Inc. Report No: B30813209 Page 14 Internal of EUT --- 21

Applicant: ITRONIX, Corp.FCC ID: KBCIX300GC82WLBT Exhibit 11 1 EXHIBIT 11 - MPE CALCULATION DATA Model: IX300 with the three co-located transmitters listed below. 1.)1.) Sony Sony Ericsson GC82, (WAN)Ericsson GC82, (WAN) S (mw/cm^2) at 20cm = 0.249034415 Tx Freq: 848.80 MHzAntenna Gain: -1.8 dBi Max Peak Power @ antenna terminal input: 32.78 dBm S (mw/cm^2) at 20cm = 0.084773354 Tx Freq: 1880 MHzAntenna Gain: -3.3 dBi Max Peak Power @ antenna terminal input: 29.60 dBm Channel #Frequency (MHz)Peak Power (Watts)Peak Power (dBm) (Ch.128)824.201.73032.38 (Ch.190)836.601.83232.63 (Ch.251)848.801.89632.78 (Ch.512)1850.20.83929.24 (Ch.661)1880.00.91229.60 (Ch.810)1909.80.90829.58 2.)2.) WM168b-Molex, (WLAN),WM168b-Molex, (WLAN), S (mw/cm^2) at 20cm = 0.0039 Tx Freq: 2412 MHzAntenna Gain: -3.04 dBi Max Peak Power @ antenna terminal input: 16.03 dBm Frequency GHz Power dBm Cable lossCorrected Level dBm Ant. Gain dBi EIRP 2.41215.45.5816.03-3.0412.99 2.43715.30.5815.88-3.0412.84 2.46214.97.5815.55-3.0412.51 3.)3.) MUBTC2-TH, (Bluetooth)MUBTC2-TH, (Bluetooth) S (mw/cm^2) at 20cm = 0.0002 Tx Freq: 2441MHzAntenna Gain: 0.11 dBi Max Peak Power @ antenna terminal input: 0.557dBm ChannelFrequency (GHz) Measured Peak Output Power (dBm) Internal EUT Cable loss dB Corrected Peak Output Power (dBm)) Corrected Peak Output Power (mW)) Low2.402-0.9321.3.3681.088 Middle2.441 -0.7431.3.5571.137 High2.480-1.2731.3.0271.006 Applicant: ITRONIX, Corp.FCC ID: KBCIX300GC82WLBT Exhibit 11 2 The MPE calculations are submitted for multiple frequency exposure criteria. The ratio of the field strength or power density to the applicable exposure limit at the exposure location was determined for each transmitter below. The sum of these ratios does not exceed the 1 mW/cm^2 limit for uncontrolled exposure / general population exposure limits detailed in CFR 47, Part 1.1310. Multiple Frequency Exposure Requirements Ratio 1Ratio 2Ratio 3Limit GC82 CelluarWM168b MOLEXBluetooth 0.2490/0.570.0039 / 10.0002 / 1<1.0 = 0.4368= .0039= .0002<1.0 Sum = 0.4409 (mW/cm^2)<1.0 Multiple Frequency Exposure Requirements Ratio 1Ratio 2Ratio 3Limit GC82 PCSWM168b MOLEXBluetooth 0.0848/1 0.0039 / 10.0002 / 1<1.0 =.0848= .0039= .0002<1.0 Sum = 0.0889 (mW/cm^2)<1.0 Prediction of MPE Limit OET Bulletin 65, Edition 97-01 ________ S = PG/4πR 2 R = √ PG/4πS = power density P= power input to the antenna G= power gain of the antenna in the direction of interest relative to an isotropic radiator R= distance to the center of radiation of the antenna General Population/Uncontrolled Cellular Tx Frequency848.80 MHz Max. Peak Power Antenna Input Terminal: 32.78 dBm Antenna gain: -1.8 dBi S=0.57 (mW/cm^2) P=1896.7059(mW) G=0.66 (numeric) R =13.28.(cm) S (mw/cm^2) at 20cm = 0.249034415 PCS Tx Frequency: 1880.00 MHz Max. Peak Power Antenna Input Terminal:29.60 dBm Antenna gain: -3.3 dBi S=1.00 (mW/cm^2) P=912.0108(mW) G=0.47 (numeric) R =5.83(cm) S (mw/cm^2) at 20cm = 0.084773354 Applicant: ITRONIX, Corp.FCC ID: KBCIX300GC82WLBT Exhibit 11 3 Bluetooth Tx Frequency: 2412.00 MHz Max. Peak Power Antenna Input Terminal: 16.03 dBm Antenna gain: -3.04 dBi S=1.00 mW/cm^2) P=40.0867(mW) G=0.50 (numeric) R =1.26(cm) S (mw/cm^2) at 20cm = 0.003956028 WLAN Tx Frequency: 2441.00 MHz Max. Peak Power Antenna Input Terminal: 0.56 dBm Antenna gain: 0.11 dBi S=1.00 (mW/cm^2) P=1.1368 (mW) G=1.03 (numeric) R =0.30(cm) S (mw/cm^2) at 20cm = 0.000231718

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test Report Test report no.: EMC_553FCC22-24_2003 FCC Part 22,24 / RSS 133 Model: FAA-1041011-BV FCC ID: PY7F1041011 IC ID: 4170B-F1041011 Test report no.: EMC_553FCC22-24_2003 Issue date: 2003-10-23 Page 2 (80) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com Test report no.: EMC_553FCC22-24_2003 Issue date: 2003-10-23 Page 3 (80) 1.3 Details of applicant Name : Sony Ericsson Mobile Communications AB Street : Nya Vattentornet City / Zip Code : S-221 83 Lund Country : Sweden Contact : Bo G. Johansson Telephone : +46-46-193-242 Tele-fax : +46-46-193-295 e-mail : [email protected] 1.4 Application details Date of receipt test item : 2003-09-22 Date of test : 2003-09-26/27/29/30, 2003-10-01 1.5 Test item Manufacturer : Applicant Marketing Name : GC82 Model No. : FAA-1041011-BV Description : PC – Card Radio module for GSM 850MHz / 1900MHz FCC-ID : PY7F1041011 IC-ID : 4170B-F1041011 Additional information Frequency : 824.2MHz – 848.8MHz for GSM 850, 1850.2MHz – 1909.8MHz for PCS 1900 Type of modulation : GMSK and 8-PSK Number of channels : 124 for GSM-850, 299 for PCS-1900 Antenna : Detachable external Stub Antenna with hinge, 360°, 50Ω (unique connector) Power supply : Powered by the Laptop PC battery via PCMCIA connector Output power : 29.94dBm (986.28mW) max. ERP for GSM 850 32.59dBm (1.82W) max. EIRP for PCS 1900 Extreme vol. Limits : Low Voltage: 3.0V / High Voltage = Normal Voltage: 3.6V Extreme temp. Tolerance : Low Temperature: -30°C / High Temperature: +55 ° 1.6 Test standards FCC Part 22,24 / RSS133 r1 Note: All radiated measurements were made in all three orthogonal planes. The values reported are the maximum values. Test report no.: EMC_553FCC22-24_2003 Issue date: 2003-10-23 Page 4 (80) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2003-10-23 EMC & Radio Lothar Schmidt (Technical Manager) Date Section Name Signature Responsible for test report and project leader: 2003-10-23 EMC & Radio Harpreet Sidhu (EMC Engineer) Date Section Name Signature Test report no.: EMC_553FCC22-24_2003 Issue date: 2003-10-23 Page 5 (80) 2.2 Test report TEST REPORT Test report no.: EMC_553FCC22-24_2003 Test report no.: EMC_553FCC22-24_2003 Issue date: 2003-10-23 Page 6 (80) TEST REPORT REFERENCE PARAMETER TO BE MEASURED PARAGRAPH PAGE POWER OUTPUT § 22.913(a) / § 24.232 (b) 7 FREQUENCY STABILITY § 2.1055 / § 24.235 14 OCCUPIED BANDWIDTH §2.1049(h)(i) 17 EMISSION BANDWIDTH §24.238(b) 24 MOBILE EMISSIONS IN BASE FREQUENCY §22.917(f) 31 EMISSION LIMITS TRANSMITTER §2.1051 / §24.238 35 RECEIVER RADIATED EMISSIONS § 2.1053 / RSS-133 64 CONDUCTED SPURIOUS EMISSIONS § 2.1057 / §24.238 69 CONDUCTED EMISSIONS § 15.107/207 77 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS 78 BLOCK DIAGRAMS 79 Test report no.: EMC_553FCC22-24_2003 Issue date: 2003-10-23 Page 7 (80) POWER OUTPUT § 22.913(a) / § 24.232 (b) Summary: During the process of testing, the EUT was controlled via Rhode & Schwarz Universal Radio Communication tester (CMU 200) to ensure max. power transmission and proper modulation. This paragraph contains average output power, peak output power, EIRP & ERP measurements for the EUT. In all cases, the peak output power is within the specified limits. Method of Measurements: The EUT was set up for the max. Output power with pseudo random data modulation. The power was measured with R&S Spectrum Analyzer ESIB 40 (peak) These measurements were done at 3 frequencies, 824.2 MHz, 836.6 MHz and 848.8 MHz (bottom, middle and top of operational frequency range) for GSM-850 1850.2 MHz, 1880.0 MHz and 1909.8 MHz (bottom, middle and top of operational frequency range) for PCS-1900 Test report no.: EMC_553FCC22-24_2003 Issue date: 2003-10-23 Page 8 (80) Conducted (GSM-850) Limits: Power Step Nominal Peak Output Power Tolerance (dB) 5 ≤33dBm (2W)* ± 2 *GSM Specification – ETSI EN 300 910 V8.5.0 (2000-07) Section 4.1 {GSM05.05 Version 8.5.0 Release 1999} Power Measurements: Frequency (MHz) Peak Power during burst (dBm) 824.2 32.38 836.6 32.63 848.8 32.78 Conducted (PCS-1900) Limits: Power Step Nominal Peak Output Power Tolerance (dB) 0 ≤30dBm (1W)* ± 2 *GSM Specification – ETSI EN 300 910 V8.5.0 (2000-07) Section 4.1 {GSM05.05 Version 8.5.0 Release 1999} Power Measurements: Frequency (MHz) Peak P…
