KBCIX325-BTRugged Tablet PC with Bluetooth

Getting Started Getting Started Congratulations on your purchase of the Itronix Duo-Touch Tablet PC! Your new Duo-Touch features the most innovative advances in portable computing technology. It combines state-of-the-art ergonomics, patented RF technology, and a rugged, durable architecture to provide you with a Tablet PC that is compact, powerful, and easy to use virtually anywhere. Designed for a wide range of business productivity applications, the Duo- Touch is an ideal choice for mobile workers who are on the go throughout the day. It offers flexibility, durability and dependability along with ruggedness and portability to make it quick and easy to transport to any work location, indoors, outdoors, or in your vehicle. This online document, Duo-Touch Help, contains all the information you need to set up and use your new Tablet PC. For information on printing, searching, navigating or using Duo-Touch Help, see How to Use This Help System. To optimize readability, we recommend you view this document in landscape orientation. If you have suggestions for how we may improve this document, please e-mail [email protected]. Unpacking Your System After opening the package, carefully inspect the contents. Contact your dealer if any items are missing or appear damaged. The shipping carton should contain a Duo-Touch Tablet PC with the following features and parts: Standard Parts  Duo-Touch Tablet PC  AC Adapter and Power Cord  (1) Digitizer Pen with Tether  (5) Pen replacement tips and (1) removal tool  Cleaning cloth  Duo-Touch Quick Start Guide Standard Features  8.4” TFT SVGA Active Matrix Color Display  Display with two touch functions, an active digitizer touch panel and a passive touch screen  Seven (7) Hot keys  Internal 56K V.92 Fax/Modem  RF ON/OFF button  Internal Gigabyte Ethernet LAN  Li-Ion Battery  Two (2) USB 2.0 Ports  One Type II PC Card Slot  One Type II CompactFlash Slot  Audio Jacks for external speakers and microphone  Internal Speaker and Microphone  Multi-I/O Expansion Connector  Second Battery Connector (to attach the optional second battery)  Microsoft Windows XP Tablet PC Edition 2005  3-year limited warranty Optional Features  802.11 b/g WLAN radio  Bluetooth Class II radio  GPS radio  Wireless WAN radios and antennas (CDMA and GPRS )  DDR Memory  Hard Driver Heater Optional Accessories The following items are normally optional, but some vendors may include them in the standard package. Some items may not be available in some countries, or some vendors may choose not to carry all the items. A complete list of Itronix optional peripherals and accessories is listed on the Itronix website.  Carry Case  Desk Mount  Second Battery  External USB Floppy Disk Drive  External USB DVD/CD-RW Drive  RJ-11 Cable  Shoulder Strap  Tip and Ring Cable  Vehicle Dock  USB 2.0 Port Replicator  USB to Serial Cable CAUTION When purchasing any of the accessories listed above, purchase only those accessories that are approved for use with your computer. The above accessories are proprietary items. Your system vendor can obtain these approved accessories. If you use items that are not approved for use with this computer, you may cause your computer to malfunction, or to emit or receive electromagnetic radiation in excess of local regulations. For non-proprietary accessories such as PC Cards or printers, ensure that the accessory functions properly in your computer before making the purchase. Your system vendor may be able to recommend reliable brands and models. Where to Look For Information About Your Duo-Touch Tablet PC This Help System describes the key elements and functions of your computer. Be sure to read it thoroughly before you begin using your Duo-Touch and refer to it whenever needed. It includes a table of contents, search function, index and glossary to make finding the information you need quick and easy. See How to Use this Help System for information about navigating, printing or otherwise using this document. Please refer to the Service and Support section if you have questions not answered in this document. About Windows For more extensive information and help about Windows, go to the following from the Start Menu:  Help and Support. View extensive Tablet PC Help. From here you can also view several Tablet PC Tutorials.  Tour Windows XP. View an online orientation of Windows XP.  Get Going with Tablet PC. Learn the basic information about using your Tablet PC. Precautions You can use your computer under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your computer:  Follow all warnings and instructions noted in this documentation, including the notification section  Follow all warnings and instructions noted in Windows Help and Support, found on the Start Menu  The first time you use your computer, we recommend that you carefully read the section on Power Management to familiarize yourself with basic battery information and ensure optimum performance  WARNING! There is danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions  CAUTION Internal components of the Duo-Touch will be damaged if exposed to contaminants. When dust covers, the PC card door, or the bottom access panel are open on the computer, shield the unit from all contaminants such as liquids, rain, snow, and dust.  Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use aerosols, solvents, or strong detergents  Slots and openings in the computer case are for ventilation purposes. Do not block or cover these openings or the system could overheat  There is a label on the bottom of the Duo-Touch containing information on the power requirements of this system. These requir…

Text truncated - open the document above for the full version.

Duo-Touch™ IX325 Radio Specific Safety Information Identification Duo-Touch (IX325) Radio Specific Safety Information Copyright Notice © Copyright 2005 Itronix Corporation. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any other language or computer language in whole or in part, in any form or by any means, whether it be electronic, mechanical, magnetic, optical, manual, or otherwise, without the prior written consent of Itronix Corporation, South 801 Stevens Street, Spokane, Washington 99204. Disclaimer This document is printed in the U.S.A. Itronix Corporation reserves the right to revise the manual and make periodic changes to the content without a direct or inferred obligation to Itronix to notify any person of such revision or changes. Itronix Corporation does not assume responsibility for the use of this help manual, nor for any patent infringements or other rights or third parties who may use the manual. This document contains valuable trade secrets and proprietary information of Itronix Corporation. This product is available for purchase under the terms of the Itronix Hardware Purchase and Software License Agreement. Itronix hardware products may be reconditioned, or be manufactured from parts and components that may be new, used, rebuilt, or recycled and in some cases, the hardware product may not be new and may have been previously installed. In any event, Itronix warranty terms apply. Trademark Notice Itronix is a registered trademark of Itronix Corporation. Duo-Touch is a registered trademark of Itronix Corporation Microsoft, MS, Windows, and MS-DOS are registered trademarks of Microsoft Corporation. IBM is a trademark of International Business Machines Corporation. Warnings and Safety Information WARNING It is important that only authorized Itronix personnel attempt repairs on Itronix equipment as this might void any maintenance contract with your company. Unauthorized service personnel might be subject to shock hazard on some Itronix equipment if removal of protective covers is attempted. Changes or Modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. Internal radio(s) may have an individual FCC Identifier which are not applicable to this configuration. Only the FCC ID Identifier KBCIX325-SWL shown on the label located on the bottom of the Duo- Touch (IX325) Tablet PC is applicable. The Duo-Touch (IX325) Tablet PC must not be co-located or operating in conjunction with an y other antenna or transmit ter than sp ecified in the certification of the FCC Identifier KBCIX325-SWL shown on the PC label. 20 May 2005 © 2005 Itronix Corporation. All rights reserved.

801 S. STEVENS STREET SPOKANE, WA 99204 509.624.6600 800.441.1309 FAX 509.626.4203 www.itronix.com April 5, 2005 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Itronix Corporation FCC ID: KBCIX325-BT FCC Part 15C Certification Request for Confidentiality Pursuant to 47 CFR 0.457(d) and 47 CFR 0.459 of the FCC Rules, Itronix Corporation and Micro-Star International Co., Ltd. hereby requests confidentiality of the MSI Block Diagram(s), MSI Schematic Diagram(s), MSI Operational Description, and Antenna Specification attachments for the subject application. These documents contain detailed system and equipment description and related information about the product in which Itronix Corporation and Micro-Star International Co., Ltd. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Itronix Corporation and Micro-Star International Co., Ltd. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely,

Celltech Labs Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-448-7047 • Fax. 250-448-7046 • e-mail: [email protected] www.celltechlabs.com June 22, 2005 Timco Engineering, Inc. Telecommunication Certification Body 849 NW State Road 45 Newberry, FL 32669 SUBJECT: ITRONIX CORPORATION FCC ID: KBCIX325-BT Part 15(C) Certification On behalf of Itronix Corporation is an application for Part 15 Subpart C Certification of Model: IX325-BT Rugged Tablet PC with internal MSI MS-6837 Bluetooth Transmitter and internal antenna installed in the left side edge of the DUT. Model(s): IX325-BT Device Classification: Part 15 Spread Spectrum Transmitter (DSS) Device Description: Rugged Tablet PC with internal Bluetooth Internal Transmitter(s): MicroStar International Model: MS-6837 Mode(s) of Operation: Frequency Hopping Spread Spectrum (FHSS) Tx Frequency Range: 2402 - 2480 MHz Max. RF Output Power Tested: 0.008 Watts - Peak Conducted Antenna Type(s) Tested: Internal PIFA (left side edge of DUT) Submitted within this application is the TCB Form 731, applicant’s confidentiality request, FCC Part 15(C) EMC measurement report and test setup photographs, FCC ID label and location, internal and external device photographs, block diagrams (confidential), schematic diagrams (confidential), operational description (confidential), antenna specifications (confidential), user manual (provided to the user with the built-in software on the Tablet PC), and Radio- Specific Safety Information (provided to the user in hard copy format). If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jonathan Hughes General Manager Celltech Labs Inc. cc: Itronix Corporation

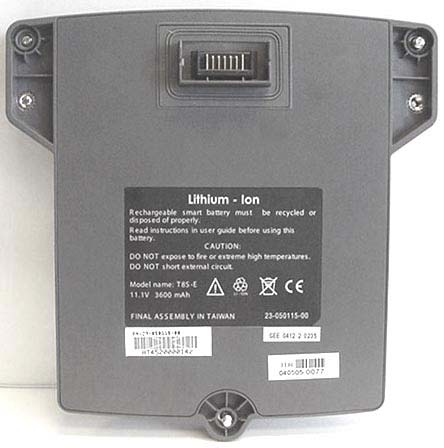

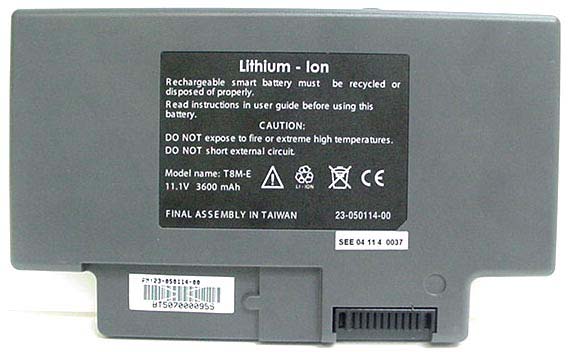

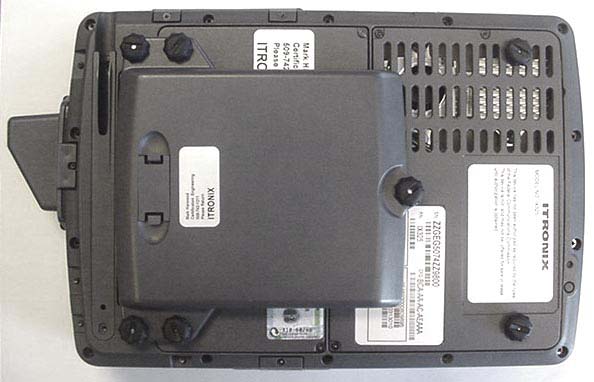

© 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-BT (Model: IX325-BT) IX325 Rugged Tablet PC with internal MSI MS-6837 Bluetooth Transmitter Celltech Project No.: 630 GPS Receiver EXTERNAL DUT PHOTOGRAPHS © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-BT (Model: IX325-BT) IX325 Rugged Tablet PC with internal MSI MS-6837 Bluetooth Transmitter Celltech Project No.: 630 EXTERNAL DUT PHOTOGRAPHS © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-BT (Model: IX325-BT) IX325 Rugged Tablet PC with internal MSI MS-6837 Bluetooth Transmitter Celltech Project No.: 630 EXTERNAL DUT PHOTOGRAPHS General Purpose Hatch Cover Multi-I/O Extension Slot © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-BT (Model: IX325-BT) IX325 Rugged Tablet PC with internal MSI MS-6837 Bluetooth Transmitter Celltech Project No.: 630 EXTERNAL DUT PHOTOGRAPHS Internal Li-ion Battery 11.1 V, 3600 mAh (Model: T8M-E) DUT with Internal Li-ion Battery 11.1 V, 3600 mAh (Model: T8M-E) Internal Li-ion Battery 11.1 V, 3600 mAh (Model: T8M-E) © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-BT (Model: IX325-BT) IX325 Rugged Tablet PC with internal MSI MS-6837 Bluetooth Transmitter Celltech Project No.: 630 DUT with External Second Li-ion Battery 11.1 V, 3600 mAh (Model: T8S-E) EXTERNAL DUT PHOTOGRAPHS External Second Li-ion Battery 11.1 V, 3600 mAh (Model: T8S-E) External Li-ion Battery 11.1 V, 3600 mAh (Model: T8S-E) © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-BT (Model: IX325-BT) IX325 Rugged Tablet PC with internal MSI MS-6837 Bluetooth Transmitter Celltech Project No.: 630 External Second Li-ion Battery 11.1 V, 3600 mAh (Model: T8S-E) External Second Li-ion Battery 11.1 V, 3600 mAh (Model: T8S-E) EXTERNAL DUT PHOTOGRAPHS © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-BT (Model: IX325-BT) IX325 Rugged Tablet PC with internal MSI MS-6837 Bluetooth Transmitter Celltech Project No.: 630 DUT with AC Power Adapter EXTERNAL DUT PHOTOGRAPHS AC Power Adapter

© 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-BT (Model: IX325-BT) IX325 Rugged Tablet PC with internal MSI MS-6837 Bluetooth Transmitter Celltech Project No.: 630 LABELING REQUIREMENTS PER §2.925 The label(s) shall be permanently affixed at a conspicuous location on the device. SEE NEXT PAGE(S) FOR FCC ID LABEL SEE NEXT PAGE(S) FOR PART 15(B) DoC LABEL FCC ID LABEL & LOCATION

© 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-BT (Model: IX325-BT) IX325 Rugged Tablet PC with internal MSI MS-6837 Bluetooth Transmitter Celltech Project No.: 630 INTERNAL DUT PHOTOGRAPHS MSI MS-6837 Bluetooth Transmitter Bluetooth Mounting Plate © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-BT (Model: IX325-BT) IX325 Rugged Tablet PC with internal MSI MS-6837 Bluetooth Transmitter Celltech Project No.: 630 INTERNAL DUT PHOTOGRAPHS MSI MS-6837 Bluetooth Transmitter Bluetooth Mounting Plate Bluetooth Transmitter © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-BT (Model: IX325-BT) IX325 Rugged Tablet PC with internal MSI MS-6837 Bluetooth Transmitter Celltech Project No.: 630 INTERNAL DUT PHOTOGRAPHS MSI MS-6837 Bluetooth Transmitter © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-BT (Model: IX325-BT) IX325 Rugged Tablet PC with internal MSI MS-6837 Bluetooth Transmitter Celltech Project No.: 630 INTERNAL DUT PHOTOGRAPHS Internal Antenna Non-Functional Antenna Bluetooth Antenna Non-Functional Antenna © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-BT (Model: IX325-BT) IX325 Rugged Tablet PC with internal MSI MS-6837 Bluetooth Transmitter Celltech Project No.: 630 Internal Bluetooth Antenna Internal Bluetooth Antenna INTERNAL DUT PHOTOGRAPHS Internal Antenna

Test Report S/N: 040505KBC-T630-E15B Issue 1 Test Date(s): 18May05 - 09Jun05 Test Type(s): FCC §15.247 IC RSS-210 Issue 5 Lab Registration(s): FCC #714830 IC Lab File #3874 FCC PART 15C EMC TEST REPORT FOR THE ITRONIX RUGGED TABLET PC MODEL: IX325-BT INCLUDING THE MSI MODEL MS-6837 BLUETOOTH TRANSMITTER WITH WELL GREEN TECHNOLOGY INTERNAL PIFA ANTENNA TRSN 040505KBC-T630-E15B Issue 1.0 Celltech Compliance Testing & Engineering Lab (Celltech Labs Inc.) 1955 Moss Court Kelowna, BC Canada V1Y 9L3 June 13, 2005 Test Report S/N: 040505KBC-T630-E15B Issue 1 Test Date(s): 18May05 - 09Jun05 Test Type(s): FCC §15.247 IC RSS-210 Issue 5 Lab Registration(s): FCC #714830 IC Lab File #3874 Applicant: Itronix Corporation Model: IX325-BT FCC ID: KBCIX325-BT IC ID: 1943A-IX325a IX325 Rugged Tablet PC with internal MSI MS-6837 Bluetooth Transmitter and internal PIFA Antenna 2005 Celltech Labs Inc This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 2 of 62 DECLARATION OF COMPLIANCE Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Applicant Information ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99204 United States Phone: 250-448-7047 Fax: 250-448-7048 E-mail: [email protected] web site: www.celltechlabs.com Lab Registration No.(s): FCC: 714830 IC: 3874 Rule Part(s): FCC: §15.247; §2.1091; §1.1310 IC: RSS-210 Issue 5 - A1. 11/30/02 Device Classification: FCC: Spread Spectrum Transmitter (DSS) IC: Low Power Licence-Exempt Transmitter Device Identification: FCC ID: KBCIX325-BT IC: 1943A-IX325a DUT Description: Model(s): IX325-BT Device Type: Rugged Tablet PC Internal Transmitter(s): MSI MS-6837 Bluetooth Module Tx Frequency Range: 2402 - 2480 MHz Max. RF Output Power: +9.01 dBm 0.008 Watts Maximum peak conducted power Mode(s) of Operation: Frequency Hopping Spread Spectrum (FHSS) Modulation(s): GFSK 1 Mbps 0.5 BT Gaussian Antenna Type(s): Internal PIFA Bluetooth Antenna Manufacturer: Green Well Technology Co., Ltd. Stationary: 75 Watt AC Power Adapter 11.1 V Internal Lithium-ion Battery, 3600 mAh (Model: T8M-E) Power Source(s): 11.1 V External Second Lithium-ion Battery, 3600 mAh (Model: T8S-E) This wireless mobile device has demonstrated compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 47 CFR Part 15C and Industry Canada RSS-210 Issue 5. I attest to the accuracy of the data. All measurements reported herein were performed by me or were under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. ____________________________ Russell Pipe Senior Compliance Technologist Celltech Labs Inc. ______________________________ Duane M. Friesen, C.E.T. EMC Manager Celltech Labs Inc. Test Report S/N: 040505KBC-T630-E15B Issue 1 Test Date(s): 18May05 - 09Jun05 Test Type(s): FCC §15.247 IC RSS-210 Issue 5 Lab Registration(s): FCC #714830 IC Lab File #3874 Applicant: Itronix Corporation Model: IX325-BT FCC ID: KBCIX325-BT IC ID: 1943A-IX325a IX325 Rugged Tablet PC with internal MSI MS-6837 Bluetooth Transmitter and internal PIFA Antenna 2005 Celltech Labs Inc This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 3 of 62 TABLE OF CONTENTS 1.0 SCOPE ................................................................................................................................................................ 6 2.0 REFERENCES .................................................................................................................................................... 6 2.1 Normative References ......................................................................................................................................... 6 3.0 TERMS AND DEFINITIONS ................................................................................................................................ 7 4.0 FACILITIES AND ACCREDITATIONS ................................................................................................................ 8 5.0 GENERAL INFORMATION ................................................................................................................................. 8 5.1 Applicant Information ........................................................................................................................................... 8 5.2 DUT Description................................................................................................................................................... 8 5.3 Co-Located Equipment ........................................................................................................................................ 9 5.4 Cable Descriptions............................................................................................................................................... 9 5.5 Support Equipment .............................................................................................................................................. 9 5.6 Clock Frequencies ............................................................................................................................................. 10 5.7 Mode(s) of Operation Tested............................................................................................................................. 10 5.8 Configuration Description ...............................................................................................................…

Text truncated - open the document above for the full version.

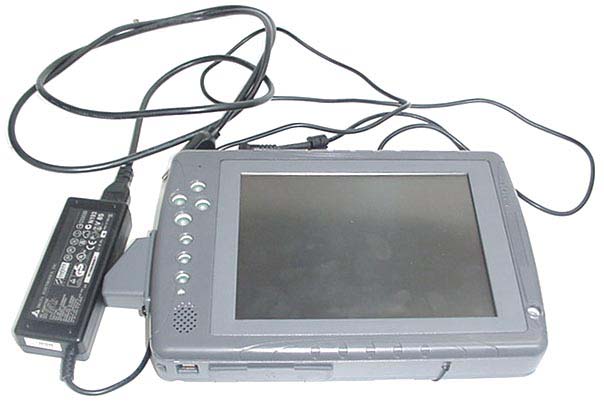

Test Report S/N: 040505KBC-T630-E15B Issue 1 Test Date(s): 18May05 - 09Jun05 Test Type(s): FCC §15.247 IC RSS-210 Issue 5 Lab Registration(s): FCC #714830 IC Lab File #3874 Applicant: Itronix Corporation Model: IX325-BT FCC ID: KBCIX325-BT IC ID: 1943A-IX325a IX325 Rugged Tablet PC with internal MSI MS-6837 Bluetooth Transmitter and internal PIFA Antenna 2005 Celltech Labs Inc This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 17 of 62 B.6. SETUP PHOTOS Photograph B.6-1 - AC Powerline Conducted Emission Configuration Photograph B.6-2 - AC Powerline Conducted Emission Cable Placement Test Report S/N: 040505KBC-T630-E15B Issue 1 Test Date(s): 18May05 - 09Jun05 Test Type(s): FCC §15.247 IC RSS-210 Issue 5 Lab Registration(s): FCC #714830 IC Lab File #3874 Applicant: Itronix Corporation Model: IX325-BT FCC ID: KBCIX325-BT IC ID: 1943A-IX325a IX325 Rugged Tablet PC with internal MSI MS-6837 Bluetooth Transmitter and internal PIFA Antenna 2005 Celltech Labs Inc This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 43 of 62 H.8. SETUP PHOTOGRAPHS Photograph H.8-1 - 3115 Horn Antenna (2 GHz - 10GHz) Photograph H.8-2 - 3115 Horn Antenna (10GHz - 18GHz) Photograph H.8-3 - 3160-09 Horn Antenna (18GHz - 24 GHz) Test Report S/N: 040505KBC-T630-E15B Issue 1 Test Date(s): 18May05 - 09Jun05 Test Type(s): FCC §15.247 IC RSS-210 Issue 5 Lab Registration(s): FCC #714830 IC Lab File #3874 Applicant: Itronix Corporation Model: IX325-BT FCC ID: KBCIX325-BT IC ID: 1943A-IX325a IX325 Rugged Tablet PC with internal MSI MS-6837 Bluetooth Transmitter and internal PIFA Antenna 2005 Celltech Labs Inc This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 52 of 62 I.8. SETUP PHOTOGRAPHS Photograph I.8-1 - Loop Antenna (10kHz - 30 MHz) Photograph I.8-2 - Bilog Antenna (30 MHz - 1 GHz) Photograph I.8-3 - 3115 Horn Antenna (1GHz - 2GHz) Photograph I.8-4 - 3115 Horn Antenna (2 GHz - 10GHz) Photograph I.8-5 - 3115 Horn Antenna (10GHz - 18GHz) Photograph I.8-6 - 3160-09 Horn (18GHz - 24 GHz)
