Getting Started Getting Started Congratulations on your purchase of the Itronix Duo-Touch Tablet PC! Your new Duo-Touch features the most innovative advances in portable computing technology. It combines state-of-the-art ergonomics, patented RF technology, and a rugged, durable architecture to provide you with a Tablet PC that is compact, powerful, and easy to use virtually anywhere. Designed for a wide range of business productivity applications, the Duo- Touch is an ideal choice for mobile workers who are on the go throughout the day. It offers flexibility, durability and dependability along with ruggedness and portability to make it quick and easy to transport to any work location, indoors, outdoors, or in your vehicle. This online document, Duo-Touch Help, contains all the information you need to set up and use your new Tablet PC. For information on printing, searching, navigating or using Duo-Touch Help, see How to Use This Help System. To optimize readability, we recommend you view this document in landscape orientation. If you have suggestions for how we may improve this document, please e-mail [email protected]. Unpacking Your System After opening the package, carefully inspect the contents. Contact your dealer if any items are missing or appear damaged. The shipping carton should contain a Duo-Touch Tablet PC with the following features and parts: Standard Parts  Duo-Touch Tablet PC  AC Adapter and Power Cord  (1) Digitizer Pen with Tether  (5) Pen replacement tips and (1) removal tool  Cleaning cloth  Duo-Touch Quick Start Guide Standard Features  8.4” TFT SVGA Active Matrix Color Display  Display with two touch functions, an active digitizer touch panel and a passive touch screen  Seven (7) Hot keys  Internal 56K V.92 Fax/Modem  RF ON/OFF button  Internal Gigabyte Ethernet LAN  Li-Ion Battery  Two (2) USB 2.0 Ports  One Type II PC Card Slot  One Type II CompactFlash Slot  Audio Jacks for external speakers and microphone  Internal Speaker and Microphone  Multi-I/O Expansion Connector  Second Battery Connector (to attach the optional second battery)  Microsoft Windows XP Tablet PC Edition 2005  3-year limited warranty Optional Features  802.11 b/g WLAN radio  Bluetooth Class II radio  GPS radio  Wireless WAN radios and antennas (CDMA and GPRS )  DDR Memory  Hard Driver Heater Optional Accessories The following items are normally optional, but some vendors may include them in the standard package. Some items may not be available in some countries, or some vendors may choose not to carry all the items. A complete list of Itronix optional peripherals and accessories is listed on the Itronix website.  Carry Case  Desk Mount  Second Battery  External USB Floppy Disk Drive  External USB DVD/CD-RW Drive  RJ-11 Cable  Shoulder Strap  Tip and Ring Cable  Vehicle Dock  USB 2.0 Port Replicator  USB to Serial Cable CAUTION When purchasing any of the accessories listed above, purchase only those accessories that are approved for use with your computer. The above accessories are proprietary items. Your system vendor can obtain these approved accessories. If you use items that are not approved for use with this computer, you may cause your computer to malfunction, or to emit or receive electromagnetic radiation in excess of local regulations. For non-proprietary accessories such as PC Cards or printers, ensure that the accessory functions properly in your computer before making the purchase. Your system vendor may be able to recommend reliable brands and models. Where to Look For Information About Your Duo-Touch Tablet PC This Help System describes the key elements and functions of your computer. Be sure to read it thoroughly before you begin using your Duo-Touch and refer to it whenever needed. It includes a table of contents, search function, index and glossary to make finding the information you need quick and easy. See How to Use this Help System for information about navigating, printing or otherwise using this document. Please refer to the Service and Support section if you have questions not answered in this document. About Windows For more extensive information and help about Windows, go to the following from the Start Menu:  Help and Support. View extensive Tablet PC Help. From here you can also view several Tablet PC Tutorials.  Tour Windows XP. View an online orientation of Windows XP.  Get Going with Tablet PC. Learn the basic information about using your Tablet PC. Precautions You can use your computer under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your computer:  Follow all warnings and instructions noted in this documentation, including the notification section  Follow all warnings and instructions noted in Windows Help and Support, found on the Start Menu  The first time you use your computer, we recommend that you carefully read the section on Power Management to familiarize yourself with basic battery information and ensure optimum performance  WARNING! There is danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions  CAUTION Internal components of the Duo-Touch will be damaged if exposed to contaminants. When dust covers, the PC card door, or the bottom access panel are open on the computer, shield the unit from all contaminants such as liquids, rain, snow, and dust.  Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use aerosols, solvents, or strong detergents  Slots and openings in the computer case are for ventilation purposes. Do not block or cover these openings or the system could overheat  There is a label on the bottom of the Duo-Touch containing information on the power requirements of this system. These requir…

Text truncated - open the document above for the full version.

Duo-Touch™ IX325 Radio Specific Safety Information Identification Duo-Touch (IX325) Radio Specific Safety Information Copyright Notice © Copyright 2005 Itronix Corporation. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any other language or computer language in whole or in part, in any form or by any means, whether it be electronic, mechanical, magnetic, optical, manual, or otherwise, without the prior written consent of Itronix Corporation, 12825 E. Mirabeau Parkway, Spokane Valley, Washington 99216. Disclaimer This document is printed in the U.S.A. Itronix Corporation reserves the right to revise the manual and make periodic changes to the content without a direct or inferred obligation to Itronix to notify any person of such revision or changes. Itronix Corporation does not assume responsibility for the use of this help manual, nor for any patent infringements or other rights or third parties who may use the manual. This document contains valuable trade secrets and proprietary information of Itronix Corporation. This product is available for purchase under the terms of the Itronix Hardware Purchase and Software License Agreement. Itronix hardware products may be reconditioned, or be manufactured from parts and components that may be new, used, rebuilt, or recycled and in some cases, the hardware product may not be new and may have been previously installed. In any event, Itronix warranty terms apply. Trademark Notice Itronix is a registered trademark of Itronix Corporation. Duo-Touch is a registered trademark of Itronix Corporation Microsoft, MS, Windows, and MS-DOS are registered trademarksof Microsoft Corporation. IBM is a trademark of International Business Machines Corporation. Warnings and Safety Information WARNINGIt is important that only authorized Itronix personnel attempt repairs on Itronix equipment as this might void any maintenance contract with your company. Unauthorized service personnel might be subject to shock hazard on some Itronix equipment if removal of protective covers is attempted. Changes or Modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. Internal radio(s) may have an individual FCC Identifier which are not applicable to this configuration. Only the FCC ID Identifier KBCIX325-CWL shown on the label located on the bottom of the Duo- Touch (IX325) Tablet PC is applicable. The Duo-Touch (IX325) Tablet PC must not be co-located or operating in conjunction with any other antenna or transmitter than specified in the certification of the FCC Identifier KBCIX325-CWL shown on the PC label. 20 May 2005 © 2005 Itronix Corporation. All rights reserved. This device contains a WLAN radio transmitter. This device has been tested for FCC and Industry Canada SAR RF exposure compliance for portable operation. In order to comply with FCC and IC RF Exposure compliance requirements, the LCD display orientations have been limited to the following two modes: Mode 1 = 0 Degrees Landscape (with the PCMCIA slot cover located at the top side of the display) Mode 2 = -90 Degrees Portrait (with the PCMCIA slot cover located at the left side of the display) RF Exposure Safety Information Operations in the frequency band 5.15 - 5.25 GHz are restricted to indoor use only.

Celltech Labs Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-448-7047 • Fax. 250-448-7046 • e-mail: [email protected] www.celltechlabs.com March 30, 2006 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: ITRONIX CORPORATION FCC ID: KBCIX325-CWL Part 15 Subpart C - Certification (Composite) Part 15 Subpart E - Certification (Composite) On behalf of Itronix Corporation is a composite application for FCC Part 15 Subparts C and E Certification of Model: IX325-CWL Rugged Tablet PC incorporating the internal Cisco AIR-CB21AG-A-K9 802.11abg WLAN PCMCIA Card. Model(s): IX325-CWL Device Classification(s): Part 15 Subpart C - Digital Transmission System (DTS) Part 15 Subpart E - Unlicensed National Information Infrastructure TX (NII) Device Description: Rugged Tablet PC Internal Transmitter: Cisco AIR-CB21AG-A-K9 802.11abg WLAN PCMCIA Card Antenna Type(s): Embedded Dual-Band Diversity Monopole PCB Antenna LCD User Orientation(s): 0 Degrees Landscape, -90 Degrees Portrait Mode(s) of Operation: 802.11a: Orthogonal Frequency Division Multiplexing (OFDM) 802.11b: Direct Sequence Spread Spectrum (DSSS) 802.11g: Orthogonal Frequency Division Multiplexing (OFDM) Data Rates: 802.11b: 1, 2, 5.5, 11 Mbps 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps (Note: Turbo mode not supported with the IX325) Transmit Frequency Range(s): 2412 - 2462 MHz - 802.11b/g (ISM Band) - DTS (15C) 5180 - 5250 MHz - 802.11a (UNII-1 Band) - NII (15E) 5250 - 5320 MHz - 802.11a (UNII-2 Band) - NII (15E) 5745 - 5825 MHz - 802.11a (UNII-3 Band) - DTS (15C) Max. Output Power Measured: 0.105 Watts (20.2 dBm) - Peak Conducted (802.11b) 0.0631 Watts (18.0 dBm) - Peak Conducted (802.11g) 0.0407 Watts (16.1 dBm) - Peak Conducted (802.11a) Max. SAR Level(s) Measured: Body: 0.258 W/kg -1g average (802.11a) Body: 0.166 W/kg -1g average (802.11b) Submitted within this application is the applicant’s confidentiality request, applicant’s LCD display orientation attestation, Part 15C EMC measurement report data and test setup photographs, Part 15E EMC measurement report data and test setup photographs 2.4GHz SAR RF exposure measurement report data & photographs, 5GHz SAR RF exposure measurement report data & photographs FCC ID label and location, internal and external device photographs, block diagram(s) (confidential), schematic diagram(s) (confidential), operational description (confidential), 802.11abg WLAN user manual, IX325 tablet PC user manual (provided to the user with the built-in software on the Tablet PC), and the Radio-Specific Safety Information (provided to the user in hard copy format). If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jonathan Hughes General Manager Celltech Labs Inc. cc: Itronix Corporation

12825 E. MIRABEAU PARKWAY SPOKANE VALLEY, WA 99216 509.624.6600 800.441.1309 FAX 509.626.4203 www.itronix.com January 26, 2006 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Itronix Corporation FCC ID: KBCIX325-CWL Request for Confidentiality Pursuant to 47 CFR 0.457(d) and 47 CFR 0.459 of the FCC Rules, Itronix Corporation and Cisco Systems Inc. hereby request confidentiality of the Block Diagram(s), Schematic Diagram(s), and Operational Description attachments for the subject application. These documents contain detailed system and equipment description and related information about the product in which Itronix Corporation and Cisco Systems Inc. consider proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Itronix Corporation and Cisco Systems Inc. consider this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely,

Celltech Labs Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-448-7047 • Fax. 250-448-7046 • e-mail: [email protected] www.celltechlabs.com May 8, 2006 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Attn: Andy Leimer SUBJECT: ITRONIX CORPORATION FCC ID: KBCIX325-CWL Part 15(C/E) - Certification 731 Confirmation No.(s): EA790226/EA402325 Correspondence Reference No.(s): 30859/30860 Dear Andy: On behalf of Itronix Corporation is our response to your request for additional information regarding the subject application. 1a. Final-product user manual mentions optional Bluetooth - please explain certification and marketing conditions and status for Bluetooth to be used in conjunction with this DTS & DSS FCC ID. Response: The optional Bluetooth transmitter described in the IX325 user manual for use in conjunction with the WLAN transmitter described in this filing has been evaluated for FCC compliance in a separate composite application currently pending with the Commission under FCC ID: KBCIX325-CWLBT (submitted on May 4, 2006). Itronix Corporation supplies the end user with the final product dependant on the end user’s desired configuration, which could be the WLAN described in this filing with or without the optional Bluetooth. For this reason, separate certification applications have been filed with the Commission to cover approvals for the WLAN described in this filing with and without the optional Bluetooth. The final product supplied to the end user is identified by Itronix Corporation with the FCC ID label applicable for the specific transmitter configuration installed. Appropriate statements are located in the IX325 user manual and radio specific safety information exhibits informing the user that the product supplied must not be used in conjunction with any other transmitter. 1b. Please address same question as preceding for Part 22/24/27/90 or other licensed-services operations. Response: The IX325 with 802.11abg WLAN as described in this filing is intended for use only in this transmitter configuration, or with optional Bluetooth as described in the response to 1a above under separate composite certification. The use of optional licensed transmitters described in the IX325 user manual are not intended for use with the WLAN described in this filing. The optional licensed transmitters described in the IX325 user manual have been certified, or are in the process of being certified, under separate FCC ID applications, either as single transmitter configurations, or as co- located transmitter configurations. 2) As we understand from company/grantee webpage, a kneeboard accessory is available for some Itronix products - please explain whether kneeboard is applicable for this product, and explain how SAR results in this filing are applicable for RF exposure compliance demonstration in that configuration. Response: Per Itronix Corporation, the kneeboard accessory was developed for a military application that does not utilize an internal radio transmitter application. Itronix Corporation has confirmed that the kneeboard accessory will be removed from the website. If you have any further questions or comments concerning the above, please contact the undersigned. Sincerely, Jonathan Hughes General Manager Celltech Labs Inc. cc: Itronix Corporation

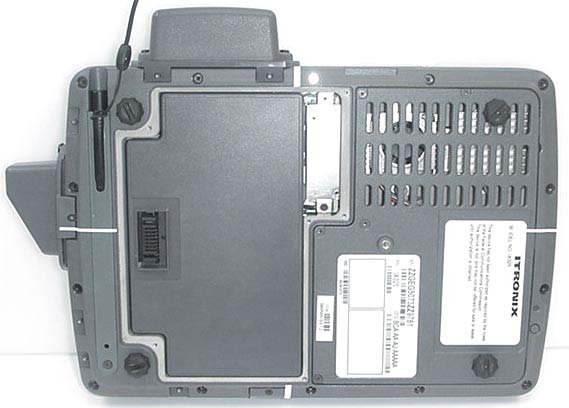

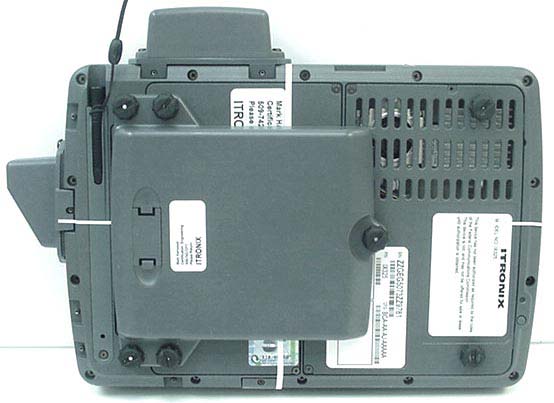

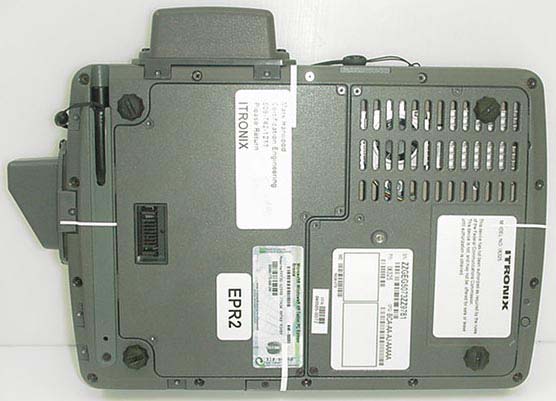

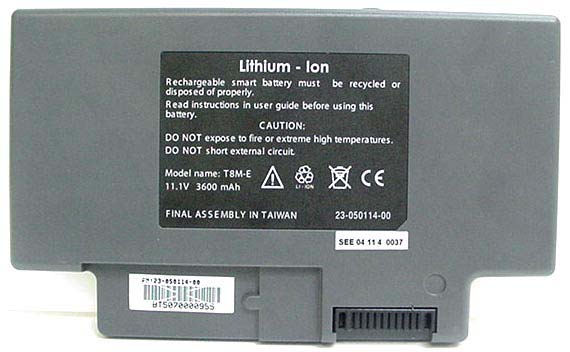

2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-CWL (Model: IX325-CWL) Rugged Tablet PC with Cisco AIR-CB21AG-A-K9 802.11abg WLAN (PCMCIA) Celltech Project No.: 632 EXTERNAL DUT PHOTOGRAPHS ‘0 Degrees Landscape’ LCD Display Orientation 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-CWL (Model: IX325-CWL) Rugged Tablet PC with Cisco AIR-CB21AG-A-K9 802.11abg WLAN (PCMCIA) Celltech Project No.: 632 EXTERNAL DUT PHOTOGRAPHS ‘-90 Degrees Portrait’ LCD Display Orientation 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-CW L (Model: IX325-CW L) Rugged Tablet PC with Cisco AIR-CB21AG-A-K9 802.11abg W LAN (PCMCIA) Celltech Project No.: 632 EXTERNAL DUT PHOTOGRAPHS GPS Receiver PCMCIA Hatch Cover Multi-I/O Extension Slot 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-CW L (Model: IX325-CW L) Rugged Tablet PC with Cisco AIR-CB21AG-A-K9 802.11abg W LAN (PCMCIA) Celltech Project No.: 632 PCMCIA Hatch Cover Card-to-Base Distance Cisco 802.11abg WLAN Card in PCMCIA Slot (Hatch Cover Removed) EXTERNAL DUT PHOTOGRAPHS 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-CW L (Model: IX325-CW L) Rugged Tablet PC with Cisco AIR-CB21AG-A-K9 802.11abg W LAN (PCMCIA) Celltech Project No.: 632 EXTERNAL DUT PHOTOGRAPHS Internal Li-ion Battery 11.1 V, 3600 mAh (Model: T8M-E) Internal Li-ion Battery 11.1 V, 3600 mAh (Model: T8M-E) DUT with Internal Li-ion Battery 11.1 V, 3600 mAh (Model: T8M-E) 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-CW L (Model: IX325-CW L) Rugged Tablet PC with Cisco AIR-CB21AG-A-K9 802.11abg W LAN (PCMCIA) Celltech Project No.: 632 DUT with External Second Li-ion Battery 11.1 V, 3600 mAh (Model: T8S-E) EXTERNAL DUT PHOTOGRAPHS External Second Li-ion Battery 11.1 V, 3600 mAh (Model: T8S-E) External Second Li-ion Battery 11.1 V, 3600 mAh (Model: T8S-E) 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-CW L (Model: IX325-CW L) Rugged Tablet PC with Cisco AIR-CB21AG-A-K9 802.11abg W LAN (PCMCIA) Celltech Project No.: 632 External Second Li-ion Battery 11.1 V, 3600 mAh (Model: T8S-E) External Second Li-ion Battery 11.1 V, 3600 mAh (Model: T8S-E) EXTERNAL DUT PHOTOGRAPHS

2006 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX325-CW L (Model: IX325-CW L) Rugged Tablet PC with Cisco AIR-CB21AG-A-K9 802.11abg W LAN (PCMCIA) Celltech Project No.: 632 LABELING REQUIREMENTS PER §2.925 The label(s) shall be permanently affixed at a conspicuous location on the device. SEE NEXT PAGE(S) FOR FCC ID LABEL SEE NEXT PAGE(S) FOR PART 15(B) DoC LABEL FCC ID LABEL & LOCATION

2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-CW L (Model: IX325-CW L) Rugged Tablet PC with Cisco AIR-CB21AG-A-K9 802.11abg W LAN (PCMCIA) Celltech Project No.: 632 INTERNAL DUT PHOTOGRAPHS Cisco AIR-CB21AG-A-K9 802.11abg WLAN (PCMCIA) Cisco 802.11abg WLAN installed in PCMCIA slot 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-CW L (Model: IX325-CW L) Rugged Tablet PC with Cisco AIR-CB21AG-A-K9 802.11abg W LAN (PCMCIA) Celltech Project No.: 632 INTERNAL DUT PHOTOGRAPHS Cisco AIR-CB21AG-A-K9 802.11abg WLAN (PCMCIA) 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-CW L (Model: IX325-CW L) Rugged Tablet PC with Cisco AIR-CB21AG-A-K9 802.11abg W LAN (PCMCIA) Celltech Project No.: 632 INTERNAL DUT PHOTOGRAPHS Cisco AIR-CB21AG-A-K9 802.11abg WLAN (PCMCIA) 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-CW L (Model: IX325-CW L) Rugged Tablet PC with Cisco AIR-CB21AG-A-K9 802.11abg W LAN (PCMCIA) Celltech Project No.: 632 Dual-band Embedded Diversity Monopole PCB Antenna INTERNAL DUT PHOTOGRAPHS Cisco AIR-CB21AG-A-K9 802.11abg WLAN (PCMCIA) 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-CW L (Model: IX325-CW L) Rugged Tablet PC with Cisco AIR-CB21AG-A-K9 802.11abg W LAN (PCMCIA) Celltech Project No.: 632 INTERNAL DUT PHOTOGRAPHS Cisco AIR-CB21AG-A-K9 802.11abg WLAN (PCMCIA)

Applicant: Itronix Corporation FCC ID: KBCIX325-CWL IC ID: 1943A-IX325ab Model(s): IX325-CWL DUT: Rugged Tablet PC with Cisco AIR-CB21AG-A-K9 802.11abg WLAN 2006 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc.Page 1 of 41 Test Report Serial No.: 040505KBC-F632-S15W a Report Issue No.: S632Wa-032806-R0 Date(s) of Evaluation: October 17, 2005 Report Issue Date: March 28, 2006 Type of Evaluation: RF Exposure SAR FCC 47 CFR 2.1093 IC RSS-102 Issue 2 Test Report Prepared By: Cheri Frangiadakis Test Report Writer Celltech Labs Inc. Test Report Approved By: Jonathan Hughes General Manager Celltech Labs Inc. RF EXPOSURE EVALUATION SPECIFIC ABSORPTION RATE 5 GHz SAR TEST REPORT FOR ITRONIX CORPORATION IX325 SERIES RUGGED TABLET PC WITH CISCO AIR-CB21AG-A-K9 802.11abg WLAN MODEL: IX325-CWL FCC ID: KBCIX325-CWL IC: 1943A-IX325ab Test Report Serial Number 040505KBC-F632-S15Wa Test Report Issue No. S632Wa-032806-R0 Test Lab Celltech Compliance Testing & Engineering Lab (Celltech Labs Inc.) 1955 Moss Court Kelowna, BC Canada V1Y 9L3 Applicant: Itronix Corporation FCC ID: KBCIX325-CWL IC ID: 1943A-IX325ab Model(s): IX325-CWL DUT: Rugged Tablet PC with Cisco AIR-CB21AG-A-K9 802.11abg WLAN 2006 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc.Page 2 of 41 Test Report Serial No.: 040505KBC-F632-S15W a Report Issue No.: S632Wa-032806-R0 Date(s) of Evaluation: October 17, 2005 Report Issue Date: March 28, 2006 Type of Evaluation: RF Exposure SAR FCC 47 CFR 2.1093 IC RSS-102 Issue 2 Celltech Labs Inc. declares under its sole responsibility that this wireless portable device was compliant with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 2 for the General Population / Uncontrolled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information ITRONIX CORPORATION 12825 E. Mirabeau Parkway Spokane Valley, W A 99216 United States FCC IDENTIFIER: KBCIX325-CWL IC IDENTIFER: 1943A-IX325ab Model(s): IX325-CWL Rule Part(s): FCC 47 CFR §2.1093; Health Canada Safety Code 6 Test Procedure(s): F…
