Celltech Labs Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-448-7047 • Fax. 250-448-7046 • e-mail: [email protected] www.celltechlabs.com May 04, 2006 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: ITRONIX CORPORATION FCC ID: KBCIX325-CWLBT Part 15 Subpart C - Certification Composite Application (DSS) On behalf of Itronix Corporation is a composite application for Part 15 Subpart C Certification of Model: IX325-CWLBT Rugged Tablet PC with internal MSI MS-6837 Bluetooth and internal PIFA antenna installed in the left side edge of the DUT. The DUT also contains an internal co-located Cisco AIR-CB21AG-A-K9 802.11abg WLAN PCMCIA Card installed in the PCMCIA slot of the DUT. Part 15C (DTS) and 15E (NII) certification applications for the Cisco AIR- CB21AG-A-K9 802.11abg WLAN portion of the DUT are submitted simultaneously within this application under the same FCC ID: KBCIX325-CWLBT. The MSI MS-6837 Bluetooth and Cisco AIR-CB21AG-A-K9 802.11abg WLAN can transmit simultaneously. Radiated spurious emissions were investigated for simultaneous transmit operation and were found to be in compliance with the limits. The simultaneous transmit test data is not submitted within this application based on non-requirement. Model(s): IX325-CWLBT Device Classification: Part 15 Spread Spectrum Transmitter (DSS) Device Description: Rugged Tablet PC Internal Transmitter: MSI MS-6837 Bluetooth Co-located Transmitter(s): Cisco AIR-CB21AG-A-K9 802.11abg WLAN PCMCIA Card LCD Display User Orientation(s): 0 Degrees Landscape, -90 Degrees Portrait Mode(s) of Operation: Frequency Hopping Spread Spectrum (Bluetooth) Transmit Frequency Range(s): 2402 - 2480 MHz (Bluetooth) Max. RF Output Power Measured: 3.96 dBm (0.0025 Watts) - Peak Conducted (Bluetooth) Antenna Type(s) Tested: Internal PIFA (Bluetooth) The Bluetooth test data submitted in the EMC report is the same as Itronix application FCC ID: KBCIX325-IWLBT. The device configuration evaluated for this application is identical to the device configuration evaluated in FCC ID: KBCIX325-IWLBT, except for the inclusion of the Cisco AIR-CB21AG-A-K9 802.11abg WLAN PCMCIA Card (in place of the internal Intel 802.11bg WLAN Mini-PCI Card) and PCMCIA hatch cover. As described above, co-located co- transmit radiated spurious emissions were evaluated and found to be in compliance. Submitted within this application is the applicant’s confidentiality request, applicant’s LCD display orientation attestation, Part 15C EMC measurement report data and test setup photographs, FCC ID label and location, internal and external device photographs, block diagrams (confidential), schematic diagrams (confidential), operational description (confidential), user manual (provided to the user in the built-in software on the Tablet PC), and Radio-Specific Safety Information (provided to the user in hard copy format). If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jonathan Hughes General Manager Celltech Labs Inc. cc: Itronix Corporation

12825 E. MIRABEAU PARKW AY SPOKANE VALLEY, W A 99216 509.624.6600 800.441.1309 FAX 509.626.4203 www.itronix.com April 06, 2006 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Itronix Corporation FCC ID: KBCIX325-CWLBT FCC Part 15(C) - Certification Request for Confidentiality Pursuant to 47 CFR 0.457(d) and 47 CFR 0.459 of the FCC Rules, Itronix Corporation and Micro-Star International Co., Ltd. hereby request confidentiality of the MSI Block Diagram(s), MSI Schematic Diagram(s), and MSI Operational Description attachments for the subject application. These documents contain detailed system and equipment description and related information about the product in which Itronix Corporation and Micro-Star International Co., Ltd. consider proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Itronix Corporation and Micro-Star International Co., Ltd. consider this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely,

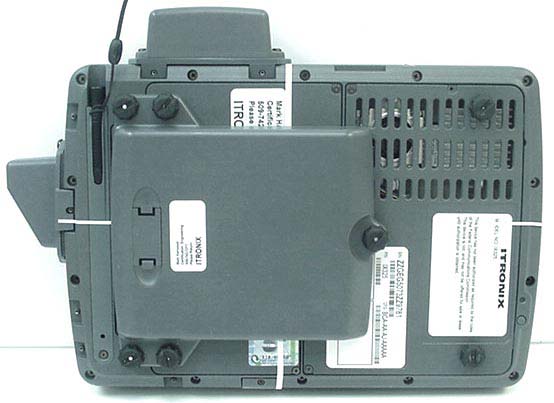

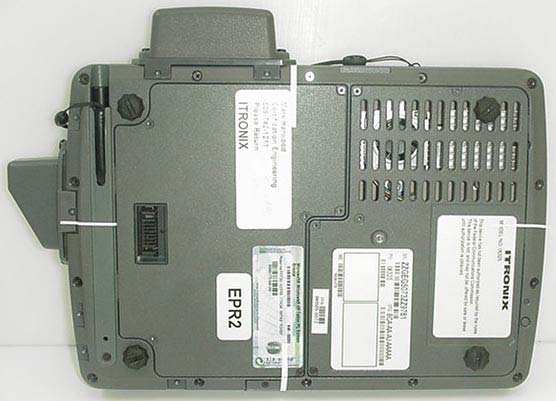

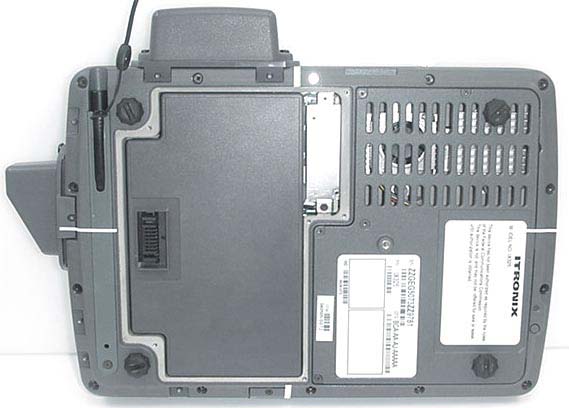

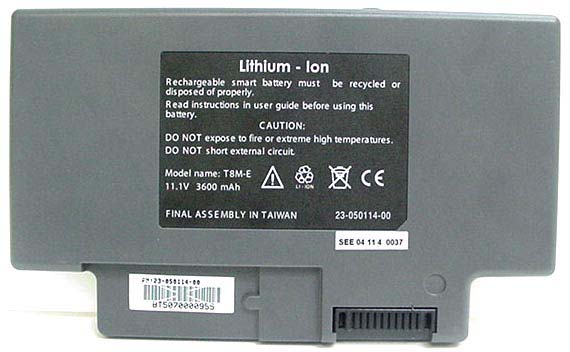

2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-CW LBT (Model: IX325-CW LBT) IX325 Rugged Tablet PC with Cisco 802.11abg WLAN and MSI MS-6837 Bluetooth Celltech Project No.: 631 EXTERNAL DUT PHOTOGRAPHS ‘0 Degrees Landscape’ LCD Display Orientation 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-CW LBT (Model: IX325-CW LBT) IX325 Rugged Tablet PC with Cisco 802.11abg WLAN and MSI MS-6837 Bluetooth Celltech Project No.: 631 EXTERNAL DUT PHOTOGRAPHS ‘-90 Degrees Portrait’ LCD Display Orientation 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-CW LBT (Model: IX325-CW LBT) IX325 Rugged Tablet PC with Cisco 802.11abg WLAN and MSI MS-6837 Bluetooth Celltech Project No.: 631 EXTERNAL DUT PHOTOGRAPHS GPS Receiver PCMCIA Hatch Cover Multi-I/O Extension Slot 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-CW LBT (Model: IX325-CW LBT) IX325 Rugged Tablet PC with Cisco 802.11abg WLAN and MSI MS-6837 Bluetooth Celltech Project No.: 631 PCMCIA Hatch Cover Cisco 802.11abg WLAN Card in PCMCIA Slot (Hatch Cover Removed) Card to Base Distance EXTERNAL DUT PHOTOGRAPHS 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-CW LBT (Model: IX325-CW LBT) IX325 Rugged Tablet PC with Cisco 802.11abg WLAN and MSI MS-6837 Bluetooth Celltech Project No.: 631 EXTERNAL DUT PHOTOGRAPHS Internal Li-ion Battery 11.1 V, 3600 mAh (Model: T8M-E) DUT with Internal Li-ion Battery 11.1 V, 3600 mAh (Model: T8M-E) Internal Li-ion Battery 11.1 V, 3600 mAh (Model: T8M-E) 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-CW LBT (Model: IX325-CW LBT) IX325 Rugged Tablet PC with Cisco 802.11abg WLAN and MSI MS-6837 Bluetooth Celltech Project No.: 631 DUT with External Second Li-ion Battery 11.1 V, 3600 mAh (Model: T8S-E) EXTERNAL DUT PHOTOGRAPHS External Second Li-ion Battery 11.1 V, 3600 mAh (Model: T8S-E) External Li-ion Battery 11.1 V, 3600 mAh (Model: T8S-E) 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-CW LBT (Model: IX325-CW LBT) IX325 Rugged Tablet PC with Cisco 802.11abg WLAN and MSI MS-6837 Bluetooth Celltech Project No.: 631 External Second Li-ion Battery 11.1 V, 3600 mAh (Model: T8S-E) External Second Li-ion Battery 11.1 V, 3600 mAh (Model: T8S-E) EXTERNAL DUT PHOTOGRAPHS

2006 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX325-CW LBT (Model: IX325-CW LBT) IX325 Rugged Tablet PC with Cisco 802.11abg W LAN and MSI MS-6837 Bluetooth Celltech Project No.: 631 LABELING REQUIREMENTS PER §2.925 The label(s) shall be permanently affixed at a conspicuous location on the device. SEE NEXT PAGE(S) FOR FCC ID LABEL SEE NEXT PAGE(S) FOR PART 15(B) DoC LABEL FCC ID LABEL & LOCATION

2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-CW LBT (Model: IX325-CW LBT) IX325 Rugged Tablet PC with Cisco 802.11abg WLAN and MSI MS-6837 Bluetooth Celltech Project No.: 631 INTERNAL DUT PHOTOGRAPHS Cisco AIR-CB21AG-A-K9 802.11abg WLAN (PCMCIA) Cisco 802.11abg WLAN installed in PCMCIA slot 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-CW LBT (Model: IX325-CW LBT) IX325 Rugged Tablet PC with Cisco 802.11abg WLAN and MSI MS-6837 Bluetooth Celltech Project No.: 631 INTERNAL DUT PHOTOGRAPHS Cisco AIR-CB21AG-A-K9 802.11abg WLAN (PCMCIA) 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-CW LBT (Model: IX325-CW LBT) IX325 Rugged Tablet PC with Cisco 802.11abg WLAN and MSI MS-6837 Bluetooth Celltech Project No.: 631 INTERNAL DUT PHOTOGRAPHS Cisco AIR-CB21AG-A-K9 802.11abg WLAN (PCMCIA) 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-CW LBT (Model: IX325-CW LBT) IX325 Rugged Tablet PC with Cisco 802.11abg WLAN and MSI MS-6837 Bluetooth Celltech Project No.: 631 Dual-band Embedded Diversity Monopole PCB Antenna INTERNAL DUT PHOTOGRAPHS Cisco AIR-CB21AG-A-K9 802.11abg WLAN (PCMCIA) 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-CW LBT (Model: IX325-CW LBT) IX325 Rugged Tablet PC with Cisco 802.11abg WLAN and MSI MS-6837 Bluetooth Celltech Project No.: 631 INTERNAL DUT PHOTOGRAPHS Cisco AIR-CB21AG-A-K9 802.11abg WLAN (PCMCIA) 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-CW LBT (Model: IX325-CW LBT) IX325 Rugged Tablet PC with Cisco 802.11abg WLAN and MSI MS-6837 Bluetooth Celltech Project No.: 631 INTERNAL DUT PHOTOGRAPHS MSI MS-6837 Bluetooth Bluetooth Mounting Plate 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-CW LBT (Model: IX325-CW LBT) IX325 Rugged Tablet PC with Cisco 802.11abg WLAN and MSI MS-6837 Bluetooth Celltech Project No.: 631 INTERNAL DUT PHOTOGRAPHS MSI MS-6837 Bluetooth Bluetooth Mounting Plate Bluetooth Transmitte r 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-CW LBT (Model: IX325-CW LBT) IX325 Rugged Tablet PC with Cisco 802.11abg WLAN and MSI MS-6837 Bluetooth Celltech Project No.: 631 INTERNAL DUT PHOTOGRAPHS MSI MS-6837 Bluetooth 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-CW LBT (Model: IX325-CW LBT) IX325 Rugged Tablet PC with Cisco 802.11abg WLAN and MSI MS-6837 Bluetooth Celltech Project No.: 631 INTERNAL DUT PHOTOGRAPHS Bluetooth Antenna Non-Functional Antenna Bluetooth Antenna Non-Functional Antenna 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325-CW LBT (Model: IX325-CW LBT) IX325 Rugged Tablet PC with Cisco 802.11abg WLAN and MSI MS-6837 Bluetooth Celltech Project No.: 631 INTERNAL DUT PHOTOGRAPHS Bluetooth Antenna

Duo-Touch™ IX325 Radio Specific Safety Information Identification Duo-Touch (IX325) Radio Specific Safety Information Copyright Notice © Copyright 2005 Itronix Corporation. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any other language or computer language in whole or in part, in any form or by any means, whether it be electronic, mechanical, magnetic, optical, manual, or otherwise, without the prior written consent of Itronix Corporation, 12825 E. Mirabeau Parkway, Spokane Valley, Washington 99216. Disclaimer This document is printed in the U.S.A. Itronix Corporation reserves the right to revise the manual and make periodic changes to the content without a direct or inferred obligation to Itronix to notify any person of such revision or changes. Itronix Corporation does not assume responsibility for the use of this help manual, nor for any patent infringements or other rights or third parties who may use the manual. This document contains valuable trade secrets and proprietary information of Itronix Corporation. This product is available for purchase under the terms of the Itronix Hardware Purchase and Software License Agreement. Itronix hardware products may be reconditioned, or be manufactured from parts and components that may be new, used, rebuilt, or recycled and in some cases, the hardware product may not be new and may have been previously installed. In any event, Itronix warranty terms apply. Trademark Notice Itronix is a registered trademark of Itronix Corporation. Duo-Touch is a registered trademark of Itronix Corporation Microsoft, MS, Windows, and MS-DOS are registered trademarksof Microsoft Corporation. IBM is a trademark of International Business Machines Corporation. Warnings and Safety Information WARNINGIt is important that only authorized Itronix personnel attempt repairs on Itronix equipment as this might void any maintenance contract with your company. Unauthorized service personnel might be subject to shock hazard on some Itronix equipment if removal of protective covers is attempted. Changes or Modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. Internal radio(s) may have an individual FCC Identifier which are not applicable to this configuration. Only the FCC ID Identifier KBCIX325-CWLBT shown on the label located on the bottom of the Duo- Touch (IX325) Tablet PC is applicable. The Duo-Touch (IX325) Tablet PC must not be co-located or operating in conjunction with any other antenna or transmitter than specified in the certification of the FCC Identifier KBCIX325-CWLBT shown on the PC label. 20 May 2005 © 2005 Itronix Corporation. All rights reserved. This device contains WLAN and Bluetoooth transmitters. This device has been tested for FCC and Industry Canada SAR RF exposure compliance for portable operation. To comply with FCC and IC RF Exposure compliance requirements, the LCD display orientations have been limited to the following two modes: Mode 1 = 0 Degrees Landscape (with the PCMCIA slot cover located at the top side of the display) Mode 2 = -90 Degrees Portrait (with the PCMCIA slot cover located at the left side of the display) RF Exposure Safety Information Operations in the frequency band 5.15 - 5.25 GHz are restricted to indoor use only.

Test Report Serial No.: 040505KBC-F631-E15B Report Issue No.: E631B-042006-R0 Test Date(s): 18May05 - 14Jul05 Report Issue Date: April 20, 2006 Test Rule Part(s): FCC 47 CFR §15.247 Industry Canada RSS-210 Issue 5 Lab Registration(s): FCC Lab Reg. # 714830 Industry Canada Lab File # IC 3874 ELECTROMAGNETIC COMPATIBILITY EMC TEST REPORT FCC 47 CFR PART 15 SUBPART C (DSS) & INDUSTRY CANADA RSS-210 ISSUE 6 FOR ITRONIX CORPORATION MODEL: IX325-CWLBT IX325 SERIES RUGGED TABLET PC WITH BLUETOOTH TRANSMITTER AND INTERNAL PIFA ANTENNA FCC ID: KBCIX325-CWLBT IC: 1943A-IX325ab Test Report Serial Number 040505KBC-F631-E15B Test Report Issue Number E631B-042006-R0 Test Lab Celltech Compliance Testing & Engineering Lab (Celltech Labs Inc.) 1955 Moss Court Kelowna, BC Canada V1Y 9L3 Test Report Serial No.: 040505KBC-F631-E15B Report Issue No.: E631B-042006-R0 Test Date(s): 18May05 - 14Jul05 Report Issue Date: April 20, 2006 Test Rule Part(s): FCC 47 CFR §15.247 Industry Canada RSS-210 Issue 5 Lab Registration(s): FCC Lab Reg. # 714830 Industry Canada Lab File # IC 3874 Company: Itronix Corporation FCC ID: KBCIX325-CWLBT IC ID: 1943A-IX325ab DUT Type: IX325 Rugged Tablet PC with internal MSI MS-6837 Bluetooth Model: IX325-CWLBT 2006 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 62 DECLARATION OF COMPLIANCE Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Company ITRONIX CORPORATION 12825 E. Mirabeau Parkway Spokane Valley, WA 99216 United States Phone: 250-448-7047 Fax: 250-448-7048 E-mail: [email protected] web site: www.celltechlabs.com Lab Registration No.(s): FCC: 714830 IC: 3874 Rule Part(s): FCC: §15.247; §2.1091; §1.1310 IC: RSS-210 Issue 5 - A1. 11/30/02 Device Classification: FCC: Spread Spectrum Transmitter (DSS) IC: Low Power Licence-Exempt Transmitter Device Identification: FCC ID: KBCIX325-CWLBT IC: 1943A-IX325ab DUT Description: Model(s): IX325-CWLBT Device Type: Rugged Tablet PC Internal Transmitter(s): MSI MS-6837 Bluetooth Tx Frequency Range: 2402 - 2480 MHz Max. RF Output Power: +3.96 dBm 0.0025 Watts Maximum peak conducted power measured (2402 MHz) Mode(s) of Operation: Frequency Hopping Spread Spectrum (FHSS) Modulation Type(s): GFSK 1 Mbps 0.5 BT Gaussian Antenna Type(s): Internal PIFA Bluetooth Antenna Manufacturer: Well Green Technology Co., Ltd. Stationary: 75 Watt AC Power Adapter 11.1 V Internal Lithium-ion Battery, 3600 mAh (Model: T8M-E) Power Source(s): 11.1 V External Second Lithium-ion Battery, 3600 mAh (Model: T8S-E) This wireless mobile device has demonstrated compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 47 CFR Part 15C and Industry Canada RSS-210 Issue 5. I attest to the accuracy of the data. All measurements reported herein were performed by me or were under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. ____________________________ Russell Pipe Senior Compliance Technologist Celltech Labs Inc. ______________________________ Duane M. Friesen, C.E.T. EMC Manager Celltech Labs Inc. Test Report Serial No.: 040505KBC-F631-E15B Report Issue No.: E631B-042006-R0 Test Date(s): 18May05 - 14Jul05 Report Issue Date: April 20, 2006 Test Rule Part(s): FCC 47 CFR §15.247 Industry Canada RSS-210 Issue 5 Lab Registration(s): FCC Lab Reg. # 714830 Industry Canada Lab File # IC 3874 Company: Itronix Corporation FCC ID: KBCIX325-CWLBT IC ID: 1943A-IX325ab DUT Type: IX325 Rugged Tablet PC with internal MSI MS-6837 Bluetooth Model: IX325-CWLBT 2006 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 3 of 62 TABLE OF CONTENTS 1.0 SCOPE.......................................................................................................................................................................... 6 2.0 REFERENCES .............................................................................................................................................................. 6 2.1 Normative References .................................................................................................................................................... 6 3.0 TERMS AND DEFINITIONS ........................................................................................................................................... 7 4.0 FACILITIES AND ACCREDITATIONS............................................................................................................................ 8 5.0 GENERAL INFORMATION............................................................................................................................................. 8 5.1 Applicant Information...................................................................................................................................................... 8 5.2 DUT Description............................................................................................................................................................. 8 5.3 Co-Located Equipment................................................................................................................................................... 9 5.4 Cable Descriptions ......................................................................................................................................................... 9 5.5 Support Equipment.......…

Text truncated - open the document above for the full version.

Test Report Serial No.: 040505KBC-F631-E15B Report Issue No.: E631B-042006-R0 Test Date(s): 18May05 - 14Jul05 Report Issue Date: April 20, 2006 Test Rule Part(s): FCC 47 CFR §15.247 Industry Canada RSS-210 Issue 5 Lab Registration(s): FCC Lab Reg. # 714830 Industry Canada Lab File # IC 3874 Company: Itronix Corporation FCC ID: KBCIX325-CWLBT IC ID: 1943A-IX325ab DUT Type: IX325 Rugged Tablet PC with internal MSI MS-6837 Bluetooth Model: IX325-CWLBT 2006 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 17 of 62 B.6. SETUP PHOTOS Photograph B.6-1 - AC Powerline Conducted Emission Configuration Photograph B.6-2 - AC Powerline Conducted Emission Cable Placement Test Report Serial No.: 040505KBC-F631-E15B Report Issue No.: E631B-042006-R0 Test Date(s): 18May05 - 14Jul05 Report Issue Date: April 20, 2006 Test Rule Part(s): FCC 47 CFR §15.247 Industry Canada RSS-210 Issue 5 Lab Registration(s): FCC Lab Reg. # 714830 Industry Canada Lab File # IC 3874 Company: Itronix Corporation FCC ID: KBCIX325-CWLBT IC ID: 1943A-IX325ab DUT Type: IX325 Rugged Tablet PC with internal MSI MS-6837 Bluetooth Model: IX325-CWLBT 2006 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 43 of 62 H.8. SETUP PHOTOGRAPHS Photograph H.8-1 - 3115 Horn Antenna (2GHz - 10GHz) Photograph H.8-2 - 3115 Horn Antenna (10GHz - 18GHz) Photograph H.8-3 - 3160-09 Horn Antenna (18GHz - 24 GHz) Test Report Serial No.: 040505KBC-F631-E15B Report Issue No.: E631B-042006-R0 Test Date(s): 18May05 - 14Jul05 Report Issue Date: April 20, 2006 Test Rule Part(s): FCC 47 CFR §15.247 Industry Canada RSS-210 Issue 5 Lab Registration(s): FCC Lab Reg. # 714830 Industry Canada Lab File # IC 3874 Company: Itronix Corporation FCC ID: KBCIX325-CWLBT IC ID: 1943A-IX325ab DUT Type: IX325 Rugged Tablet PC with internal MSI MS-6837 Bluetooth Model: IX325-CWLBT 2006 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 52 of 62 I.8. SETUP PHOTOGRAPHS Photograph I.8-1 - Loop Antenna (10kHz - 30MHz) Photograph I.8-2 - Bilog Antenna (30MHz - 1GHz) Photograph I.8-3 - 3115 Horn Antenna (1GHz - 2GHz) Photograph I.8-4 - 3115 Horn Antenna (2GHz - 10GHz) Photograph I.8-5 - 3115 Horn Antenna (10GHz - 18GHz) Photograph I.8-6 - 3160-09 Horn (18GHz - 24GHz)
