Getting Started Getting Started Congratulations on your purchase of the Itronix Duo-Touch Tablet PC! Your new Duo-Touch features the most innovative advances in portable computing technology. It combines state-of-the-art ergonomics, patented RF technology, and a rugged, durable architecture to provide you with a Tablet PC that is compact, powerful, and easy to use virtually anywhere. Designed for a wide range of business productivity applications, the Duo- Touch is an ideal choice for mobile workers who are on the go throughout the day. It offers flexibility, durability and dependability along with ruggedness and portability to make it quick and easy to transport to any work location, indoors, outdoors, or in your vehicle. This online document, Duo-Touch Help, contains all the information you need to set up and use your new Tablet PC. For information on printing, searching, navigating or using Duo-Touch Help, see How to Use This Help System. To optimize readability, we recommend you view this document in landscape orientation. If you have suggestions for how we may improve this document, please e-mail [email protected]. Unpacking Your System After opening the package, carefully inspect the contents. Contact your dealer if any items are missing or appear damaged. The shipping carton should contain a Duo-Touch Tablet PC with the following features and parts: Standard Parts  Duo-Touch Tablet PC  AC Adapter and Power Cord  (1) Digitizer Pen with Tether  (5) Pen replacement tips and (1) removal tool  Cleaning cloth  Duo-Touch Quick Start Guide Standard Features  8.4” TFT SVGA Active Matrix Color Display  Display with two touch functions, an active digitizer touch panel and a passive touch screen  Seven (7) Hot keys  Internal 56K V.92 Fax/Modem  RF ON/OFF button  Internal Gigabyte Ethernet LAN  Li-Ion Battery  Two (2) USB 2.0 Ports  One Type II PC Card Slot  One Type II CompactFlash Slot  Audio Jacks for external speakers and microphone  Internal Speaker and Microphone  Multi-I/O Expansion Connector  Second Battery Connector (to attach the optional second battery)  Microsoft Windows XP Tablet PC Edition 2005  3-year limited warranty Optional Features  802.11 b/g WLAN radio  Bluetooth Class II radio  GPS radio  Wireless WAN radios and antennas (CDMA and GPRS )  DDR Memory  Hard Driver Heater Optional Accessories The following items are normally optional, but some vendors may include them in the standard package. Some items may not be available in some countries, or some vendors may choose not to carry all the items. A complete list of Itronix optional peripherals and accessories is listed on the Itronix website.  Carry Case  Desk Mount  Second Battery  External USB Floppy Disk Drive  External USB DVD/CD-RW Drive  RJ-11 Cable  Shoulder Strap  Tip and Ring Cable  Vehicle Dock  USB 2.0 Port Replicator  USB to Serial Cable CAUTION When purchasing any of the accessories listed above, purchase only those accessories that are approved for use with your computer. The above accessories are proprietary items. Your system vendor can obtain these approved accessories. If you use items that are not approved for use with this computer, you may cause your computer to malfunction, or to emit or receive electromagnetic radiation in excess of local regulations. For non-proprietary accessories such as PC Cards or printers, ensure that the accessory functions properly in your computer before making the purchase. Your system vendor may be able to recommend reliable brands and models. Where to Look For Information About Your Duo-Touch Tablet PC This Help System describes the key elements and functions of your computer. Be sure to read it thoroughly before you begin using your Duo-Touch and refer to it whenever needed. It includes a table of contents, search function, index and glossary to make finding the information you need quick and easy. See How to Use this Help System for information about navigating, printing or otherwise using this document. Please refer to the Service and Support section if you have questions not answered in this document. About Windows For more extensive information and help about Windows, go to the following from the Start Menu:  Help and Support. View extensive Tablet PC Help. From here you can also view several Tablet PC Tutorials.  Tour Windows XP. View an online orientation of Windows XP.  Get Going with Tablet PC. Learn the basic information about using your Tablet PC. Precautions You can use your computer under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your computer:  Follow all warnings and instructions noted in this documentation, including the notification section  Follow all warnings and instructions noted in Windows Help and Support, found on the Start Menu  The first time you use your computer, we recommend that you carefully read the section on Power Management to familiarize yourself with basic battery information and ensure optimum performance  WARNING! There is danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions  CAUTION Internal components of the Duo-Touch will be damaged if exposed to contaminants. When dust covers, the PC card door, or the bottom access panel are open on the computer, shield the unit from all contaminants such as liquids, rain, snow, and dust.  Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use aerosols, solvents, or strong detergents  Slots and openings in the computer case are for ventilation purposes. Do not block or cover these openings or the system could overheat  There is a label on the bottom of the Duo-Touch containing information on the power requirements of this system. These requir…

Text truncated - open the document above for the full version.

Duo-Touch™ IX325 Radio Specific Safety Information Identification Duo-Touch (IX325) Radio Specific Safety Information Copyright Notice © Copyright 2005 Itronix Corporation. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any other language or computer language in whole or in part, in any form or by any means, whether it be electronic, mechanical, magnetic, optical, manual, or otherwise, without the prior written consent of Itronix Corporation, South 801 Stevens Street, Spokane, Washington 99204. Disclaimer This document is printed in the U.S.A. Itronix Corporation reserves the right to revise the manual and make periodic changes to the content without a direct or inferred obligation to Itronix to notify any person of such revision or changes. Itronix Corporation does not assume responsibility for the use of this help manual, nor for any patent infringements or other rights or third parties who may use the manual. This document contains valuable trade secrets and proprietary information of Itronix Corporation. This product is available for purchase under the terms of the Itronix Hardware Purchase and Software License Agreement. Itronix hardware products may be reconditioned, or be manufactured from parts and components that may be new, used, rebuilt, or recycled and in some cases, the hardware product may not be new and may have been previously installed. In any event, Itronix warranty terms apply. Trademark Notice Itronix is a registered trademar k of Itronix Corporation. Duo-Touch is a registered trademark of Itronix Corporation Microsoft, MS, Windows, and MS-DOS are registered trademarks of Microsoft Corporation. IBM is a trademark of International Business Machines Corporation. Warnings and Safety Information WARNING It is important that only authorized Itronix personnel attempt repairs on Itronix equipment as this might void any maintenance contract with your company. Unauthorized service personnel might be subject to shock hazard on some Itronix equipment if removal of protective covers is attempted. Changes or Modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. Internal radio(s) may have an indivi dual FCC Identifier which are not applicable to th is configuration. Only the FCC Identifier KBCIX325A580IWLBT shown on the label located on the bottom of the Duo-Touch (I X325) Tablet PC is applicable. The Duo-Touch (IX325) Tablet PC must not be co-located or operating in conjunction with any other antenna(s) or transmitter(s) than specified in the certification of the FCC Identifier KBCIX325A580IWLBT shown on the PC label. RF Exposure Safety Information This device contains WAN and WLAN radio transmitters. This device has been tested for FCC and Industry Canada SAR RF exposure compliance for portable operation. In order to comply with FCC

801 S. STEVENS STREET SPOKANE, WA 99204 509.624.6600 800.441.1309 FAX 509.626.4203 www.itronix.com October 3, 2005 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Itronix Corporation FCC ID: KBCIX325A580IWLBT FCC Part 15(C) Certification Request for Confidentiality Pursuant to 47 CFR 0.457(d) and 47 CFR 0.459 of the FCC Rules, Itronix Corporation hereby requests confidentiality of the Intel Block Diagram(s), Intel Schematic Diagram(s), and Intel Operational Description exhibits for the subject application. These documents contain detailed system and equipment description and related information about the product in which Itronix Corporation and Intel Corporation consider proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Itronix Corporation and Intel Corporation consider this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely,

Celltech Labs Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-448-7047 • Fax. 250-448-7046 • e-mail: [email protected] www.celltechlabs.com January 26, 2006 Timco Engineering, Inc. Telecommunication Certification Body 849 NW State Road 45 Newberry, FL 32669 SUBJECT: ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT Part 15(C) - Certification Composite Application (DTS) On behalf of Itronix Corporation is an application for Part 15 Subpart C Certification of Model: IX325A580IWLBT Rugged Tablet PC with internal Intel Pro 2200BG 802.11b/g WLAN Mini-PCI Card and dual internal PIFA diversity antenna installed in the upper edges of the DUT. The DUT also incorporates an internal co-located MSI MS-6837 Bluetooth Transmitter with internal PIFA antenna installed in the left side edge of the DUT. The DUT also incorporates an internal Dual-Band PCS/Cellular CDMA PCMCIA Modem Model: AirCard 580 manufactured by Sierra Wireless, Inc. utilizing an external hinged dipole antenna attached to the IX325 Broadband Hatch, and a vehicle-mount antenna with vehicle cradle. The Part 15(C) composite certification application for the MSI MS-6837 Bluetooth and the Part 24(E) composite certification application for the Sierra Wireless AirCard 580 PCMCIA Modem are submitted simultaneously with this application. The Intel Pro 2200BG 802.11b/g WLAN and the Sierra Wireless AirCard 580 Dual-Band CDMA Modem do not transmit simultaneously. The Intel Pro 2200BG 802.11b/g WLAN can transmit simultaneously with the MSI MS-6837 Bluetooth. Model: IX325A580IWLBT Device Classification: Digital Transmission System (DTS) Device Description: Rugged Tablet PC LCD Display User Orientation(s): 0 Degrees Landscape, -90 Degrees Portrait Internal Transmitter Type: Intel Pro 2200BG 802.11b/g WLAN Mini-PCI Card Co-located Transmitter(s): Sierra Wireless AirCard 580 Dual-Band CDMA PCMCIA Modem MSI MS-6837 Bluetooth Antenna Type(s) Tested: Internal PIFA (WLAN) Transmitter Frequency Range(s): 2412 - 2462 MHz (WLAN) Mode(s) of Operation: Direct Sequence Spread Spectrum (WLAN) Max. RF Output Power Measured: 0.112 Watts (20.5 dBm) Peak Conducted (802.11b) Max. SAR Level(s) Measured: Body: 0.00201 W/kg - Peak SAR measured from Area Scan (802.11b) Submitted within this application is the TCB Form 731, applicant’s change of grantee address notification, applicant’s confidentiality request, applicant’s device orientation attestation, Part 15(C) EMC measurement report data and test setup photographs, SAR RF exposure measurement report data & photographs, FCC ID label and location, internal and external device photographs, block diagrams (confidential), schematic diagrams (confidential), operational description (confidential), user manual (provided to the user in the built-in software on the Tablet PC), and Radio-Specific Safety Information (provided to the user in hard copy format). If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jonathan Hughes General Manager Celltech Labs Inc. cc: Itronix Corporation

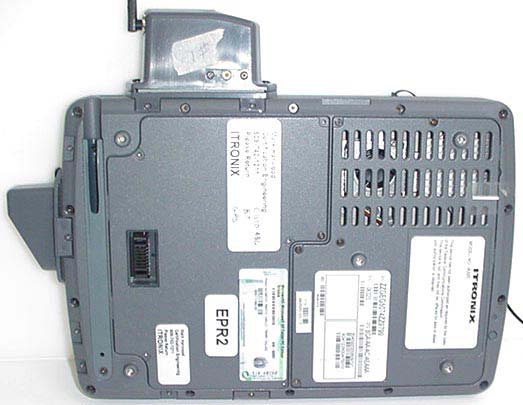

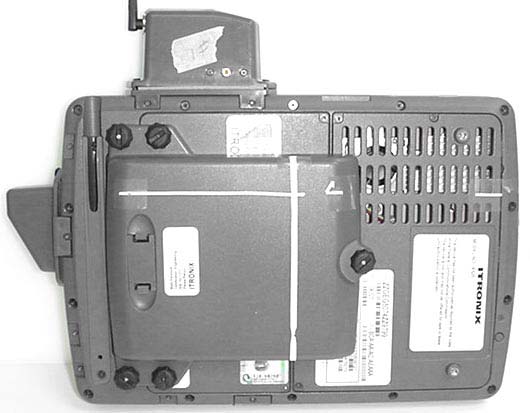

© 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 EXTERNAL DUT PHOTOGRAPHS Antenna “Parallel Straight” Position ‘0 Degrees Landscape’ LCD Display Orientation © 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 EXTERNAL DUT PHOTOGRAPHS Antenna “Perpendicular” Position ‘0 Degrees Landscape’ LCD Display Orientation © 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 EXTERNAL DUT PHOTOGRAPHS Antenna “Parallel Bent” Position ‘-90 Degrees Portrait’ LCD Display Orientation © 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 IX325 Broadband Hatch AirCard 580 Antenna Multi-I/O Extension Slot GPS Receiver EXTERNAL DUT PHOTOGRAPHS © 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 AirCard 580 Antenna EXTERNAL DUT PHOTOGRAPHS AirCard 580 Antenna - “Perpendicular” Position (90° to Card) © 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 EXTERNAL DUT PHOTOGRAPHS AirCard 580 Antenna - “Parallel Straight” Position (180° to Card) © 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 EXTERNAL DUT PHOTOGRAPHS AirCard 580 Antenna - “Parallel Bent” Position (180° to Card) © 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 IX325 Broadband Hatch (AirCard 580 Antenna Removed) IX325 Broadband Hatch (AirCard 580 Antenna Connector) IX325 Broadband Hatch EXTERNAL DUT PHOTOGRAPHS © 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 AirCard 580 Card-to-Base Distance (Broadband Hatch & Antenna Removed) AirCard 580 installed in IX325 PCMCIA Slot (Broadband Hatch & Antenna Removed) IX325 PCMCIA Card Slot (AirCard 580 Removed) EXTERNAL DUT PHOTOGRAPHS © 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 EXTERNAL DUT PHOTOGRAPHS IX325 with Internal Lithium-ion Battery (Model: T8M-E) Internal Lithium-ion Battery (Model: T8M-E) Internal Lithium-ion Battery (Model: T8M-E) © 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 IX325 with External Second Lithium-ion Battery (Model: T8S-E) EXTERNAL DUT PHOTOGRAPHS External Second Lithium-ion Battery (Model: T8S-E) External Second Lithium-ion Battery (Model: T8S-E) © 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 External Second Lithium-ion Battery (Model: T8S-E) External Second Lithium-ion Battery (Model: T8S-E) EXTERNAL DUT PHOTOGRAPHS © 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 EXTERNAL DUT PHOTOGRAPHS IX325 Tablet PC installed in IX325 Vehicle Dock with Vehicle Antenna © 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 EXTERNAL DUT PHOTOGRAPHS IX325 Tablet PC installed in IX325 Vehicle Dock © 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 EXTERNAL DUT PHOTOGRAPHS IX325 Vehicle Dock © 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 MaxRad 3dBi Vehicle Antenna (P/N: WMLPVDB800/1900) EXTERNAL DUT PHOTOGRAPHS IX325 Vehicle Dock & MaxRad 3 dBi Antenna (P/N: WMLPVDB800/1900) MaxRad 3dBi Antenna connected to IX325 Vehicle Dock

© 2005 Celltech Labs Inc ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 LABELING REQUIREMENTS PER §2.925 The label(s) shall be permanently affixed at a conspicuous location on the device. SEE NEXT PAGE(S) FOR FCC ID LABEL SEE NEXT PAGE(S) FOR PART 15(B) DoC LABEL FCC ID LABEL & LOCATION

© 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 INTERNAL DUT PHOTOGRAPHS Sierra Wireless AirCard 580 CDMA PCMCIA Modem Intel Pro 2200BG 802.11b/g WLAN Mini-PCI Card MSI MS-6837 Bluetooth Sierra Wireless AirCard 580 CDMA PCMCIA Modem Bluetooth Mounting Plate Intel Pro 2200BG 802.11b/g WLAN Mini-PCI Card © 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 i INTERNAL DUT PHOTOGRAPHS Sierra Wireless AirCard 580 CDMA PCMCIA Modem AirCard 580 Removed AirCard 580 Installed © 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 INTERNAL DUT PHOTOGRAPHS Sierra Wireless AirCard 580 CDMA PCMCIA Modem © 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 INTERNAL DUT PHOTOGRAPHS Sierra Wireless AirCard 580 CDMA PCMCIA Modem © 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 INTERNAL DUT PHOTOGRAPHS Sierra Wireless AirCard 580 CDMA PCMCIA Modem © 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 INTERNAL DUT PHOTOGRAPHS Intel Pro 2200BG 802.11b/g WLAN Mini-PCI Card © 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 INTERNAL DUT PHOTOGRAPHS Intel Pro 2200BG 802.11b/g WLAN Mini-PCI Card © 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 Back Front with Shielding INTERNAL DUT PHOTOGRAPHS Intel Pro 2200BG 802.11b/g WLAN Mini-PCI Card © 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 Front with Shielding Removed INTERNAL DUT PHOTOGRAPHS Intel Pro 2200BG 802.11b/g WLAN Mini-PCI Card © 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 INTERNAL DUT PHOTOGRAPHS MSI MS-6837 Bluetooth Bluetooth Mounting Plate Bluetooth Transmitter © 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 INTERNAL DUT PHOTOGRAPHS MSI MS-6837 Bluetooth © 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 INTERNAL DUT PHOTOGRAPHS Bluetooth Antenna AirCard 580 CDMA Dual-Band Antenna WLAN Antenna 1 Receive Only WLAN Antenna 2 Transmit/Receive © 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 WLAN Antenna 1 (Receive Only) INTERNAL DUT PHOTOGRAPHS WLAN Antenna 2 (Transmit / Receive) WLAN Antenna 1 (Receive Only) WLAN Antenna 2 (Transmit / Receive) © 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 Bluetooth Antenna Bluetooth Antenna Bluetooth Antenna INTERNAL DUT PHOTOGRAPHS © 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 INTERNAL DUT PHOTOGRAPHS Antenna Distance © 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 INTERNAL DUT PHOTOGRAPHS Antenna Distance © 2006 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A580IWLBT (Model: IX325A580IWLBT) Rugged Tablet PC with Dual-Band PCS/Cellular CDMA, 802.11b/g WLAN and Bluetooth Celltech Project No.: 675 INTERNAL DUT PHOTOGRAPHS Antenna Distance

Applicant: Itronix Corporation FCC ID: KBCIX325A580IWLBT IC ID: 1943A-IX325f Model: IX325A580IWLBT Rugged Tablet PC with Intel Pro 2200BG 802.11b/g WLAN Mini-PCI Card 2006 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc.Page 1 of 32 Test Report Serial No.: 100305KBC-T675-S15W Report Issue Date: January 19, 2006 Date(s) of Evaluation: June 09, 2005 Report Issue No.: S675W-011906-R0 Type of Evaluation: RF Exposure SARFCC 47 CFR 2.1093 IC RSS-102 Issue 2 Test Report Prepared By: Cheri Frangiadakis Test Report Writer Celltech Labs Inc. Test Report Approved By: Jonathan Hughes General Manager Celltech Labs Inc. RF EXPOSURE EVALUATION SPECIFIC ABSORPTION RATE SAR TEST REPORT FOR THE ITRONIX CORPORATION IX325 SERIES RUGGED TABLET PC WITH 802.11b/g WLAN MINI-PCI CARD AND DUAL INTERNAL PIFA ANTENNA FCC ID: KBCIX325A580IWLBT IC: 1943A-IX325f Test Report Serial Number 100305KBC-T675-S15W Test Report Issue No. S675W-011906-R0 Test Lab Celltech Compliance Testing & Engineering Lab (Celltech Labs Inc.) 1955 Moss Court Kelowna, BC Canada V1Y 9L3 Applicant: Itronix Corporation FCC ID: KBCIX325A580IWLBT IC ID: 1943A-IX325f Model: IX325A580IWLBT Rugged Tablet PC with Intel Pro 2200BG 802.11b/g WLAN Mini-PCI Card 2006 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 32 Test Report Serial No.: 100305KBC-T675-S15W Report Issue Date: January 19, 2006 Date(s) of Evaluation: June 09, 2005 Report Issue No.: S675W-011906-R0 Type of Evaluation: RF Exposure SAR FCC 47 CFR 2.1093 IC RSS-102 Issue 2 Celltech Labs Inc. declares under its sole responsibility that this wireless device was compliant with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 2 for the General Population / Uncontrolled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Tested By: Sean Johnston Compliance Technologist Celltech Labs Inc. Reviewed By: Spencer Watson Senior Compliance Technologist Celltech Labs Inc. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information ITRONIX CORPORATION 12825 E. Mirabeau Parkway Spokane Valley, WA 99216 United States FCC IDENTIFIER: KBCIX325A580IWLBT IC IDENTIFER: 1943A-IX325f Model(s): IX325A580IWLBT Rule Part(s): FCC 47 CFR §2.1093; Health Canada Safety Code 6 Test Procedure(s): FCC OET Bulletin 65, Supplement C (Edition 01-01) Industry Canada RSS-102 Issue 2 FCC Device Classification: Digital Transmission System (DTS) IC Device Classification: Low Power License-Exempt Radiocommunication Device (RSS-210 Issue 6) Device Description: Rugged Tablet PC Internal Transmitter: Intel Pro 2200BG 802.11b/g WLAN Mini-PCI Card Mode(s) of Operation: DSSS (Direct Sequence Spread Spectrum) - 802.11b/g Modulation Type(s): OFDM with BPSK, QPSK, 16QAM, 64QAM, DBPSK, DQPSK, CCK Data Rate(s): 802.11b: 1 / 2 / 5.5 / 11 Mbps 802.11g: 6 / 9 / 12 / 18 / 24 / 36 / 48 / 54 Mbps Tx Frequency Range(s): 2412 - 2462 MHz (802.11b/g) Max. RF Output Power Tested: 18.6 dBm (72 mW) Peak Conducted (802.11b, 1 Mbps) Power Source(s) Tested: Internal Lithium-ion Battery 11.1 V, 3600 mAh (Model: T8M-E) 75 W AC Power Adapter (Delta Electronics Model: ADP-75FB B) Antenna Type(s) Tested: Dual Internal PIFA (Transmit - Upper Right Side of LCD Display) Max. SAR Level(s) Evaluated: Body: 0.00201 W/kg (Peak SAR measured from Area Scan) Applicant: Itronix Corporation FCC ID: KBCIX325A580IWLBT IC ID: 1943A-IX325f Model: IX325A580IWLBT Rugged Tablet PC with Intel Pro 2200BG 802.11b/g WLAN Mini-PCI Card 2006 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc.Page 3 of 32 Test Report Serial No.: 100305KBC-T675-S15W Report Issue Date: January 19, 2006 Date(s) of Evaluation: June 09, 2005 Report Issue No.: S675W-011906-R0 Type of Evaluation: RF Exposure SARFCC 47 CFR 2.1093 IC RSS-102 Issue 2 TABLE OF CONTENTS 1.0 INTRODUCTION ____________________________________________________________________ 4 2.0 DESCRIPTION of DEVICE UNDER TEST (DUT) __________________________________________ 4 3.0 SAR MEASUREMENT SYSTEM _______________________________________________________ 5 4.0 MEASUREMENT SUMMARY __________________________________________________________ 6 5.0 DETAILS OF SAR EVALUATION ______________________________________________________ 7 6.0 EVALUATION PROCEDURES _________________________________________________________ 7 7.0 SYSTEM PERFORMANCE CHECK _____________________________________________________ 8 8.0 SIMULATED EQUIVALENT TISSUES ___________________________________________________ 9 9.0 SAR SAFETY LIMITS ________________________________________________________________ 9 10.0 ROBOT SYSTEM SPECIFICATIONS__________________________________________________ 10 11.0 PROBE SPECIFICATION (ET3DV6) __________________________________________________ 11 12.0 SAM PHANTOM …
