Getting Started Getting Started Congratulations on your purchase of the Itronix Duo-Touch Tablet PC! Your new Duo-Touch features the most innovative advances in portable computing technology. It combines state-of-the-art ergonomics, patented RF technology, and a rugged, durable architecture to provide you with a Tablet PC that is compact, powerful, and easy to use virtually anywhere. Designed for a wide range of business productivity applications, the Duo- Touch is an ideal choice for mobile workers who are on the go throughout the day. It offers flexibility, durability and dependability along with ruggedness and portability to make it quick and easy to transport to any work location, indoors, outdoors, or in your vehicle. This online document, Duo-Touch Help, contains all the information you need to set up and use your new Tablet PC. For information on printing, searching, navigating or using Duo-Touch Help, see How to Use This Help System. To optimize readability, we recommend you view this document in landscape orientation. If you have suggestions for how we may improve this document, please e-mail [email protected]. Unpacking Your System After opening the package, carefully inspect the contents. Contact your dealer if any items are missing or appear damaged. The shipping carton should contain a Duo-Touch Tablet PC with the following features and parts: Standard Parts  Duo-Touch Tablet PC  AC Adapter and Power Cord  (1) Digitizer Pen with Tether  (5) Pen replacement tips and (1) removal tool  Cleaning cloth  Duo-Touch Quick Start Guide Standard Features  8.4” TFT SVGA Active Matrix Color Display  Display with two touch functions, an active digitizer touch panel and a passive touch screen  Seven (7) Hot keys  Internal 56K V.92 Fax/Modem  RF ON/OFF button  Internal Gigabyte Ethernet LAN  Li-Ion Battery  Two (2) USB 2.0 Ports  One Type II PC Card Slot  One Type II CompactFlash Slot  Audio Jacks for external speakers and microphone  Internal Speaker and Microphone  Multi-I/O Expansion Connector  Second Battery Connector (to attach the optional second battery)  Microsoft Windows XP Tablet PC Edition 2005  3-year limited warranty Optional Features  802.11 b/g WLAN radio  Bluetooth Class II radio  GPS radio  Wireless WAN radios and antennas (CDMA and GPRS )  DDR Memory  Hard Driver Heater Optional Accessories The following items are normally optional, but some vendors may include them in the standard package. Some items may not be available in some countries, or some vendors may choose not to carry all the items. A complete list of Itronix optional peripherals and accessories is listed on the Itronix website.  Carry Case  Desk Mount  Second Battery  External USB Floppy Disk Drive  External USB DVD/CD-RW Drive  RJ-11 Cable  Shoulder Strap  Tip and Ring Cable  Vehicle Dock  USB 2.0 Port Replicator  USB to Serial Cable CAUTION When purchasing any of the accessories listed above, purchase only those accessories that are approved for use with your computer. The above accessories are proprietary items. Your system vendor can obtain these approved accessories. If you use items that are not approved for use with this computer, you may cause your computer to malfunction, or to emit or receive electromagnetic radiation in excess of local regulations. For non-proprietary accessories such as PC Cards or printers, ensure that the accessory functions properly in your computer before making the purchase. Your system vendor may be able to recommend reliable brands and models. Where to Look For Information About Your Duo-Touch Tablet PC This Help System describes the key elements and functions of your computer. Be sure to read it thoroughly before you begin using your Duo-Touch and refer to it whenever needed. It includes a table of contents, search function, index and glossary to make finding the information you need quick and easy. See How to Use this Help System for information about navigating, printing or otherwise using this document. Please refer to the Service and Support section if you have questions not answered in this document. About Windows For more extensive information and help about Windows, go to the following from the Start Menu:  Help and Support. View extensive Tablet PC Help. From here you can also view several Tablet PC Tutorials.  Tour Windows XP. View an online orientation of Windows XP.  Get Going with Tablet PC. Learn the basic information about using your Tablet PC. Precautions You can use your computer under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your computer:  Follow all warnings and instructions noted in this documentation, including the notification section  Follow all warnings and instructions noted in Windows Help and Support, found on the Start Menu  The first time you use your computer, we recommend that you carefully read the section on Power Management to familiarize yourself with basic battery information and ensure optimum performance  WARNING! There is danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions  CAUTION Internal components of the Duo-Touch will be damaged if exposed to contaminants. When dust covers, the PC card door, or the bottom access panel are open on the computer, shield the unit from all contaminants such as liquids, rain, snow, and dust.  Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use aerosols, solvents, or strong detergents  Slots and openings in the computer case are for ventilation purposes. Do not block or cover these openings or the system could overheat  There is a label on the bottom of the Duo-Touch containing information on the power requirements of this system. These requir…

Text truncated - open the document above for the full version.

Duo-Touch™ IX325 Radio Specific Safety Information Identification Duo-Touch (IX325) Radio Specific Safety Information Copyright Notice © Copyright 2005 Itronix Corporation. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any other language or computer language in whole or in part, in any form or by any means, whether it be electronic, mechanical, magnetic, optical, manual, or otherwise, without the prior written consent of Itronix Corporation, South 801 Stevens Street, Spokane, Washington 99204. Disclaimer This document is printed in the U.S.A. Itronix Corporation reserves the right to revise the manual and make periodic changes to the content without a direct or inferred obligation to Itronix to notify any person of such revision or changes. Itronix Corporation does not assume responsibility for the use of this help manual, nor for any patent infringements or other rights or third parties who may use the manual. This document contains valuable trade secrets and proprietary information of Itronix Corporation. This product is available for purchase under the terms of the Itronix Hardware Purchase and Software License Agreement. Itronix hardware products may be reconditioned, or be manufactured from parts and components that may be new, used, rebuilt, or recycled and in some cases, the hardware product may not be new and may have been previously installed. In any event, Itronix warranty terms apply. Trademark Notice Itronix is a registered trademar k of Itronix Corporation. Duo-Touch is a registered trademark of Itronix Corporation Microsoft, MS, Windows, and MS-DOS are registered trademarks of Microsoft Corporation. IBM is a trademark of International Business Machines Corporation. Warnings and Safety Information WARNING It is important that only authorized Itronix personnel attempt repairs on Itronix equipment as this might void any maintenance contract with your company. Unauthorized service personnel might be subject to shock hazard on some Itronix equipment if removal of protective covers is attempted. Changes or Modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. Internal radio(s) may have an indivi dual FCC Identifier which are not applicable to th is configuration. Only the FCC ID Id en tifier KBCIX325A775IWLBT shown on the label located on the bottom of the Duo-Touch (I X325) Tablet PC is applicable. The Duo-Touch (IX325) Tablet PC must not be co-located or operating in conjunction with any other antenna(s) or transmitter(s) than specified in the certification of the FCC Identifier KBCIX325A775IWLBT shown on the PC label. RF Exposure Safety Information This device contains WAN and WLAN radio transmitters. This device has been tested for FCC and Industry Canada SAR RF exposure compliance for portable operation. In order to comply with FCC

801 S. STEVENS STREET SPOKANE, WA 99204 509.624.6600 800.441.1309 FAX 509.626.4203 www.itronix.com June 6, 2005 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Itronix Corporation FCC ID: KBCIX325A775IWLBT FCC Part 24(E) - Certification Request for Confidentiality Pursuant to 47 CFR 0.457(d) and 47 CFR 0.459 of the FCC Rules, Itronix Corporation and Sierra Wireless Inc. hereby request confidentiality of the Block Diagram(s), Schematic Diagram(s), Operational Description, and Tune-Up Procedure attachments for the subject application. These documents contain detailed system and equipment description and related information about the product in which Itronix Corporation and Sierra Wireless Inc. considers being proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Itronix Corporation and Sierra Wireless Inc. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely,

Celltech Labs Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-448-7047 • Fax. 250-448-7046 • e-mail: [email protected] www.celltechlabs.com December 9, 2005 Timco Engineering, Inc. Telecommunication Certification Body 849 NW State Road 45 Newberry, FL 32669 SUBJECT: ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT Part 24(E) - Certification Composite Application (PCB) On behalf of Itronix Corporation is an application for Part 24(E) Certification of Model: IX325A775IWLBT Rugged Tablet PC with internal Dual-Band PCS/Cellular GSM GPRS/EDGE PCMCIA Modem Model: AirCard 775 manufactured by Sierra Wireless, Inc., utilizing an external monopole antenna attached to the modem card. The DUT also incorporates an internal co-located Intel Pro 2200BG 802.11b/g WLAN Mini-PCI Card with dual internal PIFA antennas installed in the upper section of the DUT. The DUT also incorporates an internal MSI MS-6837 Bluetooth Transmitter with internal PIFA antenna installed in the left side section of the DUT . The Part 15(C) certification applications for the Intel Pro 2200BG 802.11b/g WLAN Mini-PCI Card and the MSI MS-6837 Bluetooth portions of the DUT under the same FCC ID: KBCIX325A775IWLBT are submitted simultaneously with this application. The Sierra Wireless AirCard 775 Dual-Band GSM GPRS/EDGE PCMCIA Modem and Intel Pro 2200BG 802.11b/g WLAN do not transmit simultaneously. The Sierra Wireless AirCard 775 Dual-Band GSM GPRS/EDGE PCMCIA Modem can transmit simultaneously with the MSI MS-6837 Bluetooth. Please refer to the Co-Transmit Supplementary EMC test report submitted within this application for the co-located simultaneous transmit measurement data. Model: IX325A775IWLBT Device Classification: PCS Licensed Transmitter (PCB) Device Description: Rugged Tablet PC LCD Display User Orientation(s): 0 Degrees Landscape, -90 Degrees Portrait Internal Dominant Transmitter(s): Sierra Wireless AirCard 775 Dual-Band GSM GPRS/EDGE PCMCIA Modem Co-located Transmitter(s): Intel Pro 2200BG 802.11b/g WLAN MSI MS-6837 Bluetooth Antenna Type(s) Tested: External monopole (GSM) Internal PIFA (WLAN) Internal PIFA (Bluetooth) Transmitter Frequency Range(s): 1850.2 - 1909.8 MHz (PCS Band) 824.2 - 848.8 MHz (Cellular Band) Max. RF Conducted Power Measured: 29.2 dBm - 0.832 Watts - Peak (PCS GPRS) 32.0 dBm - 1.58 Watts - Peak (Cellular GPRS) 4.14 dBm - 0.0026 Watts - Peak (Bluetooth) Max. Duty Cycle Tested: 50 % (Source-Based Time-Averaged) GPRS Max. Source-Based Time-Averaged Power: 26.2 dBm - 0.417 Watts - Peak Conducted (Max. PCS GPRS) 29.0 dBm - 0.794 Watts - Peak Conducted (Max. Cellular GPRS) Max. ERP/EIRP Level(s) Measured: 1.26 Watts (31.02 dBm) EIRP - PCS GPRS 1.00 Watt (30.01 dBm) ERP - Cellular GPRS Max. Body SAR Level(s) Measured: 0.646 W/kg - 1g average (PCS GPRS) 1.07 W/kg - 1g average (Cellular GPRS) Submitted within this application is the TCB Form 731, applicant’s confidentiality request, applicant’s attestation letter, Parts 24(E) and 22(H) EMC measurement report data and test setup photographs (Celltech Labs and Sierra Wireless), Supplementary EMC measurement report for co-located simultaneous transmit operation (Celltech Labs), SAR RF exposure measurement report data and test setup photographs (Celltech Labs), FCC ID label and location, internal and external device photographs, block diagrams (confidential), schematic diagrams (confidential), operational description (confidential), tune-up procedure (confidential), user manual (provided to the user with the built-in software on the Tablet PC), and Radio-Specific Safety Information (provided to the user in hard copy format). If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jonathan Hughes General Manager Celltech Labs Inc. cc: Itronix Corporation

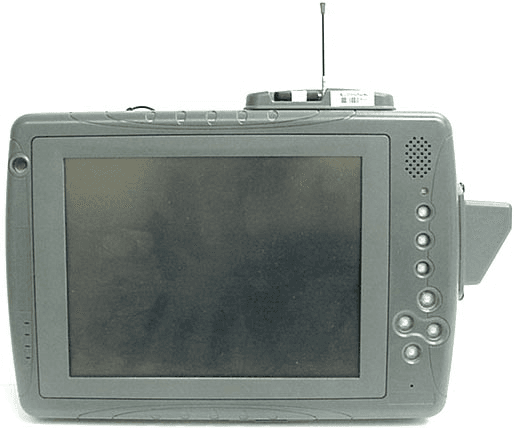

© 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT (Model: IX325A775IWLBT) Rugged Tablet PC with Dual-Band GSM GPRS/EDGE Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 646 EXTERNAL DUT PHOTOGRAPHS ‘0 Degrees Landscape’ User Display Orientation © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT (Model: IX325A775IWLBT) Rugged Tablet PC with Dual-Band GSM GPRS/EDGE Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 646 EXTERNAL DUT PHOTOGRAPHS ‘-90 Degrees Portrait’ User Display Orientation © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT (Model: IX325A775IWLBT) Rugged Tablet PC with Dual-Band GSM GPRS/EDGE Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 646 EXTERNAL DUT PHOTOGRAPHS GPS Receiver AirCard 775 GPRS/EDGE Antenna Multi-I/O Extension Slot © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT (Model: IX325A775IWLBT) Rugged Tablet PC with Dual-Band GSM GPRS/EDGE Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 646 AirCard 775 GPRS/EDGE Dual-Band Antenna EXTERNAL DUT PHOTOGRAPHS AirCard 775 GPRS/EDGE Antenna - Open 90° Pivot Open Position Antenna 90° © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT (Model: IX325A775IWLBT) Rugged Tablet PC with Dual-Band GSM GPRS/EDGE Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 646 EXTERNAL DUT PHOTOGRAPHS AirCard 775 GPRS/EDGE Antenna - Open 180° Pivot Open Position Antenna 180° © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT (Model: IX325A775IWLBT) Rugged Tablet PC with Dual-Band GSM GPRS/EDGE Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 646 EXTERNAL DUT PHOTOGRAPHS AirCard 775 GPRS/EDGE Antenna - Closed 180° Pivot Closed Position Antenna 180° © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT (Model: IX325A775IWLBT) Rugged Tablet PC with Dual-Band GSM GPRS/EDGE Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 646 IX325 Hatch for AirCard 775 (Antenna Removed) PCMCIA Slot-to-Base Distance (Hatch & Antenna Removed) PCMCIA Slot (Hatch & AirCard 775 Removed) EXTERNAL DUT PHOTOGRAPHS © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT (Model: IX325A775IWLBT) Rugged Tablet PC with Dual-Band GSM GPRS/EDGE Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 646 EXTERNAL DUT PHOTOGRAPHS DUT with Internal Li-ion Battery 11.1 V, 3600 mAh (Model: T8M-E) Internal Li-ion Battery 11.1 V, 3600 mAh (Model: T8M-E) Internal Li-ion Battery 11.1 V, 3600 mAh (Model: T8M-E) © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT (Model: IX325A775IWLBT) Rugged Tablet PC with Dual-Band GSM GPRS/EDGE Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 646 DUT with External Second Li-ion Battery 11.1 V, 3600 mAh (Model: T8S-E) EXTERNAL DUT PHOTOGRAPHS External Second Li-ion Battery 11.1 V, 3600 mAh (Model: T8S-E) External Li-ion Battery 11.1 V, 3600 mAh (Model: T8S-E) © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT (Model: IX325A775IWLBT) Rugged Tablet PC with Dual-Band GSM GPRS/EDGE Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 646 External Second Li-ion Battery 11.1 V, 3600 mAh (Model: T8S-E) External Second Li-ion Battery 11.1 V, 3600 mAh (Model: T8S-E) EXTERNAL DUT PHOTOGRAPHS © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT (Model: IX325A775IWLBT) Rugged Tablet PC with Dual-Band GSM GPRS/EDGE Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 646 DUT with AC Power Adapter EXTERNAL DUT PHOTOGRAPHS AC Power Adapter

© 2005 Celltech Labs Inc.ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT (Model: IX325A775IWLBT) Rugged Tablet PC with Dual-Band GSM GPRS/EDGE Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 646 LABELING REQUIREMENTS PER §2.925 The label(s) shall be permanently affixed at a conspicuous location on the device. SEE NEXT PAGE(S) FOR FCC ID LABEL SEE NEXT PAGE(S) FOR PART 15(B) DoC LABEL FCC ID LABEL & LOCATION

© 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT (Model: IX325A775IWLBT) Rugged Tablet PC with Dual-Band GSM GPRS/EDGE Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 646 INTERNAL DUT PHOTOGRAPHS Sierra Wireless AirCard 775 GSM GPRS/EDGE PCMCIA Modem Sierra Wireless AirCard 775 GPRS/EDGE PCMCIA Modem © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT (Model: IX325A775IWLBT) Rugged Tablet PC with Dual-Band GSM GPRS/EDGE Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 646 INTERNAL DUT PHOTOGRAPHS Sierra Wireless AirCard 775 GSM GPRS/EDGE PCMCIA Modem AirCard 775 Installed AirCard 775 Removed © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT (Model: IX325A775IWLBT) Rugged Tablet PC with Dual-Band GSM GPRS/EDGE Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 646 INTERNAL DUT PHOTOGRAPHS Sierra Wireless AirCard 775 GSM GPRS/EDGE PCMCIA Modem © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT (Model: IX325A775IWLBT) Rugged Tablet PC with Dual-Band GSM GPRS/EDGE Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 646 INTERNAL DUT PHOTOGRAPHS Sierra Wireless AirCard 775 GSM GPRS/EDGE PCMCIA Modem © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT (Model: IX325A775IWLBT) Rugged Tablet PC with Dual-Band GSM GPRS/EDGE Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 646 INTERNAL DUT PHOTOGRAPHS Sierra Wireless AirCard 775 GSM GPRS/EDGE PCMCIA Modem AirCard 775 Dual-Band GSM GPRS/EDGE Modem AirCard 775 Dual-Band GSM GPRS/EDGE Modem © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT (Model: IX325A775IWLBT) Rugged Tablet PC with Dual-Band GSM GPRS/EDGE Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 646 Intel Pro 2200BG 802.11b/g WLAN INTERNAL DUT PHOTOGRAPHS Intel Pro 2200BG 802.11b/g WLAN Mini-PCI Card © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT (Model: IX325A775IWLBT) Rugged Tablet PC with Dual-Band GSM GPRS/EDGE Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 646 INTERNAL DUT PHOTOGRAPHS Intel Pro 2200BG 802.11b/g WLAN Mini-PCI Card © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT (Model: IX325A775IWLBT) Rugged Tablet PC with Dual-Band GSM GPRS/EDGE Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 646 Front Back INTERNAL DUT PHOTOGRAPHS Intel Pro 2200BG 802.11b/g WLAN Mini-PCI Card © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT (Model: IX325A775IWLBT) Rugged Tablet PC with Dual-Band GSM GPRS/EDGE Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 646 Back Front with Shielding INTERNAL DUT PHOTOGRAPHS Intel Pro 2200BG 802.11b/g WLAN Mini-PCI Card © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT (Model: IX325A775IWLBT) Rugged Tablet PC with Dual-Band GSM GPRS/EDGE Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 646 Front with Shielding Removed INTERNAL DUT PHOTOGRAPHS Intel Pro 2200BG 802.11b/g WLAN Mini-PCI Card © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT (Model: IX325A775IWLBT) Rugged Tablet PC with Dual-Band GSM GPRS/EDGE Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 646 INTERNAL DUT PHOTOGRAPHS MSI MS-6837 Bluetooth Transmitter Bluetooth Mounting Plate © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT (Model: IX325A775IWLBT) Rugged Tablet PC with Dual-Band GSM GPRS/EDGE Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 646 INTERNAL DUT PHOTOGRAPHS MSI MS-6837 Bluetooth Transmitter Bluetooth Mounting Plate Bluetooth Transmitter © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT (Model: IX325A775IWLBT) Rugged Tablet PC with Dual-Band GSM GPRS/EDGE Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 646 INTERNAL DUT PHOTOGRAPHS MSI MS-6837 Bluetooth Transmitter © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT (Model: IX325A775IWLBT) Rugged Tablet PC with Dual-Band GSM GPRS/EDGE Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 646 INTERNAL DUT PHOTOGRAPHS WLAN Antenna 1 Receive Only Bluetooth Antenna WLAN Antenna 2 Transmit/Receive AirCard 775 GSM GPRS/EDGE Dual-Band Antenna © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT (Model: IX325A775IWLBT) Rugged Tablet PC with Dual-Band GSM GPRS/EDGE Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 646 INTERNAL DUT PHOTOGRAPHS AirCard 775 GPRS/EDGE Antenna - Open 90° Bluetooth Antenna AirCard 775 GSM GPRS/EDGE Dual-Band Antenna © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT (Model: IX325A775IWLBT) Rugged Tablet PC with Dual-Band GSM GPRS/EDGE Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 646 INTERNAL DUT PHOTOGRAPHS AirCard 775 GPRS/EDGE Antenna - Open 180° Bluetooth Antenna AirCard 775 GSM GPRS/EDGE Dual-Band Antenna © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT (Model: IX325A775IWLBT) Rugged Tablet PC with Dual-Band GSM GPRS/EDGE Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 646 INTERNAL DUT PHOTOGRAPHS AirCard 775 GPRS/EDGE Antenna - Closed 180° Bluetooth Antenna AirCard 775 GSM GPRS/EDGE Dual-Band Antenna © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT (Model: IX325A775IWLBT) Rugged Tablet PC with Dual-Band GSM GPRS/EDGE Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 646 Internal Bluetooth PIFA Antenna Internal Bluetooth PIFA Antenna Internal Bluetooth PIFA Antenna INTERNAL DUT PHOTOGRAPHS © 2005 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX325A775IWLBT (Model: IX325A775IWLBT) Rugged Tablet PC with Dual-Band GSM GPRS/EDGE Modem, 802.11b/g WLAN, & Bluetooth Celltech Project No.: 646 Internal WLAN Antenna 1 (Receive Only) INTERNAL DUT PHOTOGRAPHS WLAN Antenna 1 (Receive Only) WLAN Antenna 2 (Transmit / Receive) Internal WLAN Antenna 2 (Transmit / Receive)

Applicant: Itronix Corporation FCC ID: KBCIX325A775IWLBT IC ID: 1943A-IX325e Model: IX325A775IWLBT IX325 Rugged Tablet PC with PCS/Cellular GSM GPRS/EDGE PCMCIA Modem and co-located Bluetooth 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc.Page 1 of 61 Test Report Serial No.: 060605KBC-T646-S24G Report Issue Date: Dec. 08, 2005 Dates of Evaluation: April 13-14, May 03 & 09, 2005 Report Rev. No.: Revision 0 Type of Evaluation: RF Exposure SARFCC §2.1093 IC RSS-102 Test Report Prepared by: Cheri Frangiadakis Test Report Writer Celltech Labs Inc. Test Report Approved By: Jonathan Hughes General Manager Celltech Labs Inc. RF EXPOSURE EVALUATION SPECIFIC ABSORPTION RATE SAR TEST REPORT FOR ITRONIX CORPORATION IX325 SERIES RUGGED TABLET PC WITH DUAL-BAND PCS/CELLULAR GSM GPRS/EDGE PCMCIA MODEM AND CO-LOCATED BLUETOOTH MODEL: IX325A775IWLBT FCC ID: KBCIX325A775IWLBT IC: 1943A-IX325e Test Report Serial Number 060605KBC-T646-S24G Revision 0 Test Report Issue Date December 08, 2005 Celltech Compliance Testing & Engineering Lab (Celltech Labs Inc.) 1955 Moss Court Kelowna, BC Canada V1Y 9L3 Applicant: Itronix Corporation FCC ID: KBCIX325A775IWLBT IC ID: 1943A-IX325e Model: IX325A775IWLBT IX325 Rugged Tablet PC with PCS/Cellular GSM GPRS/EDGE PCMCIA Modem and co-located Bluetooth 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc.Page 2 of 61 Test Report Serial No.: 060605KBC-T646-S24G Report Issue Date: Dec. 08, 2005 Dates of Evaluation: April 13-14, May 03 & 09, 2005 Report Rev. No.: Revision 0 Type of Evaluation: RF Exposure SARFCC §2.1093 IC RSS-102 Celltech Labs Inc. declares under its sole responsibility that this wireless device was compliant with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 1 (Provisional) for the General Population / Uncontrolled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99204 United States FCC IDENTIFIER: KBCIX325A775IWLBT IC IDENTIFIER: 1943A-IX325e Model(s): IX325A775IWLBT Rule Part(s): FCC 47 CFR §2.1093; IC RSS-102 Issue 1 (Provisional) Test Procedure(s): FCC OET Bulletin 65, Supplement C (Edition 01-01) FCC Device Classification: PCS Licensed Transmitter (PCB) IC Device Classification: 2 GHz Personal Communication Services (RSS-133 Issue 3) 800 MHz Cellular Telephones Employing New Technologies (RSS-132 Issue 1) Device Description: Rugged Tablet PC Internal Dominant Transmitter: Sierra Wireless AirCard 775 Dual-Band PCS/Cellular GSM GPRS/EDGE PCMCIA Modem Co-located Transmitter(s): MSI MS-6837 Bluetooth (simultaneous transmission) Modulation Type(s): GMSK (GPRS), 8-PSK (EDGE) Tx Frequency Range(s): 1850.2 - 1909.8 MHz (PCS Band) 824.2 - 848.8 MHz (Cellular Band) 2402 - 2480 MHz (Bluetooth) Max. RF Output Power Tested: 29.0 dBm (0.794 Watts) Peak Conducted (PCS GPRS) 32.0 dBm (1.58 Watts) Peak Conducted (Cellular GPRS) 4.14 dBm / 0.0026 Watts - Peak Conducted (Bluetooth) Max. No. of Time Slots Tested: 4 (Class 12) Max. Duty Cycle Tested: 50 % (Source-Based Time-Averaged) Max. SBTA RF Output Power Tested: 26.0 dBm (0.398 Watts) Peak Conducted (PCS GPRS) 29.0 dBm (0.794 Watts) Peak Conducted (Cellular GPRS) Power Source(s) Tested: Internal Lithium-ion Battery - 11.1 V, 3600 mAh (Model: T8M-E) External Second Lithium-ion Battery - 11.1 V, 3600 mAh (Model: T8S-E) 75 W AC Power Adapter (Delta Electronics Model: ADP-75FB B) Antenna Type(s) Tested: External Monopole (AirCard 775 Modem) Internal PIFA (Bluetooth) Max. SAR Level(s) Evaluated: Body: 0.646 W/kg (1g average) - PCS Band - Bottom Side of Tablet PC Body: 1.07 W/kg (1g average) - Cellular Band - Bottom Side of Tablet PC Tested By: Sean Johnston Compliance Technologist Celltech Labs Inc. Reviewed By: Spencer Watson Senior Compliance Technologist Celltech Labs Inc. Applicant: Itronix Corporation FCC ID: KBCIX325A775IWLBT IC ID: 1943A-IX325e Model: IX325A775IWLBT IX325 Rugged Tablet PC with PCS/Cellular GSM GPRS/EDGE PCMCIA Modem and co-located Bluetooth 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc.Page 3 of 61 Test Report Serial No.: 060605KBC-T646-S24G Report Issue Date: Dec. 08, 2005 Dates of Evaluation: April 13-14, May 03 & 09, 2005 Report Rev. No.: Revision 0 Type of Evaluation: RF Exposure SARFCC §2.1093 IC RSS-102 TABLE OF CONTENTS 1.0 INTRODUCTION____________________________________________________________________4 2.0 DESCRIPTION of DEVICE UNDER TEST (DUT) __________________________________________4 3.0 SAR MEASUREMENT SYSTEM _______________________________________________________5 4.0 MEASUREMENT SUMMARY __________________________________________________________6 5.0 DETAILS OF SA…
