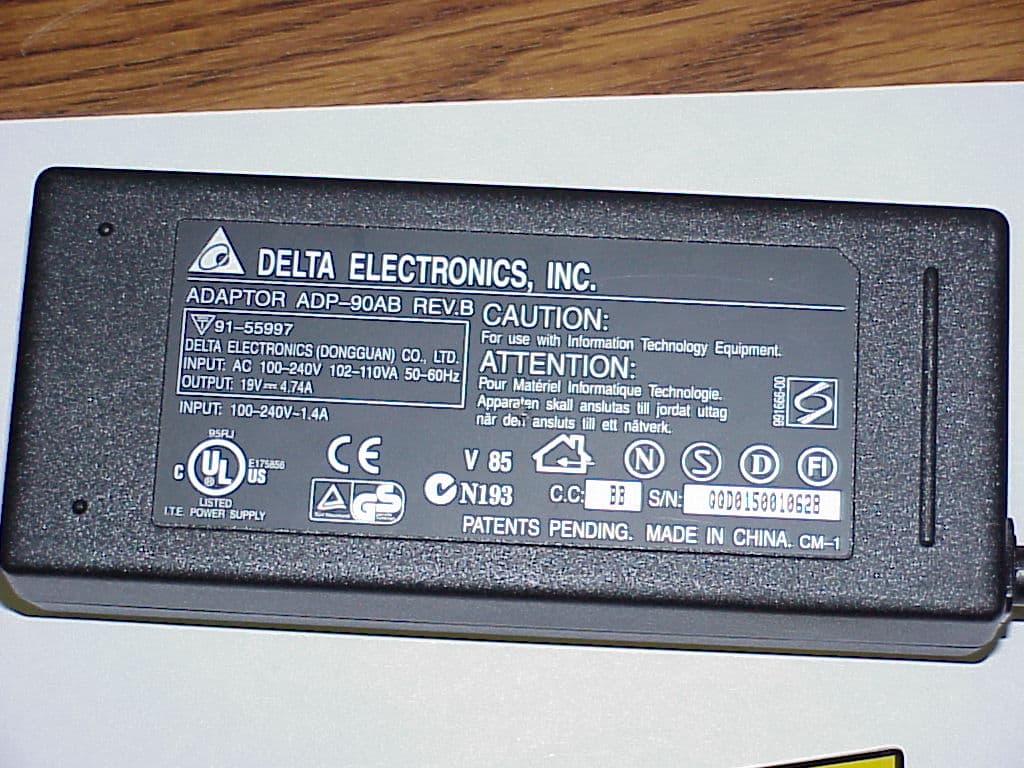

KBCIX550AC750Laptop with GSM/GPRS Card

Identification GoBook MAX (IX550) Help August 2001 · Revision 003 Copyright Notice © Copyright 2001 Itronix Corporation. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any other language or computer language in whole or in part, in any form or by any means, whether it be electronic, mechanical, magnetic, optical, manual, or otherwise, without the prior written consent of Itronix Corporation, South 801 Stevens Street, Spokane, Washington 99204. Disclaimer This document is printed in the U.S.A. Itronix Corporation reserves the right to revise the manual and make periodic changes to the content without a direct or inferred obligation to Itronix to notify any person of such revision or changes. Itronix Corporation does not assume responsibility for the use of this help manual, nor for any patent infringements or other rights or third parties who may use the manual. This document contains valuable trade secrets and proprietary information of Itronix Corporation. This product is available for purchase under the terms of the Itronix Hardware Purchase and Software License Agreement. Itronix hardware products may be reconditioned, or be manufactured from parts and components that may be new, used, rebuilt, or recycled and in some cases, the hardware product may not be new and may have been previously installed. In any event, Itronix warranty terms apply. Trademark Notice Itronix is a registered trademark of Itronix Corporation. GoBook MAX is a registered trademark of Itronix Corporation Microsoft, MS, Windows, and MS-DOS are registered trademarks of Microsoft Corporation. IBM is a trademark of International Business Machines Corporation. Compliance Statements The GoBook MAX (IX550) computer has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. The GoBook MAX (IX550) computer complies with Part 68 of the FCC Rules. On the bottom of this equipment is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company. The REN is used to determine the quantity of devices which may be connected to the telephone line. Excessive RENs on the GoBook MAX™ Help Legal Information Page 1 of 3Legal Information 4/15/2003mk:@MSITStore:C:\IX550manualmods\IX550AC750\GBOOKMAX.CHM::/terms.htm telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of the RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to the line, as determined by the total RENs, contact the telephone company to determine the maximum REN for the calling area. The GoBook MAX (IX550) computer may be connected to the telephone network using the RJ-11 jack provided. If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. If advance notice isn’t practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary. The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the operation of the equipment. If this happens, the telephone company will provide advance notice in order for you to make the necessary modifications in order to maintain uninterrupted service. If trouble is experienced with this equipment, please contact the equipment manufacturer for repair and/or warranty information. Do not attempt repairs of this equipment yourself without obtaining manufacturer authorized parts and documentation. If the trouble is causing harm to the telephone network, the telephone company may request you remove the equipment from the network until the problem is resolved. Compliance Statement for Canada NOTICE The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). The Department does not guarantee the equipment will operate to the user’s satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations. Repairs to certified equipment should be made by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the us…

Text truncated - open the document above for the full version.

Getting Started Congratulations on your purchase of the Itronix GoBook MAX computer! Your new GoBook MAX features the most innovative advances in portable computing technology. It combines state-of-the-art ergonomics with a rugged, durable architecture to provide you with a notebook computer that is compact, powerful, rugged and easy to use. Designed for a wide range of business and personal productivity applications, the GoBook MAX is an ideal choice for use in applications that require the ultimate in ruggedness, durability, performance, and intrinsic safety. For maximum expandability without compromising portability, the GoBook MAX has multiple USB interfaces and a PC card slot. The high capacity hard disk drive provides you with plenty of storage space for multimedia files and applications. The GoBook MAX features a standard 81-key Nitevue® keyboard (82-key international). The high- resolution 10.4- inch touch screen LCD panel provides clear and crisp viewing with the convenience of a touch screen. This online document, GoBook MAX Help, contains all the information you need to set up and use your new GoBook MAX. It describes all the features of the GoBook MAX in an easy-to-read yet thorough manner. For information on printing, navigating or otherwise using GoBook MAX Help see Using the HTML Help Viewer topics. GoBook MAX™ Help Page 1 of 70GoBook MAX Help 4/15/2003file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~... Unpacking Your System Inside your packaging you will find: Itronix GoBook MAX computer Power cord AC adapter Battery 2 Styluses GoBook MAX Quick Start Guide You may have additional components or peripherals if you ordered these items separately. Check your packing slip for a complete list of items included in your package. 79_0100_003 13 August 2001 © 2001 Itronix Corporation. All rights reserved. Precautions You can use your computer under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your computer: Follow all warnings and instructions noted in this documentation and in the Windows Online Help . The first time you use your computer, we recommend that you carefully read the section on Power Management to familiarize yourself with some basic battery information and to ensure optimum performance GoBook MAX™ Help Page 2 of 70GoBook MAX Help 4/15/2003file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~... Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use aerosols, solvents, or strong detergents Slots and openings in the computer case are for ventilation purposes. Do not block or cover these openings or the system could overheat On the bottom of the GoBook MAX, there is a label with information on the power requirements of this system. These requirements must be followed. If you are unsure of your local power supply, consult your dealer or local Power Company Do not step on or place anything on the power cord If you use the computer with an extension cord, ensure that the total ampere ratings of all the devices sharing the extension do not exceed the rating of the extension cord or the rating of the wall outlet Unless instructed, never push foreign objects into the computer through any of the slots or openings. Dangerous voltages are present, which could cause electric shock, fire, or damage sensitive components For best results, use a power strip with a built-in surge protector. Do not use inferior extension cords as this may result in damage to your computer 79_0100_003 13 August 2001 © 2001 Itronix Corporation. All rights reserved. Checklists After opening the package, carefully inspect the contents. Contact your dealer if any items are missing or appear damaged. The shipping carton should contain the following: STANDARD A GoBook MAX computer A battery GoBook MAX™ Help Page 3 of 70GoBook MAX Help 4/15/2003file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~... An AC adapter A power cord 2 Styluses GoBook MAX Quick Start Guide OPTIONS The following items are normally optional, but some vendors may include them in the standard package. Some items may not be available in some countries, or some vendors may choose not to carry all the items. Hard handle or soft handle Shoulder Strap Audio adapter cable Vehicle Adapter CAUTION When purchasing any of the accessories listed above, purchase only those accessories that are approved for use with your computer. The above accessories are proprietary items. Your system vendor can obtain these approved accessories. If you use items that are not approved for use with this computer, you may cause your computer to malfunction, or to emit or receive electromagnetic radiation in excess of local regulations. For non-proprietary accessories such as PC Cards or printers, ensure that the accessory functions properly in your computer before making the purchase. Your system vendor may be able to recommend reliable brands and models. Features High Capacity Hard Disk Drive The computer has a high capacity hard disk drive, enabling you to install your favorite programs and store large multimedia files. Full Array of Ports and Connectors Your computer includes standard ports for connecting to peripherals such as USB devices and monitors. USB ports allow you to add many types of peripherals. Bright SVGA LCD Your computer has a bright, easy to view SVGA LCD panel with integrated touch screen. Built-in Speaker and Microphone The speaker and internal microphone enable you to run a variety of multimedia applications. An Page 4 of 70GoBook MAX Help 4/15/2003file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~... optional audio adapter cable is available for connecting external speakers (headphones) and microphone. Function Keys Function keys allow you to sus…

Text truncated - open the document above for the full version.

Statement Page 1 of 1 CETECOM Inc. 411 Dixon Landing Road Milpitas, CA 95035 U.S.A. Phone: + 1 408 586 6200 Fax: + 1 408 586 6299 e-mail: [email protected] URL: www.cetecom.com Statement The Itronix Laptop uses a standard GSM/GPRS PCMCIA card AC 750 from Sierra Wireless built in the ruggedized Laptop. The SIM card is accessible from through the card slot on the outside. The installation of the GSM/GPRS card is done by the manufacturer and not by the user. The card uses a built in antenna, which provides by construction a distance of in minimum 20 cm to the user. Since the GSM card wasn’t changed all conducted results from the approval test of the AC 750 Card were used. The radiated measurements showed unchanged values for the conducted output power. Lothar Schmidt Technical Manger

Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 April 16, 2003 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Itronix requests confidentiality for the following products: FCC ID Number Product Title/Model KBCIX550AC750 IX550 For the product stated above, we request that the following information be held confidential: 1) Electrical Schematics of the Circuitry 2) BOM 3) Operational description 4) Tune up procedure 5) Block diagram No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Itronix/Sierra Wireless trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Lothar Schmidt Technical Manager

CETECOM Inc. 411 Dixon Landing Road Milpitas, CA 95035 Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attention: Reviewing Engineer The Itronix Laptop is a ruggedized Laptop with a built in GSM/GPRS card. Due to the construction and the position of the antenna (TX and RX) a minimum distance under normal operating conditions of more than 20 cm to the antenna is guaranteed. The manual contains a relevant statement. The calculation was made for this worst case. The maximum peak output power for this device is 581 mW (27.64 dBm). Regarding MPE limits, GPUC environment limits maximum exposure to 1 mW/cm 2. The power density is: S = E 2 /3770=-13 H 2 < 1 mW/cm 2 Where: S = Power density (mW/cm 2) E = electrical field strength (V/m) This formula converted using the EIRP is P out *G/4π*r 2 (mW/cm 2 ) 581/4π*20 2 = 0.1156 mW/cm 2 Calculations are based on standard formula for calculating field strength at a distance and converting power density using free space impedance. Further this device uses the GSM protocol, which is a TDD format ratio of 1/8 in GSM mode and in 4/8 in GPRS mode. This reduces the max. power density to 0.0578 mW/cm 2 . If you should have any questions regarding this submission, please feel free to contact the undersigned. Yours truly, Lothar Schmidt Technical Manager EMC/Radio CETECOM Inc.

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CTECOM Inc. © Copyright by CETECOM FCC Test Report Test report no.: EMC439FCC24/2003 FCC Part 24 / RSS 133 (IX-550) FCC ID: KBCIX550AC750 Test report no.: EMC439FCC24/2003 Issue date: 2003-04-17 Page 2 (54) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc. TEST REPORT PREPARED BY: EMC Engineer: Philip Kim 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com Test report no.: EMC439FCC24/2003 Issue date: 2003-04-17 Page 3 (54) 1.3 Details of applicant Name : Itronix Coporation Street : 804 South Stevens St. City / Zip Code : Spokane, WA 99204 Country : USA Contact : Mr. Richard Sargent Telephone : 509-742-1253 Tele-fax : 509-742-1672 e-mail : [email protected] 1.4 Application details Date of receipt of application : 2003-03-05 Date of receipt test item : 2003-03-05 Date of test : 2003-03-13, 2003-03-19 & 2003-04-05 1.5 Test item Manufacturer : Itronix Model No. : IX-550 Description : Ruggedized Laptop with GSM/GPRS radios HW & SW FCC-ID : KBCIX550AC750 Additional information Frequency : GSM 900/1800/1900 MHz Type of modulation : GMSK Number of channels : 299 (in PCS 1900) Antenna : Whip; Monopole Power supply : 5.0Vdc Output power : Maximum Output Power 0.6W (27.64dBm) EIRP. Extreme vol. Limits : Lower Limit: 4.5Vdc Nominal Voltage: 5.5.Vdc Upper Limit: 5.5Vdc Extreme temp. Tolerance : Lower Limit: -20 o C Upper Limit: 60 o C 1.6 Test standards FCC Part 24 / RSS133 r1 Test report no.: EMC439FCC24/2003 Issue date: 2003-04-17 Page 4 (54) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2003-04-17 EMC & Radio Lothar Schmidt (Manager) Date Section Name Signature Responsible for test report and project leader: 2003-04-15 EMC & Radio Philip Kim (EMC Engineer) Date Section Name Signature Test report no.: EMC439FCC24/2003 Issue date: 2003-04-17 Page 5 (54) 2.2 Test report TEST REPORT Test report no.: EMC439FCC24/2003 (IX-550) Test report no.: EMC439FCC24/2003 Issue date: 2003-04-17 Page 6 (54) TEST REPORT REFERENCE PARAMETER TO BE MEASURED PARAGRAPH PAGE POWER OUTPUT SUBCLAUSE § 24.232 7 FREQUENCY STABILITY SUBCLAUSE § 24.235 9 OCCUPIED BANDWIDTH SUBCLAUSE §2.989 11 EMISSIONS LIMITS SUBCLAUSE§24.238 18 RECEIVER RADIATED EMISSIONS SUBCLAUSE § 15.209 36 CONDUCTED SPURIOUS EMISSIONS SUBCLAUSE § 24.238 41 CONDUCTED EMISSIONS SUBCLAUSE § 15.107/207 50 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS 52 BLOCK DIAGRAMS 53 Test report no.: EMC439FCC24/2003 Issue date: 2003-04-17 Page 7 (54) POWER OUTPUT SUBCLAUSE § 24.232(b) Summary: This paragraph contains both average and peak conducted output power measurements for the EUT. In any case, the peak output power comply with the specified limits Limits: Power Step Nominal Peak Output Power (dBm) Tolerance (dB) 0 +30 ± 2 According GSM specifications Power Measurements: Conducted: Frequency (MHz) Power Step Peak Output Power (dBm) Average Output Power during burst (dBm) 1850.2 0 28.02 18.78 1880.0 0 27.64 18.40 1909.8 0 27.77 18.53 Measurement uncertainty ±0.5 dB ANALYZER SETTINGS: RBW = 3MHz VBW = 3MHz Test report no.: EMC439FCC24/2003 Issue date: 2003-04-17 Page 8 (54) EIRP Note: EIRP is calculated value from the measured Antenna Gain Antenna gain - calculated from the difference of conducted power and EIRP measured with Sierra Wireless card AC555. Frequency (MHz) Antenna Gain (dBi) 1850.2 -0.25 1880.0 1.08 1909.8 -1.74 average -0.38 In any case, the peak output power comply with the specified limits Limits: Power Step Peak Power EIRP (dBm) 0 ≤30 Max. output power according the GSM specification Radiated: For the EIRP calculation the real values at the relevant frequencies (see antenna gain table above) were used. Peak Output Power (dBm) Frequency (MHz) Power Step EIRP ERP 1850.2 0 27.95 25.85 1880.0 0 28.72 26.62 1909.8 0 26.03 23.93 Measurement uncertainty ±0.5 dB Test report no.: EMC439FCC24/2003 Issue date: 2003-04-17 Page 9 (54) FREQUENCY STABILITY §2.1055 / § 24.235 Method of Measurement: In order to measure the carrier frequency under the condition of AFC lock, it is necessary to make measurements with the EUT in a “call mode”. This is accomplished with the use of a R&S CMD 55 DIGITAL RADIO COMMUNICATION TESTER. 1. Measure the carrier frequency at room temperature. 2. Subject the EUT to overnight soak at -30 C. 3. With the EUT, powered via nominal voltage, connected to the CMD 55 and in a simulated call on channel 661 (centre channel), measure the carrier frequency. These measuremen…

Text truncated - open the document above for the full version.
