Getting Started Congratulations on your purchase of the Itronix GoBook PRO II computer! Your new GoBook PRO II features the most innovative advances in portable computing technology. It combines state-of-the-art ergonomics with sophisticated architecture to provide you with a personal computer that is compact, powerful, and easy to use. Designed for a wide range of general, business, and personal productivity applications, the semi-rugged, wireless ready GoBook PRO II is an ideal choice wherever you need a computer; in the office, at home, and on the road. Your GoBook II is both expandable and portable, supporting the features you expect in a desktop computer but with the mobility of a laptop. This online document, GoBook PRO II Help, contains all the information you need to set up and use your new GoBook PRO II. For information on printing, navigating or otherwise using GoBook PRO II Help see the How to Use This Help System topics. Unpacking Your System Inside your packaging you will find: GoBook ® PRO II Help Page 1 of 100GoBook PRO II Help 5/16/2005file://C:\Documents%20and%20Settings\barvillj.ITRXNT1\Local%20Settings\Temp\~hh7... Standard Options Where to Look For Information Features This computer was designed with the user in mind. Here are just a few of its many features: Performance Multimedia Connectivity Human-centric design and ergonomics Expansion See Specifications for more information. The First Time. . . Before using your computer, install the battery and then attach the computer to AC power. Installing the battery: 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. GoBook ® PRO II Help 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. GoBook ® PRO II Help 1. Line up the battery connectors. 2. Press gently on the battery until it clicks into place. Page 2 of 100GoBook PRO II Help 5/16/2005file://C:\Documents%20and%20Settings\barvillj.ITRXNT1\Local%20Settings\Temp\~hh7... Attaching AC Power: Begin Using the Computer 3. Slide the battery locks toward the outside of the computer to lock the battery. 1. Connect the AC adapter power cord to the AC adapter. 2. Connect the AC adapter to the DC power port on the rear panel of your computer. 3. Connect the AC adapter power cord to a properly grounded AC outlet. NOTE It is recommended you use a quality surge protector . insert picture 1. Slide the display cover release latch to the right. 2. Open the display to a comfortable viewing angle. 3. Press the power switch to turn on the power. The POST (power-on self-test) routine executes and Windows begins loading. NOTE When using a battery pack for the first time, fully charge the battery, then Page 3 of 100GoBook PRO II Help 5/16/2005file://C:\Documents%20and%20Settings\barvillj.ITRXNT1\Local%20Settings\Temp\~hh7... Turning off Your Computer Turning off the computer properly is important to maintaining your computer. Select Start, Shut Down and follow the instructions on the screen. If you are going to be away from the computer for a short period, there are ways to conserve power without shutting down the system. See Power Saving Modes for details. NOTE If you are unable to shut down your computer normally, press and hold the power button more than four seconds to turn off the computer. If you turn off the computer and want to turn it on again, wait at least two seconds before powering up. CAUTION Shutting off the computer improperly may result in data loss. Loading Windows This section is for installing the Windows operating system only. If you are installing a different operating system, please check with your vendor for installation details. Your computer will begin loading Windows once you turn on the power. Wait a few seconds for Windows setup to load. The Windows setup will prompt you for the product key number. You can find the product key number on a sticker attached to the bottom of the computer. 1. Type your name, and, if applicable, the name of your company. 2. Read the End User's License Agreement. Click Next to accept it. 3. Enter the product key number. You can find this on the Certificate of Authenticity on a sticker attached to the computer. Click Finish . 4. The Start Wizar d will prompt you to set the date, and your local time. disconnect the adapter to use up the battery before recharging again. Perform this action twice to condition the battery pack. Calibrating the battery before use is also highly recommended. Refer to Power Management, for more information. 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. GoBook ® PRO II Help Page 4 of 100GoBook PRO II Help 5/16/2005file://C:\Documents%20and%20Settings\barvillj.ITRXNT1\Local%20Settings\Temp\~hh7... Some software comes pre-loaded with Windows. New users can familiarize themselves with this software by selecting All Programs from the start menu, then clicking on programs to run them. CAUTION When you are installing the Windows operating system and enter the product key number, we strongly recommend connecting the AC adapter - DO NOT use battery alone to avoid warning messages. Startup Problems? If your computer does not operate, try these solutions. z Connect the AC adapter to charge the battery if it is not charged. NOTE The Power LED on the AC adapter should be lit as well as the External Power Indicator on the GoBook PRO II if the AC adapter is connected and functioning properly. Additionally, one of the power icons should appear in the task tray. z If the AC adapter is connected but the unit will still not turn on, make sure the electrical outlet you are using works. z Check to make sure the battery is installed and charged properly. z If the battery does not begin charging, remove the battery, connect the AC adapter, and turn on the computer by pressing the Power Button. Reinstall the battery. The Battery Indicator is solid orange while the battery is charging. The Troubleshooting section lists additional solutions you can try. Safety and Erg…

Text truncated - open the document above for the full version.

GoBook ® PRO II Radio Specific Safety Information Identification GoBook PRO II (IX600) Radio Specific Safety Information April 2005 · Revision 003 Copyright Notice © Copyright 2005 Itronix Corporation. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any other language or computer language in whole or in part, in any form or by any means, whether it be electronic, mechanical, magnetic, optical, manual, or otherwise, without the prior written consent of Itronix Corporation, South 801 Stevens Street, Spokane, Washington 99204. Disclaimer This document is printed in the U.S.A. Itronix Corporation reserves the right to revise the manual and make periodic changes to the content without a direct or inferred obligation to Itronix to notify any person of such revision or changes. Itronix Corporation does not assume responsibility for the use of this help manual, nor for any patent infringements or other rights or third parties who may use the manual. This document contains valuable trade secrets and proprietary information of Itronix Corporation. This product is available for purchase under the terms of the Itronix Hardware Purchase and Software License Agreement. Itronix hardware products may be reconditioned, or be manufactured from parts and components that may be new, used, rebuilt, or recycled and in some cases, the hardware product may not be new and may have been previously installed. In any event, Itronix warranty terms apply. Trademark and Patent Notice Itronix is a registered trademark of Itronix Corporation. GoBook PRO II is a registered trademark of Itronix Corporation Microsoft, MS, Windows, and MS-DOS are registered trademarks of Microsoft Corporation. IBM is a trademark of International Business Machines Corporation. Warnings and Safety Information WARNING It is important that only authorized Itronix personnel attempt repairs on Itronix equipment as this might void any maintenance contract with your company. Unauthorized service personnel might be subject to shock hazard on some Itronix equipment if removal of protective covers is attempted. Changes or Modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. Internal radio(s) may have an individual FCC Identifier which are not applicable to this configuration. Only the FCC ID Identifier KBCIX600-EM5625 shown on the label located on the bottom of the IX600 Laptop PC is applicable. The IX600 Laptop PC Radio must not be co-located or operating in conjunction with any other antenna or transmitter than specified in the FCC Identifier KBCIX600-EM5625 filing . Safety Information This device contains a WAN radio transmitter. When using the WAN transmitter, a minimum separation distance of 20 cm must be maintained between the upper center of the display screen and all users/bystanders. The WAN transmitter should be turned off before carrying the Laptop PC order to comply with FCC RF exposure requirements. © 2005 Itronix Corporation. All rights reserved.

Sierra Wireless America, Inc 2290 Cosmos Ct. Carlsbad CA, 92009 Tel. 760-476-8700 Fax 760-476-8701 CONFIDENTIALITY LETTER DATE: 09 January , 2005 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Sierra Wireless FCC ID: N7N-EM5625D FCC Part 22 and 24 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, Sierra Wireless hereby requests confidentiality of the Block Diagrams, Schematics, Theory of Operation, Antenna Specifications, Parts List, Product Specification, and Tune-up Procedure attachments for the subject application. These documents contain detailed system and equipment description and related information about the product in which Sierra Wireless considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Sierra Wireless considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Jean-Philippe Kielsznia Director, Hardware Design Team Carlsbad Research & Development Sierra Wireless America, Inc.

Northwest EMC TCB Compliance Opinion Rev. 9/15/03 Spte0011 Information about the Applicant Company Name Itronix Corporation Grantee Richard Sargent Address South 801 Stevens St. City, State, Zip Spokane, WA 99210-0179 Job Number spte0011 Model EM5625 FCC ID KBCIX600-EM5625 Agent Rod Monro Approval Type Original Equipment Class PCB Part 24E, Part 22H Rule Part 22H, 24E Overview The application is for a limited modular approval for a model EM5625 radio installed in a mode IX600 PC. The IX600 Vehicle Mount option extends many of the PC I/O ports and switches the RF output of the WAN radio to an external antenna. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. Signature 9/27/2005 Dave Tolman, TCB Committee

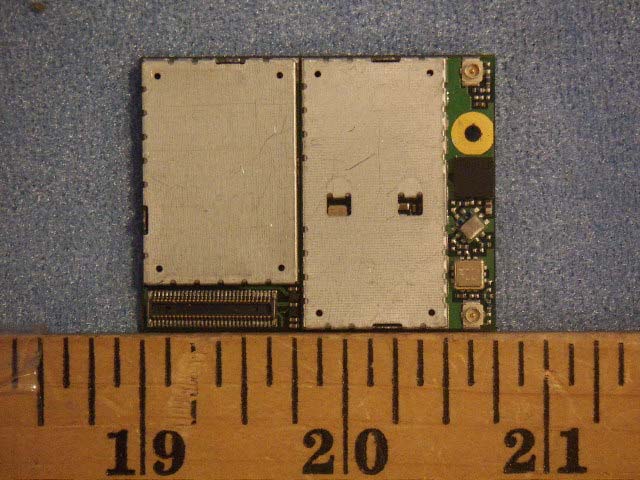

Applicant: Itronix Corporation FCC ID: KBCIX600-EM5625 External Photos EM5625 Embedded Module Photo 1.) - Module Top Side Photo 2.) - Module Bottom Side

Applicant: Itronix, Corporation FCC ID: KBCIX600-EM5625 External Photos IX600 Top View Bottom View FCC & IC ID Label Location 1 Applicant: Itronix, Corporation FCC ID: KBCIX600-EM5625 IX600 Right Side IX600 Left Side 2 Applicant: Itronix, Corporation FCC ID: KBCIX600-EM5625 IX600 Rear View IX600 Front Open 3 Applicant: Itronix, Corporation FCC ID: KBCIX600-EM5625 IX600 Back Side of Display Open Right Side View Open 4

Applicant: Itronix Corporation FCC ID: KBCIX600-EM5625 FCC and IC Identifier & Label Location Identifier label location shown below on the bottom of the IX600 Lap Top The facsimile FCC and Industry Canada Identifier Label located on the page following:

Applicant: Itronix Corporation FCC ID: KBCIX600-EM5625 Internal Photos EM5625 Embedded Module Photo 1.) - Module Top Side Cover Off Photo 2.) - Module Bottom Side Cover Off

Applicant: Itronix, Corporation FCC ID: KBCIX600-EM5625 Internal Photos IX600 Top view, PC closed, display cover removed IX600 view back side of display upright WAN antenna center, GPS to right 1 Applicant: Itronix, Corporation FCC ID: KBCIX600-EM5625 IX600 close up WAN antenna centered - GPS antenna on right side IX600 WAN radio visible (silver card in slot at front of PC) 2 Applicant: Itronix, Corporation FCC ID: KBCIX600-EM5625 IX600 touch pad/keyboard cover flipped up, WAN radio located lower right side, WAN edge connector of module only partially visible ^ above ^ WAN location 3

Applicant: Itronix Corporation FCC ID: KBCIX600-EM5625 Antenna Information Internal and External WAN Antenna Information FCC ID: KBCIX600-EM5625 Antenna Model Antenna Part No. Frequency (MHz) Antenna Type Antenna Gain (dBi) Internal Skycross WAN 59-0479-001 806 - 960 Meander Line Antenna 3.8 Internal Skycross WAN 59-0479-001 1710-1990 Meander Line Antenna -0.3 External MaxRad BMLPVDB800/1900 806 - 960 Low profile vertical 3 External MaxRad BMLPVDB800/1900 1710-1990 Low profile vertical 3 Note: Data sheets are available for both antennas.

Applicant: Itronix, Corporation FCC ID: KBCIX600-EM5625 1 Compliance with 47 CFR 15.247(i) “Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter.” The EUT will only be used with a separation distance of 20 centimeters or greater between the antenna and the body of the user or nearby persons and can therefore be considered a mobile transmitter per 47 CFR 2.1091 (b). Calculations are provided for each radio transmitting through its own internal antenna and optional external antenna. The total transmit power is less than 1.5 W (ERP), therefore the EUT is categorically excluded from routine environmental evaluation per 47 CFR 2.1091(c). The MPE estimates are as follows: Table 1 in 47 CFR 1.1310 defines the maximum permissible exposure (MPE) for the general population. The exposure level at a 20 cm distance from the EUT’s transmitting antenna is calculated using the general equation: S = (PG)/4πR 2 Where: S = power density (mW/cm 2 ) P = power input to the antenna (mW) G = numeric power gain relative to an isotropic radiator R = distance to the center of the radiation of the antenna (20 cm = limit for MPE estimates) PG = EIRP Solving for S, the maximum power densities 20 cm from the transmitting antennas are summarized in the tables on the following pages: Applicant: Itronix, Corporation FCC ID: KBCIX600-EM5625 2 MPE Estimates for Self Located Device FCC ID: KBCIX600-EM5625 CDMA Antenna Type Antenna Part No. Transmit Frequency Max Peak Conducted Output Power Antenna Gain Minimum Antenna Cable Loss Power Density @ 20 cm General Population Exposure Limit from 1.1310 Ratio of Power Density to the Exposure Limit (MHz) (mW) (dBi) (dB) (mW/cm 2 ) (mW/cm 2 ) Internal Skycross WAN 59-0479-001 1880 724.44 -0.3 1.76 0.090 1 0.090 Internal Skycross WAN 59-0479-001 824.7 792.5 3.8 0.89 0.308 0.55 0.560 External MaxRad BMLPVDB800/1900 1880 724.44 3 4.61 0.099 1 0.099 External MaxRad BMLPVDB800/1900 824.7 792.5 3 2.45 0.256 0.55 0.466 Worst Case Ratio of Power Density to the Exposure Limit = 0.56 Excerpts from TCB Training, April 3, 2002, “Mobile Transmitters”, Slide 6: “Devices operating in multiple frequency bands ‰ When RF exposure evaluation is required for TCB approval o Separate antennas – estimated minimum separation distances may be considered for the frequency bands that do not require evaluation or TCB approval, however, the estimated distance should take into account the effect of co-located transmitters. (Note 24) Note 24 According to multiple frequency exposure criteria, the ratio of field strength or power density to the applicable exposure limit at the exposure location should be determined for each transmitter and the sum of these ratios must not exceed 1.0 for the location to be compliant .” The sum of the ratio(s) (power density to the exposure limit) does not exceed 1.0; therefore, the exposure condition is compliant with FCC rules.

FCC CFR47 PART 22 SUBPART H AND PART 24 SUBPART E CERTIFICATION TEST REPORT FOR EMBEDDED WIRELESS RADIO MODEM MODEL NUMBER: EM5625D FCC ID: N7N-EM5625D REPORT NUMBER: 04U3076-1 ISSUE DATE: FEBRUARY 02, 2005 Prepared for SIERRA WIRELESS 2290 COSMOS CT. CARLSBAD CALIFORNIA 92009 U.S.A Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 04U3076-1 DATE: FEBRUARY 02, 2005 EUT: EMBEDDED WIRELESS RADIO MODEM FCC ID: N7N-EM5625D Page 2 of 54 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Revisions Revised By 1 Revised user manual to allow max antenna’s gain of 5.1dBi in Cellular bands and 3.9dBi in PCS bands. Client 2 Revised report in MPE section based on max antenna’s gain Thu REPORT NO: 04U3076-1 DATE: FEBRUARY 02, 2005 EUT: EMBEDDED WIRELESS RADIO MODEM FCC ID: N7N-EM5625D Page 3 of 54 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS............................................................................................. 4 2. TEST METHODOLOGY .................................................................................................................. 5 3. FACILITIES AND ACCREDITATION .......................................................................................... 5 4. CALIBRATION AND UNCERTAINTY.......................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST............................................................................................................6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. MAXIMUM OUTPUT POWER .................................................................................................... 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................................. 6 5.4. SOFTWARE AND FIRMWARE .................................................................................................... 6 5.5. WORST-CASE CONFIGURATION AND MODE......................................................................... 6 5.6. DESCRIPTION OF TEST SETUP ................................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT ................................................................................ 9 7. LIMITS AND RESULTS ................................................................................................................. 10 7.1. OCCUPIED BANDWIDTH ........................................................................................................ 10 7.2. RF POWER OUTPUT.................................................................................................................17 7.3. SPURIOUS EMISSION AT ANTENNA TERMINAL................................................................... 20 7.4. FIELD STRENGTH OF SPURIOUS EMISSION ....................................................................... 35 7.5. MAXIMUM PERMISSIBLE EXPOSURE ................................................................................... 40 7.6. FREQUENCY STABILITY .......................................................................................................... 43 8. SETUP PHOTOS .............................................................................................................................. 46 REPORT NO: 04U3076-1 DATE: FEBRUARY 02, 2005 EUT: EMBEDDED WIRELESS RADIO MODEM FCC ID: N7N-EM5625D Page 4 of 54 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: SIERRA WIRELESS 2290 COSMOS CT. CARLSBAD CALIFORNIA 92009 U.S.A EUT DESCRIPTION: EMBEDDED WIRELESS RADIO MODEM MODEL: EM5625D SERIAL NUMBER: 12224500027 DATE TESTED: JANUARY 30 - FEBRUARY 01, 2005 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 22 SUBPART H NO NON-COMPLIANCE NOTED FCC PART 24 SUBPART E NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: THU CHAN CHIN PANG AND VIEN TRAN EMC SUPERVISOR EMC TECHNICAINS COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 04U3076-1 DATE: FEBRUARY 02, 2005 EUT: EMBE…

Text truncated - open the document above for the full version.

Spectrum Technology EM5625 September 14, 2005 Report No. SPTE0011.1 Report Prepared By www.nwemc.com 1-888-EMI-CERT © 2005 Northwest EMC, Inc 22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Test Issue Date: September 14, 2005 Spectrum Technology Model: EM5625 Emissions Specification Test Method Pass Fail FCC 24.238(a) Spurious Radiated Emissions:2004 TIA/EIA 603-B:2001 FCC 22.917(a) Spurious Radiated Emissions:2004 TIA/EIA 603-B:2001 FCC 24.232(b) Effective Radiated Power (EIRP):2004 TIA/EIA 603-B:2001 FCC 22.913(a) Effective Radiated Power (ERP):2004 TIA/EIA 603-B:2001 Modifications made to the product See the Modifications section of this report Test Facility The measurement facility used to collect the data is located at: Northwest EMC, Inc. 22975 NW Evergreen Parkway, Suite 400; Hillsboro, OR 97124 Phone: (503) 844-4066 Fax: 844-3826 This site has been fully described in a report filed with and accepted by the FCC (Federal Communications Commission) and Industry Canada. Approved By: Greg Kiemel, Director of Engineering This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested, the specific description is noted in each of the individual sections of the test report supporting this certificate of test. Northwest EMC Revision History Revision 05/05/03 Revision Number Description Date Page Number 00 None Northwest EMC Accreditations and Authorizations Revision 03/18/05 FCC: Accredited by NVLAP for performance of FCC radio, digital, and ISM device testing. Our Open Area Test Sites, certification chambers, and conducted measurement facilities have been fully described in reports filed with the FCC and accepted by the FCC in letters maintained in our files. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by the FCC as a Telecommunications Certification Body (TCB). This allows Northwest EMC to certify transmitters to FCC specifications in accordance with 47 CFR 2.960 and 2.962. NVLAP: Northwest EMC, Inc. is recognized under the United States Department of Commerce, National Institute of Standards and Technology, and National Voluntary Laboratory Accreditation Program for satisfactory compliance with the requirements of ISO/IEC 17025 for Testing Laboratories. The NVLAP accreditation encompasses Electromagnetic Compatibility Testing in accordance with the European Union EMC Directive 89/336/EEC, ANSI C63.4, MIL- STD 461E, DO-160D and SAE J1113. Additionally, Northwest EMC is accredited by NVLAP to perform radio testing in accordance with the European Union R&TTE Directive 1999/5/EEC, the requirements of FCC, and the RSS radio standards for Industry Canada. 200629-0 200630-0 200676-0 Industry Canada: Accredited by NVLAP for performance of Industry Canada RSS and ICES testing. Our Open Area Test Sites and certification chambers comply with RSS 212, Issue 1 (Provisional) and have been filed with Industry Canada and accepted. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by NIST and recognized by Industry Canada as a Certification Body (CB) per the APEC Mutual Recognition Arrangement (MRA). This allows Northwest EMC to certify transmitters to Industry Canada technical requirements. CAB: Designated by NIST and validated by the European Commission as a Conformity Assessment Body (CAB) to conduct tests and approve products to the EMC directive and transmitters to the R&TTE directive, as described in the U.S. - EU Mutual Recognition Agreement. TÜV Product Service: Included in TUV Product Service Group's Listing of Recognized Laboratories. It qualifies in connection with the TUV Certification after Recognition of Agent's Testing Program for the product categories and/or standards shown in TUV's current Listing of CARAT Laboratories, available from TUV. A certificate was issued to represent that this laboratory continues to meet TUV's CARAT Program requirements. Certificate No. USA0401C. TÜV Rheinland: Authorized to carryout EMC tests by order and under supervision of TÜV Rheinland. This authorization is based on "Conditions for EMC-Subcontractors" of November 1992. Northwest EMC Accreditations and Authorizations Revision 03/18/05 NEMKO: Assessed and accredited by NEMKO (Norwegian testing and certification body) for European emissions and immunity testing. As a result of NEMKO's laboratory assessment, they will accept test results from Northwest EMC, Inc. for product certification (Authorization No. ELA 119). Technology International: Assessed in accordance with ISO Guide 25 defining the general international requirements for the competence of calibration and testing laboratories and with ITI assessment criteria LACO196. Based upon that assessment, Interference Technology International, Ltd., has granted approval for specifications implementing the EU Directive on EMC (89/336/EEC and amendments). The scope of the approval was provided on a Schedule of Assessment supplied with the certificate and is available upon request. Australia/New Zealand: The National Association of Testing Authorities (NATA), Australia has been appointed by the ACA as an accreditation body to accredit test laboratories and competent bodies for EMC standards. Accredited test reports or assessments by competent bodies must carry the NATA logo. Test reports made by an overseas laboratory that has been accredited for the relevant standards by an overseas accreditation body that has a Mutual Recognition Agreement (MRA) with NATA are also accepted as technical grounds for …

Text truncated - open the document above for the full version.

REPORT NO: 04U3076-1 DATE: FEBRUARY 02, 2005 EUT: Embedded Wireless Radio Modem FCC ID: N7N-EM5625D Page 47 of 55 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 04U3076-1 DATE: FEBRUARY 02, 2005 EUT: Embedded Wireless Radio Modem FCC ID: N7N-EM5625D Page 48 of 55 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 04U3076-1 DATE: FEBRUARY 02, 2005 EUT: Embedded Wireless Radio Modem FCC ID: N7N-EM5625D Page 49 of 55 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED BACK PHOTO REPORT NO: 04U3076-1 DATE: FEBRUARY 02, 2005 EUT: Embedded Wireless Radio Modem FCC ID: N7N-EM5625D Page 50 of 55 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP FOR PORT…
