KFY-WR1230802.11b WIRELESS ROUTER

Wireless Acccess Point Router 0 Wireless Access Point Router With Optional PCMCIA Card, Built-in PCMCIA Card, One Antenna, One Fixed Antenna, One Reverse SMA Antenna User Guide Version 1.3 (PIC) Wireless Acccess Point Router 1 The information in this guide may change without notice. The manufacturer assumes no responsibility for any errors which may appear in this guide. Fast Ethernet is a trademark of XEROX Corporation. Microsoft, Windows and Windows logo are trademarks of Microsoft Corporation. Copyright 2002. All right reserved. No Part of the contents of this guide maybe transmitted or reproduced in any form or by any means without the written permission of the manufacturer. Printed in Taiwan. The revision date for this guide is DEC 10 th , 2002 Version 1.3 FCC Certifications You are cautioned that any changes or modifications not expressly approved in this manual could void your authorization to use the device. CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Prohibition of co-location This device must not be co-located or operating in conjunction with any other antenna or transmitter. 15.105 Federal Communications Commission (FCC) Requirements, Part 15 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. Wireless Acccess Point Router 2 Regulatory information / Disclaimers Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution of the connecting cables and equipment other than manufacturer specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. CAUTION: To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. Use on the supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. MPE Statement (Safety Information) Your device contains a low power transmitter. When device is transmitted it sends out Radio Frequency (RF) signal. Safety Information In order to maintain compliance with the FCC RF exposure guidelines, this equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. Use only with supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. Wireless Acccess Point Router 3 Caution Statement of the FCC Radio Frequency Exposure This Wireless LAN radio device has been evaluated under FCC Bulletin OET 65C and found compliant to the requirements as set forth in CFR 47 Sections 2.1091, 2.1093, and 15.247(b)(4) addressing RF Exposure from radio frequency devices. The radiation output power of this Wireless LAN device is far below the FCC radio frequency exposure limits. Nevertheless, this device shall be used in such a manner that the potential for human contact during normal operation—as a mobile or portable device but use in a body-worn way is strictly prohibit. When using this device, a certain separation distance between antenna and nearby persons has to be kept to ensure RF exposure compliance. In order to comply with the RF exposure limits established in the ANSI C95.1 standards, the distance between the antennas and the user should not be less than 20 cm. CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures. Wireless Acccess Point Router 4 Contents 1: Introduction 1.1 Before You Start 1.2 System Requirement 1.3 How to Use this Guide 2: Hardware Installation 2.1 Product Description 2.1.1 Overview 2.1.2 Features 2.1.3 Front Panel 2.1.4 LEDs and Reset Button 2.1.5 Rear Panel 2.2 Installing the Router 2.2.1 Preparing for the installation 2.2.2 Getting Started 3: Configuration 3.1 Configuring the Wireless Access Point Router 3.2 The Setup Wizard 3.2.1 PPPoE Connection for WAN 3.2.2 Fixed IP for WAN 3.2.3 PPTP For WAN 3.2.4 Dynamic IP for WAN 3.2.5 Alias IP Setup 3.2.6 DNS 3.2.7 Wireless Configuration 3.2.8 Time Zone 3.3 Browsing the Status 3.3.1 Status 3.3.2 Wireless Status 3.3.3 DHCP Table 3.3.4 Routing Table 3.3.5 DDNS Status screen 3.4 Viewing t…

Text truncated - open the document above for the full version.

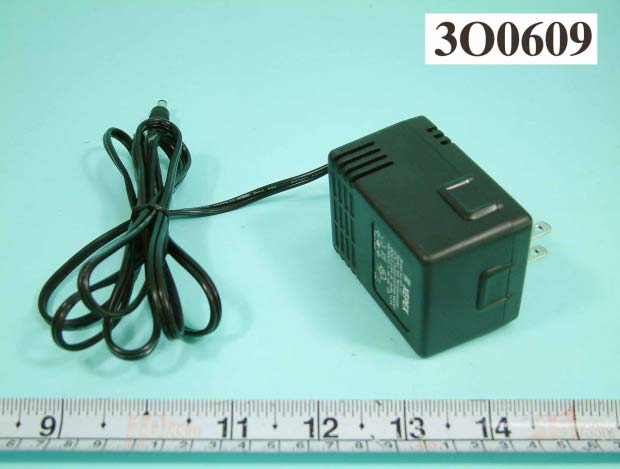

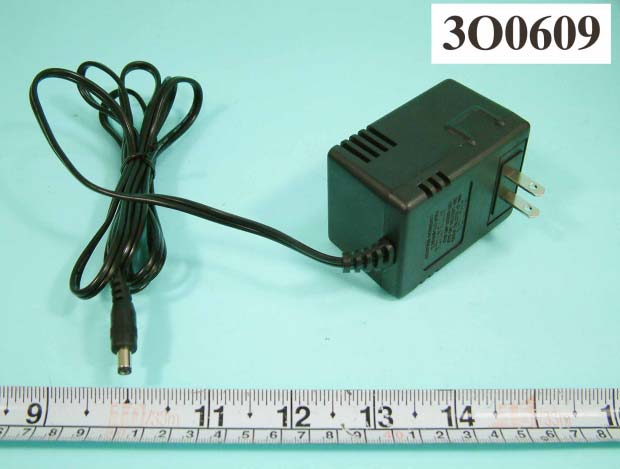

FCC ID: KFY-WR1230 Number 1 FRONT SIDE OF EUT FCC ID: KFY-WR1230 Number 2 REAR SIDE OF EUT FCC ID: KFY-WR1230 Number 3 FRONT SIDE OF ADAPTER FCC ID: KFY-WR1230 Number 4 REAR SIDE OF ADAPTER FCC ID: KFY-WR1230 Number 5 LABEL OF ADAPTER

FCC ID: KFY-WR1230 Label Location

FCC ID: KFY-WR1230 Number 1 MECHANICAL CONSTRUCTION FCC ID: KFY-WR1230 Number 2 MECHANICAL CONSTRUCTION FCC ID: KFY-WR1230 Number 3 FRONT SIDE OF MAIN BOARD FCC ID: KFY-WR1230 Number 4 REAR SIDE OF MAIN BOARD

FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT for 47 CFR Part 15 Subpart C Equipment : 802.11b wireless router Model No. : WR1230 FCC ID : KFY-WR1230 Filing Type : Certification Applicant : Runtop Inc. 1, Ln. 21, Hsin Hua Rd., Kueishan Industrial park, Taoyuan City, Taiwan ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : i FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 Table of Contents History of this test report..................................................................................................................ii CERTIFICATE OF COMPLIANCE........................................................................................................................1 1. General Description of Equipment under Test.............................................................................................2 1.1. Applicant..........................................................................................................................................................................................2 1.2. Manufacturer ...................................................................................................................................................................................2 1.3. Basic Description of Equipment under Test ....................................................................................................................................2 1.4. Feature of Equipment under Test ...................................................................................................................................................3 2. Test Configuration of Equipment under Test ...............................................................................................4 2.1. Test Manner ....................................................................................................................................................................................4 2.2. Description of Test System .............................................................................................................................................................4 2.3. Connection Diagram of Test System ..............................................................................................................................................6 3. Test Software ...................................................................................................................................................7 4. General Information of Test............................................................................................................................8 4.1. Test Voltage ....................................................................................................................................................................................8 4.2. Standard for Methods of Measurement...........................................................................................................................................8 4.3. Test in Compliance with ..................................................................................................................................................................8 4.4. Frequency Range Investigated .......................................................................................................................................................8 4.5. Test Distance ..................................................................................................................................................................................8 5. Report of Measurements and Examinations ................................................................................................9 5.1. List of Measurements and Examinations ........................................................................................................................................9 5.2. 6dB Bandwidth ..............................................................................................................................................................................10 5.3. Peak Output Power .......................................................................................................................................................................11 5.4. Power Spectral Density .................................................................................................................................................................12 5.5. Test of Conducted Emission .........................................................................................................................................................13 5.6. Test of Radiated Emission ............................................................................................................................................................17 5.7. Band Edges Measurement............................................................................................................................................................31 5.8. Antenna Requirements .................................................................................................................................................................32 5.9. RF Exposure .....................................................................................................................................…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 1 of 35 FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 1.1. 6dB Bandwidth Plot1(Channel 1) FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 2 of 35 FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 Plot2(Channel 6) FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 3 of 35 FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 Plot3(Channel 11) Comments6dB Emission bandwidth >500kHz FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 4 of 35 FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 1.2. Power Spectral Density Plot1(Channel 1): FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 5 of 35 FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 Plot2(Channel 6): FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 6 of 35 FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 Plot3(Channel 11): FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 7 of 35 FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 1.3. Band Edges Measurement Plot1 (Channel 1) FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 8 of 35 FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 Plot2 (Channel 11) Comments All emissions in any 100kHz bandwidth outside the band edge are attenuated more then 20dB from the carrier. FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 9 of 35 FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 1.4. Test of Radiated Emission (Channel 1): FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 10 of 35 FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 11 of 35 FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 12 of 35 FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 13 of 35 FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 14 of 35 FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 15 of 35 FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 16 of 35 FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 17 of 35 FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 18 of 35 FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 Channel 6: FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 19 of 35 FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 20 of 35 FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 21 of 35 FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 22 of 35 FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 23 of 35 FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 24 of 35 FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 25 of 35 FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 26 of 35 FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 27 of 35 FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 Channel 11: FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 28 of 35 FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 29 of 35 FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 30 of 35 FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 31 of 35 FAX : 886-2-2696-2255 Issued Date : Nov. 14, 2003 FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID. : KFY-WR…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 1 of 3 FAX : 886-2-2696-2255 Issued : Nov. 14, 2003 1.1. Photographs of Conducted Powerline Test Configuration z The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 2 of 3 FAX : 886-2-2696-2255 Issued : Nov. 14, 2003 SIDE VIEW FCC TEST REPORT Report No. : F3O0609 SPORTON International Inc. FCC ID : KFY-WR1230 TEL : 886-2-2696-2468 Page No. : 3 of 3 FAX : 886-2-2696-2255 Issued : Nov. 14, 2003 1.2. Photographs of Radiated Emission Test Configuration z The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW
