KFY-WR4457802.11g WLAN Router

Wireless Access Point Router 0 Wireless Access Point Router The information in this guide may change without notice. The manufacturer assumes no responsibility for any errors which may appear in this guide. Fast Ethernet is a trademark of XEROX Corporation. Microsoft, Windows and Windows logo are trademarks of Microsoft Corporation. Copyright 2002. All right reserved. No Part of the contents of this guide maybe transmitted or reproduced in any form or by any means without the written permission of the manufacturer. Printed in Taiwan. The revision date for this guide is Apr 1st, 2004 FCC Certifications You are cautioned that any changes or modifications not expressly approved in this manual could void your authorization to use the device. CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Prohibition of co-location This device must not be co-located or operating in conjunction with any other antenna or transmitter. 15.105 Federal Communications Commission (FCC) Requirements, Part 15 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. 1 Wireless Access Point Router Regulatory information / Disclaimers Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution of the connecting cables and equipment other than manufacturer specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. CAUTION: To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. Use on the supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. MPE Statement (Safety Information) Your device contains a low power transmitter. When device is transmitted it sends out Radio Frequency (RF) signal. Safety Information In order to maintain compliance with the FCC RF exposure guidelines, this equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. Use only with supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. 2 Wireless Access Point Router Caution Statement of the FCC Radio Frequency Exposure This Wireless LAN radio device has been evaluated under FCC Bulletin OET 65C and found compliant to the requirements as set forth in CFR 47 Sections 2.1091, 2.1093, and 15.247(b)(4) addressing RF Exposure from radio frequency devices. The radiation output power of this Wireless LAN device is far below the FCC radio frequency exposure limits. Nevertheless, this device shall be used in such a manner that the potential for human contact during normal operation—as a mobile or portable device but use in a body-worn way is strictly prohibit. When using this device, a certain separation distance between antenna and nearby persons has to be kept to ensure RF exposure compliance. In order to comply with the RF exposure limits established in the ANSI C95.1 standards, the distance between the antennas and the user should not be less than 20 cm. CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures. 3 Wireless Access Point Router Contents 1: Introduction 1.1 Before You Start 1.2 System Requirement 1.3 How to Use this Guide 2: Hardware Installation 2.1 Product Description 2.1.1 Overview 2.1.2 Features 2.1.3 Front Panel 2.1.4 LEDs and Reset Button 2.1.5 Rear Panel 2.2 Installing the Router 2.2.1 Preparing for the installation 2.2.2 Getting Started 3: Configuration 3.1 Configuring the Wireless Access Point Router 3.2 The Setup Wizard 3.2.1 PPPoE Connection for WAN 3.2.2 Fixed IP for WAN 3.2.3 PPTP For WAN 3.2.4 Dynamic IP for WAN 3.2.5 Alias IP Setup 3.2.6 DNS 3.2.7 Wireless Configuration 3.2.8 Time Zone 3.3 Browsing the Status 3.3.1 Status 3.3.2 Wireless Status 3.3.3 DHCP Table 3.3.4 Routing Table 3.3.5 DDNS Status screen 3.4 Viewing the Tools 3.4.1 System Log 3.4.2 Hacker Log 3.4.3 Reset 3.4.4 Upgrade 4 Wireless Access Point Router 3.4.5 Backup 3.5 Setup the Advanced Features 3.5.1 LAN IP Setting 3.5.2 DHCP Setting …

Text truncated - open the document above for the full version.


Doc (1152x1600x16M jpeg)

POA (1152x1600x16M jpeg)

Page 1 CONSTRUCTION PHOTOS OF EUT Model: BWA721 Page 2 Page 3 Page 4 Page 5 Page 6 Model: WR4455 Page 7 Page 8 Page 9 Page 10 Page 11 Model: WR4456 Page 12 Page 13 Page 14 Page 15 Page 16 Model: WR4457 Page 17 Page 18 Page 19 Page 20 Page 21 Model: WR4458 Page 22 Page 23 Page 24 Page 25

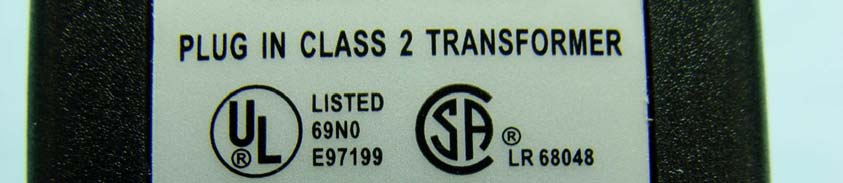

FCC LABLE.jpg (1280 x 960 x 24)

LBWR4457-RCC-NB110 (1).jpg (1142 x 746 x 24)

Page 26 Model: BWA721 Page 27 Page 28 Page 29 Page 30 Page 31 Page 32 Page 33 Model: WR4455 Page 34 Page 35 Page 36 Page 37 Page 38 Page 39 Page 40 Model: WR4456 Page 41 Page 42 Page 43 Page 44 Page 45 Page 46 Page 47 Model: WR4457 Page 48 Page 49 Page 50 Page 51 Page 52 Page 53 Page 54 Model: WR4458 Page 55 Page 56 Page 57 Page 58 Page 59 Page 60

FCC ID: KFY-WR4457 Report No.: RF930702L14 Operational Description This device operates in the 2.4GHz frequency band. The maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by power adapter. The antenna type is Dipole antenna with fix or reverse SMA antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual.

FCC ID: KFY-WR4457 Report No: SA930702L14 1 RF EXPOSURE REPORT REPORT NO.: SA930702L14 MODEL NO.: BWA721, WR4455, WR4456, WR4457, WR4458 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Runtop Inc ADDRESS: 1, Ln. 21, Hsin Hua Rd., Kueishan Industrial Park, Taoyuan City, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2nd Rd., Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: KFY-WR4457 Report No: SA930702L14 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: KFY-WR4457 Report No: SA930702L14 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This modular is specified to be installed in access point which is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: KFY-WR4457 Report No: SA930702L14 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 3 dBi or 1.995 (numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For CCK technique: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241263.0960.0251.0 6243763.0960.0251.0 11246263.0960.0251.0 For OFDM technique: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241231.6230.0131.0 6243731.6230.0131.0 11246231.6230.0131.0

FCC ID: KFY-WR4457 Report No.: RF930702L141Issued: July 29, 2004 FCC TEST REPORT REPORT NO.: RF930702L14 MODEL NO.: BWA721 (Refer to page 7 for the other models) RECEIVED: July 02, 2004 TESTED: July 07 ~ July 21, 2004 APPLICANT: Runtop Inc ADDRESS: 1, Ln. 21, Hsin Hua Rd., Kueishan Industrial Park, Taoyuan City, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2 nd Rd., Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 76 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agency. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: KFY-WR4457 Report No.: RF930702L142Issued: July 29, 2004 TABLE OF CONTENTS 1CERTIFICATION..........................................................................................................5 2SUMMARY OF TEST RESULTS .................................................................................6 2.1GENERAL DESCRIPTION OF EUT ............................................................................6 3GENERAL INFORMATION ..........................................................................................7 3.1GENERAL DESCRIPTION OF EUT ............................................................................7 3.2DESCRIPTION OF TEST MODES ..............................................................................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................8 3.4DESCRIPTION OF SUPPORT UNITS ........................................................................9 3.5CONFIGURATION SYSTEM UNDER TEST .............................................................10 4TEST TYPES AND RESULTS ................................................................................... 11 4.1CONDUCTED EMISSION MEASUREMENT ............................................................ 11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.......................................... 11 4.1.2 TEST INSTRUMENTS............................................................................................... 11 4.1.3 TEST PROCEDURES ...............................................................................................12 4.1.4 DEVIATION FROM TEST STANDARD......................................................................12 4.1.5 TEST SETUP.............................................................................................................13 4.1.6 EUT OPERATING CONDITIONS ..............................................................................13 4.1.7 TEST RESULTS ........................................................................................................14 4.2RADIATED EMISSION MEASUREMENT .................................................................20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...............................................20 4.2.2 TEST INSTRUMENTS...............................................................................................21 4.2.3 TEST PROCEDURES ...............................................................................................22 4.2.4 DEVIATION FROM TEST STANDARD......................................................................22 4.2.5 TEST SETUP.............................................................................................................23 4.2.6 EUT OPERATING CONDITIONS ..............................................................................23 4.2.7 TEST RESULTS ........................................................................................................24 4.2.8 TEST RESULTS (A)...................................................................................................26 4.2.9 TEST RESULTS (B)...................................................................................................32 4.36dB BANDWIDTH MEASUREMENT.........................................................................38 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ......................................................38 FCC ID: KFY-WR4457 Report No.: RF930702L143Issued: July 29, 2004 4.3.2 TEST INSTRUMENTS...............................................................................................38 4.3.3 TEST PROCEDURE..................................................................................................39 4.3.4 DEVIATION FROM TEST STANDARD......................................................................39 4.3.5 TEST SETUP.............................................................................................................39 4.3.6 EUT OPERATING CONDITIONS ..............................................................................39 4.3.7 TEST RESULTS (A)...................................................................................................40 4.3.8 TEST RESULTS (B)...................................................................................................44 4.4MAXIMUM PEAK OUTPUT POWER.........................................................................48 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .........................48 4.4.2 TEST INSTRUMENTS...............................................................................................48 4.4.3 TEST PROCEDURES ...............................................................................................49 4.4.4 DEVIATION FROM TEST STANDARD......................................................................49 4.4.5 TEST SETUP.............................................................................................................49 4.4.6 EUT OPERATING CONDITIONS ..............................................................................49 4.4.7 TEST RESULTS (A).......................…

Text truncated - open the document above for the full version.

FCC ID: KFY-WR4457 Report No.: RF930702L1451Issued: July 29, 2004 4.4.8 TEST RESULTS (B) EUT 802.11g WLAN Router MODEL BWA721 ENVIRONMENTAL CONDITIONS 24 deg. C, 64% RH, 991 hPa INPUT POWER (SYSTEM) 120 Vac, 60 Hz TESTED BY: Steven Lu CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1241215.0030PASS 6243715.0030PASS 11246215.0030PASS FCC ID: KFY-WR4457 Report No.: RF930702L1452Issued: July 29, 2004 4.5 POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT The Maximum of Power Spectral Density Measurement is 8dBm. 4.5.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049Aug. 12, 2004 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: KFY-WR4457 Report No.: RF930702L1453Issued: July 29, 2004 4.5.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator, the bandwidth of the fundamental frequency was measured with the spectrum analyzer using 3kHz RBW and 30kHz VBW, set sweep time=span/3kHz. The power spectral density was measured and recorded. The sweep time is allowed to be longer than span/3kHz for a full response of the mixer in the spectrum analyzer. 4.5.4 DEVIATION FROM TEST STANDARD No deviation 4.5.5 TEST SETUP 4.5.6 EUT OPERATING CONDITIONS Same as 4.3.6. EUT SPECTRUM ANALYZER FCC ID: KFY-WR4457 Report No.: RF930702L1454Issued: July 29, 2004 4.5.7 TEST RESULTS (A) EUT 802.11g WLAN Router MODEL BWA721 ENVIRONMENTAL CONDITIONS 25 deg. C, 63% RH, 991 hPa INPUT POWER (SYSTEM) 120 Vac, 60 Hz TESTED BY: Steven Lu CHANNEL CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 kHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-7.188PASS 62437-6.288PASS 112462-6.348PASS FCC ID: KFY-WR4457 Report No.: RF930702L1455Issued: July 29, 2004 CH 1 FCC ID: KFY-WR4457 Report No.: RF930702L1456Issued: July 29, 2004 CH6 FCC ID: KFY-WR4457 Report No.: RF930702L1457Issued: July 29, 2004 CH 11 FCC ID: KFY-WR4457 Report No.: RF930702L1458Issued: July 29, 2004 4.5.8 TEST RESULTS (B) EUT 802.11g WLAN Router MODEL BWA721 ENVIRONMENTAL CONDITIONS 25 deg. C, 63% RH, 991 hPa INPUT POWER (SYSTEM) 120 Vac, 60 Hz TESTED BY: Steven Lu CHANNEL CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 kHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-15.108PASS 62437-15.018PASS 112462-14.688PASS FCC ID: KFY-WR4457 Report No.: RF930702L1459Issued: July 29, 2004 CH 1 FCC ID: KFY-WR4457 Report No.: RF930702L1460Issued: July 29, 2004 CH6 FCC ID: KFY-WR4457 Report No.: RF930702L1461Issued: July 29, 2004 CH 11 FCC ID: KFY-WR4457 Report No.: RF930702L1462Issued: July 29, 2004 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100kHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049Aug. 12, 2004 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100kHz with suitable frequency span including 100MHz bandwidth from band edge. The band edges was measured and recorded. 4.6.4 DEVIATION FROM TEST STANDARD No deviation 4.6.5 EUT OPERATING CONDITION Same as Item 4.3.6 FCC ID: KFY-WR4457 Report No.: RF930702L1463Issued: July 29, 2004 4.6.6 TEST RESULTS (A) The spectrum plots are attached on the following 4 pages. D2 line indicates the highest level and D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). NOTE: The band edge emission plot of CCK technique on the following 1~2 pages show 57.19 dB between carrier maximum power and local maximum emission in restrict band (2.3541 GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.8 is 100.99 dBuV/m, so the maximum field strength in restrict band is 100.99-57.19=43.80 dBuV/m which is under 54 dBuV/m limit. The band edge emission plot of CCK technique on the following 3~4 pages show 55.07 dB delta between carrier maximum power and local maximum emission in restrict band (2.4880 GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.8 is 99.34 dBuV/m, so the maximum field strength in restrict band is 99.34-55.07=44.27 dBuV/m which is under 54 dBuV/m limit. FCC ID: KFY-WR4457 Report No.: RF930702L1464Issued: July 29, 2004 FCC ID: KFY-WR4457 Report No.: RF930702L1465Issued: July 29, 2004 FCC ID: KFY-WR4457 Report No.: RF930702L1466Issued: July 29, 2004 FCC ID: KFY-WR4457 Report No.: RF930702L1467Issued: July 29, 2004 FCC ID: KFY-WR4457 Report No.: RF930702L1468Issued: July 29, 2004 4.6.7 TEST RESULTS (B) The spectrum plots are attached on the following 4 pages. D2 line indicates the highest level and D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). NOTE: The band edge emission plot of OFDM technique on the following 1~2 pages show 51.69 dB between carrier maximum power and local maximum emission in restrict band (2.3881 GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.9 is 95.21 dBuV/m, so the maximum field strength in restrict band is 95.21-51.69=43.52 dBuV/m which is under 54 dBuV/m limit. The band edge emission plot of OFDM technique on the following 3~4 pages show 48.46 dB delta between carrier maximum power and local maximum emission in restrict band (2.4881 GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.9 is 96.58 dBuV/m, so the maximum field strength in restrict band is 96.58-48.46=48.12 dBuV/m which is under 54 dBuV/m limit. FCC ID: KFY-WR4457 Report No.: RF930702L1469Issued: July 29, 2004 FCC I…

Text truncated - open the document above for the full version.

FCC ID: KFY-WR4457 Report No.: RF930702L1474Issued: July 29, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: KFY-WR4457 Report No.: RF930702L1475Issued: July 29, 2004 RADIATED EMISSION TEST
