KQ9-0800AWireless seismic acquisition unit

Rev.1-2021 Page 1 DIGITAL FIELD UNIT (DFU) ANALOGIC FIELD UNIT (AFU) USER MANUAL Rev.1-2021 Page 2 Rev.1-2021 Page 3 Guidelines for Safe and Efficient Use Read this information before using your AFU, DFU. Warnings, Cautions, and Important notices throughout this manual guide you to avoid injury, prevent equipment damage, and determine equipment use when varying components or configurations exist. Notes provide tips or additional information. SERCEL is not responsible for damages or injuries that result from failure to observe the information provided. WARNING When a Warning or Caution appears with a lightning-bolt icon, as shown in this example, this is to indicate a potential hazard that may lead to bodily injury or even death. CAUTION When a Warning or Caution appears with an exclamation-point icon, as shown in this example, this is to indicate possible equipment damage or potential risk of misuse and incorrect operation. IMPORTANT Important notices appear in the manual to highlight information that does not affect the risk of bodily injury, death, or equipment damage, but is nevertheless important. These notices appear with a stop-sign icon, as shown in this example. Rev.1-2021 Page 4 SUMMARY GUIDELINES FOR SAFE AND EFFICIENT USE ................................................................................................................................. 3 SUMMARY .................................................................................................................................................................................. 4 DESCRIPTION .............................................................................................................................................................................. 5 DESCRIPTION OF RADIO PROTOCOL ........................................................................................................................................... 6 GPS CONFIGURATION ................................................................................................................................................................. 8 DEPLOYMENT ............................................................................................................................................................................. 8 HARVESTING & CHARGING THE BATTERY ................................................................................................................................. 10 WING CHARGER & HARVESTING RACK CONNECTOR ........................................................................................................................ 10 MAINTENANCE ......................................................................................................................................................................... 12 BATTERY .......................................................................................................................................................................................... 12 SPECIFICATIONS ....................................................................................................................................................................... 14 REGULATORY INFORMATION ................................................................................................................................................... 15 Rev.1-2021 Page 5 Description DFU - Digital Field Unit The DFU is the WiNG system's Digital Field Unit (ref. 10043828). It is a single channel autonomous field unit including a QuietSeis MEMS Sensor. It includes wireless communication capabilities to deliver its QC statuses and acquisition samples. DFU Functions Ground acceleration recording Filtering, compression and time stamping of the data Offloading of recorded data in the rack Local data storage transmission on request Instrument and sensor tests Selectable low cut filter down to 0.15Hz AFU - Analogue Field Unit The AFU is the WiNG system’s Analogue Field Unit (ref. 10042274). It is a single channel autonomous node including an external KCK2 connector for geophone. It includes communication capabilities to wirelessly deliver its QC status. AFU Functions 24 bit A/D conversion of the signal Filtering, compression and time stamping of the data Local data storage and re-transmission if needed Instrument and sensor tests Selectable low cut filter down to 0.15Hz Magnetic power stick (ref. 10045283) enabling to power ON & OFF the field units based on Hall effect. DFU Connector used to connect field units to the Rack* Connector used to connect field units to the Rack or to connect a geophone Spike LED Hall effect sensor AFU *Refer to “Harvesting & Charging the battery” chapter. Rev.1-2021 Page 6 High-sensitivity geophones Rev.1-2021 Page 7 Description of radio protocol Dual radio The MAC manage 2 independent radios with a separate data flow and different radio modulation (LORA and GFSK). Only one of them can be used without GNSS synchronization (this radio should be used for a troubleshoot radio). LORA is used to communicate between DFU through FHSS (Frequency Hopping spread Spectrum) technical and transmit state of health and settings. GFSK is used to communicate with an external equipment (WiNG Field Monitor box) through FHSS technical to send state-of-health data of several DFU, some of its own seismic data or receive settings. Time sharing with dual radio on 1 second. Frequency range and channel spacing The frequency range covered by the equipment is 2402.5MHz up to 2478.5MHz, using 1MHz channel spacing. According to FCC rules FHSS (Frequency Hopping Spread Spectrum) scheme is used, on 20 different frequencies. Data rate Data rate is 22.2Kbps with LORA modulation and 1Mbps with GFSK modulation. FHSS The FHSS operates on a set of frequencies. It uses one frequency for a fixed period of time and then switches to another channel. The next frequency is given by a pseudo-random sequence. In order to communicate, the transmitter…

Text truncated - open the document above for the full version.

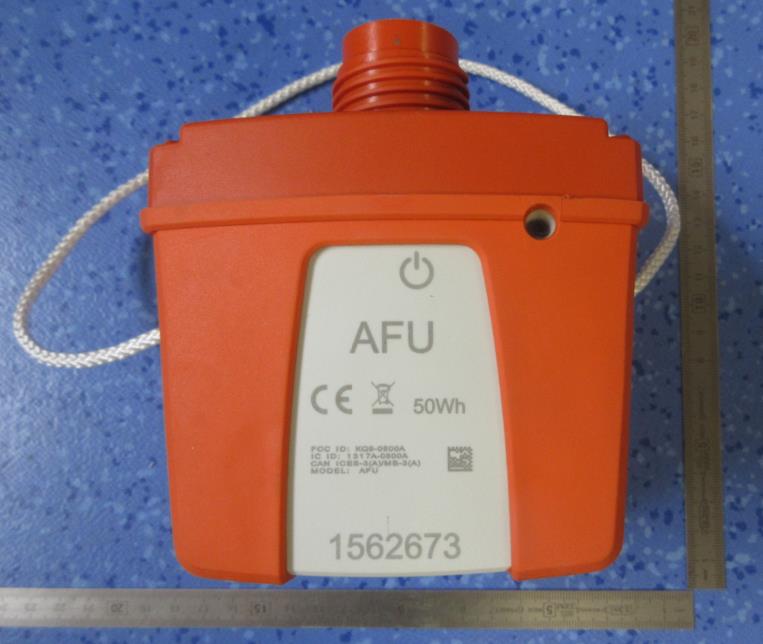

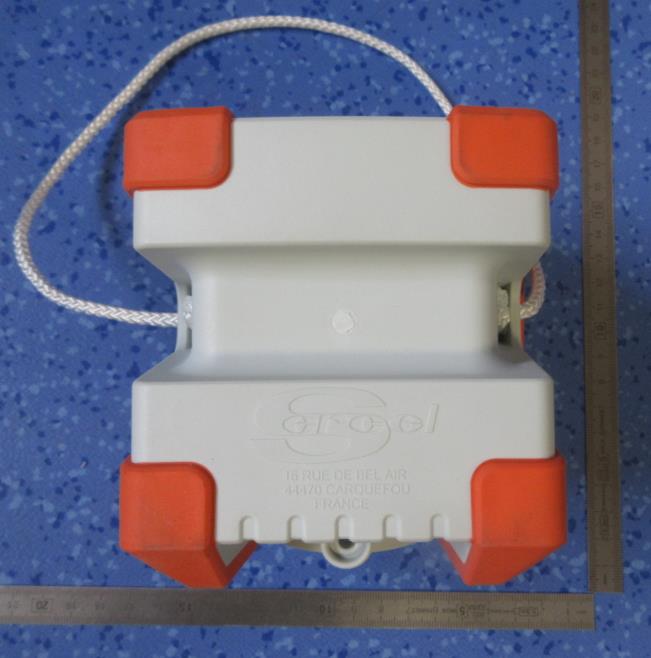

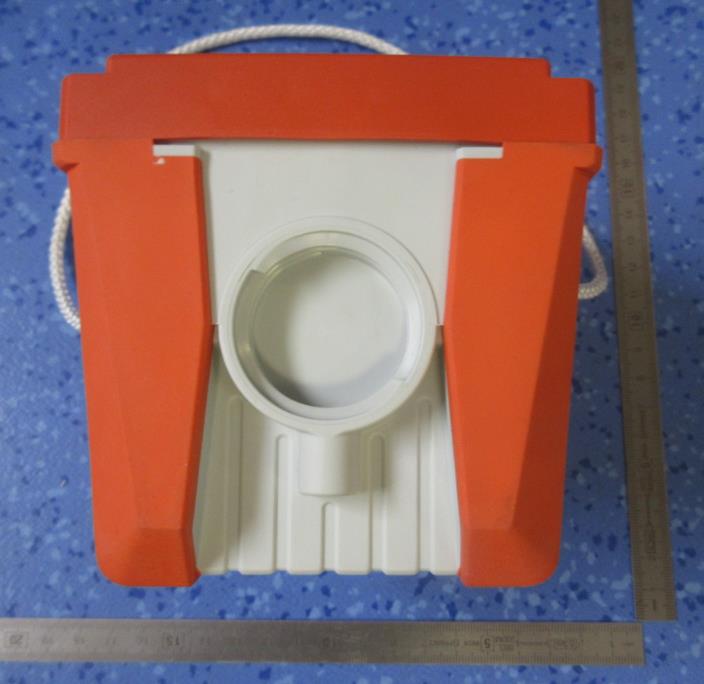

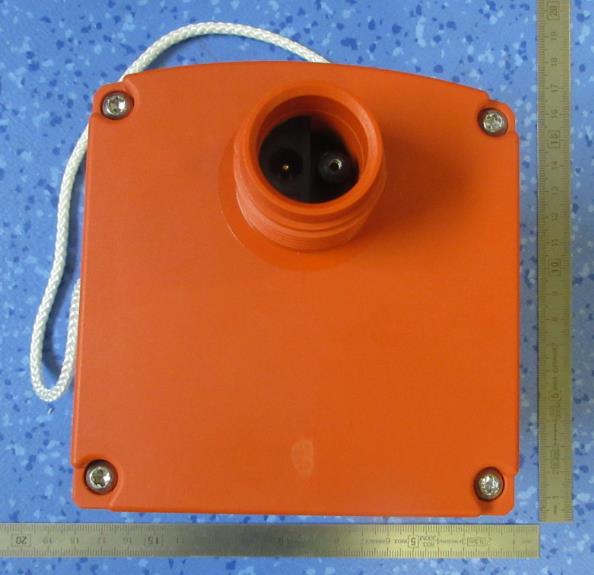

1 AFU_Exteral Photos FCC ID : KQ9-0800A IC ID : 1317A-0800A 2 3 4 5 6

1 AFU_Label Location FCC ID : KQ9-0800A IC ID : 1317A-0800A On the top of the product : 2 Due to the volumes and size of the product, the following warning is noted in the user manual (see document UserMan_AFU.pdf ) : “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”

1 AFU_Label Laser engraved label FCC ID : KQ9-0800A IC ID : 1317A-0800A 2

1 AFU_Internal Photos FCC ID : KQ9-0800A IC ID : 1317A-0800A 2 3 Radio antenna 2.4GHz single band J7 (10041196) GPS antenna J9 (10048106)

Siège Social : Emitech - 3, rue des Coudriers - Z.A. de l’Observatoire - 78180 MONTIGNY LE BX - France Siret : 344 545 645 00022 - Tél. : 33 (0)1 30 57 55 55 - Fax : 33 (0)1 30 43 74 48 - E-mail : [email protected] - URL : www.emitech.fr S.A. au capital de 1 560 000 € - R.C.S. VERSAILLES 344 545 645 - APE 7112B S 51 RTY 000 INT 00004 [ 0 3 ] RR051-20-104230-1-A Ed. 0 Certification Radio test report According to the standard: CFR 47 FCC PART 15 RSS GEN – Issue 5 RSS 247 – Issue 2 Equipment under test: Wireless seismic acquisition unit AFU FCC ID: KQ9-0800A IC NUMBER: 1317A-0800A Company: SERCEL Inc Distribution: Mr TIJOU (Company: SERCEL NANTES) Number of pages: 43 with 1 appendix Technical Verification and Quality Approval Ed. Date Modified Page(s) Name and Function Visa 0 18-Mar-22 Creation M. DUMESNIL, Radio Laboratory Manager Duplication of this document is only permitted for an integral photographic facsimile. It includes the number of pages referenced here above. This document is the result of testing a specimen or a sample of the product submitted. It does not imply an assessment of the conformity of the whole manufactured products of the tested sample. LISTE DES SITES ACCREDITES ET PORTEES DISPONIBLES SUR WWW.COFRAC.FR ACCREDITATIONS N° 1-0826, 1-0827, 1-1925, 1- 2069,1-2070, 1-2206, 1-2376 & 1-6086 RR051-20-104230-1-A Ed. 0 Page 2/43 DESIGNATION OF PRODUCT: Wireless seismic acquisition unit Serial number (S/N): Sample 1: 1562674 Reference / model (P/N): AFU Software version: 0.9.11 MANUFACTURER: SERCEL Inc COMPANY CERTIFYING THE PRODUCT: Company: SERCEL Inc Address: 17200 Park Row TEXAS 77084 UNITED STATES Responsible: Mr PARRISH COMPANY SUBMITTING THE PRODUCT: Company: SERCEL NANTES Address: 16, RUE DU BEL AIR BP 30439 44470 CARQUEFOU FRANCE Responsible: Mr TIJOU Person(s) present during the tests: Mr ALLAIN (the first day) DATES OF TEST: From 2-Nov-20 to 4-Nov-20 TESTING LOCATION: EMITECH ANGERS laboratory at JUIGNE SUR LOIRE (49) FRANCE FCC Accredited under US-EU MRA Designation Number: FR0009 Test Firm Registration Number: 873677 ISED Accredited under CANADA-EU MRA Designation Number: FR0001 Industry Canada Registration Number: 4452A TESTED BY: S. LOUIS VISA: WRITTEN BY: S. LOUIS RR051-20-104230-1-A Ed. 0 Page 3/43 CONTENTS TITLE PAGE 1. INTRODUCTION ....................................................................................................................................... 4 2. PRODUCT DESCRIPTION ....................................................................................................................... 4 3. NORMATIVE REFERENCE ...................................................................................................................... 5 4. TEST METHODOLOGY ............................................................................................................................ 6 5. TEST EQUIPMENT CALIBRATION DATES ............................................................................................ 7 6. TESTS RESULTS SUMMARY .................................................................................................................. 8 7. MEASUREMENT UNCERTAINTY ...........................................................................................................10 8. OCCUPIED BANDWIDTH .......................................................................................................................11 9. BAND EDGE ............................................................................................................................................20 10. PEAK CONDUCTED OUTPUT POWER .................................................................................................24 11. RADIATED SPURIOUS EMISSIONS ......................................................................................................27 12. PEAK CONDUCTED POWER SPECTRAL DENSITY ............................................................................33 APPENDIX 1: TEST EQUIPMENT LIST ........................................................................................................................... 41 RR051-20-104230-1-A Ed. 0 Page 4/43 1. INTRODUCTION This report presents the results of radio test carried out on the following radio equipment: Wireless seismic acquisition unit, AFU, in accordance with normative reference. The equipment under test integrates:  SRD Multifrequencies proprietary transceiver operational in the band (2400MHz – 2483.5MHz). Two different modulations are used (GFSK and LoRa).  GNSS module operational in the band 1559MHz – 1610MHz This report refers only of proprietary transceiver radio part. According to KDB publication n° 558074 D01 v05r02, the compliance demonstration for these two modulations is carried out according DTS requirements. 2. PRODUCT DESCRIPTION Class: A Utilization: Industrial Antenna type and gain: 2 dBi / integral antenna Operating frequency band: From 2400 MHz to 2483.5 MHz Operating frequency range: From 2402.5 MHz to 2478.5 MHz Number of channels: 77 Frequencies tested: 2402.5 MHz, 2439.5 MHz and 2478.5 MHz Channel spacing: 1MHz Modulation: GFSK & LoRa Power source: 3.6Vdc by internal Li-ion Batteries Pack Power soft adjusted to 7dBm Power level, frequency range and channels characteristics are not user adjustable. The details pictures of the product and the circuit boards are joined with this file. RR051-20-104230-1-A Ed. 0 Page 5/43 3. NORMATIVE REFERENCE The standards and testing methods related throughout this report are those listed below. They are applied on the whole test report even though the extensions (version, date and amendment) are not repeated. CFR 47 FCC Part 15 (2020) Radio Frequency Devices ANSI C63.10 2013 Procedures for ComplianceTesting of Unlicensed Wireless Devices. 558074 D01 DTS v05 r02 Guidance for compliance measurements on digital transmission system, frequency hopping spread spectrum system, and hybrid system devices operating under section 15.247 of th…
