KUJ9302Fan-Light Remote Controller(Transmitter)

FCC ID. KUJ9302 CEILING FAN REMOTE CONTROLLER OPERATION AND INSTALLATION INSTRUCTIONS (Please keep this instruction pamphlet.) IMPORTANT POINTS TO REMEMBER: 1.Read and save these instructions. 2.Please note that all fixed wiring appliances should be installed by a qualified electrician. 3.The supply to the remote control receiver should be connected through a mains switch, i.e. existing wall switch. 4.Disconnect from power supply at wall switch before working on remote control receiver or ceiling fan. 5.Install receiver into the ceiling fan canopy of the fan to ensure proper protection. 6.This unit is to be used for the control of ceiling fan and in a AC120V 60Hz power supply only. 7.Do not install in lamp locations or immerse into water. (For indoor use only.) 8.Do not pull on or cut leads shorter. 9.Do not drop or bump the unit. 10. PLEASE NOTE: The battery will weaken with age and should be replaced before leaking takes place as this will damage the transmitter. Dispose of used battery properly, keep the battery out of reach of children. INSTALLATION INSTRUCTIONS 1.Ceiling fan must be set at HIGH speed and light kit (If any) at ON position by pulling the “Pull Switch” after installation. 2.Once the connection has been made, the receiver inserts into the drop rod hanging bracket. The canopy comes up to cover the receiver and bracket. IMPORTANT YOU MUST SET CEILING FAN MANUAL SWITCH TO HIGH SPEED AND LIGHT KIT (IF ANY) TO ON POSITION BEFORE OPERATING REMOTE CONTROL. CAUTION: INCORRECT WIRE CONNECTION WOULD DAMAGE THIS RECEIVER. FCC ID. KUJ9302 CODE SWITCH 1.CODE SWITCH: Codes are set by pushing dip switches up or down. It is imperative that the code used for both transmitter and receiver is exactly the same, otherwise remote controller will not work. Please note the code switch will enable you to operate a second remote controller independently. For example, if you have two ceiling fans with 2 remote control units, set 2 different codes for each set of transmitter/receivers. This means you can operate each ceiling fan independently. 2.Your remote control is ready for use after battery installation. FUNCTIONS OF TRANSMITTER STOP : Turn off the ceiling fan. HI : Turn on the fan at high speed MED : Turn on the fan at medium speed LOW : Turn on the fan at low speed LIGHT : ON/OFF- Press and release immediately to turn on or off the light DIMMER- Press and hold on to dimmer or brighten the light. (Tungsten only) Ceiling Fan Remote Control Wiring Connection Installation of Transmitter Wall Mount Holder with two screws. TRANSMITTER FCC ID. KUJ9302 FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. CAUTION: To assure continued FCC compliance: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.

Request for Confidentiality Date: Aug. 30, 2004 Federal Communications Commission Authorization and Evaluation Division Subject: Confidentiality Request regarding Application for certification of FCC ID: KUJ9302 Gentlemen: Pursuant to Section 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: u Functional Block Diagram u Operational Description (theory of operation) u Schematic Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ____________________________________ Peter Chen Chungear Industrial Co., Ltd.

1 Helen Zhao Subject:FW: Chungear Industrial Co., Ltd., FCC ID: KUJ9302, Assessment NO.: AN04T4199, Notice#1 6. Test Report (KUJ9302)-Revis... From: Audix Sent: Monday, September 20, 2004 1:59 AM To: Helen Zhao Subject: Re: Chungear Industrial Co., Ltd., FCC ID: KUJ9302, Assessment NO.: AN04T4199, Notice#1 Dear Helen, Reply to Question #1: The bandwidth 0.0513 MHz recorded in the report is erroneous, the correct bandwidth is 56.3 KHz. The plot is correct. Our engineer mistook the record of bandwidth. I have revised our report. (attached please fine file I am sorry for our error. Thank you, Best Regards, Monica Chang > > -----Original Message----- > From: Compliance Certification Services [mailto:[email protected]] > Sent: Friday, September 17, 2004 5:13 PM > To: Helen Zhao > Subject: Chungear Industrial Co., Ltd., FCC ID: KUJ9302, Assessment NO.: > AN04T4199, Notice#1 > > > Question #1: The test report said the bandwidth is 0.0513 MHz, however the > test plot shows 56.3 KHz, please explain. > > Best regards, > Helen Zhao > > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 30 days of the original e-mail date may result in > application dismissal and forfeiture of the filing fee. Also, please note > that partial responses increase processing time and should not be submitted. > Any questions about the content of this correspondence should be directed to > the e-mail address listed below the name of the sender. >

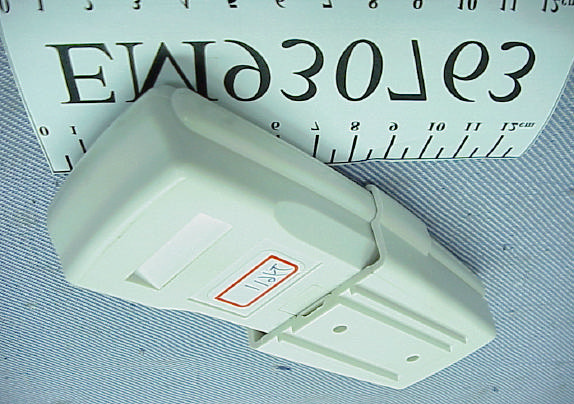

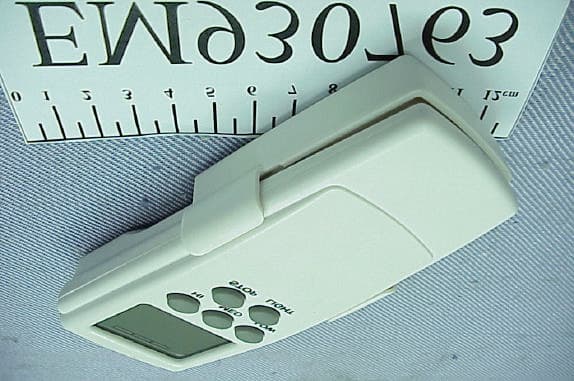

FCC ID. KUJ9302 EUT External Photos Photo 1 General Appearance (Front View) Photo 2 General Appearance (Back View) FCC ID. KUJ9302 Photo 3 General Appearance (Holder Removed)

FCC ID. KUJ9302 FCC ID Label Format and Location l Label Placement Location (Bottom Side of EUT) FCC Label Placement Location FCC Label Format FCC IDKUJ9302 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID. KUJ9302 EUT Internal Photos Photo 4 Internal View (Covers Removed) Photo 5 PCB View (Component Side) FCC ID. KUJ9302 Photo 6 PCB View (Solder Side)

FCC ID.KUJ9302 Page 1 of 27 Audix Corporation Report No.: EM-F930139 TEST REPORT FOR CERTIFICATION On Behalf of Chungear Industrial Co., Ltd. Fan-Light Remote Controller (Transmitter) ModelJY611 FCC IDKUJ9302 Prepared for : Chungear Industrial Co., Ltd. 106 Kanho Rd., Taichung, Taiwan, R.O.C. Prepared by : Audix Corporation Technical Division EMC Department No. 53-11, Tin-Fu Tsun, Lin-Kou Hsiang, Taipei County 24443, Taiwan, R.O.C. Tel : (02) 2609-9301, 2609-2133 Fax : (02) 2609-9303 File Number EM930763 Report Number EM-F930139 Date of Test Jul. 07 ~ Sep. 15, 2004 Date of Report Sep. 17, 2004 FCC ID.KUJ9302 Page 2 of 27 Audix Corporation Report No.: EM-F930139 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION....................................................................................................3 1. GENERAL INFORMATION..........................................................................................................4 1.1. Description of Device (EUT).........................................................................................................4 1.2. Description of Test Facility............................................................................................................5 1.3. Measurement Uncertainty..............................................................................................................5 2. POWERLINE CONDUCTED MEASUREMENT........................................................................6 3. RADIATED EMISSION MEASUREMENT.................................................................................7 3.1. Test Equipment.............................................................................................................................7 3.2. Test Setup.....................................................................................................................................7 3.3. Radiation Emission Limits (§15.209 & 15.231)...............................................................................8 3.4. EUT’s Configuration during Compliance Measurement...................................................................8 3.5. Operating Condition of EUT..........................................................................................................9 3.6. Test Procedure..............................................................................................................................9 3.7. Radiated Emission Noise Measurement Results.............................................................................10 4. EMISSION BANDWIDTH MEASUREMENT...........................................................................19 4.1. Test Equipment...........................................................................................................................19 4.2. Block Diagram of Test Setup.......................................................................................................19 4.3. Specification Limits (§15.231-(c))................................................................................................19 4.4. EUT’s Configuration during Compliance Measurement.................................................................19 4.5. Emission Bandwidth Measurement Results...................................................................................19 5. PERIODIC OPERATED MEASUREMENT...............................................................................21 5.1. Test Equipment...........................................................................................................................21 5.2. Block Diagram of Test Setup.......................................................................................................21 5.3. Specification Limits [§15.231-(a)-(1)]..........................................................................................21 5.4. EUT’s Configuration during Compliance Measurement.................................................................21 5.5. Periodic Operated Measurement Results.......................................................................................21 6. DEVIATION TO TEST SPECIFICATIONS...............................................................................23 7. PHOTOGRAPHS............................................................................................................................24 7.1. Photos of Radiated Measurement at Semi-Anechoic Chamber (30~1000MHz).......................................24 7.2. Photos of Radiated Measurement at Semi-Anechoic Chamber (Above 1GHz)...................................25 7.3. Photo of Emission Bandwidth Measurement.................................................................................27 7.4. Photo of Periodic Operated Measurement.....................................................................................27 FCC ID.KUJ9302 Page 3 of 27 Audix Corporation Report No.: EM-F930139 TEST REPORT CERTIFICATION Applicant Chungear Industrial Co., Ltd. Manufacturer Satellite Electronic (Zhongshan) Ltd. EUT Description Fan-Light Remote Controller (Transmitter) FCC ID KUJ9302 (A) MODEL NO.JY611 (B) SERIAL NO.N/A (C) POWER SUPPLYDC 9V Measurement Procedure Used: FCC RULES AND REGULATIONS PART 15 SUBPART C, APR. 2004 AND ANSI C63.4-2001 (FCC CFR 47 Part 15C, §15.207, §15.209 and §15.231) The device described above was tested by Audix Corporation to determine the maximum emission levels emanating from the device. The maximum emission levels were compared to the FCC Part 15 subpart C limits both radiated and conducted emissions. The measurement results are contained in this test report and Audix Corporation is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT to be technically compliant with the FCC official limits. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Audix Corporatio…

Text truncated - open the document above for the full version.

FCC ID.KUJ9302 Page 24 of 27 Audix Corporation Report No.: EM-F930139 7. PHOTOGRAPHS 7.1. Photos of Radiated Measurement at Semi-Anechoic Chamber (30~1000MHz) EUT on Stand EUT on Side FCC ID.KUJ9302 Page 25 of 27 Audix Corporation Report No.: EM-F930139 EUT on Lying 7.2. Photos of Radiated Measurement at Semi-Anechoic Chamber (Above 1GHz) EUT on Stand FCC ID.KUJ9302 Page 26 of 27 Audix Corporation Report No.: EM-F930139 EUT on Side EUT on Lying FCC ID.KUJ9302 Page 27 of 27 Audix Corporation Report No.: EM-F930139 7.3. Photo of Emission Bandwidth Measurement 7.4. Photo of Periodic Operated Measurement
