KUJ9401Ceiling Fan Remote Controller (Transmitter)

FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. CAUTION: To assure continued FCC compliance: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment.

Request for Confidentiality Date: Nov. 07, 2005 Federal Communications Commission Authorization and Evaluation Division Subject: Confidentiality Request regarding Application for certification of FCC ID: KUJ9401 Gentlemen: Pursuant to Section 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: ‹ Functional Block Diagram ‹ Operational Description (theory of operation) ‹ Schematic Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ____________________________________ Peter Chen Chungear Industrial Co., Ltd.

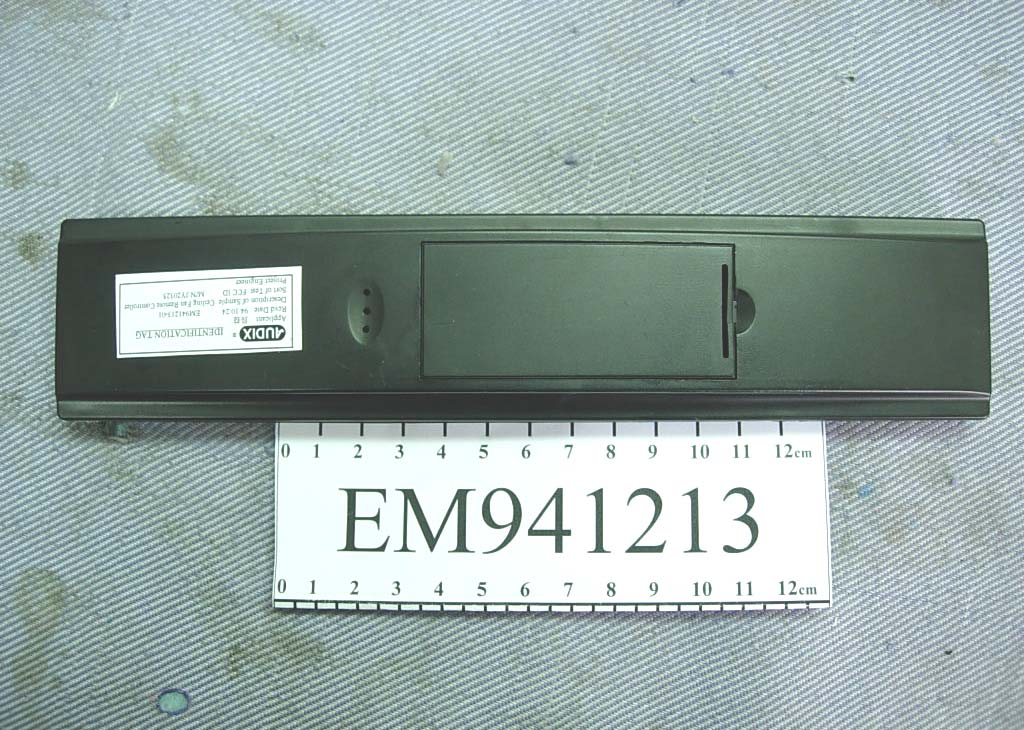

FCC ID. KUJ9401 EUT External Photos Photo 1 General Appearance (Front View) Photo 2 General Appearance (Back View)

FCC ID. KUJ9401 FCC ID Label Format and Location z Label Placement Location (Bottom Side of EUT) FCC Label Placement Location FCC Label Format FCC ID：KUJ9401 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID. KUJ9401 EUT Internal Photos Photo 3 Internal View (Covers Removed) Photo 4 PCB View (Component Side) FCC ID. KUJ9401 Photo 5 PCB View (Solder Side)

Part No.Spec.Qty.Location DAH-2032-000 1 Chip U1 ? 3 Chip T 1Q1 Chip Transistor 1Q2 Chip Transistor Q1 Chip Diode 6 1D1D2-D6 scillator 11X1 1SAW DBA-2032-250 PCB JY20325 1.2MM 212.5x41.5mm1JY20325 1LED1 lectrolysis Capacitance 11C1 DRI-20AJ-BC0 Chip R 21R2.1R3 Chip Resistor 11R1 Chip Resistor 11R4 Chip Resistor 11R5 11R6 Chip Resistor 2R1.R2 2R3,R4 Chip Resistor1R5 Chip Resistor R6 Chip 1C3.1C4 Chip Capacitance 1C2.C1.C2 Chip Capacitance C3 Chip Capacitance C4 Switch SW1 JY20325 BOM JY20325 (304)

FCC ID.KUJ9401 Page 1 of 27 Audix Corporation Report No.: EM-F940257 TEST REPORT FOR CERTIFICATION On Behalf of Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller Model：JY20325 FCC ID：KUJ9401 Prepared for : Chungear Industrial Co., Ltd. 106 Kanho Rd., Taichung, Taiwan, R.O.C. Prepared by : Audix Corporation Technical Division EMC Department No. 53-11, Tin-Fu Tsun, Lin-Kou Hsiang, Taipei County 24443, Taiwan, R.O.C. Tel : (02) 2609-9301, 2609-2133 Fax : (02) 2609-9303 File Number ： EM941213 Report Number ： EM-F940257 Date of Test ： Oct. 26 ~ 31, 2005 Date of Report ： Nov. 03, 2005 FCC ID.KUJ9401 Page 2 of 27 Audix Corporation Report No.: EM-F940257 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION ....................................................................................................3 1. GENERAL INFORMATION ..........................................................................................................4 1.1. Description of Device (EUT) .................................................................................................................. 4 1.2. Description of Test Facility..................................................................................................................... 5 1.3. Measurement Uncertainty ....................................................................................................................... 5 2. CONDUCTED EMISSION MEASUREMENT .............................................................................6 3. RADIATED EMISSION MEASUREMENT .................................................................................7 3.1. Test Equipment ....................................................................................................................................... 7 3.2. Test Setup................................................................................................................................................ 7 3.3. Radiation Emission Limits (§15.209 & 15.231) ..................................................................................... 8 3.4. EUT’s Configuration during Compliance Measurement ........................................................................ 8 3.5. Operating Condition of EUT................................................................................................................... 9 3.6. Test Procedure......................................................................................................................................... 9 3.7. Radiated Emission Noise Measurement Results ................................................................................... 10 4. EMISSION BANDWIDTH MEASUREMENT ...........................................................................19 4.1. Test Equipment ..................................................................................................................................... 19 4.2. Block Diagram of Test Setup ................................................................................................................ 19 4.3. Specification Limits (§15.231-(c))........................................................................................................ 19 4.4. EUT’s Configuration during Compliance Measurement ...................................................................... 19 4.5. Emission Bandwidth Measurement Results..........................................................................................19 5. PERIODIC OPERATED MEASUREMENT ..............................................................................21 5.1. Test Equipment ..................................................................................................................................... 21 5.2. Block Diagram of Test Setup ................................................................................................................ 21 5.3. Specification Limits [§15.231-(a)-(1)].................................................................................................. 21 5.4. EUT’s Configuration during Compliance Measurement ...................................................................... 21 5.5. Periodic Operated Measurement Results .............................................................................................. 21 6. DEVIATION TO TEST SPECIFICATIONS...............................................................................23 7. PHOTOGRAPHS............................................................................................................................24 7.1. Photos of Radiated Measurement at Semi-Anechoic Chamber (30~1000MHz).......................................... 24 7.2. Photos of Radiated Measurement at Semi-Anechoic Chamber (Above 1GHz) ........................................ 25 7.3. Photo of Emission Bandwidth Measurement ........................................................................................27 7.4. Photo of Periodic Operated Measurement ............................................................................................ 27 FCC ID.KUJ9401 Page 3 of 27 Audix Corporation Report No.: EM-F940257 TEST REPORT CERTIFICATION Applicant : Chungear Industrial Co., Ltd. Manufacturer #1 : Satellite Electronic (Zhongshan) Ltd. Manufacturer #2 : Zhong Shan Amity Electronic Ltd. Manufacturer #3 : Chungear Industrial Co., Ltd. EUT Description : Ceiling Fan Remote Controller FCC ID : KUJ9401 (A) MODEL NO. : JY20325 (B) SERIAL NO. : N/A (C) POWER SUPPLY : BATTERY AAA 12V *1 or AAA 1.5V*2 (D) TEST VOLTAGE : DC 12V Measurement Procedure Used: FCC RULES AND REGULATIONS PART 15 SUBPART C, SEPTEMBER 2005 AND ANSI C63.4/2003 (FCC CFR 47 Part 15C, §15.207, §15.209 and §15.231) The device described above was tested by Audix Corporation to determine the maximum emission levels emanating from the device. The maximum emission levels were compared to the FCC Part 15 subpart C limits both radiated and conducted emissions. The me…

Text truncated - open the document above for the full version.

FCC ID.KUJ9401 Page 24 of 27 Audix Corporation Report No.: EM-F940257 7. PHOTOGRAPHS 7.1. Photos of Radiated Measurement at Semi-Anechoic Chamber (30~1000MHz) EUT on Stand EUT on Side FCC ID.KUJ9401 Page 25 of 27 Audix Corporation Report No.: EM-F940257 EUT on Lying 7.2. Photos of Radiated Measurement at Semi-Anechoic Chamber (Above 1GHz) EUT on Stand FCC ID.KUJ9401 Page 26 of 27 Audix Corporation Report No.: EM-F940257 EUT on Side EUT on Lying FCC ID.KUJ9401 Page 27 of 27 Audix Corporation Report No.: EM-F940257 7.3. Photo of Emission Bandwidth Measurement 7.4. Photo of Periodic Operated Measurement
