KUJCE10001Ceiling Fan Remote Controller (Transmitter)

LEARN Installation of Transmitter Wall Mount Holder with two screws CEILING FAN REMOTE CONTROLLER OPERATION AND INSTALLATION INSTRUCTIONS (Please keep this instruction pamphlet.) IMPORTANT POINTS TO REMEMBER: 1. Read and save these instructions. 2. Please note that all fixed wiring appliances should be installed by a qualified electrician. 3. The supply to the remote control receiver should be connected through a mains switch, i.e. existing wall switch. 4. Disconnect from power supply at wall switch before working on remote control receiver or ceiling fan. 5. Install receiver into the ceiling fan canopy of the fan to ensure proper protection. 6. This unit is to be used for the control of ceiling fan and in an AC110V/120V 60Hz power supply only. 7. Do not install in damp locations or immerse into water. (For indoor use only.) 8. Do not pull on or cut leads shorter. 9. Do not drop or bump the unit. 10. PLEASE NOTE: The battery will weaken with age and should be replaced before leaking takes place as this will damage the transmitter. Dispose of used battery properly, keep the battery out of reach of children. 11. CAUTION: To reduce the risk of fire or injury, do not use this product in conjunction with any variable (rheostat) wall control. INSTALLATION INSTRUCTIONS 1. Ceiling fan must be set at HIGH speed and light kit (If any) at ON position by pulling the “Pull Switch” after installation. 2. Once the connection has been made, the receiver inserts into the drop rod hanging bracket. The canopy comes up to cover the receiver and bracket. LEARNING PROCESS 1. After installing the unit and power on, open battery cover (with batteries, DC1.5V/ AAA*2pcs, installed), use a ball pen to press and hold the ”LEARN” key 1~3seconds. FAN will be turn off and then FAN turn ON at medium speed, which indicate that learning process finished. Please note that must press the “LEARNING KEY” within 30sensonds after power on. If just replace batteries, no need to re-learn. 2. Please note that the transmitter can learn in multiple receiver, when doing learning process please make sure not learn in other receiver. FUNCTIONS OF TRANSMITTER : Press and release immediately to turn on or off the fan. : Press and release immediately to turn on or off the light. TR95A IMPORTANT YOU MUST SET CEILING FAN MANUAL SWITCH TO HIGH SPEED AND LIGHT KIT (IF ANY) TO ON POSITION BEFORE OPERATING REMOTE CONTRO L. CAUTION: INCORRECT WIRE CONNECTION WOULD DAMAGE THIS RECEIVER. FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are desi gned to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipmentdoes cause harmful interference to radio or television rece ption, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. CAUTION: To assure continued FCC compliance: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. FCC ID：KUJCE10001 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Dec. 07, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Chungear Industrial Co., Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: Ceiling Fan Remote Controller (Transmitter) Model Name: TR95A We affirm that between SIEMIC and Chungear Industrial Co., Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Peter Chen / Manager Chungear Industrial Co., Ltd. 106 Kanho Rd., Taichung, Taiwan

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 Dec. 07, 2011 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: KUJCE10001 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Peter Chen / Manager Chungear Industrial Co., Ltd. 106 Kanho Rd., Taichung, Taiwan

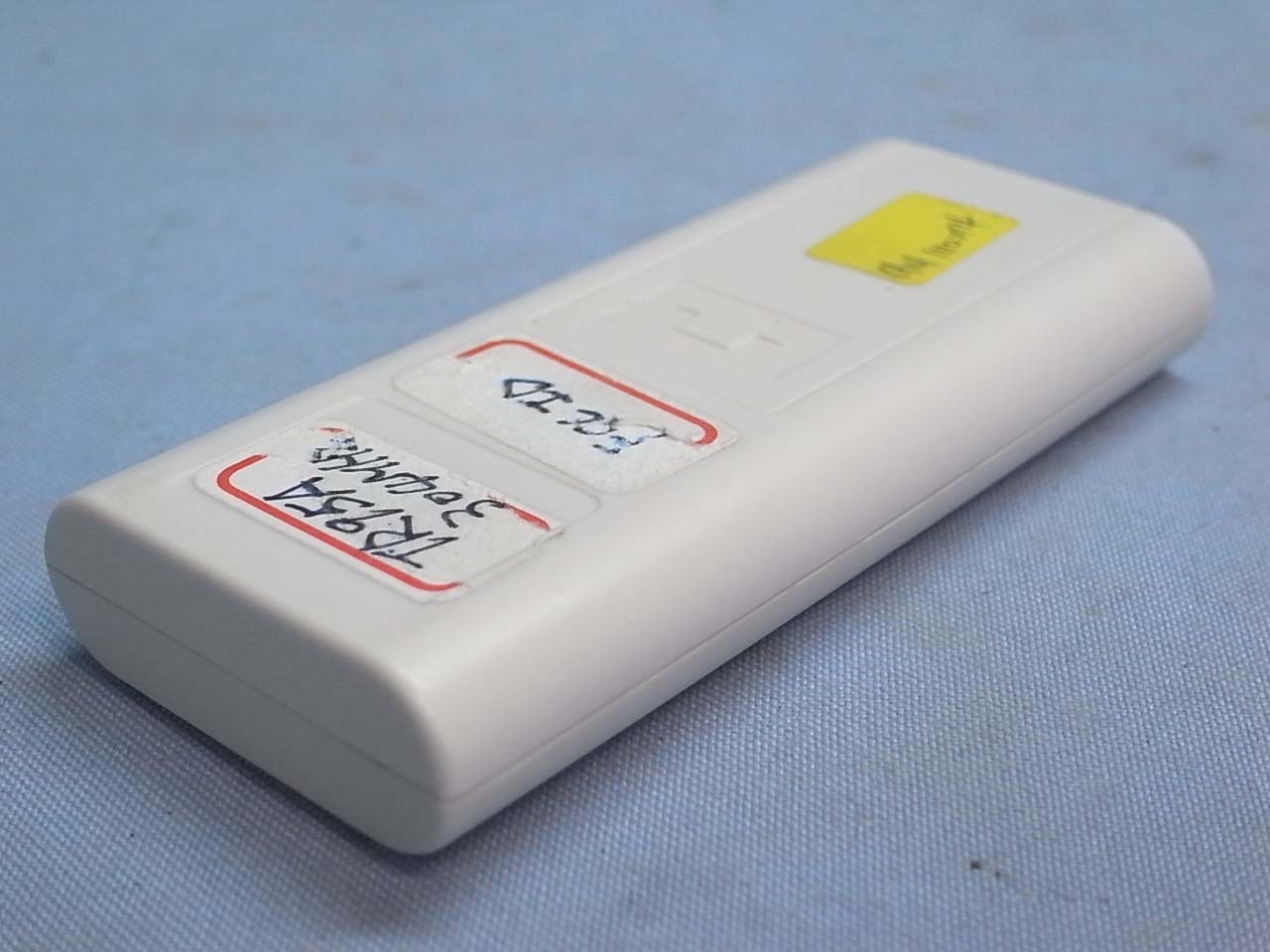

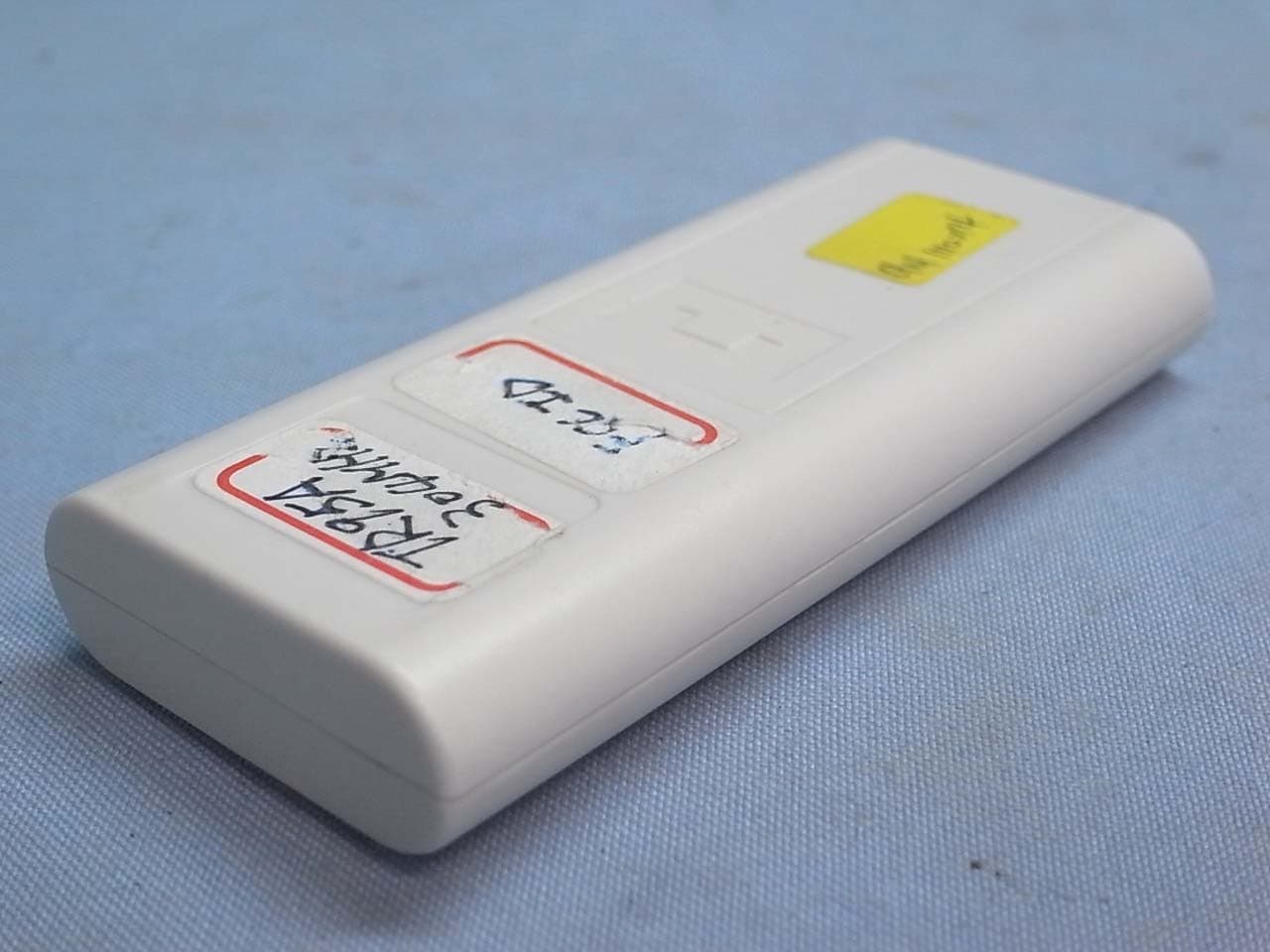

Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE10001 EUT External Photos Photo 1 General Appearance (Front & Side View) Photo 2 General Appearance (Back & Side View)

Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE10001 ID Label Location z Label Placement Location (Back View of EUT) z ID Label Format FCC ID ： KUJCE10001 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ID Label Placement Location

Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE10001 EUT Internal Photos Photo 3 Internal View (Removed Battery Cover) Photo 4 Internal View (Removed Covers) Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE10001 Photo 5 Internal View (Main Board, Back View) Photo 6 Internal View (Main Board, Front View)

FCC ID. KUJCE10001 Page 1 of 26 AUDIX Technology Corporation Report No.: EM-F1001010 TEST REPORT FOR CERTIFICATION On Behalf of Chungear Industrial Co., Ltd Ceiling Fan Remote Controller (Transmitter) Model No.: TR95A FCC ID: KUJCE10001 Prepared for : Chungear Industrial Co., Ltd 106 Kanho Rd., Taichung, Taiwan Prepared By : AUDIX Technology Corporation EMC Department No. 53-11, Dingfu, Linkou Dist., New Taipei City 244, Taiwan, R.O.C. Tel : (02) 2609-9301, 2609-2133 Fax : (02) 2609-9303 File Number ： C1M1110214 Report Number ： EM-F1001010 Date of Test ： Dec. 01, 2011 Date of Report ： Dec. 05, 2011 FCC ID. KUJCE10001 Page 2 of 26 AUDIX Technology Corporation Report No.: EM-F1001010 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION........................................................................................................3 1. GENERAL INFORMATION ..........................................................................................................4 1.1. Description of Device (EUT) .................................................................................................................. 4 1.2. Description of Test Facility..................................................................................................................... 5 1.3. Measurement Uncertainty ....................................................................................................................... 5 2. CONDUCTED EMISSION MEASUREMENT .............................................................................6 3. RADIATED EMISSION MEASUREMENT .................................................................................7 3.1. Test Equipment ....................................................................................................................................... 7 3.2. Test Setup................................................................................................................................................ 7 3.3. Radiation Emission Limits (§15.209) ..................................................................................................... 9 3.4. Operating Condition of EUT................................................................................................................... 9 3.5. Test Procedure....................................................................................................................................... 10 3.6. Radiated Emission Noise Measurement Results ................................................................................... 11 3.7. Duty Cycle Factor ................................................................................................................................. 13 4. FUNDAMENTAL MEASUREMENT ..........................................................................................15 4.1. Test Equipment ..................................................................................................................................... 15 4.2. Test Setup.............................................................................................................................................. 15 4.3. Radiation Emission Limits (15.231) ..................................................................................................... 16 4.4. Operating Condition of EUT................................................................................................................. 16 4.5. Test Procedure....................................................................................................................................... 16 4.6. Fundamental Measurement Results ...................................................................................................... 17 5. EMISSION BANDWIDTH MEASUREMENT ...........................................................................18 5.1. Test Equipment ..................................................................................................................................... 18 5.2. Block Diagram of Test Setup ................................................................................................................ 18 5.3. Specification Limits (§15.231-(c))........................................................................................................ 18 5.4. Emission Bandwidth Measurement Results..........................................................................................18 6. PERIODIC OPERATED MEASUREMENT ..............................................................................20 6.1. Test Equipment ..................................................................................................................................... 20 6.2. Block Diagram of Test Setup ................................................................................................................ 20 6.3. Specification Limits [§15.231-(a)-(1)].................................................................................................. 20 6.4. Periodic Operated Measurement Results .............................................................................................. 20 7. DEVIATION TO TEST SPECIFICATIONS...............................................................................22 8. PHOTOGRAPHS............................................................................................................................23 8.1. Photos of Radiated Measurement at Semi-Anechoic Chamber (30~1000MHz) .................................. 23 8.2. Photos of Radiated Measurement at Semi-Anechoic Chamber (Above 1GHz)................................. 25 8.3. Photo of Section RF Conducted Measurement ..................................................................................... 26 FCC ID. KUJCE10001 Page 3 of 26 AUDIX Technology Corporation Report No.: EM-F1001010 TEST REPORT CERTIFICATION Applicant ： Chungear Industrial Co., Ltd Manufacturer #1 ： Chungear Industrial Co., Ltd Manufacture…

Text truncated - open the document above for the full version.

FCC ID. KUJCE10001 Page 23 of 26 AUDIX Technology Corporation Report No.: EM-F1001010 8. PHOTOGRAPHS 8.1. Photos of Radiated Measurement at Semi-Anechoic Chamber (30~1000MHz) EUT on Stand EUT on Side FCC ID. KUJCE10001 Page 24 of 26 AUDIX Technology Corporation Report No.: EM-F1001010 EUT on Lying FCC ID. KUJCE10001 Page 25 of 26 AUDIX Technology Corporation Report No.: EM-F1001010 8.2. Photos of Radiated Measurement at Semi-Anechoic Chamber (Above 1GHz) EUT on Stand EUT on Side FCC ID. KUJCE10001 Page 26 of 26 AUDIX Technology Corporation Report No.: EM-F1001010 EUT on Lying 8.3. Photo of Section RF Conducted Measurement
