KUJCE10002Ceiling Fan Remote Controller(Transmitter)

HAND HELD AND MAG MOUNT OPERATION AND INSTALLATION INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS 1. Read and keep this instruction sheet carefully. 2. Please note that all fixed wiring appliances s hould be installed by a qualified electrician. 3. The supply to the receiver should be connected on its own circuit. 4. Switch off the power at main power box be fore working on receiver or ceiling fan. 5. Install receiver into the canopy of ceiling fan per Fig’s 1 and 2. 6. This unit is to be used for the control of ceiling fan and its electrical source must be AC 110/120V, 60Hz. 7. Do not install in damp location or immerse into water. (For indoor use only) 8. Do not drop or bump the unit. 9. Do not use with solid state ceiling fans. 10. CAUTION: To reduce the risk of fire or injury, do not use this pr oduct in conjunction with any variable (rheostat) wall control. INSTALLATION INSTRUCTIONS 1. After switching power off, remove ceiling fan canopy from the mounting bracket. Di sconnect existing wiri ng between ceiling fan and supply at electrical junction box .、 2. Slide the receiver into the mounting bracket as shown (see Fig.1) being careful not to pinch the antenna wire. The receiver wil l be inserted between the down rod and the mounting bracket. 3. Make wiring connections per Fig,2 & 3. CAUTION: Incorrect wire connection can damage th is receiver and could cause injury or fire. 4. Push all connected wires back into the junction box and reinstall the canopy onto the mounting bracket. 5. Manually set fan speed control to HIGH and set light to ON using the pull chains. LEARNING PROCESS (SMART SYNC) 1. After installation is complete and power is turned on, remove the battery cover on tr ansmitter. Insert batteries (4 AAA, includ ed). NOTE: Do not mix old and new batteries, alkaline, standard (car bon-zinc) or rechargeable (ni ckel-cadmium) batteries. 2. Use a small screwdriver or ball point pen to press and hold the “LEARN” key, locat ed in the battery compartment, for 3 seconds. Fan will turn on at high speed and light (if in stalled) blinks 3 times. This confirms that the LEARNING setting is active. Tap FAN OFF button to turn off the fan. CAUTION: User must press “LEARN” key within 30 seconds after main power on. It is not necessary to redo the LEARNING setti ng if just replacing batteries. 3. If user cannot finish the setting within the 30 seconds timefram e, please turn off the main power and re-start the power again. This will reset the unit. Repeat step 2 until the L EARNING feature is acti vated as indicated. DIMMER / ON OFF SETTING (D/O) Slide the D/O switch, located in the battery compartment, to match the bulb type in your fan. “D” for incandescent bulbs and “O ” indicates compact fluorescent bulbs (CFL). Use a small screwdriver or ballpoint pen to slide firmly left or right. CAUTION: Incorrect setting can damage the receiver. TRANSMITTER FUNCTIONS High / Medium / Low Speed – Tap lightly to turn the fan on at high, medium or low speed respectively. Fan Off – Tap lightly to turn the fan off. Light –Tap lightly to turn light on or off. Hold down for 2 sec onds to cycle through dimmer setting. The light button has an auto resume feature so the light will re-activate at the same brightness as the last time it was turned off. NOTE: The dimmer function does not work with CFL bulbs. Walk Away Light Delay – Tap once - the light and fan turn off after 1 minute. Light on the fan blinks once to confirm function is active. Press any button to cancel function. Home Shield – Press and hold the Light and Delay buttons for 3 seconds. Light on the fan blinks two times to confirm function is active. Fan will be off and the light will randomly turn on and off while you are away. To deactivate press any button once. D/O – Set the light for use with incandescent bulbs or compact fluorescent bulbs (CFL). NOTE: Factory setting is CFL. LEARN – Synchronizes transmitter and receiver signals. Antenna Receiver Installation (Do Not Pinch Antenna Wire) Mag Mount Bracket NOTE : For the remote to work properly fan must be on HIGH speed and lights must be ON prior to use. Fig. 1 High Speed Medium Speed Walk Away Light Delay Light Fan Off D/O Low Speed Learn Home Shield FEDERAL COMMUNICATIONS COMMISSI ON INTERFERENCE STATEMEN This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonabl e protection against harmful interference in a residential installation. This equ ipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular i nstallation. If this equipment does cause harmful interf erence to radio or television reception, which can be determined by turning the equi pment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. CAUTION: To assure continued FCC compliance: Any changes or modifications not expressly approved by the grantee of this device coul d void the user's authority to operate th e equipment. FCC ID ： KUJCE10002 This device complies with Part 15 of the FC C Rules. Operation is subject to the foll owing two conditions: (1) This device may n ot cause harmful interference, and (2) this device must accept any interf erence received, including interference that may cause undesire d operation. AC POWER SUPPL Y BLA CK (Main / Live) WHITE (Main / Neutral) BLUE (Light / Live) BLA CK (Motor / Live) WHITE (Motor / Neutral) Fi g . 2 ANTENNA BLACK (M a i n /…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Nov. 01, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Chungear Industrial Co., Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: Ceiling Fan Remote Controller (Transmitter) Model Name: TR121A We affirm that between SIEMIC and Chungear Industrial Co., Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Peter Chen / Manager Chungear Industrial Co., Ltd. 106 Kanho Rd., Taichung, Taiwan

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 Nov. 01, 2011 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: KUJCE10002 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Peter Chen / Manager Chungear Industrial Co., Ltd. 106 Kanho Rd., Taichung, Taiwan

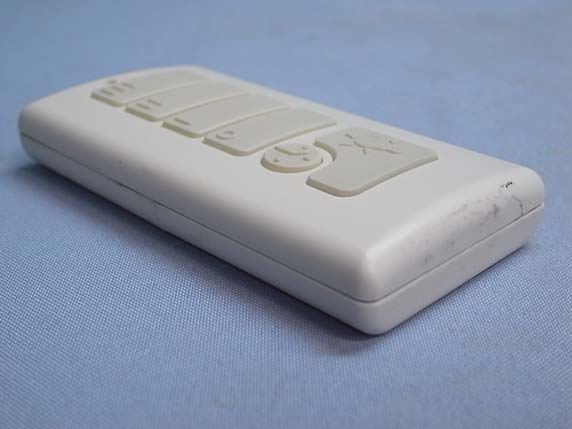

Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE10002 EUT External Photos Photo 1 General Appearance (Front & Side View) Photo 2 General Appearance (Back & Side View)

Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE10002 ID Label Location z Label Placement Location (Back View of EUT) z ID Label Format FCC ID ： KUJCE10002 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ID Label Placement Location

Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE10002 EUT Internal Photos Photo 3 Internal View (Removed Battery Cover) Photo 4 Internal View (Removed Covers) Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE10002 Photo 5 Internal View (Main Board, Front View) Photo 6 Internal View (Main Board, Back View)

FCC ID. KUJCE10002 Page 1 of 25 AUDIX Technology Corporation Report No.: EM-F1000923 TEST REPORT FOR CERTIFICATION On Behalf of Chungear Industrial Co., Ltd Ceiling Fan Remote Controller (Transmitter) Model No.: TR121A FCC ID: KUJCE10002 Prepared for : Chungear Industrial Co., Ltd 106 Kanho Rd., Taichung, Taiwan Prepared By : AUDIX Technology Corporation EMC Department No. 53-11, Dingfu, Linkou Dist., New Taipei City 244, Taiwan, R.O.C. Tel : (02) 2609-9301, 2609-2133 Fax : (02) 2609-9303 File Number ： C1M1110311 Report Number ： EM-F1000923 Date of Test ： Oct. 31, 2011 Date of Report ： Nov. 01, 2011 FCC ID. KUJCE10002 Page 2 of 25 AUDIX Technology Corporation Report No.: EM-F1000923 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION........................................................................................................3 1. GENERAL INFORMATION ..........................................................................................................4 1.1. Description of Device (EUT) .................................................................................................................. 4 1.2. Description of Test Facility..................................................................................................................... 5 1.3. Measurement Uncertainty ....................................................................................................................... 6 2. CONDUCTED EMISSION MEASUREMENT .............................................................................7 3. RADIATED EMISSION MEASUREMENT .................................................................................8 3.1. Test Equipment ....................................................................................................................................... 8 3.2. Test Setup................................................................................................................................................ 8 3.3. Radiation Emission Limits (§15.209) ................................................................................................... 10 3.4. Operating Condition of EUT................................................................................................................. 10 3.5. Test Procedure....................................................................................................................................... 10 3.6. Radiated Emission Noise Measurement Results ................................................................................... 11 4. FUNDAMENTAL MEASUREMENT ..........................................................................................13 4.1. Test Equipment ..................................................................................................................................... 13 4.2. Test Setup.............................................................................................................................................. 13 4.3. Radiation Emission Limits (15.231) ..................................................................................................... 14 4.4. Operating Condition of EUT................................................................................................................. 14 4.5. Test Procedure....................................................................................................................................... 14 4.6. Fundamental Measurement Results ...................................................................................................... 15 5. EMISSION BANDWIDTH MEASUREMENT ...........................................................................16 5.1. Test Equipment ..................................................................................................................................... 16 5.2. Block Diagram of Test Setup ................................................................................................................ 16 5.3. Specification Limits (§15.231-(c))........................................................................................................ 16 5.4. Emission Bandwidth Measurement Results..........................................................................................16 6. PERIODIC OPERATED MEASUREMENT ..............................................................................18 6.1. Test Equipment ..................................................................................................................................... 18 6.2. Block Diagram of Test Setup ................................................................................................................ 18 6.3. Specification Limits [§15.231-(a)-(1)].................................................................................................. 18 6.4. Periodic Operated Measurement Results .............................................................................................. 18 7. DEVIATION TO TEST SPECIFICATIONS...............................................................................20 8. PHOTOGRAPHS............................................................................................................................21 8.1. Photos of Radiated Measurement at Semi-Anechoic Chamber (30~1000MHz) .................................. 21 8.2. Photos of Radiated Measurement at Semi-Anechoic Chamber (Above 1GHz)................................. 23 8.3. Photo of Emission Bandwidth Measurement ........................................................................................25 8.4. Photo of Periodic Operated Measurement ............................................................................................ 25 FCC ID. KUJCE10002 Page 3 of 25 AUDIX Technology Corporation Report No.: EM-F1000923 TEST REPORT CERTIFICATION Applicant ： Chungear Industrial Co., Ltd Manufacturer #1 ： Chungear Industrial Co., Ltd Manufacturer #2 ： Satellite …

Text truncated - open the document above for the full version.

FCC ID. KUJCE10002 Page 21 of 25 AUDIX Technology Corporation Report No.: EM-F1000923 8. PHOTOGRAPHS 8.1. Photos of Radiated Measurement at Semi-Anechoic Chamber (30~1000MHz) EUT on Stand EUT on Side FCC ID. KUJCE10002 Page 22 of 25 AUDIX Technology Corporation Report No.: EM-F1000923 EUT on Lying FCC ID. KUJCE10002 Page 23 of 25 AUDIX Technology Corporation Report No.: EM-F1000923 8.2. Photos of Radiated Measurement at Semi-Anechoic Chamber (Above 1GHz) EUT on Stand EUT on Side FCC ID. KUJCE10002 Page 24 of 25 AUDIX Technology Corporation Report No.: EM-F1000923 EUT on Lying FCC ID. KUJCE10002 Page 25 of 25 AUDIX Technology Corporation Report No.: EM-F1000923 8.3. Photo of Emission Bandwidth Measurement 8.4. Photo of Periodic Operated Measurement
