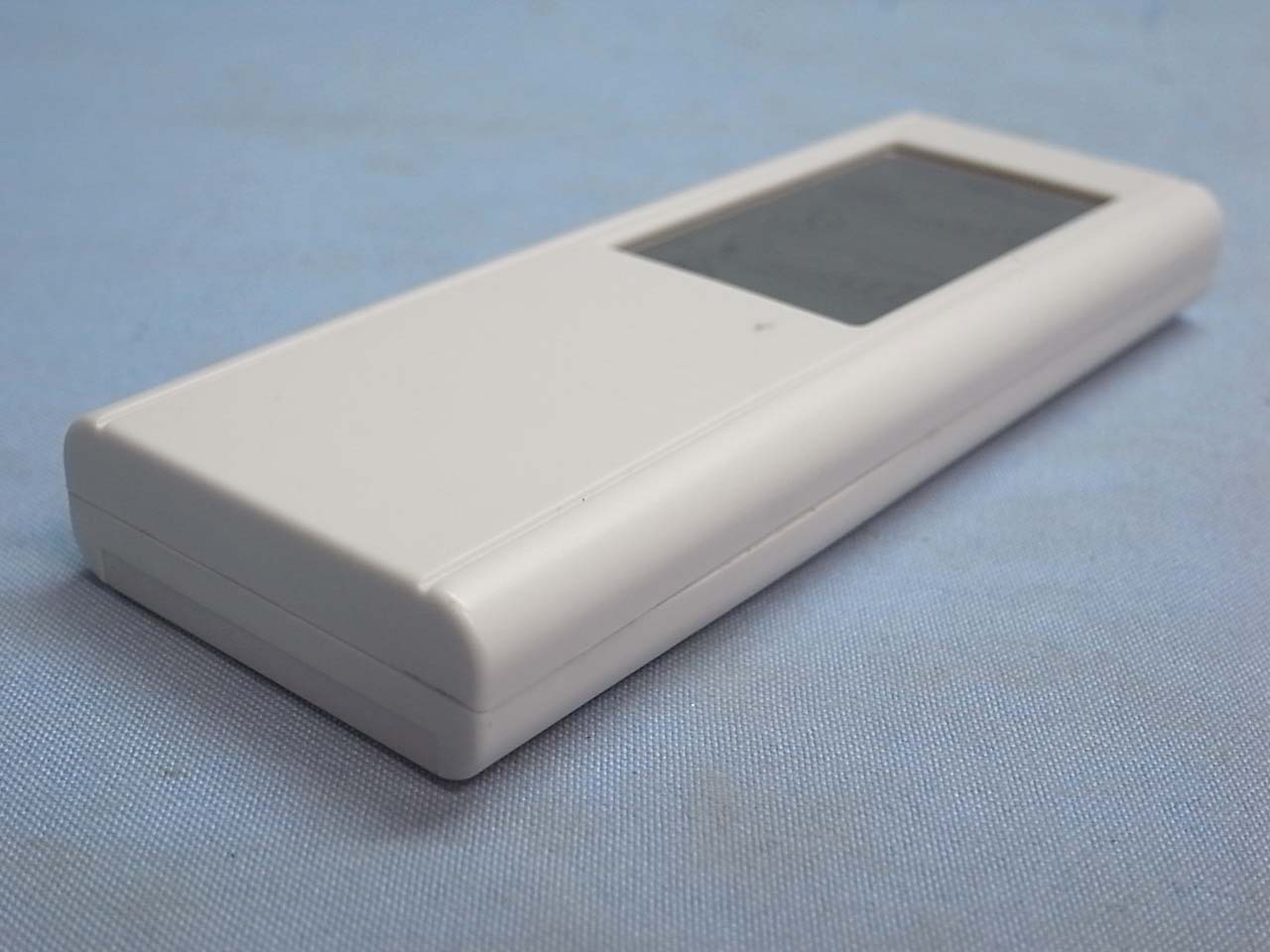

KUJCE10004Ceiling Fan Remote Controller (Transmitter)

LCD TOUCH SCREEN OPERATION AND INSTALLATION INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS 1. Read and keep this instruction sheet carefully. 2. Please note that all fixed wiring appliances s hould be installed by a qualified electrician. 3. The supply to the receiver shoul d be connected on its own circuit. 4. Switch off the power at main power box before working on receiver or ceiling fan. 5. Install receiver into the canopy of ceiling fan per Fig’s 1 and 2. 6. This unit is to be used for the control of ceiling f an and its electrical source must be AC 110/120V, 60Hz. 7. Do not install in damp location or immerse into water. (For indoor use only) 8. Do not drop or bump the unit. 9. Do not use with solid state ceiling fans. 10. CAUTION: To reduce the risk of fire or injury, do not use this produ ct in conjunction with any variable (rheostat) wall control. INSTALLATION INSTRUCTIONS 1. After switching power off, remove ceiling fan canopy from the mounting bracket. Disconnect existing wiring between ceiling fan and supply at electrical junction box . 2. Slide the receiver into the mounting bracke t as shown (see Fig.1) being careful not to pinch the antenna wire. The receiver wil l be inserted between the down rod and the mounting bracket. 3. Make wiring connections per Fig,2 & 3. CAUTION: Incorrect wire connection can damage this re ceiver and could cause injury or fire. 4. Push all connected wires back into the junction box and reinstall the canopy onto the mounting bracket. 5. Manually set fan speed control to HIGH and set light to ON using the pull chains. LEARNING PROCESS (SMART SYNC) 1. After installation is complete and power is turned on, remove the battery cover on transmitter. Insert batteries (4 AAA, includ ed). NOTE: Do not mix old and new batteries, alkaline, standard (c arbon-zinc) or rechargeable (nickel-cadmium) batteries. 2. Use a small screwdriver or ballpoint pen to press and hold the “L EARN” key, located in the batte ry compartment, for 3 seconds. Fan will turn on at high speed and light (if installed) blinks 3 times. This confirms that the LEARNING setting is active. Tap FAN key t o turn off the fan. CAUTION: User must press “LEARN” key within 30 seconds after main power on. It is not necessary to redo the LEARNING setting if just replacing batteries. 3. If user cannot finish the setting within the 30 seconds timefram e, please turn off the main power and re-start the power again. This will reset the unit. Repeat step 2 until the LEARNI NG feature is activa ted as indicated. 4. CAUTION: If the settings on the LCD readout do not synchronize with the fan after initiating the learning process, press Fan or Light k ey to resume the settings. DIMMER / ON OFF SETTING (D/O) Slide the D/O switch, located in the battery compartment, to match the bulb type in y our fan. “D” for incandescent bulbs and “O ” indicates compact fluorescent bulbs (CFL). Use a small screwdriver or ballpoint pen to sli de firmly left or right. CAUTION: Incorrect setting can damage the receiver. TRANSMITTER FUNCTIONS Fan – Tap lightly to turn fan on or off. Fan Speed Control – Tap lightly to cycle through the fan speed settings displayed on the LCD readout. Light –Tap lightly to turn light on or off. Hold down for 2 seconds to cycle through dimmer setting. The light key has an auto resum e feature so the light will re-activate at the same br ightness as the last time it was turned off. NOTE: The dimmer function does not work with CFL bulbs. Walk Away Light Delay – Tap once - the light and fan turn off after 1 minute. Light on the fan blinks once to confirm function is active. Press any key to cancel function. Home Shield – Press and hold for 3 seconds. Light on the fan blinks two times to confirm function is active . Fan will be off and the light will randomly turn on and off while you are aw ay. To deactivate press any key once. D/O – Set the light for use with incandescent bulbs or compact fluo rescent bulbs (CFL). NOTE: Factory setting is CFL. LEARN – Set the transmitter and receiver work synchronizes. Receiver Installation (Do Not Pinch Antenna Wire) + AAA -- AAA + - AAA + AAA -+ D/O LEARN Wall Mount Holder Made in China NOTE : For the remote to work properly fan must be on HIGH speed and lights must be ON prior to use. Fig. 1 Antenna Fan Fan Speed Control Walk Away Light Delay Light Home Shield Learn D/O FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are desi gned to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occurin a particular installation. If this equipment does cause harmful interference to radio or television rece ption, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. CAUTION: To assure continued FCC compliance: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. FCC ID：KUJCE10004 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
