KUJCE10005Ceiling Fan Remote Controller (Transmitter)

CEILING FAN & LIGHT WALL CONTROL OPERATION AND INSTALLATION INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS 1. Read and keep this instruction sheet carefully. 2. Please note that all fixed wiring appliances s hould be installed by a qualified electrician. 3. The supply to the receiver should be connected on its own circuit. 4. Switch off the power at main power box be fore working on receiver or ceiling fan. 5. Install receiver into the canopy of ceiling fan per Fig’s 1 and 2. 6. This unit is to be used for the control of ceiling fan and its electrical source must be AC 110/120V, 60Hz. 7. Do not install in damp location or immerse into water. (For indoor use only) 8. Do not drop or bump the unit. 9. Do not use with solid state ceiling fans. 10. CAUTION: To reduce the risk of fire or injury, do not use this pr oduct in conjunction with any variable (rheostat) wall control. INSTALLATION INSTRUCTIONS 1. After switching power off, remove ceiling fan canopy from the mounting bracket. Di sconnect existing wiri ng between ceiling fan and supply at electrical junction box. 、 2. Slide the receiver into the mounting bracket as shown (see Fig.1) being careful not to pinch the antenna wire. The receiver wil l be inserted between the down rod and the mounting bracket. 3. Make wiring connections per Fig. 2 & 3. CAUTION: Incorrect wire connection can damage th is receiver and could cause injury or fire. 4. Push all connected wires back into the junction box and reinstall the canopy onto the mounting bracket. 5. Remove wall plate, disconnect and remove the toggle switch from wall outlet box. Make the electrical connections to the wall control (transmitter) unit as shown in Fi g. 3. Carefully push all connected wires in side wall outlet box. Secure wall control u nit with 2 screws previously removed. After installed well, sli de the Power On/Off switch on wall control to “ON” position. NOTE: Before installing wall control, slide the switch to “OFF” position. 6. Manually set fan speed control to HIGH and set light to ON using the pull chains. LEARNING PROCESS (SMART SYNC) 1. After installation is comp lete and power is turned on, pre ss and hold the “FAN OFF” button for 3 seconds. Fan will turn on at high speed and light (if installed) blinks 3 ti mes. This confirms that the LEARNING setting is active. Tap FAN OFF button to tu rn off the fan. CAUTION: User must press “FAN OFF” button within 30 seconds after main power on. 2. If user cannot finish the setting within the 30 seconds timefram e, please turn off the main power and re-start the power again. This will reset the unit. Repeat step 1 until the L EARNING feature is acti vated as indicated. WALL CONTROL (TRANSMITTER) FUNCTIONS High / Medium / Low Speed – Tap lightly to turn the fan on at high, medium or low speed respectively. Fan Off – Tap lightly to turn the fan off. Light –Tap lightly to turn light on or off. NOTE: Compatible for use with compact fluorescent bulbs. Walk Away Light Delay – Tap once - the light and fan turn off after 1 minute. Light on the fan blinks once to confirm function is active. Press any button to cancel function. Home Shield – Press and hold the Light and Delay buttons for 3 seconds. Light on the fan blinks two times to confirm function is active. Fan will be off and the light will randomly turn on and off while you are away. To deactivate press any button once. Learn – Synchronizes wall control and receiver signals. Antenna Receiver Installation (Do Not Pinch Antenna Wire) ON OFF H M L OFF NOTE : For the remote to work properly fan must be on HIGH speed and lights must be ON prior to use. Fig. 1 Wall Plate High Speed Medium Speed Outlet Box Wall Control Unit Light Low Speed Walk Away Light Delay Fan Off Home Shield Power On/Off FEDERAL COMMUNICATIONS COMMISSI ON I NTERFERENCE STATEMEN This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Ru les. These limits are designed to provide reasonabl e protection against harmful interference in a residential installation. This equ ipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular i nstallation. If this equipment does cause harmful interf erence to radio or television reception, which can be determined by turning the equi pment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. CAUTION: To assure continued FCC compliance: Any changes or modifications not expressly approved by the gran tee of this device coul d void the user's authority to operate th e equipment. This device complies with Part 15 of the FC C Rules. Operation is subject to the foll owing two conditions: (1) This device may n ot cause harmful interference, and (2) this device must accept any interf erence received, including interference that may cause undesire d operation. AC POWER SUPPL Y BLA CK (Wall Control / Live) WHITE (Main / Neutral) W A LL C O NT ROL BLAC K ( Main / Live ) BLUE (Light / Live) BLA CK (Motor / Live) WHITE (Motor / Neutral) Fi g . 2 ANTENNA AC POWER INP U T FA N M O T O R BLA CK (To Receiver Live) GR OUN D / EAR TH BLA CK (Main / Live) L BLUE (Light / Live) N Fig . 3 WIRING DIAGR A M RECEIVER WHITE (Main / Neutral) BLA CK (Motor / Live) WHITE (Motor / Neutral) FCC IDKUJCE10005 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interfere…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Dec. 07, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Chungear Industrial Co., Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: Ceiling Fan Remote Controller (Transmitter) Model Name: TR82E We affirm that between SIEMIC and Chungear Industrial Co., Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Peter Chen / Manager Chungear Industrial Co., Ltd. 106 Kanho Rd., Taichung, Taiwan

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 Dec. 07, 2011 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: KUJCE10005 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Peter Chen / Manager Chungear Industrial Co., Ltd. 106 Kanho Rd., Taichung, Taiwan

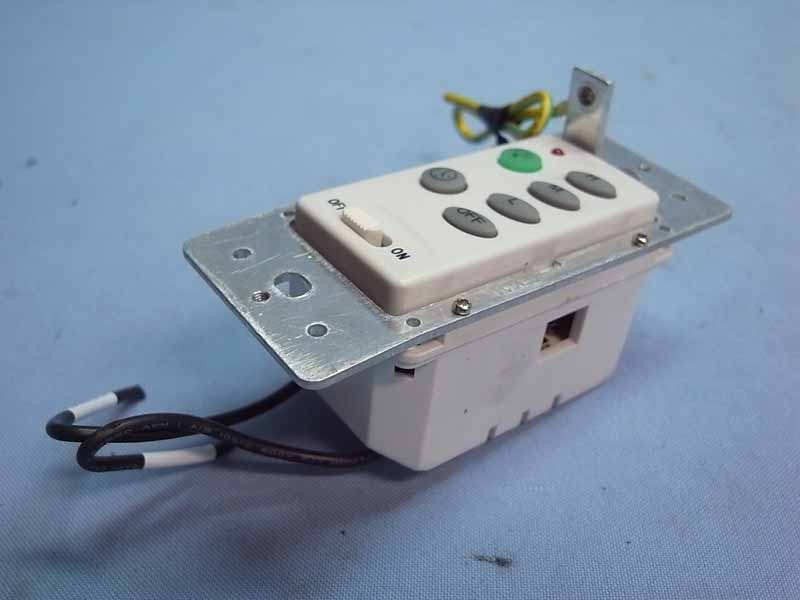

Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE10005 EUT External Photos Photo 1 General Appearance (Front & Side View) Photo 2 General Appearance (Back & Side View)

Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE10005 ID Label Location z Label Placement Location (Side View of EUT) z ID Label Format FCC ID KUJCE10005 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ID Label Placement Location

Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE10005 EUT Internal Photos Photo 3 Internal View (Removed Cover) Photo 4 Internal View Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE10005 Photo 5 Internal View (PCB, Front View) Photo 6 Internal View (PCB, Back View) Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE10005 Photo 7 Internal View (PCB, Front View) Photo 8 Internal View (PCB, Back View)

FCC ID. KUJCE10005 Page 1 of 26 AUDIX Technology Corporation Report No.: EM-F1001037 TEST REPORT FOR CERTIFICATION On Behalf of Chungear Industrial Co., Ltd Ceiling Fan Remote Controller (Transmitter) Model No.: TR82E FCC ID: KUJCE10005 Prepared for : Chungear Industrial Co., Ltd 106 Kanho Rd., Taichung, Taiwan Prepared By : AUDIX Technology Corporation EMC Department No. 53-11, Dingfu, Linkou Dist., New Taipei City 244, Taiwan, R.O.C. Tel : (02) 2609-9301, 2609-2133 Fax : (02) 2609-9303 File Number C1M1110236 Report Number EM-F1001037 Date of Test Nov. 30 ~ Dec. 12, 2011 Date of Report Dec. 13, 2011 FCC ID. KUJCE10005 Page 2 of 26 AUDIX Technology Corporation Report No.: EM-F1001037 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION........................................................................................................3 1. GENERAL INFORMATION ..........................................................................................................4 1.1. Description of Device (EUT) .................................................................................................................. 4 1.2. Tested Supporting System Details .......................................................................................................... 5 1.3. Description of Test Facility..................................................................................................................... 5 1.4. Measurement Uncertainty ....................................................................................................................... 6 2. CONDUCTED EMISSION MEASUREMET................................................................................7 2.1. Test Equipment ....................................................................................................................................... 7 2.2. Block Diagram of Test Setup .................................................................................................................. 7 2.3. Conducted Emission Limits (§15.207) ................................................................................................... 7 2.4. Operating Condition of EUT................................................................................................................... 8 2.5. Test Procedure......................................................................................................................................... 8 2.6. Conducted Emission Measurement Results ............................................................................................ 8 3. RADIATED EMISSION MEASUREMENT ...............................................................................11 3.1. Test Equipment ..................................................................................................................................... 11 3.2. Test Setup.............................................................................................................................................. 11 3.3. Radiation Emission Limits (§15.209) ................................................................................................... 13 3.4. Operating Condition of EUT................................................................................................................. 13 3.5. Test Procedure....................................................................................................................................... 14 3.6. Radiated Emission Noise Measurement Results ................................................................................... 15 4. FUNDAMENTAL MEASUREMENT ..........................................................................................17 4.1. Test Equipment ..................................................................................................................................... 17 4.2. Test Setup.............................................................................................................................................. 17 4.3. Radiation Emission Limits (15.231) ..................................................................................................... 18 4.4. Operating Condition of EUT................................................................................................................. 18 4.5. Test Procedure....................................................................................................................................... 18 4.6. Fundamental Measurement Results ...................................................................................................... 19 5. EMISSION BANDWIDTH MEASUREMENT ...........................................................................20 5.1. Test Equipment ..................................................................................................................................... 20 5.2. Block Diagram of Test Setup ................................................................................................................ 20 5.3. Specification Limits (§15.231-(c))........................................................................................................ 20 5.4. Emission Bandwidth Measurement Results..........................................................................................20 6. PERIODIC OPERATED MEASUREMENT ..............................................................................22 6.1. Test Equipment ..................................................................................................................................... 22 6.2. Block Diagram of Test Setup ................................................................................................................ 22 6.3. Specification Limits [§15.231-(a)-(1)].................................................................................................. 22 6.4. Periodic Operated Measurement Results .....................................…

Text truncated - open the document above for the full version.

FCC ID. KUJCE10005 Page 25 of 26 AUDIX Technology Corporation Report No.: EM-F1001037 8. PHOTOGRAPHS 8.1. Photos of Conducted Emission Measurement 8.2. Photos of Radiated Measurement at Semi-Anechoic Chamber (30~1000MHz) FCC ID. KUJCE10005 Page 26 of 26 AUDIX Technology Corporation Report No.: EM-F1001037 8.3. Photos of Radiated Measurement at Semi-Anechoic Chamber (Above 1GHz) 8.4. Photo of Section RF Conducted Measurement
