KUJCE10007Ceiling Fan Remote Controller (Transmitter)

Chungear Industrial Co Ltd
Ceiling Fan Remote Controller (Transmitter) - FCC ID KUJCE10007 - Chungear Industrial Co Ltd
Click to zoom

Application Details

Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
Date of Grant
Nov 28, 2011
Application Purpose
Original Equipment
Date of Application
Nov 28, 2011
Equipment Note
Ceiling Fan Remote Controller (Transmitter)
Frequency Range
304.00000000 - 304.00000000
Company
Chungear Industrial Co Ltd
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

CEILING FAN REMOTE CONTROLLER OPERATION AND INSTALLATION INSTRUCTIONS (Please keep this instruction pamphlet.) IMPORTANT POINTS TO REMEMBER: 1.Read and save these instructions. 2.Please note that all fixed wiring appliances should be installed by a qualified electrician. 3.The supply to the remote control receiver should be connected through a mains switch, i.e. existing wall switch. 4.Disconnect from power supply at wall switch before working on remote control receiver or ceiling fan. 5.Install receiver into the ceiling fan canopy of the fan to ensure proper protection. 6.This unit is to be used for the control of ceiling fan and in a AC110/120V 60Hz power supply only. 7.Do not install in damp locations or immerse in water. (For indoor use only.) 8.Do not pull on or cut leads shorter. 9.Do not drop or bump the unit. 10. PLEASE NOTE: The battery will weaken with age and should be replaced before leaking takes place as this will damage the transmitter. Dispose of used battery properly, keep the battery out of reach of children. 11. CAUTION: To reduce the risk of fire or injury, do not use this product in conjunction with any variable (rheostat) wall control. INSTALLATION INSTRUCTIONS 1.Ceiling fan must be set at HIGH speed and light kit (If any) at ON position by pressing the “Light Switch” after installation. 2.Once the connection has been made, the receiver inserts into the drop rod hanging bracket. The canopy comes up to cover the receiver and bracket. IMPORTANT YOU MUST SET CEILING FAN MANUAL SWITCH TO HIGH SPEED AND LIGHT KIT (IF ANY) TO ON POSITION BEFORE OPERATING REMOTE CONTROL. CAUTION: INCORRECT WIRE CONNECTION WOULD DAMAGE THIS RECEIVER. FUNCTIONS OF TRANSMITTER OFF:Turn off the fan. HI:Turn on the fan at high speed. MED:Turn on the fan at medium speed LOW:Turn on the fan at low speed F/R:Turn on the fan at FOR OR REV state UP&DOWN LIGHT: Press and release immediately to turn on or off the light. Press and hold to dim or brighten lights to the desired level and release. (Only for the tungsten bulb.). Ceiling Fan Remote Control Wiring Connection Installation of Transmitter Wall Mount Holder with two screws. DOWN LIGHT UP LIGHT MED HI F/R LOW FAN OFF FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are desi gned to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television rece ption, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. CAUTION: To assure continued FCC compliance: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. FCC ID:KUJCE10007 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Cover Letter(s)

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 Nov. 23, 2011 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: KUJCE10007 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Peter Chen / Manager Chungear Industrial Co., Ltd. 106 Kanho Rd., Taichung, Taiwan

Cover Letter(s)

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Nov. 23, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Chungear Industrial Co., Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: Ceiling Fan Remote Controller (Transmitter) Model Name: TR110A We affirm that between SIEMIC and Chungear Industrial Co., Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Peter Chen / Manager Chungear Industrial Co., Ltd. 106 Kanho Rd., Taichung, Taiwan

External Photos

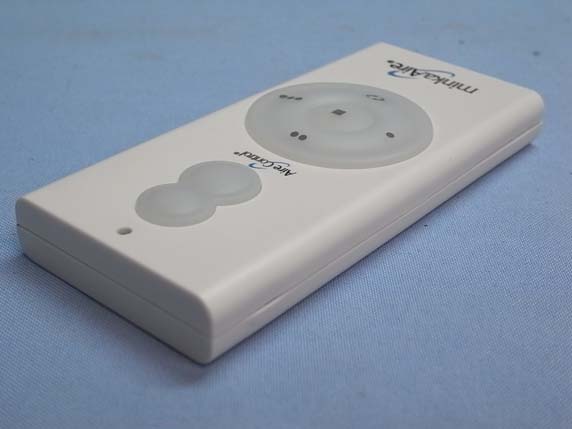

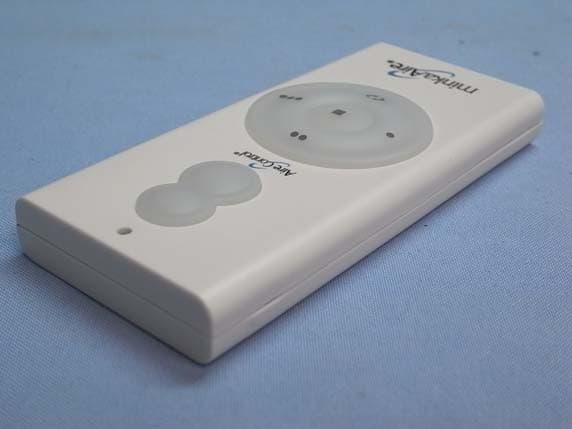

Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE10007 EUT External Photos Photo 1 General Appearance (Front & Side View) Photo 2 General Appearance (Back & Side View)

ID Label/Location Info

Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE10007 ID Label Location z Label Placement Location (Back View of EUT) z ID Label Format FCC ID : KUJCE10007 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ID Label Placement Location

Internal Photos

Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE10007 EUT Internal Photos Photo 3 Internal View (Removed Battery Cover) Photo 4 Internal View (Removed Covers) Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE10007 Photo 5 Internal View (Main Board, Front View) Photo 6 Internal View (Main Board, Back View)

Test Report

FCC ID. KUJCE10007 Page 1 of 25 AUDIX Technology Corporation Report No.: EM-F1000937 TEST REPORT FOR CERTIFICATION On Behalf of Chungear Industrial Co., Ltd Ceiling Fan Remote Controller (Transmitter) Model No.: TR110A FCC ID: KUJCE10007 Prepared for : Chungear Industrial Co., Ltd 106 Kanho Rd., Taichung, Taiwan Prepared By : AUDIX Technology Corporation EMC Department No. 53-11, Dingfu, Linkou Dist., New Taipei City 244, Taiwan, R.O.C. Tel : (02) 2609-9301, 2609-2133 Fax : (02) 2609-9303 File Number : C1M1110181 Report Number : EM-F1000937 Date of Test : Nov. 02 ~ 04, 2011 Date of Report : Nov. 07, 2011 FCC ID. KUJCE10007 Page 2 of 25 AUDIX Technology Corporation Report No.: EM-F1000937 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION........................................................................................................3 1. GENERAL INFORMATION ..........................................................................................................4 1.1. Description of Device (EUT) .................................................................................................................. 4 1.2. Description of Test Facility..................................................................................................................... 5 1.3. Measurement Uncertainty ....................................................................................................................... 6 2. CONDUCTED EMISSION MEASUREMENT .............................................................................7 3. RADIATED EMISSION MEASUREMENT .................................................................................8 3.1. Test Equipment ....................................................................................................................................... 8 3.2. Test Setup................................................................................................................................................ 8 3.3. Radiation Emission Limits (§15.209) ................................................................................................... 10 3.4. Operating Condition of EUT................................................................................................................. 10 3.5. Test Procedure....................................................................................................................................... 10 3.6. Radiated Emission Noise Measurement Results ................................................................................... 11 4. FUNDAMENTAL MEASUREMENT ..........................................................................................13 4.1. Test Equipment ..................................................................................................................................... 13 4.2. Test Setup.............................................................................................................................................. 13 4.3. Radiation Emission Limits (15.231) ..................................................................................................... 14 4.4. Operating Condition of EUT................................................................................................................. 14 4.5. Test Procedure....................................................................................................................................... 14 4.6. Fundamental Measurement Results ...................................................................................................... 15 5. EMISSION BANDWIDTH MEASUREMENT ...........................................................................16 5.1. Test Equipment ..................................................................................................................................... 16 5.2. Block Diagram of Test Setup ................................................................................................................ 16 5.3. Specification Limits (§15.231-(c))........................................................................................................ 16 5.4. Emission Bandwidth Measurement Results..........................................................................................16 6. PERIODIC OPERATED MEASUREMENT ..............................................................................18 6.1. Test Equipment ..................................................................................................................................... 18 6.2. Block Diagram of Test Setup ................................................................................................................ 18 6.3. Specification Limits [§15.231-(a)-(1)].................................................................................................. 18 6.4. Periodic Operated Measurement Results .............................................................................................. 18 7. DEVIATION TO TEST SPECIFICATIONS...............................................................................20 8. PHOTOGRAPHS............................................................................................................................21 8.1. Photos of Radiated Measurement at Semi-Anechoic Chamber (30~1000MHz) .................................. 21 8.2. Photos of Radiated Measurement at Semi-Anechoic Chamber (Above 1GHz)................................. 23 8.3. Photo of Section RF Conducted Measurement ..................................................................................... 25 FCC ID. KUJCE10007 Page 3 of 25 AUDIX Technology Corporation Report No.: EM-F1000937 TEST REPORT CERTIFICATION Applicant : Chungear Industrial Co., Ltd Manufacturer #1 : Chungear Industrial Co., Ltd Manufacturer #2 : Satellite Electronic (Zhongshan) Ltd. Manufacturer #3 : Zhongshan Amity Electronic Ltd. EUT Description : Ceiling Fan Remote Controller (Transmit…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID. KUJCE10007 Page 21 of 25 AUDIX Technology Corporation Report No.: EM-F1000937 8. PHOTOGRAPHS 8.1. Photos of Radiated Measurement at Semi-Anechoic Chamber (30~1000MHz) EUT on Stand EUT on Side FCC ID. KUJCE10007 Page 22 of 25 AUDIX Technology Corporation Report No.: EM-F1000937 EUT on Lying FCC ID. KUJCE10007 Page 23 of 25 AUDIX Technology Corporation Report No.: EM-F1000937 8.2. Photos of Radiated Measurement at Semi-Anechoic Chamber (Above 1GHz) EUT on Stand EUT on Side FCC ID. KUJCE10007 Page 24 of 25 AUDIX Technology Corporation Report No.: EM-F1000937 EUT on Lying FCC ID. KUJCE10007 Page 25 of 25 AUDIX Technology Corporation Report No.: EM-F1000937 8.3. Photo of Section RF Conducted Measurement

Contact Information

Applicant

Peter Chen(Engineer Manager)
[email protected]886-4-2359-6418Fax: 886-4-2359-6419

Test Firm

Audix Technology CorporationLeon Liu
[email protected]886-2-2600-99301Fax: 886-2-2606-9303

Technical Specifications

#Rule PartsFrequency RangePower Output
115.231304 MHz - 304 MHz-
Confidentiality
Long Term
