KUJCE10010Ceiling Fan Remote Controller(Transmitter)

CEILING FAN REMOTE CONTROLLER OPERATION AND INSTALLATION INSTRUCTIONS (Please keep this instruction pamphlet.) IMPORTANT POINTS TO REMEMBER: 1. Read and save these instructions. 2. Please note that all fixed wiring appliances should be installed by a qualified electrician. 3. The supply to the remote control receiver should be connected through a mains switch, i.e. existing wall switch. 4. Disconnect from power supply at wall switch before working on remote control receiver or ceiling fan. 5. Install receiver into the ceiling fan canopy of the fan to ensure proper protection. 6. This unit is to be used for the control of ceiling fan and in an AC120V 60Hz power supply only. 7. Do not install in damp locations or immerse in water. (For indoor use only.) 8. Do not pull on or cut leads shorter. 9. Do not drop or bump the unit. 10. PLEASE NOTE: The battery will weaken with age and should be replaced before leaking takes place as this will damage the transmitter. Dispose of used battery properly, and keep the battery out of reach of children. 11. CAUTION: To reduce the risk of fire or injury, do not use this product in conjunction with any variable (rheostat) wall control. INSTALLATION INSTRUCTIONS 1. Ceiling fan must be set at HIGH speed and light kit (If any) at ON position by pressing the “Light Switch” after installation. 2. Once the connection has been made, the receiver inserts into motor control case. WHITE(FOR LIGHT) BLUE(FOR LIGHT) IMPORTANT YOU MUST SET CEILING FAN MANUAL SWITCH TO HIGH SPEED AND LIGHT KIT (IF ANY) TO ON POSITION BEFORE OPERATING REMOTE CONTROL. CAUTION: INCORRECT WIRE CONNECTION WOULD DAMAGE THIS RECEIVER. LEARNING PROCESS 1. This unit finished learning process inside manufactory, if replace transmitter or receiver, user need to redo learning process before using this unit. 2. Open battery cover (with battery, DC9V 1pcs, installed) and use a ball pen to set Code switch up or down (Fig. 1). Then turn ceiling fan power on, press transmitter “FAN OFF” key over 5seconds, down light will be flash twice, which indicate that learning process finished. Learning effect distance is same with remote’s. Please note that must press the “FAN OFF” key within 30sensonds after power on. If just replace batteries, no need to re-learn. 3. Please note that the transmitter can learn in multiple receiver, when doing learning process please make sure not learn in other receiver. Suggest to separate power switches of fans in 2 meter range. LIGHT FUNCTION SELECT SWITCH 1. If installed energy light onto ceiling fan down light, please slide the “down light function select switch” to “O” position (Fig. 2). If installed tungsten light onto ceiling fan, please slide the “down light function select switch” to “D” position. FUNCTIONS OF TRANSMITTER LIGHT : ON/OFF- Press and release immediately to turn on or off the light. DIMMER-Press and hold to dim or brighten light to the desired level and release. (Tungsten only and down light function select switch” to “D” position.) FAN OFF : Turn off the ceiling fan. HI :Turn on the fan at high speed MED :Turn on the fan at medium speed MODEL:TR125B LOW : Turn on the fan at low speed REVERSE : Press and release immediately to set fan wind direction up or down. TRANSMITTER Installation of Transmitter Wall Mount Holder with two screws. CODE SWITCH Fig. 1 DOWN LIGHT FUNCTION SELECT SWITCH Fig. 2 FCC IDKUJCE10010 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Jan. 16, 2012 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Chungear Industrial Co., Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: Ceiling Fan Remote Controller (Transmitter) Model Name: TR125B We affirm that between SIEMIC and Chungear Industrial Co., Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Peter Chen / Manager Chungear Industrial Co., Ltd. 106 Kanho Rd., Taichung, Taiwan

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 Mar. 07, 2012 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: KUJCE10010 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Peter Chen / Manager Chungear Industrial Co., Ltd. 106 Kanho Rd., Taichung, Taiwan

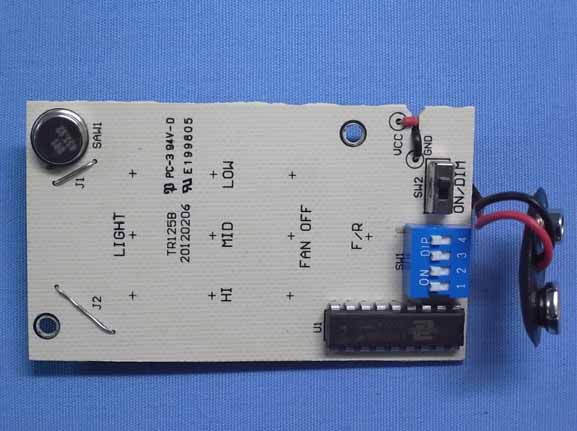

Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE10010 EUT Internal Photos Photo 3 Internal View (Removed Cover) Photo 4 Internal View (Power Board, Front View) Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE10010 Photo 5 Internal View (Power Board, Back View)

FCC ID. KUJCE10010 Page 21 of 25 AUDIX Technology Corporation Report No.: EM-F1010173 8. PHOTOGRAPHS 8.1. Photos of Radiated Measurement at Semi-Anechoic Chamber (30~1000MHz) EUT on Stand EUT on Side FCC ID. KUJCE10010 Page 22 of 25 AUDIX Technology Corporation Report No.: EM-F1010173 EUT on Lying FCC ID. KUJCE10010 Page 23 of 25 AUDIX Technology Corporation Report No.: EM-F1010173 8.2. Photos of Radiated Measurement at Semi-Anechoic Chamber (Above 1GHz) EUT on Stand EUT on Side FCC ID. KUJCE10010 Page 24 of 25 AUDIX Technology Corporation Report No.: EM-F1010173 EUT on Lying FCC ID. KUJCE10010 Page 25 of 25 AUDIX Technology Corporation Report No.: EM-F1010173 8.3. Photo of Section RF Conducted Measurement
