KUJCE10101Ceiling Fan Remote Controller (Transmitter)

CEILING FAN REMOTE CONTROLLER OPERATION AND INSTALLATION INSTRUCTIONS (Please keep this instruction pamphlet.) IMPORTANT POINTS TO REMEMBER: 1.Read and save these instructions. 2.Please note that all fixed wiring appliances should be installed by a qualified electrician. 3.The supply to the remote control receiver should be connected through a mains switch, i.e. existing wall switch. 4.Disconnect from power supply at wall switch before working on remote control receiver or ceiling fan. 5.Install receiver into the ceiling fan canopy of the fan to ensure proper protection. 6.This unit is to be used for the control of ceiling fan and in a AC110/120V 60Hz power supply only. 7.Do not install in damp locations or immerse in water. (For indoor use only.) 8.Do not pull on or cut leads shorter. 9.Do not drop or bump the unit. 10. PLEASE NOTE: The battery will weaken with age and should be replaced before leaking takes place as this will damage the transmitter. Dispose of used battery properly, keep the battery out of reach of children. 11. CAUTION: To reduce the risk of fire or injury, do not use this product in conjunction with any variable (rheostat) wall control. INSTALLATION INSTRUCTIONS 1.Ceiling fan must be set at HIGH speed and light kit (If any) at ON position by pressing the “Light Switch” after installation. 2.Once the connection has been made, the receiver inserts into the drop rod hanging bracket. The canopy comes up to cover the receiver and bracket. IMPORTANT YOU MUST SET CEILING FAN MANUAL SWITCH TO HIGH SPEED AND LIGHT KIT (IF ANY) TO ON POSITION BEFORE OPERATING REMOTE CONTROL. CAUTION: INCORRECT WIRE CONNECTION WOULD DAMAGE THIS RECEIVER. CODE SWITCH 1.CODE SWITCH: Codes are set by pushing dip switches up or down. It is imperative that the code used for both transmitter and receiver is exactly the same, otherwise remote controller will not work. Please note the code switch will enable you to operate a second remote controller independently. For example, if you have two ceiling fans with 2 remote control units, set 2 different codes for each set of transmitter/receivers. This means you can operate each ceiling fan independently. 2.Your remote control is ready for use after battery installation. FUNCTIONS OF TRANSMITTER OFF : Turn off the fan. （POWER） HI : Turn on the fan at high speed. （3） MED : Turn on the fan at medium speed （2） LOW : Turn on the fan at low speed （1） LIGHT : Press and release immediately to turn on or off the light. Press and hold to dim or brighten lights to the desired level and release. (Only for the tungsten bulb.). Ceiling Fan Remote Control Wiring Connection TRANSMITTER FCC IDKUJCE10101 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

RF_160, Issue 03 Declaration of Authorization We Name: Chungear Industrial Co., Ltd. Address: 106 Kanho Rd. City: Taichung Country: Taiwan Declare that: Name Representative of agent: Peter Chen Agent Company name: AUDIX Technology Corporation Address: No. 53-11, Dingfu, Linkou Dist., City: New Taipei City Country: Taiwan is authorized to apply for Certification of the following product(s): Product description: Ceiling Fan Remote Controller (Transmitter) Type designation: TR158A Trademark:. on our behalf. Date: Aug. 27, 2012 City: Taichung Name: Peter Chen Function: Signature:

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: Chungear Industrial Co., Ltd. Address : 106 Kanho Rd. City: Taichung Country: Taiwan To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: KUJCE10101 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: Sep. 06, 2012 Name and signature of applicant: Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

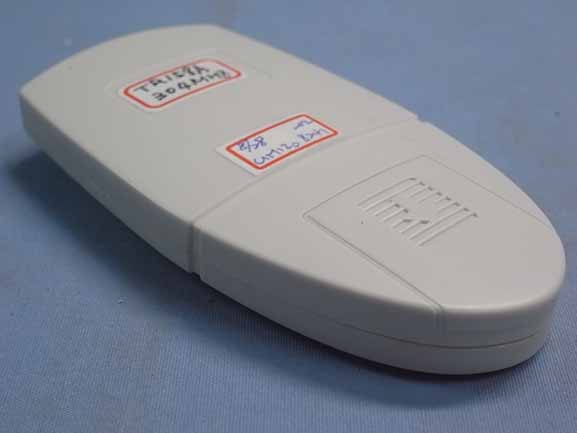

Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE10101 EUT External Photos Photo 1 General Appearance (Front & Side View) Photo 2 General Appearance (Back & Side View)

Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE10101 ID Label Location z Label Placement Location (Back View of EUT) z ID Label Format FCC ID KUJCE10101 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ID Label Placement Location

Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE10101 EUT Internal Photos Photo 3 Internal View (Removed Battery Cover) Photo 4 Internal View (Removed Covers) Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE10101 Photo 5 Internal View (Main Board, Front View) Photo 6 Internal View (Main Board, Back View)

FCC ID. KUJCE10101 Page 1 of 23 AUDIX Technology Corporation Report No.: EM-F1010722 TEST REPORT FOR CERTIFICATION On Behalf of Chungear Industrial Co., Ltd Ceiling Fan Remote Controller (Transmitter) Model No.: TR158A FCC ID: KUJCE10101 Prepared for : Chungear Industrial Co., Ltd 106 Kanho Rd., Taichung, Taiwan Prepared By : AUDIX Technology Corporation EMC Department No. 53-11, Dingfu, Linkou Dist., New Taipei City 244, Taiwan Tel : (02) 2609-9301, 2609-2133 Fax : (02) 2609-9303 File Number C1M1208241 Report Number EM-F1010722 Date of Test Aug. 28 ~ 29, 2012 Date of Report Sep. 04, 2012 FCC ID. KUJCE10101 Page 2 of 23 AUDIX Technology Corporation Report No.: EM-F1010722 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION........................................................................................................3 1. GENERAL INFORMATION ..........................................................................................................4 1.1. Description of Device (EUT) .................................................................................................................. 4 1.2. Description of Test Facility..................................................................................................................... 5 1.3. Measurement Uncertainty ....................................................................................................................... 6 2. CONDUCTED EMISSION MEASUREMET................................................................................7 3. RADIATED EMISSION MEASUREMENT .................................................................................8 3.1. Test Equipment ....................................................................................................................................... 8 3.2. Test Setup................................................................................................................................................ 8 3.3. Radiation Emission Limits (§15.209) ................................................................................................... 10 3.4. Operating Condition of EUT................................................................................................................. 10 3.5. Test Procedure....................................................................................................................................... 11 3.6. Radiated Emission Noise Measurement Results ................................................................................... 12 4. FUNDAMENTAL MEASUREMENT ..........................................................................................13 4.1. Test Equipment ..................................................................................................................................... 13 4.2. Test Setup.............................................................................................................................................. 13 4.3. Radiation Emission Limits (15.231) ..................................................................................................... 14 4.4. Operating Condition of EUT................................................................................................................. 14 4.5. Test Procedure....................................................................................................................................... 14 4.6. Fundamental Measurement Results ...................................................................................................... 15 5. EMISSION BANDWIDTH MEASUREMENT ...........................................................................16 5.1. Test Equipment ..................................................................................................................................... 16 5.2. Block Diagram of Test Setup ................................................................................................................ 16 5.3. Specification Limits (§15.231-(c))........................................................................................................ 16 5.4. Emission Bandwidth Measurement Results..........................................................................................16 6. PERIODIC OPERATED MEASUREMENT ..............................................................................18 6.1. Test Equipment ..................................................................................................................................... 18 6.2. Block Diagram of Test Setup ................................................................................................................ 18 6.3. Specification Limits [§15.231-(a)-(1)].................................................................................................. 18 6.4. Periodic Operated Measurement Results .............................................................................................. 18 7. DEVIATION TO TEST SPECIFICATIONS...............................................................................20 8. PHOTOGRAPHS............................................................................................................................21 8.1. Photos of Radiated Measurement at Semi-Anechoic Chamber (30~1000MHz) .................................. 21 8.2. Photos of Radiated Measurement at Semi-Anechoic Chamber (Above 1GHz)................................. 23 8.3. Photo of Section RF Conducted Measurement ..................................................................................... 25 FCC ID. KUJCE10101 Page 3 of 23 AUDIX Technology Corporation Report No.: EM-F1010722 TEST REPORT CERTIFICATION Applicant Chungear Industrial Co., Ltd Manufacturer #1 Chungear Industrial Co., Ltd Manufacturer #2 Satellite Electronic (Zhongshan) Ltd. Manufacturer #3 Zhongshan Amity Electronic Ltd. Manufacturer #4 ZHONGSHAN KONG LUEN WAH HOI ELECTRICAL APPLIANCE CO LTD EUT Desc…

Text truncated - open the document above for the full version.

FCC ID. KUJCE10101 Page 21 of 23 AUDIX Technology Corporation Report No.: EM-F1010722 8. PHOTOGRAPHS 8.1. Photos of Radiated Measurement at Semi-Anechoic Chamber (30~1000MHz) EUT on Stand EUT on Side FCC ID. KUJCE10101 Page 22 of 23 AUDIX Technology Corporation Report No.: EM-F1010722 EUT on Lying FCC ID. KUJCE10101 Page 23 of 23 AUDIX Technology Corporation Report No.: EM-F1010722 8.2. Photos of Radiated Measurement at Semi-Anechoic Chamber (Above 1GHz) EUT on Stand EUT on Side FCC ID. KUJCE10101 Page 24 of 23 AUDIX Technology Corporation Report No.: EM-F1010722 EUT on Lying FCC ID. KUJCE10101 Page 25 of 23 AUDIX Technology Corporation Report No.: EM-F1010722 8.3. Photo of Section RF Near Field Measurement
