KUJCE10205Ceiling Fan Remote Controller (Transmitter)

Chungear Industrial Co Ltd
Ceiling Fan Remote Controller (Transmitter) - FCC ID KUJCE10205 - Chungear Industrial Co Ltd
Click to zoom

Application Details

Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
Date of Grant
Nov 05, 2013
Application Purpose
Original Equipment
Date of Application
Nov 05, 2013
Equipment Note
Ceiling Fan Remote Controller (Transmitter)
Frequency Range
433.90000000 - 433.90000000
Company
Chungear Industrial Co Ltd
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

W H I T E ( F O R L I G H T ) B L U E ( F O R L I G H T ) CEILING FAN REMOTE CONTROLLER OPERATION AND INSTALLATION INSTRUCTIONS (Please keep this instruction pamphlet.) IMPORTANT POINTS TO REMEMBER: 1. Read and save these instructions. 2. Please note that all fixed wiring appliances should be installed by a qualified electrician. 3. The supply to the remote control receiver should be connected through a mains switch, i.e. existing wall switch. 4. Disconnect from power supply at wall switch before working on remote control receiver or ceiling fan. 5. Install receiver into the Switch cup of the ceiling fan to ensure proper protection 6. This unit is to be used for the control of ceiling fan and in an AC120V 60Hz power supply only. 7. Do not install in damp locations or immerse in water. (For indoor use only.) 8. Do not pull on or cut leads shorter. 9. Do not drop or bump the unit. 10. PLEASE NOTE: The battery will weaken with age and should be replaced before leaking takes place as this will damage the transmitter. Dispose of used battery properly, and keep the battery out of reach of children. 11. CAUTION: To reduce the risk of fire or injury, do not use this product in conjunction with any variable (rheostat) wall control. INSTALLATION INSTRUCTIONS Note: If using a light kit, the light switch located on the light kit should be at "ON" position before operating the remote control. 1. Once the connection has been made, the receiver (model number MR77A) inserts into motor control case. LEARNING PROCESS 1. This unit finished learning process inside manufactory, if replace transmitter or receiver, user need to redo learning process before using this unit. 2. Open battery cover (with battery, DC12V 1pcs, installed) and use a ball pen to set Code switch up or down. Then turn ceiling fan power on, press transmitter “FAN OFF” key over 5 seconds, down light will be flash twice, which indicate that learning process finished. Learning effect distance is same with remote range 8m. Please note that must press the “FAN OFF” key within 30 seconds after power on. If just replace batteries, no need to re-learn. 3. Please note that the transmitter can learn in multiple receiver, when doing learning process please make sure not learn in other receiver. Suggest to separate power switches of fans in 2 meter range. LIGHT FUNCTION SELECT SWITCH If installed energy light onto ceiling fan down light, please slide the “down light function select switch” to “ON” position. If installed tungsten light onto ceiling fan, please slide the “down light function select switch” to “DIM” position. FUNCTIONS OF TRANSMITTER : ON/OFF- Press and release immediately to turn on or off the light. DIMMER-Press and hold to dim or brighten light to the desired level and release. (Tungsten only and down light function select switch” to “DIM” position.) : Turn off the ceiling fan. 3 :Turn on the fan at high speed 2 :Turn on the fan at medium speed 1 : Turn on the fan at low speed : Press and release immediately to set fan wind direction up or down. CAUTION: INCORRECT WIRE CONNECTION WOULD DAMAGE THIS RECEIVER. Installation of Transmitter Wall Mount Holder with two screws. TR171B CAUTION: To assure continued FCC compliance: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. FCC ID:KUJCE10205 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Cover Letter(s)

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Nov. 04, 2013 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Chungear Industrial Co., Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: Ceiling Fan Remote Controller (Transmitter) Model Name: TR171B We affirm that between SIEMIC and Chungear Industrial Co., Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Peter Chen / Manager Chungear Industrial Co., Ltd. 106 Kanho Rd., Taichung, Taiwan

Cover Letter(s)

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Nov. 04, 2013 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: KUJCE10205 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Peter Chen / Manager Chungear Industrial Co., Ltd. 106 Kanho Rd., Taichung, Taiwan

External Photos

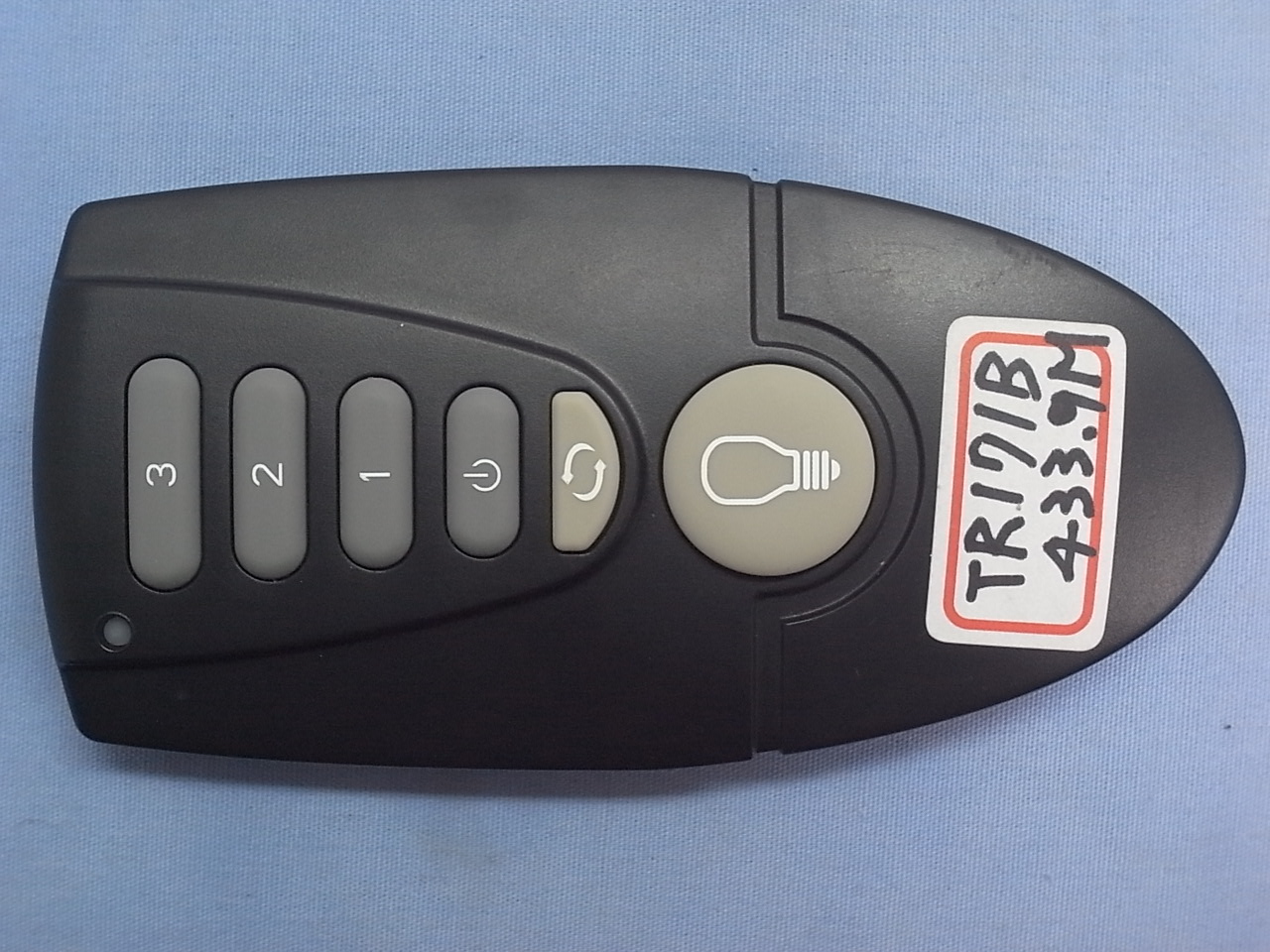

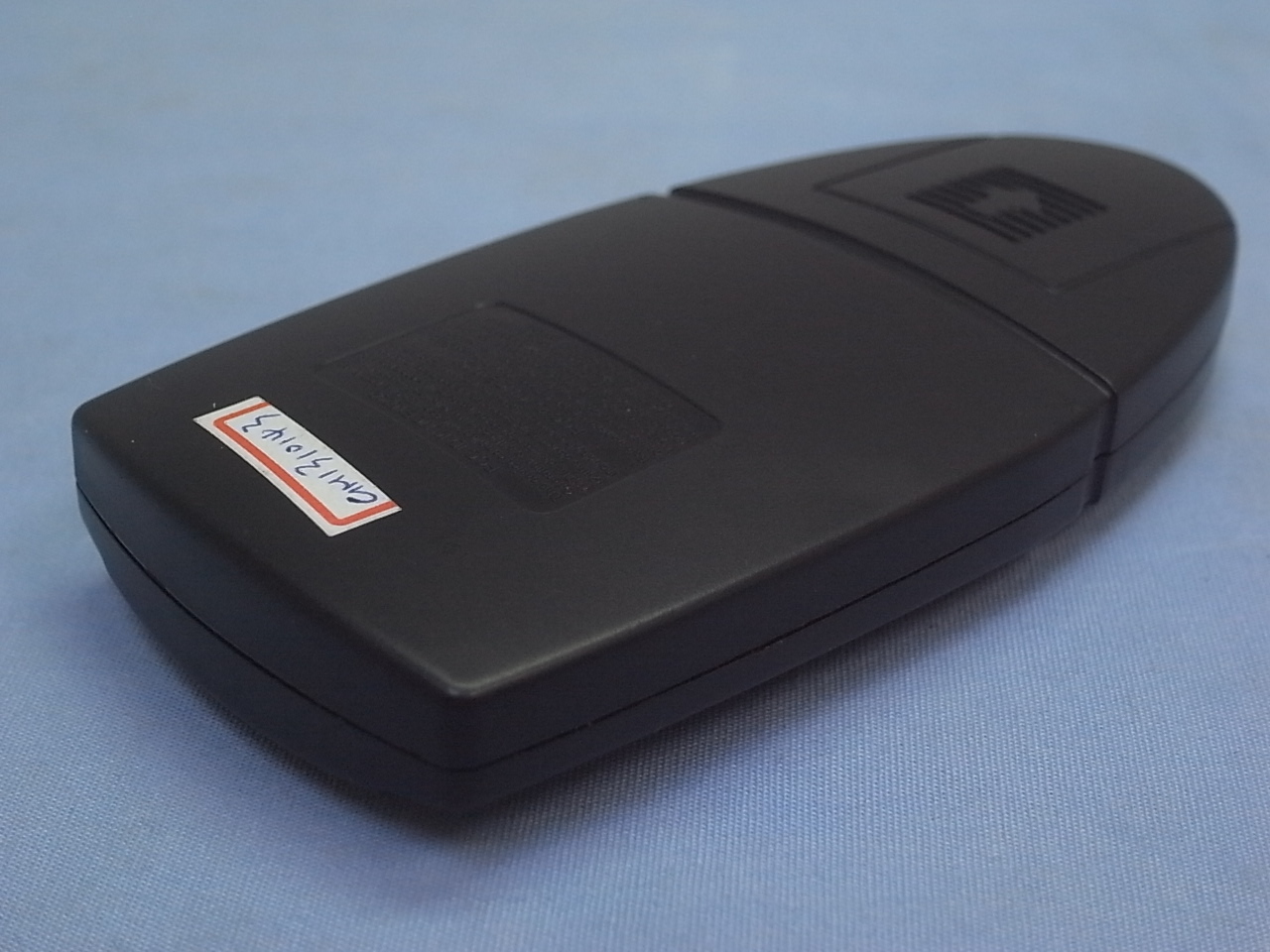

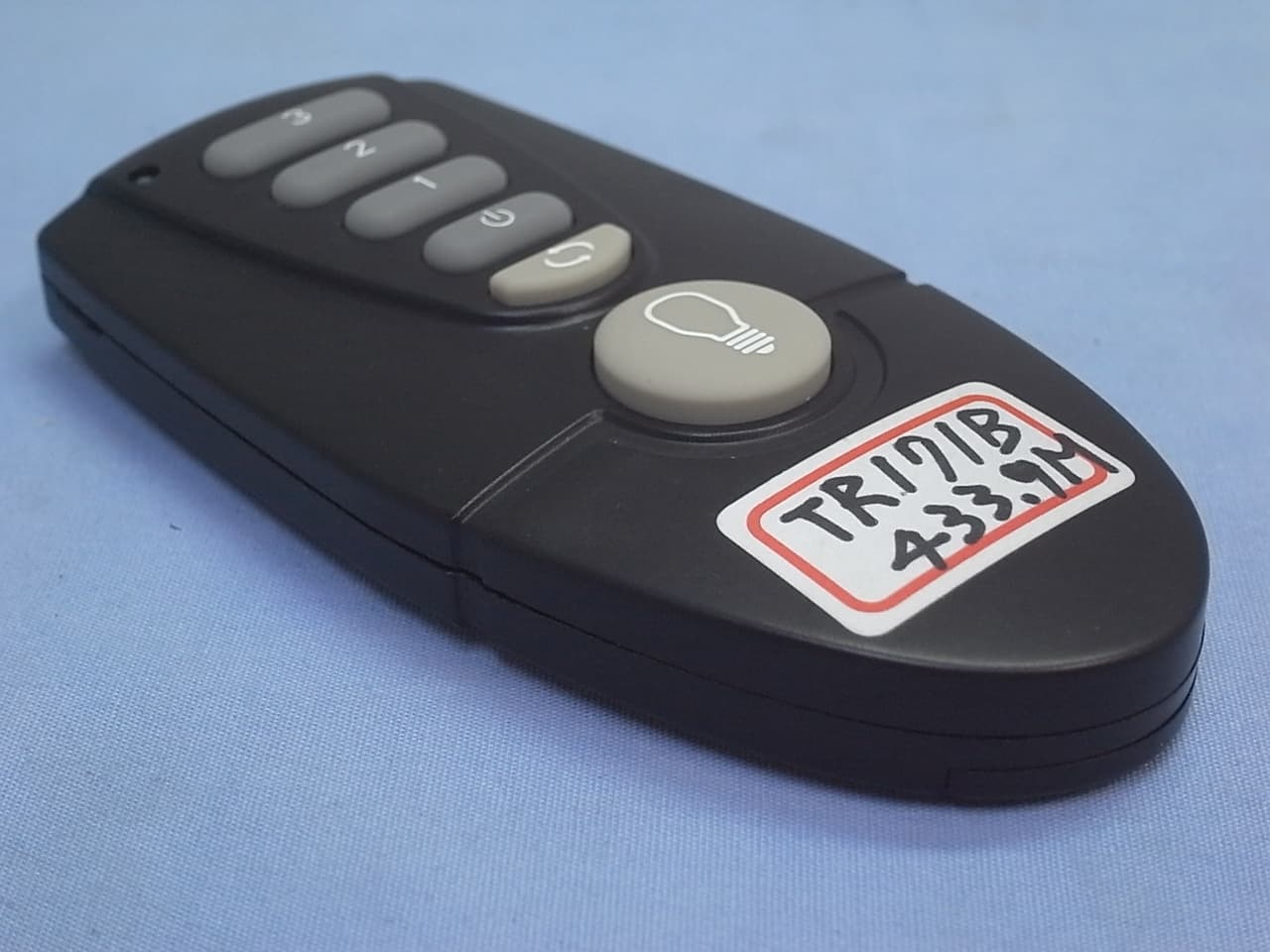

Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID:KUJCE10205 EUT External Photos Photo 1 General Appearance (Front and Side View) Photo 2 General Appearance (Back and Side View) Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID:KUJCE10205 Photo 3 General Appearance (Front View) Photo 4 General Appearance (Back View)

ID Label/Location Info

Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID:KUJCE10205 FCC ID/IC Label Location z Label Placement Location (Back View of EUT) z FCC ID/IC Label Format FCC ID/IC Label Placement FCC ID:KUJCE10205 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID:KUJCE10205 EUT Internal Photos Photo 5 General Appearance (Removed Battery Cover) Photo 6 Internal View (Removed Covers) Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID:KUJCE10205 Photo 7 Internal View (Main Board, Front View) Photo 8 Internal View (Main Board, Back View)

Test Report

FCC ID: KUJCE10205 Page 1 of 25 AUDIX Technology Corporation Report No.: EM-F1020818 TEST REPORT FOR CERTIFICATION On Behalf of Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) Model: TR171B FCC ID: KUJCE10205 Prepared for : Chungear Industrial Co., Ltd. 106 Kanho Rd., Taichung, Taiwan Prepared By : AUDIX Technology Corporation EMC Department No. 53-11, Dingfu, Linkou Dist., New Taipei City 244, Taiwan, R.O.C. Tel : (02) 2609-9301, 2609-2133 Fax : (02) 2609-9303 File Number C1M1309195 Report Number EM-F1020818 Date of Test Nov. 04, 2013 Date of Report Nov. 04, 2013 FCC ID: KUJCE10205 Page 2 of 25 AUDIX Technology Corporation Report No.: EM-F1020818 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION ........................................................................................................ 3 1. GENERAL INFORMATION .......................................................................................................... 4 1.1. Description of Device (EUT) .................................................................................................................. 4 1.2. Description of Test Facility ..................................................................................................................... 5 1.3. Measurement Uncertainty ....................................................................................................................... 5 2. CONDUCTED EMISSION MEASUREMENT ............................................................................. 6 3. RADIATED EMISSION MEASUREMENT ................................................................................. 7 3.1. Test Equipment ....................................................................................................................................... 7 3.2. Test Setup ................................................................................................................................................ 7 3.3. Radiation Emission Limits (§15.209) ..................................................................................................... 9 3.4. Operating Condition of EUT ................................................................................................................... 9 3.5. Test Procedure ....................................................................................................................................... 10 3.6. Radiated Emission Noise Measurement Results ................................................................................... 11 4. FUNDAMENTAL MEASUREMENT .......................................................................................... 13 4.1. Test Equipment ..................................................................................................................................... 13 4.2. Test Setup .............................................................................................................................................. 13 4.3. Radiation Emission Limits (RSS-210, A1.1) ........................................................................................ 14 4.4. Operating Condition of EUT ................................................................................................................. 14 4.5. Test Procedure ....................................................................................................................................... 14 4.6. Fundamental Measurement Results ...................................................................................................... 15 5. EMISSION BANDWIDTH MEASUREMENT ........................................................................... 16 5.1. Test Equipment ..................................................................................................................................... 16 5.2. Block Diagram of Test Setup ................................................................................................................ 16 5.3. Specification Limits (§15.231-(c)) ........................................................................................................ 16 5.4. Emission Bandwidth Measurement Results .......................................................................................... 16 6. PERIODIC OPERATED MEASUREMENT .............................................................................. 18 6.1. Test Equipment ..................................................................................................................................... 18 6.2. Block Diagram of Test Setup ................................................................................................................ 18 6.3. Specification Limits [§15.231-(a)-(1)] .................................................................................................. 18 6.4. Periodic Operated Measurement Results .............................................................................................. 18 7. DEVIATION TO TEST SPECIFICATIONS............................................................................... 20 8. PHOTOGRAPHS............................................................................................................................ 21 8.1. Photos of Radiated Measurement at Semi-Anechoic Chamber (30~1000MHz) .................................. 21 8.2. Photos of Radiated Measurement at Semi-Anechoic Chamber (Above 1GHz) ................................. 23 8.3. Photo of Section RF Conducted Measurement ..................................................................................... 25 FCC ID: KUJCE10205 Page 3 of 25 AUDIX Technology Corporation Report No.: EM-F1020818 TEST REPORT CERTIFICATION Applicant Chungear Industrial Co., Ltd. Manufacturer Satellite Electronic (Zhongshan)., Ltd. EUT Description Ceiling Fan Remote Controller (Transmitter) FCC ID KUJCE10205 (A) Model No. TR171B (B) Serial No. N/A (C) Power Supply DC 12V (Battery) (D)…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID: KUJCE10205 Page 21 of 25 AUDIX Technology Corporation Report No.: EM-F1020818 8. PHOTOGRAPHS 8.1. Photos of Radiated Measurement at Semi-Anechoic Chamber (30~1000MHz) EUT on Stand EUT on Side FCC ID: KUJCE10205 Page 22 of 25 AUDIX Technology Corporation Report No.: EM-F1020818 EUT on Lying FCC ID: KUJCE10205 Page 23 of 25 AUDIX Technology Corporation Report No.: EM-F1020818 8.2. Photos of Radiated Measurement at Semi-Anechoic Chamber (Above 1GHz) EUT on Stand EUT on Side FCC ID: KUJCE10205 Page 24 of 25 AUDIX Technology Corporation Report No.: EM-F1020818 EUT on Lying FCC ID: KUJCE10205 Page 25 of 25 AUDIX Technology Corporation Report No.: EM-F1020818 8.3. Photo of Section RF Conducted Measurement

Contact Information

Applicant

Peter Chen(Engineer Manager)
[email protected]886-4-2359-6418Fax: 886-4-2359-6419

Test Firm

Audix Technology CorporationLeon Liu
[email protected]886-2-2600-99301Fax: 886-2-2606-9303

Technical Specifications

#Rule PartsFrequency RangePower Output
115.231433.9 MHz - 433.9 MHz-
