CEILING FAN REMOTE CONTROLLER OPERATION AND INSTALLATION INSTRUCTIONS (Please keep this instruction pamphlet.) IMPORTANT POINTS TO REMEMBER: 1.Read and save these instructions. 2.Please note that all fixed wiring appliances should be installed by a qualified electrician. 3.The supply to the remote control receiver should be connected through a mains switch, i.e. existing wall switch. 4.Disconnect from power supply at wall switch before working on remote control receiver or ceiling fan. 5.Install receiver into the ceiling fan canopy of the fan to ensure proper protection. 6.This unit is to be used for the control of ceiling fan and in a AC110/120V 60Hz power supply only. 7.Do not install in damp locations or immerse in water. (For indoor use only.) 8.Do not pull on or cut leads shorter. 9.Do not drop or bump the unit. 10. PLEASE NOTE: The battery will weaken with age and should be replaced before leaking takes place as this will damage the transmitter. Dispose of used battery properly, keep the battery out of reach of children. 11. CAUTION: To reduce the risk of fire or injury, do not use this product in conjunction with any variable (rheostat) wall control. INSTALLATION INSTRUCTIONS 1.Ceiling fan must be set at HIGH speed and light kit (If any) at ON position by pressing the “Light Switch” after installation. 2.Once the connection has been made, the receiver inserts into the drop rod hanging bracket. The canopy comes up to cover the receiver and bracket. IMPORTANT YOU MUST SET CEILING FAN MANUAL SWITCH TO HIGH SPEED AND LIGHT KIT (IF ANY) TO ON POSITION BEFORE OPERATING REMOTE CONTROL. CAUTION: INCORRECT WIRE CONNECTION WOULD DAMAGE THIS RECEIVER. CODE SWITCH 1.CODE SWITCH: Codes are set by pushing dip switches up or down. It is imperative that the code used for both transmitter and receiver is exactly the same, otherwise remote controller will not work. Please note the code switch will enable you to operate a second remote controller independently. For example, if you have two ceiling fans with 2 remote control units, set 2 different codes for each set of transmitter/receivers. This means you can operate each ceiling fan independently. 2.Your remote control is ready for use after battery installation. FUNCTIONS OF TRANSMITTER OFF: Turn off the fan. HI : Turn on the fan at high speed. MED:Turn on the fan at medium speed LOW: Turn on the fan at low speed LIGHT ON/OFF: turn on or off the light. DIMMER: Press and hold to dim lights. Ceiling Fan Remote Control Wiring Connection TRANSMITTER Installation of Transmitter Wall Mount Holder with two screws. IC This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. French: Cet appareil radio est conforme au CNR-210 d’Industrie Canada. L’utilisation de ce dispositif est autorisée seulement aux deux conditions suivantes : (1) il ne doit pas produire de brouillage, et (2) l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. CAUTION: To assure continued FCC compliance: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. FCC IDKUJCE10206 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Oct. 11, 2013 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Chungear Industrial Co., Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: Ceiling Fan Remote Controller (Transmitter) Model Name: E01BT-S We affirm that between SIEMIC and Chungear Industrial Co., Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Peter Chen / Manager Chungear Industrial Co., Ltd. 106 Kanho Rd., Taichung, Taiwan
SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Oct. 11, 2013 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: KUJCE10206 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Peter Chen / Manager Chungear Industrial Co., Ltd. 106 Kanho Rd., Taichung, Taiwan

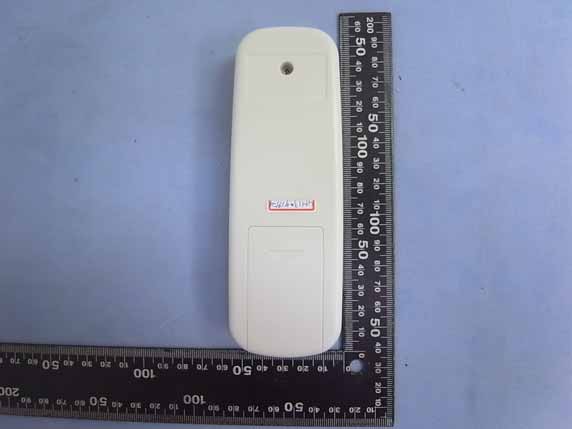

Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) IC : 10786A-E01BTS FCC ID:KUJCE10206 EUT External Photos Photo 1 General Appearance (Front View) Photo 2 General Appearance (Back View)
Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) IC : 10786A-E01BTS FCC ID:KUJCE10206 FCC ID/IC Label Location z Label Placement Location (Back View of EUT) z FCC ID/IC Label Format FCC ID/IC Label Placement
Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) IC : 10786A-E01BTS FCC ID:KUJCE10206 EUT Internal Photos Photo 3 Internal View (Removed Covers) Photo 4 Internal View (Removed Main Board) Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) IC : 10786A-E01BTS FCC ID:KUJCE10206 Photo 5 Internal View (Main Board, Front View) Photo 6 Internal View (Main Board, Back View)
FCC ID: KUJCE10206 Page 1 of 25 AUDIX Technology Corporation Report No.: EM-F1020759 TEST REPORT FOR CERTIFICATION On Behalf of Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) Model: E01BT-S FCC ID: KUJCE10206 Prepared for : Chungear Industrial Co., Ltd. 106 Kanho Rd., Taichung, Taiwan Prepared By : AUDIX Technology Corporation EMC Department No. 53-11, Dingfu, Linkou Dist., New Taipei City 244, Taiwan, R.O.C. Tel : (02) 2609-9301, 2609-2133 Fax : (02) 2609-9303 File Number : C1M1309195 Report Number : EM-F1020759 Date of Test : Sep. 23 ~ 24, 2013 Date of Report : Oct. 11, 2013 FCC ID: KUJCE10206 Page 2 of 25 AUDIX Technology Corporation Report No.: EM-F1020759 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION........................................................................................................3 1. GENERAL INFORMATION ..........................................................................................................4 1.1. Description of Device (EUT) .................................................................................................................. 4 1.2. Description of Test Facility..................................................................................................................... 5 1.3. Measurement Uncertainty ....................................................................................................................... 5 2. CONDUCTED EMISSION MEASUREMENT .............................................................................6 3. RADIATED EMISSION MEASUREMENT .................................................................................7 3.1. Test Equipment ....................................................................................................................................... 7 3.2. Test Setup................................................................................................................................................ 7 3.3. Radiation Emission Limits (§15.209) ..................................................................................................... 9 3.4. Operating Condition of EUT................................................................................................................... 9 3.5. Test Procedure....................................................................................................................................... 10 3.6. Radiated Emission Noise Measurement Results ................................................................................... 11 4. FUNDAMENTAL MEASUREMENT ..........................................................................................13 4.1. Test Equipment ..................................................................................................................................... 13 4.2. Test Setup.............................................................................................................................................. 13 4.3. Radiation Emission Limits (RSS-210, A1.1) ........................................................................................ 14 4.4. Operating Condition of EUT................................................................................................................. 14 4.5. Test Procedure....................................................................................................................................... 14 4.6. Fundamental Measurement Results ...................................................................................................... 15 5. EMISSION BANDWIDTH MEASUREMENT ...........................................................................16 5.1. Test Equipment ..................................................................................................................................... 16 5.2. Block Diagram of Test Setup ................................................................................................................ 16 5.3. Specification Limits (§15.231-(c))........................................................................................................ 16 5.4. Emission Bandwidth Measurement Results..........................................................................................16 6. PERIODIC OPERATED MEASUREMENT ..............................................................................18 6.1. Test Equipment ..................................................................................................................................... 18 6.2. Block Diagram of Test Setup ................................................................................................................ 18 6.3. Specification Limits [§15.231-(a)-(1)].................................................................................................. 18 6.4. Periodic Operated Measurement Results .............................................................................................. 18 7. DEVIATION TO TEST SPECIFICATIONS...............................................................................20 8. PHOTOGRAPHS............................................................................................................................21 8.1. Photos of Radiated Measurement at Semi-Anechoic Chamber (30~1000MHz) .................................. 21 8.2. Photos of Radiated Measurement at Semi-Anechoic Chamber (Above 1GHz)................................. 23 8.3. Photo of Section RF Conducted Measurement ..................................................................................... 25 FCC ID: KUJCE10206 Page 3 of 25 AUDIX Technology Corporation Report No.: EM-F1020759 TEST REPORT CERTIFICATION Applicant : Chungear Industrial Co., Ltd. Manufacturer : Satellite Electronic (Zhongshan)., Ltd. EUT Description : Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE10206 (A) Model No. : E01BT-S (B) Serial No. : N/A (C) Power Supply : DC 9V (Batter…
Text truncated - open the document above for the full version.
FCC ID: KUJCE10206 Page 21 of 25 AUDIX Technology Corporation Report No.: EM-F1020759 8. PHOTOGRAPHS 8.1. Photos of Radiated Measurement at Semi-Anechoic Chamber (30~1000MHz) EUT on Stand EUT on Side FCC ID: KUJCE10206 Page 22 of 25 AUDIX Technology Corporation Report No.: EM-F1020759 EUT on Lying FCC ID: KUJCE10206 Page 23 of 25 AUDIX Technology Corporation Report No.: EM-F1020759 8.2. Photos of Radiated Measurement at Semi-Anechoic Chamber (Above 1GHz) EUT on Stand EUT on Side FCC ID: KUJCE10206 Page 24 of 25 AUDIX Technology Corporation Report No.: EM-F1020759 EUT on Lying FCC ID: KUJCE10206 Page 25 of 25 AUDIX Technology Corporation Report No.: EM-F1020759 8.3. Photo of Section RF Conducted Measurement
