KUJCE9603Ceiling Fan Remote Controller (Transmitter)

CEILING FAN REMOTE CONTROLLER OPERATION AND INSTALLATION INSTRUCTIONS (Please keep this instruction pamphlet.) IMPORTANT POINTS TO REMEMBER: 1.Read and save these instructions. 2.Please note that all fixed wiring appliances should be installed by a qualified electrician. 3.The supply to the remote control receiver should be connected through a mains switch, i.e. existing wall switch. 4.Disconnect from power supply at wall switch before working on remote control receiver or ceiling fan. 5.Install receiver into the ceiling fan canopy of the fan to ensure proper protection. 6.This unit is to be used for the control of ceiling fan and in a AC110/120V 60Hz power supply only. 7.Do not install in damp locations or immerse in water. (For indoor use only.) 8.Do not pull on or cut leads shorter. 9.Do not drop or bump the unit. 10. PLEASE NOTE: The battery will weaken with age and should be replaced before leaking takes place as this will damage the transmitter. Dispose of used battery properly, keep the battery out of reach of children. 11. CAUTION: To reduce the risk of fire or injury, do not use this product in conjunction with any variable (rheostat) wall control. INSTALLATION INSTRUCTIONS 1.Ceiling fan must be set at HIGH speed and light kit (If any) at ON position by pressing the “Light Switch” after installation. 2.Once the connection has been made, the receiver inserts into the drop rod hanging bracket. The canopy comes up to cover the receiver and bracket. IMPORTANT YOU MUST SET CEILING FAN MANUAL SWITCH TO HIGH SPEED AND LIGHT KIT (IF ANY) TO ON POSITION BEFORE OPERATING REMOTE CONTROL. CAUTION: INCORRECT WIRE CONNECTION WOULD DAMAGE THIS RECEIVER. CODE SWITCH 1.CODE SWITCH: Codes are set by pushing dip switches up or down. It is imperative that the code used for both transmitter and receiver is exactly the same, otherwise remote controller will not work. Please note the code switch will enable you to operate a second remote controller independently. For example, if you have two ceiling fans with 2 remote control units, set 2 different codes for each set of transmitter/receivers. This means you can operate each ceiling fan independently. 2.Your remote control is ready for use after battery installation. FUNCTIONS OF TRANSMITTER HI OFF : Turn off the fan. MED HI : Turn on the fan at high speed. LOW MED : Turn on the fan at medium speed LIGHT LOW : Turn on the fan at low speed OFF LIGHT : Press and release immediately to turn on or off the light. Press and hold to dim or brighten lights to the desired level and release. (Only for the tungsten bulb.). Ceiling Fan Remote Control Wiring Connection TRANSMITTER Installation of Transmitter Wall Mount Holder with two screws. FCC IDKUJCE9603 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

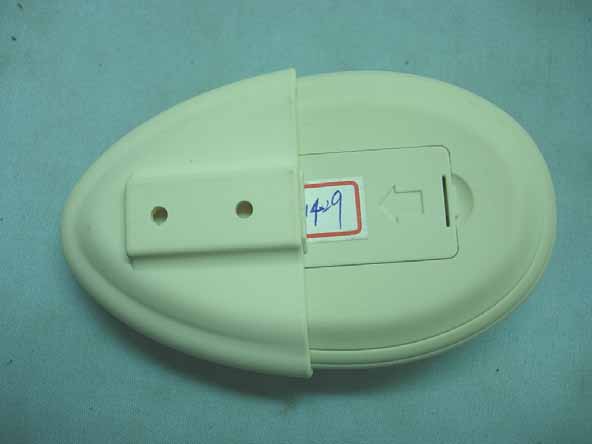

Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller FCC ID. KUJCE9603 EUT External Photos Photo 1 General Appearance (Front View) Photo 2 General Appearance (Back View)

Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller FCC ID. KUJCE9603 FCC ID Label Format and Location z Label Placement Location (Bottom Side of EUT) FCC Label Placement Location FCC IDKUJCE9603 FCC Label Format

Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller FCC ID. KUJCE9603 EUT Internal Photos Photo 3 Internal View (Covers Removed) Photo 4 PCB View (Component Side) Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller FCC ID. KUJCE9603 Photo 5 PCB View (Solder Side)

FCC ID. KUJCE9603 Page 1 of 27 Audix Technology Corporation Report No.: EM-F960537 TEST REPORT FOR CERTIFICATION On Behalf of CHUNGEAR INDUSTRIAL CO., LTD. Ceiling Fan Remote Controller Model No.TR35C FCC IDKUJCE9603 Prepared for : CHUNGEAR INDUSTRIAL CO., LTD. 106 Kanho Rd., Taichung, Taiwan, R.O.C. Prepared by : Audix Technology Corporation EMC Department No. 53-11, Tin-Fu Tsun, Lin-Kou Hsiang, Taipei County 24443, Taiwan, R.O.C. Tel : (02) 2609-9301, 2609-2133 Fax : (02) 2609-9303 File Number EM961429 Report Number EM-F960537 Date of Test Nov. 08, 2007 Date of Report Nov. 15, 2007 FCC ID. KUJCE9603 Page 2 of 27 Audix Technology Corporation Report No.: EM-F960537 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION ....................................................................................................3 1. GENERAL INFORMATION ..........................................................................................................4 1.1. Description of Device (EUT) .................................................................................................................. 4 1.2. Description of Test Facility..................................................................................................................... 5 1.3. Measurement Uncertainty ....................................................................................................................... 5 2. CONDUCTED EMISSION MEASUREMENT .............................................................................6 3. RADIATED EMISSION MEASUREMENT .................................................................................7 3.1. Test Equipment ....................................................................................................................................... 7 3.2. Test Setup................................................................................................................................................ 7 3.3. Radiation Emission Limits (§15.209 & 15.231) ..................................................................................... 8 3.4. EUT’s Configuration during Compliance Measurement ........................................................................ 8 3.5. Operating Condition of EUT................................................................................................................... 9 3.6. Test Procedure......................................................................................................................................... 9 3.7. Radiated Emission Measurement Results ............................................................................................. 10 4. EMISSION BANDWIDTH MEASUREMENT ...........................................................................19 4.1. Test Equipment ..................................................................................................................................... 19 4.2. Block Diagram of Test Setup ................................................................................................................ 19 4.3. Specification Limits (§15.231-(c))........................................................................................................ 19 4.4. EUT’s Configuration during Compliance Measurement ...................................................................... 19 4.5. Emission Bandwidth Measurement Results..........................................................................................19 5. PERIODIC OPERATED MEASUREMENT ..............................................................................21 5.1. Test Equipment ..................................................................................................................................... 21 5.2. Block Diagram of Test Setup ................................................................................................................ 21 5.3. Specification Limits [§15.231-(a)-(1)].................................................................................................. 21 5.4. EUT’s Configuration during Compliance Measurement ...................................................................... 21 5.5. Periodic Operated Measurement Results .............................................................................................. 21 6. DEVIATION TO TEST SPECIFICATIONS...............................................................................23 7. PHOTOGRAPHS............................................................................................................................24 7.1. Photos of Radiated Measurement at Semi-Anechoic Chamber (30~1000MHz).......................................... 24 7.2. Photos of Radiated Measurement at Semi-Anechoic Chamber (Above 1GHz) ........................................ 25 7.3. Photo of Emission Bandwidth Measurement ........................................................................................27 7.4. Photo of Periodic Operated Measurement ............................................................................................ 27 FCC ID. KUJCE9603 Page 3 of 27 Audix Technology Corporation Report No.: EM-F960537 TEST REPORT CERTIFICATION Applicant : CHUNGEAR INDUSTRIAL CO., LTD. Manufacturer #1 : CHUNGEAR INDUSTRIAL CO., LTD. Manufacturer #2 : SATELLITE ELECTRONIC (ZHONGSHAN) LTD. Manufacturer #3 : ZHONGSHAN AMITY ELECTRONIC LTD. EUT Description : Ceiling Fan Remote Controller FCC ID : KUJCE9603 (A) MODEL NO. : TR35C (B) SERIAL NO. : N/A (C) POWER SUPPLY : DC 12V (Battery) (D) TEST VOLTAGE : DC 12V Measurement Procedure Used: FCC RULES AND REGULATIONS PART 15 SUBPART C, Sep. 2007 AND ANSI C63.4/2003 (FCC CFR 47 Part 15C, §15.207, §15.209 and §15.231) The device described above was tested by Audix Technology Corporation to determine the maximum emission levels emanating from the device. The maximum emission levels were compared to the FCC Part 15 subpart C limits both radiated and conducted e…

Text truncated - open the document above for the full version.

FCC ID. KUJCE9603 Page 24 of 27 Audix Technology Corporation Report No.: EM-F960537 7. PHOTOGRAPHS 7.1. Photos of Radiated Measurement at Semi-Anechoic Chamber (30~1000MHz) EUT on Stand EUT on Side FCC ID. KUJCE9603 Page 25 of 27 Audix Technology Corporation Report No.: EM-F960537 EUT on Lying 7.2. Photos of Radiated Measurement at Semi-Anechoic Chamber (Above 1GHz) EUT on Stand FCC ID. KUJCE9603 Page 26 of 27 Audix Technology Corporation Report No.: EM-F960537 EUT on Side EUT on Lying FCC ID. KUJCE9603 Page 27 of 27 Audix Technology Corporation Report No.: EM-F960537 7.3. Photo of Emission Bandwidth Measurement 7.4. Photo of Periodic Operated Measurement
