KUJCE9810Ceiling Fan Remote Controller (Transmitter)

CEILING FAN REMOTE CONTROLLER OPERATION AND INSTALLATION INSTRUCTIONS (Please keep this instruction pamphlet.) IMPORTANT POINTS TO REMEMBER: 1. Read and save these instructions. 2. Please note that all fixed wiring appliances should be installed by a qualified electrician. 3. The supply to the remote control receiver should be connected through a mains switch, i.e. existing wall switch. 4. Disconnect from power supply at wall switch before working on remote control receiver or ceiling fan. 5. Install receiver into the ceiling fan canopy of the fan to ensure proper protection. 6. This unit is to be used for the control of ceiling fan and in an AC120V 60Hz power supply only. 7. Do not install in damp locations or immerse in water. (For indoor use only.) 8. Do not pull on or cut leads shorter. 9. Do not drop or bump the unit. 10. PLEASE NOTE: The battery will weaken with age and should be replaced before leaking takes place as this will damage the transmitter. Dispose of used battery properly, and keep the battery out of reach of children. 11. CAUTION: To reduce the risk of fire or injury, do not use this product in conjunction with any variable (rheostat) wall control. INSTALLATION INSTRUCTIONS 1. Ceiling fan must be set at HIGH speed and light kit (If any) at ON position by pressing the “Light Switch” after installation. 2. Once the connection has been made, the receiver inserts into the drop rod hanging bracket. The canopy comes up to cover the receiver and bracket. IMPORTANT YOU MUST SET CEILING FAN MANUAL SWITCH TO HIGH SPEED AND LIGHT KIT (IF ANY) TO ON POSITION BEFORE OPERATING REMOTE CONTROL. CAUTION: INCORRECT WIRE CONNECTION WOULD DAMAGE THIS RECEIVER. LEARNING PROCESS 1. This unit finished learning process inside manufactory, if replace transmitter or receiver, user need to redo learning process before using this unit. Receiver could remember up to 5pcs transmitter. 2. After installing the unit and power on, open battery cover (with battery, DC12V/A23 1pc, installed) and press and use a ball pen to hold ”LEARNING” key 1~3seconds, FAN will be turn off and the turn to medium speed, which indicate that learning process finished. Learning effect distance is same with remote’s. Please note that must press the “LEARNING KEY” within 60sensonds after power on. If just replace batteries, no need to re-learn. 3. Please note that the transmitter can learn in multiple receiver, when doing learning process please make sure not learn in other receiver. Suggest to separate power switches of fans in 2 meter range. LIGHT FUNCTION SELECT SWITCH 1. If installed energy light onto ceiling fan, please slide the “light function select switch” to on/off position. If installed tungsten light onto ceiling fan, please slide the “light function select switch” to dimmer position. 2. Light load: 190W (Max.) If overload, the receiver will cut off light power automatically. Please change the light load. FUNCTIONS OF TRANSMITTER LIGHT : ON/OFF- Press and release immediately to turn on or off the light. DIMMER-Press and hold to dim or brighten light to the desired level and release. (Tungsten only and light function select switch on dimmer position.) FAN OFF : Turn off the ceiling fan. HI :Turn on the fan at high speed MED :Turn on the fan at medium speed LOW : Turn on the fan at low speed TRANSMITTER LEARNING KEY Installation of Transmitter Wall Mount Holder with two screws. LIGHT FUNCTION SELECT SWITCH FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are desi gned to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television rece ption, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. CAUTION: To assure continued FCC compliance: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. FCC ID：KUJCE9810 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Dec. 30, 2009 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Chungear Industrial Co., Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: Ceiling Fan Remote Controller (Transmitter) Model Name: TR32A-L We affirm that between SIEMIC and Chungear Industrial Co., Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Peter Chen / Manager Chungear Industrial Co., Ltd. 106 Kanho Rd., Taichung, Taiwan

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Dec. 30, 2009 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: KUJCE9810 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Peter Chen / Manager Chungear Industrial Co., Ltd. 106 Kanho Rd., Taichung, Taiwan

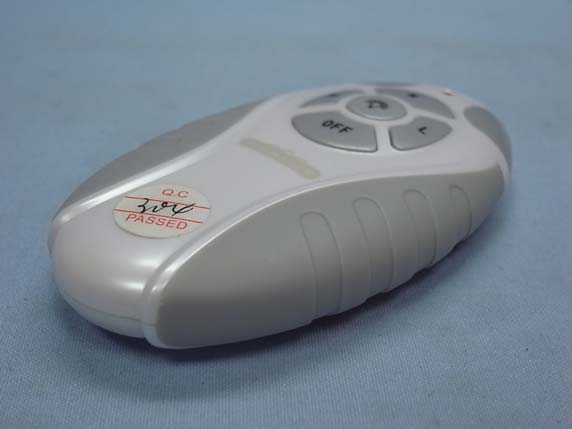

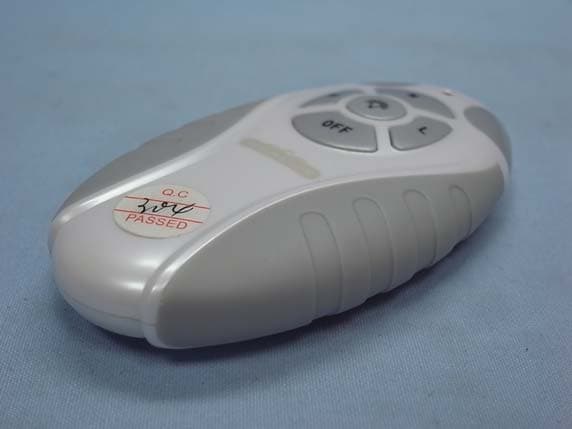

Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE9810 EUT External Photos Photo 1 General Appearance (Front & Side View) Photo 2 General Appearance (Back & Side View)

Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE9810 ID Label Location z Label Placement Location (Bottom Side of EUT) z ID Label Format FCC ID ： KUJCE9810 ID Label Placement Location

Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE9810 EUT Internal Photos Photo 3 Internal View (Cover Removed) Photo 4 PCB View (Front Side) Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE9810 Photo 5 PCB View (Back Side)

FCC ID. KUJCE9810 Page 1 of 22 AUDIX Technology Corporation Report No.: EM-F980986 TEST REPORT FOR CERTIFICATION On Behalf of Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) Model: TR32A-L FCC ID: KUJCE9810 Prepared for : Chungear Industrial Co., Ltd. 106 Kanho Rd., Taichung, Taiwan Prepared By : AUDIX Technology Corporation EMC Department No. 53-11, Tin-Fu Tsun, Lin-Kou Hsiang, Taipei Hsien, Taiwan, R.O.C. Tel : (02) 2609-9301, 2609-2133 Fax : (02) 2609-9303 File Number ： EM982505 Report Number ： EM-F980986 Date of Test ： Dec. 24, 2009 Date of Report ： Dec. 30, 2009 FCC ID. KUJCE9810 Page 2 of 22 AUDIX Technology Corporation Report No.: EM-F980986 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION........................................................................................................3 1. GENERAL INFORMATION ..........................................................................................................4 1.1. Description of Device (EUT) .................................................................................................................. 4 1.2. Description of Test Facility..................................................................................................................... 5 1.3. Measurement Uncertainty ....................................................................................................................... 5 2. CONDUCTED EMISSION MEASUREMENT .............................................................................6 3. RADIATED EMISSION MEASUREMENT .................................................................................7 3.1. Test Equipment ....................................................................................................................................... 7 3.2. Test Setup................................................................................................................................................ 7 3.3. Radiation Emission Limits (§15.209 & 15.231) ..................................................................................... 8 3.4. Operating Condition of EUT................................................................................................................... 9 3.5. Test Procedure......................................................................................................................................... 9 3.6. Radiated Emission Noise Measurement Results ................................................................................... 10 4. EMISSION BANDWIDTH MEASUREMENT ...........................................................................13 4.1. Test Equipment ..................................................................................................................................... 13 4.2. Block Diagram of Test Setup ................................................................................................................ 13 4.3. Specification Limits (§15.231-(c))........................................................................................................ 13 4.4. EUT’s Configuration during Compliance Measurement ...................................................................... 13 4.5. Emission Bandwidth Measurement Results..........................................................................................13 5. PERIODIC OPERATED MEASUREMENT ..............................................................................15 5.1. Test Equipment ..................................................................................................................................... 15 5.2. Block Diagram of Test Setup ................................................................................................................ 15 5.3. Specification Limits [§15.231-(a)-(1)].................................................................................................. 15 5.4. EUT’s Configuration during Compliance Measurement ...................................................................... 15 5.5. Periodic Operated Measurement Results .............................................................................................. 15 6. DEVIATION TO TEST SPECIFICATIONS...............................................................................17 7. PHOTOGRAPHS............................................................................................................................18 7.1. Photos of Radiated Measurement at Semi-Anechoic Chamber (30~1000MHz).......................................... 18 7.2. Photos of Radiated Measurement at Semi-Anechoic Chamber (Above 1GHz) ........................................ 20 7.3. Photo of Emission Bandwidth Measurement ........................................................................................22 7.4. Photo of Periodic Operated Measurement ............................................................................................ 22 FCC ID. KUJCE9810 Page 3 of 22 AUDIX Technology Corporation Report No.: EM-F980986 TEST REPORT CERTIFICATION Applicant ： Chungear Industrial Co., Ltd. Manufacturer #1 ： Chungear Industrial Co., Ltd. Manufacturer #2 ： Satellite Electronic (Zhongshan) Ltd. Manufacturer #3 ： Zhongshan Amity Electronic Ltd. EUT Description ： Ceiling Fan Remote Controller (Transmitter) FCC ID ： KUJCE9810 (A) Model No. ： TR32A-L (B) Serial No. ： N/A (C) Power Supply ： DC 12V (Battery) (D) Test Voltage ： DC 12V Measurement Procedure Used: FCC RULES AND REGULATIONS PART 15 SUBPART C, July 2008 AND ANSI C63.4/2003 (FCC CFR 47 Part 15C, §15.207, §15.209 and §15.231) The device described above was tested by AUDIX Technology Corporation to determine the maximum emission levels emanating from the device. The maximum emission levels were compared to the FCC Part 15 subpart C limits both radiated and conducted emissions. The measurement results are contained in this test report and AUDIX Technology Corporation is as…

Text truncated - open the document above for the full version.

FCC ID. KUJCE9810 Page 18 of 22 AUDIX Technology Corporation Report No.: EM-F980986 7. PHOTOGRAPHS 7.1. Photos of Radiated Measurement at Semi-Anechoic Chamber (30~1000MHz) EUT on Stand EUT on Side FCC ID. KUJCE9810 Page 19 of 22 AUDIX Technology Corporation Report No.: EM-F980986 EUT on Lying FCC ID. KUJCE9810 Page 20 of 22 AUDIX Technology Corporation Report No.: EM-F980986 7.2. Photos of Radiated Measurement at Semi-Anechoic Chamber (Above 1GHz) EUT on Stand EUT on Side FCC ID. KUJCE9810 Page 21 of 22 AUDIX Technology Corporation Report No.: EM-F980986 EUT on Lying FCC ID. KUJCE9810 Page 22 of 22 AUDIX Technology Corporation Report No.: EM-F980986 7.3. Photo of Emission Bandwidth Measurement 7.4. Photo of Periodic Operated Measurement
