KUJCE9908Ceiling Fan Remote Controller (Transmitter)

CEILING FAN REMOTE CONTROLLER OPERATION AND INSTALLATION INSTRUCTIONS (Please keep this instruction pamphlet.) IMPORTANT POINTS TO REMEMBER: 1. Please read and save these instructions. 2. Please note that all fixed wiring appliances should be installed by a qualified electrician. 3. The supply to the remote control receiver should be connected through a mains switch, i.e. existing wall switch. 4. Disconnect from power supply at wall switch before working on remote control receiver or ceiling fan. 5. Install receiver into the ceiling fan canopy of the fan to ensure proper protection. 6. This unit is to be used for the control of ceiling fan and in an AC120V 60Hz power supply only, rated max 1.25A for fan, max 300W for light. 7. Do not install in damp locations or immerse in water. (For indoor use only.) 8. Do not pull on or cut leads shorter. 9. Do not drop or bump the unit. 10. PLEASE NOTE: The battery will weaken with age and should be replaced before leaking takes place as this will damage the transmitter. Dispose of used battery properly, keep the battery out of reach of children. 11. CAUTION: To reduce the risk of fire or injury, do not use this product in conjunction with any variable (rheostat) wall control. INSTALLATION INSTRUCTIONS 1. Ceiling fan must be set at HIGH speed and light kit (If any) at ON position by pressing the “Light Switch” after installation. 2. Once the connection has been made, the receiver inserts into the drop rod hanging bracket. The canopy comes up to cover the receiver and bracket. IMPORTANT YOU MUST SET CEILING FAN MANUAL SWITCH TO HIGH SPEED AND LIGHT KIT (IF ANY) TO ON POSITION BEFORE OPERATING REMOTE CONTROL. CAUTION: INCORRECT WIRE CONNECTION WOULD DAMAGE THIS RECEIVER. CODE SWITCH 1. CODE SWITCH: Codes are set by pushing dip switches up or down. It is imperative that the code used for both transmitter and receiver is exactly the same, otherwise remote controller will not work. Please note the code switch will enable you to operate a second remote controller independently. For example, if you have two ceiling fans with 2 remote control units, set 2 different codes for each set of transmitter/receivers. This means you can operate each ceiling fan independently. 2. Your remote control is ready for use after battery installation(need 12V battery 1pc). ON DIP 1234 RECEIVER ANTENNA DIP SWITCH TO OPEN BATTERY HOUSING COVER BY PRESS DOWN AND SLIDE OUT FUNCTIONS OF TRANSMITTER OFF : Turn off the ceiling fan. HI :Turn on the fan at high speed MED :Turn on the fan at medium speed LOW : Turn on the fan at low speed L.LOW : Turn on the fan at lowest speed LIGHT ON/OFF: Press and release immediately to turn on or off the light. DIMMER :Press and hold to dim or brighten lights to the desired level and release. (Only for the tungsten bulb.) Ceiling Fan Remote Control Wiring Connection TRANSMITTER To install the Transmitter Wall Mount Holder with two screws. FCC IDKUJCE9908 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Dec. 14, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Chungear Industrial Co., Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: Ceiling Fan Remote Controller (Transmitter) Model Name: TR06B We affirm that between SIEMIC and Chungear Industrial Co., Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Peter Chen / Manager Chungear Industrial Co., Ltd. 106 Kanho Rd., Taichung, Taiwan

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 Dec. 14, 2010 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: KUJCE9908 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Peter Chen / Manager Chungear Industrial Co., Ltd. 106 Kanho Rd., Taichung, Taiwan

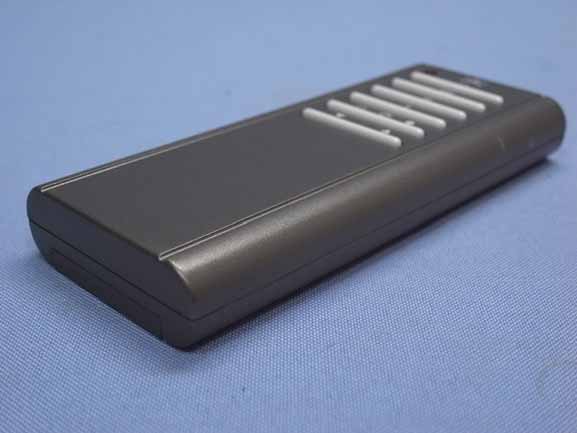

Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE9908 EUT External Photos Photo 1 General Appearance (Front & Side View) Photo 2 General Appearance (Back & Side View)

Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE9908 ID Label Location z Label Placement Location (Bottom Side of EUT) z ID Label Format Model No.: TR06B Serial No.: FCC ID. : KUJCE9908 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made in China. ID Label Placement Location

Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE9908 EUT Internal Photos Photo 3 Internal View (Covers Removed) Photo 4 PCB View (Front Side) Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) FCC ID : KUJCE9908 Photo 5 PCB View (Back Side)

FCC ID. KUJCE9908 Page 1 of 22 AUDIX Technology Corporation Report No.: EM-F991172 TEST REPORT FOR CERTIFICATION On Behalf of Chungear Industrial Co., Ltd. Ceiling Fan Remote Controller (Transmitter) Model No.: TR06B FCC ID: KUJCE9908 Prepared for : Chungear Industrial Co., Ltd. 106 Kanho Rd., Taichung, Taiwan Prepared By : AUDIX Technology Corporation EMC Department No. 53-11, Tin-Fu Tsun, Lin-Kou Hsiang, Taipei Hsien, Taiwan, R.O.C. Tel : (02) 2609-9301, 2609-2133 Fax : (02) 2609-9303 File Number C1M1011239 Report Number EM-F991172 Date of Test Dec. 01, 2010 Date of Report Dec. 03, 2010 FCC ID. KUJCE9908 Page 2 of 22 AUDIX Technology Corporation Report No.: EM-F991172 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION........................................................................................................3 1. GENERAL INFORMATION ..........................................................................................................4 1.1. Description of Device (EUT) .................................................................................................................. 4 1.2. Description of Test Facility..................................................................................................................... 5 1.3. Measurement Uncertainty ....................................................................................................................... 5 2. CONDUCTED EMISSION MEASUREMENT .............................................................................6 3. RADIATED EMISSION MEASUREMENT .................................................................................7 3.1. Test Equipment ....................................................................................................................................... 7 3.2. Test Setup................................................................................................................................................ 7 3.3. Radiation Emission Limits (§15.209 & 15.231) ..................................................................................... 8 3.4. Operating Condition of EUT................................................................................................................... 9 3.5. Test Procedure......................................................................................................................................... 9 3.6. Radiated Emission Noise Measurement Results ................................................................................... 10 4. EMISSION BANDWIDTH MEASUREMENT ...........................................................................13 4.1. Test Equipment ..................................................................................................................................... 13 4.2. Block Diagram of Test Setup ................................................................................................................ 13 4.3. Specification Limits (§15.231-(c))........................................................................................................ 13 4.4. Emission Bandwidth Measurement Results..........................................................................................13 5. PERIODIC OPERATED MEASUREMENT ..............................................................................15 5.1. Test Equipment ..................................................................................................................................... 15 5.2. Block Diagram of Test Setup ................................................................................................................ 15 5.3. Specification Limits [§15.231-(a)-(1)].................................................................................................. 15 5.4. Periodic Operated Measurement Results .............................................................................................. 15 6. DEVIATION TO TEST SPECIFICATIONS...............................................................................17 7. PHOTOGRAPHS............................................................................................................................18 7.1. Photos of Radiated Measurement at Semi-Anechoic Chamber (30~1000MHz).......................................... 18 7.2. Photos of Radiated Measurement at Semi-Anechoic Chamber (Above 1GHz) ........................................ 20 7.3. Photo of Emission Bandwidth Measurement ........................................................................................22 7.4. Photo of Periodic Operated Measurement ............................................................................................ 22 FCC ID. KUJCE9908 Page 3 of 22 AUDIX Technology Corporation Report No.: EM-F991172 TEST REPORT CERTIFICATION Applicant Chungear Industrial Co., Ltd. Manufacturer #1 Chungear Industrial Co., Ltd. Manufacturer #2 Satellite Electronic (Zhongshan) Ltd. Manufacturer #3 Zhongshan Amity Electronic Ltd. EUT Description Ceiling Fan Remote Controller (Transmitter) FCC ID KUJCE9908 (A) Model No. TR06B (B) Serial No. N/A (C) Power Supply DC 12V (Battery) (D) Test Voltage DC 12V Measurement Procedure Used: FCC RULES AND REGULATIONS PART 15 SUBPART C, October 2009 AND ANSI C63.4/2003 (FCC CFR 47 Part 15C, §15.207, §15.209 and §15.231) The device described above was tested by AUDIX Technology Corporation to determine the maximum emission levels emanating from the device. The maximum emission levels were compared to the FCC Part 15 subpart C limits both radiated and conducted emissions. The measurement results are contained in this test report and AUDIX Technology Corporation is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT to be technically compliant with the FCC official limits. This report applies to above tested sample only. This report shall not be reproduced in part without wr…

Text truncated - open the document above for the full version.

FCC ID. KUJCE9908 Page 18 of 22 AUDIX Technology Corporation Report No.: EM-F991172 7. PHOTOGRAPHS 7.1. Photos of Radiated Measurement at Semi-Anechoic Chamber (30~1000MHz) EUT on Stand EUT on Side FCC ID. KUJCE9908 Page 19 of 22 AUDIX Technology Corporation Report No.: EM-F991172 EUT on Lying FCC ID. KUJCE9908 Page 20 of 22 AUDIX Technology Corporation Report No.: EM-F991172 7.2. Photos of Radiated Measurement at Semi-Anechoic Chamber (Above 1GHz) EUT on Stand EUT on Side FCC ID. KUJCE9908 Page 21 of 22 AUDIX Technology Corporation Report No.: EM-F991172 EUT on Lying FCC ID. KUJCE9908 Page 22 of 22 AUDIX Technology Corporation Report No.: EM-F991172 7.3. Photo of Emission Bandwidth Measurement 7.4. Photo of Periodic Operated Measurement
