Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Preface The PinPoint Asset Tracking and Management Solution uses the PinPoint Asset tag to provide real-time locating and asset management throughout a facility. The PinPoint Mobile Resource Management software enables users to configure tags, manage assets, and track equipment from any web enabled PC or PDA. Refer to the PinPoint Asset Tracking and Management Solutions Software and Configuration Guide for details on tag configuration and the Mobile Resource Management software. Intended Audience The PinPoint Asset Tracking Tag User Guide is intended for facility personnel who uses the PinPoint Asset Tag. It provides detailed information about the tag mounting and cleaning instructions, as well as specifications and compliances. Contact Information •Find more information about RF Technologies, Inc. products at www.rft.com. •For technical support, contact (800) 669-9946 or (262) 790-1771. •For questions or comments about documentation, contact the RF Technologies Technical Publications team at [email protected]. Product Warranty Product Warranty information can be found on the system’s CD-ROM or with your original system proposal and invoice. PinPoint Asset Tag The PinPoint Asset Tag is a lightweight battery powered Wi-Fi tag. It is designed to last for up to 3 years depending on the check-in configuration and the motion of the tag. The tag employs an on-board motion detector to maximize battery life. The PinPoint Asset Tag transmits low battery alerts to enable timely tag replacement. The PinPoint Asset Tag is part of the PinPoint Asset Tracking and Management Solutions. The tag aids in locating and securing mobile assets and incorporates tamper detection technology that alerts system users when a tag has been removed from an asset. Mounting Tags Tags are small and can be attached to assets using the adhesive tape that can be purchased with the tags. Tags can also be mounted with a lanyard or zip tie through the opening at the top of the tag. To apply the adhesive pad to the tag 1. Remove an adhesive pad from the strip of paper. 2. Place the tag face down. 3. Line the adhesive pad up with the back of the tag. 4. Apply the adhesive pad. 5. Verify that the pad is applied correctly and is not hanging over the sides of the tag. 6. If correctly applied the tag will activate and auto enroll into the Mobile Resource Management software. Refer to the PinPoint Asset Tracking and Management Solutions Configuration and Calibrations User Guide To attach a tag to a asset using an adhesive pad 1. Obtain the asset to which you want to apply the tag. The asset surface must be clean, dry and free of condensed moisture. 2. Remove the plastic covering from the outside of the adhesive pad. 3. Firmly attach the tag to the asset. Ideal application temperature range is 70°F to 100°F (21°C to 38°C). 4. Press firmly and hold for approximately 10 seconds to activate the pressure sensitive adhesive. 5. After application, the bond strength will increase as the adhesive flows onto the surface. At room temperature, approximately 50% of ultimate bond strength will be achieved after 20 minutes, 90% after 24 hours and 100% after 72 hours. Mounting Tags Using a Lanyard or Zip Tie Tags can also be mounted with a lanyard or zip tie through the opening at the top of the tag. Cleaning Tags To clean a tag after use 1. If necessary, remove the tag from the asset. You can clean the tag on the asset if you prefer. 2. Wet a cotton swab or paper towel with Isopropyl Alcohol. 3. Cleanse the tag. 4. Cleanse the surface of the asset. 5. Let the tag and the asset surface dry before reapplying the tag with a new adhesive pad. Specifications WARNING: The PinPoint Asset Tracking and Management Solutions is designed and intended to work in conjunction with a facility’s overall asset management and security program, including reasonable operating policies and procedures. The PinPoint Asset Management Solution, by itself, cannot prevent the theft or loss of assets. Size:1.9 x 1.38 x 0.7 We i g h t :0.95 ounces Case:Welded, Waterproof Color:White w/Blue Logo Network Standard:802.11b/g Compliant Frequency:802.11b Radio (2.4GHz), RFID Low Frequency (262kHz) Network Protocol: UDP, Static IP Addressed Medium Access: CSMA/CA Temperature:0- 120° F Humidity: 0-95% Non-Condensing Battery Life:up to 3 Years Shelf Life:5 Years Compliance:FCC part 15 Industry Canada:RSS 210 Compliance Federal Communication Commission (FCC) Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Changes or modifications not expressly approved by the party responsible for compliance voids the user’s authority to operate the equipment. FCC and IC Radiation Exposure Statement for Portable Devices This equipment complies with FCC and IC radiation exposure limits set forth for an uncontrolled environment. This equipment is in direct contact with the body of the user under normal operating conditions. This transmitter must not be co- located or operating in conjunction with any other antenna or transmitter. Industry Canada Compliance Changes or modifications not expressly approved by RF Technologies could void the user’s authority to operate the equipment. The Term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met. Operation is subject to the following two conditions: (1) this device may not cause harmful interferenc…
Text truncated - open the document above for the full version.
FCC ID: KXU-80211B D.L.S. ELECTRONIC SYSTEMS, INC. 1250 Peterson Drive Wheeling, Illinois 60090 FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21045-0429 Gentlemen: We are submitting for RF Technologies, Inc., Inc., a PinPoint Wi-Fi Tag Transmitter, Model Number: TAG-80211B, with a FCC ID: KXU-80211B for Certification. This unit has been tested and complies to Part 15, Subpart C. If there are any questions in regards to this application, please call D.L.S. Electronic Systems, Inc. at (847) 537 6400. Enclosed you will find a copy of our test report with the information and results of tests that is required under Part 15, Section 15.247 & Section 15.209. Thank you for your assistance in this matter. Sincerely, Arnom C. Rowe EMC-001375-NE DLS/sr
Request for Confidentiality Date: April 30, 2007 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: KXU-80211B Pursuant to 47 CFR Section 0.459 RF Technologies, Inc. understands that requests for non disclosure and confidential treatment is being made for the following information as stated under the Code of Federal Regulations Chapter 47, Part 0.459 and behalf of APPLICANT NAME: • Block Diagram • Schematics • Technical Product Description The above materials contain trade secrets, proprietary and technical information that would customarily be guarded from competitors under 47 CFR section 0.457(d)(2). Disclosure or publication of any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. RF Technologies, Inc. understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Thank you for your attention to this matter. Signatory Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc.

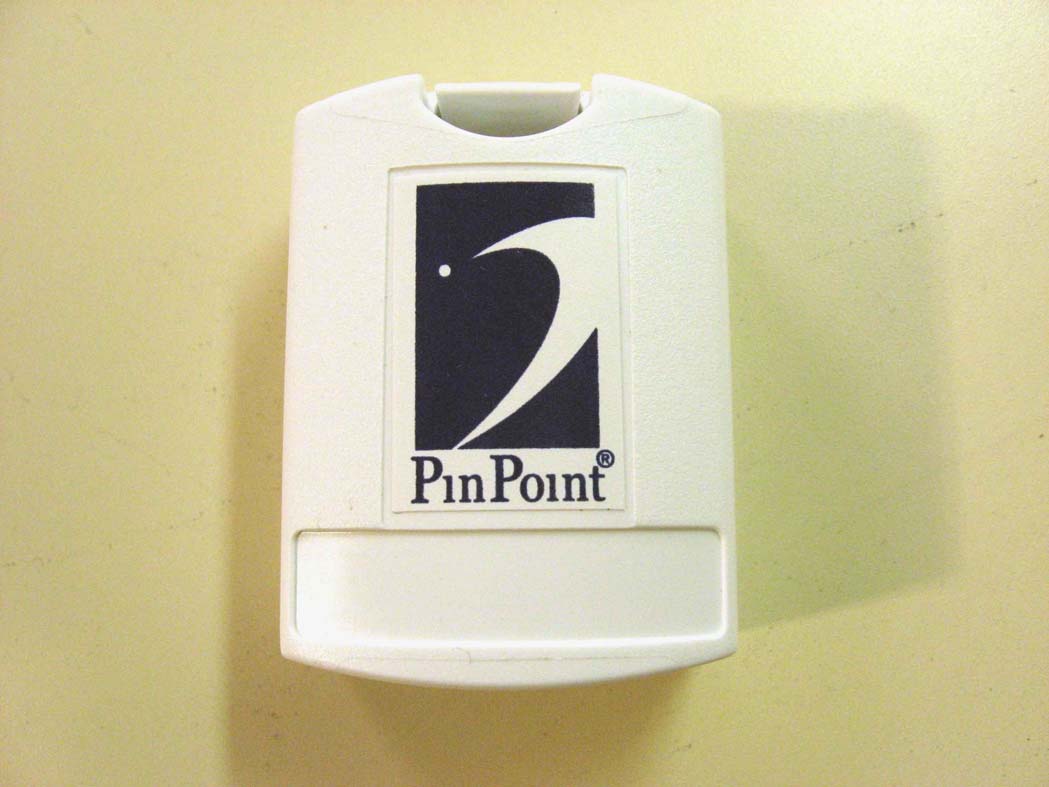

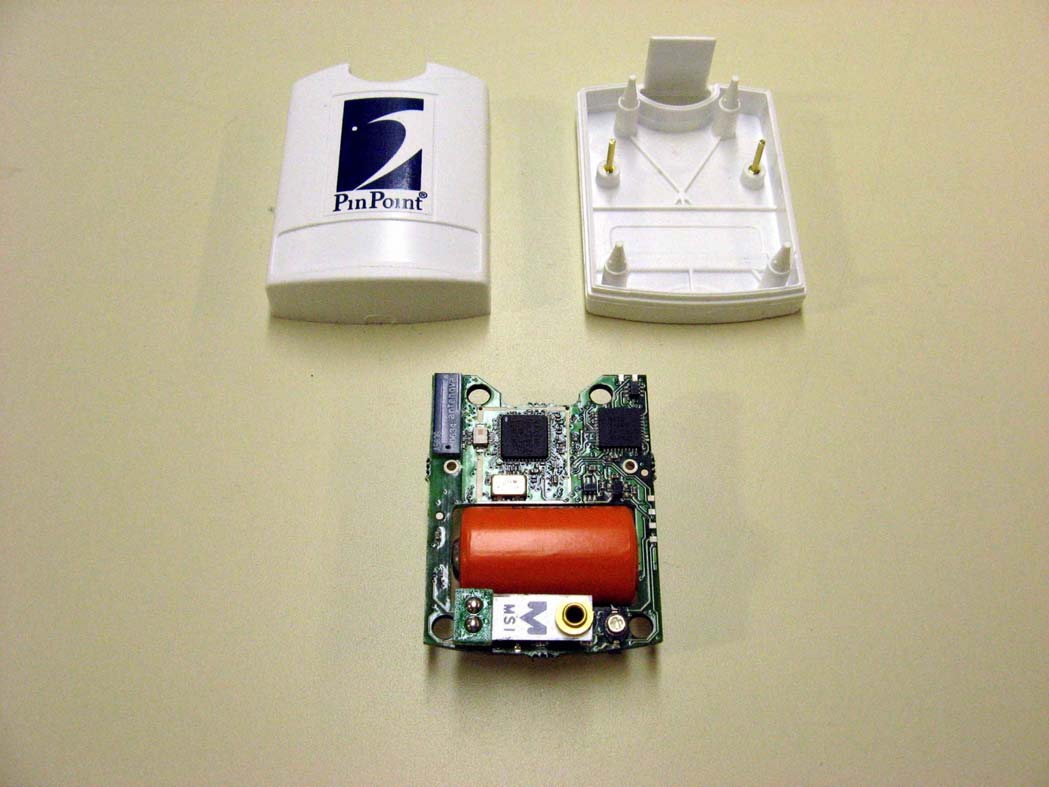

PC BOARD ASS'Y - TOP, WITH SHIELD PC BOARD ASS'Y - TOP, NO SHIELD PC BOARD ASS'Y - TOP WITH BATTERY REMOVED PC BOARD ASS'Y – BOTTOM PC BOARD ASS'Y BOTTOM - NO BATTERY, NO SHIELDS PC BOARD BOTTOM - NO SHIELDS, NO BATTERY
DUTY CYCLE INFORMATION The Wi-Fi Tag has no pushbutton and the firmware ensures that it can only be on the maximum of 4.4ms in rare circumstances. Typically the packets will be much less than the maximum stated and they never transmit these packets faster than 5 seconds. A typical scenario would be a packet smaller than the maximum possible packet every few minutes. The power density, S, generated by some value of EIRP at a given distance, d, is related by the following: S = EIRP / (4*pi*d^2) The distance, given a maximum EIRP of 22.67dBm (185mW), at which the radiated power density of the EUT is equal to the human RF exposure limit is 2.96cm from the antenna. Normally the device would transmit a short burst every few minutes. The worst case burst length is roughly 4.4ms. For the duty cycle test, the EUT was configured to transmit this worst case packet every 100ms for ease of testing. Therefore, the correction factor should be roughly 27dB. Given a max output power of 22.67dBm, the output power would be average -5.23dBm (0.3mW). The EUT should therefore be exempt from SAR evaluation due to the fact that the output power is below 24.37mW threshold after duty cycle adjustment. We would like it to be considered a portable device so that down the road we could use the system for people location. Initially, we are not going to support location of people because it is much more difficult to do so accurately, but we would like the ability to do so in the future. Regards, Gregg Haensgen
RF Exposure Statement 1. Standard Applicable According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a portable device. 2. Measurement Result: This is a portable device and the max peak output power is -5.23 dBm (.3 mW). Lower than the low threshold 60/f GHz = (24.37 mW), d<2.5 cm general population category. The SAR/MPE measurement is not necessary.
RF Exposure Statement 1. Standard Applicable According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a portable device. 2. Measurement Result: This is a portable device and the max peak output power is 8.28dBm (.6.73 mW). Lower than the low threshold 60/f GHz = (24.37 mW), d<2.5 cm general population category. The SAR/MPE measurement is not necessary.
1250 Peterson Dr., Wheeling, IL 60090 Company: RF Technologies, Inc. Model Tested: TAG-80211B Report Number: 13139 FCC Rules and Regulations / Intentional Radiators Operational in the 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz, Bands Part 15, Subpart C, Section 15.247 THE FOLLOWING ''MEETS'' THE ABOVE TEST SPECIFICATION Formal Name: PinPoint Wi-Fi Tag Kind of Equipment: RFID Tag Test Configuration: N/A (Tested at 3.6 vdc) Model Number(s): TAG-80211B Model(s) Tested: TAG-80211B Serial Number(s): 00-14-6D-00-00-00 Date of Tests: April 10 & 11, 2007 Test Conducted For: RF Technologies, Inc. 3125 N. 126th St Brookfield, WI 53005 NOTICE: “This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government”. Please see the "Additional Description of Equipment Under Test" page listed inside of this report. © Copyright 1983- 2006 D.L.S. Electronic Systems, Inc COPYRIGHT NOTICE This report or any portion their of, may not be reproduced or modified in any form without the expressed written consent of D.L.S. Electronic Systems, Inc. Page -1 of 75- 1250 Peterson Dr., Wheeling, IL 60090 Company: RF Technologies, Inc. Model Tested: TAG-80211B Report Number: 13139 SIGNATURE PAGE Report By: Arnom C. Rowe Test Engineer EMC-001375-NE Reviewed By: William Stumpf OATS Manager Approved By: Brian Mattson General Manager Company Official: RF Technologies, Inc. Page -2 of 75- 1250 Peterson Dr., Wheeling, IL 60090 Company: RF Technologies, Inc. Model Tested: TAG-80211B Report Number: 13139 TABLE OF CONTENTS i. Cover Page.......................................................................................................................................1 ii. Signature Page.................................................................................................................................2 iii. Table of Contents.............................................................................................................................3 iv. NVLAP Certificate of Accreditation...............................................................................................5 1.0 Summary of Test Report..................................................................................................................6 2.0 Introduction......................................................................................................................................6 3.0 Object...............................................................................................................................................6 4.0 Test Set-Up......................................................................................................................................7 5.0 Test Equipment................................................................................................................................7 6.0 Ambient Measurements...................................................................................................................8 7.0 Description of Test Sample..............................................................................................................9 8.0 Additional Description of Test Sample..........................................................................................10 9.0 Photo Information and Test Set-Up...............................................................................................11 10.0 Radiated Photos Taken During Testing.........................................................................................12 11.0 Results of Tests..............................................................................................................................16 12.0 Conclusion.....................................................................................................................................16 TABLE 1 – EQUIPMENT LIST...............................................................................................................17 Page -3 of 75- 1250 Peterson Dr., Wheeling, IL 60090 Company: RF Technologies, Inc. Model Tested: TAG-80211B Report Number: 13139 TABLE OF CONTENTS Appendix A – Electric Field Radiated Emissions Test..............................................................................19 1.0 Conducted Emission Measurements..............................................................................................20 2.0 Spurious Emissions at the Antenna Terminals..............................................................................21 2.0 Conducted Emission Data and Charts made at the Antenna Terminals........................................22 3.0 Conducted Emissions Photos Taken During Testing.....................................................................35 4.0 Restricted Bands............................................................................................................................36 5.0 Band Edge and Restricted Band Compliance................................................................................36 5.0 Data and Graph(s) taken showing the Band Edge Compliance.....................................................37 5.0 Data and Graph(s) taken showing the Restricted Band Compliance.............................................40 5.0 Data and Graph(s) taken showing the Upper Band Edge..............................................................44 6.0 Field Strength of Fundamental and Spurious Emission Measurements........................................47 6.0 Radiated Data and Graph(s) taken for Fundamental and Spurious Emission................................49 7.0 6 dB Bandwidth Graphs taken during testing................................................................................62 7.0 20 dB Bandwidth Graphs taken during testing..............................................................................66 7.0 Number of Hopping Frequencies Graph(s) taken during testing............................................…
Text truncated - open the document above for the full version.
DUTY CYCLE INFORMATION The Wi-Fi Tag has no pushbutton and the firmware ensures that it can only be on the maximum of 4.25ms in rare circumstances. The RF Technologies, Inc proprietary firmware and configuration software tool ensures that the worse case timing mentioned above cannot and will not be configured any faster and these parameters cannot be changed. Typically the packet size will be much less than the maximum stated (4.25ms) and they never transmit these maximum sized position packets faster than 5 seconds. A typical scenario would be a packet smaller than the maximum possible packet every few minutes. The power density, S, generated by some value of EIRP at a given distance, d, is related by the following: S = EIRP / (4*pi*d^2) The distance, given a maximum EIRP of 22 dBm (158 mW), at which the radiated power density of the EUT is equal to the human RF exposure limit is 2.96 cm from the antenna. Normally the device would transmit a short burst every few minutes. The worst case burst length is roughly 4.25ms. For the duty cycle test, the EUT was configured to transmit this worst case packet every 100ms for ease of testing. Therefore, the correction factor should be roughly 13.72 dB. Given a max output power of 22 dBm, the output power would be roughly 8.28 dBm (6.73mW). The EUT should therefore be exempt from SAR evaluation due to the fact that the output power is below 25mW after duty cycle adjustment. We would like it to be considered a portable device so that down the road we could use the system for people location. Initially, we are not going to support location of people, because it is much more difficult to do so accurately, but we would like the ability to do so in the future.
RADIATED “X” RADIATED “Y” RADIATED “Z” RF CONDUCTED
1250 Peterson Drive · Wheeling, Illinois · United States
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.41 GHz - 2.46 GHz | 300.00 µW |
