KXU-MBTX2Baby Check Transmitter

Baby Check Transmitter User Guide 0510-1124-A Baby Check Transmitter PN 0510-1124-A Release Date 02/02/15 Users must read this Guide before using the Product Copyright 2015 by RF Technologies, Inc. All Rights Reserved. No Part of this work may be reproduced or copied in any form or by any means without written permission from RF Technologies, Inc. Important Warnings It is important for your facility to implement and enforce the following WARNINGS in order to keep all equipment functioning properly. Disregarding the information and instructions in this document is considered abnormal use and may result in injury or system failure. WARNING ACCESSORIES (SUPPLIES)—To ensure patient safety and proper operation of equipment, use only parts and accessories manufactured or recommended by RF Technologies, Inc. Parts and accessories not manufactured or recommended by RF Technologies, Inc. may not meet the requirements of the applicable safety and performance standards. Failure to use the components and supplies specified by RF Technologies, Inc. may result in equipment and/or system failure. WARNING EXPLOSION HAZARD—These devices should not be used in the presence of flammable gas mixtures. It should also not be used in oxygen enriched atmospheres. WARNING INSTALLATION AND CONFIGURATION—It is the responsibility of the facility to follow the installation instructions carefully, as outlined in the applicable system guides, and to use the components and supplies specified by RF Technologies, Inc. for all installations. Failure to use the components and supplies specified by RF Technologies, Inc. may result in equipment and/or system failure. WARNING INSTRUCTIONS FOR SET UP AND USE—It is the responsibility of the facility to follow the instructions for set up and use carefully, as outlined in this manual, and to use the components and supplies specified by RF Technologies, Inc. for set up and use. Do not attempt to use extension cords or other equipment not supplied by RF Technologies, Inc. Failure to use the components and supplies specified by RF Technologies, Inc. may result in equipment and/or system failure. WARNING MISMATCH ALARM—If you do not already have procedures in place, you must establish procedures for your staff to follow in the event of a mismatch alarm. Existing procedures may require modification to incorporate the Mother-Baby Match feature option. Failure to create or modify these procedures can result in unnecessary patient agitation. WARNING PATIENT GENERATED ALARMS—Do not rely exclusively on patient generated alarms for patient care and safety. The alarm function of equipment in the possession of patients must be verified periodically and regular patient surveillance is recommended. WARNING PATIENT MONITORING—The most reliable method of patient monitoring combines close personal surveillance with correct operation of monitoring equipment. It is the responsibility of the facility to periodically check on patients in possession of RF Technologies, Inc.'s equipment (i.e. Pendants, Pull Cords, Control Units) to mitigate risk of inappropriate use of equipment or strangulation and stumbling hazards from cables and cords. WARNING PRODUCT WARRANTIES—Failure to follow the Warnings and Cautions in this guide voids any and all Product Warranties. WARNING STATIC DISCHARGE—Do not touch the conductor portion of any conductor or port. Damage to the device may result. WARNING STRANGULATIONS AND TRIPPING HAZARD—Due to the possibility of strangulation, all cables and cords should be routed away from the patient’s throat. Cables and cords must be routed in a way to prevent tripping hazards. WARNING SYSTEM INSPECTION—It is the responsibility of the facility to establish and facilitate a regular inspection schedule for your system. RF Technologies, Inc. recommends quarterly inspections of your system for safety and performance by a qualified RF Technologies, Inc. representative. To arrange for a quarterly inspection by RF Technologies, Inc., call our Technical Support Department at (800)-669-9946 or (262) 790-1771. Failure to provide regular inspection of these products may result in equipment and/or system failure. WARNING SYSTEM MAINTENANCE AND TESTING—It is the responsibility of the facility to establish and facilitate a regular maintenance schedule for your system, as outlined in the applicable system guides. This includes regular inspection, testing, and cleaning. RF Technologies, Inc. recommends monthly maintenance and testing of your system. It is also recommended that your facility keep records of maintenance and test completions. Failure to provide regular maintenance and testing of these products may result in equipment and/or system failure. WARNING SYSTEM WIRING—All permanent supply connections must be done in accordance with National Electric Code, NFPA 70. WARNING USER TRAINING—Only users who have received adequate training on the use of the system, as outlined in this manual, should use the system. It is the responsibility of the facility to ensure all users have been trained. Failure to adequately train employees may cause system failure due to user error. In addition, incorrect use of the equipment may also result in system failure. WARNING WORN OR DAMAGED PARTS—If the control unit pads or cables are worn or damaged, you must have the product serviced. For more information, see the section entitled “Service and Return.” WARNING All RF Technologies transmitters, pendants and banding material “PRODUCT” have been determined to be MR Unsafe as defined by ASTM F 2503-05. Use of “PRODUCT” in a Magnetic Resonance Imaging system will cause injury to patients and staff, MR system malfunction or “PRODUCT” malfunction. Do not bring “PRODUCT” into the MR system area and follow your facilities policies to classify and label “PRODUCT” as MR Unsafe. CAUTION DISPOSAL—At the end of their service life the products described in this manual, as well as accessories (i.e. lithium batteries, banding materi…

Text truncated - open the document above for the full version.

FCC ID: KXU-MBTX2 D.L.S. ELECTRONIC SYSTEMS, INC. 166 South Carter Street Genoa City, WI 53128 February 10, 2015 FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Gentlemen: We are submitting for RF Technologies Inc, the Baby Check Transmitter, Model Numbers: 9450-7066 and/or 9450-7262, with an FCC ID: KXU-MBTX2 for Certification. These units have been tested and comply to Part 15, Subpart C. If there are any questions in regard to this application, please call D.L.S. Electronic Systems, Inc. at (262) 279-0210. Enclosed you will find a copy of our test report with the information and results of tests that is required under Part 15, Section 15.231. Thank you for your assistance in this matter. Sincerely, William M. Stumpf DLS/js

F?FTtcn NDLoG,E.s' phone: 800.669.9946 web: www.rft,com 3125 North 126th Street, Brookfield, Wl 53005 USA LETTER OF AUTHORIZATION FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Ladies and or Gentlemen I appoint Bill Stumpf or Arnom C. Rowe to act as agent in the preparation of applications under Part 15 of the Rules and Regulations of the Federal Communications Commission. I certify that the exhibits properly describe the device being submitted under this application and will implement any changes described in the test report. The following statement is required by the Federal Communications Commission: By checking yes, the applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988,21 U.S.C. 853(a), or, in the case of an non-individual applicant (e.g. corporation, partnership or other unincorporated association), no party to the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to that section. X YESNO çr'-day of )¡t^. 20)f Agency agreement expiration date: None Dated this By -/ha7 P^rt f , Lo,5sr. -'\--- tlgnarure Printed /öo_ LIl_qøvL TitleP --1 I (.,1 ^ol o T 2 Applicant ? -fc.ú..o lo rC

166 South Carter Street, Genoa City, WI 53128 Request for Confidentiality Date: February 10, 2015 FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 RE: Certification Application FCC ID: KXU-MBTX2 Pursuant to 47 CFR Section 0.459, RF Technologies Inc. understands that requests for non disclosure and confidential treatment is being made for the following information as stated under the Code of Federal Regulations Chapter 47, Part 0.459:  Block Diagram  Schematics  Operational Description The above materials contain trade secrets, proprietary and technical information that would customarily be guarded from competitors under 47 CFR section 0.457(d)(2). Disclosure or publication of any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. RF Technologies Inc. understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Thank you for your attention to this matter. Signatory William M. Stumpf OATS Manager D.L.S. Electronic Systems, Inc.

166 South Carter Street, Genoa City, WI 53128 Letter of Agency Date: February 10, 2015 FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 To Whom It May Concern: Please be advised that RF Technologies Inc. authorizes D.L.S. Electronic Systems, Inc. to act on their behalf, until otherwise notified, for applications submitted to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Signatory, William M. Stumpf OATS Manager D.L.S. Electronic Systems, Inc. 166 South Carter Street, Genoa City, WI 53128 FCC Labeling Requirements and Information Date: February 10, 2015 FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 RE: FCC Labeling Requirements FCC ID: KXU-MBTX2 The following label information is required by the FCC Rules and Regulations for certified devices. Thank you for your attention to these matters. Sincerely, William M. Stumpf OATS Manager D.L.S. Electronic Systems, Inc. 166 South Carter Street, Genoa City, WI 53128 Modification Letter Date: February 10, 2015 FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 RE: Certification Application FCC ID: KXU-MBTX2 Please be advised that the following information is a list of modifications that will be included in the production process for the above-referenced equipment. Change 1: There were no modifications made during testing. Change 2: Change 3: Change 4: Thank you for your attention to this matter. Signatory William M. Stumpf OATS Manager D.L.S. Electronic Systems, Inc.

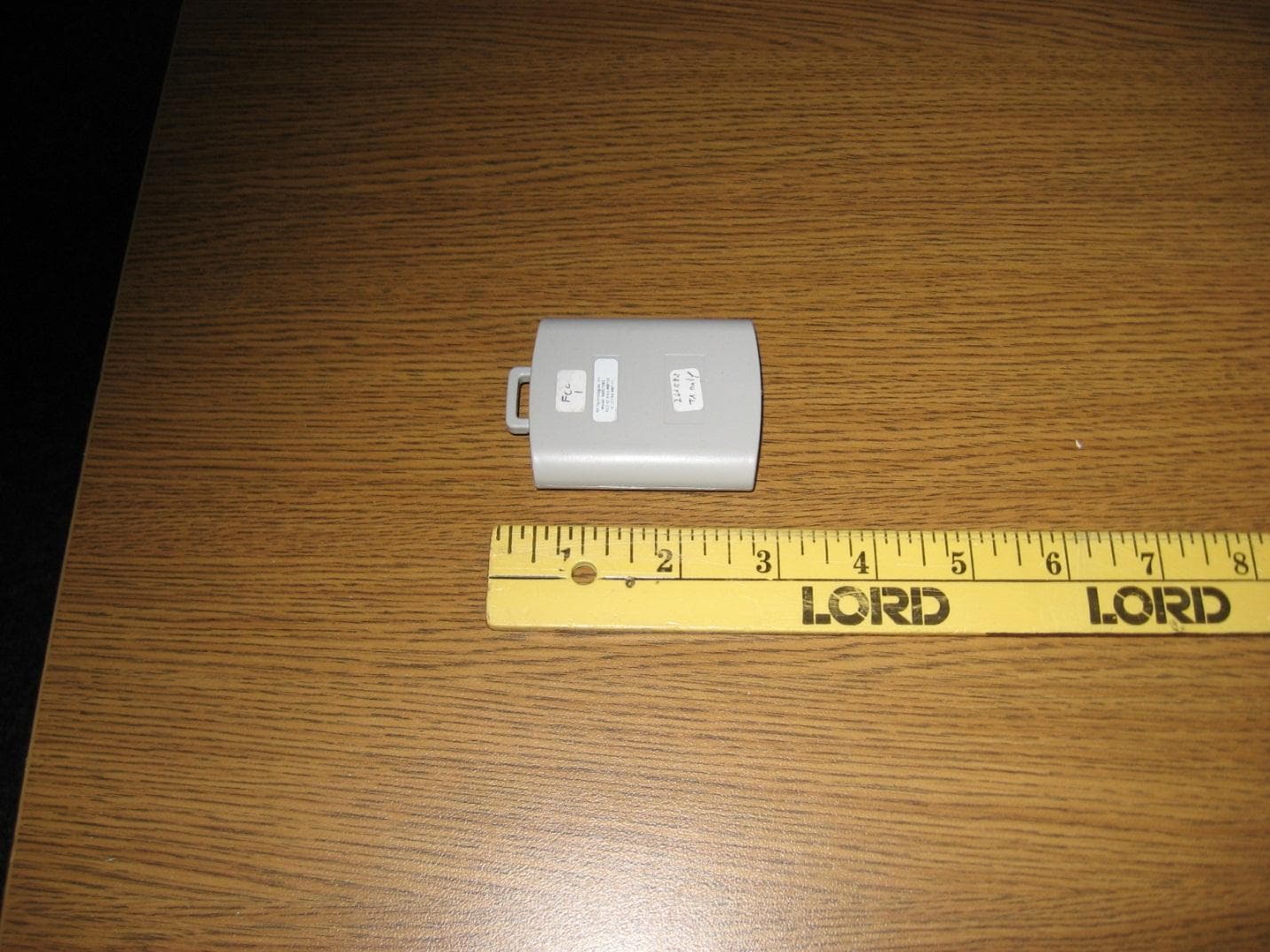

RF Technologies Inc. Baby Check Transmitter Front RF Technologies Inc. Baby Check Transmitter Rear

Part Number: 0150-0948 Description: Baby Check Transmitter, 66 kHz FCC/IC Label Revision: A Mark as follows: Label to be printed on Label Stock (P/N 0440-0026) All lettering and logo to be black RF Technologies, Inc Model: 9450-7066 FCC ID: KXU-MBTX2 IC: 2719A-MBTX2 0.25 inch 0.75 inch Part Number: 0150-0949 Description: Baby Check Transmitter, 262 kHz FCC/IC Label Revision: A Mark as follows: Label to be printed on Label Stock (P/N 0440-0026) All lettering and logo to be black RF Technologies, Inc Model: 9450-7262 FCC ID: KXU-MBTX2 IC: 2719A-MBTX2 0.25 inch 0.75 inch Label Location

RF Technologies Inc. Baby Check Transmitter Housing Open with Batteries RF Technologies Inc. Baby Check Transmitter Circuit Board Top RF Technologies Inc. Baby Check Transmitter Circuit Board Bottom

166 South Carter, Genoa City, WI 53128 1 of 22 Company: RF Technologies Inc. Model Tested: 9450-7066 and 9450-7262 Report Number: 20628 Project Number: 6983 i. Cover Page Code of Federal Regulations 47 Part 15 – Radio Frequency Devices Subpart C – Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70 MHz and above 70 MHz & Section 15.209 Radiated Emission Limits: General Requirements THE FOLLOWING MEETS THE ABOVE TEST SPECIFICATION Formal Name: Baby Check Kind of Equipment: Wireless Infant Security Device Frequency Range: 318 MHz transmitter (with 66 kHz receiver) Model 9450-7066 318 MHz transmitter (with 262 kHz receiver) Model 9450-7262 Test Configuration: Tabletop - battery operated device tested in three orthogonal positions Model Number(s): 9450-7066, 9450-7262 Model(s) Tested: 9450-7066, 9450-7262 Serial Number(s): none (Test Sample) Date of Tests: January 6 and February 6, 2015 Test Conducted For: RF Technologies, Inc. 3125 N. 126 th Street Brookfield, WI 53005 NOTICE: “This test report relates only to the items tested and must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government”. Please see the "Description of Test Sample" page listed inside of this report. © Copyright 1983 - 2015 D.L.S. Electronic Systems, Inc. - FCC Registration # 90531 COPYRIGHT NOTICE This report must not be reproduced (except in full), without the approval of D.L.S. Electronic Systems, Inc. 166 South Carter, Genoa City, WI 53128 2 of 22 Company: RF Technologies Inc. Model Tested: 9450-7066 and 9450-7262 Report Number: 20628 Project Number: 6983 ii. Signature Page SIGNATURE PAGE Tested or Supervised By: Craig Brandt Senior Test Engineer Reviewed By: William Stumpf OATS Manager Approved By: Brian Mattson General Manager 166 South Carter, Genoa City, WI 53128 3 of 22 Company: RF Technologies Inc. Model Tested: 9450-7066 and 9450-7262 Report Number: 20628 Project Number: 6983 iii. Table of Contents Table of Contents i. Cover Page .......................................................................................................................................1 ii. Signature Page .................................................................................................................................2 iii. Table of Contents .............................................................................................................................3 iv. NVLAP Certificate of Accreditation ...............................................................................................4 1.0 Summary of Test Report ..................................................................................................................5 2.0 Introduction ......................................................................................................................................5 3.0 Test Facilities ...................................................................................................................................5 4.0 Description of Test Sample ..............................................................................................................6 5.0 Test Equipment ................................................................................................................................7 6.0 Test Arrangements ...........................................................................................................................7 7.0 Test Conditions ................................................................................................................................8 8.0 Modifications Made To EUT For Compliance ................................................................................8 9.0 Additional Descriptions ...................................................................................................................8 10.0 Results ..............................................................................................................................................8 11.0 Conclusion .......................................................................................................................................8 Appendix A – Test Setup Photos .................................................................................................................9 Appendix B – Measurement Data ..............................................................................................................11 B1.0 Emission Bandwidth – 20 dB ................................................................................................... 11 B2.0 Automatic Deactivation ............................................................................................................ 13 B3.0 Periodic Transmissions ............................................................................................................. 15 B4.0 Field Strength of Emissions – Fundamental and Spurious ....................................................... 18 B5.0 Duty Cycle Correction .............................................................................................................. 20 166 South Carter, Genoa City, WI 53128 4 of 22 Company: RF Technologies Inc. Model Tested: 9450-7066 and 9450-7262 Report Number: 20628 Project Number: 6983 iv. NVLAP Certificate of Accreditation 166 South Carter, Genoa City, WI 53128 5 of 22 Company: RF Technologies Inc. Model Tested: 9450-7066 and 9450-7262 Report Number: 20628 Project Number: 6983 1.0 Summary of Test Report It was determined that the Baby Check transmitter, Models 9450-7066 and 9450-7262, comply with the requirements of CFR 47 Part 15 Subpart C Section 15.231 and 15.209. Subpart C Applicable Technical Requirements Tested: Section Description Procedure Note Compliant? 15.231(c) Emission Bandwidth – 20 dB ANSI C63.10-2009 2 Yes 15.231(a)(2) Automatic Deactivation ANSI C63.10-2009 2 Yes 15.231(a)(3) Periodic Transmissions ANSI C63.10-2009 2 Yes 15.…

Text truncated - open the document above for the full version.

Test Setup Photos: Company: RF Technologies Inc. Item: EUT – Baby Check transmitter Models: 9450-7066 and 9450-7262 Radiated X Position Radiated Y Position Radiated Z Position Radiated above 1 GHz
