FCC ID: KXU-PGRCCZ24 D.L.S. ELECTRONIC SYSTEMS, INC. 1250 Peterson Drive Wheeling, Illinois 60090 FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21045-0429 Gentlemen: We are submitting for RF Technologies, Inc., Inc., a Pager Transmitter, Model Number: 0800-0297, with a FCC ID: KXU-PGRCCZ24 for Certification. This unit has been tested and complies to Part 15, Subpart C. If there are any questions in regards to this application, please call D.L.S. Electronic Systems, Inc. at (847) 537 6400. Enclosed you will find a copy of our test report with the information and results of tests that is required under Part 15, Section 15.247. Thank you for your assistance in this matter. Sincerely, Arnom C. Rowe EMC-001375-NE DLS/sr

Request for Confidentiality Date: March 21, 2007 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: KXU-PGRCCZ24 Pursuant to 47 CFR Section 0.459 RF Technologies, Inc. understands that requests for non disclosure and confidential treatment is being made for the following information as stated under the Code of Federal Regulations Chapter 47, Part 0.459 and behalf of APPLICANT NAME: • Block Diagram • Schematics • Technical Product Description The above materials contain trade secrets, proprietary and technical information that would customarily be guarded from competitors under 47 CFR section 0.457(d)(2). Disclosure or publication of any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. RF Technologies, Inc. understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Thank you for your attention to this matter. Signatory Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc.

Letter of Agency Date: March 21, 2007 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Please be advised that RF Technologies, Inc. authorizes D.L.S. Electronic Systems, Inc. to act on our behalf, until otherwise notified, for applications submitted to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Signatory, Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc. FCC Labeling Requirements and Information Date: March 21, 2007 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: FCC Labeling Requirements FCC ID: KXU-PGRCCZ24 The following label information is required by the FCC Rules and Regulations for certified devices. Also attached, please find marketing information required by the FCC Rules and Regulations. Thank you for your attention to these matters. Sincerely, Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc. Modification Letter Date: March 21, 2007 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: KXU-PGRCCZ24 Please be advised that the following information is a list of modifications that will be included in the production process for the above-referenced equipment. Change 1: There were no modifications made during testing. Change 2: Change 3: Change 4: Change 5: Change 6: Change 7: Change 8: Change 9 Change 10: Thank you for your attention to this matter. Signatory Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc. Manufacturer’s Letter Date: March 21, 2007 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: KXU-PGRCCZ24 To Whom It May Concern: Please be advised that the manufacturer will ensure that the above-referenced model will be manufactured in accordance with the FCC Rules and Regulations. Thank you for your attention to this matter. Signatory Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc.

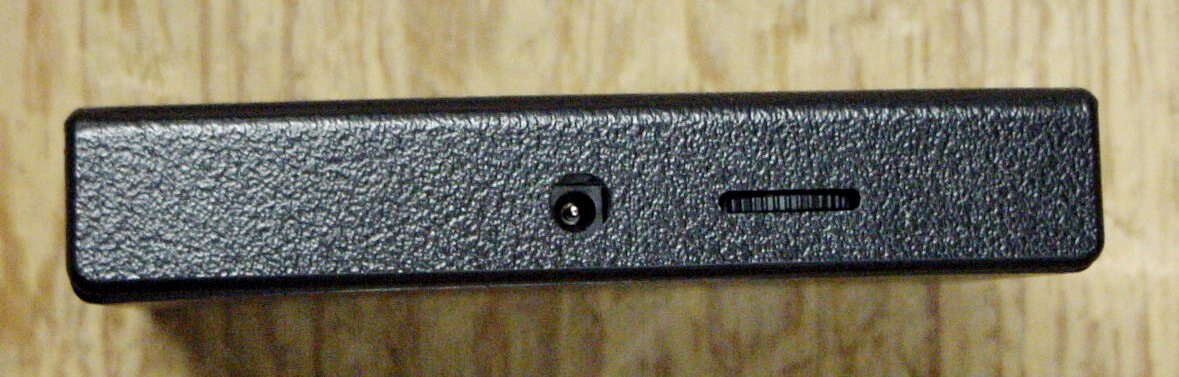

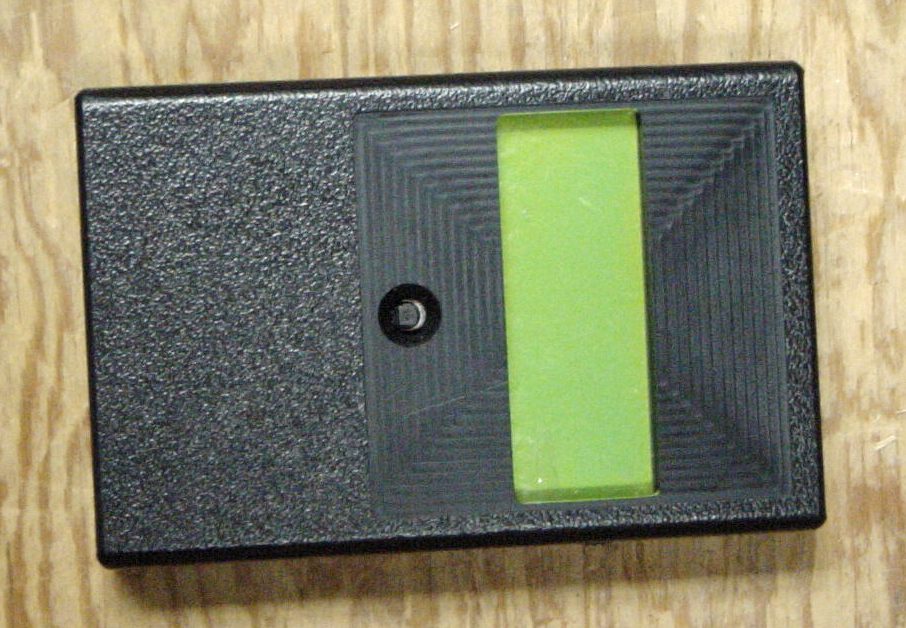

Company: RF Technologies Model: ZigBee Pager Model: 0800-0297 FCC ID: KXU-PGRCCZ24 IC: 2719A- PGRCCZ24 Date: 02-15-2007 Photo Description: Front Company: RF Technologies Model: ZigBee Pager Model: 0800-0297 FCC ID: KXU-PGRCCZ24 IC: 2719A- PGRCCZ24 Date: 02-15-2007 Photo Description: Back Company: RF Technologies Model: ZigBee Pager Model: 0800-0297 FCC ID: KXU-PGRCCZ24 IC: 2719A- PGRCCZ24 Date: 02-15-2007 Photo Description: Right side

3125 N. 126 th Street, Brookfield, Wisconsin 53005 Label Part Number: 0150-0586 Description: Pager FCC Label Revision: A Mark as follows: RF Technologies, Inc. www.rft.com 1.800.669.9946 Model: 0800-0297 FCC ID: KXU-PGRCCZ24 IC: 2719A-PGRCCZ24 "This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation." Font: Arial Size: 9 All lettering to be black Use 1” x 2” label stock (RFT P/N 0440-0015) Page: 1 Location of Label on Completed Unit Page: 2

Company: RF Technologies Model: ZigBee Pager Model: 0800-0297 FCC ID: KXU-PGRCCZ24 IC: 2719A- PGRCCZ24 Date: 02-15-2007 Photo Description: Back cover removed Company: RF Technologies Model: ZigBee Pager Model: 0800-0297 FCC ID: KXU-PGRCCZ24 IC: 2719A- PGRCCZ24 Date: 02-15-2007 Photo Description: Circuit board – component side Company: RF Technologies Model: ZigBee Pager Model: 0800-0297 FCC ID: KXU-PGRCCZ24 IC: 2719A- PGRCCZ24 Date: 02-15-2007 Photo Description: Circuit board – solder side Company: RF Technologies Model: ZigBee Pager Model: 0800-0297 FCC ID: KXU-PGRCCZ24 IC: 2719A- PGRCCZ24 Date: 02-15-2007 Photo Description: Inside covers

RF Exposure Statement 1. Standard Applicable According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a portable device. 2. Measurement Result: This is a portable device and the max peak output power is .96 dBm (.8 mW). Lower than the low threshold 60/f GHz = (24.19 mW), d<2.5 cm general population category. The SAR measurement is not necessary.

1250 Peterson Dr., Wheeling, IL 60090 Company: RF Technologies, Inc. Model Tested: 0800-0297 Report Number: 12956 FCC Rules and Regulations / Intentional Radiators Operational in the 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz, Bands Part 15, Subpart C, Section 15.247 THE FOLLOWING ''MEETS'' THE ABOVE TEST SPECIFICATION Formal Name: Pager Kind of Equipment: Nurse Call and Security Device Test Configuration: Wireless Connection (Tested at 120 vac, 60 Hz) Model Number(s): 0800-0297 Model(s) Tested: 0800-0297 Serial Number(s): NA Date of Tests: January 10, 11 and February 5 & 6, 2007 Test Conducted For: RF Technologies, Inc. 3125 N. 126th Street Brookfield, Wisconsin 53066 NOTICE: “This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government”. Please see the "Additional Description of Equipment Under Test" page listed inside of this report. © Copyright 1983- 2006 D.L.S. Electronic Systems, Inc COPYRIGHT NOTICE This report or any portion their of, may not be reproduced or modified in any form without the expressed written consent of D.L.S. Electronic Systems, Inc. Page -1 of 84- 1250 Peterson Dr., Wheeling, IL 60090 Company: RF Technologies, Inc. Model Tested: 0800-0297 Report Number: 12956 SIGNATURE PAGE Report By: Arnom C. Rowe Test Engineer EMC-001375-NE Reviewed By: William Stumpf OATS Manager Approved By: Brian Mattson General Manager Company Official: RF Technologies, Inc. Page -2 of 84- 1250 Peterson Dr., Wheeling, IL 60090 Company: RF Technologies, Inc. Model Tested: 0800-0297 Report Number: 12956 TABLE OF CONTENTS i. Cover Page .......................................................................................................................................1 ii. Signature Page .................................................................................................................................2 iii. Table of Contents .............................................................................................................................3 iv. NVLAP Certificate of Accreditation ...............................................................................................5 1.0 Summary of Test Report ..................................................................................................................6 2.0 Introduction......................................................................................................................................6 3.0 Object ...............................................................................................................................................6 4.0 Test Set-Up ......................................................................................................................................7 5.0 Test Equipment ................................................................................................................................7 6.0 Ambient Measurements ...................................................................................................................8 7.0 Description of Test Sample..............................................................................................................9 8.0 Additional Description of Test Sample..........................................................................................10 9.0 Photo Information and Test Set-Up ...............................................................................................11 10.0 Radiated Photos Taken During Testing .........................................................................................12 10.0 Conducted Photos Taken During Testing ......................................................................................15 11.0 Results of Tests ..............................................................................................................................17 12.0 Conclusion .....................................................................................................................................17 TABLE 1 – EQUIPMENT LIST ...............................................................................................................18 Page -3 of 84- 1250 Peterson Dr., Wheeling, IL 60090 Company: RF Technologies, Inc. Model Tested: 0800-0297 Report Number: 12956 TABLE OF CONTENTS Appendix A – Electric Field Radiated Emissions Test..............................................................................20 1.0 Conducted Emission Measurements ..............................................................................................21 1.0 Conducted Data and Graph(s) taken during testing .......................................................................22 2.0 Spurious Emissions at the Antenna Terminals ..............................................................................27 2.0 Conducted Emission Data and Charts made at the Antenna Terminals ........................................28 3.0 Conducted Emissions (Antenna Terminal) Photos Taken During Testing...................................41 4.0 Restricted Bands ............................................................................................................................42 5.0 Band Edge and Restricted Band Compliance ................................................................................42 5.0 Data and Graph(s) taken showing the Band Edge and Restricted Band Compliance ...................43 5.0 Data and Graph(s) taken showing the Lower Band Edge..............................................................49 5.0 Data and Graph(s) taken showing the Upper Band Edge ..............................................................52 6.0 Field Strength of Fundamental and Spurious Emission Measurements ........................................55 6.0 Radiated Data and Graph(s) taken for Fundamental and Spurious Emission................................57 7.0 6 dB Bandwidth Graphs taken during testing .................…
