KXU-SEEK01RFID Tag

Mobile Locating System User Manual P/N: 3100- 0000- 0 00 5 Released: 01/06/0 Tabl e of Cont ents Syste m Overvi ew ................................................................................................. 4 System Co m p onents ............................................................................................ 5 Tags ................................................................................................................. 5 Receiver Ca rd .................................................................................................. 5 Poc k et PC ........................................................................................................ 5 Soft ware .......................................................................................................... 5 In stallin g So ft ware ............................................................................................... 6 In stallin g Receiv er Card ...................................................................................... 6 M o u n t i n g Ta gs ..................................................................................................... 7 Startin g th e App licatio n ....................................................................................... 8 Main W i n dow ...................................................................................................... 9 Perform i ng Finds ............................................................................................... 10 On lin e / Offline ............................................................................................. 10 Selecting a Find ............................................................................................. 11 Fin d Resu lts ................................................................................................... 12 Viewing Tag Details ..................................................................................... 13 Viewin g Histo r y ................................................................................................. 14 Pro g r am m i ng Tags ............................................................................................. 15 Tag E n try ........................................................................................................... 16 Ad d Tags ....................................................................................................... 16 Edit Tags ....................................................................................................... 17 Delete Tag s ................................................................................................... 17 In teg r ating with Mob ile Resou r ce Man a g e r ...................................................... 18 Serv ices Setting s ........................................................................................... 18 Down lo ad ing ................................................................................................. 19 U p lo a d in g ...................................................................................................... 20 Add itio n a l Settin g s ............................................................................................ 21 Sy stem Inf o rm ation ............................................................................................ 22 Fre que nt l y As ked Q u est i o ns .............................................................................. 23 Specifications ..................................................................................................... 25 Mobile Reader ............................................................................................... 25 Tag ................................................................................................................ 25 Service and Re pair ............................................................................................. 26 War r anty ............................................................................................................ 27 2 Federal Communicatio n Commission (FCC) Compliance Th is d e v i ce com p l i es with Part 15 o f th e FC C Ru les. Op eratio n is su bj ect t o th e fo llo wi n g two co nd itio ns: (1 ) th is d e v i ce m a y no t cause harm ful interfe r ence , a n d (2) this device m u st accept a n y int e rfe rence receive d, i n cluding inte rfe rence th at m a y ca use undesi red ope ration. Thi s e qui pm ent gene rat e s, use s , a n d can ra di at e radi o f r e q u e ncy ene r gy an d, i f not i n stalled a n d use d in accordance w ith the instruction m a nual, m a y cause h a rm fu l in terferen ce to rad i o co mm u n i catio n s . Op eration of th is equ i p m en t in a resid e n tial area is lik ely to cause h a rm fu l in terferen c e in wh ich case th e u s er will be req u i r e d t o cor r ect t h e i n t e rfe rence at hi s ow n e x pen s e. C h an ges o r m odi fi cat i ons not e x pres sl y app r ove d by t h e pa rt y res p o n si bl e f o r com p l i a nce v o i d s t h e u s er's au thority to operate th e equ i pmen t. FCC I D : KX U- SEEK0 1 FCC Ra diation Exposure Statemen t Th is eq u i p m en t co m p lies with FCC rad i a tio n ex po su re li mits set forth fo r an unc o n t r ol l e d e nvi ro nm ent . T h i s e qui pm ent sho u l d be i n st a l l e d an d ope rat e d wi t h m i nim a l di st ance 2 0 cm bet w e e n t h e ra di ator an d you r bod y. Th is t r an sm itt er m u st n o t b e co- l o cated or o p er atin g in con j un ctio n w ith any o t h e r an tenna or tran sm it ter. 3 System Overview Th e Seek er M o b ile Lo cating Syste m is an asset track ing syste m u tilizin g a m o b ile read er to allow rem o te read i n g o f RFID ta gs . T h e See k er mobile reade r c o nsists of a Poc k et PC wi th a c u stom rec e iver ca rd insta lled. T h e m obi le reade r is use d to "search" an are a for "ta g s" which are att ache …

Text truncated - open the document above for the full version.

FCC ID: KXU-SEEK01 D.L.S. ELECTRONIC SYSTEMS, INC. 1250 Peterson Drive Wheeling, Illinois 60090 FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21045-0429 Gentlemen: We are submitting for RF Technologies, Inc., Inc., a Seeker Tag Transmitter, Model Number: SEEKER01, with a FCC ID: KXU-SEEK01 for Certification. This unit has been tested and complies to Part 15, Subpart C. If there are any questions in regards to this application, please call D.L.S. Electronic Systems, Inc. at (847) 537 6400. Enclosed you will find a copy of our test report with the information and results of tests that is required under Part 15, Section 15.231. Thank you for your assistance in this matter. Sincerely, Arnom C. Rowe EMC-001375-NE DLS/sr

LETTER OF AUTHORIZATION FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21045-0429 Ladies and or Gentlemen: I appoint Brian J. Mattson or Arnom C. Rowe to act as agent in the preparation of applications under Part 15 of the Rules and Regulations of the Federal Communications Commission. I certify that the exhibits properly describe the device being submitted under this application and will implement any changes described in the test report. The following statement is required by the Federal Communications Commission: By checking yes, the applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a), or, in the case of an non-individual applicant (e.g. corporation, partnership or other unincorporated association), no party to the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to that section. __X___ YES _____ NO Dated this __ ____18 th ______ day of ___February___ 2005 Agency agreement expiration date: None By ____ _______Michael J. Leigh____ Signature Printed Title ___Director, Quality ____________ Telephone ____262-373-5184___ Applicant ________RF Technologies, Inc.____________

Letter of Agency Date: March 2, 2005 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Please be advised that RF Technologies, Inc. authorizes D.L.S. Electronic Systems, Inc. to act on our behalf, until otherwise notified, for applications submitted to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Signatory, Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc. FCC Labeling Requirements and Information Date: March 2, 2005 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: FCC Labeling Requirements FCC ID: KXU-SEEK01 The following label information is required by the FCC Rules and Regulations for certified devices. Also attached, please find marketing information required by the FCC Rules and Regulations. Thank you for your attention to these matters. Sincerely, Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc. Request for Confidentiality Date: March 2, 2005 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: KXU-SEEK01 Please be advised that the following information is to be held confidential and behalf of APPLICANT NAME: • Block Diagram • Schematics The application contains technical information which RF Technologies, Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Signatory Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc. Modification Letter Date: March 2, 2005 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: KXU-SEEK01 Please be advised that the following information is a list of modifications that will be included in the production process for the above-referenced equipment. Change 1: There were no modifications made during testing. Change 2: Change 3: Change 4: Change 5: Change 6: Change 7: Change 8: Change 9 Change 10: Thank you for your attention to this matter. Signatory Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc. Manufacturer’s Letter Date: March 2, 2005 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: KXU-SEEK01 To Whom It May Concern: Please be advised that the manufacturer will ensure that the above-referenced model will be manufactured in accordance with the FCC Rules and Regulations. Thank you for your attention to this matter. Signatory Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc.

Company: RF Technologies Product: Seeker Tag FCC ID#: KXU-SEEK01 Date: 2/23/2005 Photo Description: Front of Unit Company: RF Technologies Product: Seeker Tag FCC ID#: KXU-SEEK01 Date: 2/23/2005 Photo Description: Back of Unit Company: RF Technologies Product: Seeker Tag FCC ID#: KXU-SEEK01 Date: 2/23/2005 Photo Description: Inside of Covers

Company: RF Technologies Product: Seeker Tag FCC ID#: KXU-SEEK01 Date: 2/23/2005 Photo Description: FCC ID Location

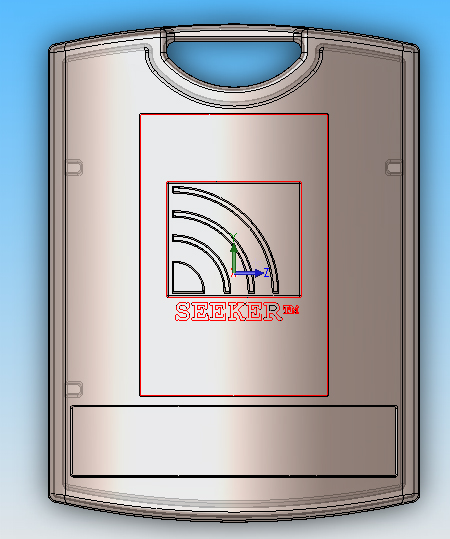

.406 .806 INSERT IN TOOLING. TEXT TO BE SPE #2 FINISH. 0.005" RECESSED AREA. THIS AREA TO BE AN NO TEXTURE HERE 1.5:1 SEEKER ENCLOSURE BOTTOM 02/08/05 0220-0151 D C B A A B C D SCALE: SIZE CAD FILE: DWG. NO. B SHEET 1 OF 2 REV. DN004 NATURAL THE WRITTEN PERMISSION OF RF TECHNOLOGIES IS PROHIBITED. TOLERANCES ARE: MATERIAL FINISH DO NOT SCALE DRAWING 123 456 7 8 8 7 6 5 4 32 1 REVISIONS REV CHANGE DESCRIPTION DATE INITIALS ECO 02/05/2005 A 2501-05 RELEASE WJN H CAD GENERATED DRAWING. DO NOT UPDATE MANUALLY. DIMENSIONS ARE IN INCHES UNLESS OTHERWISE SPECIFIED 0.5 MAXIMUM ACCURACY REQUIRED RF TECHNOLOGIES, INC. 0.005 BROOKFIELD, WI 53005 DRAWN BY: CHECKED BY: DATE: WJN Q:\ 3125 NORTH 126TH STREET DECIMALS ANGLES THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF RF TECHNOLOGIES, INC. ANY REPRODUCTION IN PART OR WHOLE WITHOUT SEE NOTES

Product: Seeker Tag FCC ID#: KXU-SEEK01 Date: 2/23/2005 Photo Description: Top of Transceiver Board Company: RF Technologies Product: Seeker Tag FCC ID#: KXU-SEEK01 Date: 2/23/2005 Photo Description: Top Side of Transceiver Board with Speaker Moved Away Company: RF Technologies Product: Seeker Tag FCC ID#: KXU-SEEK01 Date: 2/23/2005 Photo Description: Bottom of Transceiver Board Company: RF Technologies Product: Seeker Tag FCC ID#: KXU-SEEK01 Date: 2/23/2005 Photo Description: Bottom of Transceiver Board with Batter Cover Removed

Functional Operation The Seeker Hand Held Reader and Tags are designed to provide a simple and low cost RFID system. A commercially available Personal Digital Assistant (PDA) and a custom transceiver card will comprise a Hand Held Reader. The Hand Held Reader has the ability to display through a custom graphical user interface (GUI) the tags in its immediate vicinity. The custom receiver card receives a signal from the tags on an internationally recognized frequency of 433 MHz. The Hand Held Reader is used to “search” an area for “tags” which are attached to various pieces of equipment. The tag is programmed with two ‘3-digit’ codes and attached to the equipment to be tracked. The tag will audibly ‘chirp’ and broadcast its code in response to the proper signal from the reader to both identify and determine tag status. The primary use for the Seeker is finding assets within a hospital environment. In this application the reader is used to determine if an individual tag is within the range of the reader, thus creating a simple finder application. Another possibility for use is in inventorying assets. The Hand Held Reader applications could include inventorying tags in lumberyards or utility storage areas. The driver of a vehicle could drive through the lot and create an inventory through the reader. The reader would integrate with the PinPoint Mobile Resource Manager (MRM) through its sync cradle. When the user returns from the field they would place the PDA in its cradle and the data it most recently acquired would be downloaded into the MRM database. The MRM integration would also include the ability to enter tag information through the MRM Tag Builder application and have tag information uploaded to the PDA.

RF Exposure Exhibit for RF Technologies KXU-SEEK01 RFID Tag Since the EUT only transmits when it receives a signal from the Hand Held Unit, during normal operation the user would not be touching the Seeker Tag. There are no buttons on the device to make it transmit. This means a distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structure and the body of the user or nearby persons. Therefore, this device is classified under section 2.1091 as a “mobile” device. Although this device is categorically excluded from RF exposure evaluation under Part 2, it can be shown that the device meets the limits used for evaluating other devices (those which are not excluded) under this section. Section 2.1091 for mobile devices state that the limits are given in 1.1310. The limit given in 1.1310 for general population/uncontrolled at 433.9164 MHz is a Maximum Permissible Exposure (MPE) limit of (f/1500) mW/cm 2 . For 433.9164 MHz this limit is 0.2893 mW/cm 2 . The FCC OET Bulletin 65 Section 2 can be used to determine compliance with guidelines for human exposure to RF radiation. We will use equation 3 of that section for predicting RF fields. The highest power measurement for this device is -25.8 dBm. For this prediction we will use a worst-case power of –25 dBm or .003 nW. Since the device is “mobile”, we will use a worst-case distance of 20 cm. For worst-case antenna gain, we will use a gain of one. Using equation 3 of OET Bulletin 65 Section 2, the power density is calculated to be 0.000000629 mW/cm 2 . This is well within the limit given in 1.1310.

1250 Peterson Dr., Wheeling, IL 60090 Company: RF Technologies, Inc. Model Tested: SEEKER01 Report Number: 11208 FCC Rules and Regulations / Intentional Radiators Periodic operational in the 40.66-40.70 MHz Band and above 70 MHz. Part 15, Subpart C, Section 15.231 THE FOLLOWING ''MEETS'' THE ABOVE TEST SPECIFICATION Formal Name: Seeker Tag Kind of Equipment: RFID Tag Test Configuration: Self-contained Unit (Tested at 3 vdc) Model Number(s): SEEKER01 Model(s) Tested: SEEKER01 Serial Number(s): 000.000.001.001 Date of Tests: February 23, 2005 Test Conducted For: RF Technologies, Inc. 3125 N. 126th St Brookfield, Wisconsin 53005 NOTICE: “This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government”. Please see the "Additional Description of Equipment Under Test" page listed inside of this report. This report must not be reproduced (except in full), without the approval of D.L.S. Electronic Systems. Page - 1 - 1250 Peterson Dr., Wheeling, IL 60090 Company: RF Technologies, Inc. Model Tested: SEEKER01 Report Number: 11208 SIGNATURE PAGE Report By: Arnom C. Rowe Test Engineer EMC-001375-NE Reviewed By: William Stumpf OATS Manager Approved By: Brian Mattson General Manager Company Official: RF Technologies, Inc. Page - 2 - 1250 Peterson Dr., Wheeling, IL 60090 Company: RF Technologies, Inc. Model Tested: SEEKER01 Report Number: 11208 Page -3 - 1250 Peterson Dr., Wheeling, IL 60090 Company: RF Technologies, Inc. Model Tested: SEEKER01 Report Number: 11208 Page -4 - 1250 Peterson Dr., Wheeling, IL 60090 Company: RF Technologies, Inc. Model Tested: SEEKER01 Report Number: 11208 Page -5 - 1250 Peterson Dr., Wheeling, IL 60090 Company: RF Technologies, Inc. Model Tested: SEEKER01 Report Number: 11208 Page -6 - 1250 Peterson Dr., Wheeling, IL 60090 Company: RF Technologies, Inc. Model Tested: SEEKER01 Report Number: 11208 Page -7 - 1250 Peterson Dr., Wheeling, IL 60090 Company: RF Technologies, Inc. Model Tested: SEEKER01 Report Number: 11208 Page -8 - 1250 Peterson Dr., Wheeling, IL 60090 Company: RF Technologies, Inc. Model Tested: SEEKER01 Report Number: 11208 Page -9 - 1250 Peterson Dr., Wheeling, IL 60090 Company: RF Technologies, Inc. Model Tested: SEEKER01 Report Number: 11208 Page -10 - 1250 Peterson Dr., Wheeling, IL 60090 Company: RF Technologies, Inc. Model Tested: SEEKER01 Report Number: 11208 Page -11 - 1250 Peterson Dr., Wheeling, IL 60090 Company: RF Technologies, Inc. Model Tested: SEEKER01 Report Number: 11208 Page -12 - 1250 Peterson Dr., Wheeling, IL 60090 Company: RF Technologies, Inc. Model Tested: SEEKER01 Report Number: 11208 Page -13 - 1250 Peterson Dr., Wheeling, IL 60090 Company: RF Technologies, Inc. Model Tested: SEEKER01 Report Number: 11208 Page -14 - 1250 Peterson Dr., Wheeling, IL 60090 Company: RF Technologies, Inc. Model Tested: SEEKER01 Report Number: 11208 Page -15 - 1250 Peterson Dr., Wheeling, IL 60090 Company: RF Technologies, Inc. Model Tested: SEEKER01 Report Number: 11208 TABLE OF CONTENTS i. Cover Page..........................................................................................................................................1 ii. Signature Page....................................................................................................................................2 iii. NVLAP Certificate of Accreditation..............................................................................................3 iv. NVLAP Scope of Accreditation.....................................................................................................4 v. Table of Contents..............................................................................................................................16 1.0 Summary of Test Report...............................................................................................................18 2.0 Introduction...................................................................................................................................18 3.0 Object............................................................................................................................................18 4.0 Test Set-Up...................................................................................................................................19 5.0 Test Equipment.............................................................................................................................19 6.0 Ambient Measurements................................................................................................................20 7.0 Description of Test Sample...........................................................................................................21 8.0 Additional Description of Test Sample......................................................................................... 22 9.0 Photo Information and Test Set-Up..............................................................................................23 10.0 Radiated Photos Taken During Testing........................................................................................ 24 11.0 Results of Tests.............................................................................................................................26 12.0 Conclusion....................................................................................................................................26 TABLE 1 – EQUIPMENT LIST..............................................................................................................27 Page -16 - 1250 Peterson Dr., Wheeling, IL 60090 Company: RF Technologies, Inc. Model Tested: SEEKER01 Report Number: 11208 TABLE OF CONTENTS Appendix A – Electric Field Radiated Emissions Test............................................................................. 29 1.0 Pulsed Operation (Duty Cycle Correction Factor)....................................................................…
