KXU-SP2FSZ24Nurse Call Pendant Transmitter

9600 Series Wireless Call System Hardware Installation Guide PN 0510-1078-D < < 9600 Series Wireless Call System Hardware Installation Guide PN 0510-1078-D Release Date: 02/23/10 Users must read this guide before using the product. < Copyright 2009, 2010 by RF Technologies, Inc. All Rights Reserved. No Part of this work may be reproduced or copied in any form or by any means without written permission from RF Technologies, Inc. Conforms to UL Std. 294 (3048736) Important Warnings It is important for your facility to implement and enforce the following WARNINGS in order to keep all equipment functioning properly. Disregarding the information and instructions in this document is considered abnormal use and may result in injury or system failure. WA R N I N G ACCESSORIES (SUPPLIES)—To ensure patient safety and proper operation of equipment, use only parts and accessories manufactured or recommended by RF Technologies, Inc. Parts and accessories not manufactured or recommended by RF Technologies, Inc. may not meet the requirements of the applicable safety and performance standards. Failure to use the components and supplies specified by RF Technologies, Inc. may result in equipment and/or system failure. WA R N I N G EXPLOSION HAZARD—This device should not be used in the presence of flammable gas mixtures. It should also not be used in oxygen enriched atmospheres. WA R N I N G INSTALLATION AND CONFIGURATION—It is the responsibility of the facility to follow the installation instructions carefully, as outlined in the applicable system guides, and to use the components and supplies specified by RF Technologies, Inc. for all installations. Failure to use the components and supplies specified by RF Technologies, Inc. may result in equipment and/or system failure. WA R N I N G INSTRUCTIONS FOR SET UP AND USE—It is the responsibility of the facility to follow the instructions for set up and use carefully, as outlined in this manual, and to use the components and supplies specified by RF Technologies, Inc. for set up and use. Do not attempt to use extension cords or other equipment not supplied by RF Technologies, Inc. Failure to use the components and supplies specified by RF Technologies, Inc. may result in equipment and/or system failure. WA R N I N G PATIENT GENERATED ALARMS—Do not rely exclusively on patient generated alarms for patient care and safety. The alarm function of equipment in the possession of patients must be verified periodically and regular patient surveillance is recommended. WARNING PATIENT MONITORING—The most reliable method of patient monitoring combines close personal surveillance with correct operation of monitoring equipment. It is the responsibility of the facility to periodically check on patients in possession of RF Technologies, Inc.'s equipment (i.e. Pendants, Pull Cords, Control Units) to mitigate risk of inappropriate use of equipment or strangulation and stumbling hazards from cables and cords WARNING PRODUCT WARRANTIES—Failure to follow the Warnings and Cautions in this guide voids any and all Product Warranties WARNING STATIC DISCHARGE—Do not touch the conductor portion of any conductor or port. Damage to the device may result. WARNING STRANGULATIONS AND TRIPPING HAZARD—Due to the possibility of strangulation, all cables and cords should be routed away from the patient’s throat. Cables and cords must be routed in a way to prevent tripping hazards. WARNING SYSTEM INSPECTION—It is the responsibility of the facility to establish and facilitate a regular inspection schedule for your system. RF Technologies, Inc. recommend quarterly inspections of your system for safety and performance by a qualified RF Technologies, Inc. representative. To arrange for a quarterly inspection by RF Technologies, Inc., call our Technical Support Department at (800)-669-9946 or (262) 790-1771. Failure to provide regular inspection of these products may result in equipment and/or system failure. WARNING SYSTEM MAINTENANCE AND TESTING—It is the responsibility of the facility to establish and facilitate a regular maintenance schedule for your system, as outlined in the applicable system guides. This includes regular inspection, testing, and cleaning. RF Technologies, Inc. recommend monthly maintenance and testing of your system. It is also recommended that your facility keep records of maintenance and test completions. Failure to provide regular maintenance and testing of these products may result in equipment and/or system failure. Bio-Incompatibility Notice Do not use Pendants with people that have sensitivities or allergies to device materials. The device materials include Acrylonitrile butadiene styrene (ABS), Silicon Rubber and Neoprene WARNING SYSTEM WIRING—All permanent supply connections must be done in accordance with National Electric Code, NFPA 70. WARNING USER TRAINING—Only users who have received adequate training on the use of the system, as outlined in this manual, should use the system. It is the responsibility of the facility to ensure all users have been trained. Failure to adequately train employees may cause system failure due to user error. In addition, incorrect use of the equipment may also result in system failure. WARNING WORN OR DAMAGED PARTS—If the control unit pads or cables are worn or damaged, you must have the product serviced. For more information, see the section entitled “Service and Return.” WARNING All RF Technologies transmitters, pendants and banding material “PRODUCT” have been determined to be MR Unsafe as defined by ASTM F 2503-05. Use of “PRODUCT” in a Magnetic Resonance Imaging system will cause injury to patients and staff, MR system malfunction or “PRODUCT” malfunction. Do not bring “PRODUCT” into the MR system area and follow your facilities policies to classify and label “PRODUCT” as MR Unsafe. CAUTION DISPOSAL—At the end of their service life the products described in this manual, as well as accessories (i.e. lithium batteries, banding materi…

Text truncated - open the document above for the full version.

FCC ID: KXU-SP2FSZ24 D.L.S. ELECTRONIC SYSTEMS, INC. 1250 Peterson Drive Wheeling, Illinois 60090 February 19, 2010 FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Gentlemen: We are submitting for RF Technologies, Inc., Inc., an ICM Call Pendant Transmitter, Model Number: 0800-0375, with an FCC ID: KXU-SP2FSZ24 for Certification. This unit has been tested and complies to Part 15, Subpart C. If there are any questions in regard to this application, please call D.L.S. Electronic Systems, Inc. at (847) 537 6400. Enclosed you will find a copy of our test report with the information and results of tests that is required under Part 15, Section 15.247. Thank you for your assistance in this matter. Sincerely, Arnom C. Rowe EMC-001375-NE DLS/cp

1250 Peterson Dr., Wheeling, IL 60090 Request for Confidentiality Date: February 19, 2010 FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 RE: Certification Application FCC ID: KXU-SP2FSZ24 Pursuant to 47 CFR Section 0.459 RF Technologies, Inc. understands that requests for non disclosure and confidential treatment is being made for the following information as stated under the Code of Federal Regulations Chapter 47, Part 0.459 and behalf of APPLICANT NAME: • Block Diagram • Schematics • Description of Operation The above materials contain trade secrets, proprietary and technical information that would customarily be guarded from competitors under 47 CFR section 0.457(d)(2). Disclosure or publication of any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. RF Technologies, Inc. understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Thank you for your attention to this matter. Signatory Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc.

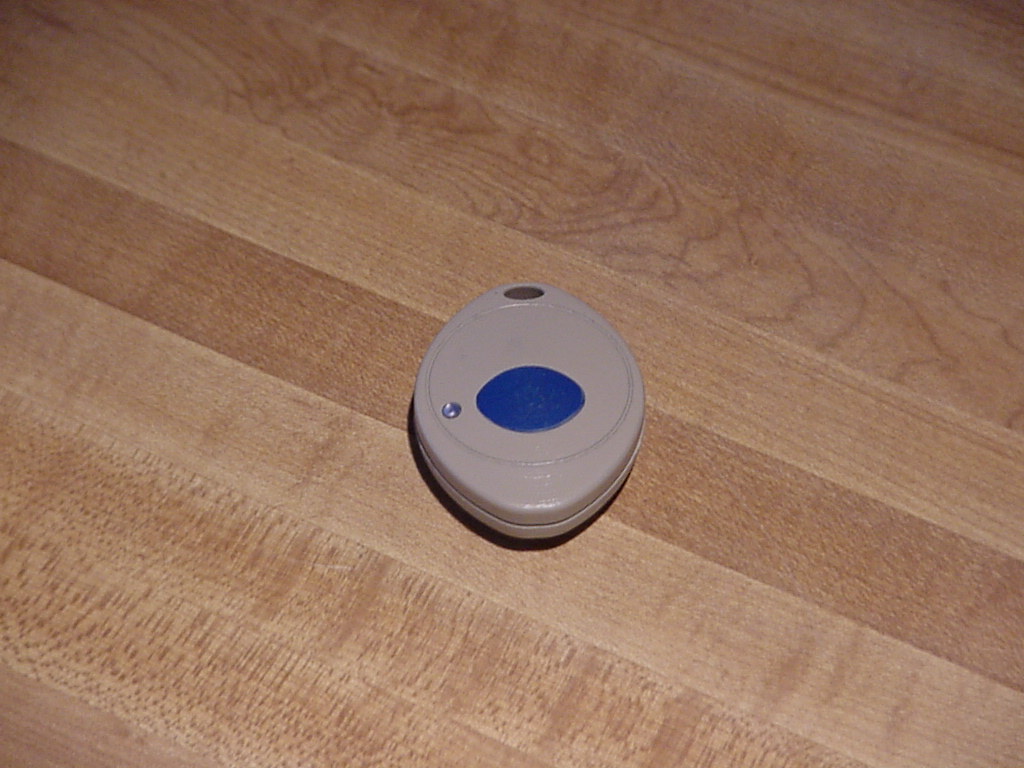

Company: RF Technologies, Inc. Product: ICM Call Pendant Photo Description: Front Company: RF Technologies, Inc. Product: ICM Call Pendant Photo Description: Back

3125 N. 126 th Street, Brookfield, Wisconsin 53005 Label Part Number: 0150-0703 Description: ICM Call Pendant FCC Label Revision: A RF Technologies, Inc. www.rft.com 1.800.669.9946 Model: 0800-0375 FCC ID: KXU-SP2FSZ24 IC: 2719A-SP2FSZ24 Font: Arial Size: 9 Mark as follows: All lettering to be black Use 1” x 1.25” label stock (RFTP/N 0440-0023) or mold into pendant enclosure. Note: The user will open the pendant to insert the battery before giving the pendant to a patient, thereby guaranteeing visibility of the label. The label will have aggressive adhesive to ensure good adhesion. Page: 1 Location of Label on Completed Unit Page: 2

Company: RF Technologies, Inc. Product: ICM Call Pendant Photo Description: Front Company: RF Technologies, Inc. Product: ICM Call Pendant Photo Description: Back Company: RF Technologies, Inc. Product: ICM Call Pendant Photo Description: Side

RF Exposure Statement 1. Standard Applicable According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a portable device. 2. Measurement Result: This is a portable device and the max peak output power is 6.10 dBm (.00407 W). Lower than the low threshold 60/2405 MHz = (24.95 mW), distance <2.5 cm general population category. The SAR/MPE measurement is not necessary.

1250 Peterson Dr., Wheeling, IL 60090 Page -1 of 103- Company: RF Technologies, Inc. Model Tested: 0800-0375 Report Number: 15865 FCC Rules and Regulations / Intentional Radiators Operational in the 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz Bands Part 15, Subpart C, Section 15.247 THE FOLLOWING MEETS THE ABOVE TEST SPECIFICATION Formal Name: ICM Call Pendant FCC ID: KXU-SP2FSZ24 Kind of Equipment: Wireless Nurse Call and Security Device Frequency Range: 2405-2475 Test Configuration: Handheld (Tested at 3 vdc) Model Number(s): 0800-0375 Model(s) Tested: 0800-0375 Serial Number(s): N/A Date of Tests: November 23 & 24, 2009 Test Conducted For: RF Technologies, Inc. 3125 N. 126th Street Brookfield, WI 53066 NOTICE: “This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government”. Please see the "Additional Description of Equipment Under Test" page listed inside of this report. © Copyright 1983-2009 D.L.S. Electronic Systems, Inc COPYRIGHT NOTICE This report must not be reproduced (except in full), without the approval of D.L.S. Electronic Systems, Inc. 1250 Peterson Dr., Wheeling, IL 60090 Page -2 of 103- Company: RF Technologies, Inc. Model Tested: 0800-0375 Report Number: 15865 SIGNATURE PAGE Report By: Arnom C. Rowe Test Engineer EMC-001375-NE Reviewed By: William Stumpf OATS Manager Approved By: Brian Mattson General Manager 1250 Peterson Dr., Wheeling, IL 60090 Page -3 of 103- Company: RF Technologies, Inc. Model Tested: 0800-0375 Report Number: 15865 TABLE OF CONTENTS i. Cover Page .......................................................................................................................................1 ii. Signature Page .................................................................................................................................2 iii. Table of Contents .............................................................................................................................3 iv. NVLAP Certificate of Accreditation ...............................................................................................5 1.0 Summary of Test Report ..................................................................................................................6 2.0 Introduction......................................................................................................................................6 3.0 Object ...............................................................................................................................................6 4.0 Test Set-Up ......................................................................................................................................7 5.0 Test Equipment ................................................................................................................................8 6.0 Ambient Measurements ...................................................................................................................9 7.0 Description of Test Sample............................................................................................................10 8.0 Additional Description of Test Sample..........................................................................................11 9.0 Photo Information and Test Set-Up ...............................................................................................11 10.0 Radiated Photos Taken During Testing .........................................................................................12 11.0 Results of Tests ..............................................................................................................................16 12.0 Conclusion .....................................................................................................................................16 TABLE 1 – EQUIPMENT LIST ...............................................................................................................17 Appendix A – AC Power Line Conducted Emissions Test .......................................................................18 1a. AC Power Line Conducted Emission Measurements ....................................................................19 Appendix B – Electric Field Radiated Emissions Tests ............................................................................20 1b. Spurious Emissions at the Antenna Terminals/Antenna Connector ..............................................21 1b. RF Conducted Emission Data and Charts made at Antenna E1 Terminals ...................................22 1b. RF Conducted Emission Data and Charts made at Antenna E2 Terminals ...................................35 2b. RF Conducted Emissions Photos Taken During Testing...............................................................48 3b. Restricted Bands ............................................................................................................................49 4b. Restricted Band and Band Edge Compliance ................................................................................49 4b. Data and Graph(s) taken showing the E1 Radiated Spurious and Restricted Band Compliance ..50 4b. Data and Graph(s) taken showing the E2 Radiated Spurious and Restricted Band Compliance ..54 1250 Peterson Dr., Wheeling, IL 60090 Page -4 of 103- Company: RF Technologies, Inc. Model Tested: 0800-0375 Report Number: 15865 TABLE OF CONTENTS (cont.) 4b. Data and Graph(s) taken showing the E1 Band Edge Conducted Compliance .............................58 4b. Data and Graph(s) taken showing the E2 Band Edge Conducted Compliance .............................61 5b. Field Strength of Fundamental and Spurious Emission Measurements ........................................66 5b. Radiated Graph(s) taken for E1 Fundamental ...............................................................................68 5b. Radiated Graph(s) taken for E2 Fundamental ..................…

Text truncated - open the document above for the full version.

Company: RF Technologies, Inc. Product: ICM Call Pendant Photo Description: Radiated – X position Company: RF Technologies, Inc. Product: ICM Call Pendant Photo Description: Radiated – Y position Company: RF Technologies, Inc. Product: ICM Call Pendant Photo Description: Radiated – Z position Company: RF Technologies, Inc. Product: ICM Call Pendant Photo Description: Radiated – Close-up Company: RF Technologies, Inc. Product: ICM Call Pendant Photo Description: RF Conducted
