KXYL7XXXNV7XXXXCOLOR LCD MONITOR

Adapter Mainboard PC Inverter Signal cable

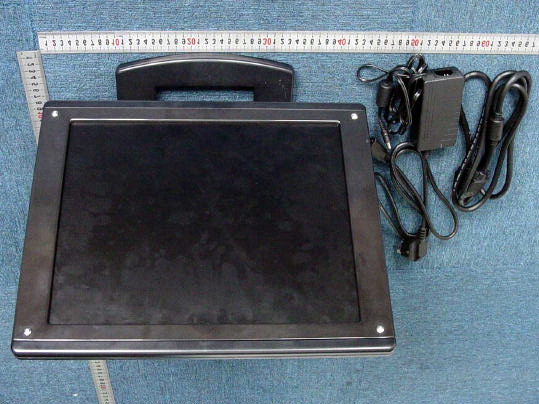

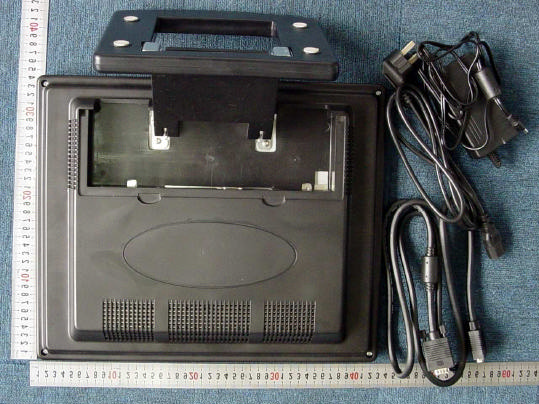

Report No. FCC05-8007 Page 70 of 81 Appendix IPhotographs of the EUT 1. Appearance Report No. FCC05-8007 Page 71 of 81 Report No. FCC05-8007 Page 72 of 81 Report No. FCC05-8007 Page 73 of 81 2. Adaptor Report No. FCC05-8007 Page 74 of 81 UP05071120 WDS050120 Report No. FCC05-8007 Page 75 of 81 3. Panel Chung Hwa

Report No. FCC05-8007 Page 1 of 81 FCC TEST REPORT of Color LCD Monitor Brand name Soly Greatwall Model No. L7XXX, NV7XXXX Serial No. N/A Report No. FCC05-8007 Date June 13, 2005 Prepared for CHINA GREAT-WALL COMPUTER SHENZHEN CO., LTD. Greatwall Computer Industry Park, Baoshi East Rd. Shiyan County, Baoan, Shenzhen, China Prepared by ShenZhen Electronic Product Quality Testing Center Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055, P. R. China. Tel: 86 755 26627338 Fax:86 755 26627238 This test report consists of 81 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by SET. The test results in the report only apply to the tested sample. The Test Report shall be invalid without all the signatures of testing engineers, reviewer and approver. Report No. FCC05-8007 Page 2 of 81 Table of Contents 1 General Description of EUT.........................................................................................................3 2 Summary of Test Results...............................................................................................................5 3 Test Report Certification...............................................................................................................5 4 Conducted Emission Test..............................................................................................................6 4.1 Limits of Conducted Emission..............................................................................................6 4.2 Test Instruments....................................................................................................................6 4.3 Test Procedure.......................................................................................................................6 4.4 Test Setup..............................................................................................................................7 4.5 EUT Operating Conditions....................................................................................................7 4.6 Test Results............................................................................................................................7 5 Radiated Emission Test...............................................................................................................38 5.1 Limits of Radiated Emission...............................................................................................38 5.2 Test Instruments..................................................................................................................38 5.3 Test Procedure.....................................................................................................................38 5.4 Test Setup............................................................................................................................39 5.5 EUT Operating Conditions..................................................................................................39 5.6 Test Results..........................................................................................................................40 Appendix IPhotographs of the EUT..............................................................................................70 Appendix IIPhotographs of Test Configuration............................................................................81 Report No. FCC05-8007 Page 3 of 81 1 General Description of EUT Product: Color LCD Monitor Brand name: Soly Greatwall Model No.: L7XXX, NV7XXXX Power Supply: d.c. 16V, 4A Accessories: Adaptor 1#:Model: WDS050120 Input: 100-240V, 50-60Hz, 1.2A Output: DC16V, 4.16A Adaptor 2#:Model: UP05071120 Input: 100-240V, 50-60Hz, 1.2A Output: DC16V, 4.16A I/O Signal Ports: VGA Applicant: CHINA GREAT-WALL COMPUTER SHENZHEN CO., LTD. Applicant Address: Greatwall Computer Industry Park, Baoshi East Rd. Shiyan County, Baoan, Shenzhen Manufacturer: CHINA GREAT-WALL COMPUTER SHENZHEN CO., LTD. Manufacturer Address: Greatwall Computer Industry Park, Baoshi East Rd. Shiyan County, Baoan, Shenzhen NOTE: 1. The EUT is 17inch LCD Monitor--class B information technology equipment according to FCC Part 15.For a more detailed features description about the EUT, please refer to User’s Manual. 2. The models L7XXX and NV7XXX are a series of color LCD monitor, X can be A to Z or 0 to 9 or none, stands for different customers. 3. This series of color LCD monitor have different on the panel and main-board. Report No. FCC05-8007 Page 4 of 81 All panels and main-boards are listed below: No Manufacture Model No Model 1 Chung Hwa CLAA170EA07 1 RTD2023 2 CHIMEI M170E5-L05 2 ST3800 3 SHARP LQ170ELG11 3 GEN5621 4 SAMSUNG LTM170EU-L21 4 TSU56AK Panel 5 HSD HSD170ME13 Main-board 5 GEN2120 4. The EMC tests were performed on the samples listed below: Sample No. Panel Main-board 1 Chung Hwa CLAA170EA07 RTD2023 2 CHIMEI M170E5-L05 RTD2023 3 SHARP LQ170ELG11 RTD2023 4 SAMSUNG LTM170EU-L2 RTD2023 5 HSD HSD170ME13 RTD2023 6 Chung Hwa CLAA170EA07 ST3800 7 CHIMEI M170E5-L05 ST3800 8 SHARP LQ170ELG11 ST3800 9 SAMSUNG LTM170EU-L2 ST3800 10 HSD HSD170ME13 ST3800 11 Chung Hwa CLAA170EA07 GEN5621 12 CHIMEI M170E5-L05 GEN5621 13 SHARP LQ170ELG11 GEN5621 14 SAMSUNG LTM170EU-L2 GEN5621 15 HSD HSD170ME13 GEN5621 16 Chung Hwa CLAA170EA07 TSU56AK 17 CHIMEI M170E5-L05 TSU56AK 18 SHARP LQ170ELG11 TSU56AK 19 SAMSUNG LTM170EU-L2 TSU56AK 20 HSD HSD170ME13 TSU56AK 21 Chung Hwa CLAA170EA07 GEN2120 22 CHIMEI M170E5-L05 GEN2120 23 SHARP LQ170ELG11 GEN2120 24 SAMSUNG LTM170EU-L2 GEN2120 25 HSD HSD170ME13 GEN2120 Report No. FCC05-8007 Page 5 of 81 2 Summary of Test Results The EUT has been tested according to FCC part 15, Class B. The test procedure is according to ANSI C63.4: 2001. The test results are as following: EMI…

Text truncated - open the document above for the full version.

Report No. FCC05-8007 Page 21 of 81 17. Mains terminal disturbance voltageQP detector, L phase, Sample 9 18. Mains terminal disturbance voltageQP detector, N phase, Sample 9 Report No. FCC05-8007 Page 22 of 81 19. Mains terminal disturbance voltageQP detector, L phase, Sample 10 20. Mains terminal disturbance voltageQP detector, N phase, Sample 10 Report No. FCC05-8007 Page 23 of 81 21. Mains terminal disturbance voltageQP detector, L phase, Sample 11 22. Mains terminal disturbance voltageQP detector, N phase, Sample 11 Report No. FCC05-8007 Page 24 of 81 23. Mains terminal disturbance voltageQP detector, L phase, Sample 12 24. Mains terminal disturbance voltageQP detector, N phase, Sample 12 Report No. FCC05-8007 Page 25 of 81 25. Mains terminal disturbance voltageQP detector, L phase, Sample 13 26. Mains terminal disturbance voltageQP detector, N phase, Sample 13 Report No. FCC05-8007 Page 26 of 81 27. Mains terminal disturbance voltageQP detector, L phase, Sample 14 28. Mains terminal disturbance voltageQP detector, N phase, Sample 14 Report No. FCC05-8007 Page 27 of 81 29. Mains terminal disturbance voltageQP detector, L phase, Sample 15 30. Mains terminal disturbance voltageQP detector, N phase, Sample 15 Report No. FCC05-8007 Page 28 of 81 31. Mains terminal disturbance voltageQP detector, L phase, Sample 16 32. Mains terminal disturbance voltageQP detector, N phase, Sample 16 Report No. FCC05-8007 Page 29 of 81 33. Mains terminal disturbance voltageQP detector, L phase, Sample 17 34. Mains terminal disturbance voltageQP detector, N phase, Sample 17 Report No. FCC05-8007 Page 30 of 81 35. Mains terminal disturbance voltageQP detector, L phase, Sample 18 36. Mains terminal disturbance voltageQP detector, N phase, Sample 18

Report No. FCC05-8007 Page 31 of 81 37. Mains terminal disturbance voltageQP detector, L phase, Sample 19 38. Mains terminal disturbance voltageQP detector, N phase, Sample 19 Report No. FCC05-8007 Page 32 of 81 39. Mains terminal disturbance voltageQP detector, L phase, Sample 20 40. Mains terminal disturbance voltageQP detector, N phase, Sample 20 Report No. FCC05-8007 Page 33 of 81 41. Mains terminal disturbance voltageQP detector, L phase, Sample 21 42. Mains terminal disturbance voltageQP detector, N phase, Sample 21 Report No. FCC05-8007 Page 34 of 81 43. Mains terminal disturbance voltageQP detector, L phase, Sample 22 44. Mains terminal disturbance voltageQP detector, N phase, Sample 22 Report No. FCC05-8007 Page 35 of 81 45. Mains terminal disturbance voltageQP detector, L phase, Sample 23 46. Mains terminal disturbance voltageQP detector, N phase, Sample 23 Report No. FCC05-8007 Page 36 of 81 47. Mains terminal disturbance voltageQP detector, L phase, Sample 24 48. Mains terminal disturbance voltageQP detector, N phase, Sample 24 Report No. FCC05-8007 Page 37 of 81 49. Mains terminal disturbance voltageQP detector, L phase, Sample 25 50. Mains terminal disturbance voltageQP detector, N phase, Sample 25 Report No. FCC05-8007 Page 38 of 81 5 Radiated Emission Test 5.1 Limits of Radiated Emission The field strength of radiated emissions from unintentional radiators at a distance of 3 meters shall not exceed the following values: Frequency of Emission (MHz) Field Strength (μV/m) Field Strength (dBμV/m) 30 - 88 100 40 88 -216 150 43.5 216 - 960 200 46 Above 960 500 54 NOTE: 1. Field Strength (dBμV/m)=20log Field Strength (μV/m). 2. In the emission tables above, the tighter limit applies at the band edges. 5.2 Test Instruments Description Manufacturer Model No. Serial No. Calibration Date Test Receiver ROHDE&SCHWARZ ESIB26 100130 2004.01.15 Ultra Broadband Ant. ROHDE&SCHWARZ HL562 100089 2004.06.04 Semi-Anechoic Chamber Albatross H-249 P21505-016-001 2004.08.20 5.3 Test Procedure a. The EUT was placed on the top of a ratable 0.8 meters above the ground at a semi-anechoic chamber. The table was rotated 360 degrees to determine the position of the highest radiation. b. The EUT was set 3 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna tower. c. The antenna is a broadband antenna, and its height is varied from one meter to four meter above the ground to determine the maximum value of the field strength. Both horizontal and vertical polarizations of the antenna are set to make the measurement. d. For each suspected emission, the EUT was arranged to its worst case and then the antenna was tuned to the heights from 1 to 4 meters and the ratable table was turned from 0 degrees to 360 degrees to find the maximum reading. e. The test-receiver system was set to Peak Detector Function and Specified Bandwidth with Maximum Hold Mode. Report No. FCC05-8007 Page 39 of 81 f. If the emission level of the EUT in peak mode was 10 dB lower than the limit specified, then testing could be stopped and the peak values of the EUT would be reported. Otherwise the emission that did not have 10 dB margin would be retested one by one using the quasi-peak method. 5.4 Test Setup For the actual test configuration, please refer to the related item-Photographs of the Test Configuration. 5.5 EUT Operating Conditions The EUT was powered by 120V AC Mains. The brightness and contrast was set to maximum, and the resolution was set to 1024*768@60Hz. Antenna Turntable Semi-anechoic Chamber Mast 360 1m4m EUT 3m 80cm Receiver Report No. FCC05-8007 Page 40 of 81 5.6 Test Results Sample1: No. Frequency (MHz) Antenna Polarization Antenna Height (cm) Table Angle (Degree) QP Limits (dBμV/m) Emission Level (dBμV/m) 1 111.12 Horizontal 150 0 43.5 29.70 2 135.06 Vertical 100 0 43.5 38.43 3 298.22 Horizontal 150 0 46 37.05 Sample2: No. Frequency (MHz) Antenna Polarization Antenna Height (cm) Table Angle (Degree) QP Limits (dBμV/m) Emission Level (dBμV/m) 1 178.60 Vertical 100 0 43.5 29.88 2 218.45 Horizontal 150 0 46 31.23 3 456.02 Vertical 100 0 46 35.47 4 604.76 Horizontal 150 0 46 33.78 Sample3: No. Frequency (MHz) Antenna Polarization Antenna Height (cm) Table Angle (Degree) QP Limits (dBμV/m) Emission Level (dBμV/m) 1 108.06 Horizontal 150 180 43.5 30.28 2 398.87 Horizontal 150 0 46 28.76 3 431.84 Vertical 100 0 46 32.77 4 599.78 Vertical 100 0 46 33.22 Sample4: No. Frequency (MHz) Antenna Polarization Antenna Height (cm) Table Angle (Degree) QP Limits (dBμV/m) Emission Level (dBμV/m) 1 54.00 Vertical 100 0 40 31.79 2 364.52 Horizontal 150 0 46 36.45 3 486.02 Vertical 100 0 46 39.28 4 729.02 Horizontal 150 0 46 39.30 Sample5: No. Frequency (MHz) Antenna Polarization Antenna Height (cm) Table Angle (Degree) QP Limits (dBμV/m) Emission Level (dBμV/m) 1 33.78 Vertical 100 0 40 30.77 2 398.18 Horizontal 150 0 46 39.89

Report No. FCC05-8007 Page 41 of 81 Sample6: No. Frequency (MHz) Antenna Polarization Antenna Height (cm) Table Angle (Degree) QP Limits (dBμV/m) Emission Level (dBμV/m) 1 111.12 Horizontal 150 0 43.5 29.70 2 135.06 Vertical 100 0 43.5 38.43 3 298.22 Horizontal 150 0 46 37.05 Sample7: No. Frequency (MHz) Antenna Polarization Antenna Height (cm) Table Angle (Degree) QP Limits (dBμV/m) Emission Level (dBμV/m) 1 178.60 Vertical 100 0 43.5 29.88 2 218.45 Horizontal 150 0 46 31.23 3 456.02 Vertical 100 0 46 35.47 4 604.76 Horizontal 150 0 46 33.78 Sample8: No. Frequency (MHz) Antenna Polarization Antenna Height (cm) Table Angle (Degree) QP Limits (dBμV/m) Emission Level (dBμV/m) 1 108.06 Horizontal 150 180 43.5 30.28 2 398.87 Horizontal 150 0 46 28.76 3 431.84 Vertical 100 0 46 32.77 4 599.78 Vertical 100 0 46 33.22 Sample9: No. Frequency (MHz) Antenna Polarization Antenna Height (cm) Table Angle (Degree) QP Limits (dBμV/m) Emission Level (dBμV/m) 1 54.00 Vertical 100 0 40 31.79 2 364.52 Horizontal 150 0 46 36.45 3 486.02 Vertical 100 0 46 39.28 4 729.02 Horizontal 150 0 46 39.30 Sample10: No. Frequency (MHz) Antenna Polarization Antenna Height (cm) Table Angle (Degree) QP Limits (dBμV/m) Emission Level (dBμV/m) 1 33.78 Vertical 100 0 40 30.77 2 398.18 Horizontal 150 0 46 39.89 Report No. FCC05-8007 Page 42 of 81 Sample11: No. Frequency (MHz) Antenna Polarization Antenna Height (cm) Table Angle (Degree) QP Limits (dBμV/m) Emission Level (dBμV/m) 1 111.12 Horizontal 150 0 43.5 29.70 2 135.06 Vertical 100 0 43.5 38.43 3 298.22 Horizontal 150 0 46 37.05 Sample12: No. Frequency (MHz) Antenna Polarization Antenna Height (cm) Table Angle (Degree) QP Limits (dBμV/m) Emission Level (dBμV/m) 1 178.60 Vertical 100 0 43.5 29.88 2 218.45 Horizontal 150 0 46 31.23 3 456.02 Vertical 100 0 46 35.47 4 604.76 Horizontal 150 0 46 33.78 Sample13: No. Frequency (MHz) Antenna Polarization Antenna Height (cm) Table Angle (Degree) QP Limits (dBμV/m) Emission Level (dBμV/m) 1 108.06 Horizontal 150 180 43.5 30.28 2 398.87 Horizontal 150 0 46 28.76 3 431.84 Vertical 100 0 46 32.77 4 599.78 Vertical 100 0 46 33.22 Sample14: No. Frequency (MHz) Antenna Polarization Antenna Height (cm) Table Angle (Degree) QP Limits (dBμV/m) Emission Level (dBμV/m) 1 54.00 Vertical 100 0 40 31.79 2 364.52 Horizontal 150 0 46 36.45 3 486.02 Vertical 100 0 46 39.28 4 729.02 Horizontal 150 0 46 39.30 Sample15: No. Frequency (MHz) Antenna Polarization Antenna Height (cm) Table Angle (Degree) QP Limits (dBμV/m) Emission Level (dBμV/m) 1 33.78 Vertical 100 0 40 30.77 2 398.18 Horizontal 150 0 46 39.89 Report No. FCC05-8007 Page 43 of 81 Sample16: No. Frequency (MHz) Antenna Polarization Antenna Height (cm) Table Angle (Degree) QP Limits (dBμV/m) Emission Level (dBμV/m) 1 111.12 Horizontal 150 0 43.5 29.70 2 135.06 Vertical 100 0 43.5 38.43 3 298.22 Horizontal 150 0 46 37.05 Sample17: No. Frequency (MHz) Antenna Polarization Antenna Height (cm) Table Angle (Degree) QP Limits (dBμV/m) Emission Level (dBμV/m) 1 178.60 Vertical 100 0 43.5 29.88 2 218.45 Horizontal 150 0 46 31.23 3 456.02 Vertical 100 0 46 35.47 4 604.76 Horizontal 150 0 46 33.78 Sample18: No. Frequency (MHz) Antenna Polarization Antenna Height (cm) Table Angle (Degree) QP Limits (dBμV/m) Emission Level (dBμV/m) 1 108.06 Horizontal 150 180 43.5 30.28 2 398.87 Horizontal 150 0 46 28.76 3 431.84 Vertical 100 0 46 32.77 4 599.78 Vertical 100 0 46 33.22 Sample19: No. Frequency (MHz) Antenna Polarization Antenna Height (cm) Table Angle (Degree) QP Limits (dBμV/m) Emission Level (dBμV/m) 1 54.00 Vertical 100 0 40 31.79 2 364.52 Horizontal 150 0 46 36.45 3 486.02 Vertical 100 0 46 39.28 4 729.02 Horizontal 150 0 46 39.30 Sample20: No. Frequency (MHz) Antenna Polarization Antenna Height (cm) Table Angle (Degree) QP Limits (dBμV/m) Emission Level (dBμV/m) 1 33.78 Vertical 100 0 40 30.77 2 398.18 Horizontal 150 0 46 39.89 Report No. FCC05-8007 Page 44 of 81 Sample21: No. Frequency (MHz) Antenna Polarization Antenna Height (cm) Table Angle (Degree) QP Limits (dBμV/m) Emission Level (dBμV/m) 1 111.12 Horizontal 150 0 43.5 29.70 2 135.06 Vertical 100 0 43.5 38.43 3 298.22 Horizontal 150 0 46 37.05 Sample22: No. Frequency (MHz) Antenna Polarization Antenna Height (cm) Table Angle (Degree) QP Limits (dBμV/m) Emission Level (dBμV/m) 1 178.60 Vertical 100 0 43.5 29.88 2 218.45 Horizontal 150 0 46 31.23 3 456.02 Vertical 100 0 46 35.47 4 604.76 Horizontal 150 0 46 33.78 Sample23: No. Frequency (MHz) Antenna Polarization Antenna Height (cm) Table Angle (Degree) QP Limits (dBμV/m) Emission Level (dBμV/m) 1 108.06 Horizontal 150 180 43.5 30.28 2 398.87 Horizontal 150 0 46 28.76 3 431.84 Vertical 100 0 46 32.77 4 599.78 Vertical 100 0 46 33.22 Sample24: No. Frequency (MHz) Antenna Polarization Antenna Height (cm) Table Angle (Degree) QP Limits (dBμV/m) Emission Level (dBμV/m) 1 54.00 Vertical 100 0 40 31.79 2 364.52 Horizontal 150 0 46 36.45 3 486.02 Vertical 100 0 46 39.28 4 729.02 Horizontal 150 0 46 39.30 Sample25: No. Frequency (MHz) Antenna Polarization Antenna Height (cm) Table Angle (Degree) QP Limits (dBμV/m) Emission Level (dBμV/m) 1 33.78 Vertical 100 0 40 30.77 2 398.18 Horizontal 150 0 46 39.89 Report No. FCC05-8007 Page 45 of 81 1. Radiation disturbances, antenna polarization: Vertical Sample1 2. Radiation disturbances, antenna polarization: Horizontal Sample1 0 10 20 30 40 50 60 Level [dBμV/m] 30M 50M 70M 100M 200M 300M 500M 700M 1G Frequency [Hz] Marker: 298.22 MHz 38.59 dBμV/m MES h LIM FCC ClassB F QP/AV FCC ClassB, field strength 0 10 20 30 40 50 60 Level [dBμV/m] 30M 50M 70M 100M 200M 300M 500M 700M 1G Frequency [Hz] Marker: 135.06 MHz 38.28 dBμV/m MES v LIM FCC ClassB F QP/AV FCC ClassB, field strength Report No. FCC05-8007 Page 46 of 81 3. Radiation disturbances, antenna polarization: Vertical, Sample2 4. Radiation disturbances, antenna polarization: Horizontal, Sample2 0 10 20 30 40 50 60 70 Level [dBμV/m] 30M 50M 70M 100M 200M 300M 500M 700M 1G Frequency [Hz] Marker: 456.02 MHz 37…

Text truncated - open the document above for the full version.

Report No. FCC05-8007 Page 81 of 81 Appendix IIPhotographs of Test Configuration 1. Mains Terminal Disturbance Voltage Measurement 2. Radiated Field Strength Measurement
