KXYL9XXXXXCOLOR LCD MONITOR

Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. See 47 CFR Sec. 15.21. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. See 47 CFR Sec. 15.19(3).

Date: August,28,2006 Federal communications commission Authorization and Evaluation Division FCC ID: KXYL9XXXXX Confidentiality Request Pursuant to section 0.457 and 0.459 of the commission’s rules,the applicant hereby requests confidential treatment of information accompanying this application as outline below: 1. Schematics 2. Block diagram 3. Operational description The above materials contain trade secrets and proprietary information not customarily released to the public,the public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Liu qian/Safety engineer China Great-Wall Computer Shenzhen Co., Ltd. TEL: 0755-27622401 FAX: 0755-27622386

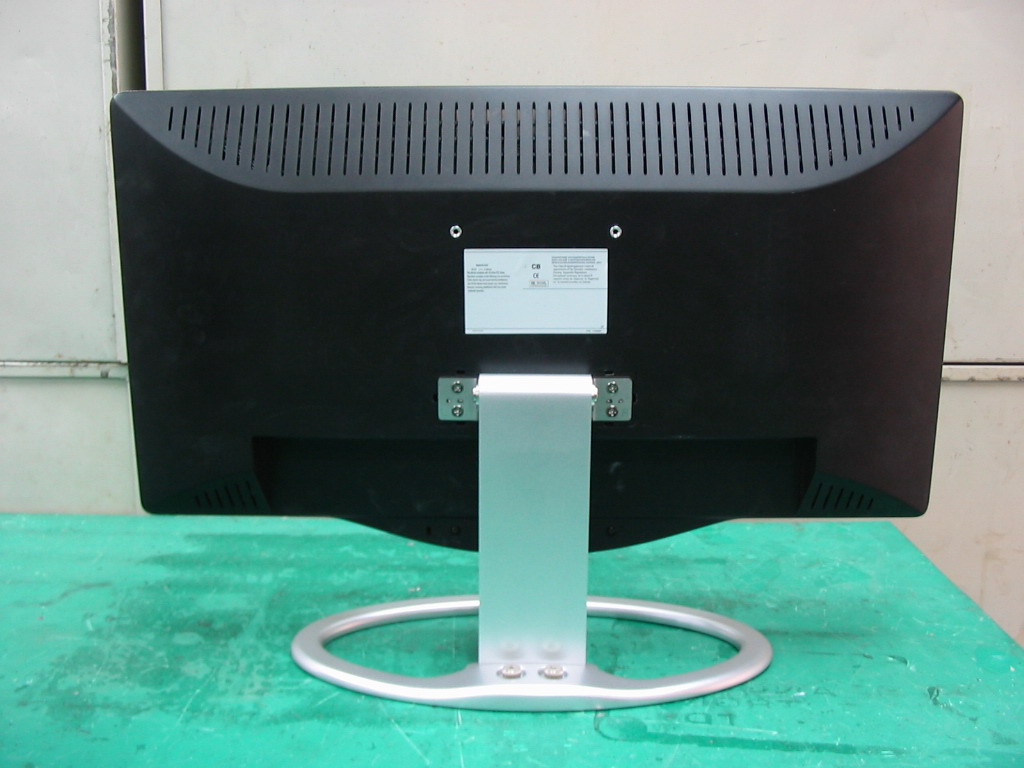

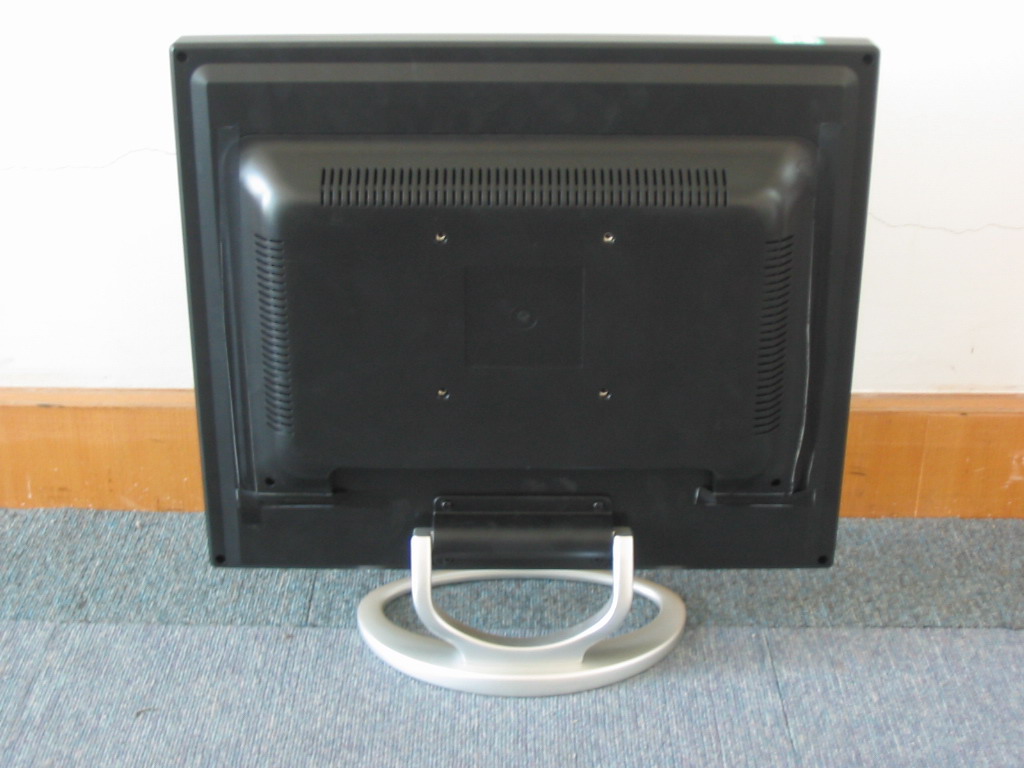

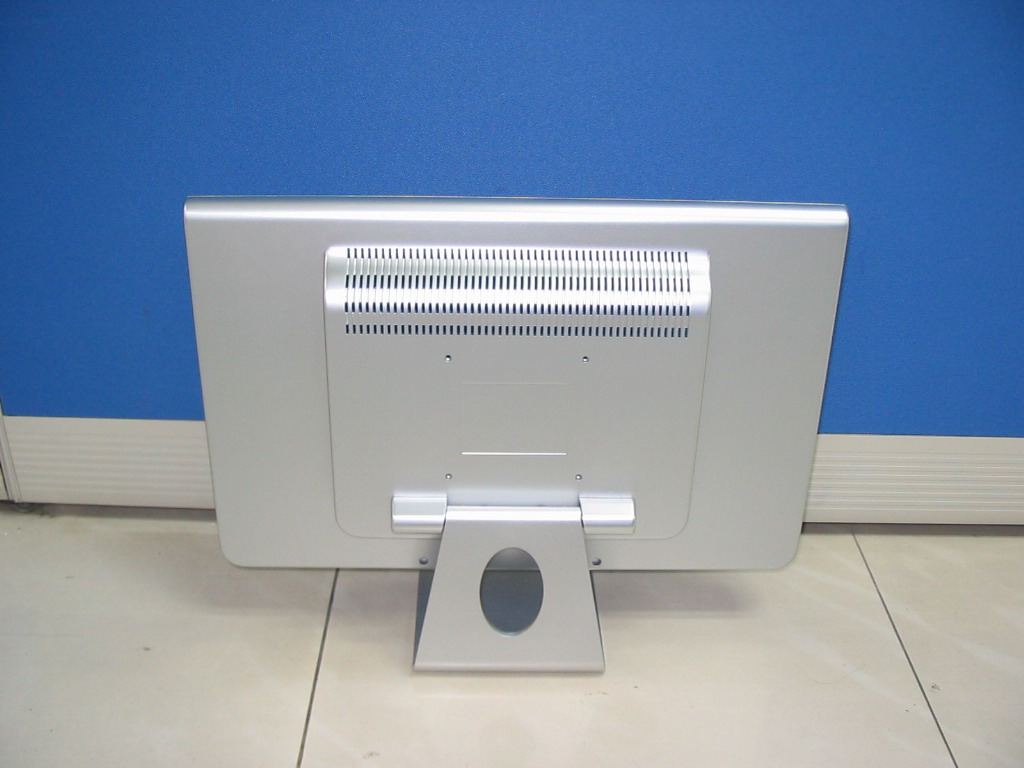

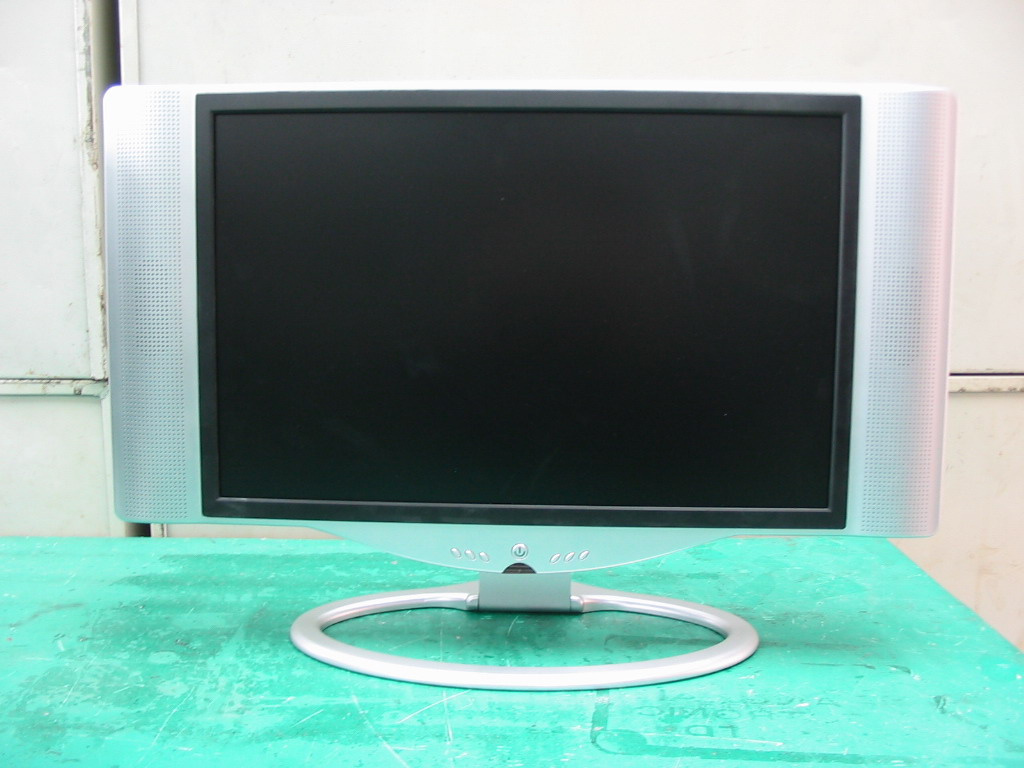

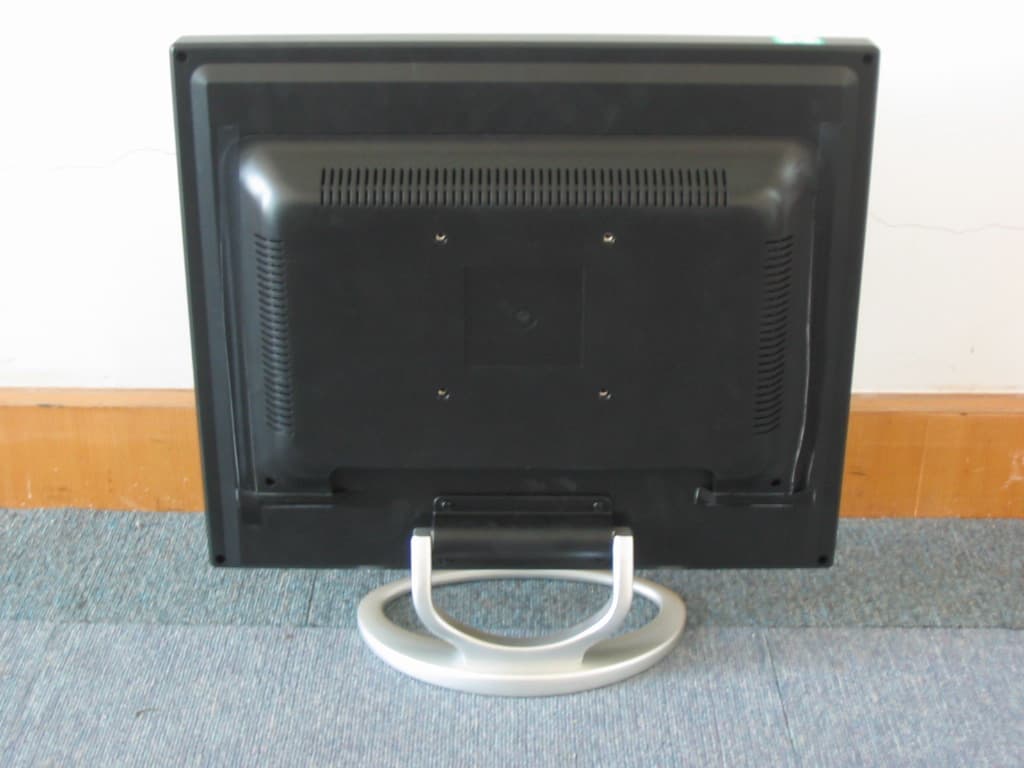

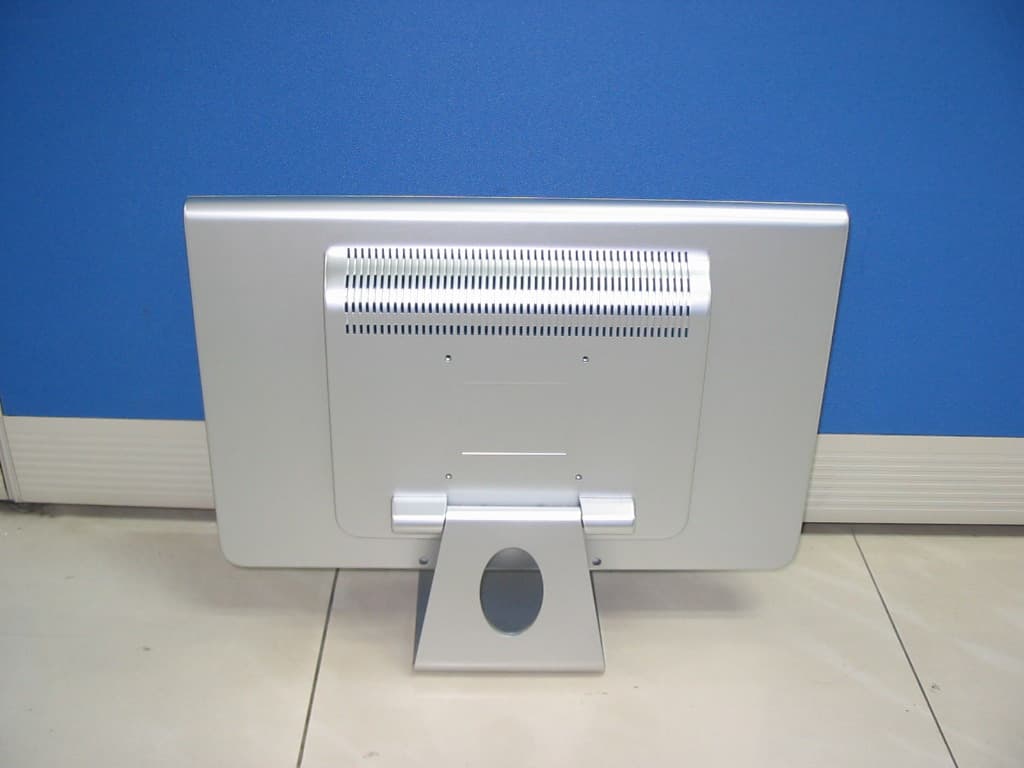

EUT PHOTOGRAPHS 1. EUT-Front View 1 2. EUT-Back View 1 3. EUT-Front View 2 4. EUT-Back View 2 5. EUT-Front View 3 6. EUT-Back View 3 7. All Adapters for EUT Adapter 1-- WDS060120 Adapter 2-- PAA060F Adapter 3-- SAWA-01-483

FCC Label&Location 1. FCC Label location The label will be permanently affixed at a conspicuous location on the device 2. FCC Label sample Label Location

EUT PHOTOGRAPHS 1. All Panels For EUT Sample 1—Panel--BOE HT190E01-100 Sample 2---Panel---SAMSUNG LTM190EX-L01 Sample 3---Panel---SAMSUNG LTM190M2-L01 Sample 4---Panel---CHIMEI M190A1-L01 Sample 5---Panel---CHIMEI M190A1-L02 2. Inside of EUT 3. Front view of Main board 4. Back view of Main board 5．Front view of Secondary circuit board 6. Back view of Secondary circuit board

670 National Avenue, Mountain View, CA 94043 Tel. (650) 988-0900 Fax (650) 988-6647 www.ecmg-global.com EMI Test Report On Model Name: Color LCD Monitor Model Number: L9XXXXX Brand Name: N/A FCC ID ： KXYL9XXXXX Prepared for CHINA GREAT-WALL COMPUTER SHENZHEN CO., LTD According to FCC Part 15 Class B Test Report #: PSZ06060159FCCID Prepared by: Ravin Su QC Manager: Paul Chen Test Report Released by: 2006, August 29 ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ ⎯⎯⎯⎯⎯⎯ Paul Chen Date NVLAP Lab code: 200068-0 ISO/IEC 17025:1999, ISO 9002:1994 Test Location Tests performed in a Certified ANSI Semi-Anechoic Chamber and Shielded Room. Test Site Location: Shenzhen Electronic Product Quality Testing Center. Electronic Testing Building Shahe Road, Xili, Nanshan District Shenzhen 518055, P.R. China. Tel: 86-755-26703698 Fax: 86-755-26627238 Registration Number: 261032 **Note ： This test report consists of 31 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by SET. The test results in the report only apply to the tested sample. The Test Report shall be invalid without all the signatures of testing engineers, reviewer and approver. Accreditation Bodies EMC Compliance Management Group is a fully accredited Test Laboratory for ITE, ISM, MIL-STD and Telecommunications Products. In compliance with the site registration requirements of Section 2.948 of the FCC Rules to perform EMI measurements for the general public. FCC Registration #: 894293. Accredited by the National Voluntary Laboratory Accreditation Program for the specific scope of accreditation under Lab Code # 200068-0. Report No. PSZ06060159FCCID Page 1 of 29 Table of Contents 1 General Description of EUT .........................................................................................................2 2 Summary of Test Results...............................................................................................................4 3 Test Report Certification ...............................................................................................................4 4 Conducted Emission Test ..............................................................................................................5 4.1 Limits of Conducted Emission..............................................................................................5 4.2 Test Instruments ....................................................................................................................5 4.3 Test Procedure .......................................................................................................................5 4.4 Test Setup ..............................................................................................................................6 4.5 EUT Operating Conditions ...................................................................................................6 4.6 Test Results ...........................................................................................................................6 5 Radiated Emission Test ...............................................................................................................13 5.1 Limits of Radiated Emission ...............................................................................................13 5.2 Test Instruments ..................................................................................................................13 5.3 Test Procedure .....................................................................................................................13 5.4 Test Setup ............................................................................................................................14 5.5 EUT Operating Conditions .................................................................................................14 5.6 Test Results .........................................................................................................................15 Appendix I：Photographs of the EUT..............................................................................................21 Appendix II：Photographs of Test Configuration ............................................................................29 Report No. PSZ06060159FCCID Page 2 of 29 1 General Description of EUT Product: Color LCD Monitor Brand name: / Model No.: L9XXXXX Power Supply: DC 12V 5A I/O Signal Ports: VGA Applicant: CHINA GREAT-WALL COMPUTER SHENZHEN CO., LTD. Applicant Address: Greatwall Computer Industry Park, Baoshi East Rd. Shiyan County, Baoan, Shenzhen Manufacturer: CHINA GREAT-WALL COMPUTER SHENZHEN CO., LTD. Manufacturer Address: Greatwall Computer Industry Park, Baoshi East Rd. Shiyan County, Baoan, Shenzhen NOTE: 1. The EUT is 19inch LCD Monitor--class B information technology equipment according to FCC Part 15.For a more detailed features description about the EUT, please refer to User’s Manual. 2. The models L9XXXXX are a series of color LCD monitor, X can be A to Z or 0 to 9 or none, stands for different customers. 3. This series of color LCD monitor have different on the panel Report No. PSZ06060159FCCID Page 3 of 29 All panels, main-boards and adaptors are listed below: No Manufacture Model No Model 1 BOE HT190E01-100 2 CHIMEI M190E3-L02 3 CHIMEI M190A1-L01 4 SAMSUNG LTM190M2-L01 Panel 5 SAMSUNG LTM190EX-L01 Main-board 1 M56AK WDS060120 PAA060F Adaptor SAWA-01-483 4. The EMC tests were performed on the samples listed below to represent the other models: Sample No. Panel Main-board 1 BOE HT190E01-100 2 CHIMEI M190E3-L02 3 CHIMEI M190A1-L01 4 SAMSUNG LTM190M2-L01 5 SAMSUNG LTM190EX-L01 M56AK Report No. PSZ06060159FCCID Page 4 of 29 2 Summary of Test Results The EUT has been tested according to FCC part 15, Class B. The test procedure is according to ANSI C63.4: 2003. The test results are as…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS 1．Mains Terminal Disturbance Voltage Measurement 2. Radiated Field Strength Measurement
